Harfington Straight Spur Gear 10mm Inner Aperture 71T 1 Module 45# Steel Motor Gear

Straight Spur Gear 10mm Inner Aperture 71T 1 Module 45# Steel Motor Gear

ID:1284614
ID:1284614
Wholesale Price
20%OFF
Order €4,500+
  • 20%OFF
    Order €4,500+
  • 15%OFF
    Order €1,800+
  • 10%OFF
    Order €720+
  • 7%OFF
    Order €450+
  • 5%OFF
    Order €180+
About this item

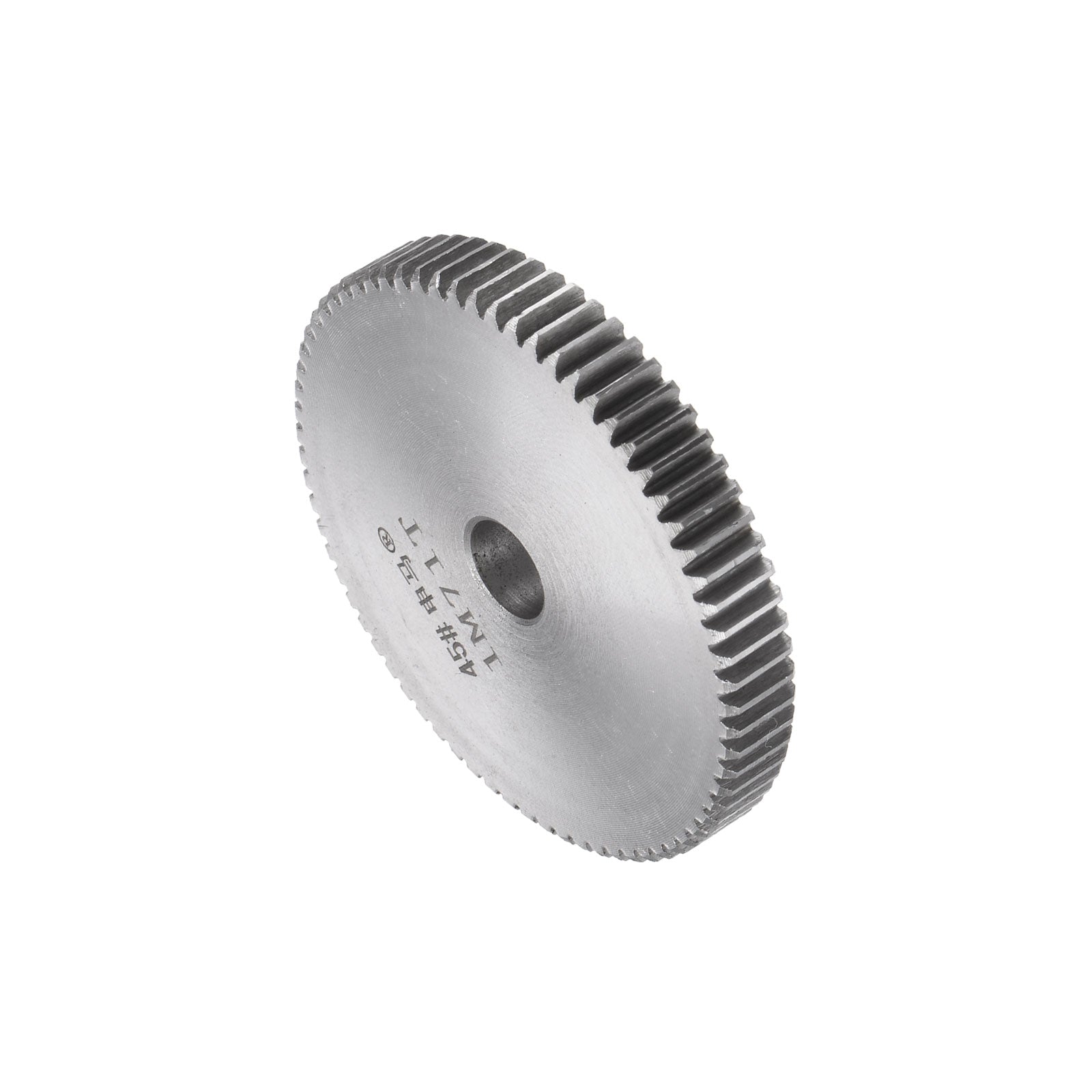

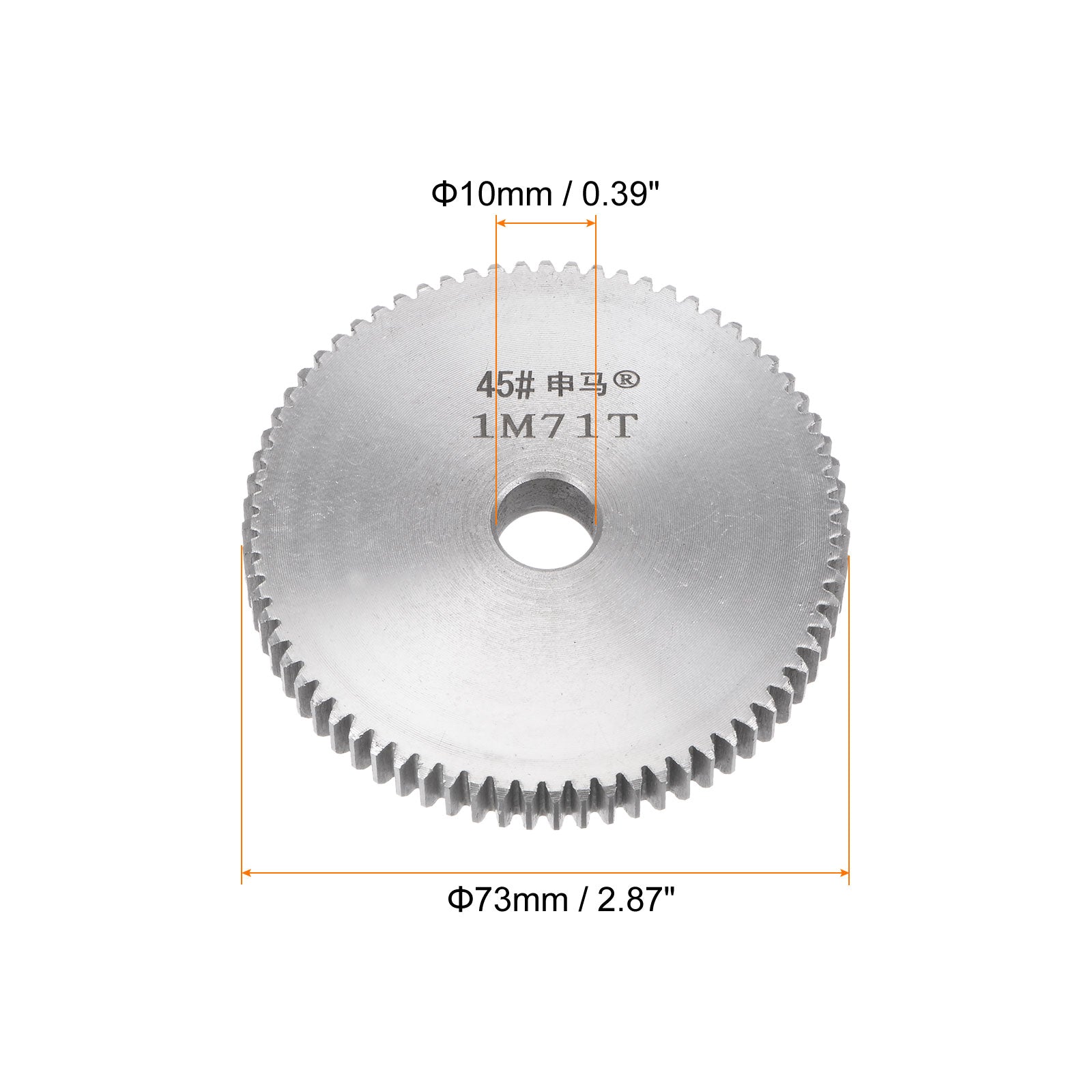

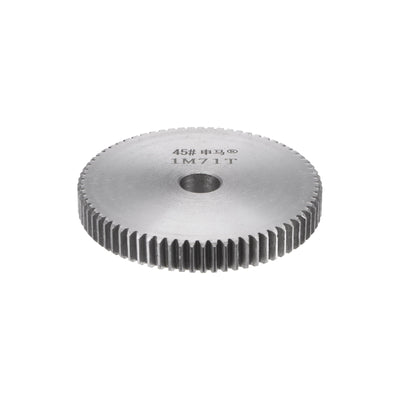

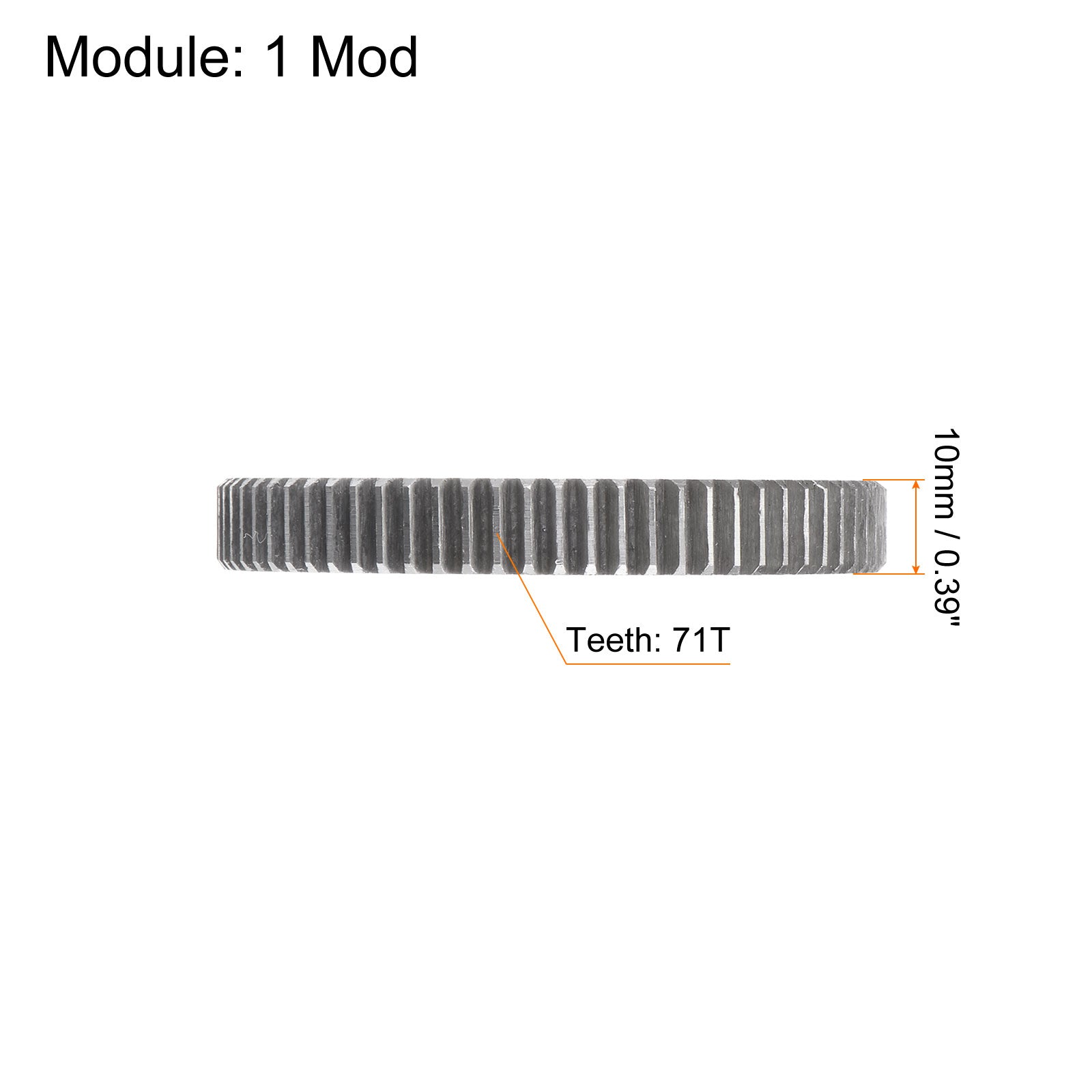

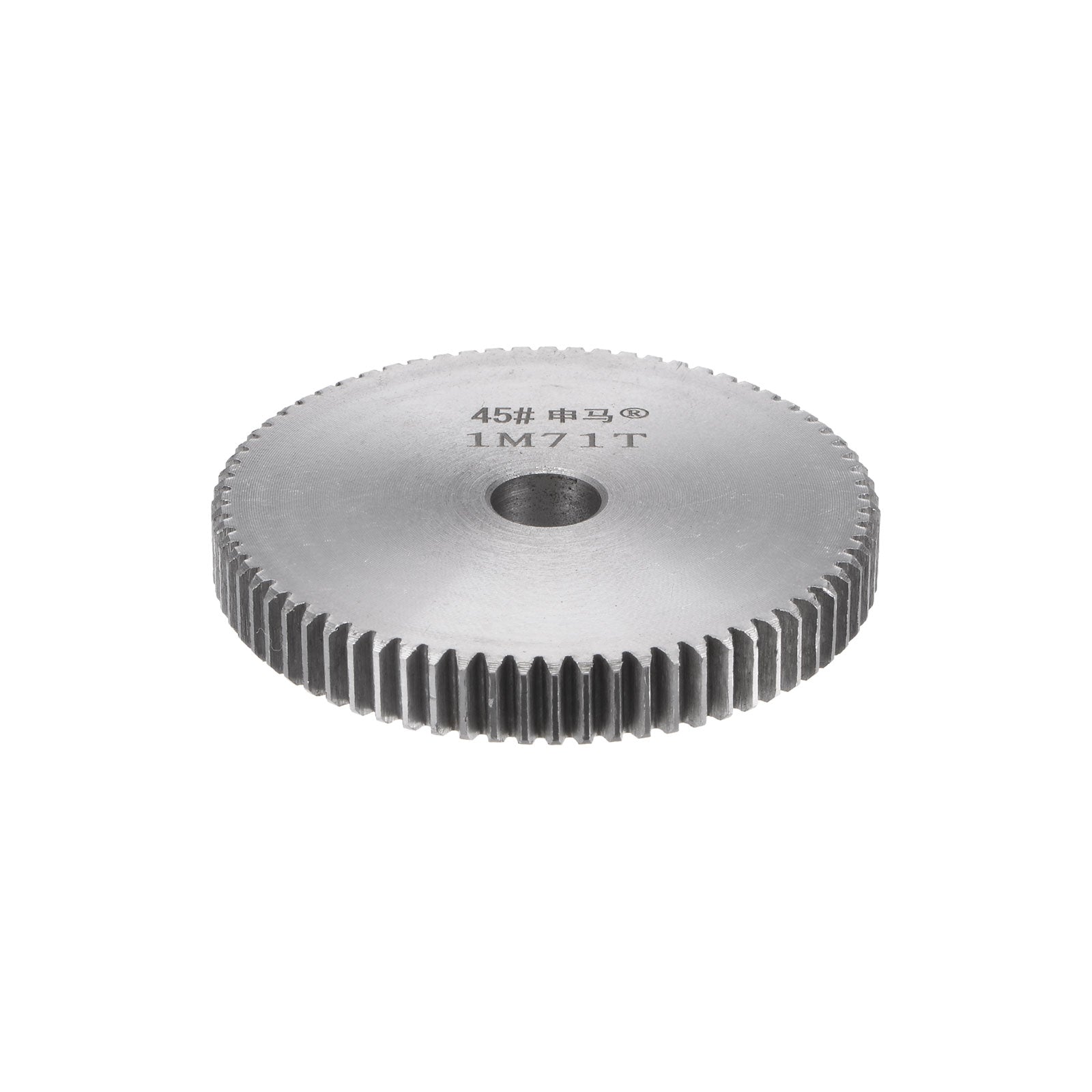

  • Size - Teeth: Teeth: 71T, Tooth Pitch: 3.14mm / 0.12inch, Tooth Depth: 2.25mm / 0.09inch, Outer Diameter: 73mm / 2.87inch, Aperture: 10mm / 0.39inch, Effective Tooth Length: 10mm / 0.39inch, Total Thickness: 10mm / 0.39inch, Module: 1-Mod, Pressure Angle: 20°
  • Material - The pinion motor gear is made of 45# Steel, the tooth surface is treated by high frequency quenching, more stable, anti-wear, strong and durable, and durable in use.
  • Feature - Good machining made less rough and noise than other gears, making them roll smoothly.
  • Application - Good straight spur gear replacement for your device.
  • Note - The pinion gear aperture is 10mm and the module is 1, please check the size before purchasing. You will receive 1 x straight spur gear (The inner hole of the gear is rough and requires additional processing).
About this item
  • Size - Teeth: Teeth: 71T, Tooth Pitch: 3.14mm / 0.12inch, Tooth Depth: 2.25mm / 0.09inch, Outer Diameter: 73mm / 2.87inch, Aperture: 10mm / 0.39inch, Effective Tooth Length: 10mm / 0.39inch, Total Thickness: 10mm / 0.39inch, Module: 1-Mod, Pressure Angle: 20°
  • Material - The pinion motor gear is made of 45# Steel, the tooth surface is treated by high frequency quenching, more stable, anti-wear, strong and durable, and durable in use.
  • Feature - Good machining made less rough and noise than other gears, making them roll smoothly.
  • Application - Good straight spur gear replacement for your device.
  • Note - The pinion gear aperture is 10mm and the module is 1, please check the size before purchasing. You will receive 1 x straight spur gear (The inner hole of the gear is rough and requires additional processing).
Specification

Specification

SKU
a22071200ux0227
Pkg.Qty
1
Material
45 Steel
Teeth
71T
Aperture
10mm
Effective Tooth Length
10mm
Thickness
10mm
Outer Dia.
73mm
Module
Mod 1
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
1. The pinion motor gear is made of 45# Steel, the tooth surface is treated by high frequency quenching, more stable, anti-wear, strong and durable, and durable in use.
2. Specifications: Material: 45# Steel, Teeth: 71T, Tooth Pitch: 3.14mm / 0.12inch, Tooth Depth: 2.25mm / 0.09inch, Outer Diameter: 73mm / 2.87inch, Aperture: 10mm / 0.39inch, Effective Tooth Length: 10mm / 0.39inch, Total Thickness: 10mm / 0.39inch, Module: 1 Mod, Pressure Angle: 20°
3. The pinion gear aperture is 12mm and the module is 1, please check the size before purchasing.
4. Good machining made less rough and noise than other gears, making them roll smoothly.
5. Good straight spur gear replacement for your device.
6. You will receive 1 x straight spur gear.
€13,46 €13,46/eachRegular price
/
Wholesale Price
20%OFF
Order €4,500+
  • 20%OFF
    Order €4,500+
  • 15%OFF
    Order €1,800+
  • 10%OFF
    Order €720+
  • 7%OFF
    Order €450+
  • 5%OFF
    Order €180+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over €15
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Aperture Module Teeth Effective Tooth Length Outer Dia. Thickness Material Pkg.Qty ID Price Qty
10mm Mod 1 71T 10mm 73mm 10mm 45 Steel 1 1284614 €11,12
Products Aperture Module Teeth Effective Tooth Length Outer Dia. Thickness Material Pkg.Qty ID Price Qty
10mm Mod 1 71T 10mm 73mm 10mm 45 Steel 1 1284614 €11,12
6mm Mod 1 15T 10mm 17mm 10mm 45 Steel 1 1284633 €6,96
6mm Mod 1 15T 10mm 17mm 10mm 45 Steel 2 1284632 €8,44
6mm Mod 1 22T 10mm 24mm 10mm 45 Steel 2 1284645 €9,52
6mm Mod 1 17T 10mm 19mm 10mm 45 Steel 1 1284650 €7,04
6mm Mod 1 29T 10mm 31mm 10mm 45 Steel 1 1284678 €8,06
6mm Mod 1 14T 10mm 16mm 10mm 45 Steel 2 1284630 €8,40
6mm Mod 1 21T 10mm 23mm 10mm 45 Steel 1 1284656 €7,46
6mm Mod 1 21T 10mm 23mm 10mm 45 Steel 2 1284655 €9,36
6mm Mod 1 18T 10mm 20mm 10mm 45 Steel 1 1284648 €7,15
6mm Mod 1 19T 10mm 21mm 10mm 45 Steel 2 1284640 €8,84
6mm Mod 1 26T 10mm 28mm 10mm 45 Steel 2 1284660 €10,18
6mm Mod 1 33T / 35mm 10mm 45 Steel 1 1307091 €7,66
6mm Mod 1 20T 10mm 22mm 10mm 45 Steel 1 1284647 €7,34
6mm Mod 1 20T 10mm 22mm 10mm 45 Steel 2 1284649 €9,14
6mm Mod 1 25T 10mm 27mm 10mm 45 Steel 1 1284657 €7,80
6mm Mod 1 25T 10mm 27mm 10mm 45 Steel 2 1284665 €10,02
6mm Mod 1 16T 10mm 18mm 10mm 45 Steel 1 1284638 €7,00
6mm Mod 1 16T 10mm 18mm 10mm 45 Steel 2 1284639 €8,53
6mm Mod 1 12T 10mm 14mm 10mm 45 Steel 1 1284618 €6,91
10mm Mod 1 75T 10mm 77mm 10mm 45 Steel 1 1284625 €14,17
10mm Mod 1 90T 10mm 92mm 10mm 45 Steel 1 1284635 €17,39
10mm Mod 1 73T 10mm 75mm 10mm 45 Steel 1 1284611 €13,84
10mm Mod 1 83T 10mm 85mm 10mm 45 Steel 1 1284641 €16,06
10mm Mod 1 88T 10mm 90mm 10mm 45 Steel 1 1284621 €16,94
10mm Mod 1 80T 10mm 82mm 10mm 45 Steel 1 1284620 €15,29
10mm Mod 1 79T 10mm 81mm 10mm 45 Steel 1 1284623 €15,05
10mm Mod 1 93T / 95mm 10mm 45 Steel 1 1307138 €18,05
10mm Mod 2 28T 20mm 60mm 20mm 45 Steel 1 1277928 €14,15
10mm Mod 3 13T 30mm 45mm 30mm 45 Steel 1 1277924 €11,77
8mm Mod 1 68T / 70mm 10mm 45 Steel 1 1307113 €12,64
Qty: 0 Item(s)
Total Price: €0,00
View more

Description

Description

1. The pinion motor gear is made of 45# Steel, the tooth surface is treated by high frequency quenching, more stable, anti-wear, strong and durable, and durable in use.
2. Specifications: Material: 45# Steel, Teeth: 71T, Tooth Pitch: 3.14mm / 0.12inch, Tooth Depth: 2.25mm / 0.09inch, Outer Diameter: 73mm / 2.87inch, Aperture: 10mm / 0.39inch, Effective Tooth Length: 10mm / 0.39inch, Total Thickness: 10mm / 0.39inch, Module: 1 Mod, Pressure Angle: 20°
3. The pinion gear aperture is 12mm and the module is 1, please check the size before purchasing.
4. Good machining made less rough and noise than other gears, making them roll smoothly.
5. Good straight spur gear replacement for your device.
6. You will receive 1 x straight spur gear.
