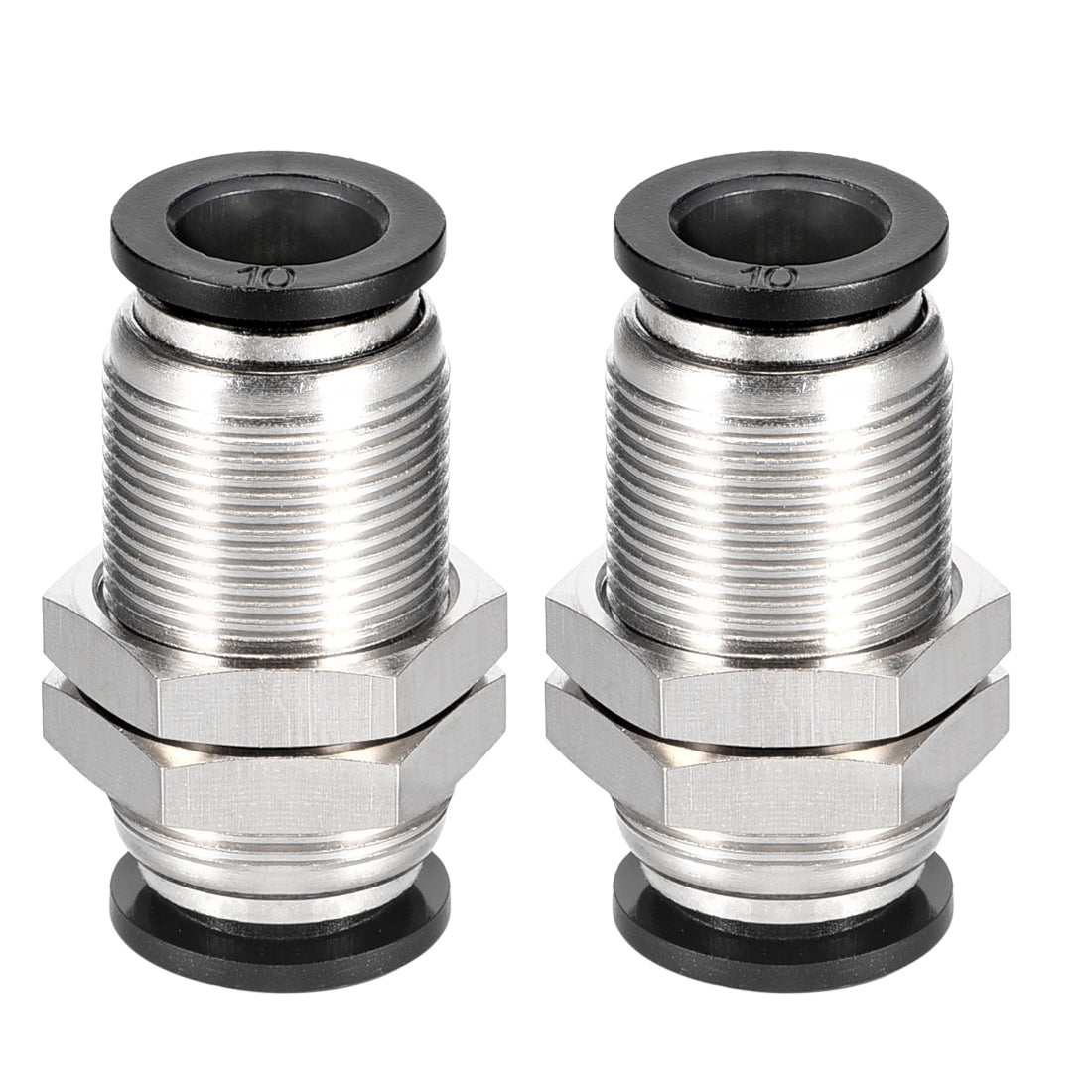

Harfington Uxcell Straight Pneumatic Push to Quick Connect Fittings Bulkhead Union 10mm Tube OD X 10mm Tube OD 2pcs

Uxcell Straight Pneumatic Push to Quick Connect Fittings Bulkhead Union 10mm Tube OD X 10mm Tube OD 2pcs

ID:
$8.76 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item
  • Product Name : push to quick fitting; Tube Size : 10mm Tube OD X 10mm Tube OD
  • Operating Pressure : 0-0.9MPa ; Operating temperature:0 - 60 Degree Celsius
  • TUBE FITTINGS. Push-to-connect tube connection on two end. A good release cap can withstand greater and stronger pressure without tripping.
  • ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
  • APPLICATION. Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.
  • In stock, ready to ship
Cart
Cart
About this item
  • Product Name : push to quick fitting; Tube Size : 10mm Tube OD X 10mm Tube OD
  • Operating Pressure : 0-0.9MPa ; Operating temperature:0 - 60 Degree Celsius
  • TUBE FITTINGS. Push-to-connect tube connection on two end. A good release cap can withstand greater and stronger pressure without tripping.
  • ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
  • APPLICATION. Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Product Features:

Product Name : Push to Connect Fittings

Model :MPM-10

Color : Silver Tone,Black

Material : Plastic,Metal

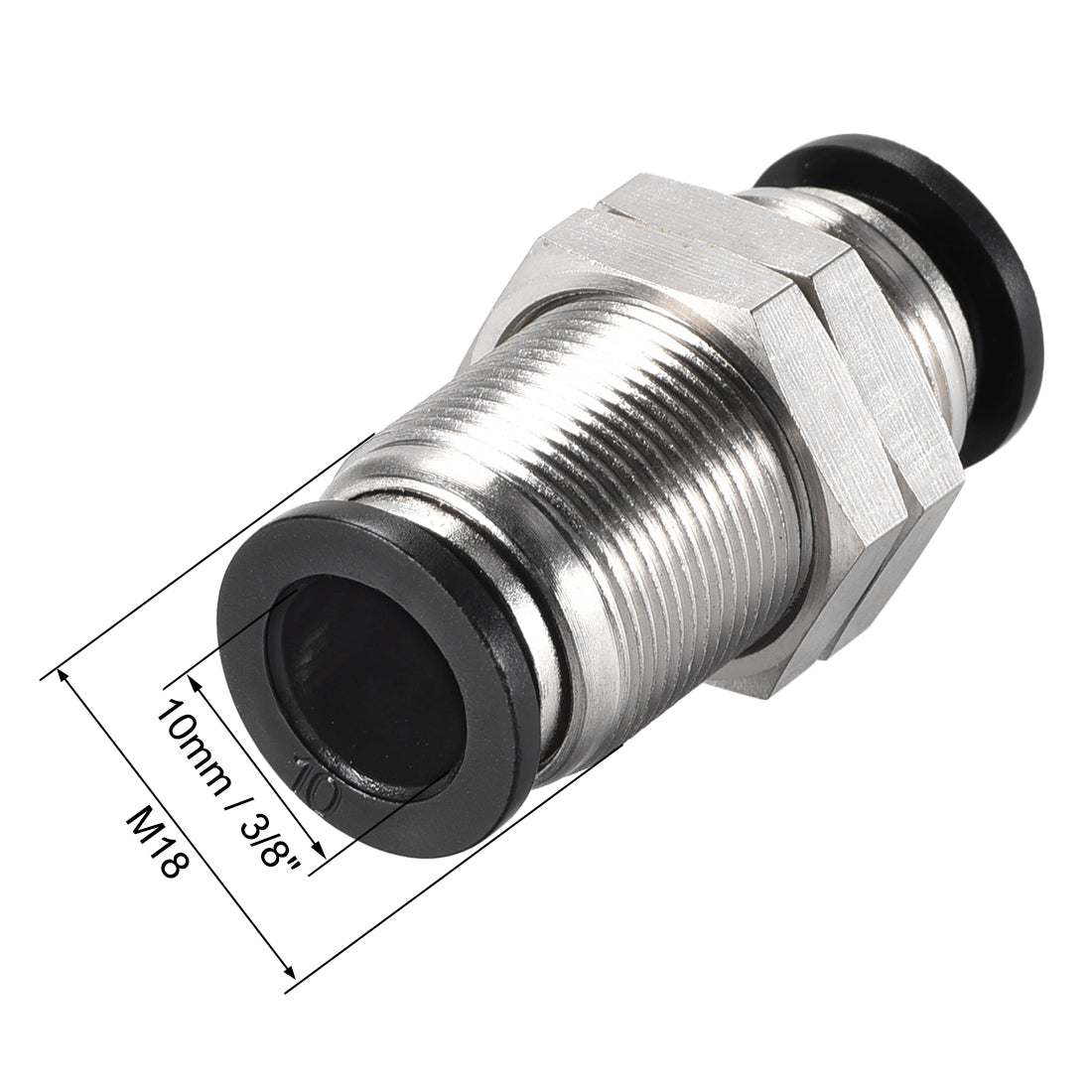

Thread Size : M18*1mm

Tube Size (OD) : 10mm / 3/8"

Operating Pressure : 0-0.9MPa

Operating temperature:0 - 60 Degree Celsius

Dimension : 42mm x 21mm / 1.65-inch x 0.83-inch (L x W )



Package Content:

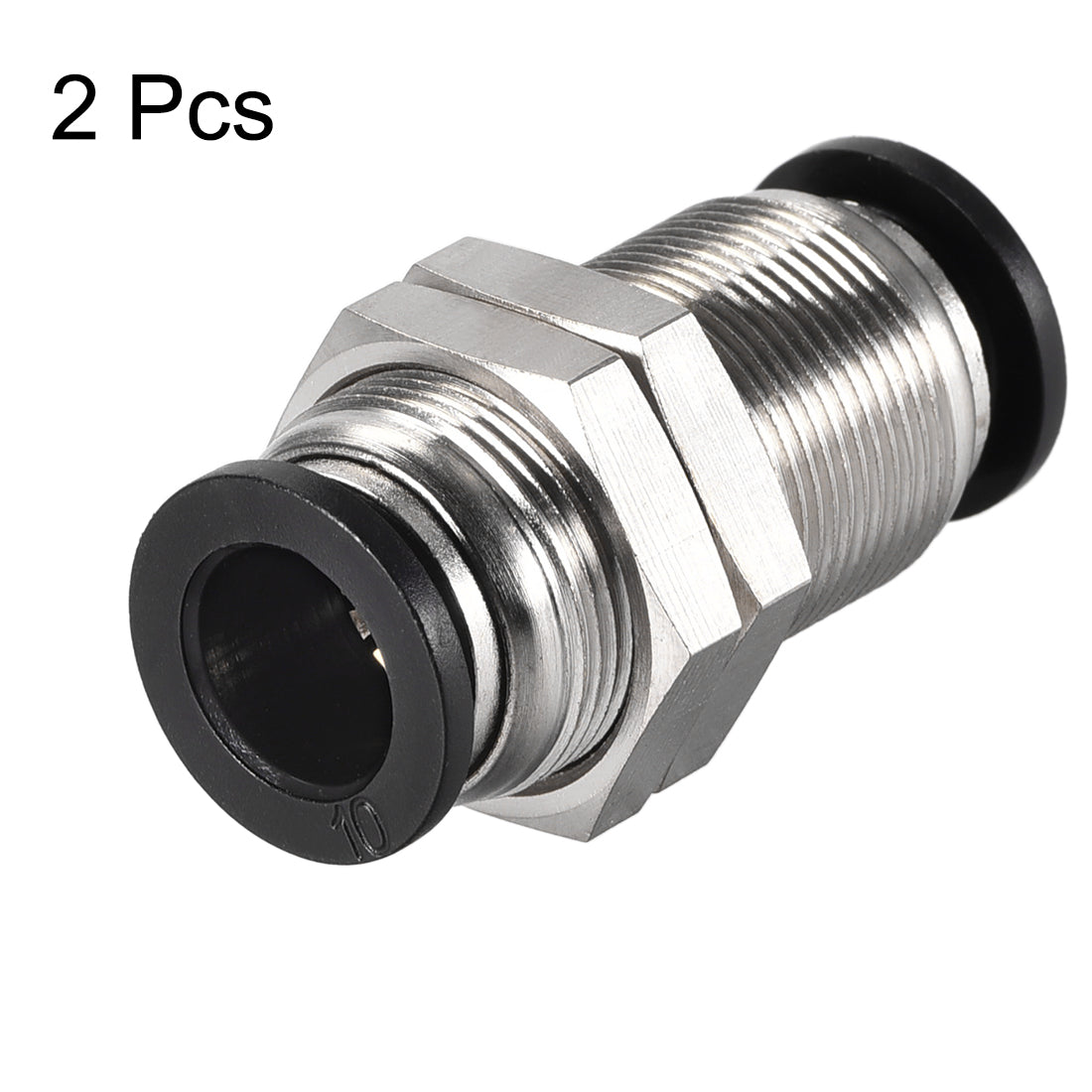

2pcs x Push to Connect Fittings



Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on two end

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

6.Outside (and Inside where applicable) hexagonal wrench tightening.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Product Features:

Product Name : Push to Connect Fittings

Model :MPM-10

Color : Silver Tone,Black

Material : Plastic,Metal

Thread Size : M18*1mm

Tube Size (OD) : 10mm / 3/8"

Operating Pressure : 0-0.9MPa

Operating temperature:0 - 60 Degree Celsius

Dimension : 42mm x 21mm / 1.65-inch x 0.83-inch (L x W )



Package Content:

2pcs x Push to Connect Fittings



Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on two end

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

6.Outside (and Inside where applicable) hexagonal wrench tightening.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
