Harfington Uxcell Thrust Needle Roller Bearings with Washers Metric Chrome Steel

Uxcell Thrust Needle Roller Bearings with Washers Metric Chrome Steel

ID:1044719
ID:1044719
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
8mmx19mmx2mm
Size
1pcs
Package Content
About this item
  • [MODLE] - Bearing Model: AXK0819 (I.D.=8mm, O.D.=19mm, Thickness=2mm); Washer Model: AS0819
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 17.2kN Static Load Capacity, 7.25kN Dynamic Load Capacity, 15500RPM Maximum Rotational Speed
About this item
  • [MODLE] - Bearing Model: AXK0819 (I.D.=8mm, O.D.=19mm, Thickness=2mm); Washer Model: AS0819
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 17.2kN Static Load Capacity, 7.25kN Dynamic Load Capacity, 15500RPM Maximum Rotational Speed
Specification

Specification

SKU
a18070500ux0478
Brand
Uxcell
Static Load Capacity
17.2kN
Dynamic Load Capacity
7.25kN
Maximum Rotational Speed
15500RPM
Washer Quantity
2
Material
GCr15
Bearing Model
AXK0819
Outer Dia.
19mm
Inner Dia.
8mm
Thickness
2mm
Pkg.Qty
1
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

1.This Uxcell Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.

2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.

3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.

4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.

5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.





Specification:

Bearing No.: AXK0819

Bearing Washer No.: AS0819

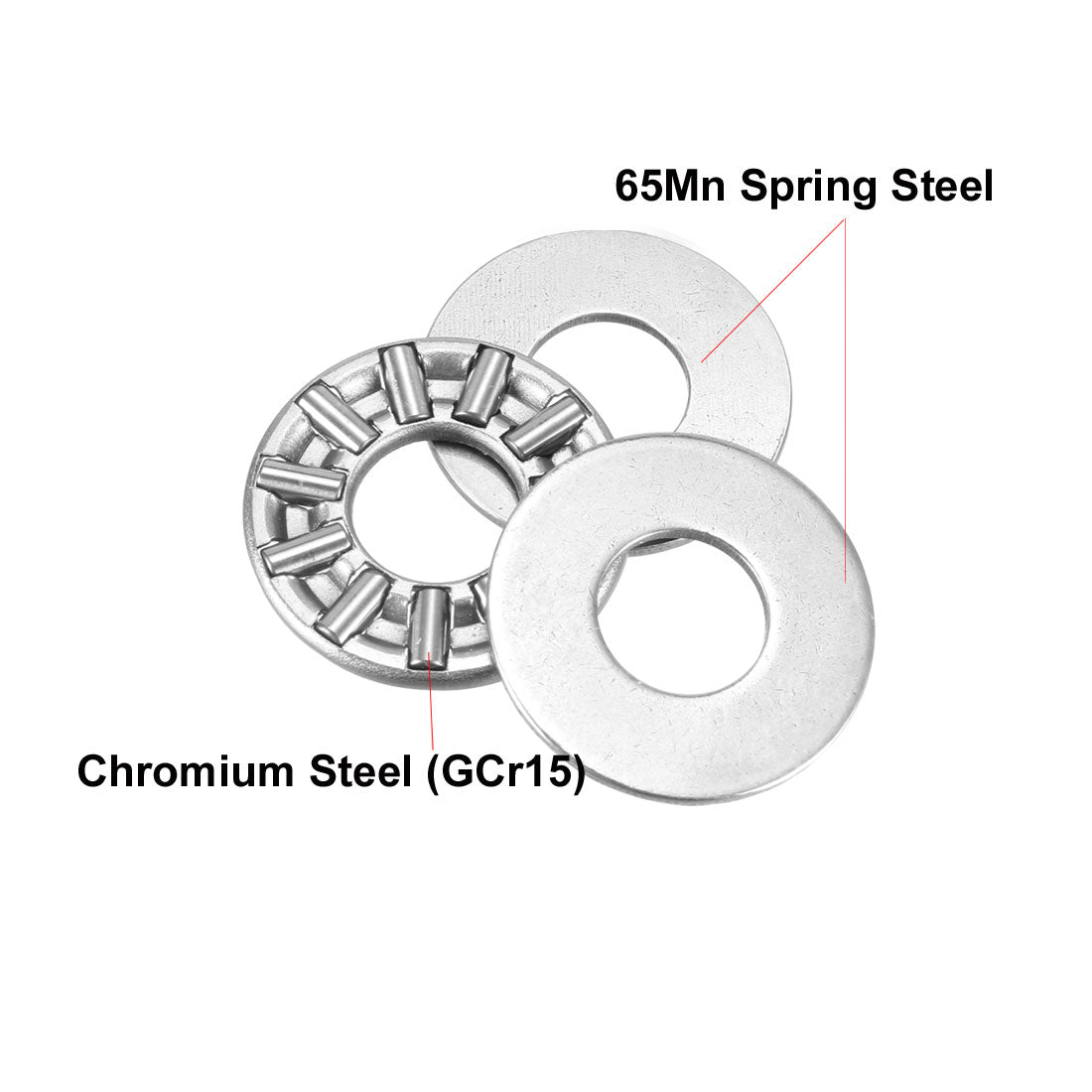

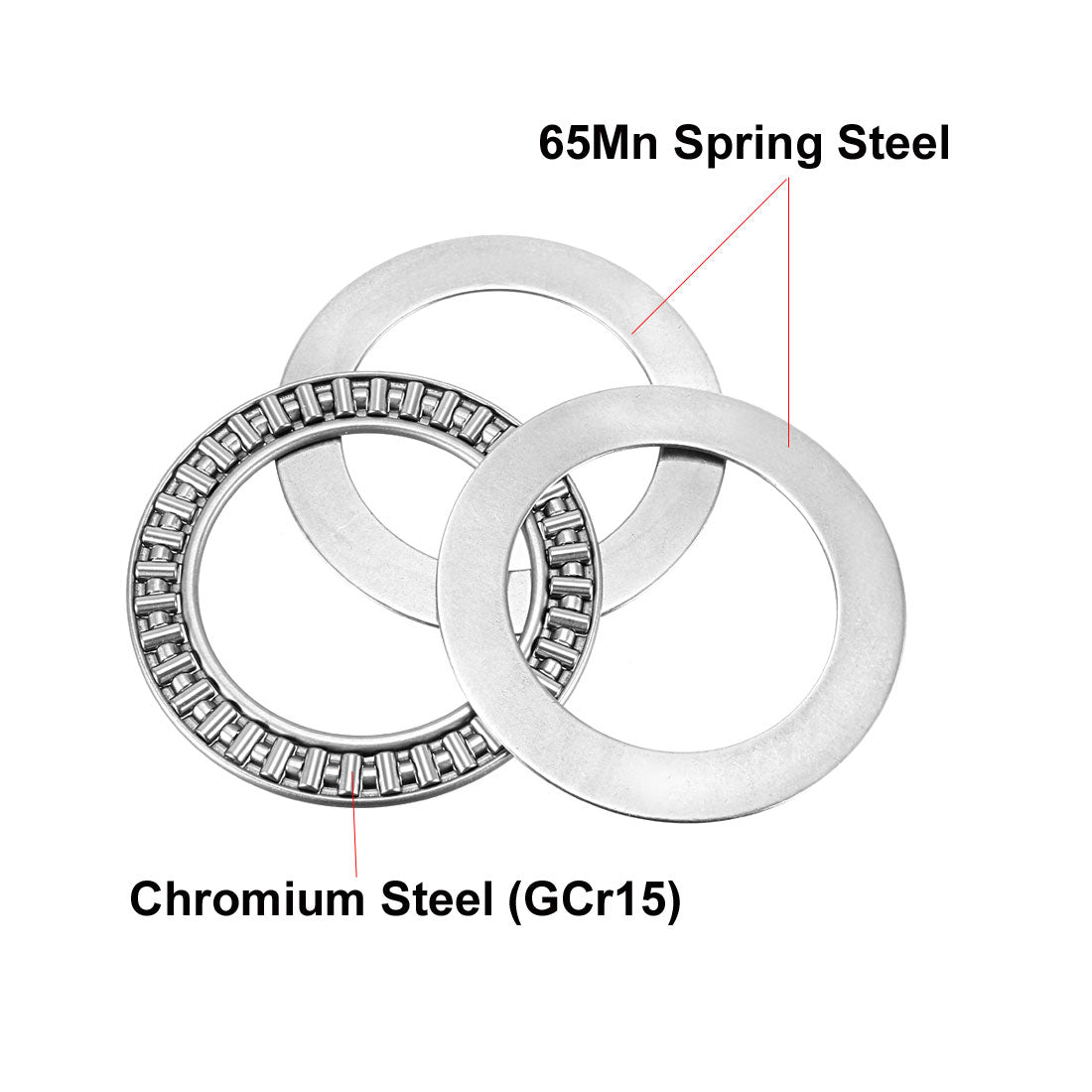

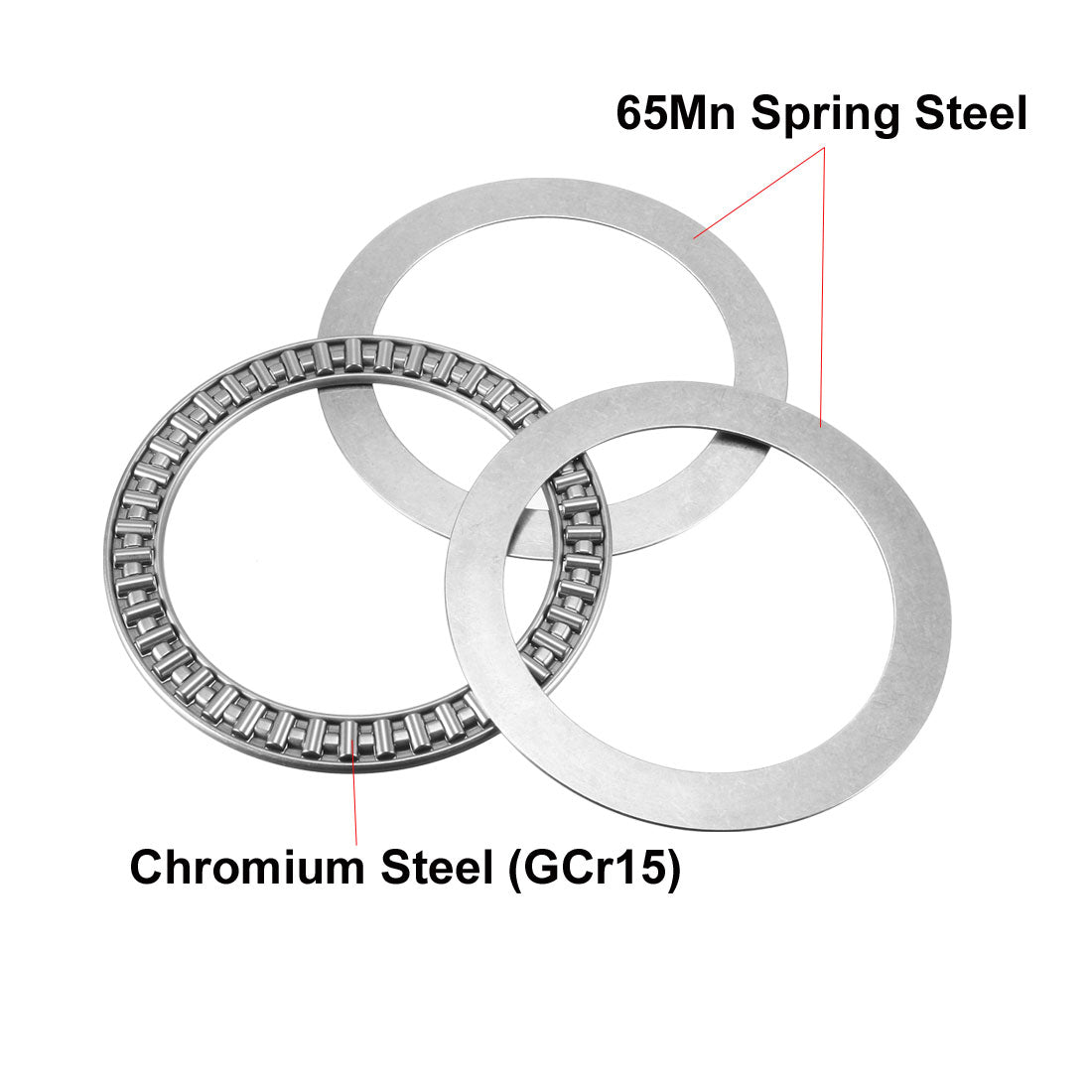

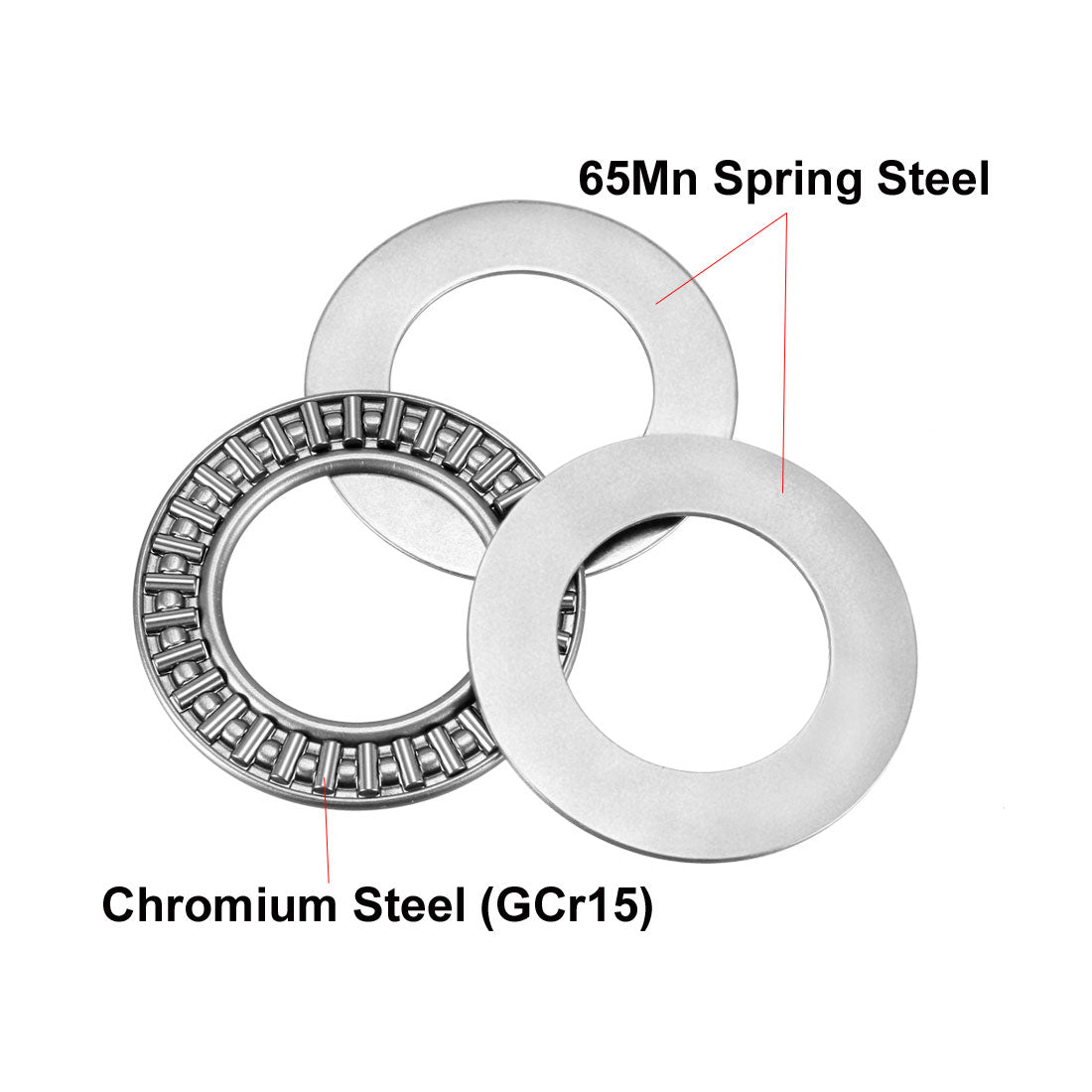

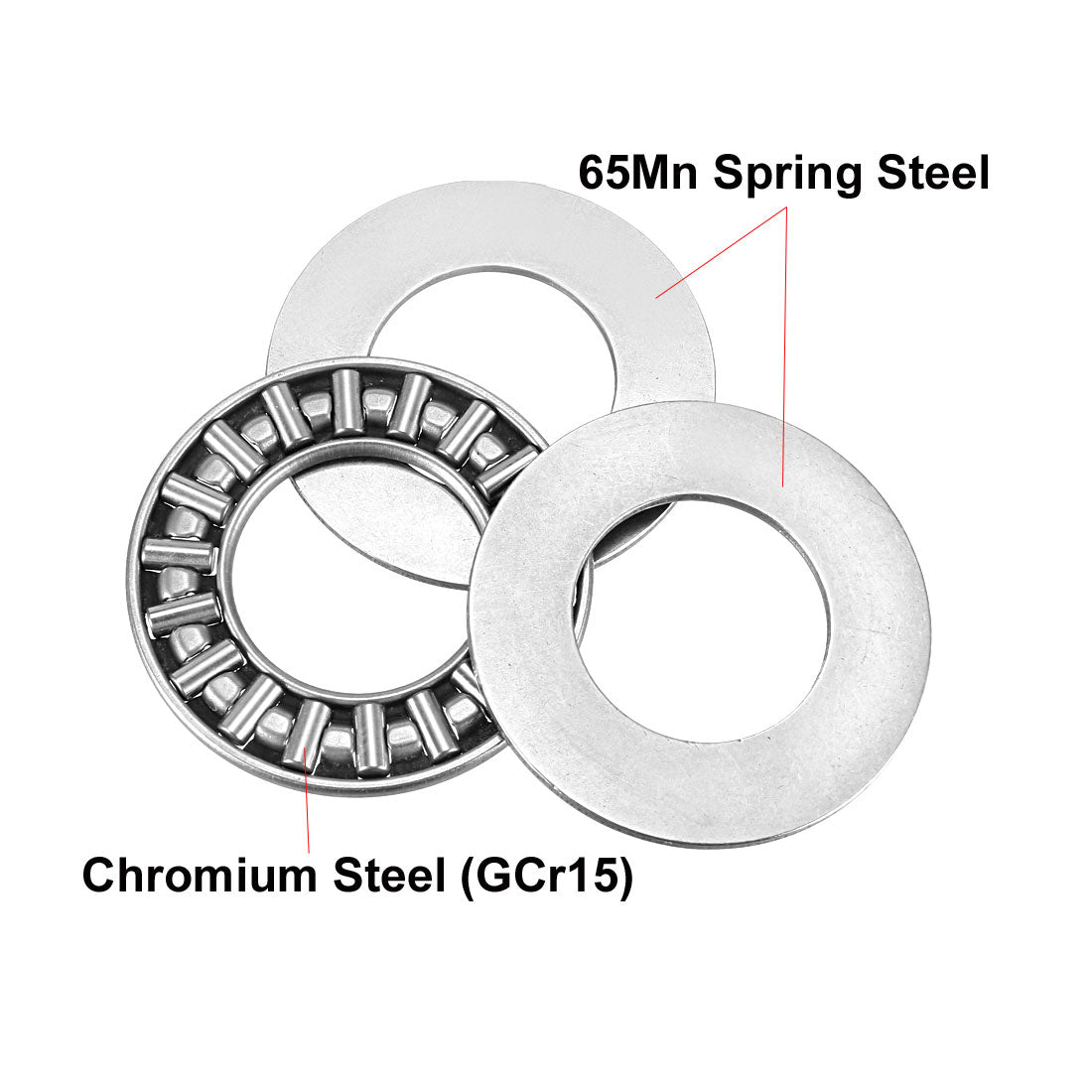

Needle Roller Meterial: Chromium Steel (GCr15)

Cage Meterial: ST13 Steel

Bearing Washer Meterial: 65Mn Spring Steel

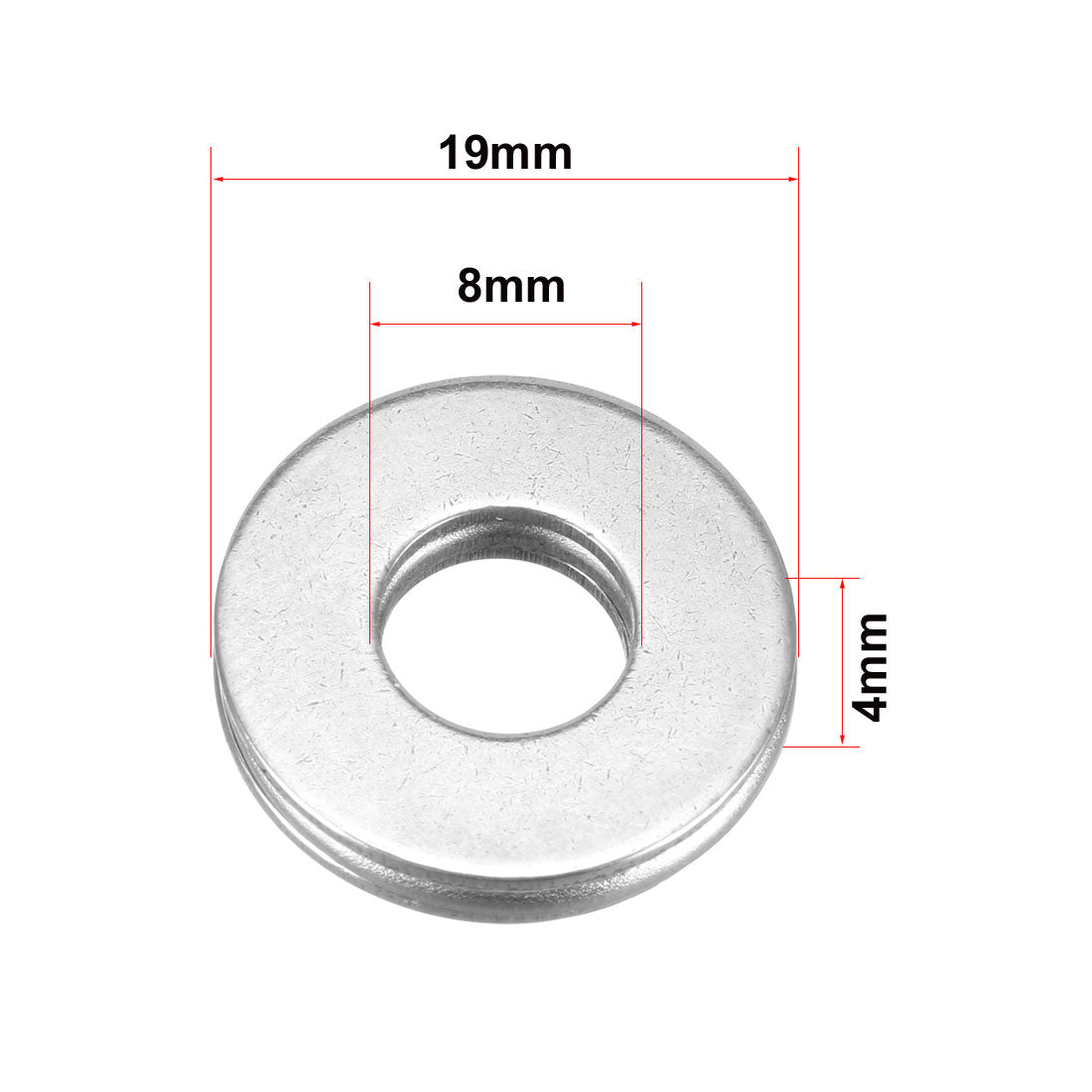

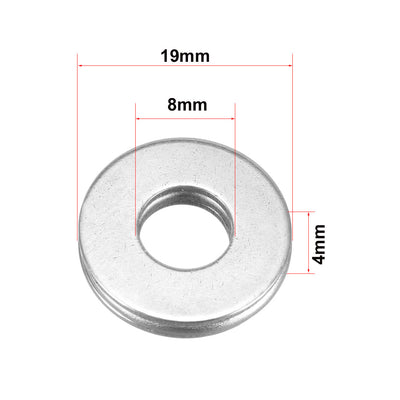

Bore Diameter (d): 8mm

Outside Diameter (D): 19mm

Bearing Thickness (T1): 2mm

Washer Thickness (T2): 1mm

Total Thickness: 4mm

Number of Pack: 1 Pcs

$5.42 $5.42/eachRegular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Inner Dia. Outer Dia. Thickness Static Load Capacity Dynamic Load Capacity Maximum Rotational Speed Washer Quantity Bearing Model Material Pkg.Qty ID Price Qty
8mm 19mm 2mm 17.2kN 7.25kN 15500RPM 2 AXK0819 GCr15 1 1044719 $5.42
Products Inner Dia. Outer Dia. Thickness Static Load Capacity Dynamic Load Capacity Maximum Rotational Speed Washer Quantity Bearing Model Material Pkg.Qty ID Price Qty
8mm 19mm 2mm 17.2kN 7.25kN 15500RPM 2 AXK0819 GCr15 1 1044719 $5.42
35mm 52mm 4mm 80.1kN 16.9kN 5500RPM 2 AXK3552 GCr15 1 1034363 $5.42

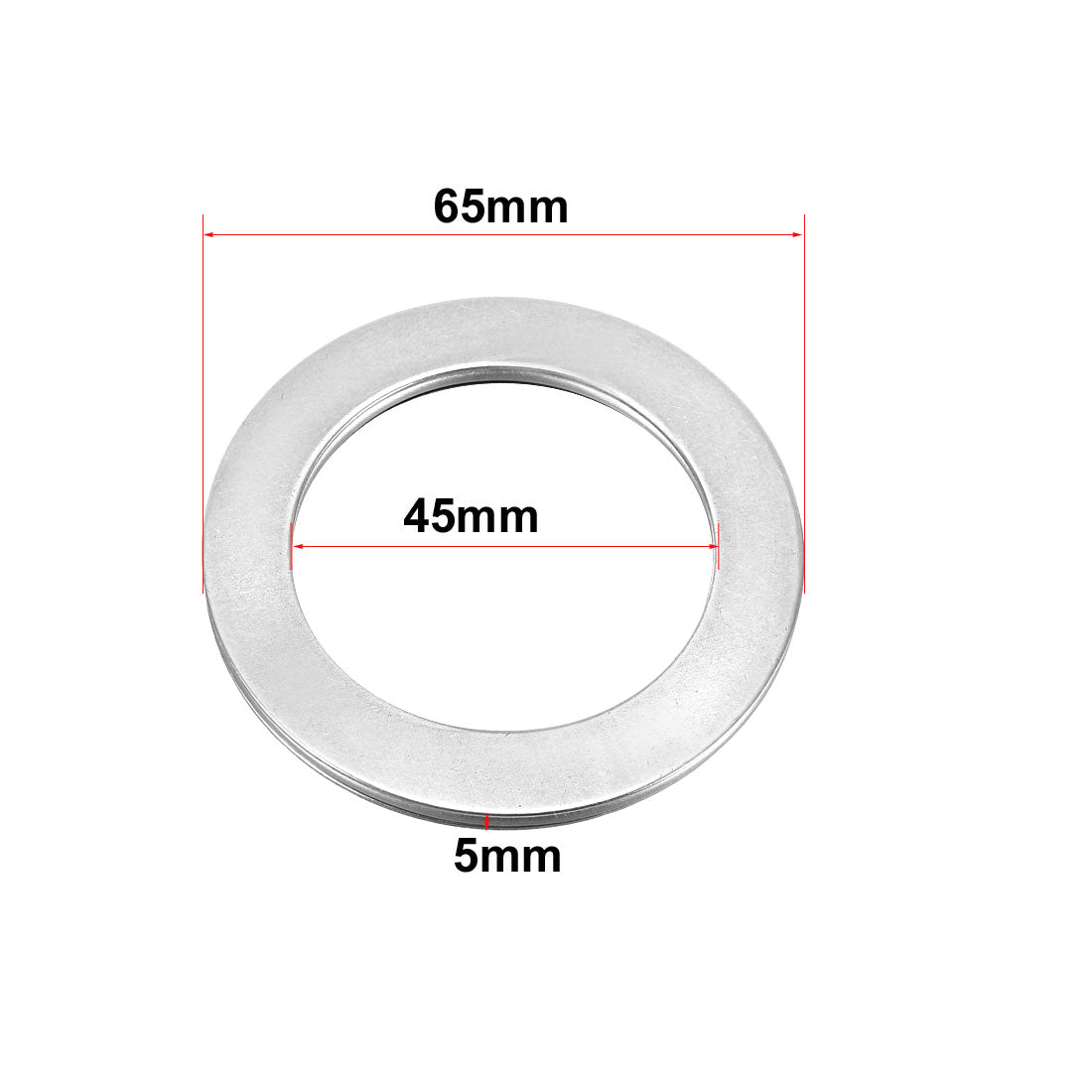

45mm 65mm 3mm 127.6kN 29.05kN 4300RPM 2 AXK4565 GCr15 1 1044724 $5.85

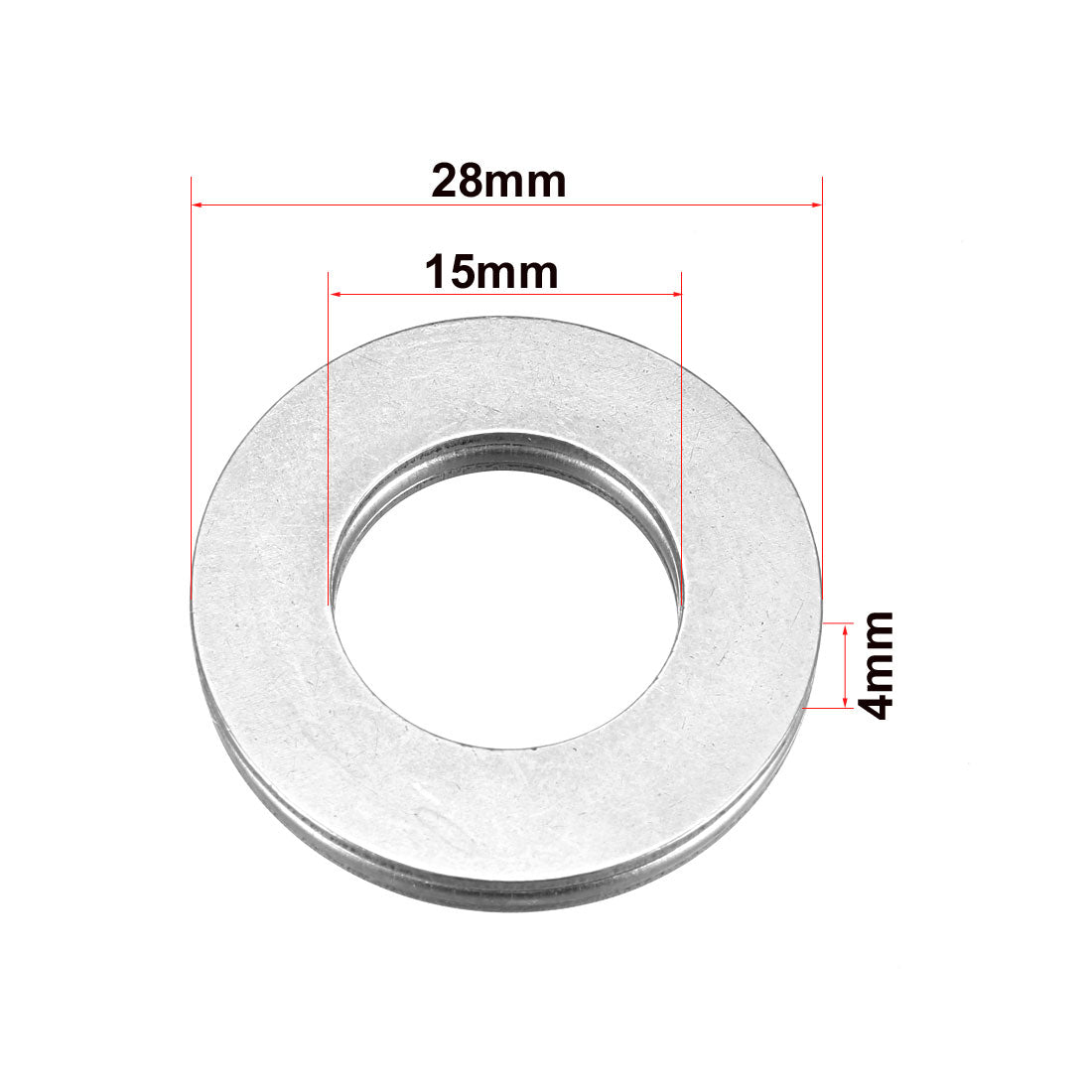

15mm 28mm 2mm 35.5kN 11.2kN 11000RPM 2 AXK1528 GCr15 1 1044722 $5.19

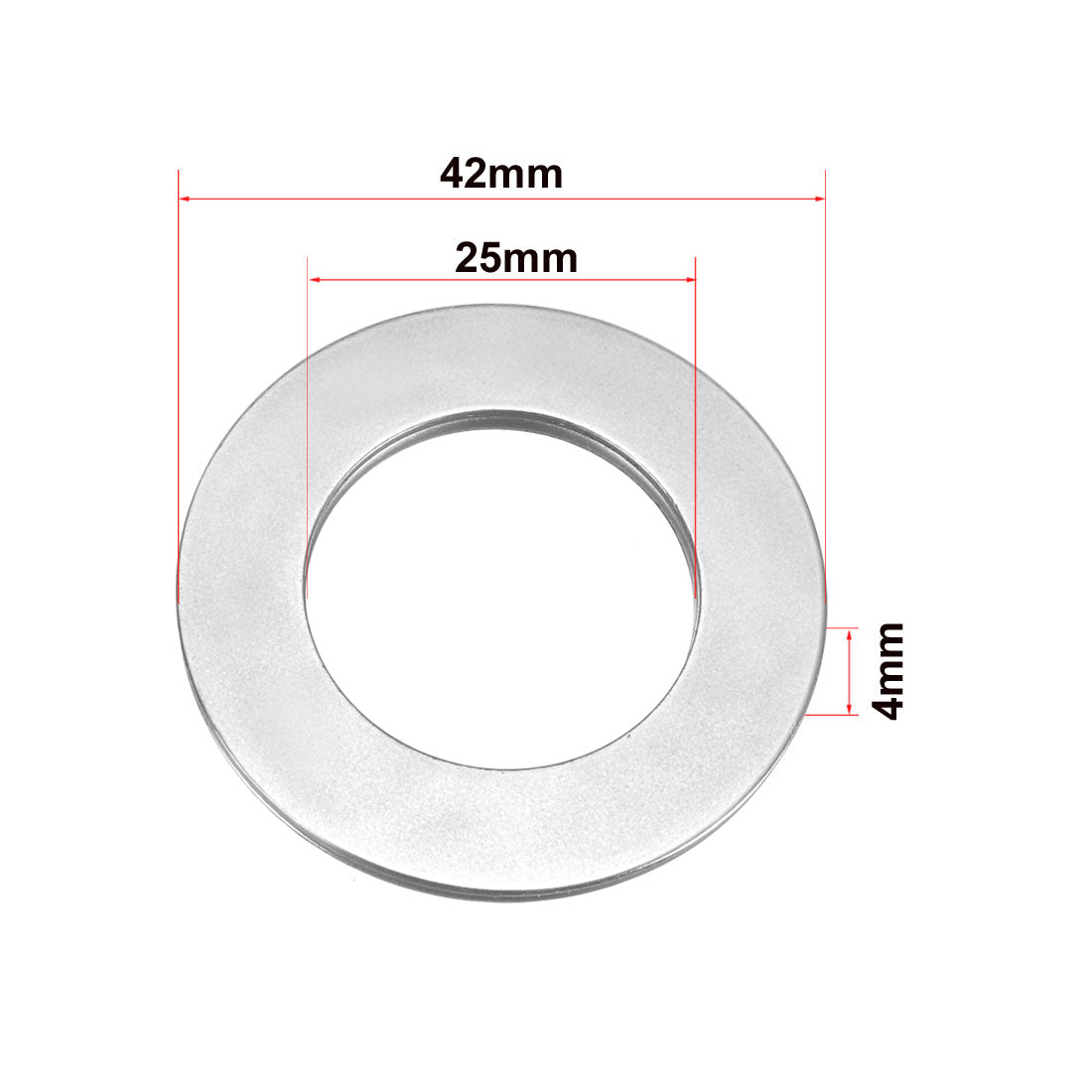

25mm 42mm 2mm 57.8kN 13.8kN 7000RPM 2 AXK2542 GCr15 1 1044720 $5.42

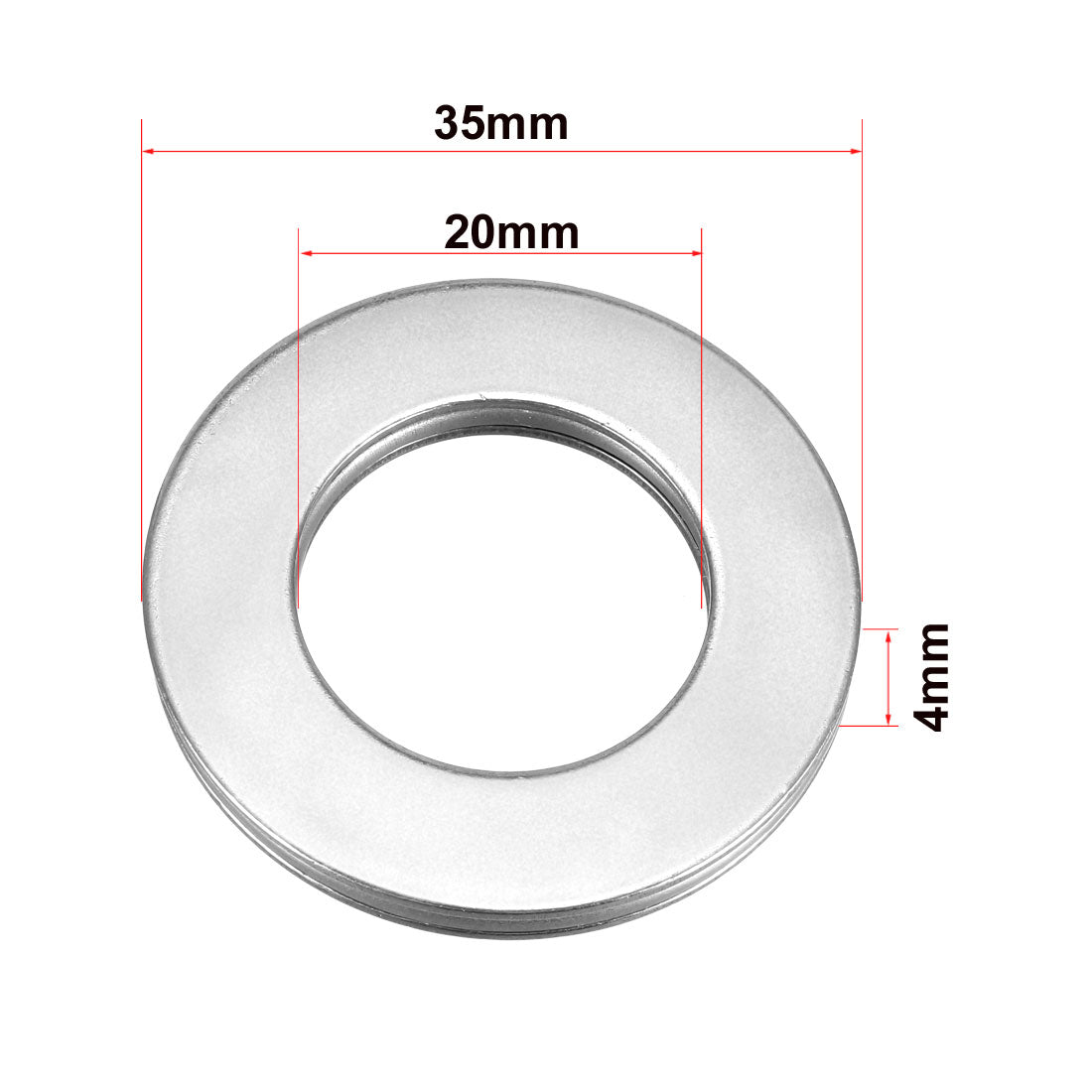

20mm 35mm 4mm 45.6kN 12.9kN 8500RPM 2 AXK2035 GCr15 1 1044721 $5.42
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

1.This Uxcell Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.

2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.

3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.

4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.

5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.





Specification:

Bearing No.: AXK0819

Bearing Washer No.: AS0819

Needle Roller Meterial: Chromium Steel (GCr15)

Cage Meterial: ST13 Steel

Bearing Washer Meterial: 65Mn Spring Steel

Bore Diameter (d): 8mm

Outside Diameter (D): 19mm

Bearing Thickness (T1): 2mm

Washer Thickness (T2): 1mm

Total Thickness: 4mm

Number of Pack: 1 Pcs
