Harfington Uxcell Thrust Needle Roller Bearings with Washers Bearing Chrome Steel

Uxcell Thrust Needle Roller Bearings with Washers Bearing Chrome Steel

ID:1047444
ID:1047444
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
3/8"x13/16"x5/64"
Size
2pcs
Package Content
About this item
  • [MODLE] - Bearing Model: TC613 (I.D.=3/8", O.D.=13/16", Thickness=5/64"); Washer Model: TRA613
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 12.18kN Static Load Capacity, 4.84kN Dynamic Load Capacity, 23000RPM Maximum Rotational Speed
About this item
  • [MODLE] - Bearing Model: TC613 (I.D.=3/8", O.D.=13/16", Thickness=5/64"); Washer Model: TRA613
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 12.18kN Static Load Capacity, 4.84kN Dynamic Load Capacity, 23000RPM Maximum Rotational Speed
Specification

Specification

SKU
a19043000ux0093
Brand
Uxcell
Static Load Capacity
12.18kN
Dynamic Load Capacity
4.84kN
Maximum Rotational Speed
23000RPM
Washer Quantity
2
Material
GCr15,Thermoplastic Nylon
Bearing Model
TC613
Outer Dia.
13/16"
Inner Dia.
3/8"
Thickness
5/64"
Pkg.Qty
2
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:





  1. This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  2. These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
  3. Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  4. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.



Specification:

Bearing No.: TC613+2TRA

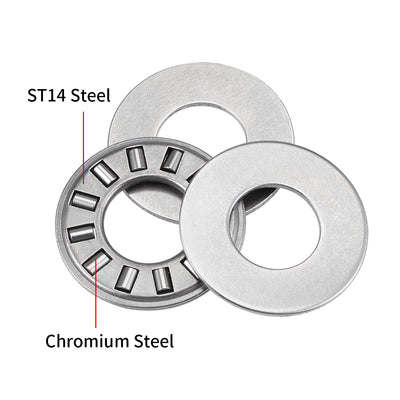

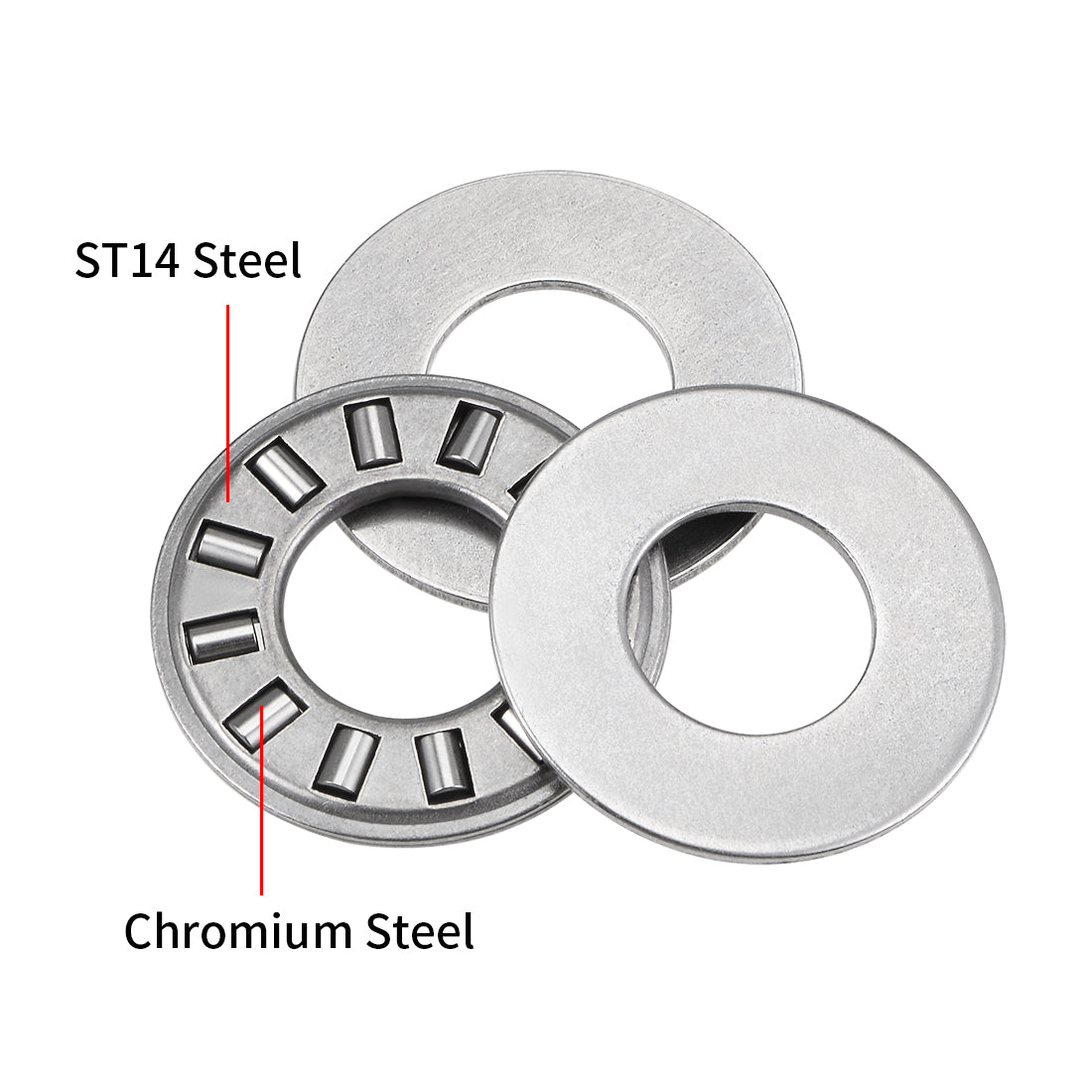

Needle Roller Material: Chromium Steel (GCr15)

Cage Material: ST14 Steel

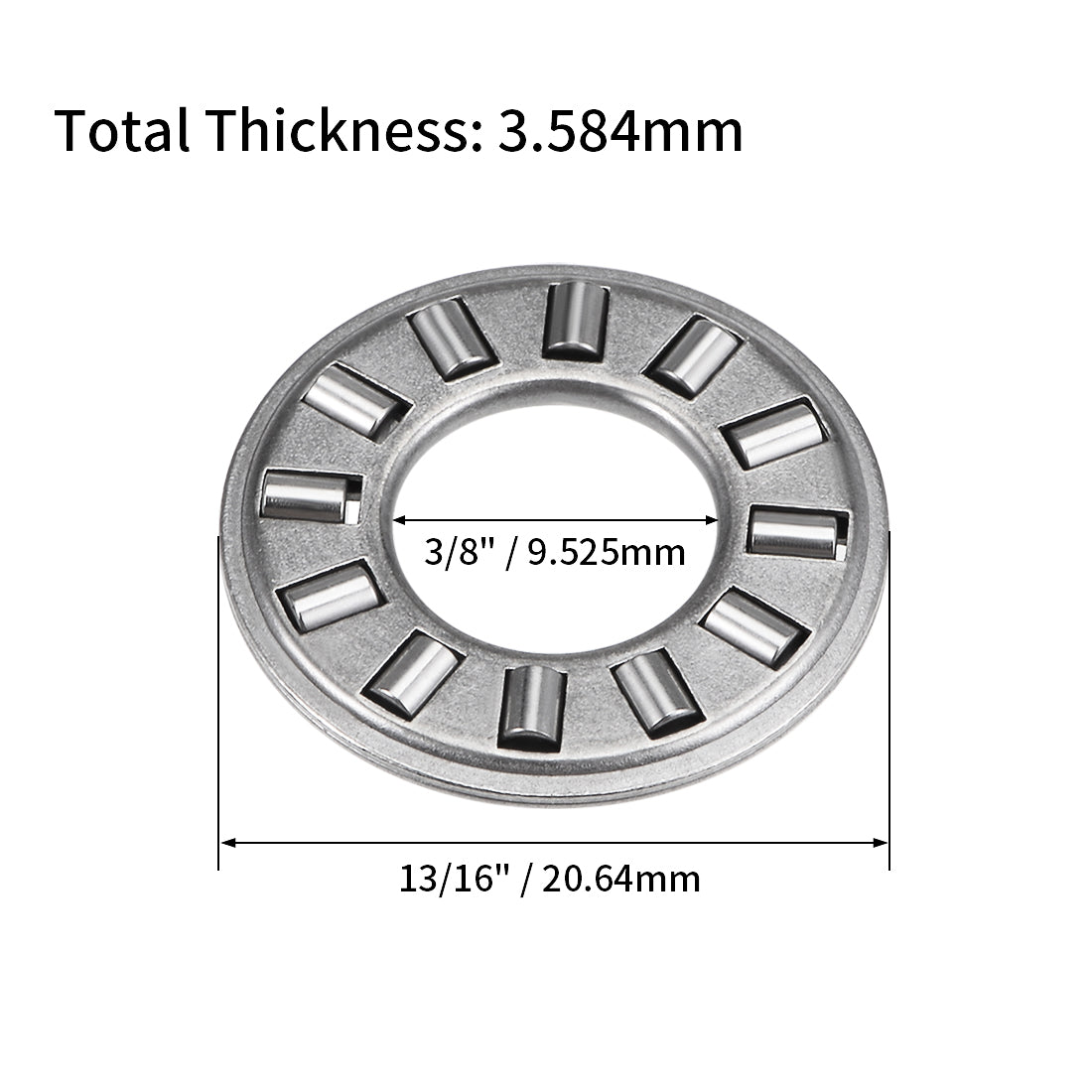

Bore Diameter (d): 3/8" / 9.525mm

Outside Diameter (D): 13/16" / 20.64mm

Bearing Thickness (T1): 5/64" / 1.984mm

Washer Thickness (T2): 0.8mm

Total Thickness: 3.584mm

Dynamic Load Capacity (Cr): 4848N

Static Load Capacity (Cor): 12188N

Maximum Rotational Speed (Oil): 23000rpm

Number of Pack: 2 Pcs

$5.83 $2.92/eachRegular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Inner Dia. Outer Dia. Thickness Static Load Capacity Dynamic Load Capacity Maximum Rotational Speed Washer Quantity Bearing Model Material Pkg.Qty ID Price Qty
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 2 1047444 $5.83
Products Inner Dia. Outer Dia. Thickness Static Load Capacity Dynamic Load Capacity Maximum Rotational Speed Washer Quantity Bearing Model Material Pkg.Qty ID Price Qty
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 2 1047444 $5.83
1" 1-9/16" 5/64" 43.9kN 10.76kN 11000RPM 2 TC1625 GCr15,Thermoplastic Nylon 1 1040752 $5.79
1" 1-9/16" 5/64" 43.9kN 10.76kN 11000RPM 2 TC1625 GCr15,Thermoplastic Nylon 2 1035267 $6.59
1" 1-9/16" 5/64" 43.9kN 10.76kN 11000RPM 2 TC1625 GCr15,Thermoplastic Nylon 5 1035268 $9.46
1/2" 15/16" 5/64" 16.28kN 5.73kN 19000RPM 2 TC815 GCr15,Thermoplastic Nylon 5 1035264 $7.36
1/2" 15/16" 5/64" 16.28kN 5.73kN 19000RPM 2 TC815 GCr15,Thermoplastic Nylon 2 1035265 $5.96
1/2" 15/16" 5/64" 16.28kN 5.73kN 19000RPM 2 TC815 GCr15,Thermoplastic Nylon 3 1028779 $6.51
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 5 1015391 $7.05
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 3 1047447 $6.33
5/16" 3/4" 5/64" 11.16kN 4.67kN 25000RPM 2 TC512 GCr15,Thermoplastic Nylon 2 1047449 $5.70
5/16" 3/4" 5/64" 11.16kN 4.67kN 25000RPM 2 TC512 GCr15,Thermoplastic Nylon 5 1006817 $7.01
5/16" 3/4" 5/64" 11.16kN 4.67kN 25000RPM 2 TC512 GCr15,Thermoplastic Nylon 3 1047451 $6.14
15mm 28mm 2mm 35.5kN 11.2kN 11000RPM 2 AXK1528 GCr15,Thermoplastic Nylon 5 1008360 $6.88
15mm 28mm 2mm 35.5kN 11.2kN 11000RPM 2 AXK1528 GCr15,Thermoplastic Nylon 2 1008362 $5.42
1/4" 11/16" 5/64" 9.16kN 4.11kN 28000RPM 2 TC411 GCr15,Thermoplastic Nylon 2 1047448 $5.58
1/4" 11/16" 5/64" 9.16kN 4.11kN 28000RPM 2 TC411 GCr15,Thermoplastic Nylon 5 1015390 $6.70
1/4" 11/16" 5/64" 9.16kN 4.11kN 28000RPM 2 TC411 GCr15,Thermoplastic Nylon 3 1035263 $5.96
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 1 1028785 $5.61
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 5 1035261 $7.97
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 2 1047446 $6.39
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Description:





  1. This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  2. These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
  3. Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  4. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.



Specification:

Bearing No.: TC613+2TRA

Needle Roller Material: Chromium Steel (GCr15)

Cage Material: ST14 Steel

Bore Diameter (d): 3/8" / 9.525mm

Outside Diameter (D): 13/16" / 20.64mm

Bearing Thickness (T1): 5/64" / 1.984mm

Washer Thickness (T2): 0.8mm

Total Thickness: 3.584mm

Dynamic Load Capacity (Cr): 4848N

Static Load Capacity (Cor): 12188N

Maximum Rotational Speed (Oil): 23000rpm

Number of Pack: 2 Pcs
