uxcell Uxcell 7mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs
/ 0
Harfington Uxcell 7mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs

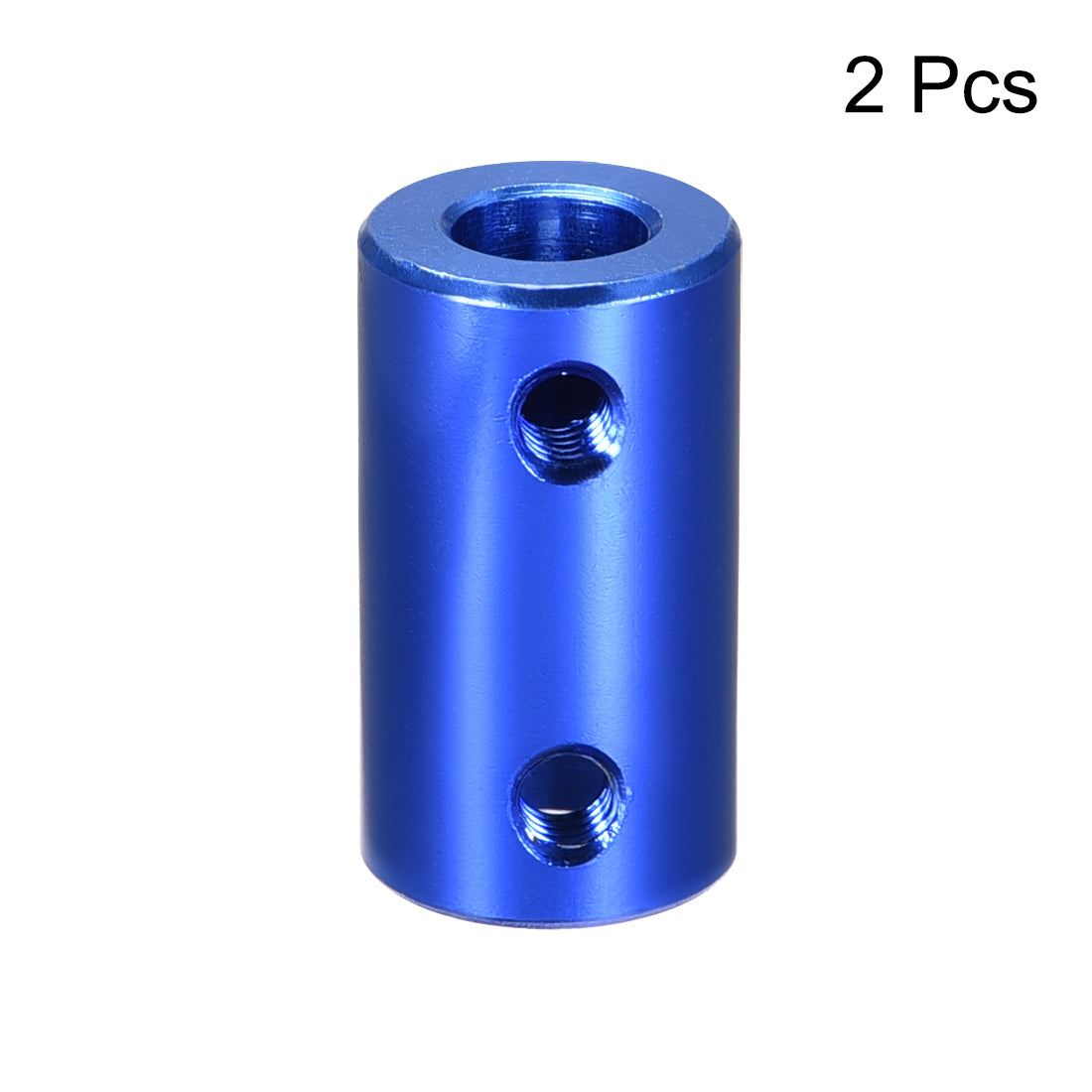

Uxcell 7mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs

ID:1064657
ID:1064657
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

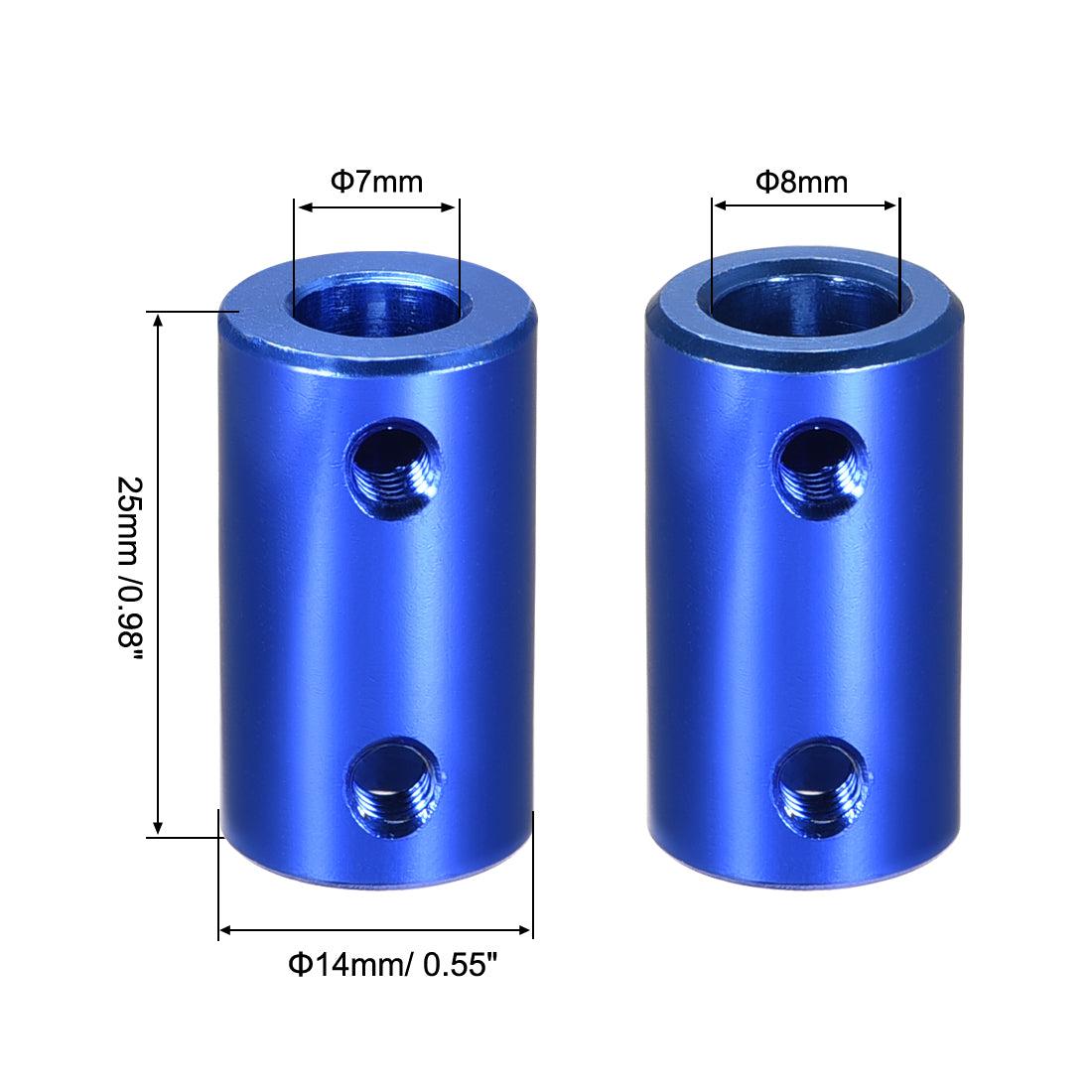

  • Connection Bore Diameter: 7mm to 8mm; Total Length: 25mm /0.98 inch, Outside Diameter : 14mm/ 0.55 inch; with M4 Screws
  • Widely used in blowers,3D printer,DIY robots,CNC machine,stepper motors,etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
  • Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
  • NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
  • Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.
About this item
  • Connection Bore Diameter: 7mm to 8mm; Total Length: 25mm /0.98 inch, Outside Diameter : 14mm/ 0.55 inch; with M4 Screws
  • Widely used in blowers,3D printer,DIY robots,CNC machine,stepper motors,etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
  • Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
  • NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
  • Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.
Specification

Specification

SKU
a20011400ux0706
Connection bore diameter
7mm to 8mm
Total length
25mm /0.98 inch
Outside diameter
14mm/ 0.55 inch
Through angle
180 Degree
Material
Aluminum Alloy
Color
Blue
Screws size
M4*4mm (D*L)
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Description:
Made of high-strength aluminum alloy with integrated structure,maintenance-free, oil proof and corrosion resistance.
Top tight type rigid coupling,high torque with rigidity, low inertia and excellent sensitivity.
No rotation gap, elastic action can make up for symmetrical angular misalignment.
Suitable for model car, model boat, hardware, , mechanical drive situations etc.

Specification:
Connection Bore Diameter: 7mm to 8mm
Total Length: 25mm /0.98 inch
Outside Diameter : 14mm/ 0.55 inch
Through Angle: 180 Degree
Material: Aluminum Alloy
Color: Blue
Screws Size: M4*4mm (D*L)

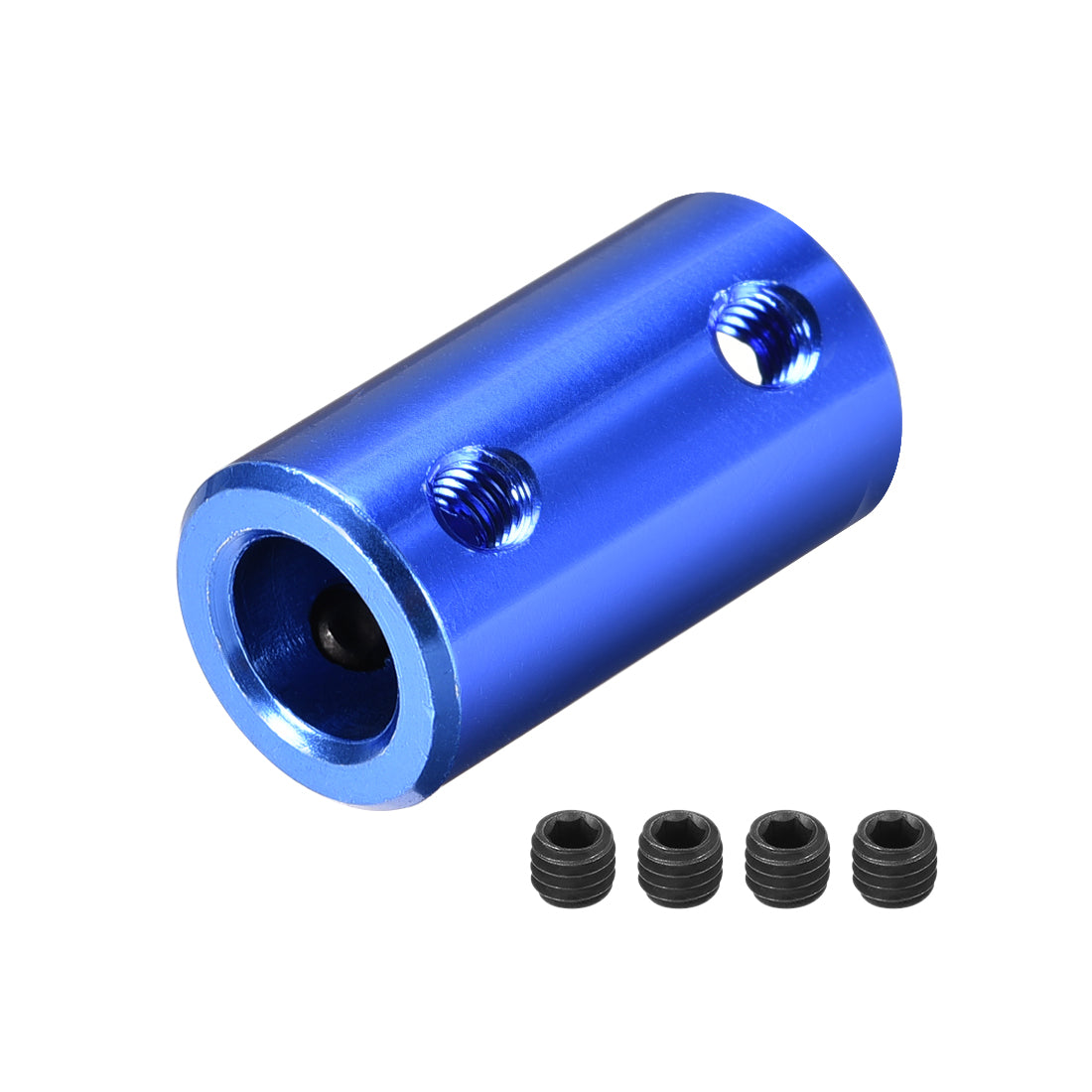

Package Content:
2 x Rigid Shaft Couplers
8 x M4 Screws
$6.09 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 7mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064657 $6.09
Products Title ID Price Qty
Uxcell 7mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064657 $6.09
Uxcell 4mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064624 $7.10
Uxcell 5mm to 6mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064628 $5.46
Uxcell 5mm to 6.35mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064632 $5.46
Uxcell 5mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064636 $5.46
Uxcell 5mm to 7mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064638 $7.10
Uxcell 8mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064660 $6.09
Uxcell 3mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064609 $5.46
Uxcell 4mm to 7mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064621 $6.09
Uxcell 5mm to 6.35mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064635 $7.10
Uxcell 6mm to 7mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064645 $7.10
Uxcell 6.35mm to 6.35mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064649 $5.46
Uxcell 6.35mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064653 $6.09
Uxcell 3mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064611 $6.09
Uxcell 4mm to 5mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064616 $7.10
Uxcell 4mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064622 $5.46
Uxcell 5mm to 5mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064625 $5.46
Uxcell 5mm to 5mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064627 $7.10
Uxcell 6mm to 6mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064640 $5.46
Uxcell 6mm to 6mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064642 $7.10
Uxcell 6mm to 7mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064644 $6.09
Uxcell 6.35mm to 6.35mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064650 $7.10
Uxcell 7mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064655 $5.46
Uxcell 4mm to 6mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1004141 $5.47
Uxcell 4mm to 7mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064619 $5.46
Uxcell 5mm to 6.35mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 2pcs 1064630 $6.09
Uxcell 5mm to 6mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064631 $5.62
Uxcell 5mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064639 $7.10
Uxcell 6mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064648 $7.10
Uxcell 8mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 1064658 $5.46
Uxcell 8mm to 8mm Bore Rigid Coupling 25mm Length 14mm Diameter Aluminum Alloy Shaft Coupler Connector Blue 4pcs 1064659 $7.10
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Description:
Made of high-strength aluminum alloy with integrated structure,maintenance-free, oil proof and corrosion resistance.
Top tight type rigid coupling,high torque with rigidity, low inertia and excellent sensitivity.
No rotation gap, elastic action can make up for symmetrical angular misalignment.
Suitable for model car, model boat, hardware, , mechanical drive situations etc.

Specification:
Connection Bore Diameter: 7mm to 8mm
Total Length: 25mm /0.98 inch
Outside Diameter : 14mm/ 0.55 inch
Through Angle: 180 Degree
Material: Aluminum Alloy
Color: Blue
Screws Size: M4*4mm (D*L)

Package Content:
2 x Rigid Shaft Couplers
8 x M4 Screws
