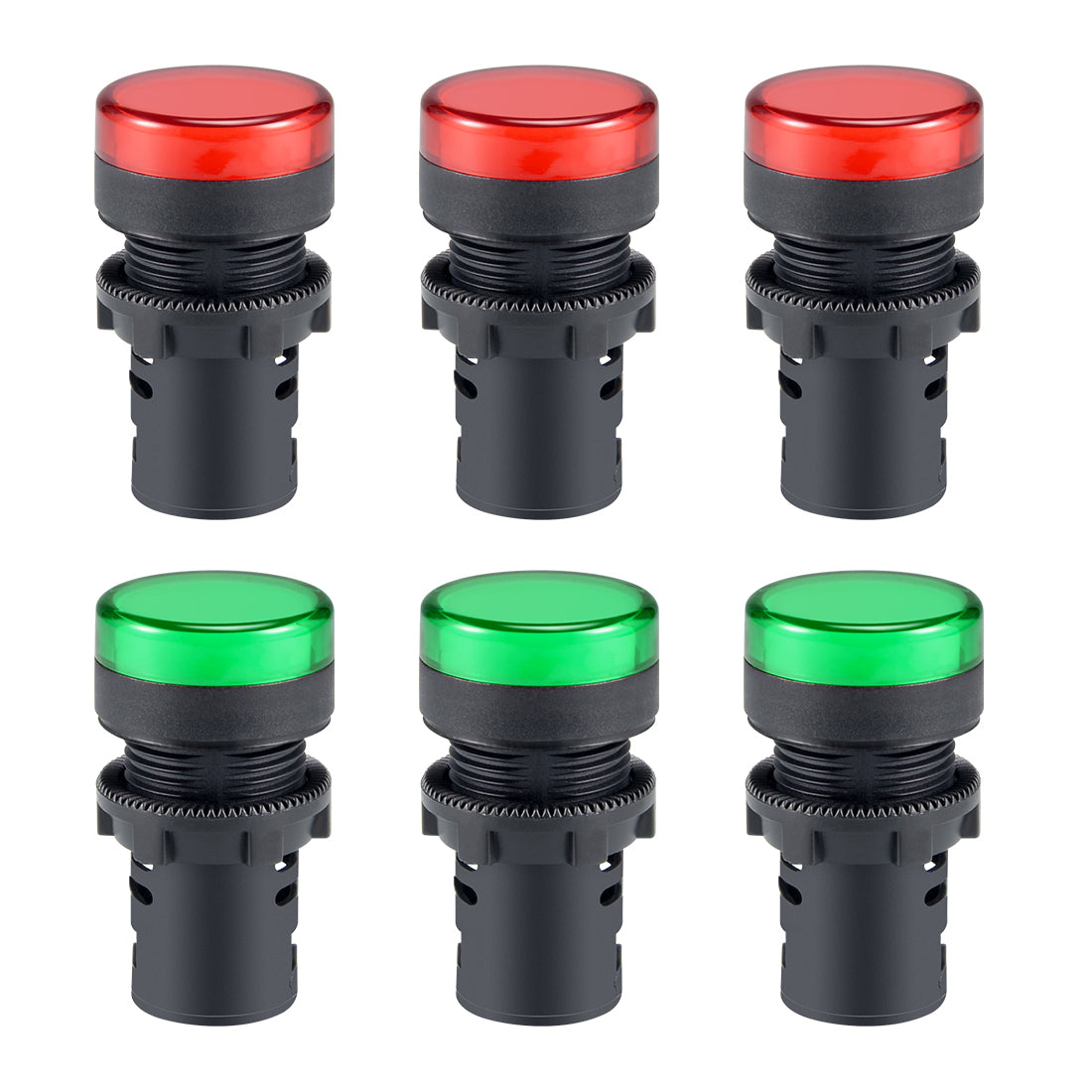

Harfington Uxcell 6Pcs AC/DC 12V Indicator Lights, Red+Green LED, Flush Panel Mount 7/8" 22mm

Uxcell 6Pcs AC/DC 12V Indicator Lights, Red+Green LED, Flush Panel Mount 7/8" 22mm

ID:1089564
ID:1089564
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • RED + GREEN LED indicator lights drove with AC/DC 12 VOLT
  • Industrial standard 22mm (7/8") mounting diameter
  • Flame-resistant housing and high strength. Low behind the panel depth (37mm) and come with a panel locking nut (Fits Panel Thickness: ≤6mm)
  • Screw-clamp connection provides firm contact for reliable operation. Simply drill hole, and use the included screw ring to secure this indicator light. Tested over 20,000 hours of using time, they will surely offer a steady performance
  • Widely used in the ship, machine tools, machine equipment, switch cabinet and power distribution cabinet, electrical control panel such as HVAC Panel and electrical Panel, DIY Projects such as PLC Training Project
About this item
  • RED + GREEN LED indicator lights drove with AC/DC 12 VOLT
  • Industrial standard 22mm (7/8") mounting diameter
  • Flame-resistant housing and high strength. Low behind the panel depth (37mm) and come with a panel locking nut (Fits Panel Thickness: ≤6mm)
  • Screw-clamp connection provides firm contact for reliable operation. Simply drill hole, and use the included screw ring to secure this indicator light. Tested over 20,000 hours of using time, they will surely offer a steady performance
  • Widely used in the ship, machine tools, machine equipment, switch cabinet and power distribution cabinet, electrical control panel such as HVAC Panel and electrical Panel, DIY Projects such as PLC Training Project
Specification

Specification

SKU
a18033000ux0458
Light Source Type
LED
Outer Color
Black
Height
51 mm
Head Diameter
28 mm
Style
AD16-22D/S
Luminous Color
Red,Green
Voltage
12 V
Opening Diameter
22 mm
Voltage Type
AC DC
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

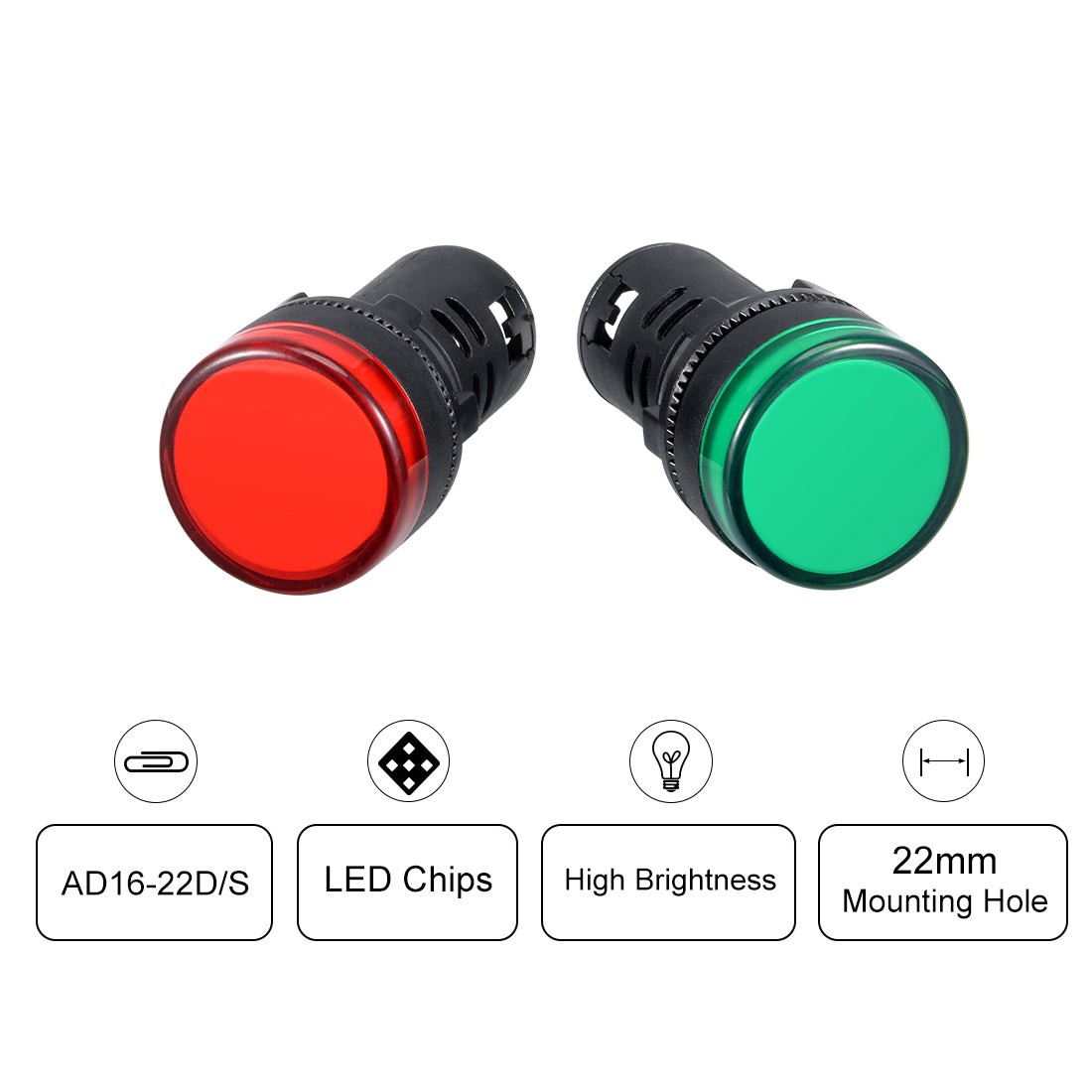

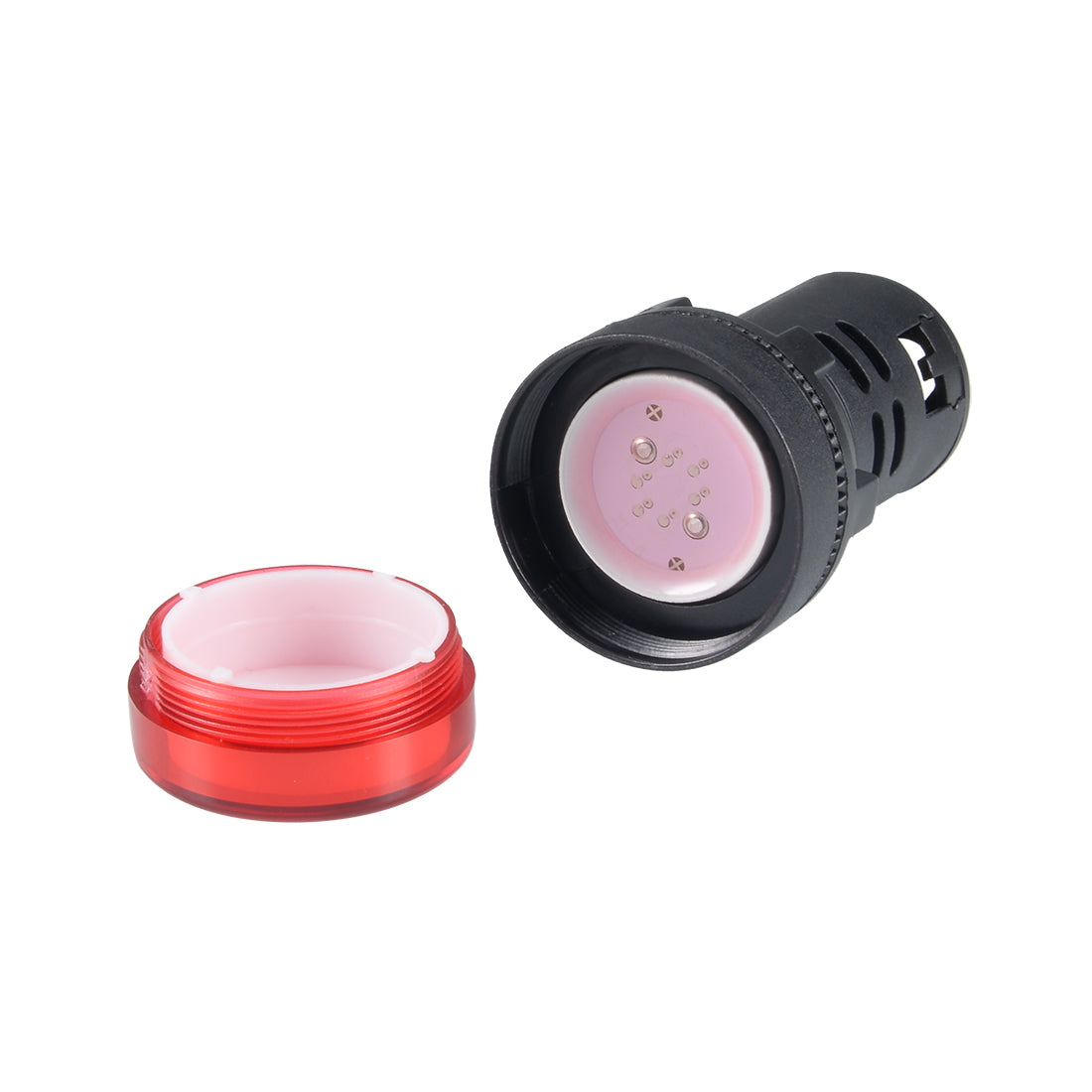

-AD16 Series LED Indicators are applied high-bright LED chips as the light source with long service life, low energy consumption, and lightweight.
-These indicator lights are mainly used on the circuit or mechanical equipment to monitor and alarm the operation status of the equipment, indicate whether power is on or show the operating condition of an equipment device.

Technical Indexes:
Model: AD16-22D/S
Rated Voltage: AC/DC 12V
Rated Current: 20mA
Ambient Temperature: -25 ~+55
Continuous Work-Life: 20,000H

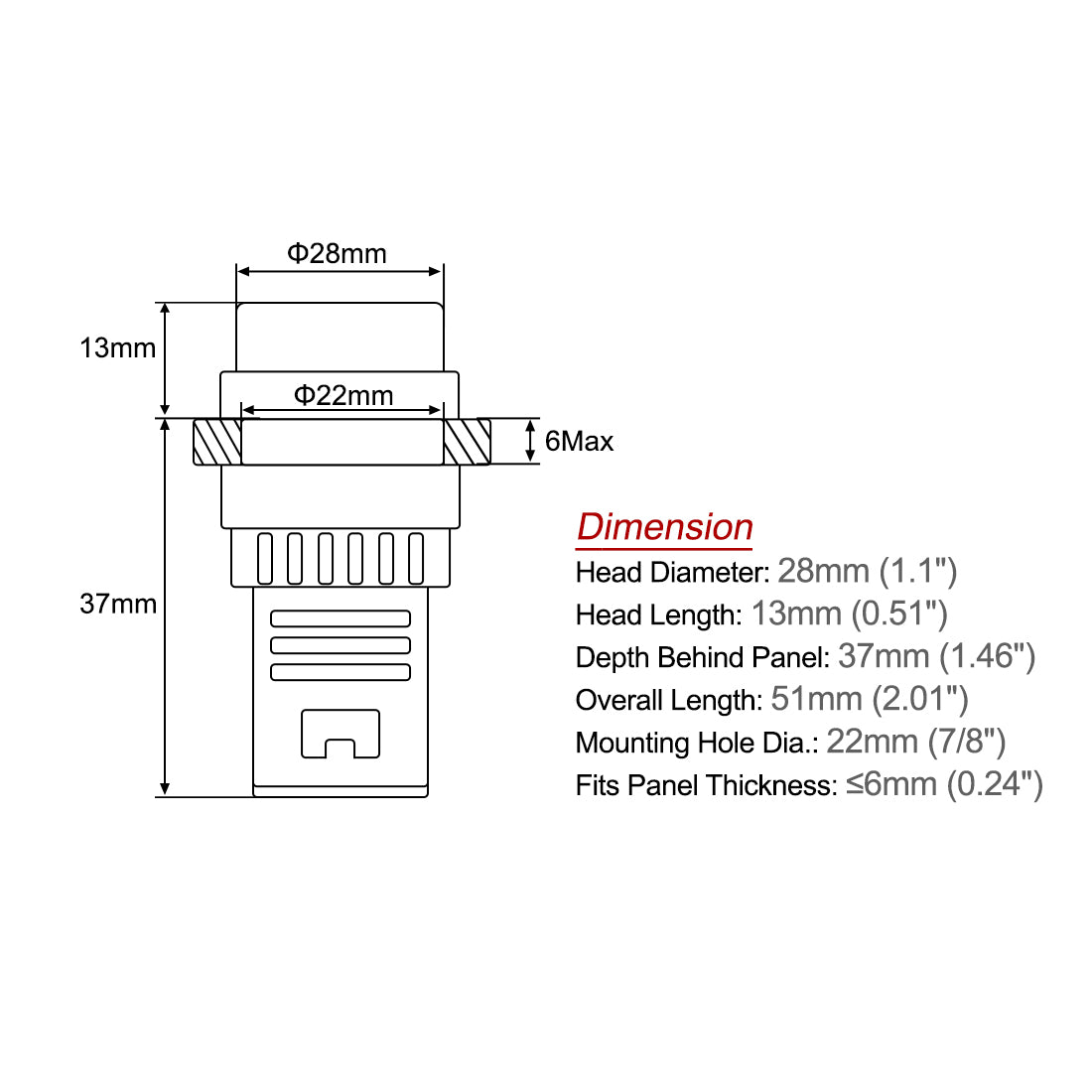

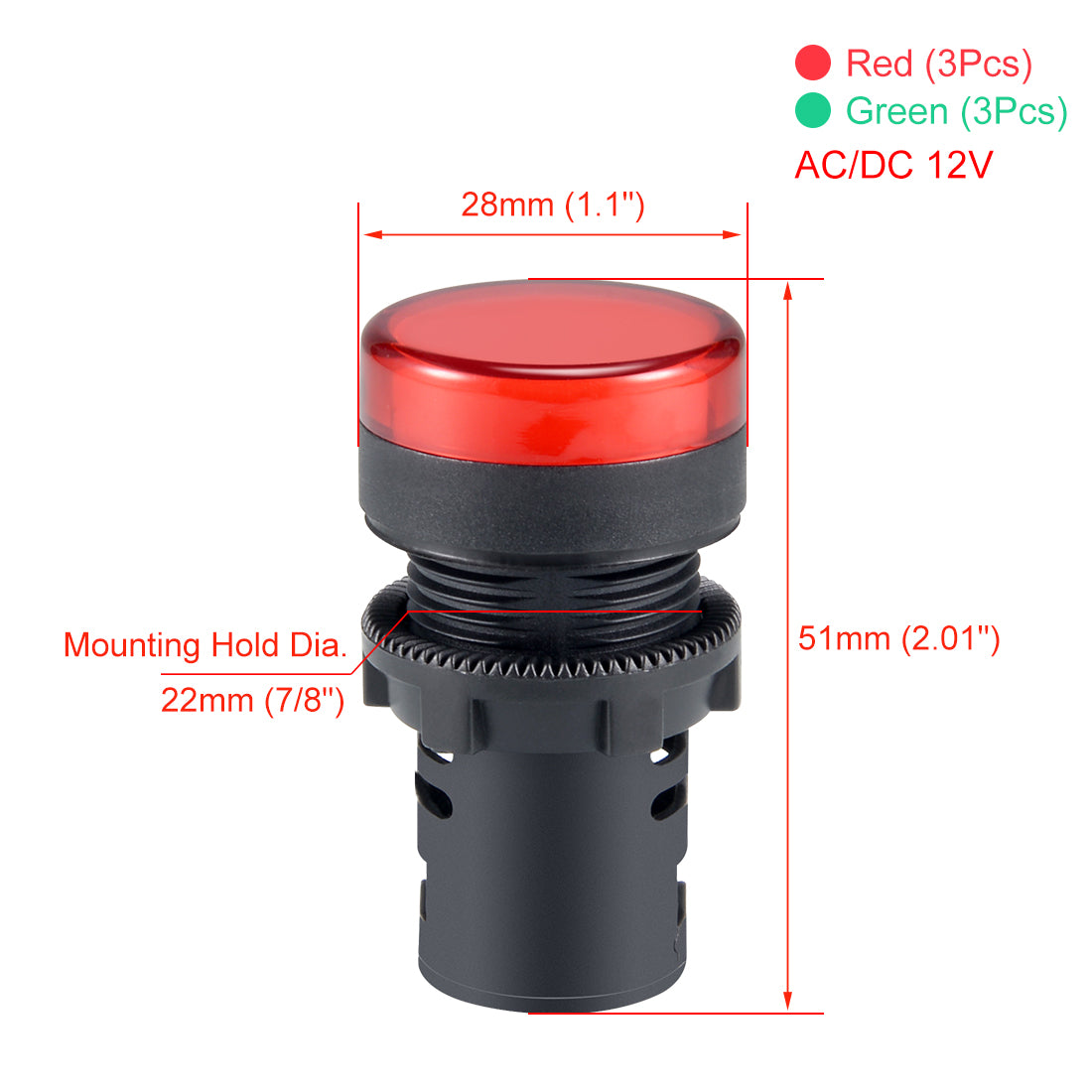

Dimension:
Head Diameter: 28mm (1.1")
Head Length: 13mm (0.51")
Depth Behind Panel: 37mm (1.46")
Overall Length: 51mm (2.01")
Mounting Hole Dia.: 22mm (7/8")
Fits Panel Thickness: 6mm (0.24")

Energy Saving & Low Maintenance Cost

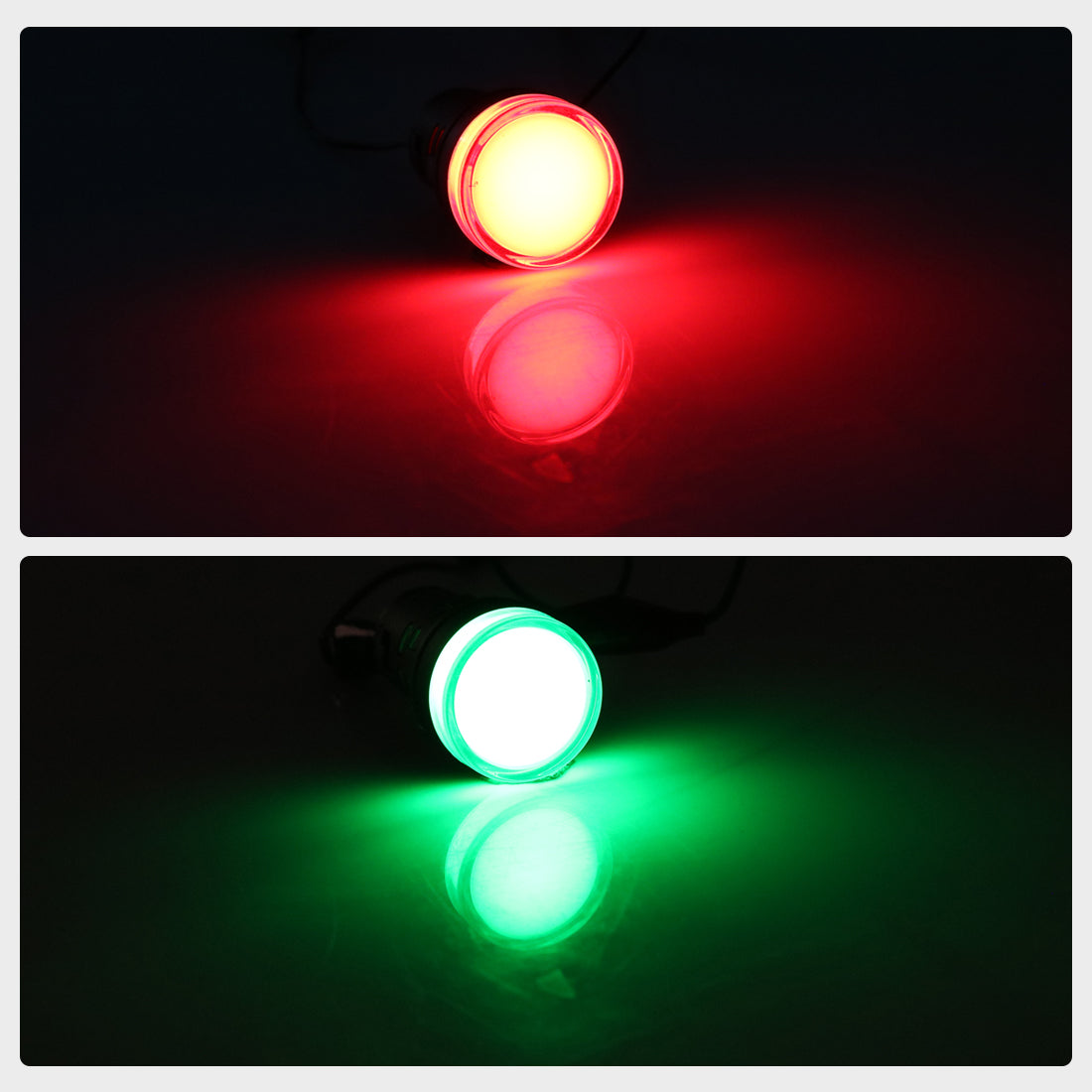

Plenty bright LED chips offer uniform illumination without dark areas. They will surely give you a visual status cue of any indexing signal, anticipating signals or emergency signals.

Ultra-Short Body & Popular 22mm Size
-These LED Pilot Lights feature a popular dimension and ultra-short body, which are good for installation places with narrow and small spaces.
-Simply drill a 22mm (7/8") hole, and use the included screw ring to secure this Indicator Light to any 12-volt power source.

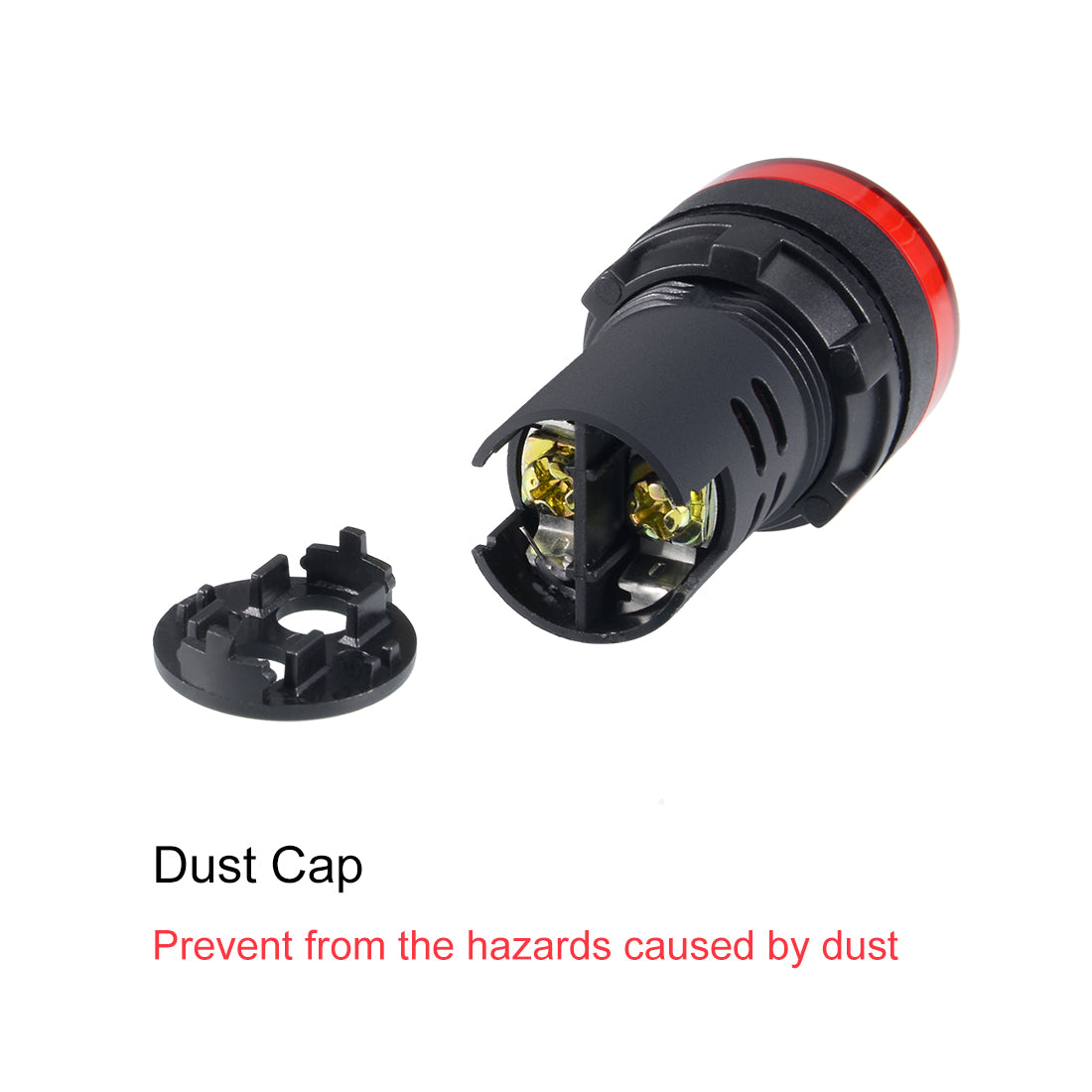

Screw Termination
Assembling with spade terminal connectors (or fork connectors) will provide a tight connection. You may need a screwdriver to help to open the dust-prof cap.

Applications Include:
The ship, machine tools, electrical equipment, switch cabinet, and power distribution cabinet.
Electrical control panels such as HVAC Panel and electrical Panel
DIY Projects such as PLC Training Project.
