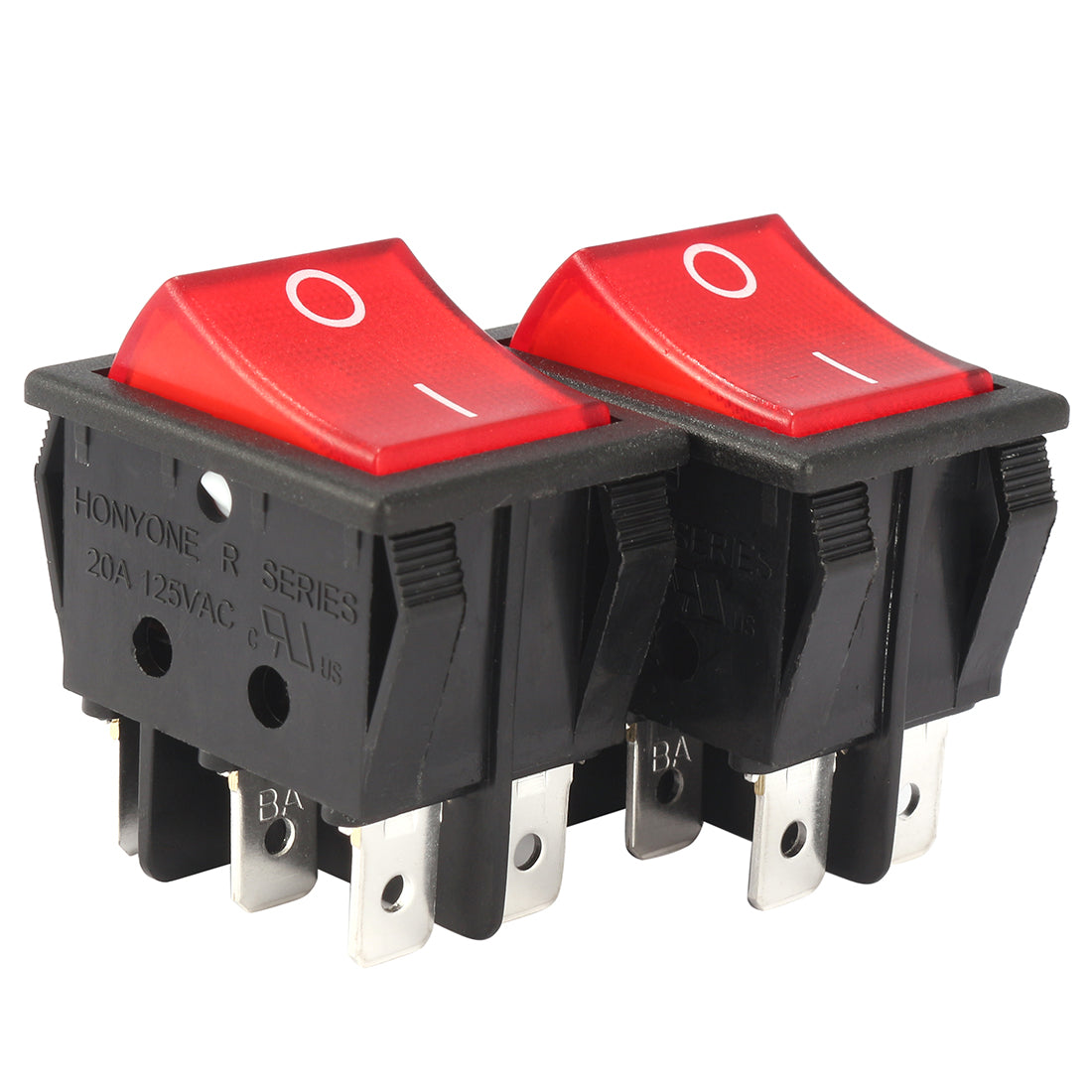

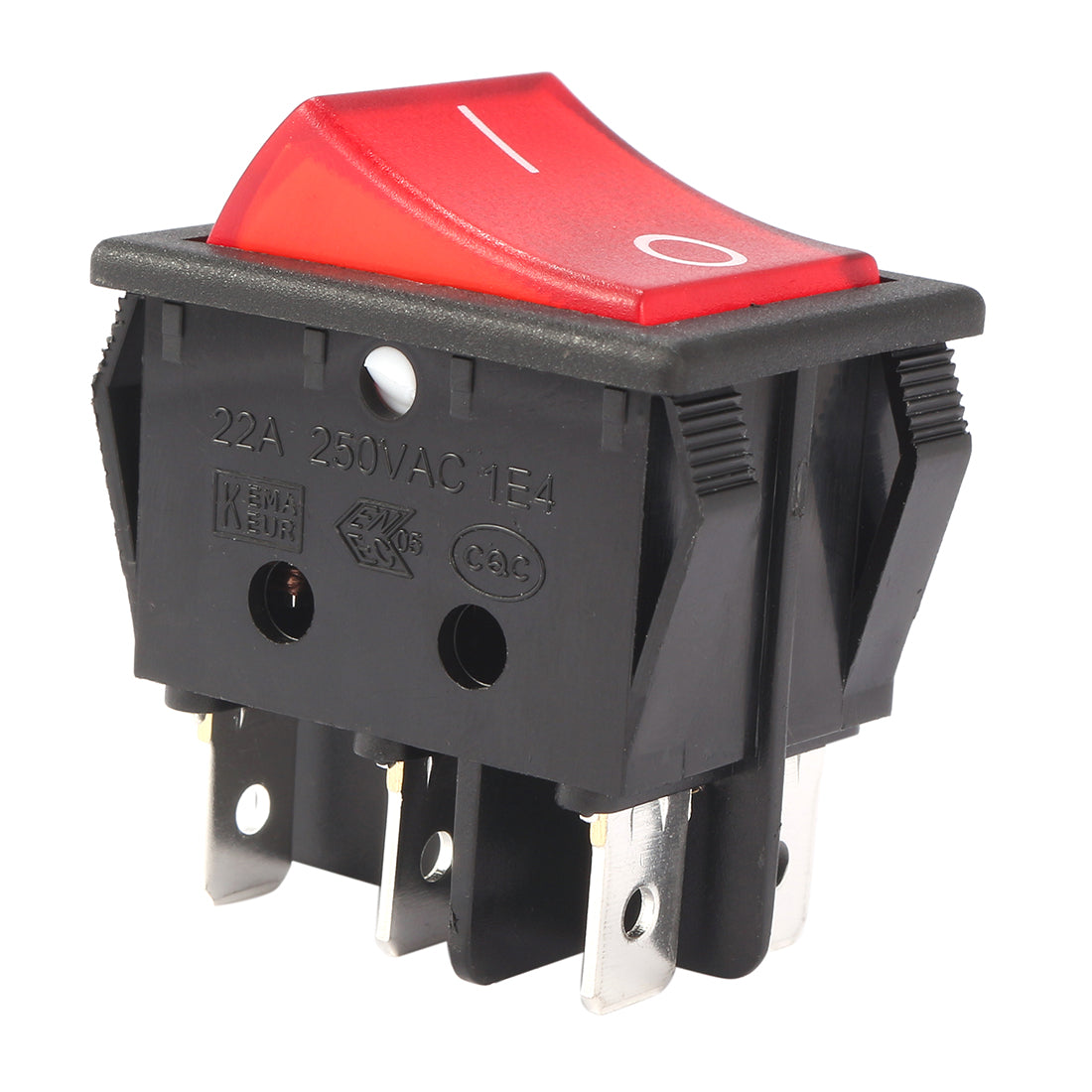

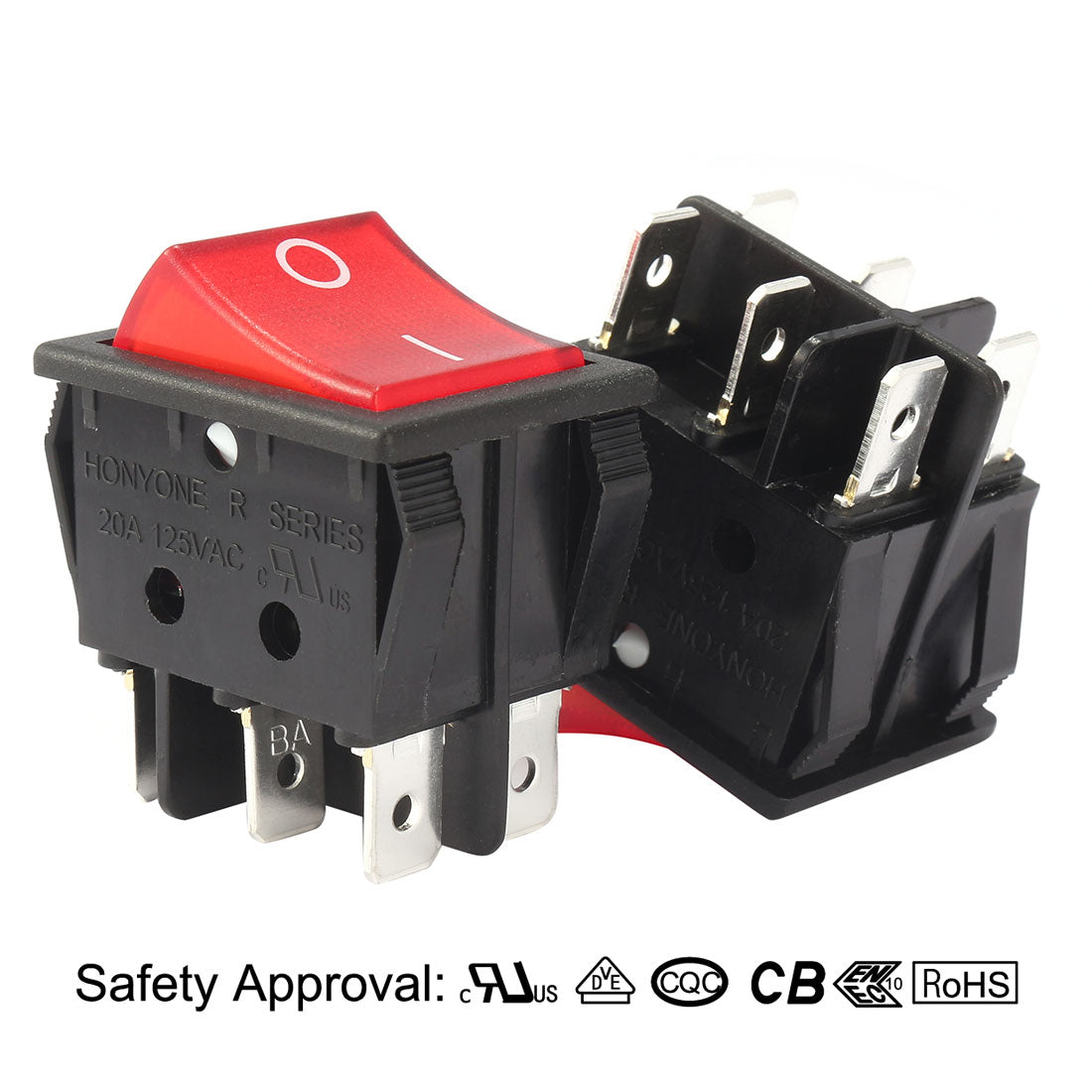

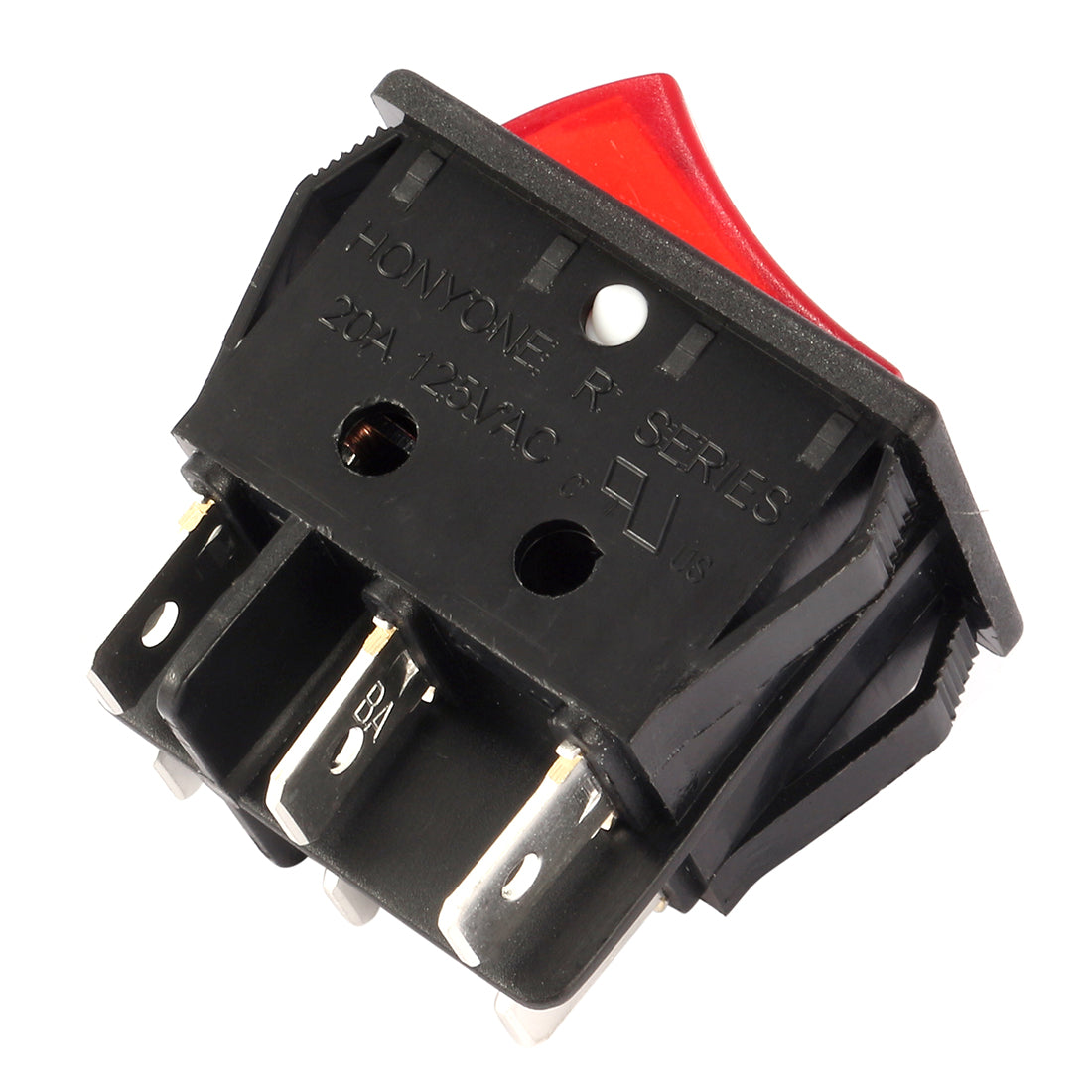

Harfington Uxcell 2Pcs AC 20A/125V 22A/250V DPDT 6P 2 Position Red Bulb Light Boat Rocker Switch

Uxcell 2Pcs AC 20A/125V 22A/250V DPDT 6P 2 Position Red Bulb Light Boat Rocker Switch

ID:1089922
ID:1089922
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 【Wide Application】Universal for Electromagnetic furnace, Water dispenser, buses, boats, marine, trailers,kitchen appliance etc.
  • 【DIY As You Like】4 Terminal,Voltage & Current : AC 125V/20A 250V/22A gentle lighting, longer life for use.
  • 【Product Basic Parameters】Overall Size:32 x 25 x 38mm (L*W*H) Mounting Size:31 x 22mm (L*W)
  • 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
  • 【Parcel contains】2 x Rocker Switch . Easy to install and durable.With our strict quality control system, we test each item and ensure in good condition before we ship.
About this item
  • 【Wide Application】Universal for Electromagnetic furnace, Water dispenser, buses, boats, marine, trailers,kitchen appliance etc.
  • 【DIY As You Like】4 Terminal,Voltage & Current : AC 125V/20A 250V/22A gentle lighting, longer life for use.
  • 【Product Basic Parameters】Overall Size:32 x 25 x 38mm (L*W*H) Mounting Size:31 x 22mm (L*W)
  • 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
  • 【Parcel contains】2 x Rocker Switch . Easy to install and durable.With our strict quality control system, we test each item and ensure in good condition before we ship.
Specification

Specification

SKU
a16121900ux0260
Product name
Rocker Switch
Pole and throw
DPDT
Position
On-Off
Lamp color
Red
Rated voltage
AC 20A/125V 22A/250V(for resistive load only)
Overall size
32 x 25 x 38mm (L*W*H)
Mounting size
31 x 22mm(L*W)
Color
Black,Red
Material
Plastic, Metal
Package content
2Pcs x Rocker Switche
Inductive load
5.6A
Lamp load
2.88A
Motor load
3.2A
Capactive load
2.88A
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:



Product Name:Rocker Switch

Pole and Throw:DPDT

Terminal Quantity:6

Position:On-Off

Lamp Color:Red

Rated Voltage:AC 20A/125V 22A/250V(for resistive load only)

Overall Size:32 x 25 x 38mm (L*W*H)

Mounting Size:31 x 22mm (L*W)

Color:Black,Red

Material:Plastic, Metal

Package Content: 2Pcs x Rocker Switch

AC 250V Current for different loads

Inductive Load: 5.6A

Lamp Load: 2.88A

Motor Load: 3.2A

Capacity Load: 2.88A



AC125V Current for different loads

Inductive Load: 7A

Lamp Load: 3.6A

Motor Load: 4A

Capacity Load: 3.6A



Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.

$6.32 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

Specification:



Product Name:Rocker Switch

Pole and Throw:DPDT

Terminal Quantity:6

Position:On-Off

Lamp Color:Red

Rated Voltage:AC 20A/125V 22A/250V(for resistive load only)

Overall Size:32 x 25 x 38mm (L*W*H)

Mounting Size:31 x 22mm (L*W)

Color:Black,Red

Material:Plastic, Metal

Package Content: 2Pcs x Rocker Switch

AC 250V Current for different loads

Inductive Load: 5.6A

Lamp Load: 2.88A

Motor Load: 3.2A

Capacity Load: 2.88A



AC125V Current for different loads

Inductive Load: 7A

Lamp Load: 3.6A

Motor Load: 4A

Capacity Load: 3.6A



Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.
