Harfington Uxcell RV24YN20S 50K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer w Knob

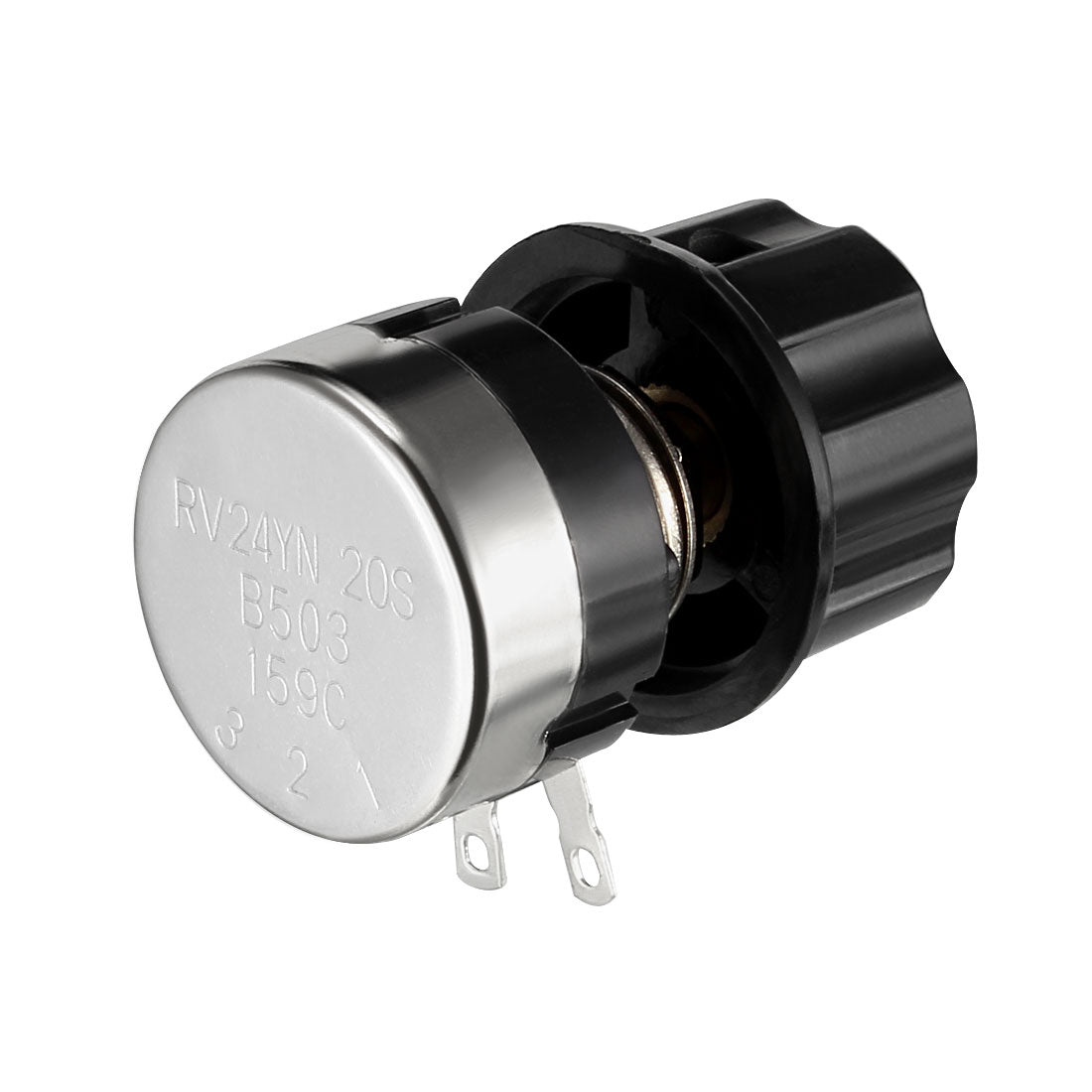

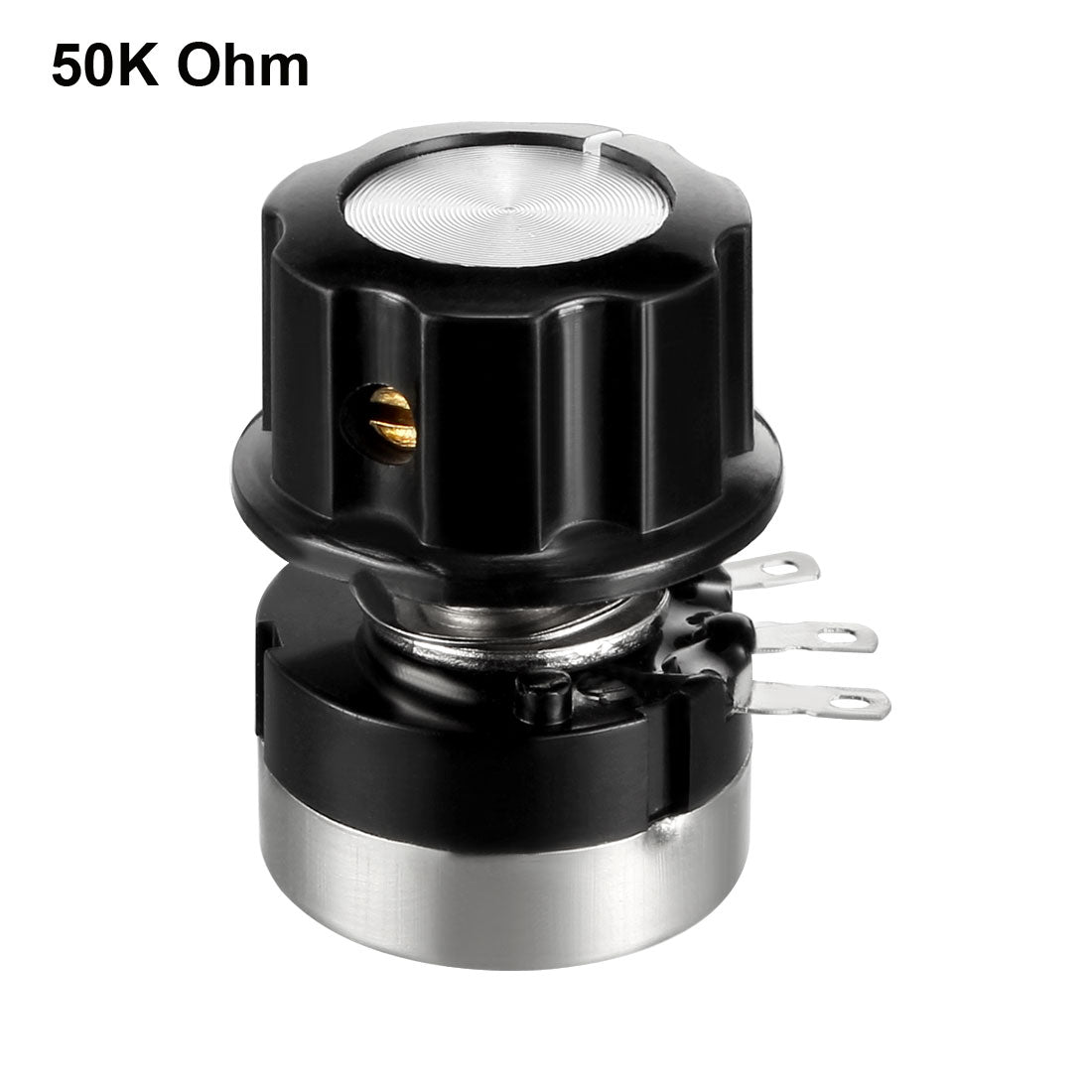

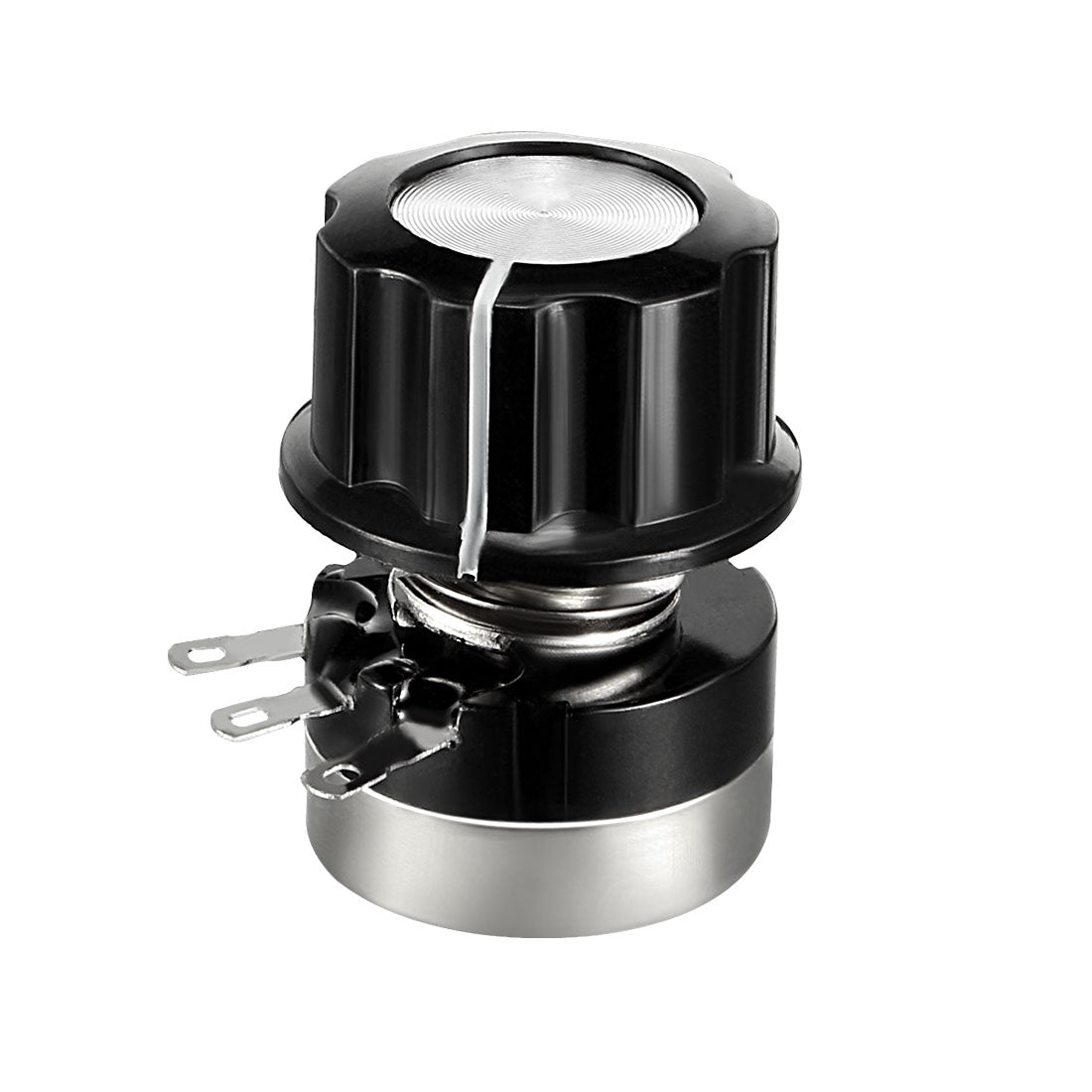

Uxcell RV24YN20S 50K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer w Knob

ID:
$8.98 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: RV24YN 20S/B503,, metal corrosion resistant, high mechanical strength
  • Resistance Value: 50K Ohm Tolerance:+/-10%
  • Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
  • Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
  • Knurled shaft with split design for push-on knob.this item include Knob easy for you to use
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: RV24YN 20S/B503,, metal corrosion resistant, high mechanical strength
  • Resistance Value: 50K Ohm Tolerance:+/-10%
  • Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
  • Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
  • Knurled shaft with split design for push-on knob.this item include Knob easy for you to use
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
  • Product Name: Carbon Film Potentiometer
  • Model: RV24YN 20S/B503
  • Material: Carbon film Metal
  • Resistance Value: 50k ohm
  • Power: 2W
  • Tolerance: +/-10%
  • Turn Number: Single Turn
  • Terminals Number: 3
  • Features: Round Shaft
  • Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
  • Screw Thread Dia.: 8.7mm/0.34 inch
  • Shaft Diameter: 6mm / 0.24 inch
  • Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
  • Shaft Total Length 20.5mm/0.8 inch
  • Rotary Knob Size: 15 x 27mm/0.6 x 1.1inch (H*Max.D)
  • Color: Black, Silver Tone
  • Package Content: 1 x Carbon Film Potentiometer with Knob
  • Features: 50K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.
  • Top adjustment type and knurled shaft for easy operate in daily use.
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

  • Product Name: Carbon Film Potentiometer
  • Model: RV24YN 20S/B503
  • Material: Carbon film Metal
  • Resistance Value: 50k ohm
  • Power: 2W
  • Tolerance: +/-10%
  • Turn Number: Single Turn
  • Terminals Number: 3
  • Features: Round Shaft
  • Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
  • Screw Thread Dia.: 8.7mm/0.34 inch
  • Shaft Diameter: 6mm / 0.24 inch
  • Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
  • Shaft Total Length 20.5mm/0.8 inch
  • Rotary Knob Size: 15 x 27mm/0.6 x 1.1inch (H*Max.D)
  • Color: Black, Silver Tone
  • Package Content: 1 x Carbon Film Potentiometer with Knob
  • Features: 50K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.
  • Top adjustment type and knurled shaft for easy operate in daily use.
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
