Harfington Uxcell Sleeve (Plain) Bearings 3/4" Bore 7/8" OD 3/4" L Wrapped Oilless Bushings

Uxcell Sleeve (Plain) Bearings 3/4" Bore 7/8" OD 3/4" L Wrapped Oilless Bushings

ID:1104063
ID:1104063
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

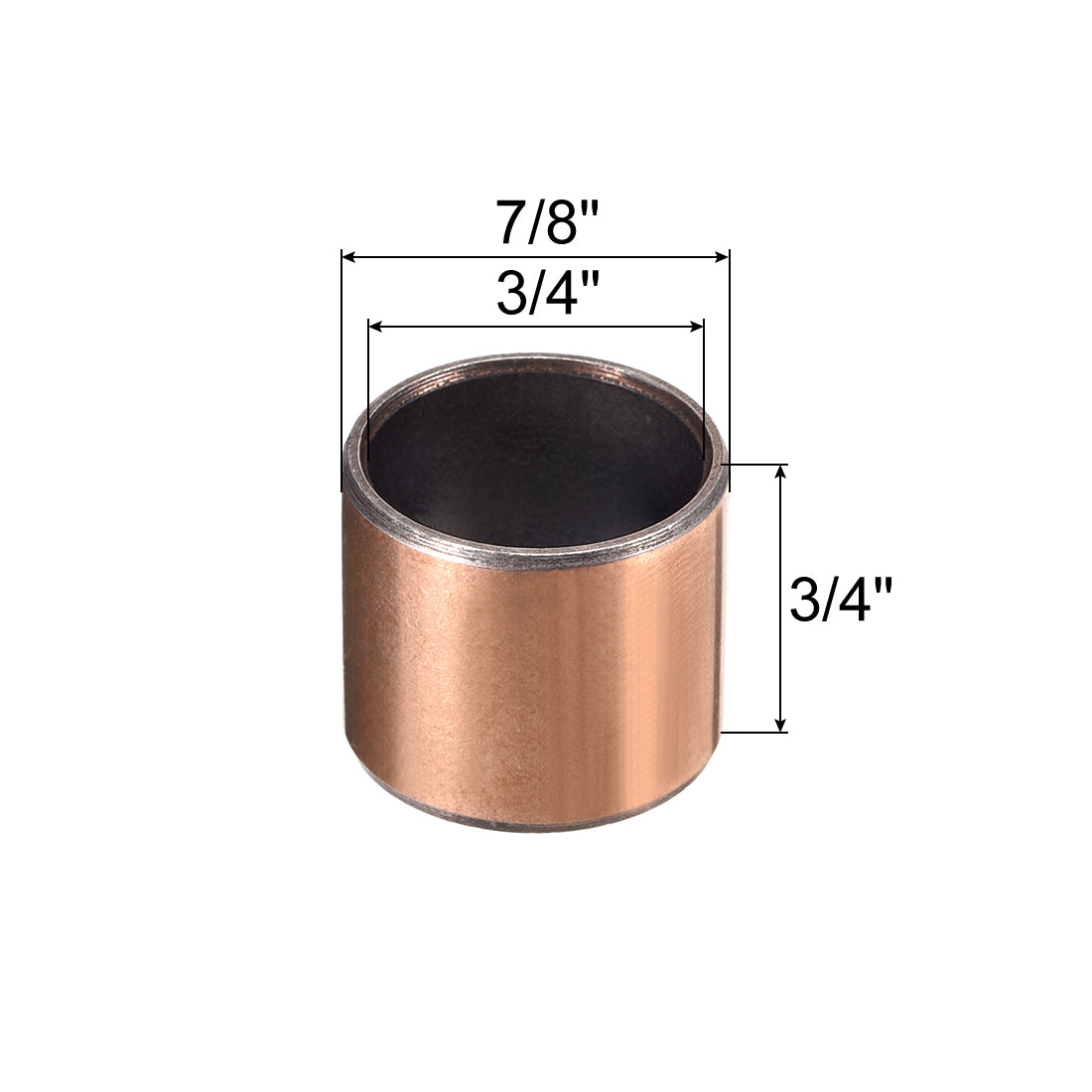

  • Bore: 3/4", Outside Diameter: 7/8", Length: 3/4"
  • Oilless, maintenance-free, good frictional property
  • Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
  • Featured with good load capacity and wear resistance performance
  • Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery
About this item
  • Bore: 3/4", Outside Diameter: 7/8", Length: 3/4"
  • Oilless, maintenance-free, good frictional property
  • Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
  • Featured with good load capacity and wear resistance performance
  • Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery
Specification

Specification

SKU
a19032100ux0038
Inner Dia.
3/4"
Outside Dia.
7/8"
Length
4"
Material
Copper-Base Alloy
Pkg.Qty
1
Oil Content
Oilless
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
  • Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
  • Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
  • Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.
  • Note: Split Line can not be used for bearing.

Specification:

Material: Carbon Steel Base with Porous Bronze Sintered

Finish: PTFE and Lead Rolling, Copper Plating

Friction Factor (Dry Friction): 0.04-0.2

Friction Factor (Oil Lubrication): 0.02-0.07

Bore Diameter: 3/4" / 19.05mm

Outside Diameter: 7/8" / 22.225mm

Length:3/4" / 19.05mm

Number of Item: 1 Pack

$6.00 $6.00/eachRegular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Inner Dia. Outside Dia. Length Material Oil Content Pkg.Qty ID Price Qty
3/4" 7/8" 4" Copper-Base Alloy Oilless 1 1104063 $6.00
Products Inner Dia. Outside Dia. Length Material Oil Content Pkg.Qty ID Price Qty
3/4" 7/8" 4" Copper-Base Alloy Oilless 1 1104063 $6.00
35mm 39mm 40mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 2 1209853 $7.78
35mm 39mm 40mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 1 1004186 $6.23
35mm 39mm 20mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 2 1004405 $6.31
8mm 10mm 6mm Copper-Base Alloy Oilless 2 1000274 $7.99
8mm 10mm 25mm Copper-Base Alloy Oilless 2 1000688 $7.96
8mm 10mm 12mm Copper-Base Alloy Oilless 2 1001395 $8.20
8mm 10mm 5mm Copper-Base Alloy Oilless 3 1005324 $5.42
8mm 15mm 15mm Copper-Base Alloy Oilless 2 1000554 $8.34
8mm 15mm 30mm Copper-Base Alloy Oilless 2 1001146 $10.54
10mm 14mm 20mm Copper-Base Alloy Oilless 2 1002777 $8.57
10mm 14mm 10mm Copper-Base Alloy Oilless 2 1004177 $8.26
10mm 14mm 30mm Copper-Base Alloy Oilless 1 1004449 $7.29
15mm 21mm 25mm Copper-Base Alloy Oilless 1 1003356 $7.99
25mm 33mm 40mm Copper-Base Alloy Oilless 1 1001957 $9.86
32mm 36mm 40mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 1 1002104 $6.38
13mm 19mm 12mm Copper-Base Alloy Oilless 1 1002437 $6.94
13mm 19mm 10mm Copper-Base Alloy Oilless 1 1004084 $6.76
5mm 9mm 20mm Copper-Base Alloy Oilless 1 1004068 $6.94
12mm 18mm 30mm Copper-Base Alloy Oilless 1 1004079 $7.46
28mm 32mm 20mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 2 1004367 $5.96
28mm 32mm 15mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 2 1004529 $5.49
20mm 23mm 50mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 1 1004382 $5.81
20mm 23mm 25mm Copper-Base Alloy Oilless 1 1005348 $5.42
6mm 10mm 20mm Copper-Base Alloy Oilless 2 1004443 $8.26
30mm 34mm 10mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 2 1010199 $5.34
30mm 34mm 50mm Carbon Steel,Bronze Sintered,Composite Coated Oilless 1 1004490 $6.67
16mm 18mm 15mm Copper-Base Alloy Oilless 10 1005342 $6.48
16mm 18mm 20mm Copper-Base Alloy Oilless 1 1016117 $5.42
45mm 50mm 20mm Copper-Base Alloy Oilless 1 1005351 $5.57
50mm 55mm 40mm Copper-Base Alloy Oilless 1 1005352 $6.71
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Description:

  • Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
  • Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
  • Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
  • Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.
  • Note: Split Line can not be used for bearing.

Specification:

Material: Carbon Steel Base with Porous Bronze Sintered

Finish: PTFE and Lead Rolling, Copper Plating

Friction Factor (Dry Friction): 0.04-0.2

Friction Factor (Oil Lubrication): 0.02-0.07

Bore Diameter: 3/4" / 19.05mm

Outside Diameter: 7/8" / 22.225mm

Length:3/4" / 19.05mm

Number of Item: 1 Pack
