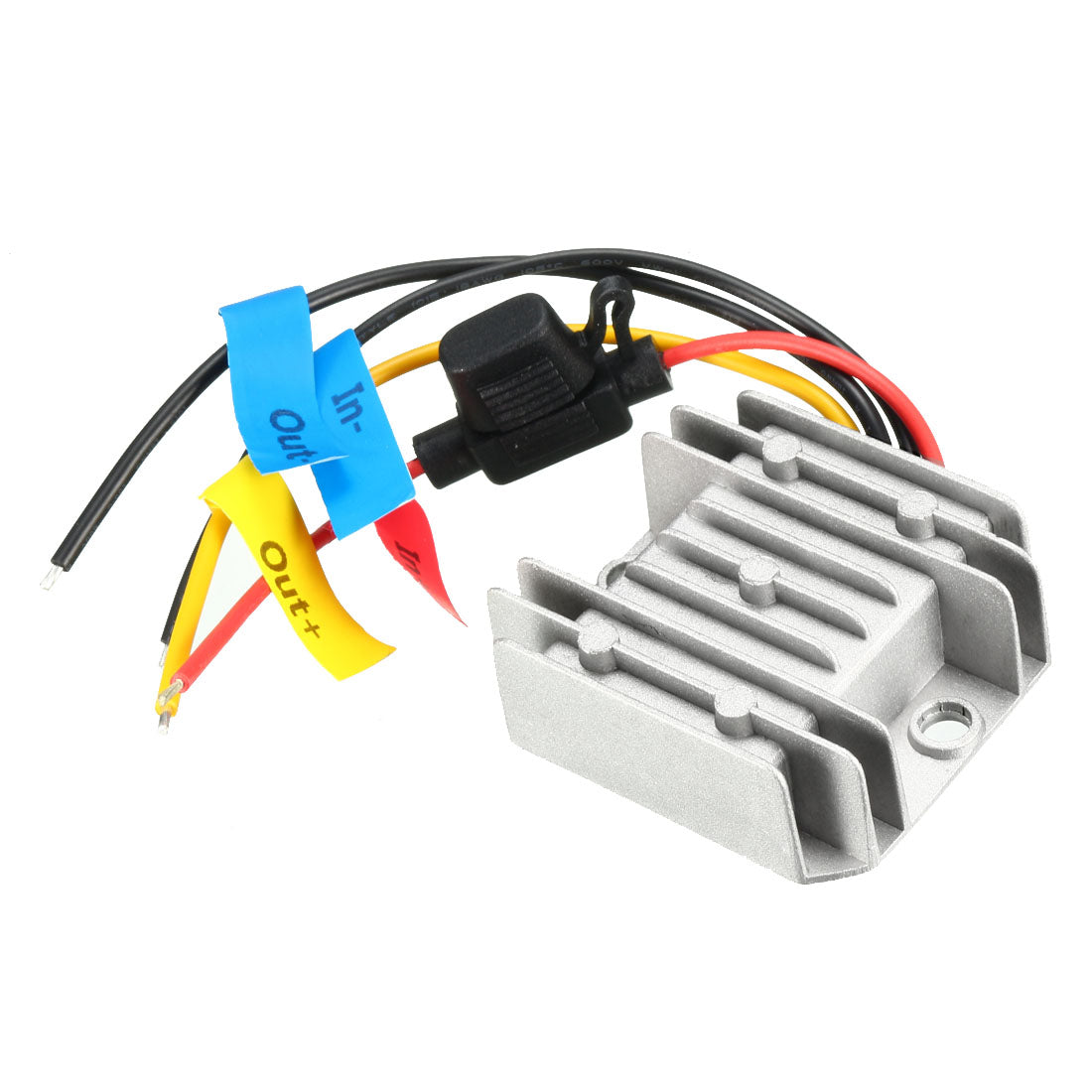

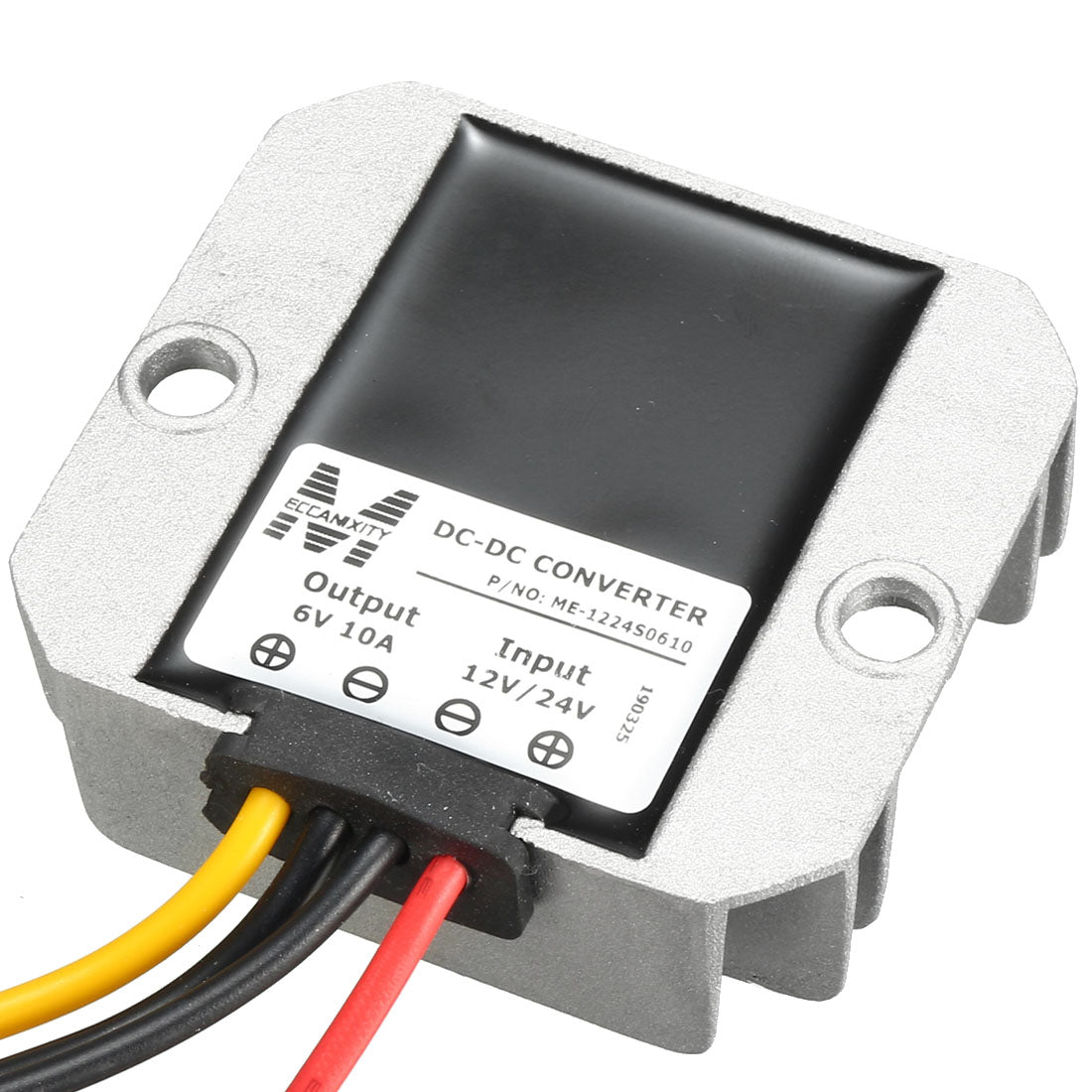

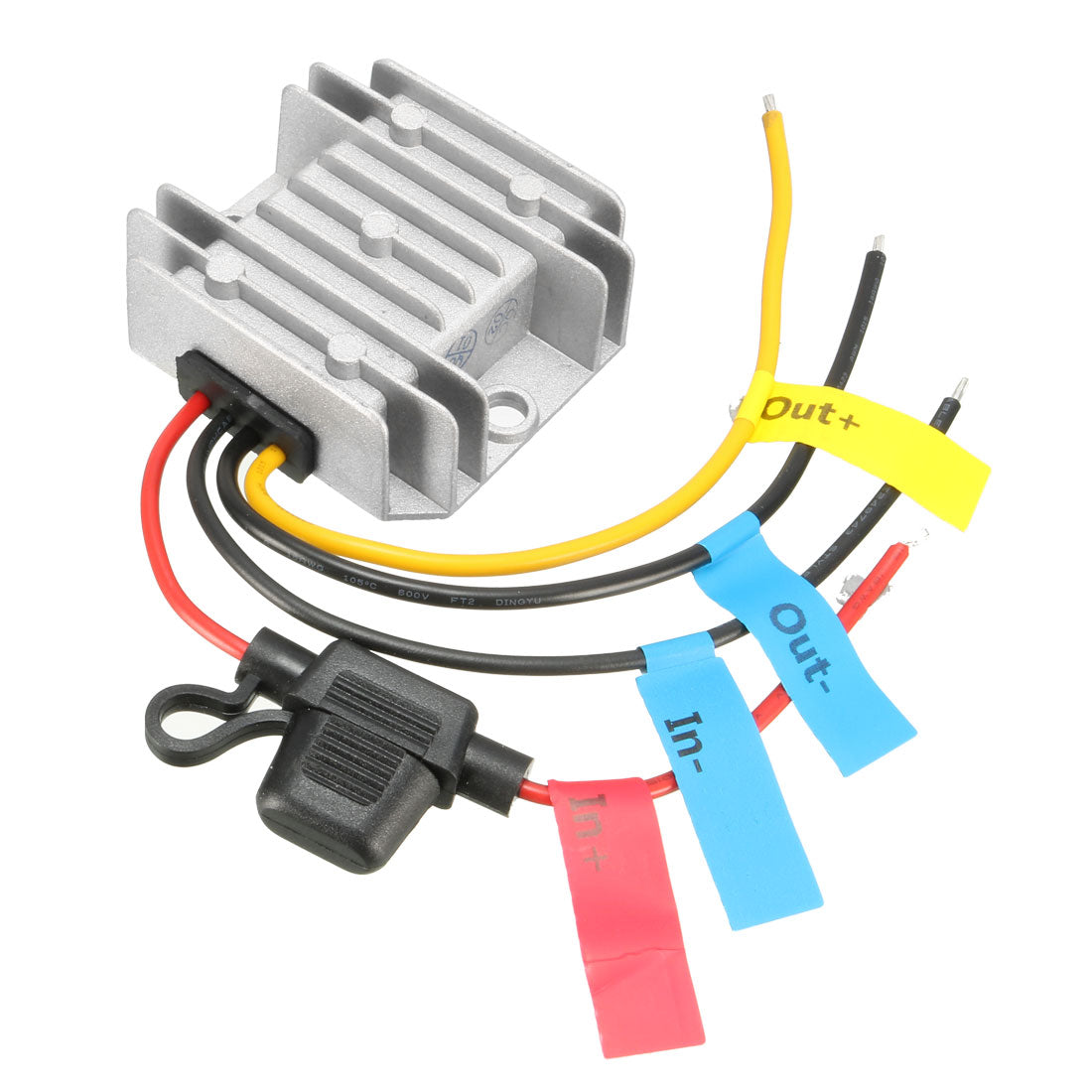

Harfington uxcell Power Converter Regulator DC 12V/24V(9V~35V)  to DC 6V 10A 60W Waterproof Voltage Convert Transformer

uxcell Power Converter Regulator DC 12V/24V(9V~35V) to DC 6V 10A 60W Waterproof Voltage Convert Transformer

ID:1106137
ID:1106137
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Waterproof IP68 Voltage Converter DC 12V/24V(9V-35V DC) to DC 6V 10A 60W(Note: the load rating should be less than or equal to 10A).
  • Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
  • Auto-recovery when device is back to normal operating; high transfer efficiency of 92% max..

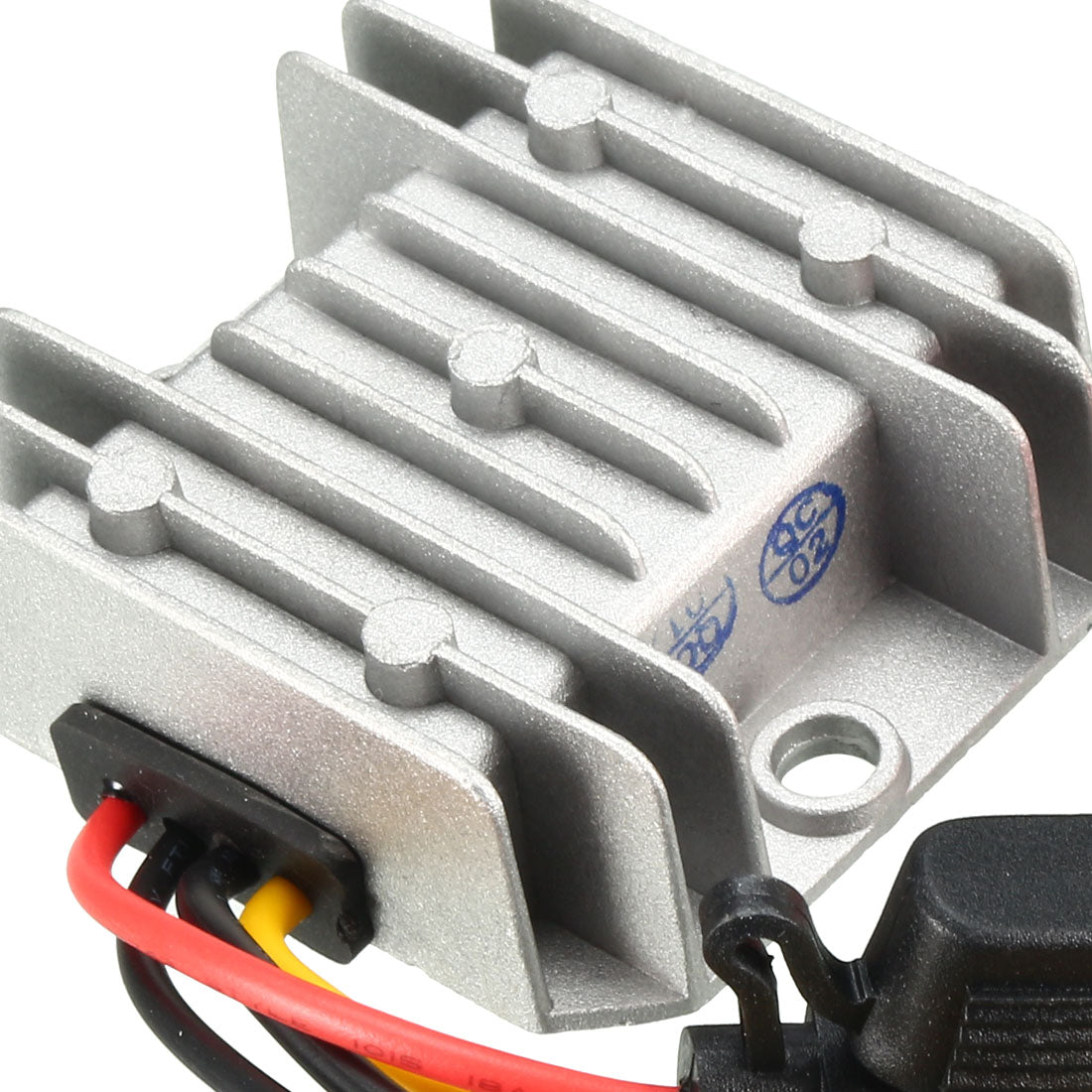

  • Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
About this item
  • Waterproof IP68 Voltage Converter DC 12V/24V(9V-35V DC) to DC 6V 10A 60W(Note: the load rating should be less than or equal to 10A).
  • Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
  • Auto-recovery when device is back to normal operating; high transfer efficiency of 92% max..
  • Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
Specification

Specification

SKU
a16030100ux0352
Input rated voltage
DC 12V/24V
Input voltage range
9-35V DC
Output voltage
DC 6V 10A
Output rated power
60W
Efficiency
92% (half load)
Output peak power
75W
Voltage regulation
Less Than 1%
Load regulation
Less Than 2%
Ripple(full load test)
Less Than 50mV
No load current
Less Than 20mV

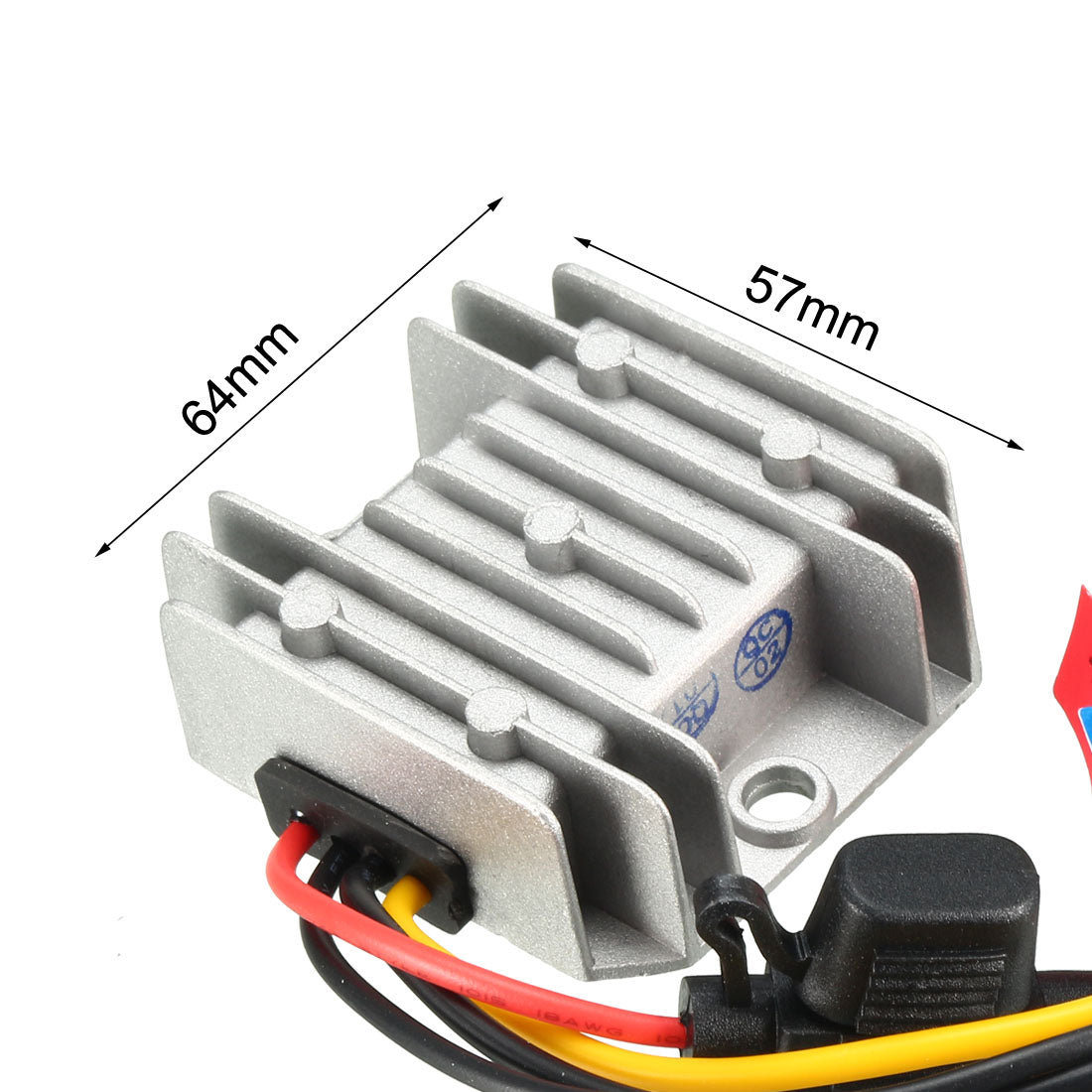

Total size
64*57*22mm(L*W*H)
Fixing hole diameter
6.5mm(0.25 inch)
Hole center diameter
53mm
Weight
114g
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry-grade DC 12V/24V to DC 6V converter,  efficiency up to 92%.
4. Die-cast aluminum shell, epoxy seal, cooling by free air convection.
5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.

Applications:
- Trucks
- Golf Carts
- Forklifts
- Buses
- Loaders
- Wind Power System
- Solar Power System
- Telecommunications
- Boat and Yacht
- and so on.

Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 9-35V DC
* Output voltage: DC 6V 10A
* Output Rated Power: 60W
* Efficiency: 92% (half load); 90% (full load)
* Output Peak Power: 75W
* Voltage Converter: Less Than 1%
* Load Converter: Less Than 2%
* Ripple(full load test): Less Than 50mV
* No Load Current: Less Than 20mV
* Total Size: 64*57*22mm(L*W*H)
* Fixing Hole Diameter: 6.5mm(0.25 inch)
* Hole Center Diameter: 53mm
* Weight: 114g

Package included:
1 x DC 12V/24V to DC 6V 10A Voltage Converter

Note: Can not use a long time Under the MAX. LISTED LOAD POWER.
$11.02 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry-grade DC 12V/24V to DC 6V converter,  efficiency up to 92%.
4. Die-cast aluminum shell, epoxy seal, cooling by free air convection.
5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.

Applications:
- Trucks
- Golf Carts
- Forklifts
- Buses
- Loaders
- Wind Power System
- Solar Power System
- Telecommunications
- Boat and Yacht
- and so on.

Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 9-35V DC
* Output voltage: DC 6V 10A
* Output Rated Power: 60W
* Efficiency: 92% (half load); 90% (full load)
* Output Peak Power: 75W
* Voltage Converter: Less Than 1%
* Load Converter: Less Than 2%
* Ripple(full load test): Less Than 50mV
* No Load Current: Less Than 20mV
* Total Size: 64*57*22mm(L*W*H)
* Fixing Hole Diameter: 6.5mm(0.25 inch)
* Hole Center Diameter: 53mm
* Weight: 114g

Package included:
1 x DC 12V/24V to DC 6V 10A Voltage Converter

Note: Can not use a long time Under the MAX. LISTED LOAD POWER.
