Harfington Uxcell Metric Tap M3 Pitch 3 Flutes H2 Thread Plug  HSS for Clocks and Watches DIY 2.5 x 2.5mm Square End

Uxcell Metric Tap M3 Pitch 3 Flutes H2 Thread Plug HSS for Clocks and Watches DIY 2.5 x 2.5mm Square End

ID:
$5.73 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item
  • Thread Size: M3 x 0.5mm. High-speed steel metric taps are with high hardness and toughness for wear resistance, well suited for general purpose applications.
  • The thread tap can make new threads or re-thread damaged or jammed threads. Uncoated taps feature just the base substrate without any additional coatings, and fit a wide range of applications.
  • Suitable for processing through holes or shallow holes on most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Straight flute design, rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction. Good for processing through holes or shallow holes
  • Machine taps used with drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • In stock, ready to ship
Cart
Cart
About this item
  • Thread Size: M3 x 0.5mm. High-speed steel metric taps are with high hardness and toughness for wear resistance, well suited for general purpose applications.
  • The thread tap can make new threads or re-thread damaged or jammed threads. Uncoated taps feature just the base substrate without any additional coatings, and fit a wide range of applications.
  • Suitable for processing through holes or shallow holes on most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Straight flute design, rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction. Good for processing through holes or shallow holes
  • Machine taps used with drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Features:

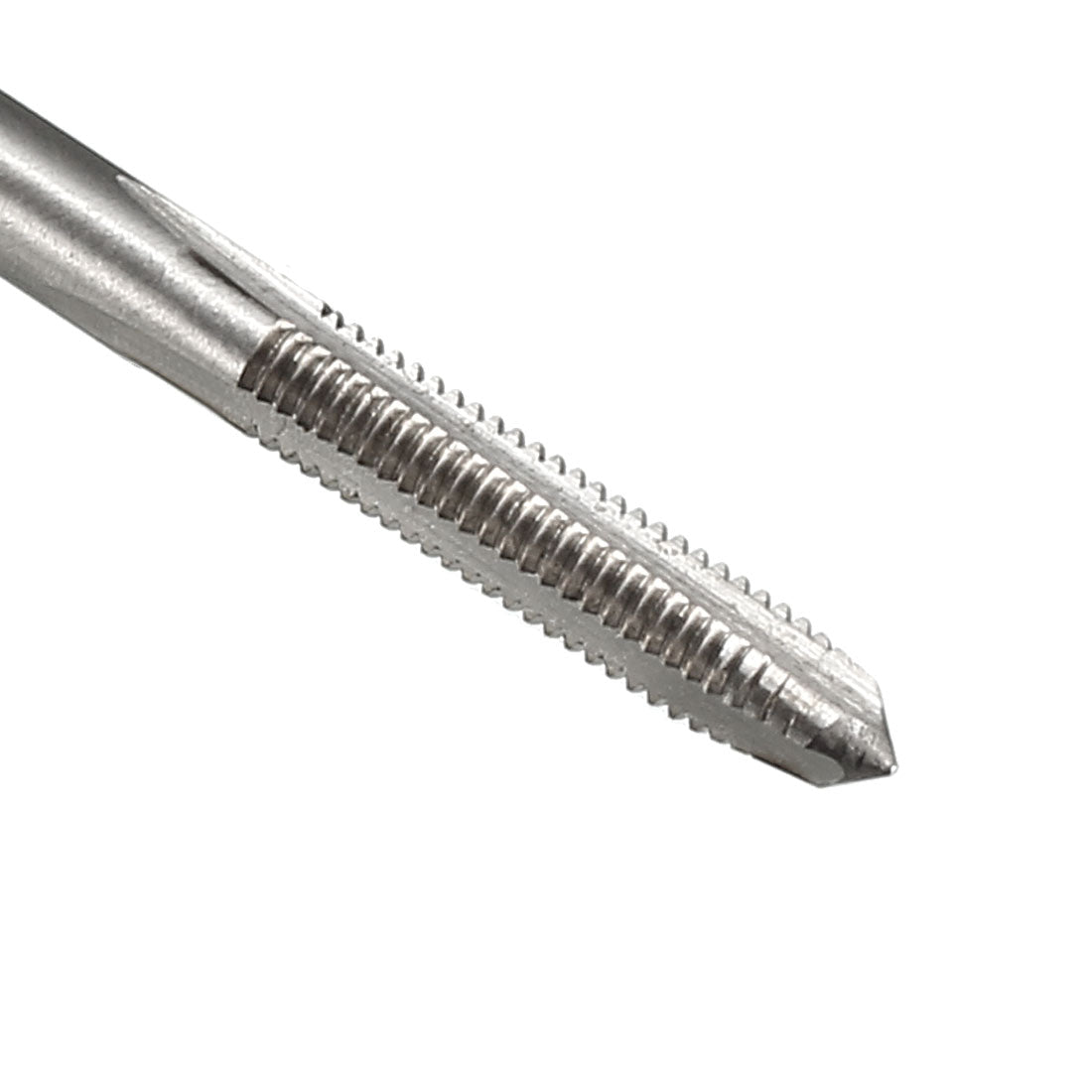

Straight 3 flutes are ground to provide rapid chip removal for efficient threading.

Used with some cutting fluid or keep it wet when tapping, the will last longer.

The mini metric are mainly used for clocks, watches, low hardness wood and soft metal hole processing.



Specifications:

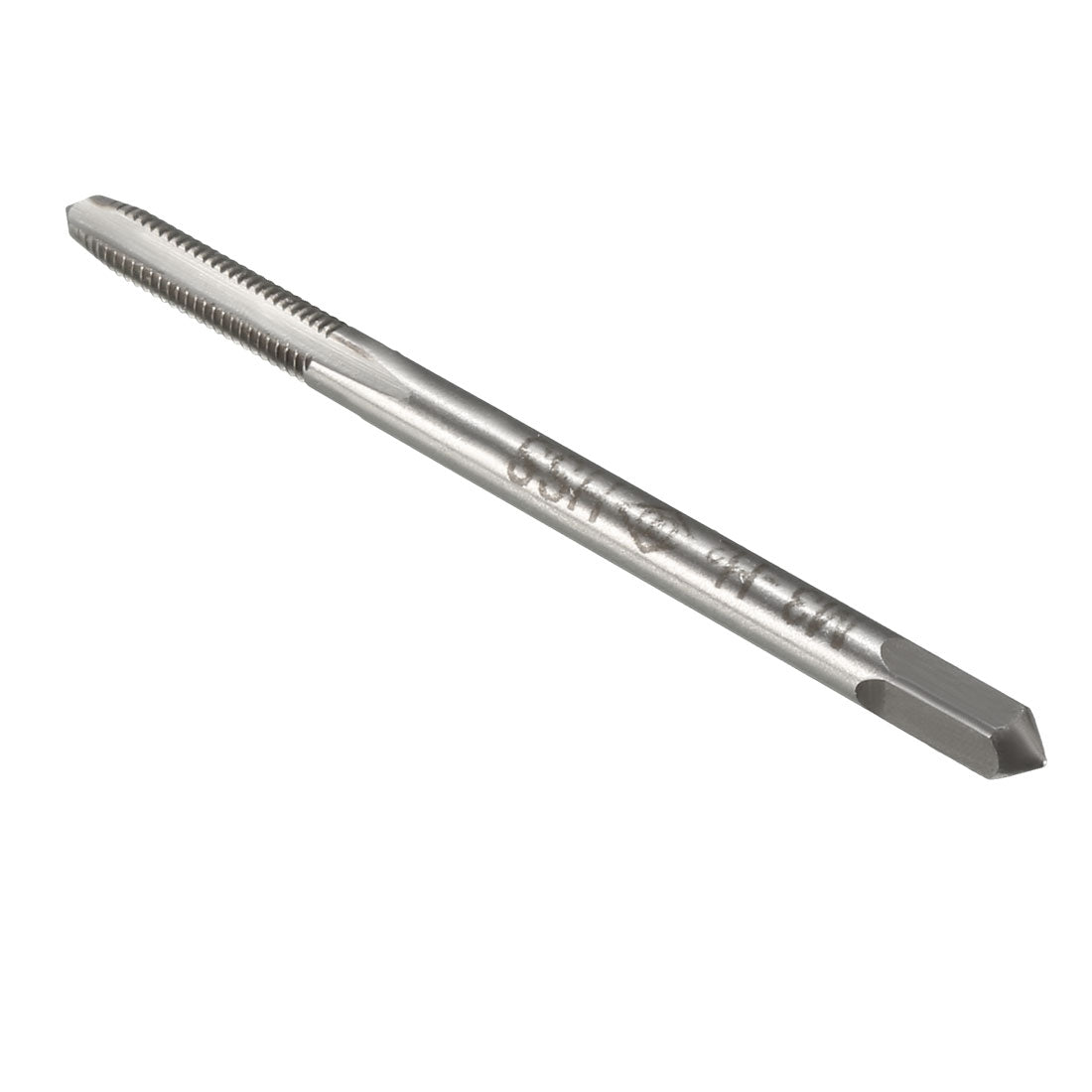

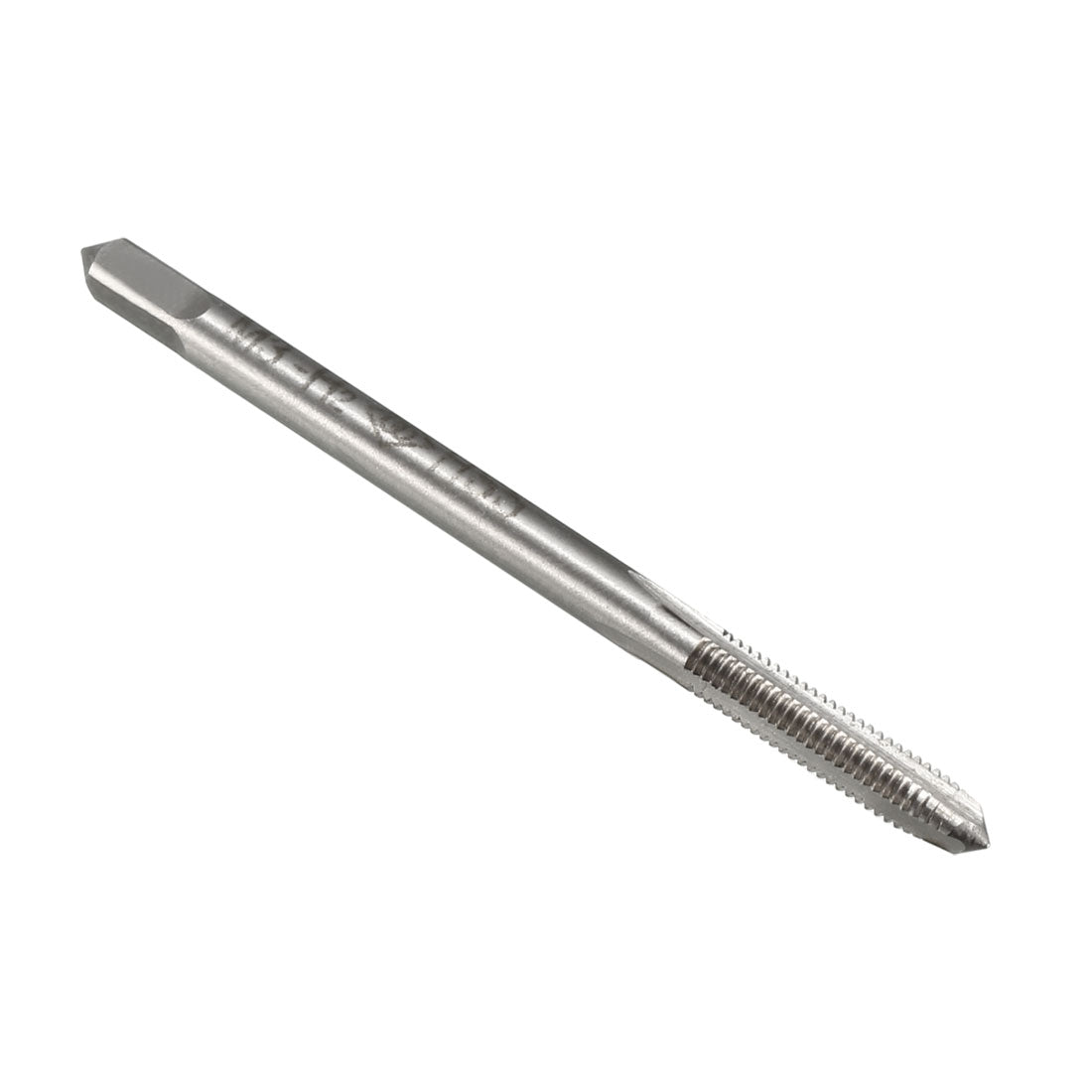

Product Name: Metric Machine Tap

Material: HSS (High-Speed Steel)

Total Weight: 4g

Accuracy: H2

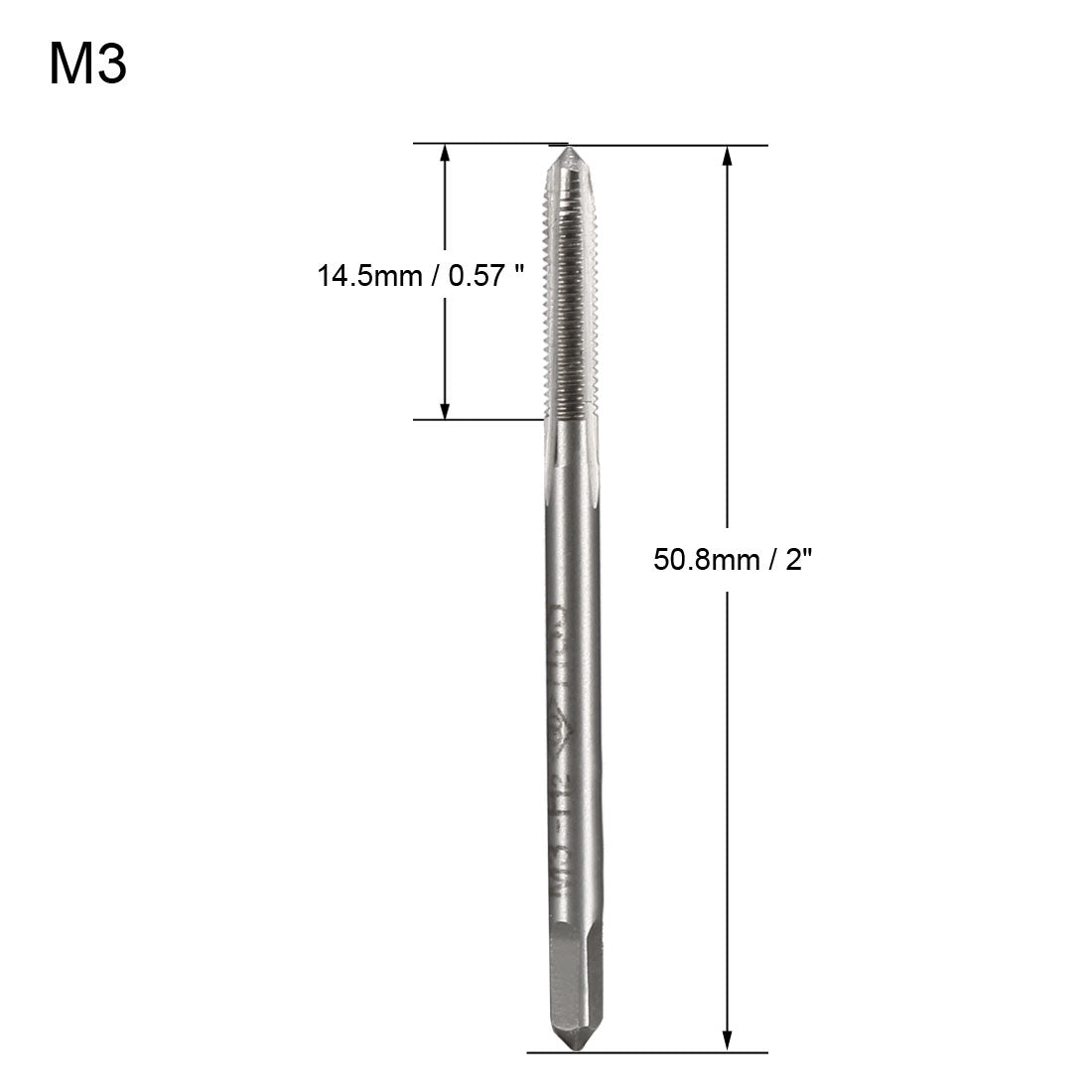

Thread Size: M3

Shank Width: 2.5mm / 0.1 inch

Thread Length: 14.5mm / 0.57 inch

Total Length: 50.8mm / 2 inch



Package Contents:

1 x Metric Machine Tap


Tips:
1. Recommended hardness of tapping material is not too high: Suitable for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Appropriate addition of coolant (e.g., water) can extend the service life when tapping.
2. Please control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.

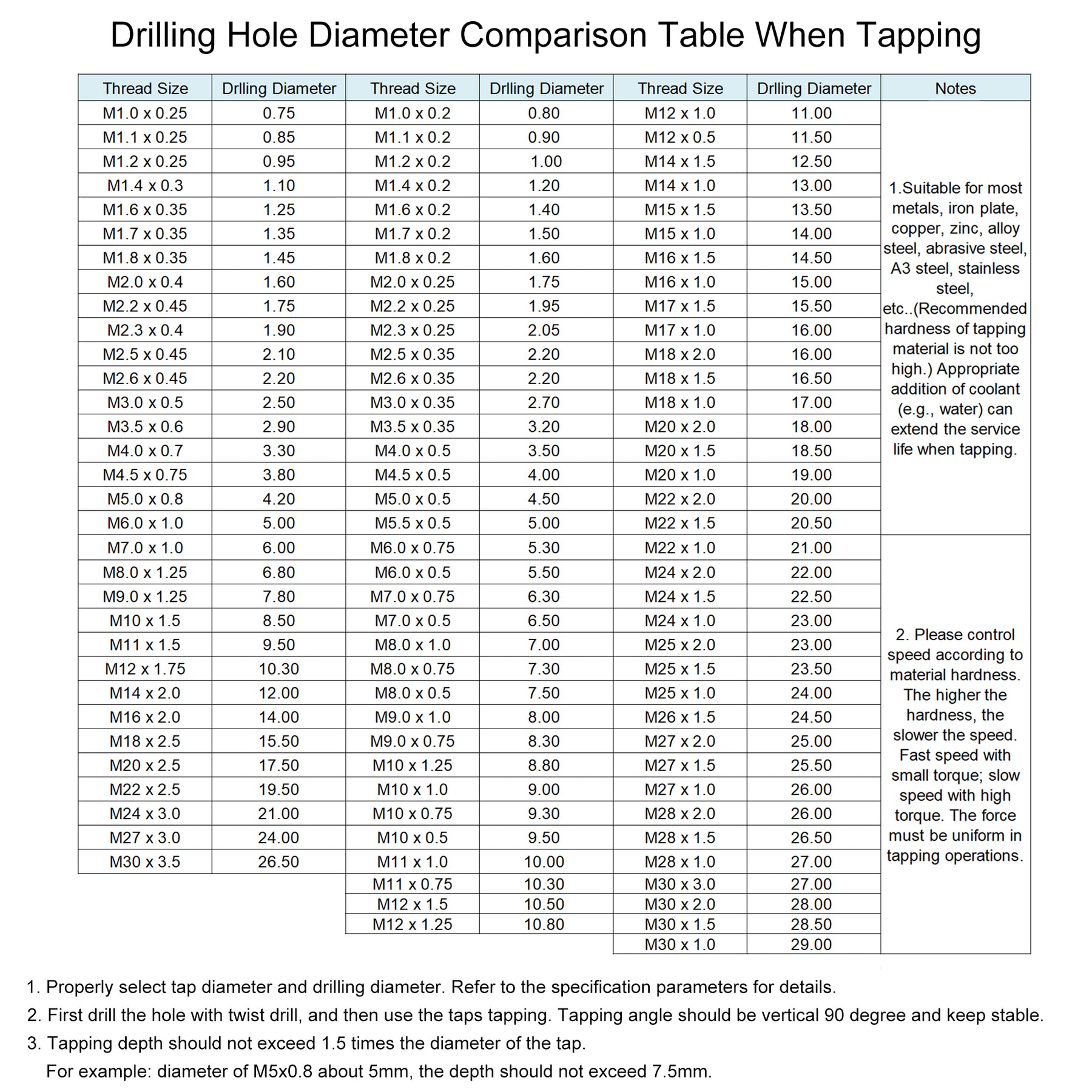

3. First drill the hole with twist drill, and then use the taps tapping. Tapping angle should be vertical 90 degree and keep stable.
4. Tapping depth should not exceed 1.5 times the diameter of the tap: For example: diameter of M5x0.8 about 5mm, the depth should not exceed 7.5mm.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Features:

Straight 3 flutes are ground to provide rapid chip removal for efficient threading.

Used with some cutting fluid or keep it wet when tapping, the will last longer.

The mini metric are mainly used for clocks, watches, low hardness wood and soft metal hole processing.



Specifications:

Product Name: Metric Machine Tap

Material: HSS (High-Speed Steel)

Total Weight: 4g

Accuracy: H2

Thread Size: M3

Shank Width: 2.5mm / 0.1 inch

Thread Length: 14.5mm / 0.57 inch

Total Length: 50.8mm / 2 inch



Package Contents:

1 x Metric Machine Tap


Tips:
1. Recommended hardness of tapping material is not too high: Suitable for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Appropriate addition of coolant (e.g., water) can extend the service life when tapping.
2. Please control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.
3. First drill the hole with twist drill, and then use the taps tapping. Tapping angle should be vertical 90 degree and keep stable.
4. Tapping depth should not exceed 1.5 times the diameter of the tap: For example: diameter of M5x0.8 about 5mm, the depth should not exceed 7.5mm.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
