Harfington Uxcell 35mm Brazed Diamond Core Drill Bits with M10 Arbor Adapter for Tile Marble Stone

Uxcell 35mm Brazed Diamond Core Drill Bits with M10 Arbor Adapter for Tile Marble Stone

ID:1245224
ID:1245224
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Core Drill Bits: Drilling Diameter: 35mm / 1.38"; Working Depth (Max .): 51mm / 2.01"; Female Thread Size: M10 x 1.5. Used on M10 angle grinders, easy to operate.

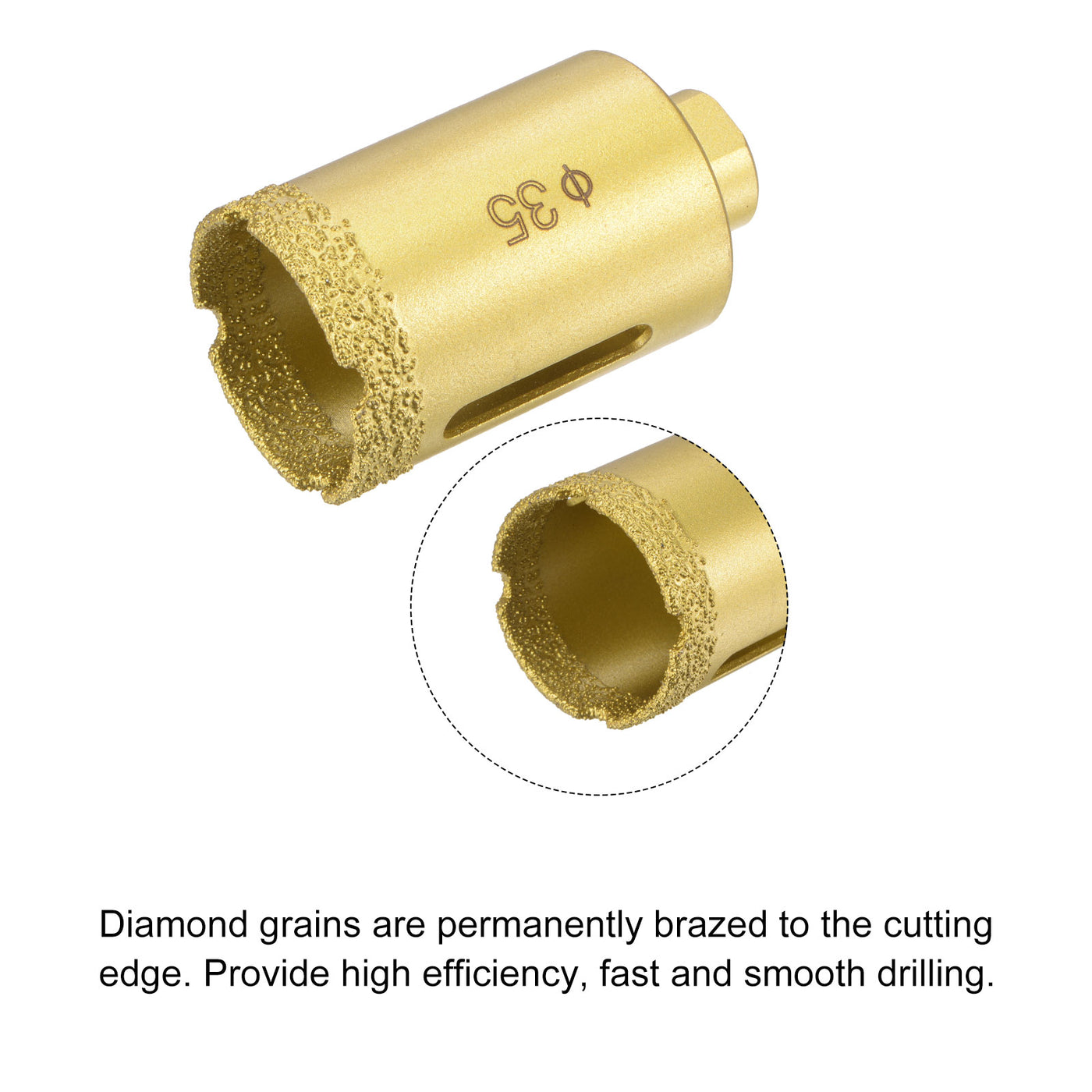

  • Brazed Diamond: Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, and also ensure longer working life.

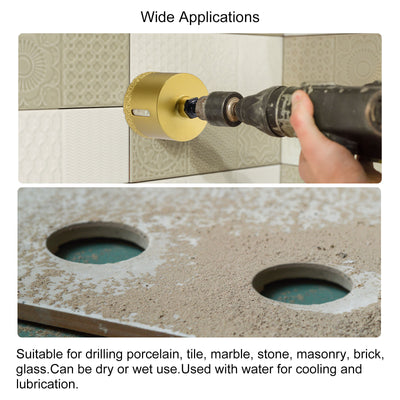

  • Wide Applications: Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  • Features: Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.

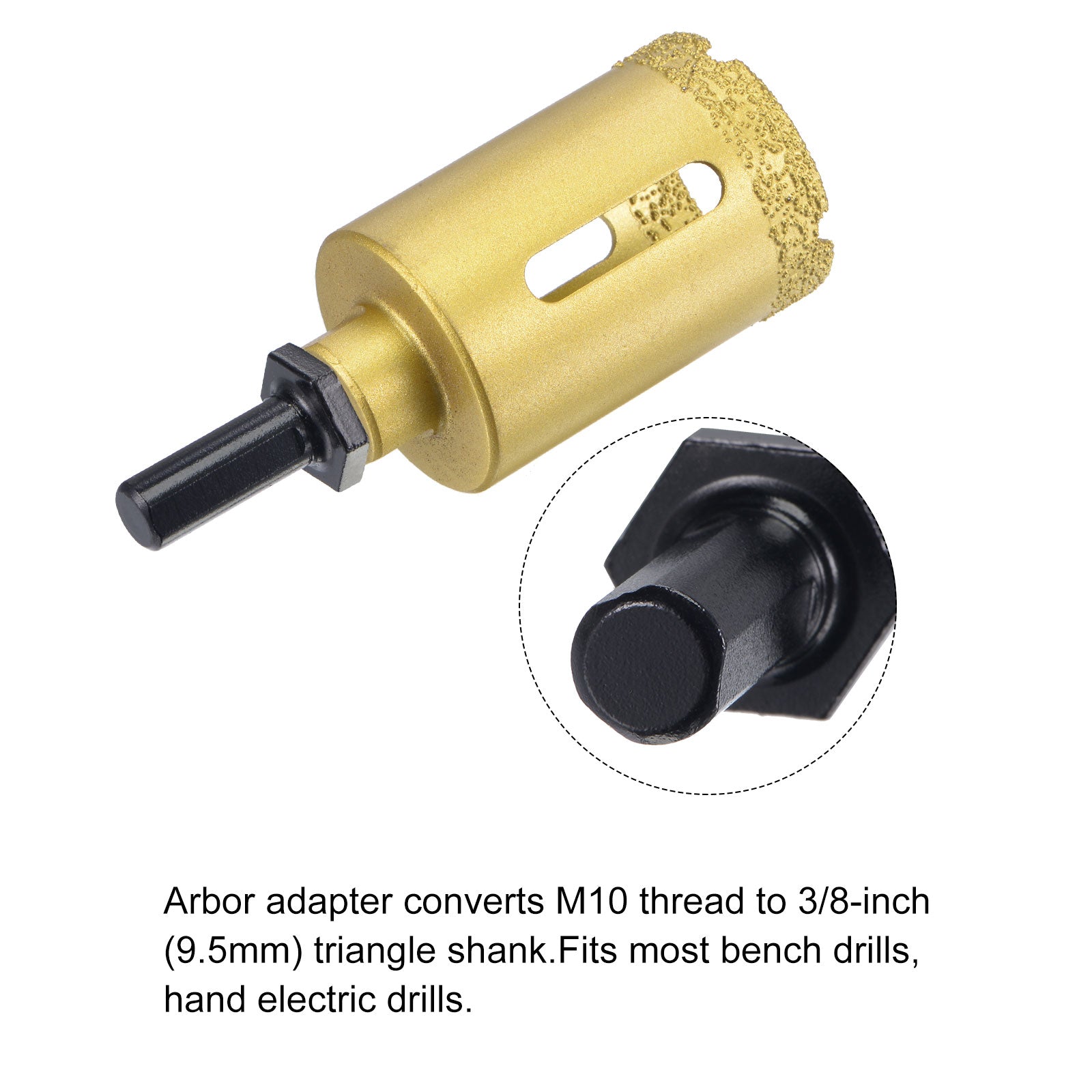

  • Arbor Adapter: The adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
About this item
  • Core Drill Bits: Drilling Diameter: 35mm / 1.38"; Working Depth (Max .): 51mm / 2.01"; Female Thread Size: M10 x 1.5. Used on M10 angle grinders, easy to operate.
  • Brazed Diamond: Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, and also ensure longer working life.
  • Wide Applications: Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  • Features: Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.
  • Arbor Adapter: The adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
Specification

Specification

SKU
a21121800ux0548
Brand
Uxcell
Pkg.Qty
1
Material
Brazed Diamond,Carbon Steel
Drilling Dia.
35mm
Shank Dia.
9.5mm
Drilling Length
51mm
Total Length
61mm
System of Measurement
Metric
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Specifications:

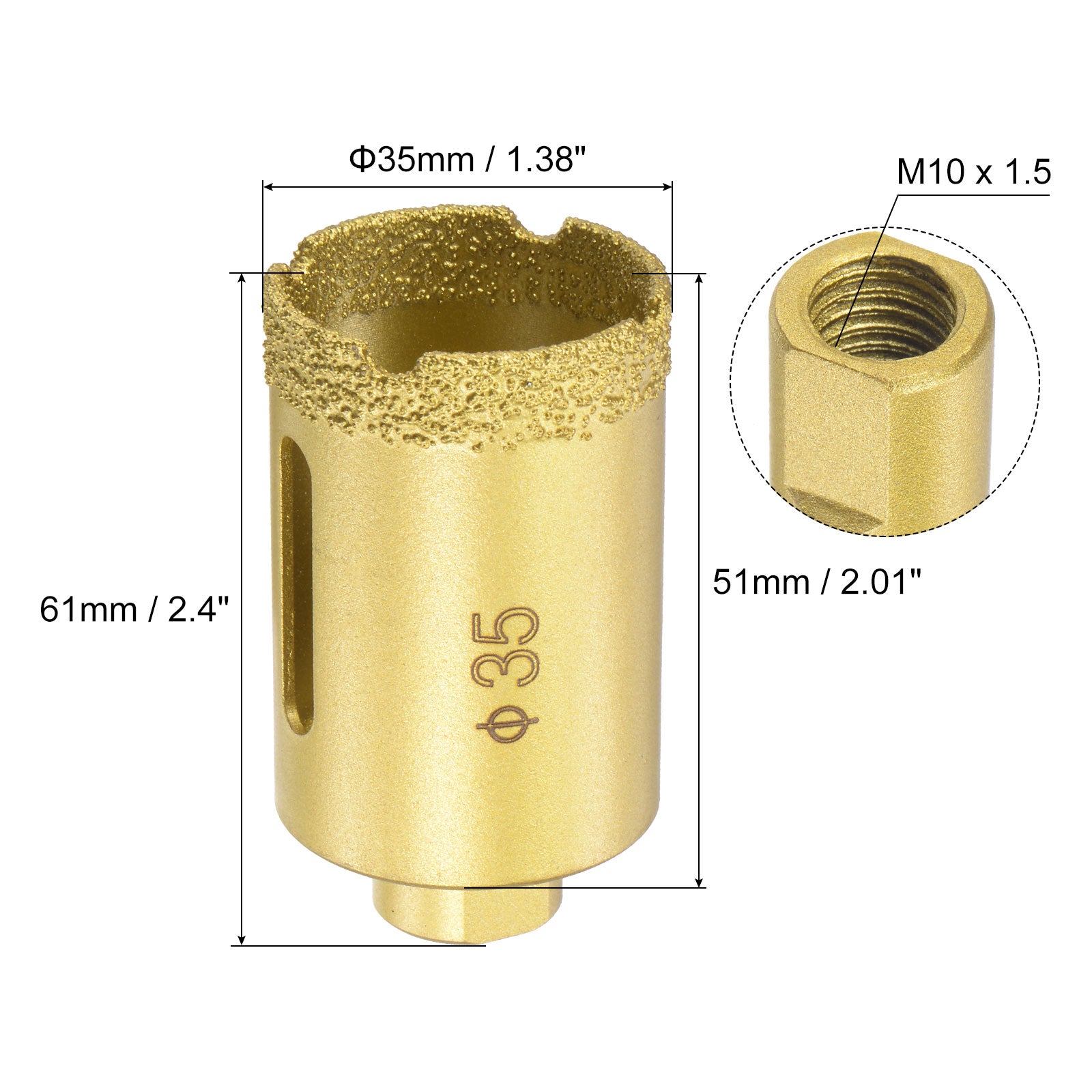

  • Drilling Diameter: 35mm / 1.38"
  • Working Depth (Max .): 51mm / 2.01"
  • Female Thread Size: M10 x 1.5
  • Total Length: 61mm / 2.4"
  • Material: Brazed Diamond, Carbon Steel

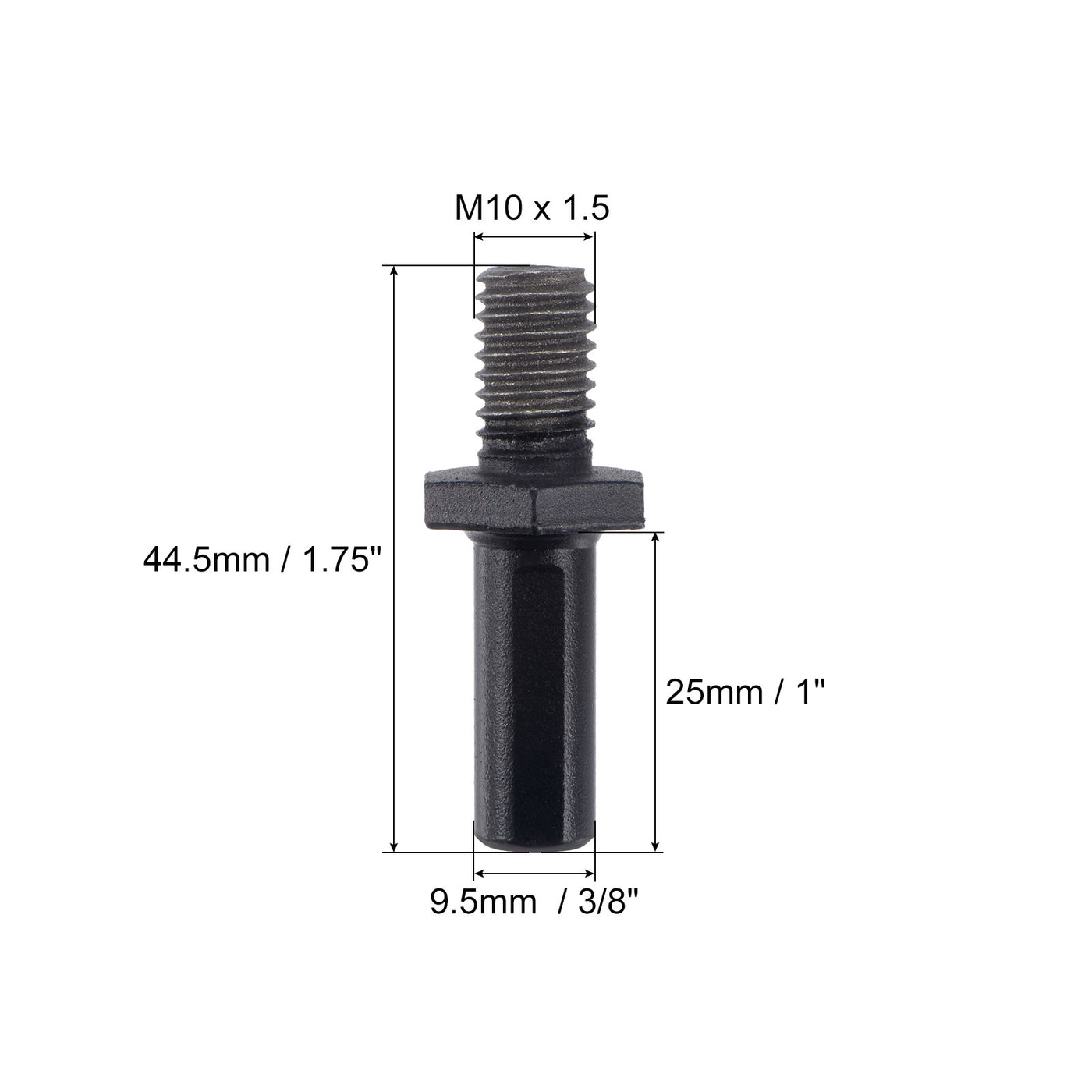

  • Adapter Male Thread Size: M10 x 1.5
  • Adapter Shank Size: 9.5mm x 25mm / 3/8" x 1" (D*L)
  • Total Length of Adapter: 44.5mm / 1.75"
  • Adapter Finish: Blackening

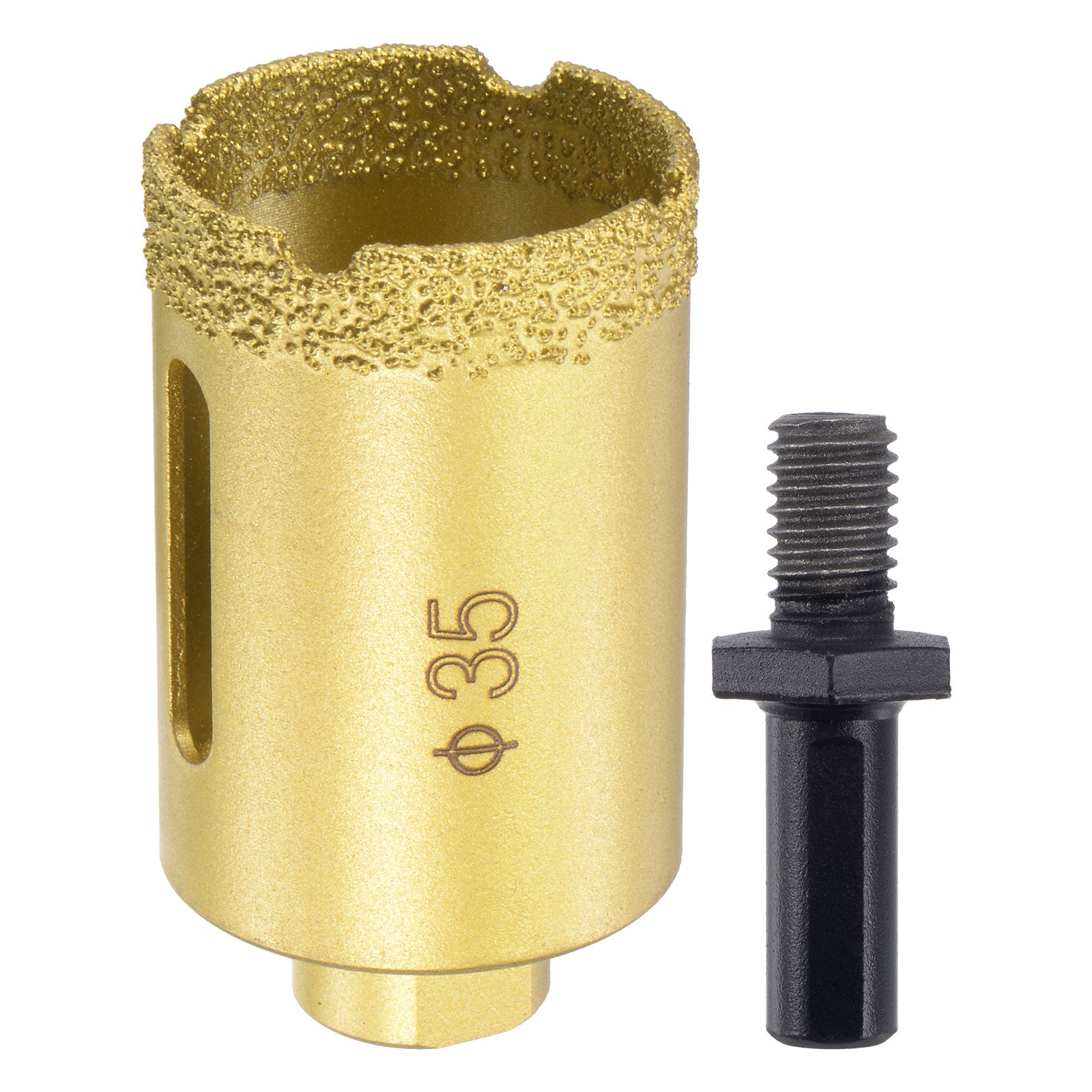

  • Package Content: 1pcs x Diamond Core Drill Bits, 1pcs x Arbor Adapter

Descriptions:
  1. Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, but also ensure longer working life. Used on M10 rotary tool, easy to operate.
  2. Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  3. Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.
  4. Arbor adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
$9.65 $9.65/eachRegular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Drilling Dia. Drilling Length Shank Dia. Total Length Material Pkg.Qty ID Price Qty
35mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1245224 $9.65
Products Drilling Dia. Drilling Length Shank Dia. Total Length Material Pkg.Qty ID Price Qty
35mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1245224 $9.65
6mm 38mm 9.5mm 60mm Sintered Diamond,Carbon Steel 1 1225972 $6.76
10mm 38mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1236879 $7.68
10mm 38mm 9.5mm 60mm Sintered Diamond,Carbon Steel 1 1244027 $7.28
90mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1236886 $20.12
22mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1244098 $9.39
40mm 54mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1244652 $11.85
40mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1243642 $10.45
12mm 39mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244697 $8.46
12mm 45mm 9.5mm 66mm Sintered Diamond,Carbon Steel 1 1244854 $7.69
55mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1245227 $14.27
50mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1221622 $13.67
18mm 42mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1243641 $8.52
18mm 56mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1236888 $8.77
65mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244651 $14.33
65mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1244702 $16.52
28mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244698 $8.97
8mm 38mm 9.5mm 60mm Sintered Diamond,Carbon Steel 1 1244700 $7.01
45mm 56mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244852 $11.39
85mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244853 $19.77
80mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1245226 $18.01
30mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1236883 $8.93
30mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1244403 $10.01
32mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1244701 $10.24
25mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1251596 $8.54
25mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1221623 $8.95
60mm 58mm 9.5mm 68mm Sintered Diamond,Carbon Steel 1 1221619 $15.00
20mm 48mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1236881 $8.67
95mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1236887 $21.86
70mm 51mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244026 $16.51
16mm 38mm 9.5mm 61mm Brazed Diamond,Carbon Steel 1 1244497 $8.34
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Specifications:
  • Drilling Diameter: 35mm / 1.38"
  • Working Depth (Max .): 51mm / 2.01"
  • Female Thread Size: M10 x 1.5
  • Total Length: 61mm / 2.4"
  • Material: Brazed Diamond, Carbon Steel
  • Adapter Male Thread Size: M10 x 1.5
  • Adapter Shank Size: 9.5mm x 25mm / 3/8" x 1" (D*L)
  • Total Length of Adapter: 44.5mm / 1.75"
  • Adapter Finish: Blackening
  • Package Content: 1pcs x Diamond Core Drill Bits, 1pcs x Arbor Adapter

Descriptions:
  1. Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, but also ensure longer working life. Used on M10 rotary tool, easy to operate.
  2. Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  3. Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.
  4. Arbor adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
