Harfington 4pcs 0.5mm C3/K10 Tungsten Carbide Precision Straight Shank Twist Drill Bit

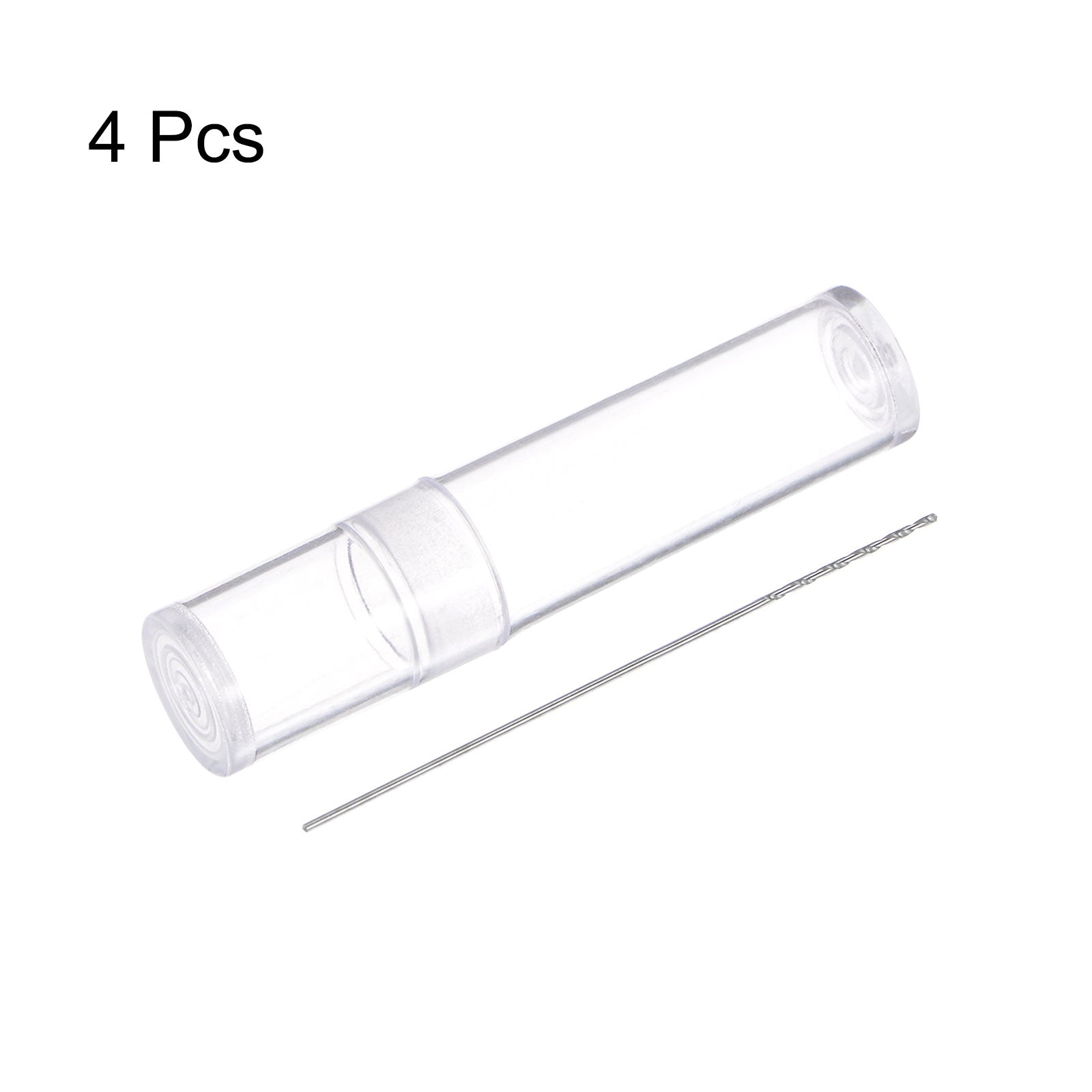

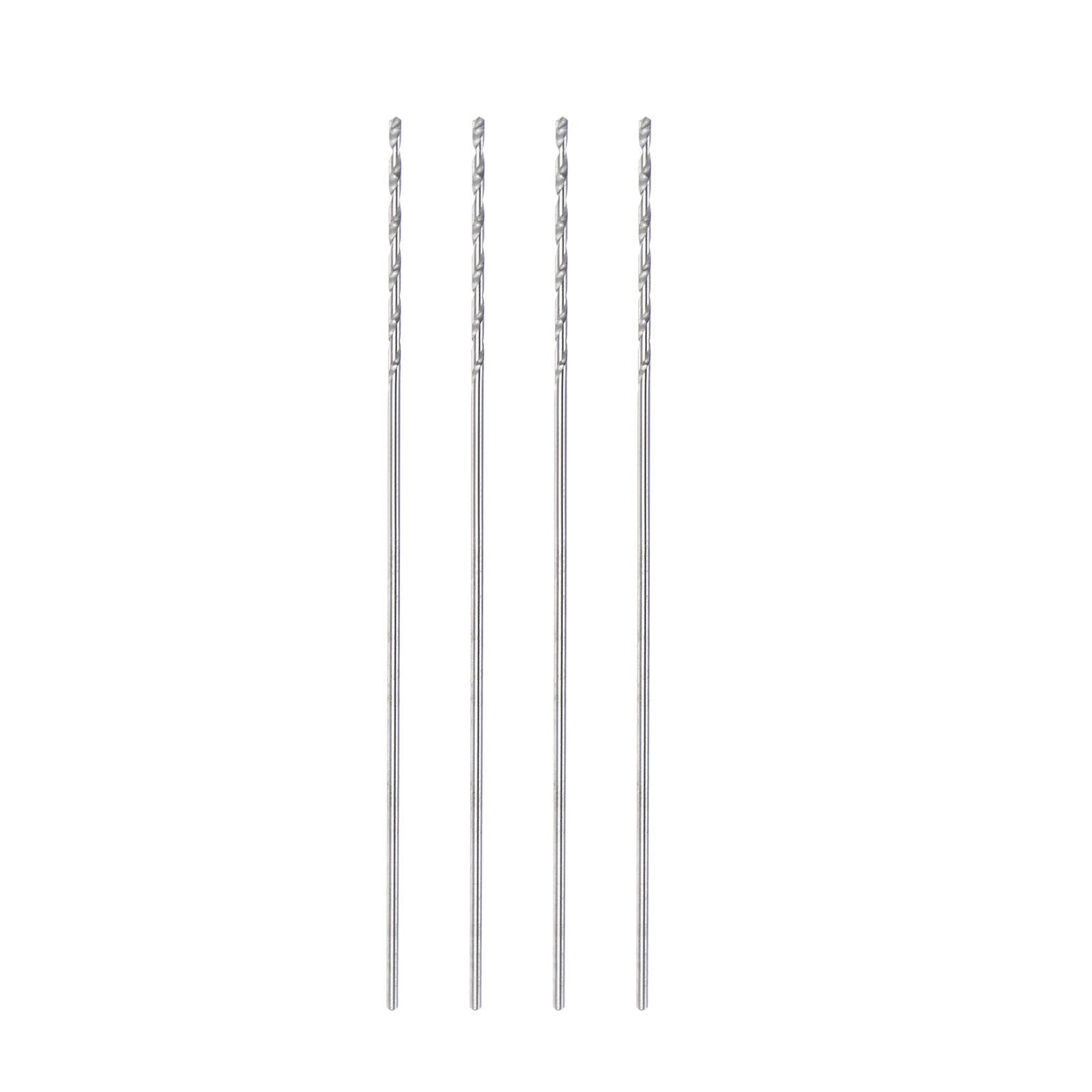

4pcs 0.5mm C3/K10 Tungsten Carbide Precision Straight Shank Twist Drill Bit

ID:1347620
ID:1347620
$8.57 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item

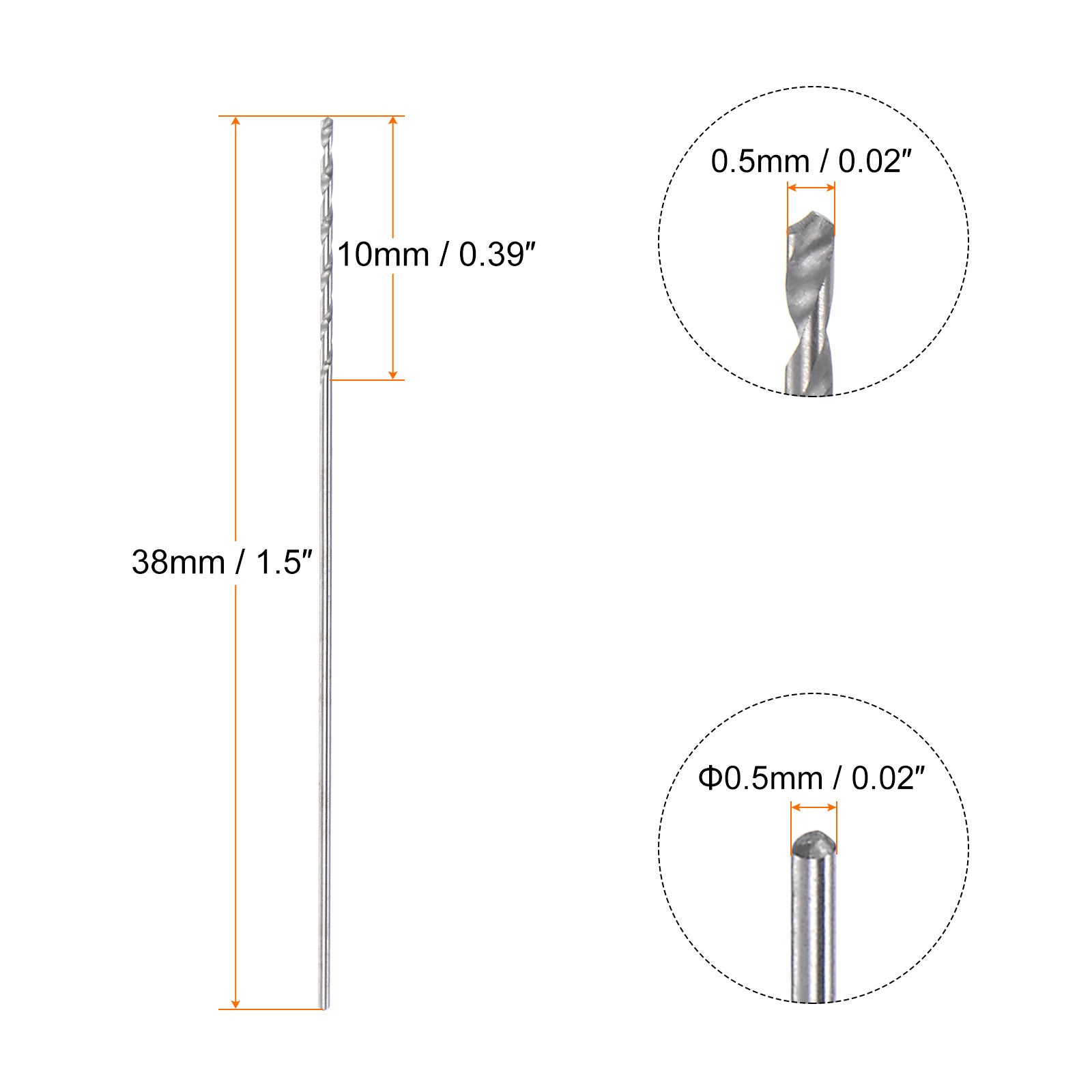

  • Size - Cutting edge diameter: 0.5mm / 0.02"; cutting edge length: 10mm / 0.39"; shank diameter: 0.5mm / 0.02"; overall length: 38mm / 1.5"; cutting hardness (max.): HRC45; tool flute type: spiral
  • Material - The solid carbide drill bit is made of a micro grain tungsten-cobalt alloy with an average cobalt content of 6%, high hardness (HRC92), wear resistance, heat resistance, high bending strength, resistance to stick. it is harder but more brittle.

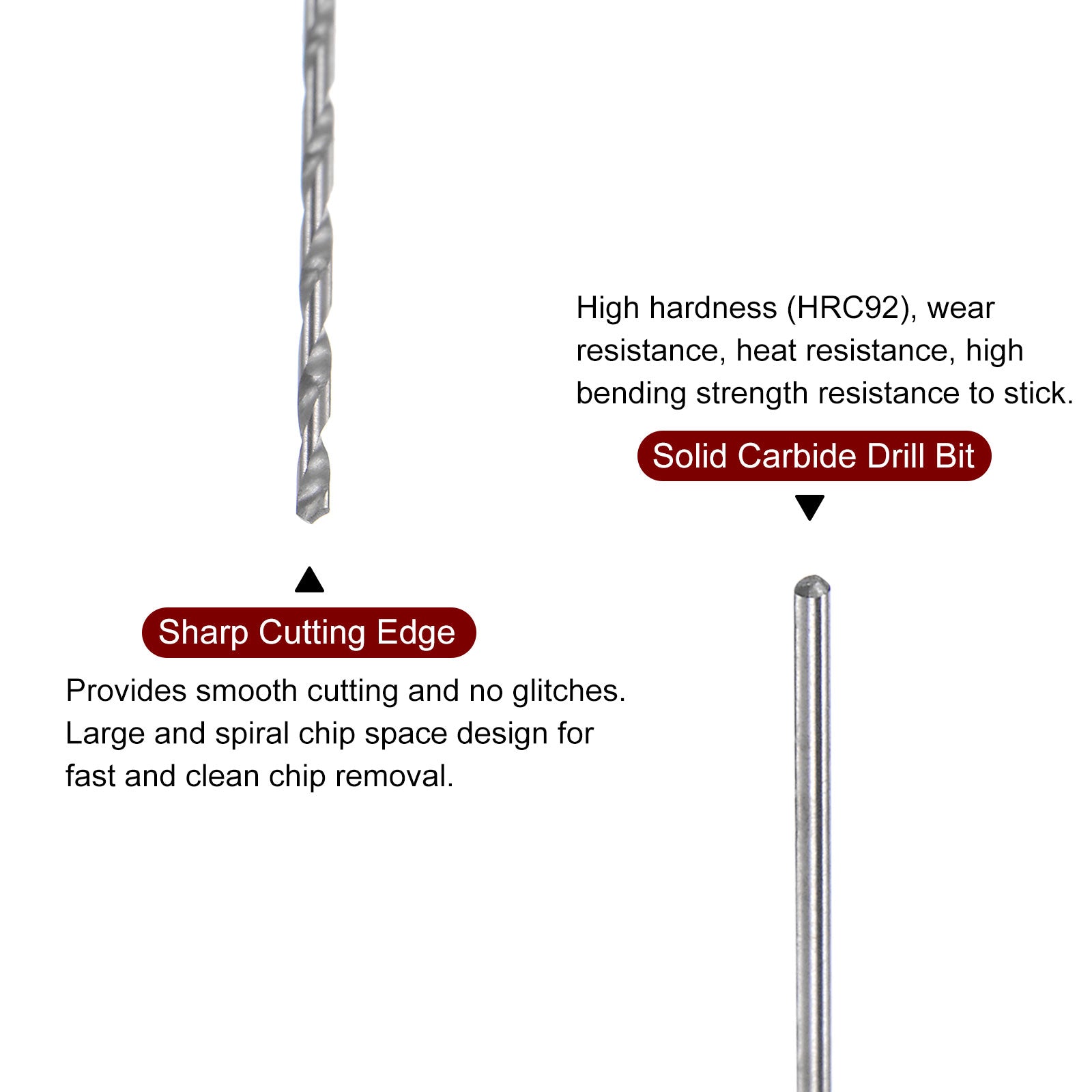

  • Feature - Large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting and no glitches. With good milling and cutting performance, carbide ensures high working efficiency.

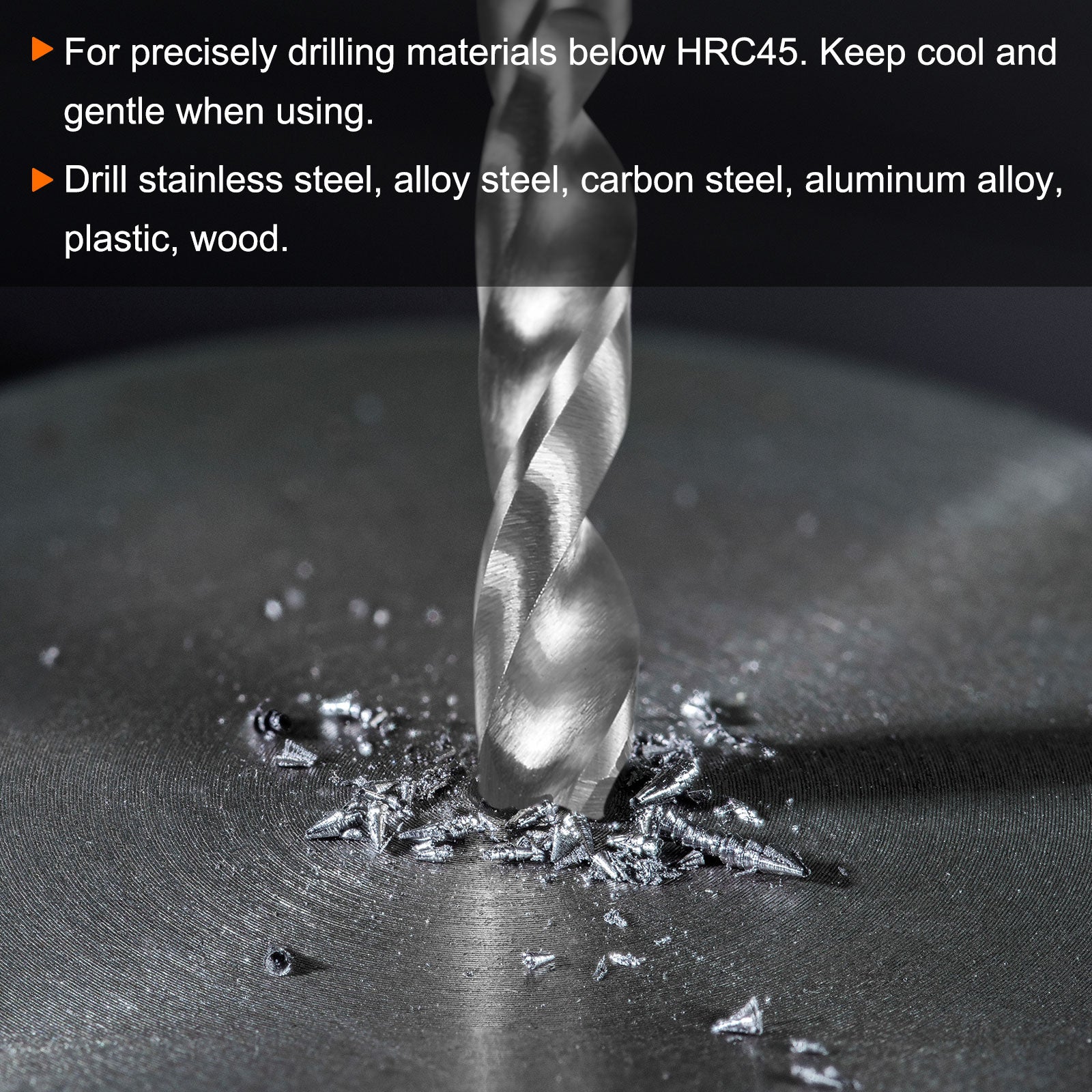

  • Application - Suitable for precisely drilling materials below HRC45, such as stainless steel, alloy steel, tool steel, carbon steel, aluminum alloy, plastic, wood, etc.. Drill metal with high hardness, the rotational speed should be slower than normal drilling.
  • Note - Used on machining centers, drilling machines, CNC lathes, CNC engraving and milling machines. Adapt to several kinds of cooling conditions, such as oil mist, water, oil, air cooling. Suitable lubricant is conducive to cutting or cooling, making cutting easier.
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
About this item
  • Size - Cutting edge diameter: 0.5mm / 0.02"; cutting edge length: 10mm / 0.39"; shank diameter: 0.5mm / 0.02"; overall length: 38mm / 1.5"; cutting hardness (max.): HRC45; tool flute type: spiral
  • Material - The solid carbide drill bit is made of a micro grain tungsten-cobalt alloy with an average cobalt content of 6%, high hardness (HRC92), wear resistance, heat resistance, high bending strength, resistance to stick. it is harder but more brittle.
  • Feature - Large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting and no glitches. With good milling and cutting performance, carbide ensures high working efficiency.
  • Application - Suitable for precisely drilling materials below HRC45, such as stainless steel, alloy steel, tool steel, carbon steel, aluminum alloy, plastic, wood, etc.. Drill metal with high hardness, the rotational speed should be slower than normal drilling.
  • Note - Used on machining centers, drilling machines, CNC lathes, CNC engraving and milling machines. Adapt to several kinds of cooling conditions, such as oil mist, water, oil, air cooling. Suitable lubricant is conducive to cutting or cooling, making cutting easier.
Specification

Specification

SKU
a22113000ux0727
Pkg.Qty
4
Material
Tungsten Carbide
Cutting Edge Dia.
0.5mm
Shank Dia.
0.5mm
Flute Length
10mm
Total Length
38mm
System of Measurement
Metric
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
  1. The solid carbide drill bit is made of a micro grain tungsten-cobalt alloy with an average cobalt content of 6%. It has high hardness (HRC92), wear resistance, heat resistance, high bending strength, and resistance to stick. Provides faster cutting speeds than other substrates and is harder but more brittle.
  2. Large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting and no glitches. With good milling and cutting performance, carbide ensures high working efficiency.
  3. Suitable for precisely drilling materials below HRC45, such as stainless steel, alloy steel, tool steel, carbon steel, aluminum alloy, plastic, wood, etc.. Drill metal with high hardness, the rotational speed should be slower than normal drilling.
  4. Used on machining centers, drilling machines, CNC lathes, CNC engraving and milling machines. Adapt to several kinds of cooling conditions, such as oil mist, water, oil, air cooling. Suitable lubricant is conducive to cutting or cooling, making cutting easier, improving smoothness and dimensional accuracy.
  5. Notice: Keep cool and gentle when using. The longer the length of the tool clamped by the chuck, the better. Not recommended for use with a hand drill (easy to shake, poor stability). Proper use can greatly extend the working life of the straight shank twist drill bits.

Product Variants

Products Cutting Edge Dia. Shank Dia. Flute Length Total Length Material Pkg.Qty ID Price Qty
Products Cutting Edge Dia. Shank Dia. Flute Length Total Length Material Pkg.Qty ID Price Qty
1.6mm 1.6mm 20mm 40mm Tungsten Carbide 4 1221257 $8.32
1.6mm 1.6mm 20mm 40mm Tungsten Carbide 2 1221270 $6.79
1.8mm 1.8mm 20mm 40mm Tungsten Carbide 2 1221258 $6.79
2.05mm 2.05mm 19mm 38mm Tungsten Carbide 1 1063945 $6.50
2.25mm 2.25mm 13mm 35mm Tungsten Carbide 1 1063947 $6.50
3.05mm 3.05mm 19mm 38mm Tungsten Carbide 1 1063955 $7.04
0.95mm 0.95mm 12mm 38mm Tungsten Carbide 2 1008730 $6.79
1.45mm 1.45mm 17mm 38mm Tungsten Carbide 2 1008735 $6.79
1.95mm 1.95mm 14mm 38mm Tungsten Carbide 2 1008740 $7.70
3.35mm 3.35mm 19mm 38mm Tungsten Carbide 2 1008749 $8.75
3.85mm 3.85mm 25mm 45mm Tungsten Carbide 1 1215727 $7.86
5.05mm 5.05mm 28mm 50mm Tungsten Carbide 1 1215773 $10.10
1.2mm 1.2mm 20mm 40mm Tungsten Carbide 1 1221237 $5.69
1.2mm 1.2mm 20mm 40mm Tungsten Carbide 4 1221247 $7.91
1mm 1mm 20mm 40mm Tungsten Carbide 4 1221240 $7.91
1.1mm 1.1mm 20mm 40mm Tungsten Carbide 1 1221245 $5.69
1.4mm 1.4mm 20mm 40mm Tungsten Carbide 1 1221261 $5.69
2.1mm 2.1mm 20mm 40mm Tungsten Carbide 2 1221265 $7.28
2.5mm 2.5mm 20mm 40mm Tungsten Carbide 4 1221277 $9.19
3mm 3mm 20mm 40mm Tungsten Carbide 2 1221291 $7.77
3mm 3mm 20mm 40mm Tungsten Carbide 1 1221310 $6.47
2.4mm 2.4mm 20mm 40mm Tungsten Carbide 2 1221298 $7.28
2.7mm 2.7mm 20mm 40mm Tungsten Carbide 2 1221305 $7.77
2.7mm 2.7mm 20mm 40mm Tungsten Carbide 4 1221306 $10.06
4mm 4mm 25mm 45mm Tungsten Carbide 1 1221358 $6.93
4.2mm 4.2mm 25mm 45mm Tungsten Carbide 1 1223937 $7.34
5.6mm 5.6mm 25mm 50mm Tungsten Carbide 1 1223961 $9.01
5.9mm 5.9mm 25mm 45mm Tungsten Carbide 1 1223965 $9.01
7.3mm 7.3mm 35mm 60mm Tungsten Carbide 1 1223980 $11.03
7.5mm 7.5mm 35mm 60mm Tungsten Carbide 1 1223982 $11.03
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

  1. The solid carbide drill bit is made of a micro grain tungsten-cobalt alloy with an average cobalt content of 6%. It has high hardness (HRC92), wear resistance, heat resistance, high bending strength, and resistance to stick. Provides faster cutting speeds than other substrates and is harder but more brittle.
  2. Large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting and no glitches. With good milling and cutting performance, carbide ensures high working efficiency.
  3. Suitable for precisely drilling materials below HRC45, such as stainless steel, alloy steel, tool steel, carbon steel, aluminum alloy, plastic, wood, etc.. Drill metal with high hardness, the rotational speed should be slower than normal drilling.
  4. Used on machining centers, drilling machines, CNC lathes, CNC engraving and milling machines. Adapt to several kinds of cooling conditions, such as oil mist, water, oil, air cooling. Suitable lubricant is conducive to cutting or cooling, making cutting easier, improving smoothness and dimensional accuracy.
  5. Notice: Keep cool and gentle when using. The longer the length of the tool clamped by the chuck, the better. Not recommended for use with a hand drill (easy to shake, poor stability). Proper use can greatly extend the working life of the straight shank twist drill bits.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
