Harfington Uxcell 4V110-06 Pneumatic Air Electrical Control Solenoid Valve DC 12V 5 Way 2 Position 1/8" PT Internally Single Piloted Acting Type

Uxcell 4V110-06 Pneumatic Air Electrical Control Solenoid Valve DC 12V 5 Way 2 Position 1/8" PT Internally Single Piloted Acting Type

ID:1002004
ID:1002004
Wholesale Price
20%OFF
Order €4,500+
  • 20%OFF
    Order €4,500+
  • 15%OFF
    Order €1,800+
  • 10%OFF
    Order €720+
  • 7%OFF
    Order €450+
  • 5%OFF
    Order €180+
About this item

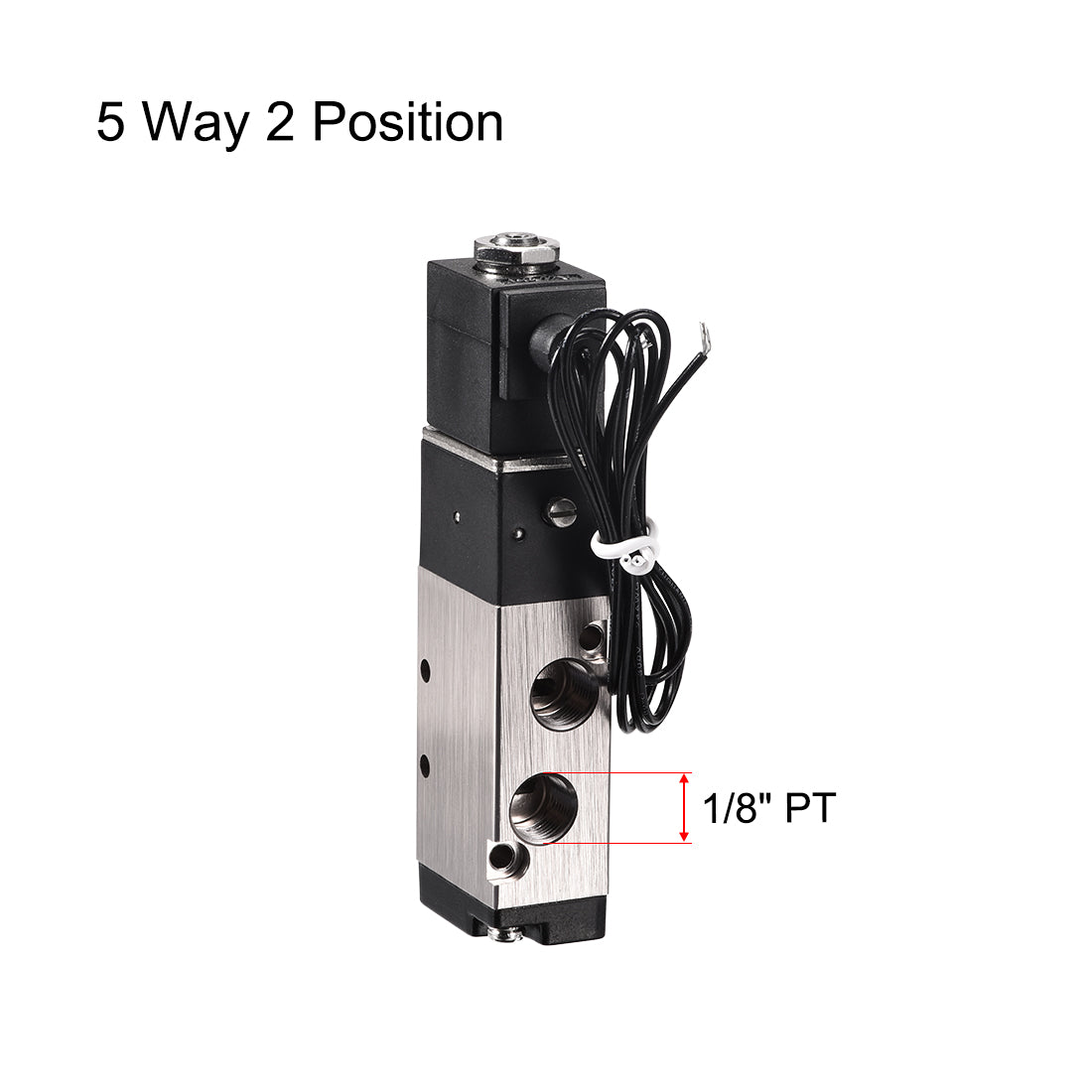

  • 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type: 5 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/8" PT; Air Flow In Hole Size : 1/8" PT
  • 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
  • 【APPLICATION】 - Single Electrical Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
  • 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
About this item
  • 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type: 5 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/8" PT; Air Flow In Hole Size : 1/8" PT
  • 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
  • 【APPLICATION】 - Single Electrical Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
  • 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
Specification

Specification

SKU
a19030700ux0438
Product name
Solenoid Valve
Model
4V110-06
Weight
117g
Color
Black,Silver Tone
Cv values
0.67
Voltage
DC12V
Valve type
5 Port 2Position
Mounting hole size
3.3mm/0.13 inch
Exhaust hole size
1/8" PT
Air flow in hole size
1/8" PT
Wire length
40cm/15.75 inch
Control type
Power Ups
Wiring form
Direct Lead Wire
Seal material
NBR
Main parts material
Aluminum alloy
Working pressure
0.15~0.8mpa (21~114 psi)
Operating temperature
-5~60 Degree Celsius
Total size
98x28x18mm /3.86"x1.1"x0.71"(LxWxH)
Package included
1 x Solenoid Valve
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name : Solenoid Valve

Model:4V110-06

Weight:117g

Color: Black,Silver Tone

CV values:0.67

Voltage :DC12V

Valve Type: 5 Port 2Position

Mounting hole Size : 3.3mm/0.13"

Exhaust Hole size: 1/8" PT

Air Flow In Hole Size : 1/8" PT

Wire Length : 40cm/15.75"

Control Type: Power Ups

Wiring Form: Direct Lead Wire

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0.15~0.8mpa (21~114 psi)

Operating temperature: -5~60 Degree Celsius

Total Size : 98x28x18mm /3.86"x1.1"x0.71"(LxWxH)

Package Included:1 x Solenoid Valve



Description:

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.

2. sealing ring. seals for durability and longer life

3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise

4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation

5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time

6. electronic components. The copper coil can work hard for a long time, the wiring operation is simple,Direct Lead Wire.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.



Note:1.The manual button tests the status of the product when it is powered up

2.When the valve is not energized, p on the product map points to A is normally open, and B points to S is normally closed.

€18,15 Regular price
/
Wholesale Price
20%OFF
Order €4,500+
  • 20%OFF
    Order €4,500+
  • 15%OFF
    Order €1,800+
  • 10%OFF
    Order €720+
  • 7%OFF
    Order €450+
  • 5%OFF
    Order €180+
  • Ship from the US
  • Low stock, 2 items left, dispatch in 24 hours.
Cart
Cart
Free Shipping over €15
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Uxcell 4V110-06 Pneumatic Air Electrical Control Solenoid Valve DC 12V 5 Way 2 Position 1/8" PT Internally Single Piloted Acting Type 1002004 €14,04
Products Title ID Price Qty
Uxcell 4V110-06 Pneumatic Air Electrical Control Solenoid Valve DC 12V 5 Way 2 Position 1/8" PT Internally Single Piloted Acting Type 1002004 €14,04
Uxcell 4V110-06 Pneumatic Electrical Control Solenoid Valve DC 24V 5 Way 2 Position 1/8" PT Internally Single Piloted Acting Type 1145918 €16,68
Qty: 0 Item(s)
Total Price: €0,00

Description

Description

Specification:

Product Name : Solenoid Valve

Model:4V110-06

Weight:117g

Color: Black,Silver Tone

CV values:0.67

Voltage :DC12V

Valve Type: 5 Port 2Position

Mounting hole Size : 3.3mm/0.13"

Exhaust Hole size: 1/8" PT

Air Flow In Hole Size : 1/8" PT

Wire Length : 40cm/15.75"

Control Type: Power Ups

Wiring Form: Direct Lead Wire

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0.15~0.8mpa (21~114 psi)

Operating temperature: -5~60 Degree Celsius

Total Size : 98x28x18mm /3.86"x1.1"x0.71"(LxWxH)

Package Included:1 x Solenoid Valve



Description:

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.

2. sealing ring. seals for durability and longer life

3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise

4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation

5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time

6. electronic components. The copper coil can work hard for a long time, the wiring operation is simple,Direct Lead Wire.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.



Note:1.The manual button tests the status of the product when it is powered up

2.When the valve is not energized, p on the product map points to A is normally open, and B points to S is normally closed.
