Harfington Uxcell Linear Motion Ball Bearings Extra Long Round Flanged

Uxcell Linear Motion Ball Bearings Extra Long Round Flanged

ID:1039438
ID:1039438
Wholesale Price
20%OFF
Order €4,500+
  • 20%OFF
    Order €4,500+
  • 15%OFF
    Order €1,800+
  • 10%OFF
    Order €720+
  • 7%OFF
    Order €450+
  • 5%OFF
    Order €180+
2pcs
Package Content
6mm
Size
About this item

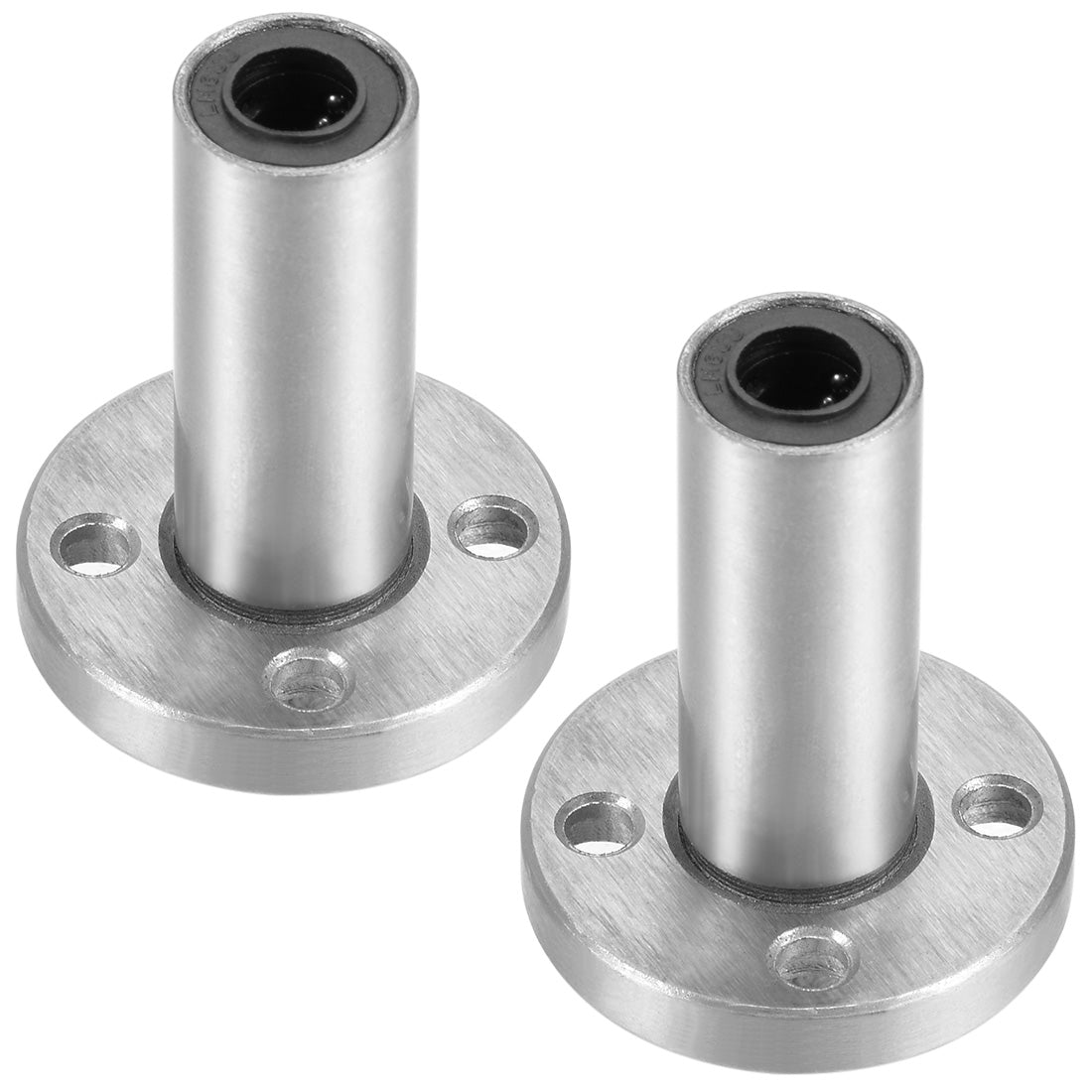

  • Model: LM6UU (Nominal Shaft Diamter (dr): 6mm, Outer Diameter (D): 12mm, Total Length (L): 35mm)

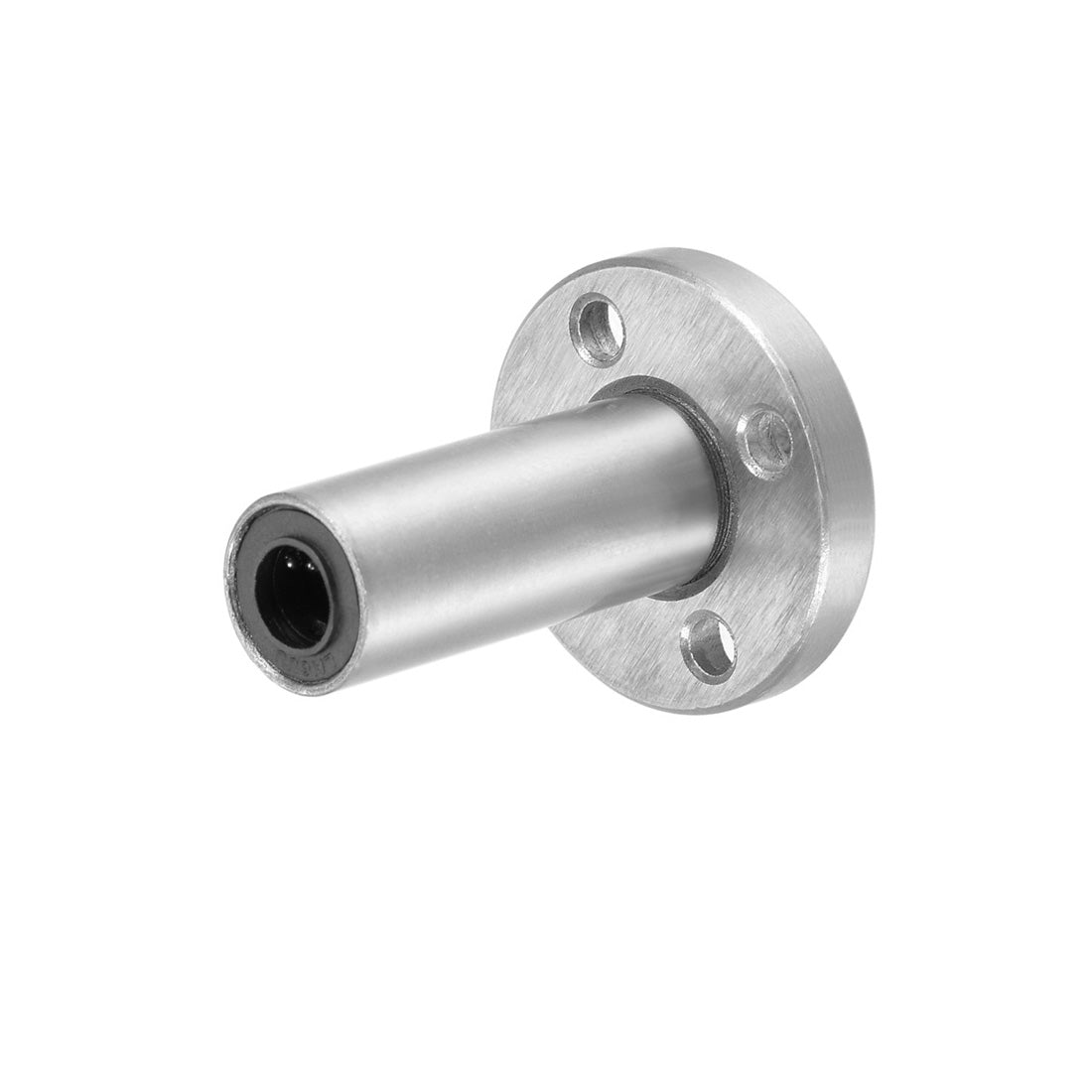

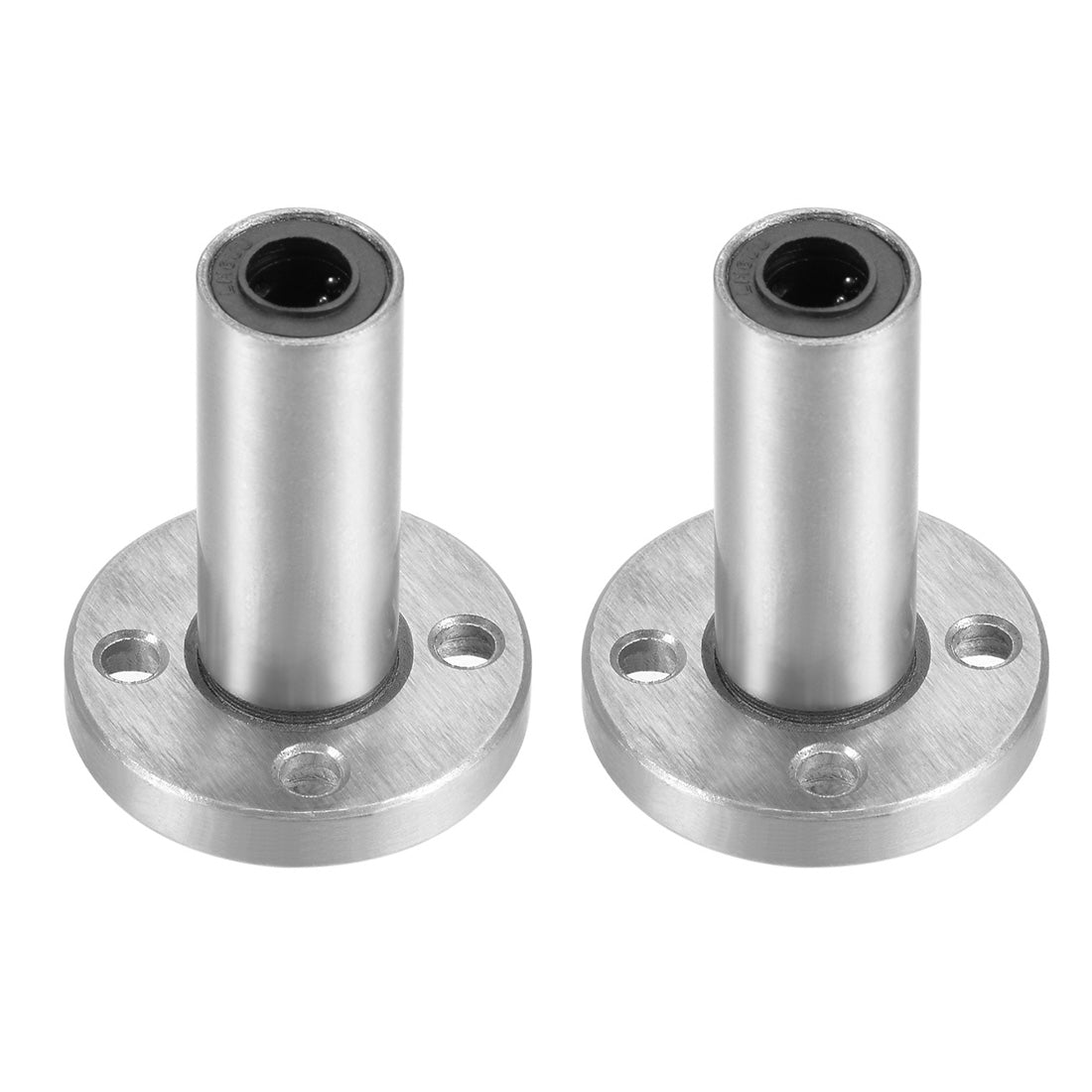

  • Round Flange Linear Motion Ball Bearing Bushing Sealed on Both Side
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitalbe for kinds of electronic equipment/guide bar, and pillar
About this item
  • Model: LM6UU (Nominal Shaft Diamter (dr): 6mm, Outer Diameter (D): 12mm, Total Length (L): 35mm)
  • Round Flange Linear Motion Ball Bearing Bushing Sealed on Both Side
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitalbe for kinds of electronic equipment/guide bar, and pillar
Specification

Specification

SKU
a18071300ux0312
Pitch Circle Dia.
20mm
Static Load Rating(KN)
0.529
Dynamic Load Rating(KN)
0.324
Pkg.Qty.
2
Model
LM6UU
I.D.(mm)
6
O.D.(mm)
12
Bearing Ball Material
Chromium Steel
Outer Shell Material
Chromium Steel
Cage Material
Nylon
Mounting Hole Dia(d1*d2)
3.2x5.8mm
Flange Size
5x28mm
Total Length
35mm
Ball Circuit
4
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

1.provides LMFUU series Round Flange Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM6UU

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

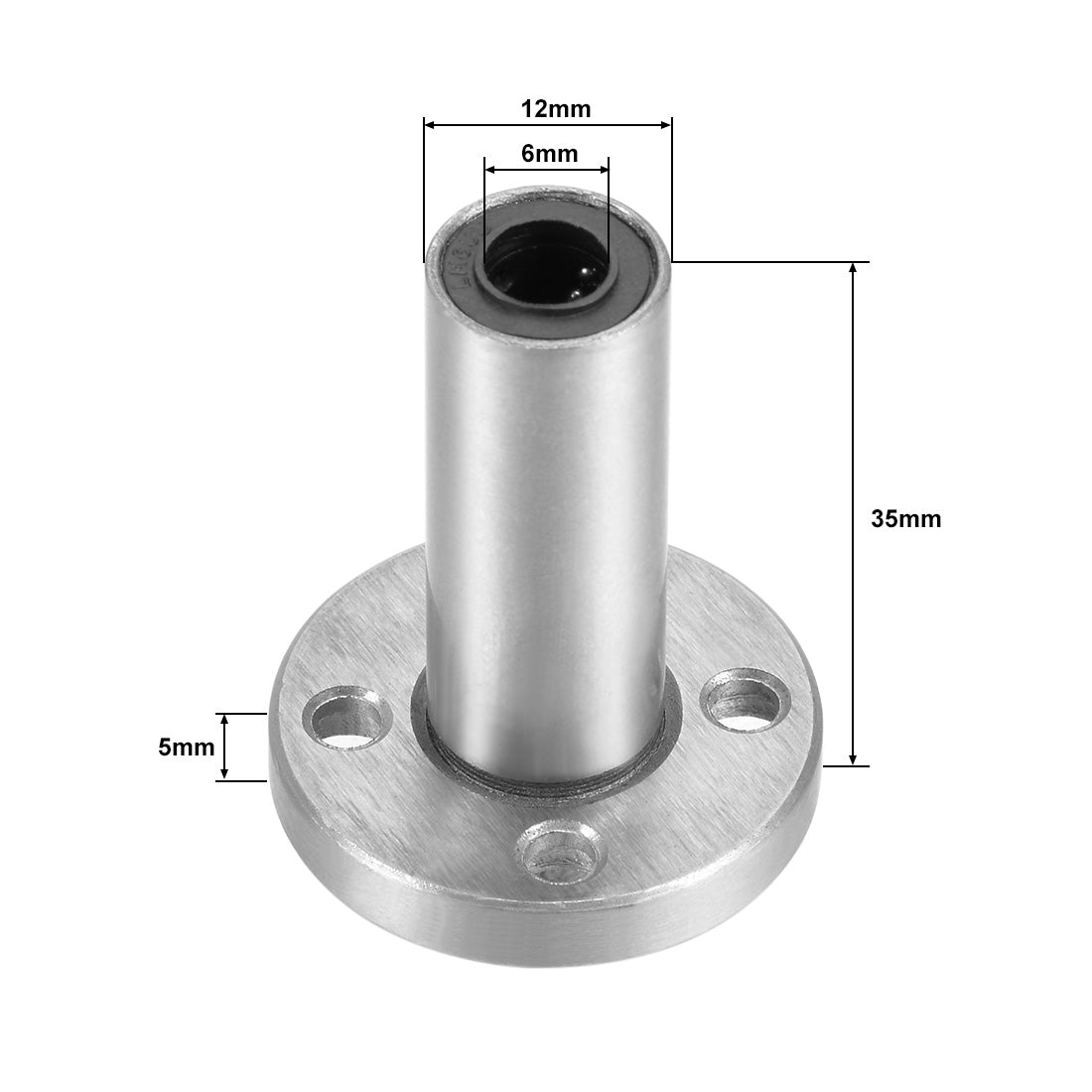

Nominal Shaft Diamter (dr): 6mm

Outer Diameter (D): 12mm

Total Length (L): 35mm

Mounting Hole Dia.: 3.2 x 5.8mm / 0.13 x 0.23inch (d1*d2);

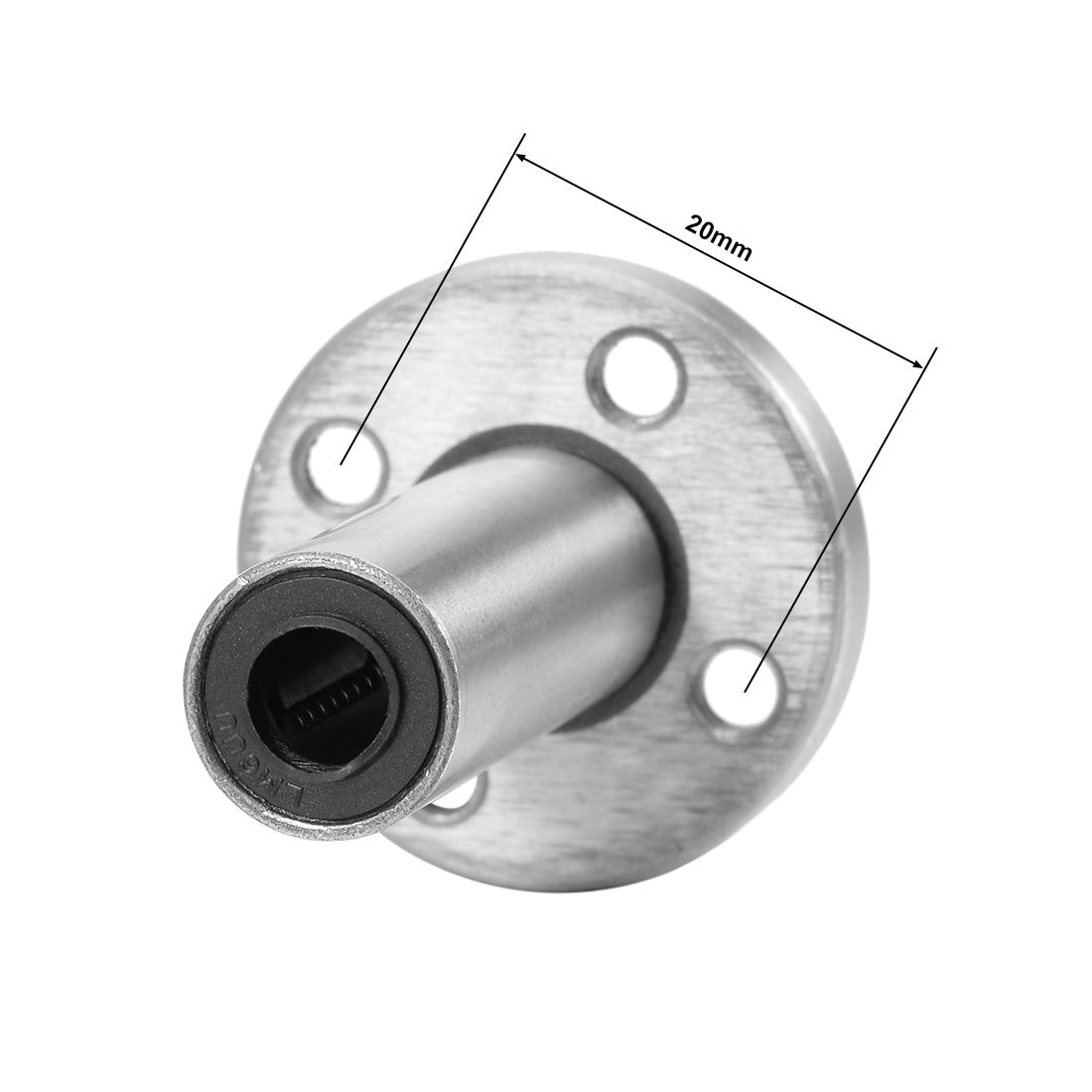

Pitch Circle Dia. (PCD): 20mm / 0.79inch;

Flange Size: 5 x 28mm / 0.2 x 1.1inch (H*D1)

Ball Circuit: 4

Static Load Capacity (Cor): 0.529kN

Dynamic Load Capacity (Cr): 0.324kN

Number of Pack: 2 Pcs

€11,92 Regular price
/
Wholesale Price
20%OFF
Order €4,500+
  • 20%OFF
    Order €4,500+
  • 15%OFF
    Order €1,800+
  • 10%OFF
    Order €720+
  • 7%OFF
    Order €450+
  • 5%OFF
    Order €180+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over €15
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Model I.D.(mm) Bearing Ball Material Outer Shell Material Cage Material Static Load Rating(KN) Dynamic Load Rating(KN) Mounting Hole Dia(d1*d2) Flange Size Total Length Ball Circuit Pitch Circle Dia. Pkg.Qty. ID Price Qty
LM6UU 6 Chromium Steel Chromium Steel Nylon 0.529 0.324 3.2x5.8mm 5x28mm 35mm 4 20mm 2 1039438 €9,61
Products Model I.D.(mm) Bearing Ball Material Outer Shell Material Cage Material Static Load Rating(KN) Dynamic Load Rating(KN) Mounting Hole Dia(d1*d2) Flange Size Total Length Ball Circuit Pitch Circle Dia. Pkg.Qty. ID Price Qty
LM6UU 6 Chromium Steel Chromium Steel Nylon 0.529 0.324 3.2x5.8mm 5x28mm 35mm 4 20mm 2 1039438 €9,61

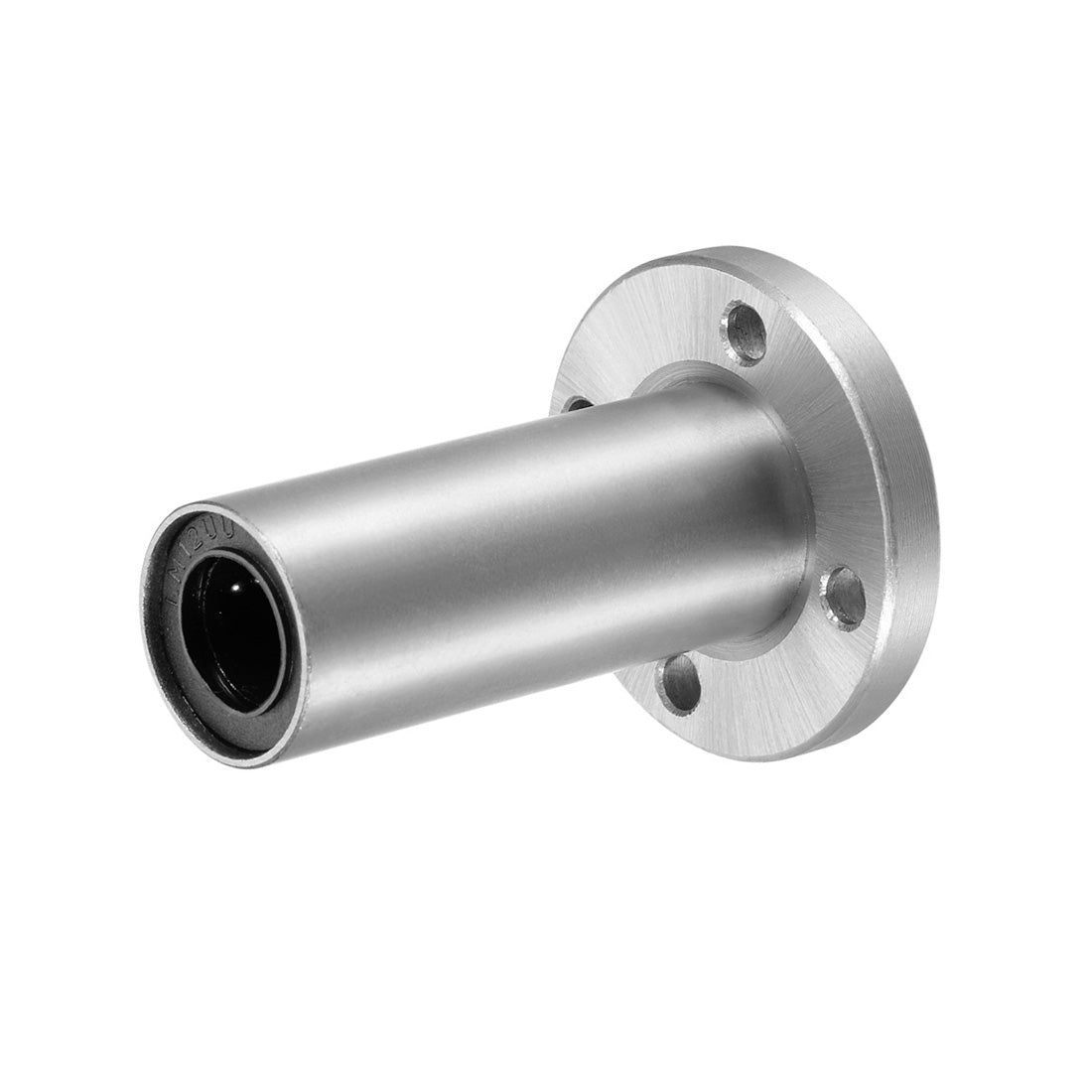

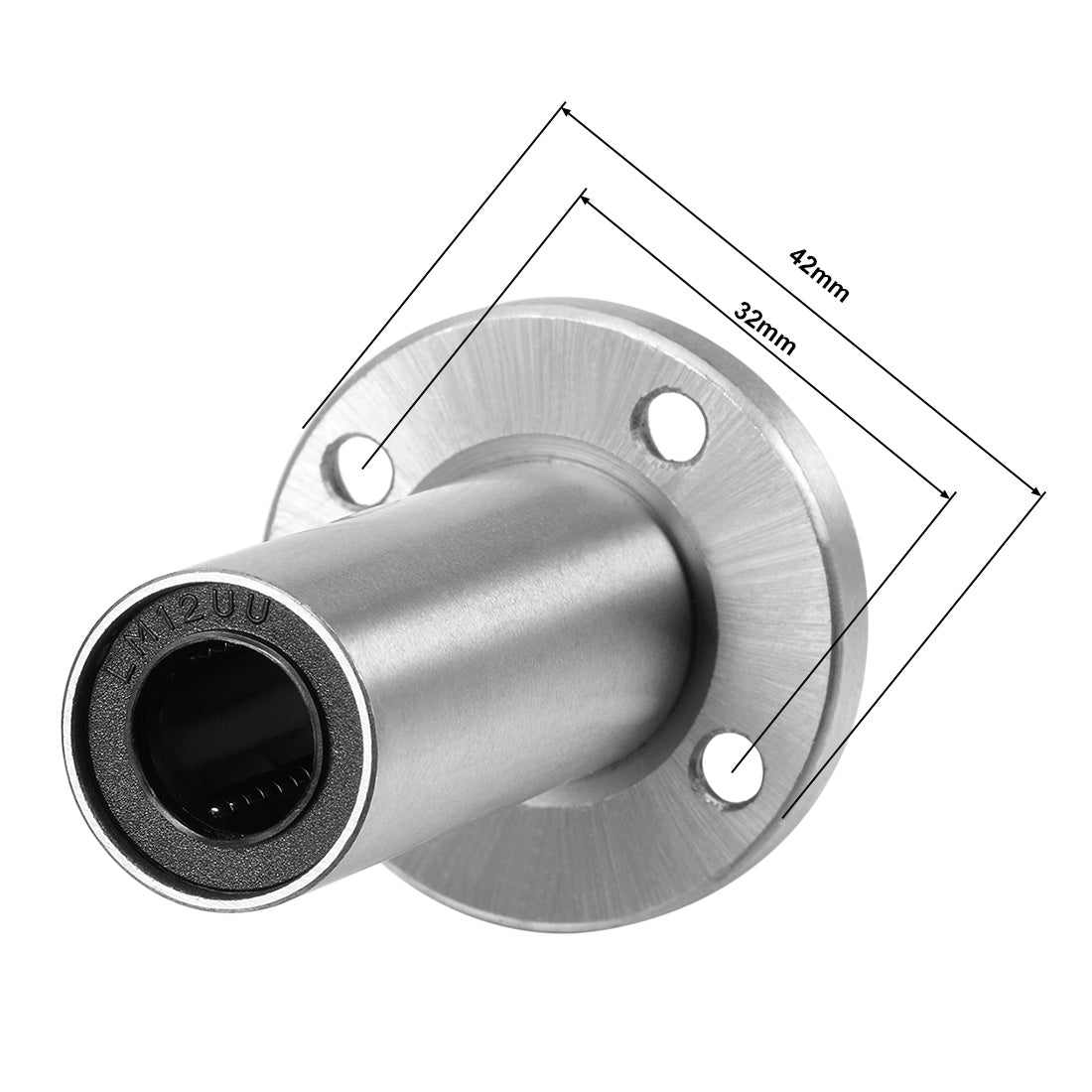

LM12UU 12 Chromium Steel Chromium Steel Nylon 1.2 0.657 4.6x7mm 6x42mm 57mm 4 32mm 2 1039440 €15,60
LMF12LUU 12 Chromium Steel Chromium Steel Nylon 1.57 0.813 4.6x7mm 6x42mm 57mm 4 32mm 2 1100593 €14,58
LMF12LUU 12 Chromium Steel Chromium Steel Nylon 1.57 0.813 4.6x7mm 6x42mm 57mm 4 32mm 1 1060623 €10,25
LMF10UU 10 Chromium Steel Chromium Steel Nylon 0.549 0.372 4.5x7mm 6x40mm 29mm 4 29mm 1 1047628 €8,50
LM20UU 20 Chromium Steel Chromium Steel Nylon 2.75 1.4 5.7x8.3mm 8x54mm 80mm 5 43mm 1 1056502 €14,62
LM20UU 20 Chromium Steel Chromium Steel Nylon 1.37 0.86 5.4x8mm 8x54mm 42mm 5 43mm 1 1044778 €11,69
LM8UU 8 Chromium Steel Chromium Steel Nylon 0.4 0.26 3.3x5.8mm 5x32mm 24mm 4 24mm 1 1044775 €8,18
LM8UU 8 Chromium Steel Chromium Steel Nylon 0.784 0.431 3.2x6mm 5x32mm 45mm 4 24mm 2 1039439 €11,02
LM8UU 8 Chromium Steel Chromium Steel Nylon 0.784 0.431 3.2x6mm 5x32mm 45mm 4 24mm 1 1056501 €9,31
LMF6LUU 6 Chromium Steel Chromium Steel Nylon 0.265 0.206 3.5x5.8mm 5x28mm 35mm 4 20mm 1 1060621 €9,05
LM30UU 30 Chromium Steel Chromium Steel Nylon 5.49 2.49 6.4x11mm 11x74mm 123mm 6 60mm 1 1056504 €29,70
LM30UU 30 Chromium Steel Chromium Steel Nylon 2.74 1.56 6.6x10.7mm 10x74mm 64mm 6 60mm 1 1044782 €16,71

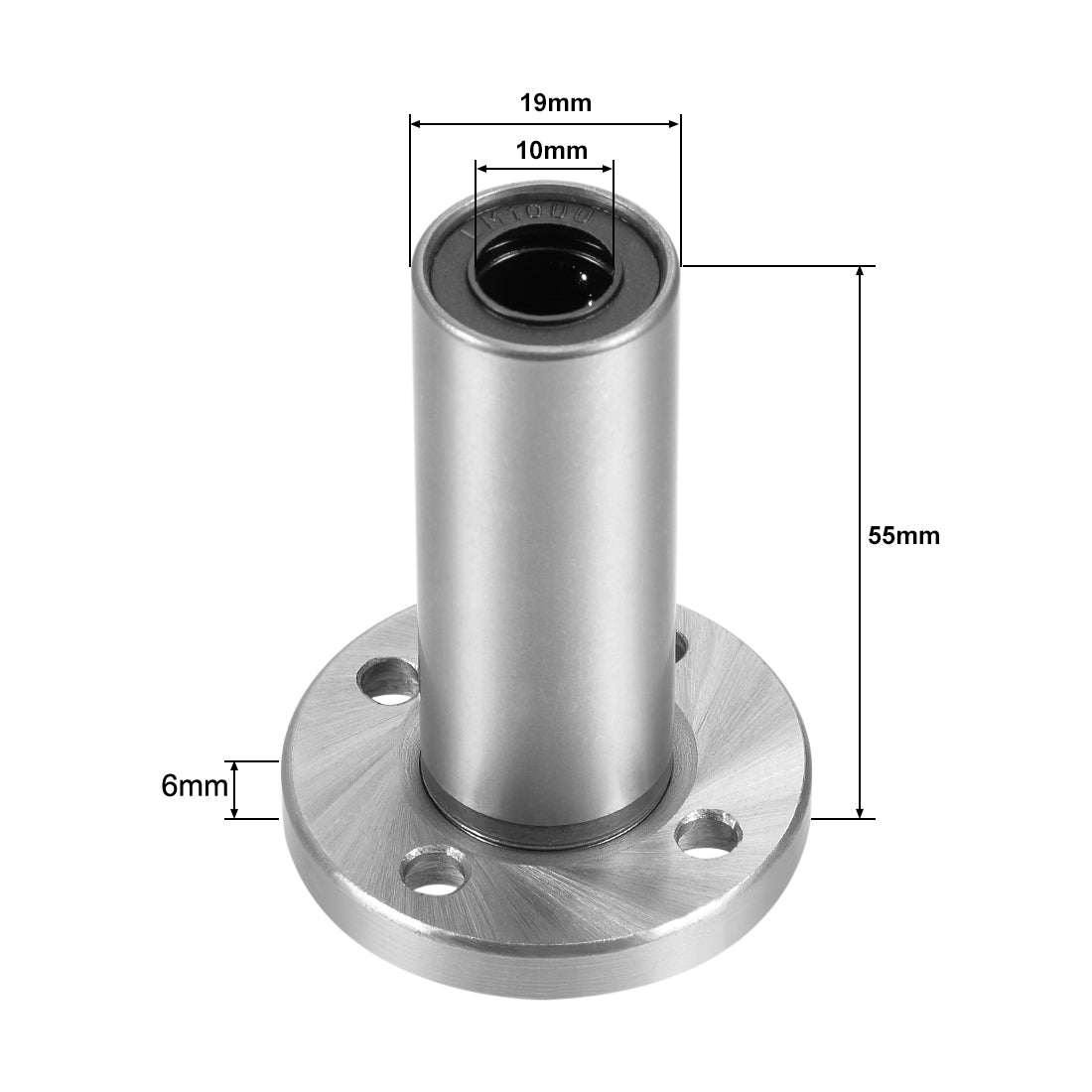

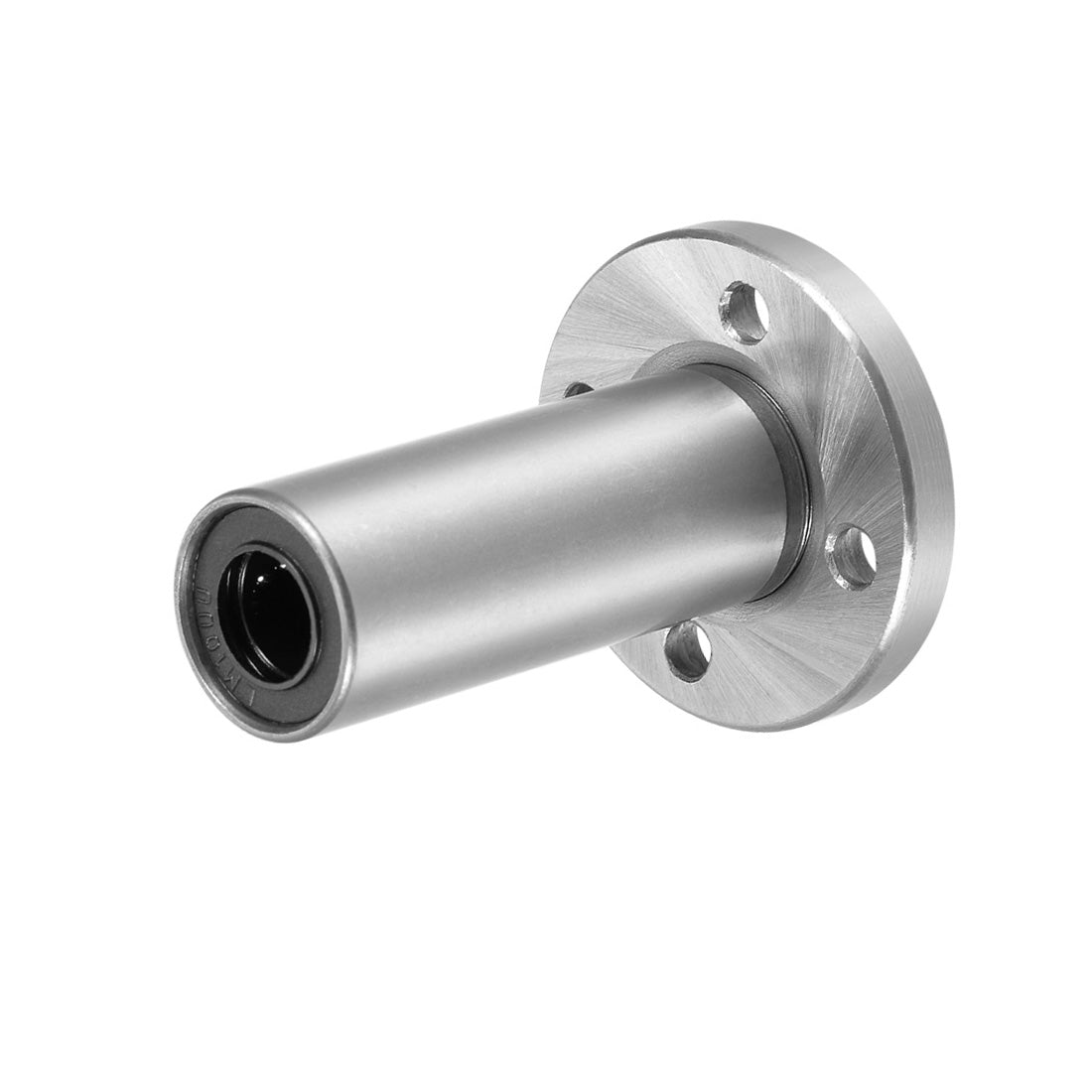

LM10UU 10 Chromium Steel Chromium Steel Nylon 1.1 0.588 4.3x7.6mm 6x40mm 55mm 4 29mm 2 1039436 €15,45
LM25UU 25 Chromium Steel Chromium Steel Nylon 3.14 1.56 5.6x8.4mm 8x62mm 112mm 6 51mm 1 1056505 €20,60
LM25UU 25 Chromium Steel Chromium Steel Nylon 1.56 0.98 8.3x5mm 8x62mm 59mm 6 51mm 1 1044779 €14,89
LM6UU 6 Chromium Steel Chromium Steel Nylon 0.26 0.2 3.2x5.7mm 5x28mm 19mm 4 20mm 1 1044773 €8,01
Qty: 0 Item(s)
Total Price: €0,00

Description

Description

1.provides LMFUU series Round Flange Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM6UU

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

Nominal Shaft Diamter (dr): 6mm

Outer Diameter (D): 12mm

Total Length (L): 35mm

Mounting Hole Dia.: 3.2 x 5.8mm / 0.13 x 0.23inch (d1*d2);

Pitch Circle Dia. (PCD): 20mm / 0.79inch;

Flange Size: 5 x 28mm / 0.2 x 1.1inch (H*D1)

Ball Circuit: 4

Static Load Capacity (Cor): 0.529kN

Dynamic Load Capacity (Cr): 0.324kN

Number of Pack: 2 Pcs
