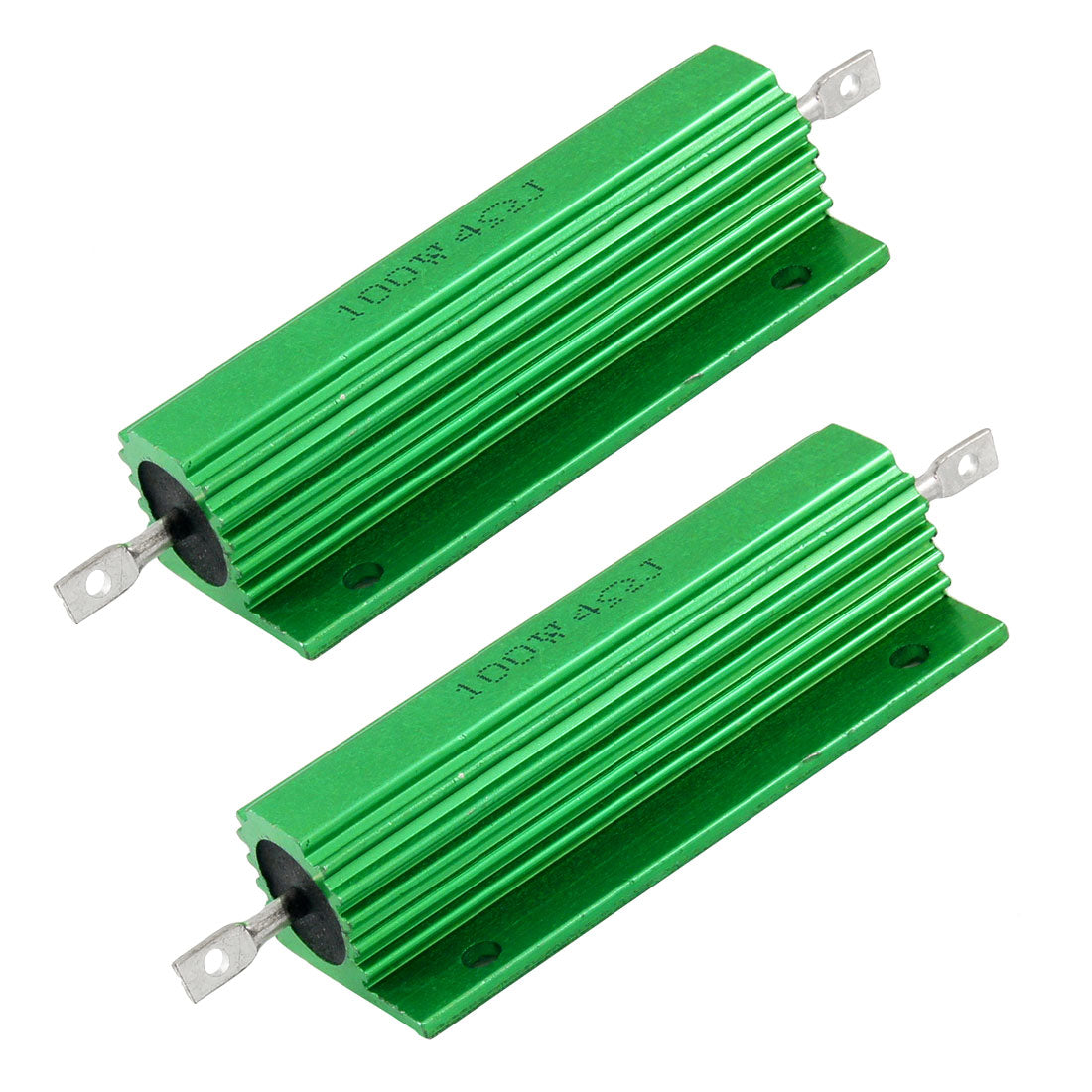

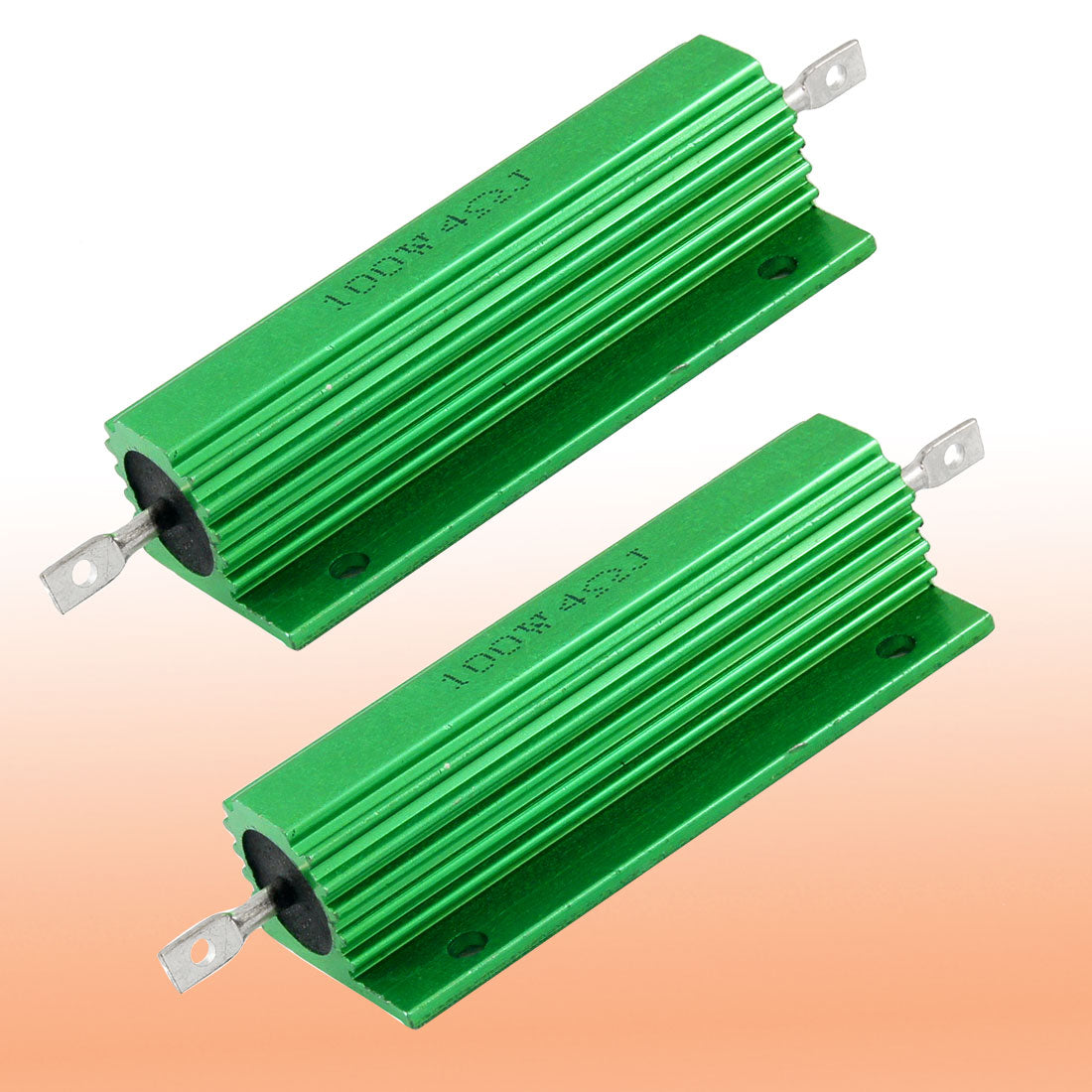

Uxcell 100W 4 Ohm Screw Mounted Aluminum Housed Wirewound Resistors 2 Pcs

ID:1018217
ID:1018217
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Aluminum Housed Resistor;Resistance Value : 4 ohm;Power Rating : 100W
  • Resistance Tolerance : +/- 5% (J);Body Size : 60 x 15mm/ 2.4" x 0.59" (L*D)
  • Mounted Hole Size : 1.8mm/ 0.07", 3mm/ 0.12";Total Size : 85 x 21 x 15mm/ 3.3" x 0.83" x 0.59" (L*W*T)
  • Casing Material : Aluminum;Color : Green
  • Weight : 60g;Package Content : 2 x Aluminum Housed Resistor
About this item
  • Product Name : Aluminum Housed Resistor;Resistance Value : 4 ohm;Power Rating : 100W
  • Resistance Tolerance : +/- 5% (J);Body Size : 60 x 15mm/ 2.4" x 0.59" (L*D)
  • Mounted Hole Size : 1.8mm/ 0.07", 3mm/ 0.12";Total Size : 85 x 21 x 15mm/ 3.3" x 0.83" x 0.59" (L*W*T)
  • Casing Material : Aluminum;Color : Green
  • Weight : 60g;Package Content : 2 x Aluminum Housed Resistor
Specification

Specification

SKU
a12042100ux0279
Product name
Aluminum Housed Resistor
Resistance value
4 Ω
Power rating
100W
Resistance tolerance
+/- 5% (J)
Body size
60 x 15mm/ 2.4" x 0.59" (L*D)
Mounted hole size
1.8mm/ 0.07", 3mm/ 0.12
Total size
85 x 21 x 15mm/ 3.3" x 0.83" x 0.59" (L*W*T)
Casing material
Aluminum
Color
Green
Weight
60g
Package content
2 x Aluminum Housed Resistor
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Aluminum housing for heat dissipation, suitable for cooling plate installation. Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install. Widely used in power supply, transducer, elevator and high requirement equipment industry.

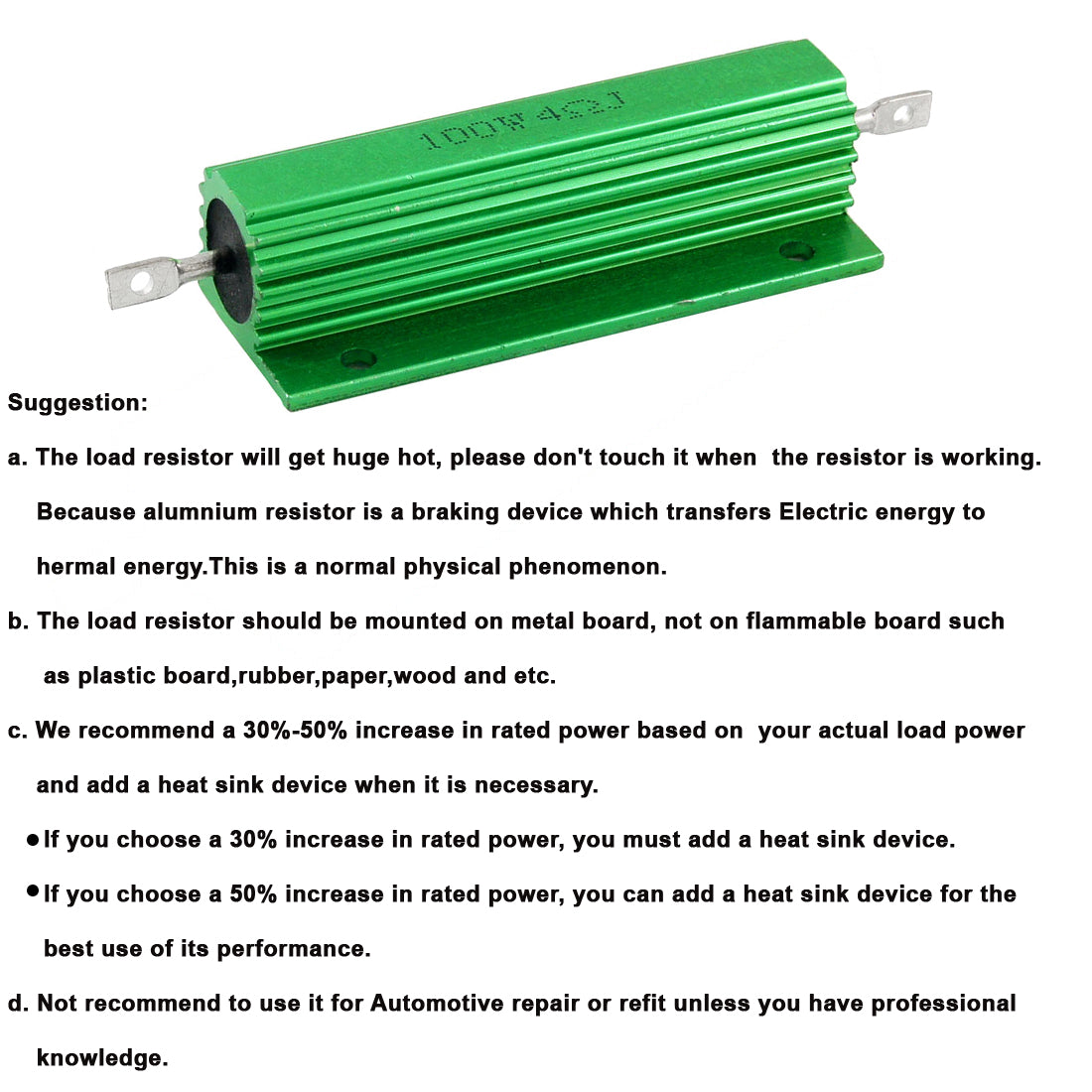

Suggestion:

a. The load resistor will get huge hot, please don't touch it when the resistor is working. Because aluminum resistor is a braking device which transfers Electric energy to Thermal energy. This is a normal physical phenomenon.

b. The load resistor should be mounted on metal board

c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.
If you choose a 30% increase in rated power, you must add a heat sink device.
If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.
d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.

$7.20 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

Aluminum housing for heat dissipation, suitable for cooling plate installation. Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install. Widely used in power supply, transducer, elevator and high requirement equipment industry.

Suggestion:

a. The load resistor will get huge hot, please don't touch it when the resistor is working. Because aluminum resistor is a braking device which transfers Electric energy to Thermal energy. This is a normal physical phenomenon.

b. The load resistor should be mounted on metal board

c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.
If you choose a 30% increase in rated power, you must add a heat sink device.
If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.
d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.
