Harfington Uxcell Run Capacitor Round CBB65 25uF 25mfd 450V AC 40/85/21 Aluminum Case with Terminal for Air Conditioner Compressor Motor Heat Pump Condenser

Uxcell Run Capacitor Round CBB65 25uF 25mfd 450V AC 40/85/21 Aluminum Case with Terminal for Air Conditioner Compressor Motor Heat Pump Condenser

ID:1036099
ID:1036099
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [Specification] - Rated Capacity: 25uF; Tolerance: ±5%; Rated Voltage: 450V AC; Overall Size: 97x50mm / 3.8x2inch(L*D); Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
  • [Characteristic] - This CBB65 run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life
  • [Working Environment] - This CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system
  • [Application] - The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condenser, HVAC, generators, illuminating lamps, fans, etc
  • [Note] - This capacitor has no positive and negative poles, it can be wired at will. If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one
About this item
  • [Specification] - Rated Capacity: 25uF; Tolerance: ±5%; Rated Voltage: 450V AC; Overall Size: 97x50mm / 3.8x2inch(L*D); Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
  • [Characteristic] - This CBB65 run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life
  • [Working Environment] - This CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system
  • [Application] - The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condenser, HVAC, generators, illuminating lamps, fans, etc
  • [Note] - This capacitor has no positive and negative poles, it can be wired at will. If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one
Specification

Specification

SKU
a21031800ux0244
Brand
Uxcell
Pkg.Qty
1
Material
Polypropylene,Aluminum Housing
Size(D*H)
97*50mm
Terminal
4+2 Pins
Climatic Category
40/85/21
Capacitance
25µF
Voltage
AC 450V
Tolerance
±5%
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Features:
This CBB65 run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life.

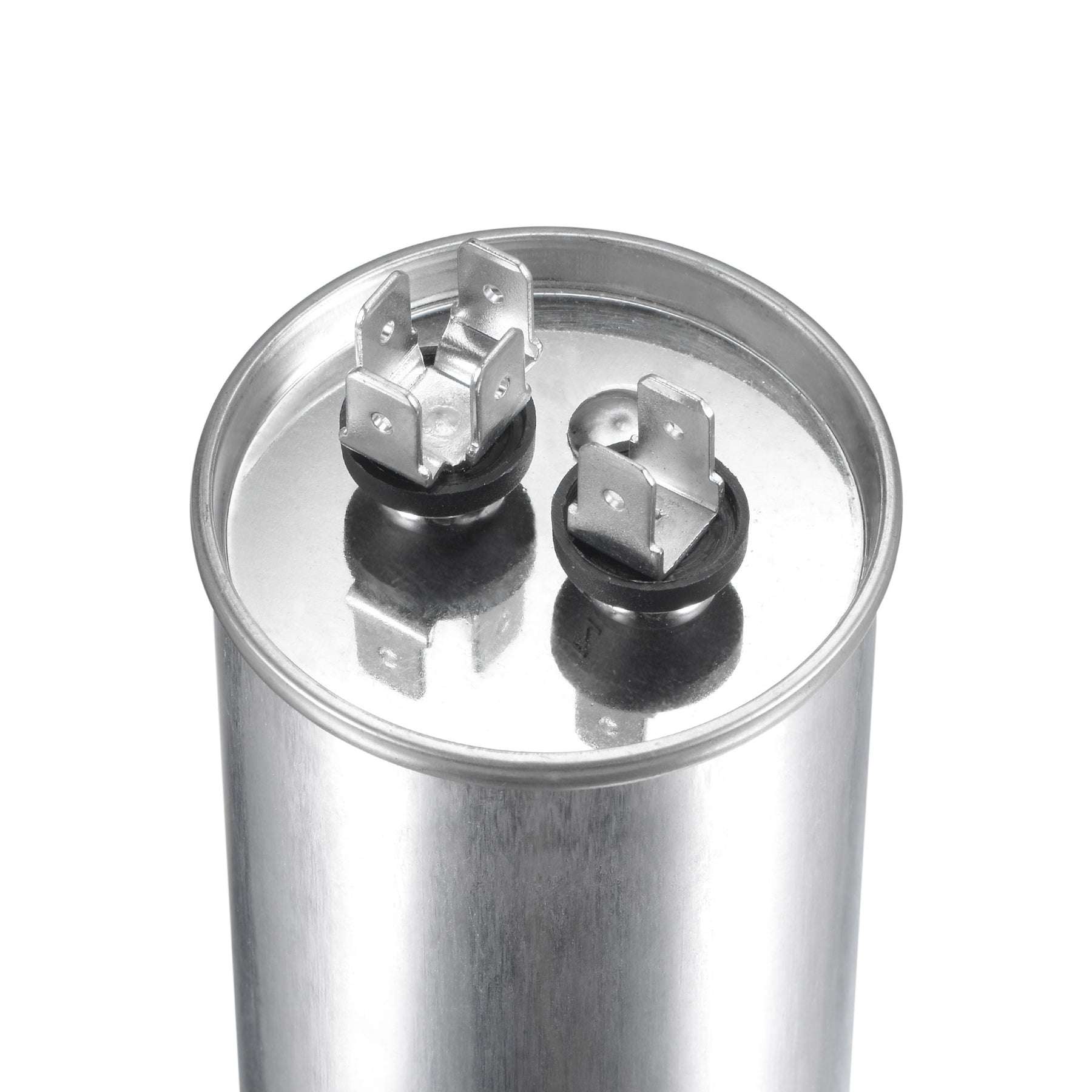

Standard quick-connect terminals, 4 pins on one post and 2 pins on another.
This CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.
The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc.

Note:

This capacitor has no positive and negative poles, it can be wired at will.
If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one.

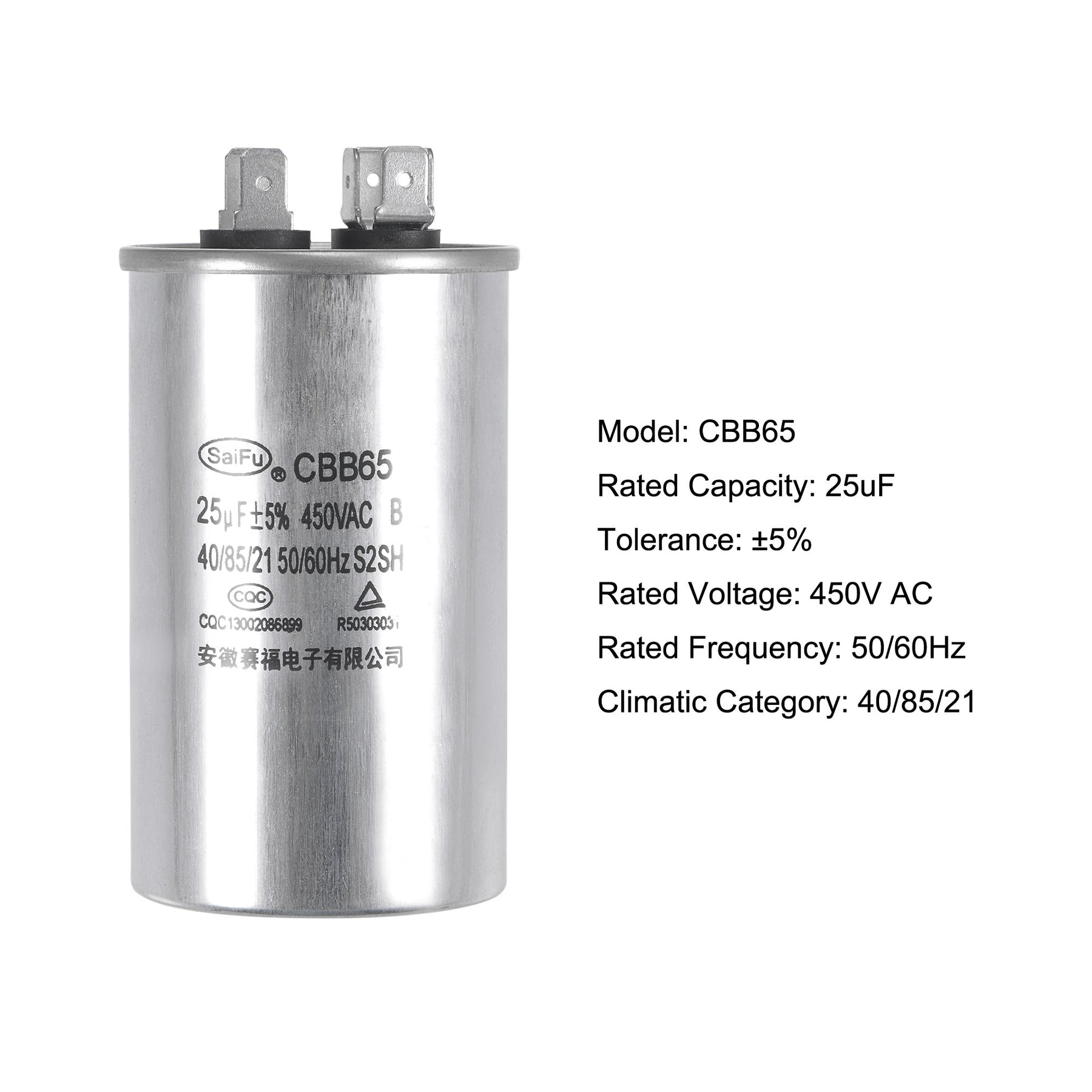

Specifications:
Model: CBB65
Material: Metallized Polypropylene, Aluminum Case
Lead End: 4+2 Terminal
Rated Capacity: 25uF
Tolerance: ±5%
Rated Voltage: 450V AC
Rated Frequency: 50/60Hz
Climatic Category: 40/85/21

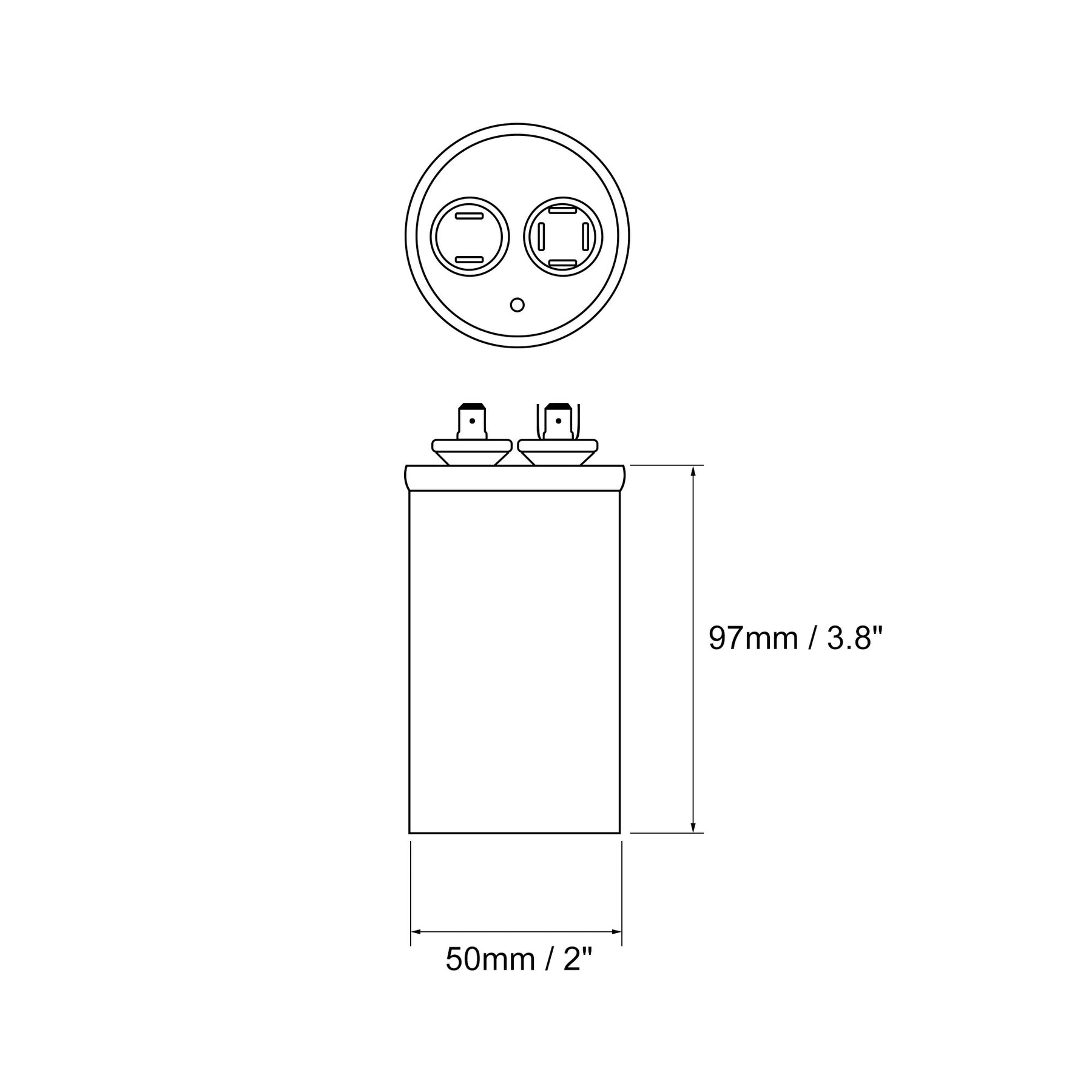

Overall Size: 97x50mm / 3.8x2 inch (L*D)

Package Includes:

1 x CBB65 Capacitor
$15.25 $15.25/eachRegular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Voltage Capacitance Climatic Category Size(D*H) Tolerance Temperature Range Terminal Material Pkg.Qty ID Price Qty
AC 450V 25µF 40/85/21 97*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1036099 $15.25
Products Voltage Capacitance Climatic Category Size(D*H) Tolerance Temperature Range Terminal Material Pkg.Qty ID Price Qty
AC 450V 25µF 40/85/21 97*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1036099 $15.25
AC 450V 15µF 40/85/21 88*45mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1036094 $14.03
AC 450V 10µF 40/85/21 88*45mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1027525 $14.05
AC 450V 10µF 40/85/21 88*45mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1208970 $16.31
AC 450V 55µF 40/85/21 139*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1070608 $16.94
AC 450V 6µF / 40*60mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1366884 $8.62
AC 450V 8µF / 40*60mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1367309 $8.82
AC 450V 25µF / 50*75mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1367318 $11.06
AC 450V 55µf -25/70/21 1.95*4.88" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1377903 $19.04
AC 450V 55µf -25/70/21 1.95*4.88" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1377913 $11.91
AC 450V 40µF 40/85/21 114*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1217004 $22.57
AC 450V 35µF 40/85/21 114*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1009352 $21.82
AC 450V 35µF 40/85/21 114*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1027517 $16.06
AC 450V 35µF / 50*100mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1366864 $12.49
AC 450V 65µF 40/85/21 137*55mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1036097 $17.54
AC 450V 50µF 40/85/21 139*50mm ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1116200 $17.15
AC 450V 20µF / 50*75mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 2 1367314 $16.22
AC 450V 30µf -25/70/21 1.95*4.02" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1377907 $11.22
AC 450V 30µf -25/70/21 1.95*4.02" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1377921 $17.14
AC 450V 70µf -25/70/21 1.95*4.88" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1377911 $12.67
AC 450V 70µf -25/70/21 1.95*4.88" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1377918 $20.09
AC 450V 50µf -25/70/21 1.95*4.88" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1377905 $12.08
AC 450V 40µf -25/70/21 1.95*4.02" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1377908 $11.27
AC 450V 25µf -25/70/21 1.95*3.51" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1377917 $15.01
AC 450V 20µf -25/70/21 1.95*3.51" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 2 1377922 $14.46
AC 450V 45µF / 50*100mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1366865 $12.51
AC 450V 80µF / 60*125mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1366869 $17.50
AC 370/440V 100µF / 60*130mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 1 1366903 $18.57
AC 370/440V 10µF / 40*60mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 2 1366891 $12.66
AC 370/440V 25µF / 50*75mm ±5% -25 to 85℃ 4+2 Pins Polypropylene,Aluminum Housing 2 1366901 $16.63
AC 540V 20µf -25/70/21 1.95*3.51" ±5% / 4+2 Pins Polypropylene,Aluminum Housing 1 1377916 $10.32
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Features:
This CBB65 run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life.
Standard quick-connect terminals, 4 pins on one post and 2 pins on another.
This CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.
The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc.

Note:

This capacitor has no positive and negative poles, it can be wired at will.
If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one.

Specifications:
Model: CBB65
Material: Metallized Polypropylene, Aluminum Case
Lead End: 4+2 Terminal
Rated Capacity: 25uF
Tolerance: ±5%
Rated Voltage: 450V AC
Rated Frequency: 50/60Hz
Climatic Category: 40/85/21
Overall Size: 97x50mm / 3.8x2 inch (L*D)

Package Includes:

1 x CBB65 Capacitor
