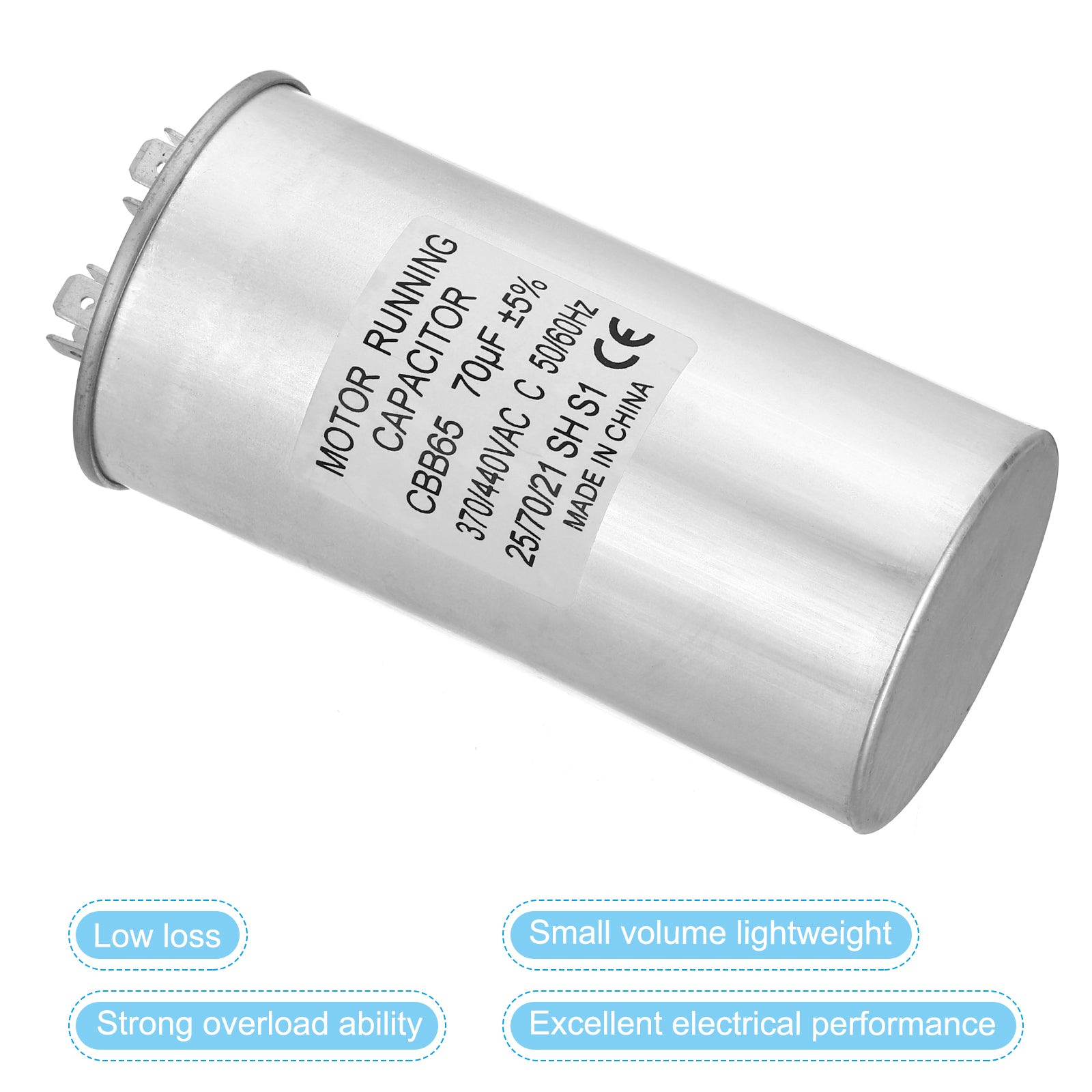

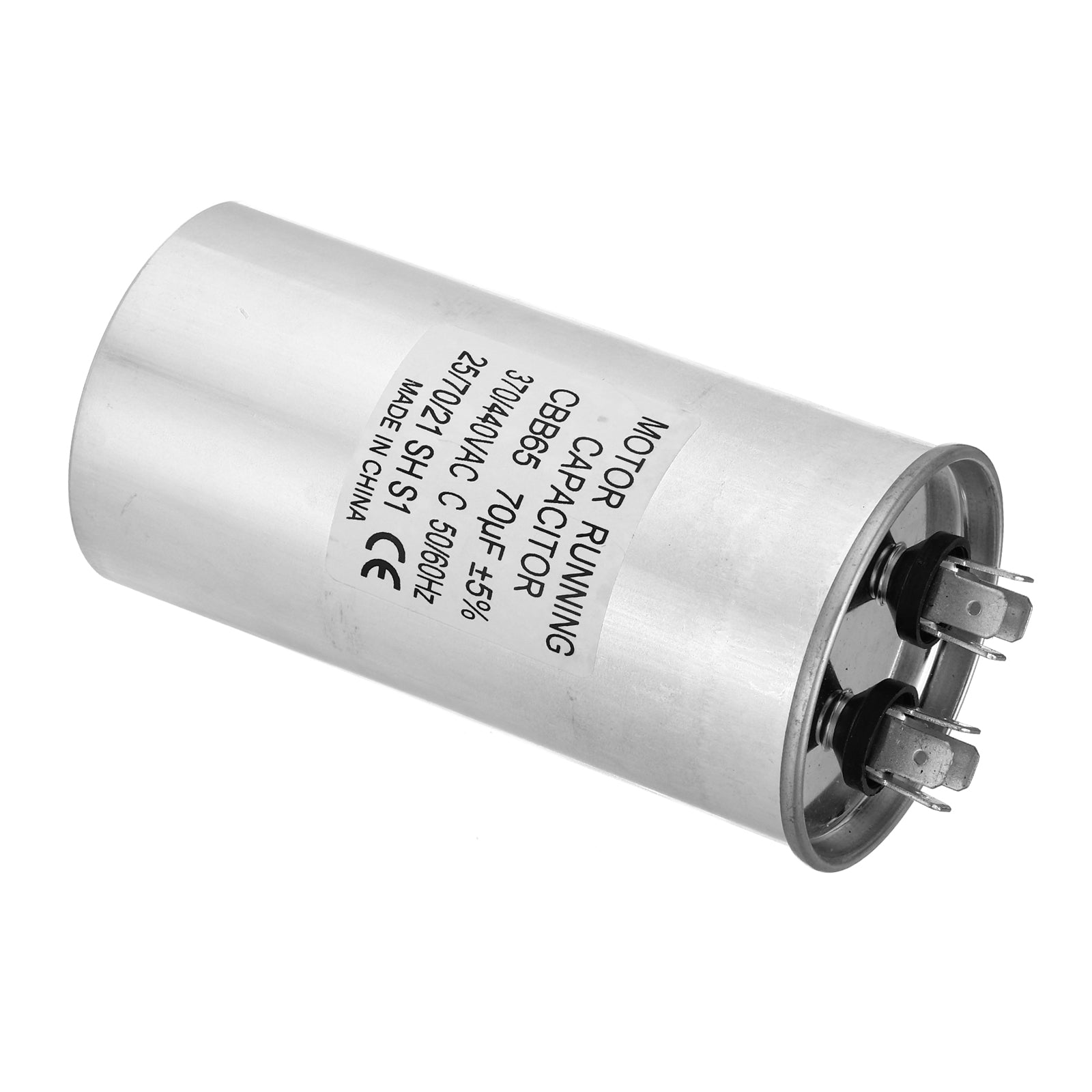

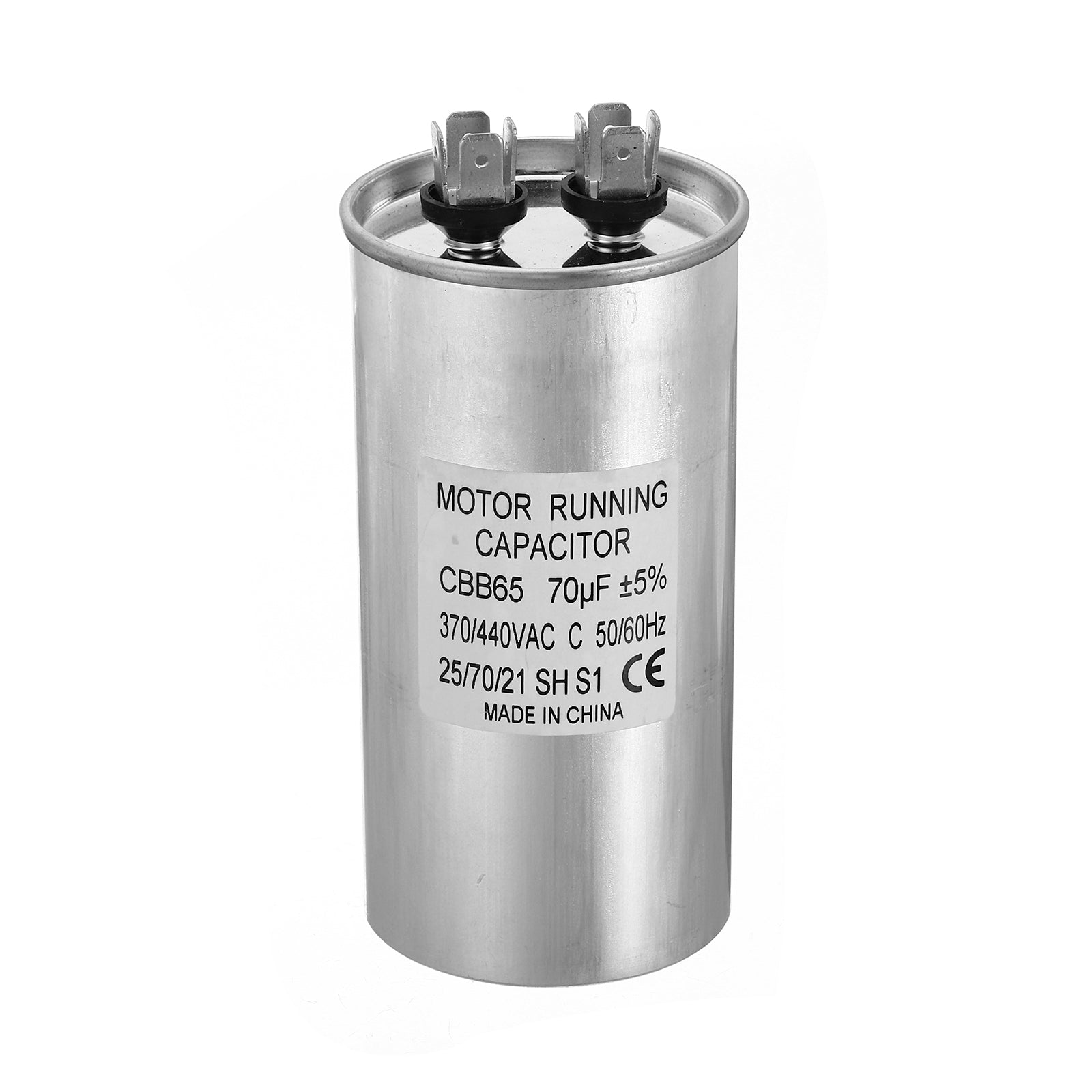

Harfington CBB65 70uf Run Capacitor, 70mfd AC 370/440V Aluminum Case with 2 Terminal

CBB65 70uf Run Capacitor, 70mfd AC 370/440V Aluminum Case with 2 Terminal

ID:1377170
ID:1377170
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

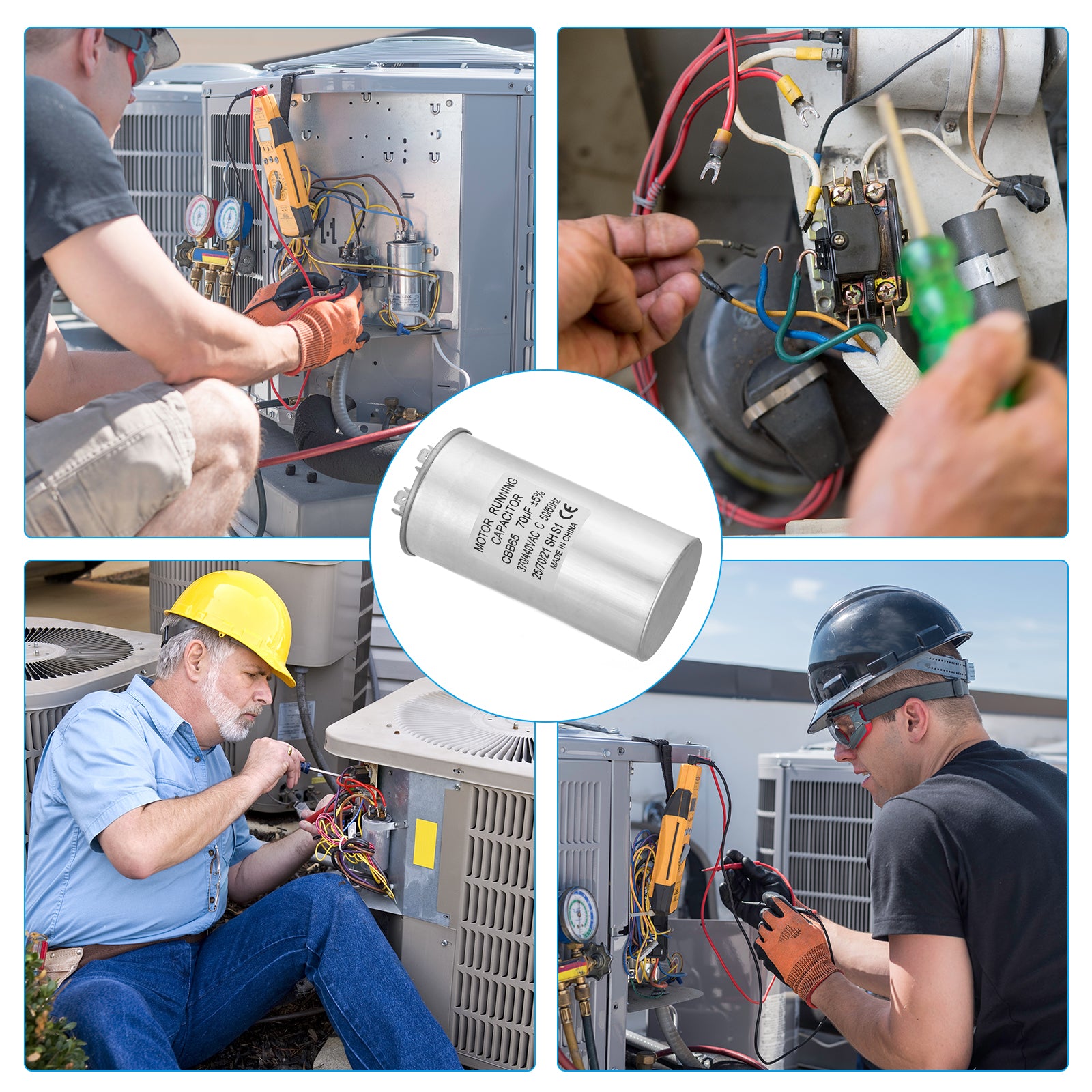

  • CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc

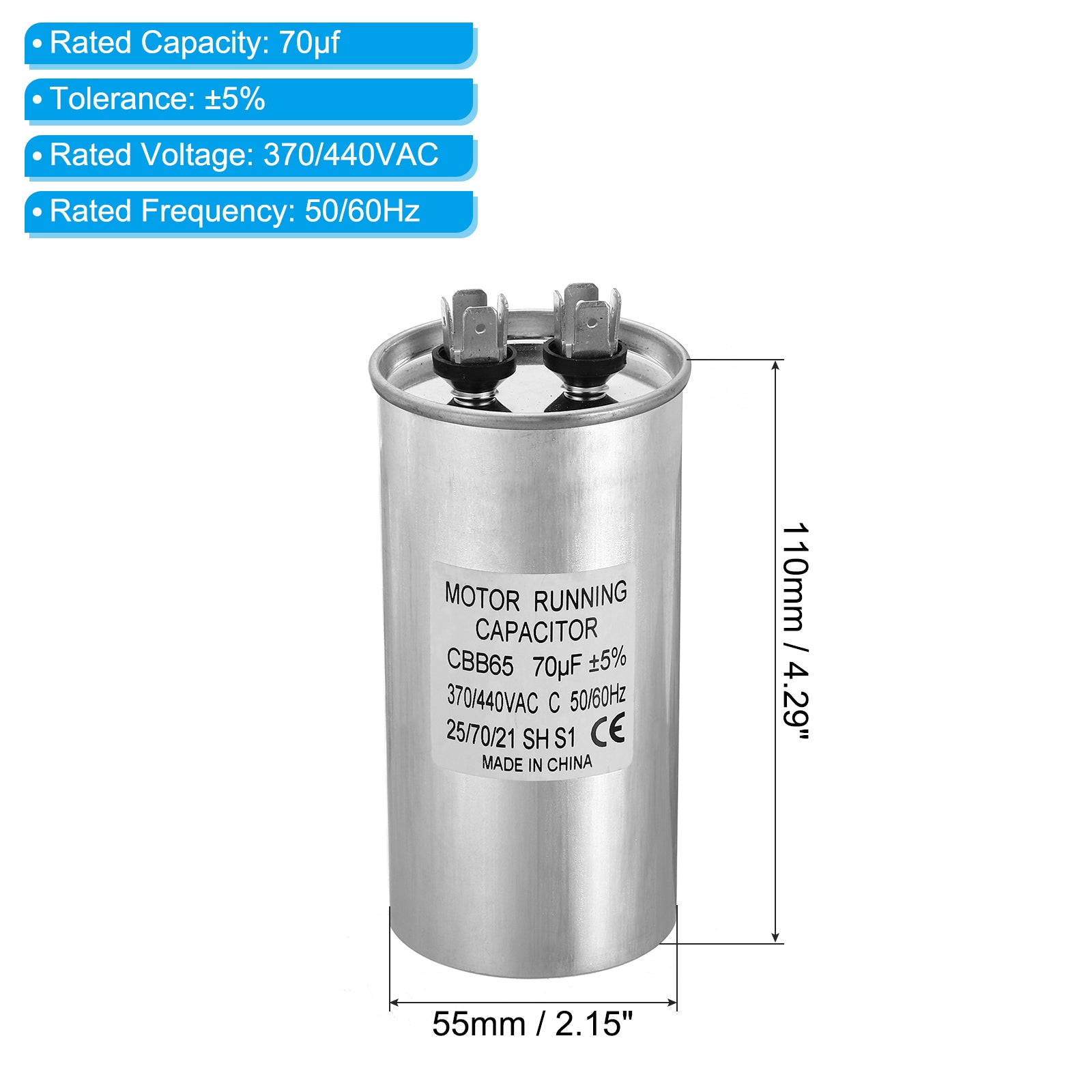

  • Specification:Model: CBB65;Material: Metallized Polypropylene, Aluminum Case;Lead End: 2 Terminal(4+4pins);Rated Capacity: 70uf;Tolerance: ±5%;Rated Voltage: 370/440VAC;Rated Frequency: 50/60Hz;Climatic Category: 25/70/21;Overall Size: 55 x 110mm/2.15 x 4.29inch (D x H); Package Includes: 1Pcs x CBB65 Capacitor
  • Advantage:This CBB65 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
  • Instruction:Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.
  • NOTE: Please pay attention not to over current or over voltage when using
About this item
  • CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc
  • Specification:Model: CBB65;Material: Metallized Polypropylene, Aluminum Case;Lead End: 2 Terminal(4+4pins);Rated Capacity: 70uf;Tolerance: ±5%;Rated Voltage: 370/440VAC;Rated Frequency: 50/60Hz;Climatic Category: 25/70/21;Overall Size: 55 x 110mm/2.15 x 4.29inch (D x H); Package Includes: 1Pcs x CBB65 Capacitor
  • Advantage:This CBB65 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
  • Instruction:Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.
  • NOTE: Please pay attention not to over current or over voltage when using
Specification

Specification

SKU
a23032100ux0787
Pkg.Qty
1
Material
Polypropylene,Aluminum Housing
Size(D*H)
55*110mm
Terminal
4+4 Pins
Climatic Category
40/70/21
Capacitance
70µf
Voltage
AC 370/440V
Tolerance
±5%
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc

Specification:
Specification:Model: CBB65;Material: Metallized Polypropylene, Aluminum Case;Lead End: 2 Terminal(4+4pins);Rated Capacity: 70uf;Tolerance: 5%;Rated Voltage: 370/440VAC;Rated Frequency: 50/60Hz;Climatic Category: 25/70/21;Overall Size: 55 x 110mm/2.15 x 4.29inch (D x H); Package Includes: 1Pcs x CBB65 Capacitor

Advantage:
This CBB65 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.

Instruction:

Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.

NOTE: Please pay attention not to over current or over voltage when using
$15.47 $15.47/eachRegular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Voltage Capacitance Size(D*H) Climatic Category Tolerance Terminal Material Pkg.Qty ID Price Qty
AC 370/440V 70µf 55*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377170 $15.47
Products Voltage Capacitance Size(D*H) Climatic Category Tolerance Terminal Material Pkg.Qty ID Price Qty
AC 370/440V 70µf 55*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377170 $15.47
AC 370/440V 40µf 50*100mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377171 $12.76
AC 370/440V 40µf 50*100mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377228 $20.55
AC 370/440V 10µf 40*60mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377223 $9.01
AC 370/440V 10µf 40*60mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377165 $12.63
AC 370/440V 45µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377173 $20.31
AC 370/440V 45µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377158 $13.04
AC 370/440V 35µf 50*100mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377164 $19.52
AC 370/440V 35µf 50*100mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377227 $12.54
AC 370/440V 5µf 40*60mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377167 $12.25
AC 370/440V 5µf 40*55mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377161 $11.77
AC 370/440V 80µf 60*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377229 $17.03
AC 370/440V 30µf 50*85mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377163 $17.76
AC 370/440V 30µf 50*85mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377225 $11.67
AC 370/440V 50µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377174 $13.31
AC 370/440V 50µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377172 $20.80
AC 370/440V 25µf 45*85mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377162 $16.22
AC 450V 70µf 55*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377250 $15.20
AC 450V 5µf 40*60mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377251 $12.02
AC 450V 5µf 40*60mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377186 $8.86
AC 450V 30µf 50*85mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377218 $17.68
AC 450V 45µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377204 $12.81
AC 450V 45µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377205 $19.92
AC 450V 60µf 55*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377189 $14.39
AC 450V 40µf 50*100mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377247 $12.83
AC 450V 40µf 50*100mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377254 $19.55
AC 450V 10µF / -40/85/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 5 1388175 $23.94
AC 450V 80µf 60*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377191 $16.79
AC 450V 15µf 40*75mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377201 $9.70
AC 450V 50µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 2 1377256 $20.43
AC 450V 50µf 50*110mm 40/70/21 ±5% 4+4 Pins Polypropylene,Aluminum Housing 1 1377203 $13.03
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc

Specification:
Specification:Model: CBB65;Material: Metallized Polypropylene, Aluminum Case;Lead End: 2 Terminal(4+4pins);Rated Capacity: 70uf;Tolerance: 5%;Rated Voltage: 370/440VAC;Rated Frequency: 50/60Hz;Climatic Category: 25/70/21;Overall Size: 55 x 110mm/2.15 x 4.29inch (D x H); Package Includes: 1Pcs x CBB65 Capacitor

Advantage:
This CBB65 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.

Instruction:

Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.

NOTE: Please pay attention not to over current or over voltage when using
