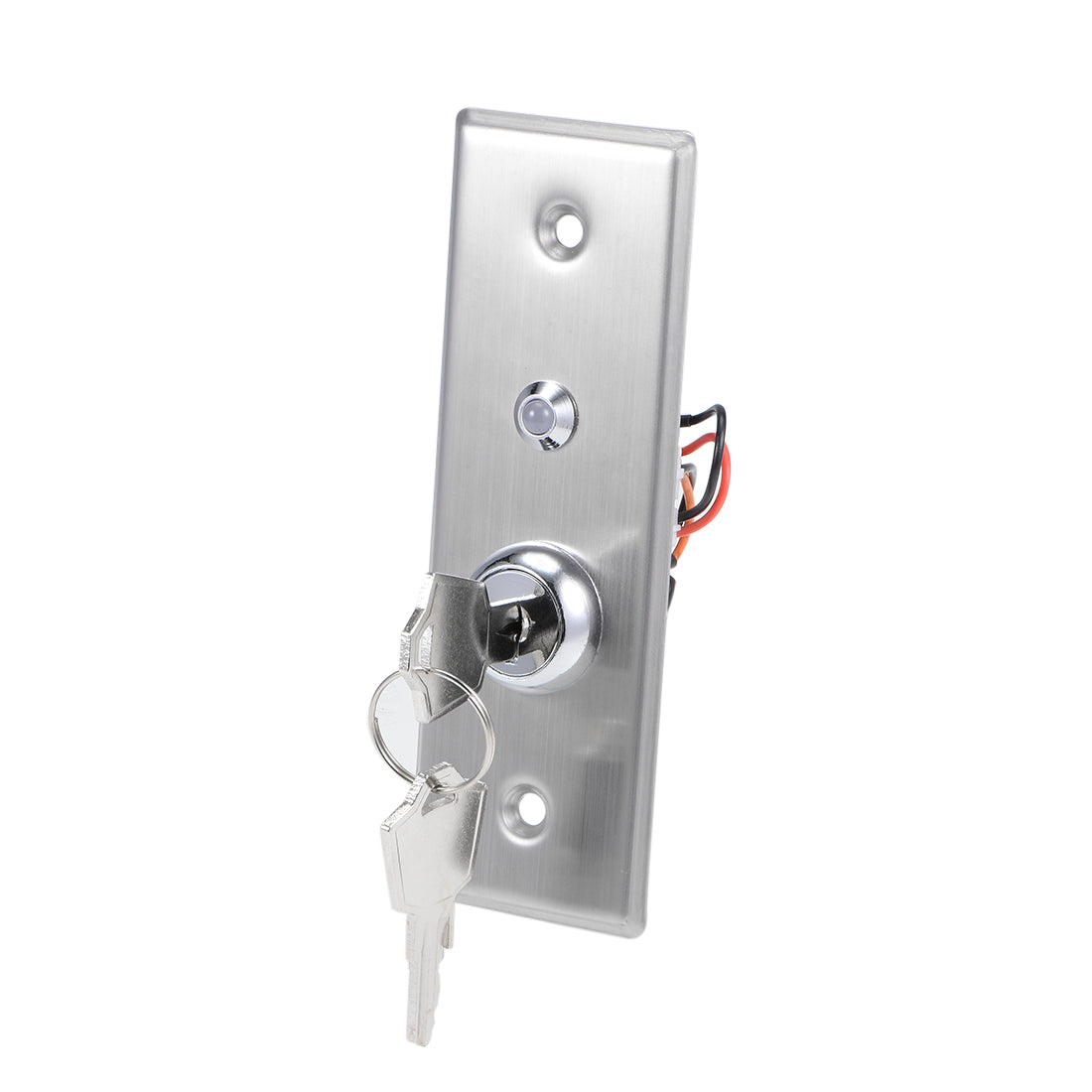

Harfington Uxcell On Off Key Switch Exit Switches Emergency Door Release SPST with DC 12V Red Green LED Indicator

Uxcell On Off Key Switch Exit Switches Emergency Door Release SPST with DC 12V Red Green LED Indicator

ID:1058801
ID:1058801
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Turn key to ON Position and remains in ON position (key will pull out)
  • Universal key switch. Will work with all gate and garage door openers

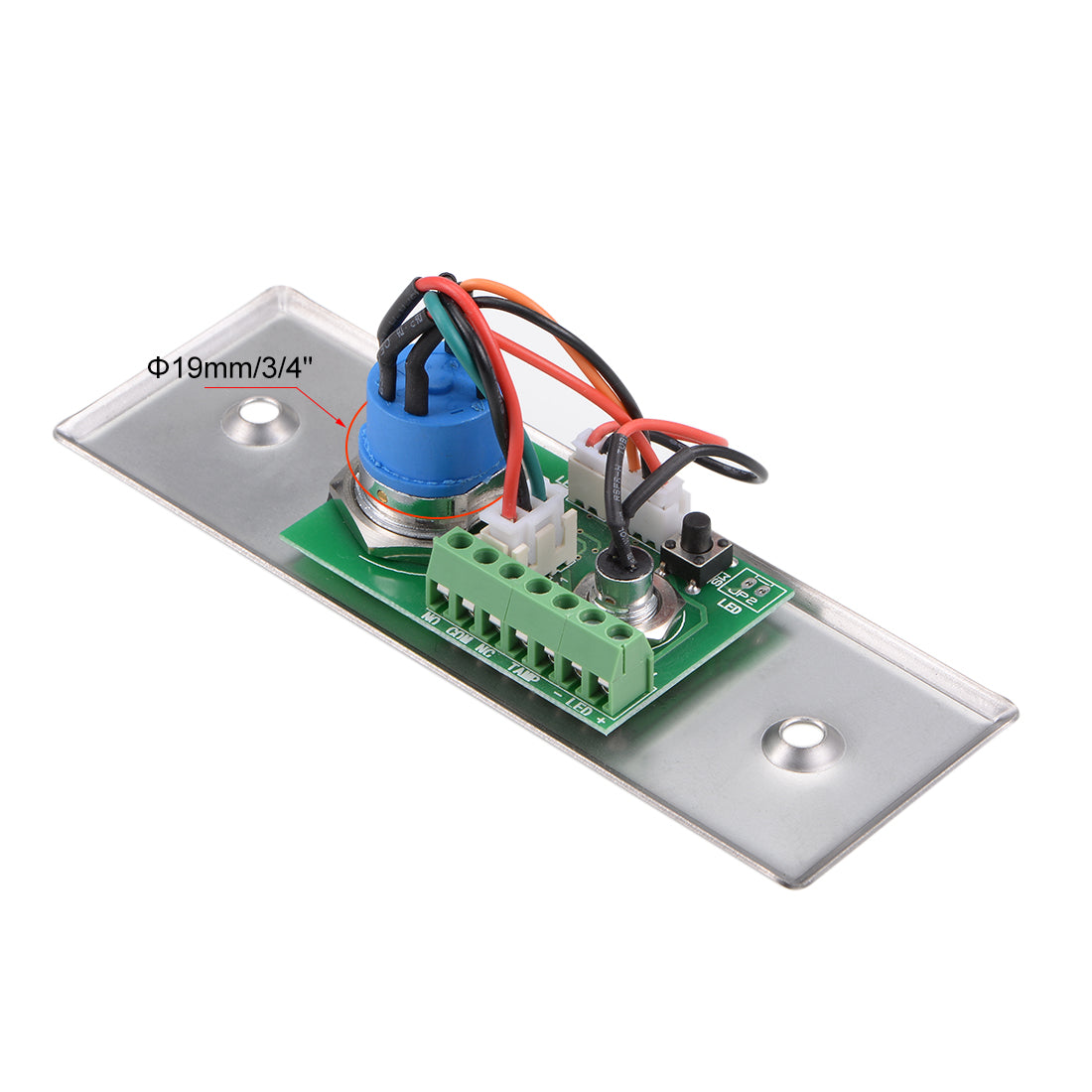

  • Stainless steel plate accepts standard 19mm (3/4") barrel
  • Switch Rated Current: 4A 125V AC, 2A 250V AC; Indicator Rated Voltage: DC 12V
  • The indicator would change color when turning on or off the switch
About this item
  • Turn key to ON Position and remains in ON position (key will pull out)
  • Universal key switch. Will work with all gate and garage door openers
  • Stainless steel plate accepts standard 19mm (3/4") barrel
  • Switch Rated Current: 4A 125V AC, 2A 250V AC; Indicator Rated Voltage: DC 12V
  • The indicator would change color when turning on or off the switch
Specification

Specification

SKU
a19011900ux0756
Panel material
304 Stainless Steel
Switch rated power
4A 125V AC / 2A 250V AC
Indicator rated voltage
DC 12V
Type
SPST
Contacts type
1 NO, 1 NC, 1 COM, 2 TAMP

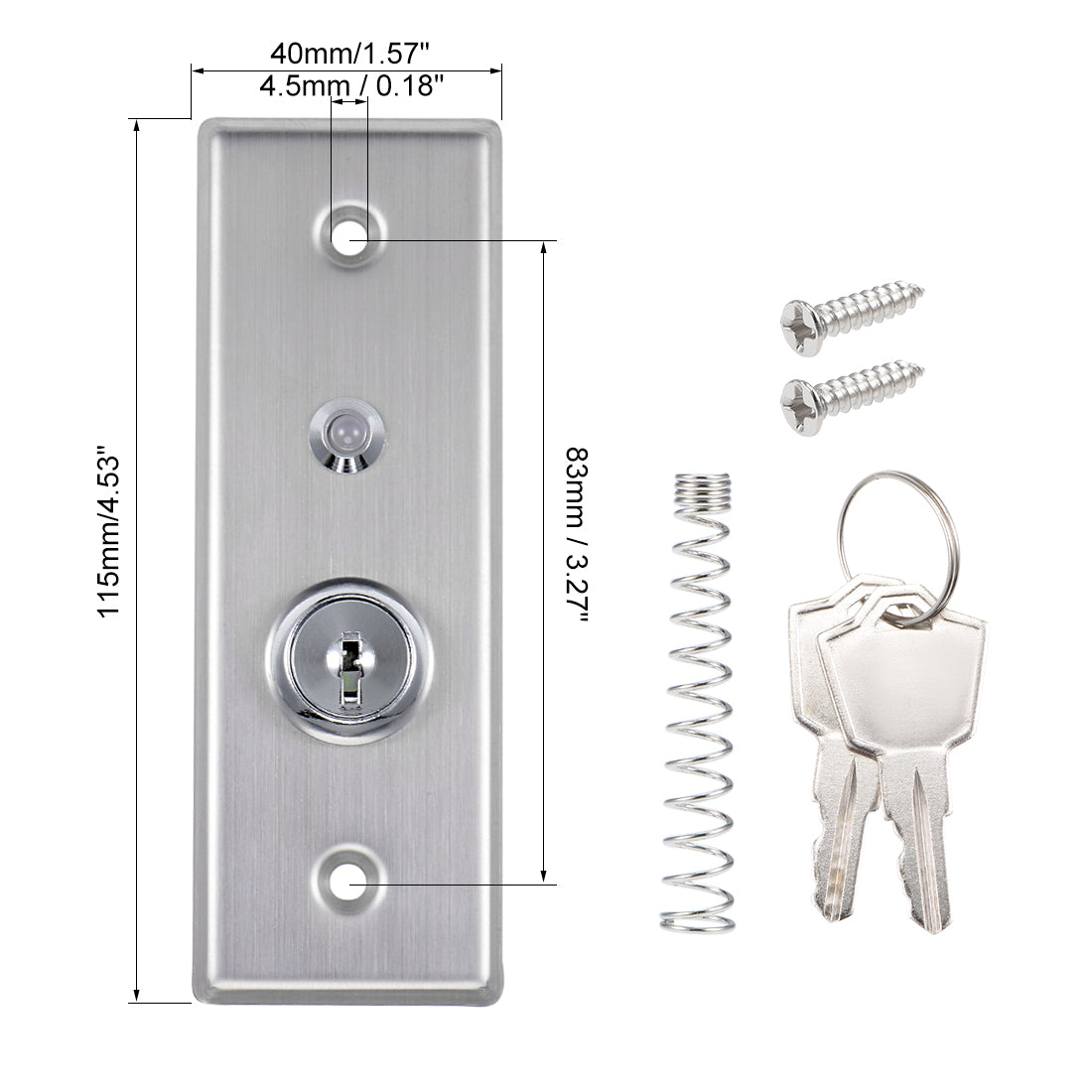

Panel size
115 x 40mm / 4.53" x 1.57" (L*W)
Mounting cut hole
50 x 32mm / 1.97" x 1.26" (L*W)
Panel mounting hole diameter
4.5mm / 0.18 inch
Panel mounting hole distance
83mm / 3.27 inch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

-This key switch is an emergency switch button with a special mechanical key for emergency situations.

-Exit switches come in handy when one wants to regulate the comings and goings of people.

-19mm key switch lock with 2 keys, nice smooth action and easy to mount.

-Key is removable in both ON and OFF positions.

-The indicator would change color when turning on or off the switch.

-Anti-disassembly signal output.



NOTE:

NO-COM: Switch on, GREEN indicator on; Switch off, RED indicator on

NC-COM: Switch on, RED indicator on; Switch off, GREEN indicator on



Specification:

Panel Material: 304 Stainless Steel

Switch Rated Power: 4A 125V AC / 2A 250V AC

Indicator Rated Voltage: DC 12V

Type: SPST

Contacts Type: 1 NO, 1 NC, 1 COM, 2 TAMP

Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)

Mounting Cut Hole: 50 x 32mm / 1.97" x 1.26" (L*W)

Panel Mounting Hole Diameter: 4.5mm / 0.18"

Panel Mounting Hole Distance: 83mm / 3.27"







Package Content:

1 x Key Operated Switch

2 x Keys

2 x Mounting Screws

$18.53 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Description:

-This key switch is an emergency switch button with a special mechanical key for emergency situations.

-Exit switches come in handy when one wants to regulate the comings and goings of people.

-19mm key switch lock with 2 keys, nice smooth action and easy to mount.

-Key is removable in both ON and OFF positions.

-The indicator would change color when turning on or off the switch.

-Anti-disassembly signal output.



NOTE:

NO-COM: Switch on, GREEN indicator on; Switch off, RED indicator on

NC-COM: Switch on, RED indicator on; Switch off, GREEN indicator on



Specification:

Panel Material: 304 Stainless Steel

Switch Rated Power: 4A 125V AC / 2A 250V AC

Indicator Rated Voltage: DC 12V

Type: SPST

Contacts Type: 1 NO, 1 NC, 1 COM, 2 TAMP

Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)

Mounting Cut Hole: 50 x 32mm / 1.97" x 1.26" (L*W)

Panel Mounting Hole Diameter: 4.5mm / 0.18"

Panel Mounting Hole Distance: 83mm / 3.27"







Package Content:

1 x Key Operated Switch

2 x Keys

2 x Mounting Screws
