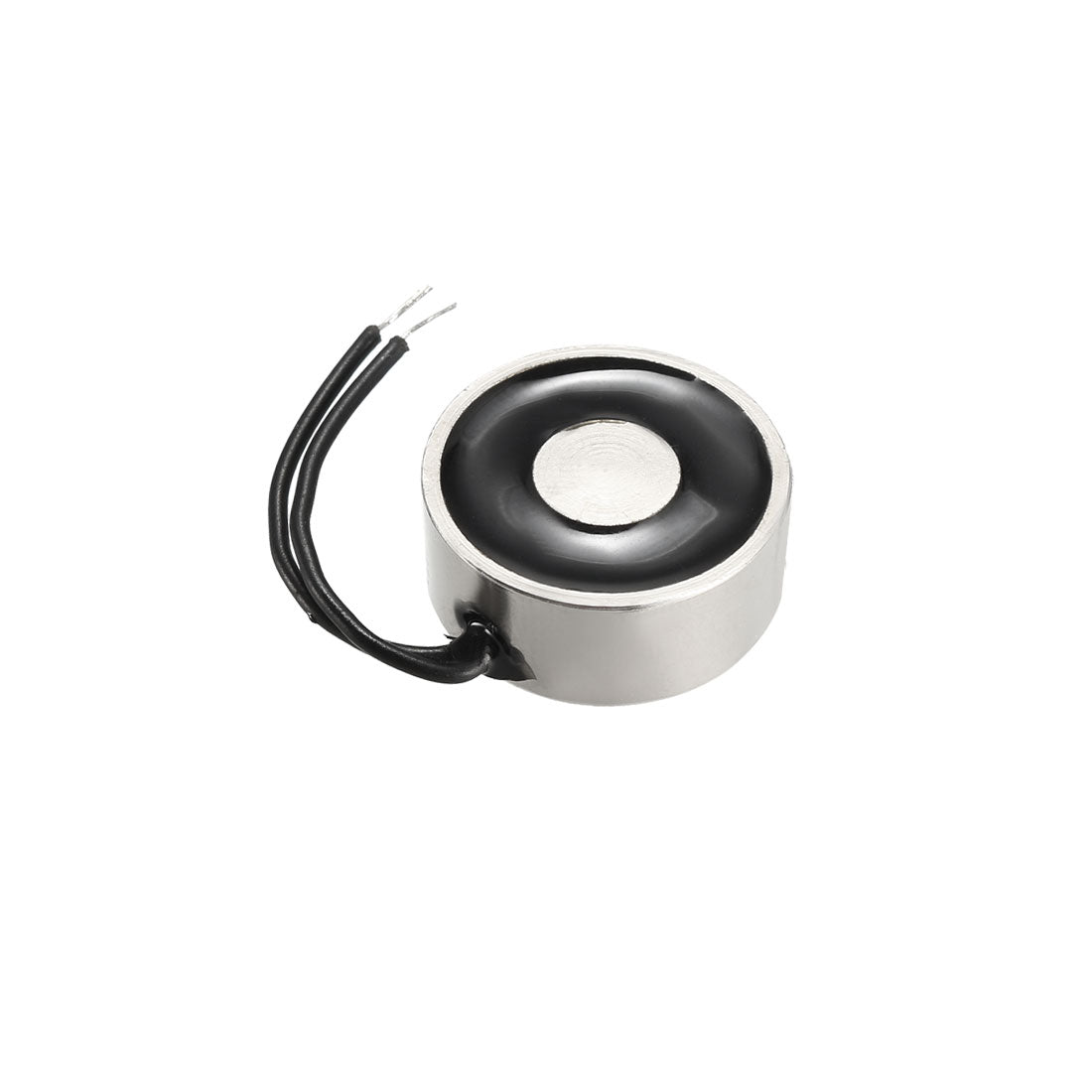

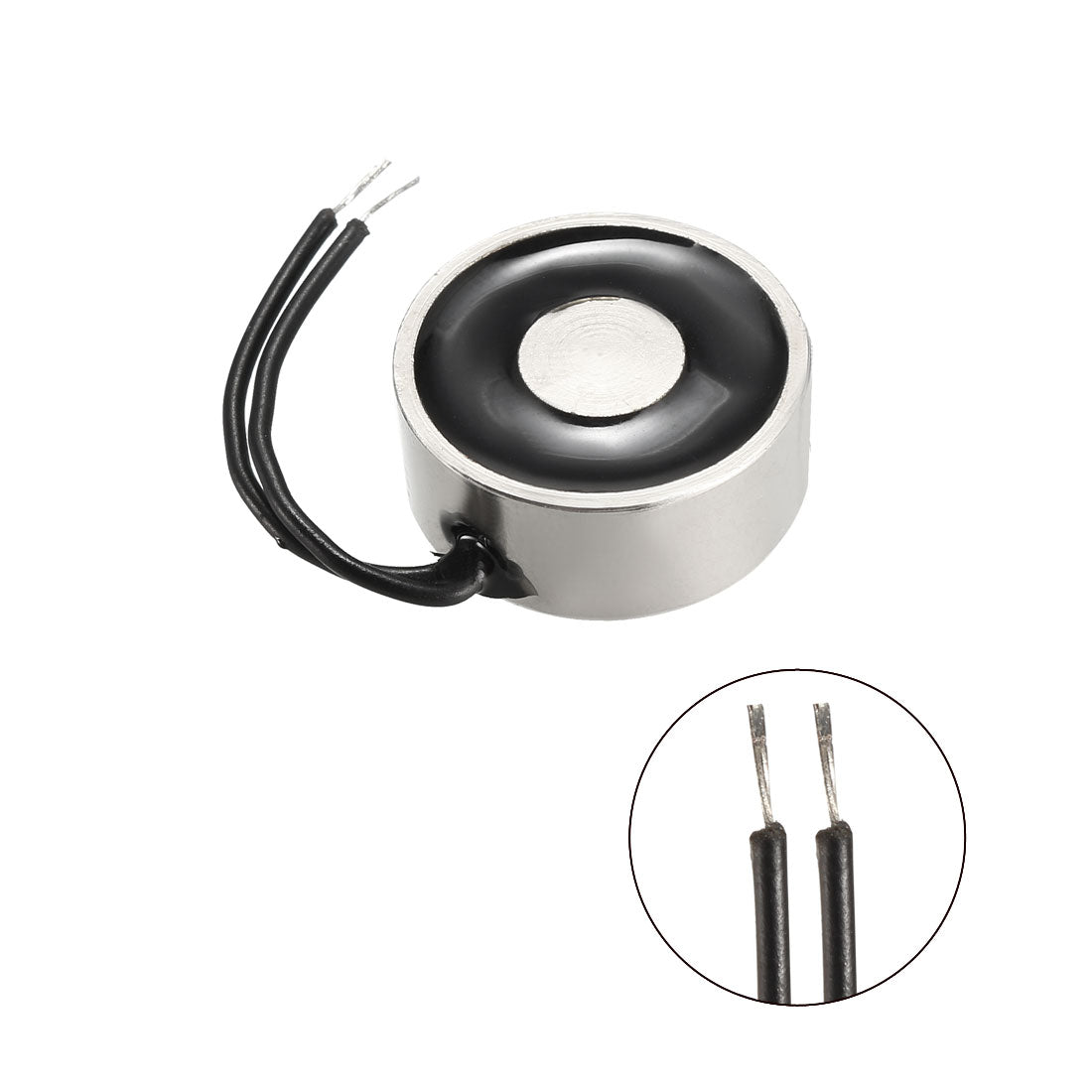

Harfington Uxcell DC12V 12N 1.2KG Lift Holding Electromagnet Sucking Disc Electric Lifting Magnet Solenoid

Uxcell DC12V 12N 1.2KG Lift Holding Electromagnet Sucking Disc Electric Lifting Magnet Solenoid

ID:
$8.69 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • 【Holding Electromagnet Parameters】- Voltage: DC 12V; Current: 0.1A; Power: 1.25W; Force: 1.2kg / 2.65lb
  • 【Dood Design】- Overall Size : 18 x 8.5mm / 0.71 inch x 0.33 inch(D*H); Lead Length : 25mm / 1 inch
  • 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
  • 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
  • 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【Holding Electromagnet Parameters】- Voltage: DC 12V; Current: 0.1A; Power: 1.25W; Force: 1.2kg / 2.65lb
  • 【Dood Design】- Overall Size : 18 x 8.5mm / 0.71 inch x 0.33 inch(D*H); Lead Length : 25mm / 1 inch
  • 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
  • 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
  • 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Feature:

- Eelectric lifting magnet

- Powerful and compact

- Smooth and flat surface

- Low consumption and reliable

- Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force  on the name plate.

Specification:

- Voltage: DC 12V

- Current: 0.1A

- Power: 1.25W

- Force: 1.2kg / 2.65lb

- Duty-cycle (ED%) : 50%

- Eelectric time:Less than 7 minutes

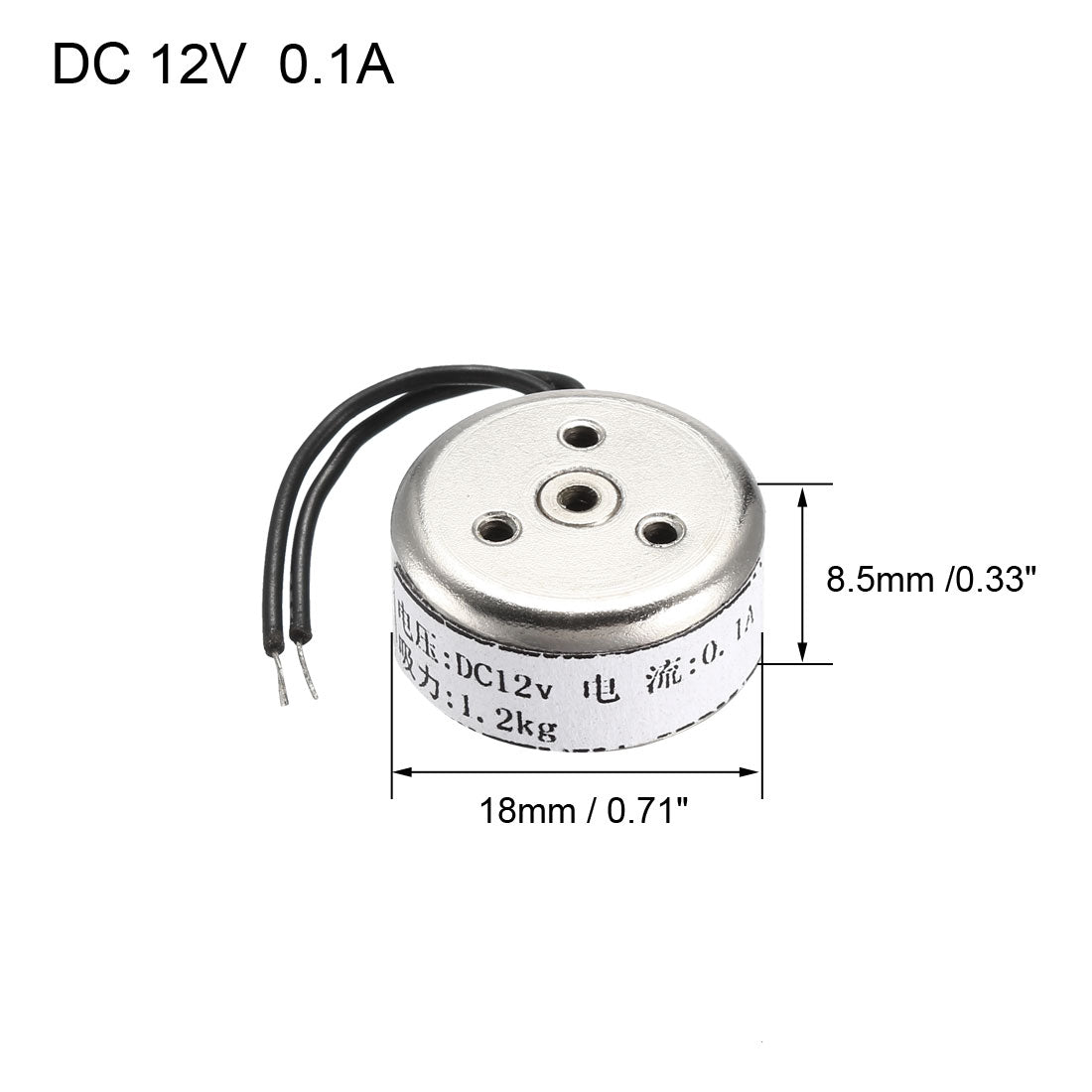

- Overall Size : 18 x 8.5mm / 0.71 inch x 0.33 inch(D*H)

- Lead Length : 25mm / 1 inch

Package Includes:

- 1 x Holding Electromagnet

Cautions for the use of electromagnets:

1.The object absorbed must be a good magnetic material.

2.The suction surface of the electromagnet must be smooth and clean.

3.The thickness of the object is 5mm best.

4.The contact surface of the object must be larger than the adsorption surface of the electromagnet.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Feature:

- Eelectric lifting magnet

- Powerful and compact

- Smooth and flat surface

- Low consumption and reliable

- Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force  on the name plate.

Specification:

- Voltage: DC 12V

- Current: 0.1A

- Power: 1.25W

- Force: 1.2kg / 2.65lb

- Duty-cycle (ED%) : 50%

- Eelectric time:Less than 7 minutes

- Overall Size : 18 x 8.5mm / 0.71 inch x 0.33 inch(D*H)

- Lead Length : 25mm / 1 inch

Package Includes:

- 1 x Holding Electromagnet

Cautions for the use of electromagnets:

1.The object absorbed must be a good magnetic material.

2.The suction surface of the electromagnet must be smooth and clean.

3.The thickness of the object is 5mm best.

4.The contact surface of the object must be larger than the adsorption surface of the electromagnet.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
