Harfington Uxcell 1000uF 35V Capacitor, Aluminum Electrolytic Capacitors 105C High Temp 50pcs

Uxcell 1000uF 35V Capacitor, Aluminum Electrolytic Capacitors 105C High Temp 50pcs

ID:
$13.44 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Aluminum electrolytic capacitor, 1000uF, 35V, 50 pieces in package
  • High working temperature range from -40℃ to +105℃; Capacitance Tolerance: ±20%
  • Body Size: 12.5mm Diameter x 20mm Length; Fit with 5mm hole space
  • Widely used in TV, VCD, speaker, digital camera, dishwasher, washing machine, refrigerator, etc.
  • Pleast take all its characteristics (required life, temperature, ripple current and physical size) into consideration before your purchasing
  • In stock, ready to ship
Cart
Cart
About this item
  • Aluminum electrolytic capacitor, 1000uF, 35V, 50 pieces in package
  • High working temperature range from -40℃ to +105℃; Capacitance Tolerance: ±20%
  • Body Size: 12.5mm Diameter x 20mm Length; Fit with 5mm hole space
  • Widely used in TV, VCD, speaker, digital camera, dishwasher, washing machine, refrigerator, etc.
  • Pleast take all its characteristics (required life, temperature, ripple current and physical size) into consideration before your purchasing
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Specification:
Capacitance: 1000uF
Rated Voltage: 35V
Capacitance Tolerance: +/-20% (at 120Hz, 20 )
Lead Type: Radial
Category Temperature Range: -40 to +105 (6.3~100V)
Life Span: 2000-3000h

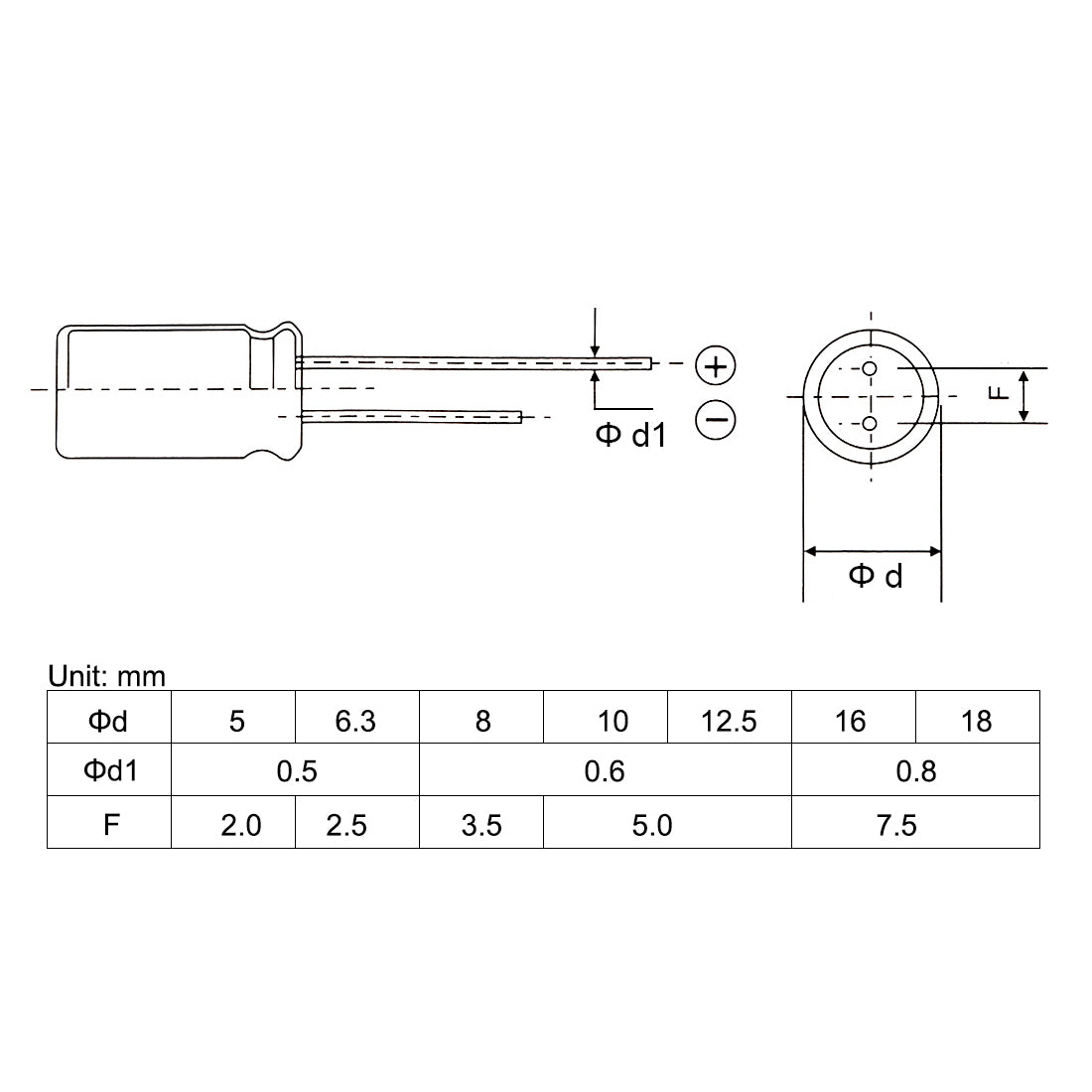

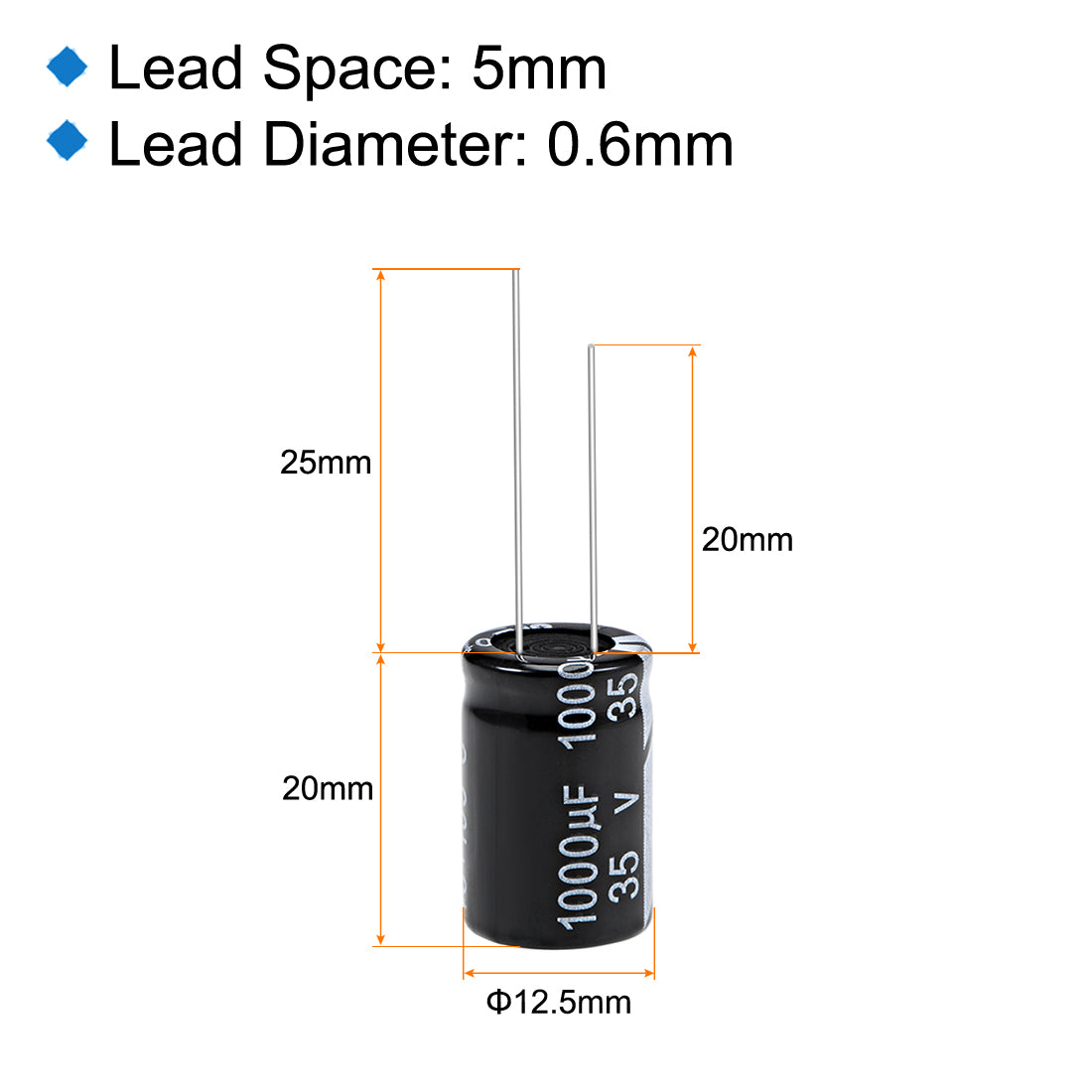

Body Size: 12.5 x 20mm
Lead Length: 20mm, 25mm
Lead Space: 5mm
Lead Diameter: 0.6mm

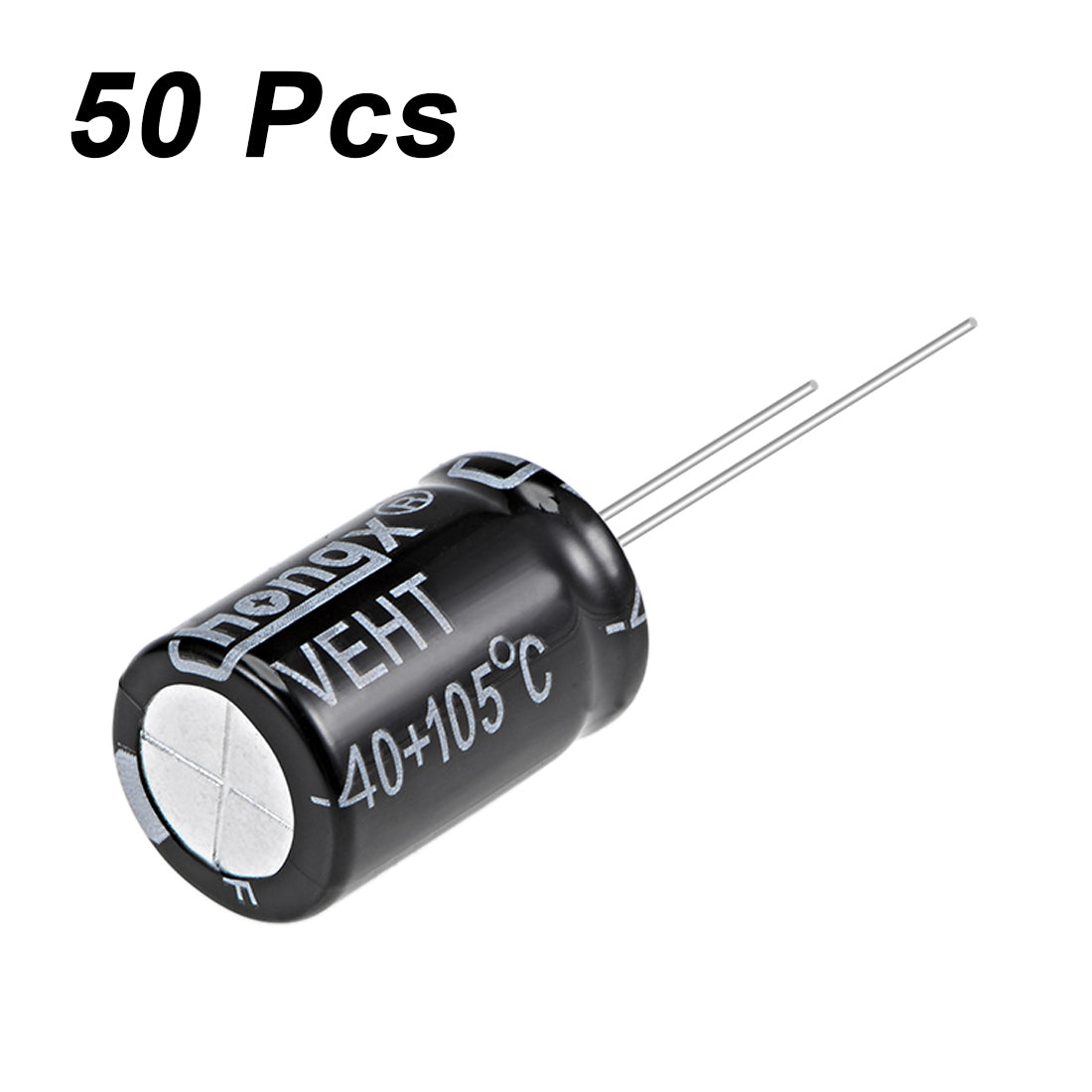

Package Content: 50 x Electrolytic Capacitors

About Our Item:
-Aluminum electrolytic capacitors are designed for use in all types of electronic equipment including power and alternative energy, industrial, telecommunications and consumer electronics applications.
-These capacitors offer very long life in applications, with rated temperatures up to 105 for general-purpose applications.

-For use in power supplies and computer motherboards.

Pay attention to the following cautions:
DO NOT move the capacitor after soldering to PC board.
DO NOT pick up the PC board by holding the soldered capacitor.
DO NOT insert capacitor on the PC board with a hole space different to specified lead space.
Take the position of the safety vent into consideration when designing the PC board layout.
Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics.

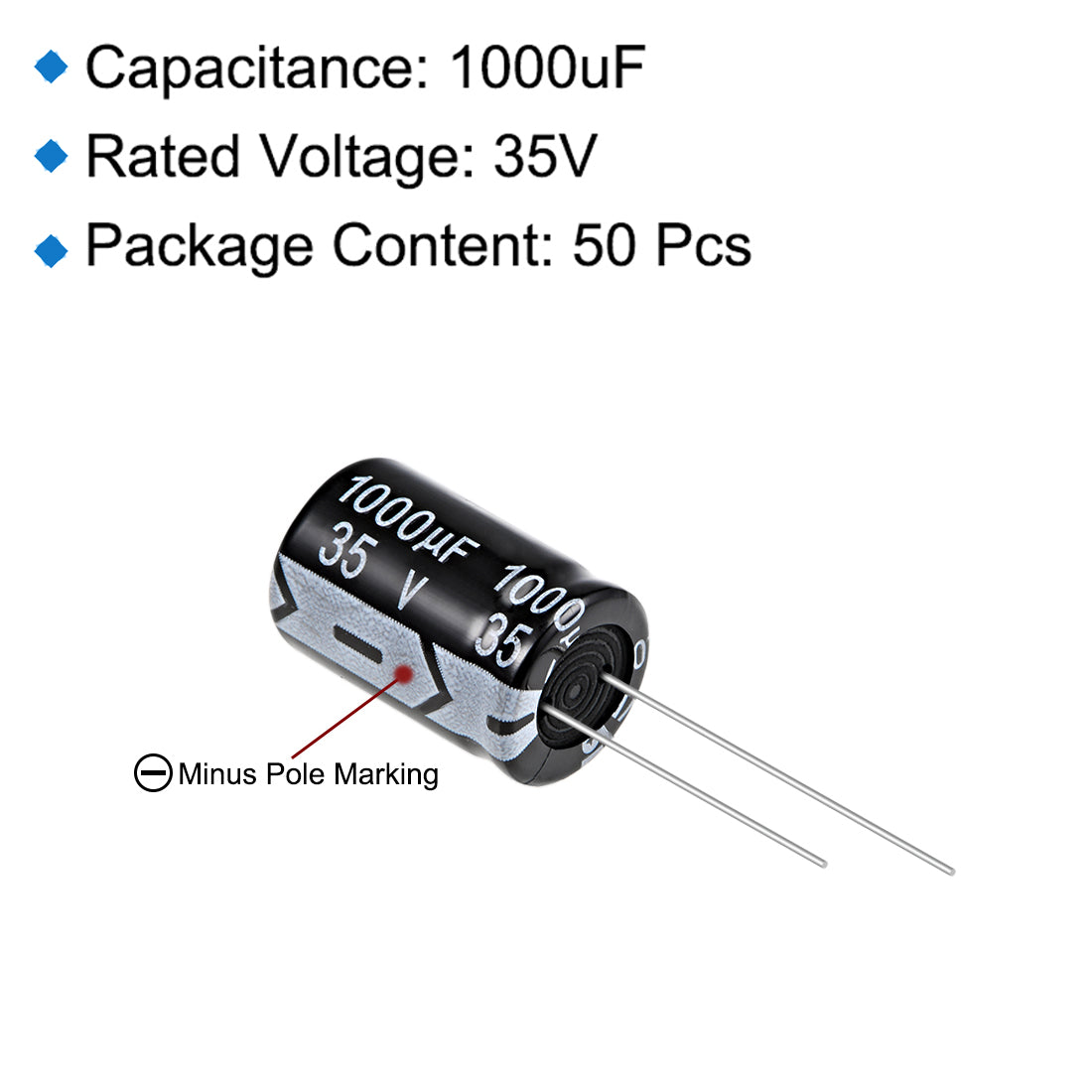

Long lead is positive end and the shorter one is the negative end.

How to select the proper capacitor for your design?
Step 1: Determine the capacitance required by the design.
Step 2: Define the expected ambient operating temperature.
Step 3: Define the DC operating voltage to be applied to the capacitor.
Step 4: Bound the space available for the capacitor (if available space is a concern).
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specification:
Capacitance: 1000uF
Rated Voltage: 35V
Capacitance Tolerance: +/-20% (at 120Hz, 20 )
Lead Type: Radial
Category Temperature Range: -40 to +105 (6.3~100V)
Life Span: 2000-3000h
Body Size: 12.5 x 20mm
Lead Length: 20mm, 25mm
Lead Space: 5mm
Lead Diameter: 0.6mm
Package Content: 50 x Electrolytic Capacitors

About Our Item:
-Aluminum electrolytic capacitors are designed for use in all types of electronic equipment including power and alternative energy, industrial, telecommunications and consumer electronics applications.
-These capacitors offer very long life in applications, with rated temperatures up to 105 for general-purpose applications.

-For use in power supplies and computer motherboards.

Pay attention to the following cautions:
DO NOT move the capacitor after soldering to PC board.
DO NOT pick up the PC board by holding the soldered capacitor.
DO NOT insert capacitor on the PC board with a hole space different to specified lead space.
Take the position of the safety vent into consideration when designing the PC board layout.
Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics.
Long lead is positive end and the shorter one is the negative end.

How to select the proper capacitor for your design?
Step 1: Determine the capacitance required by the design.
Step 2: Define the expected ambient operating temperature.
Step 3: Define the DC operating voltage to be applied to the capacitor.
Step 4: Bound the space available for the capacitor (if available space is a concern).
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
