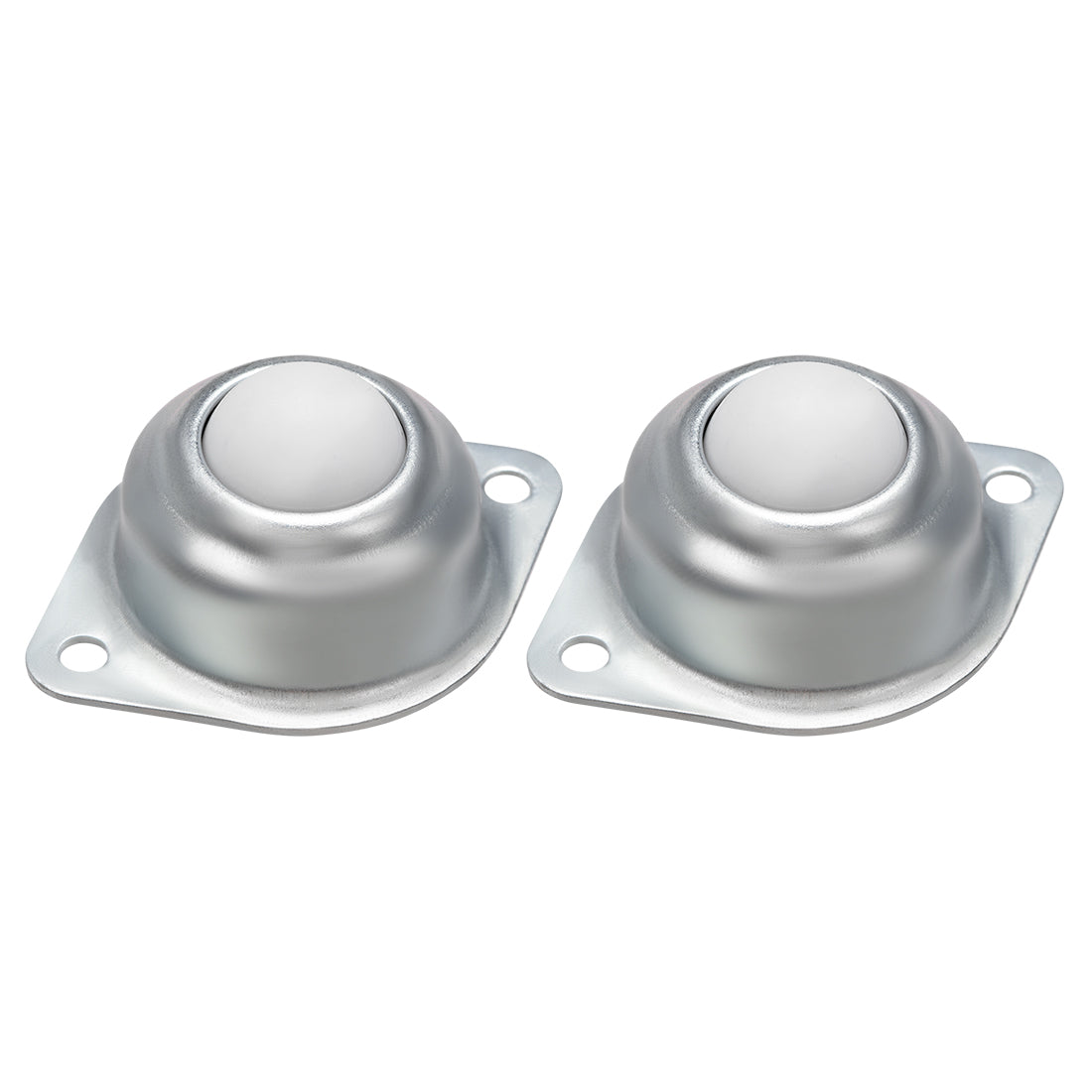

Harfington Uxcell Ball Transfer Units CY-25A Flange Mounted 1-inch Nylon Roller Ball Transfer Bearing Casters 66lb Load Capacity 2 Pcs

Uxcell Ball Transfer Units CY-25A Flange Mounted 1-inch Nylon Roller Ball Transfer Bearing Casters 66lb Load Capacity 2 Pcs

ID:
$7.52 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item
  • SIZE: CY-25A 1 inch diameter ball bearing roller, 360 degree rotation.
  • CAPACITY: With a load bearing capacity of 66 lbs. each.
  • MOUNTING:Two screw holes, Mounting Hole Dia: 5mm/0.2-inch.
  • PACKAGE: 2pcs x Ball Transfer Unit ,screws are not included here.
  • APPLICATION: Widely used in transportation,transmission system, feeding system, processing system, processing machinery.
  • In stock, ready to ship
Cart
Cart
About this item
  • SIZE: CY-25A 1 inch diameter ball bearing roller, 360 degree rotation.
  • CAPACITY: With a load bearing capacity of 66 lbs. each.
  • MOUNTING:Two screw holes, Mounting Hole Dia: 5mm/0.2-inch.
  • PACKAGE: 2pcs x Ball Transfer Unit ,screws are not included here.
  • APPLICATION: Widely used in transportation,transmission system, feeding system, processing system, processing machinery.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

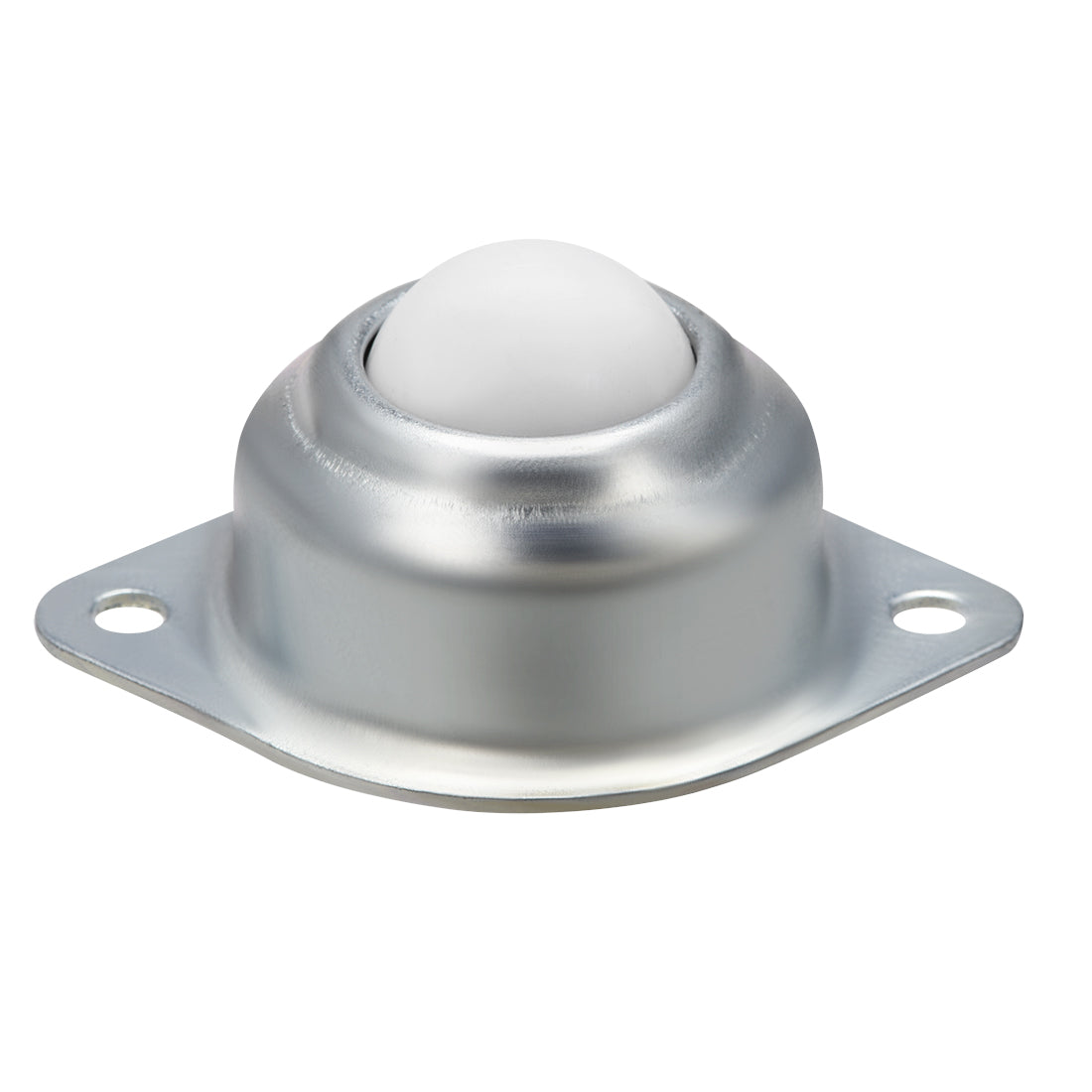

1.Ball Transfer Unit are omni-directional load-bearing spherical balls mounted inside a restraining fixture.

2.360 universal transfer bearings is suitable for curved work created on band saws and router tables.

3.1 inch diameter ball bearing roller is perfect. With a load bearing capacity of 66 lbs. each.

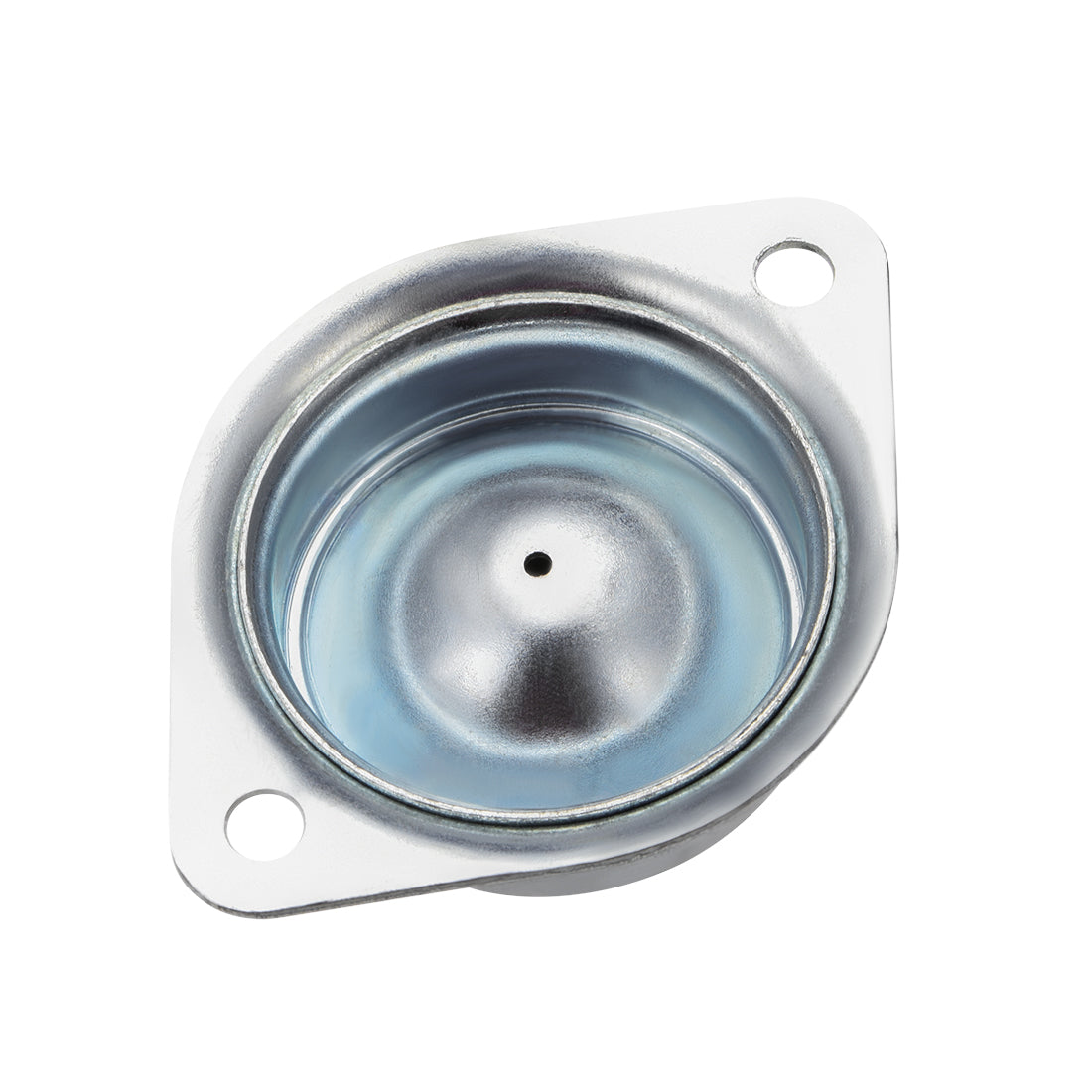

4.Housing be made of carbon steel material, Roller Ball made from Nylon.

5.Features: Two screw holes in each bearing surround for solid attachment to the worktable or workbench.

6.Widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.

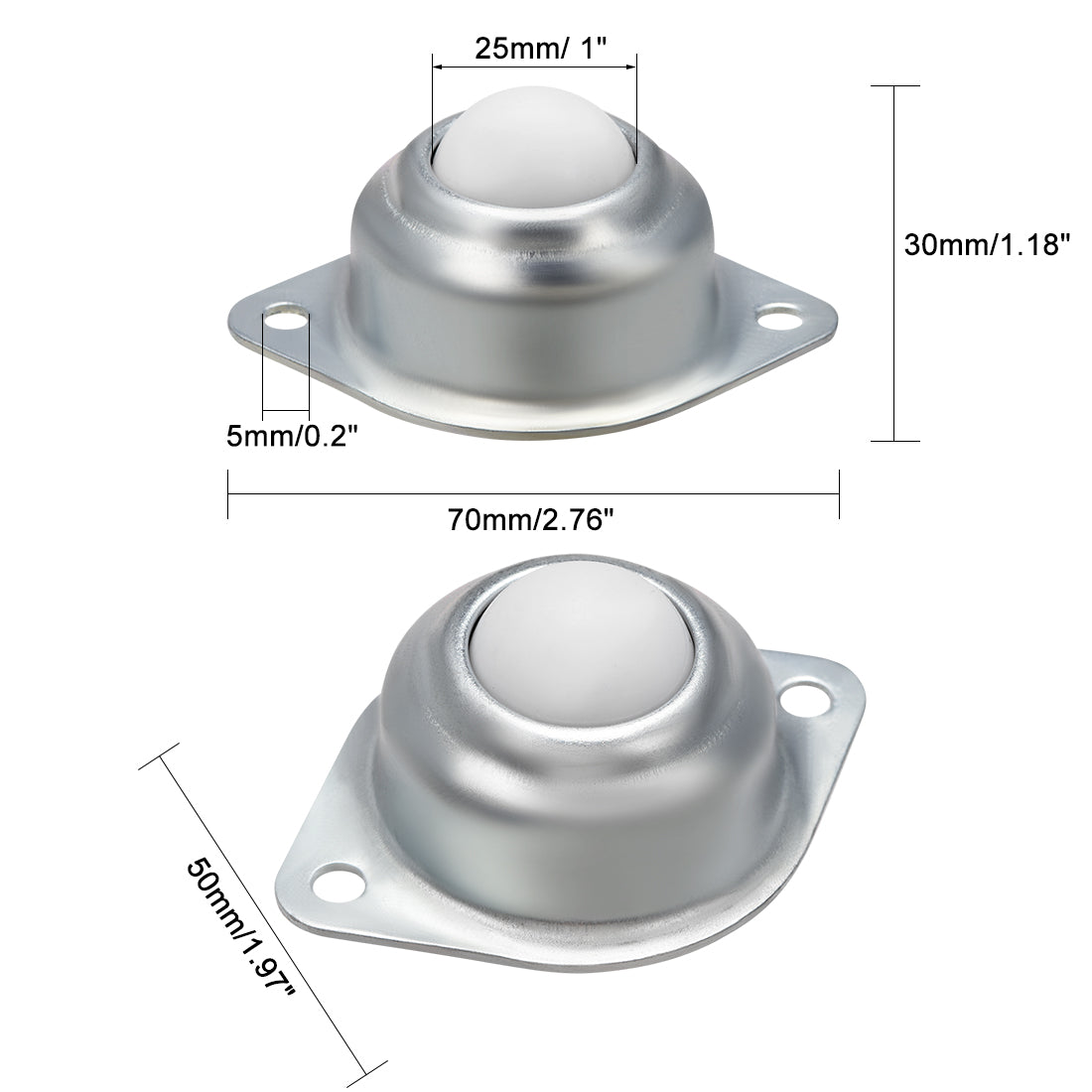

Specifications:

*Model: CY-25A

*Capacity(Max.): 30kg/66lb

*Ball Diameter: 25mm / 1-inch

*Mount Hole Dia.: 5mm/0.2-inch

*Mount Hole Distance: 55mm/2.17-inch

*Material: Carbon Steel, Nylon

*Dimension: 70 x 50 x 30mm / 2.76-inch x 1.97-inch x 1.18-inch (L*W*H)

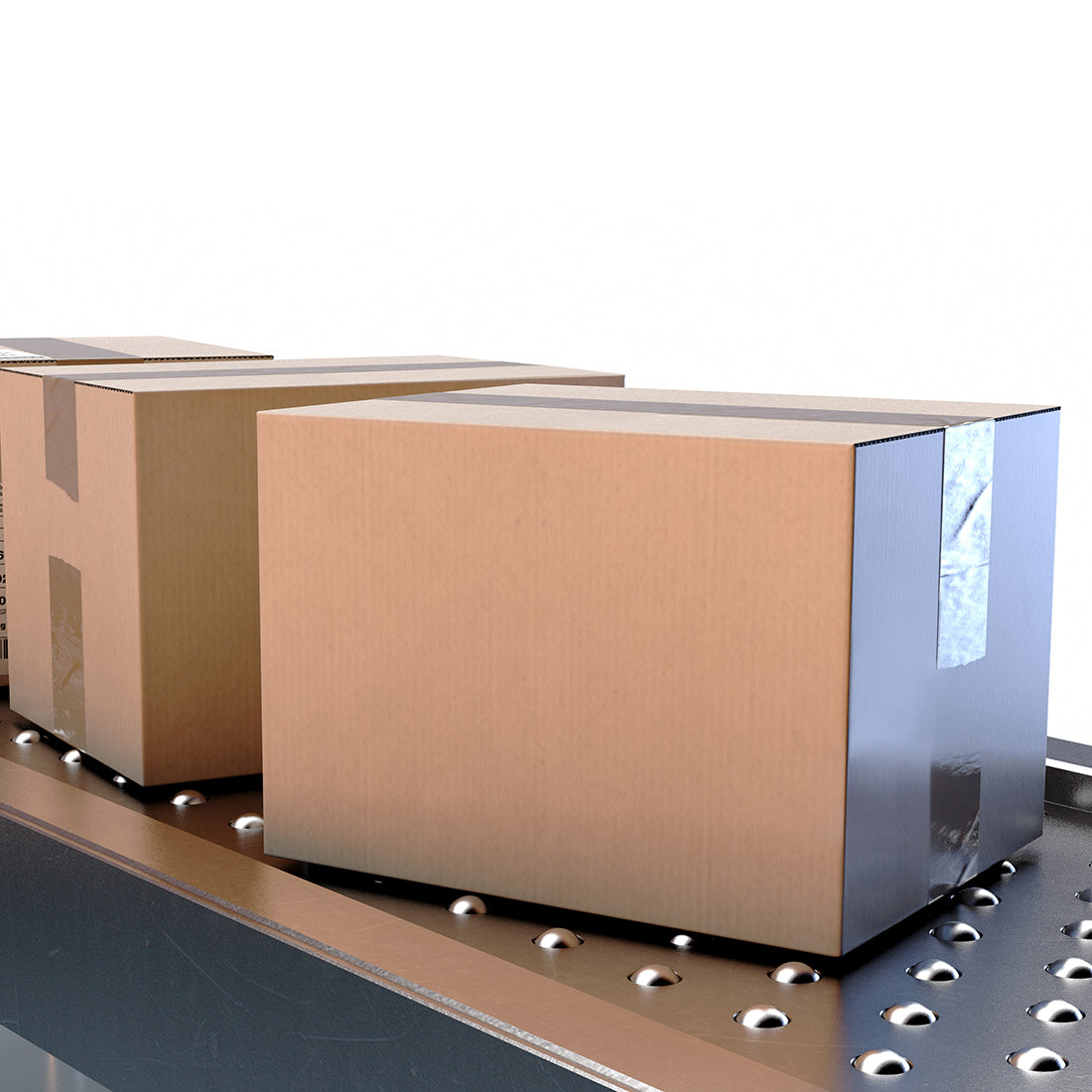

Note: These Ball Transfer Units are used for transporting flat, smooth objects such as trays. It is not suitable for transporting stuff which has uneven or soft bottom surface such as cloth wrapping. It can not be used as swivel caster to move on the floor.



Package Content:

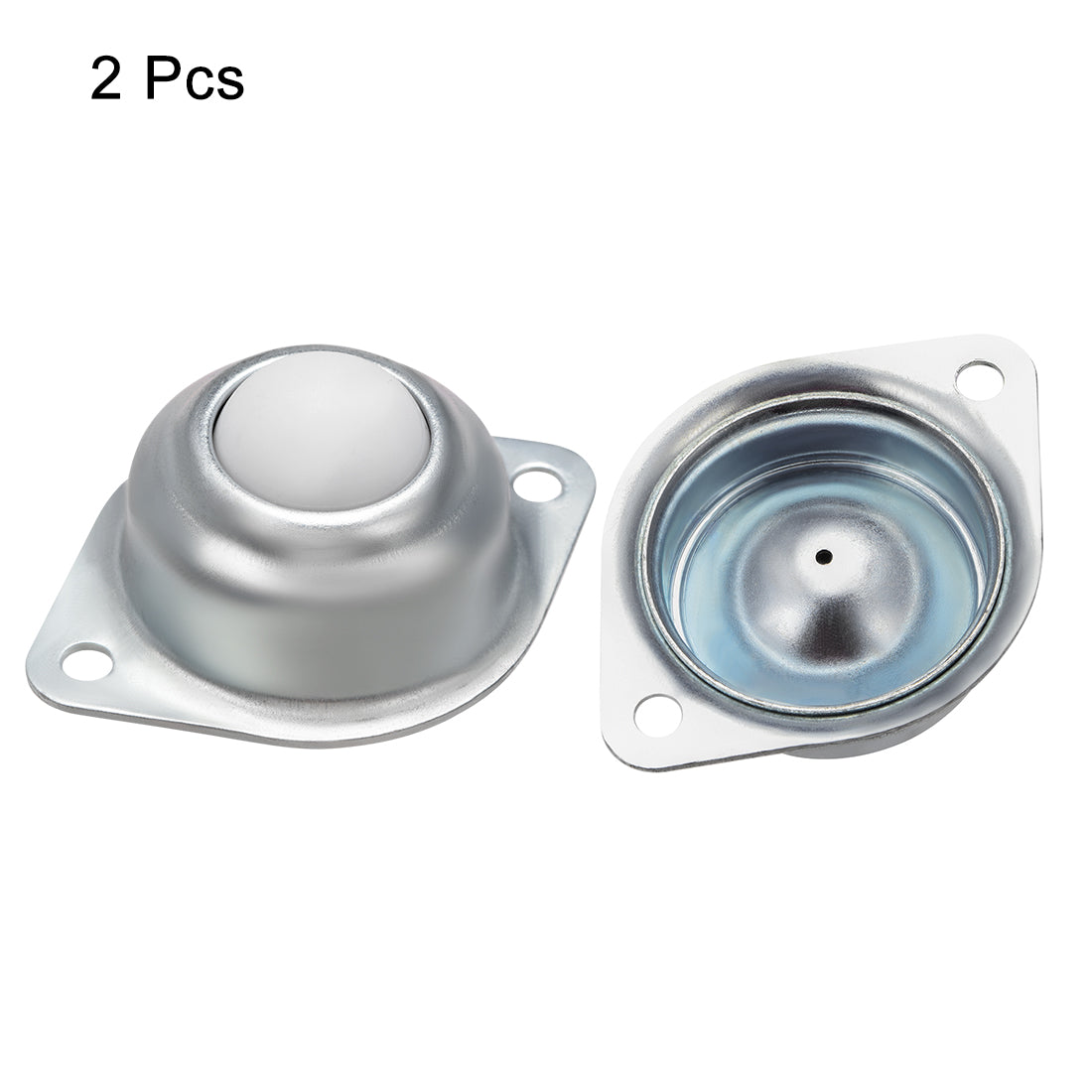

*2pcs x Ball Transfer Unit

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

1.Ball Transfer Unit are omni-directional load-bearing spherical balls mounted inside a restraining fixture.

2.360 universal transfer bearings is suitable for curved work created on band saws and router tables.

3.1 inch diameter ball bearing roller is perfect. With a load bearing capacity of 66 lbs. each.

4.Housing be made of carbon steel material, Roller Ball made from Nylon.

5.Features: Two screw holes in each bearing surround for solid attachment to the worktable or workbench.

6.Widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.



Specifications:

*Model: CY-25A

*Capacity(Max.): 30kg/66lb

*Ball Diameter: 25mm / 1-inch

*Mount Hole Dia.: 5mm/0.2-inch

*Mount Hole Distance: 55mm/2.17-inch

*Material: Carbon Steel, Nylon

*Dimension: 70 x 50 x 30mm / 2.76-inch x 1.97-inch x 1.18-inch (L*W*H)



Note: These Ball Transfer Units are used for transporting flat, smooth objects such as trays. It is not suitable for transporting stuff which has uneven or soft bottom surface such as cloth wrapping. It can not be used as swivel caster to move on the floor.



Package Content:

*2pcs x Ball Transfer Unit

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
