Harfington Uxcell 19mm  Mounting Hole Metal Latching Emergency Stop Push Button Switch NO NC Red

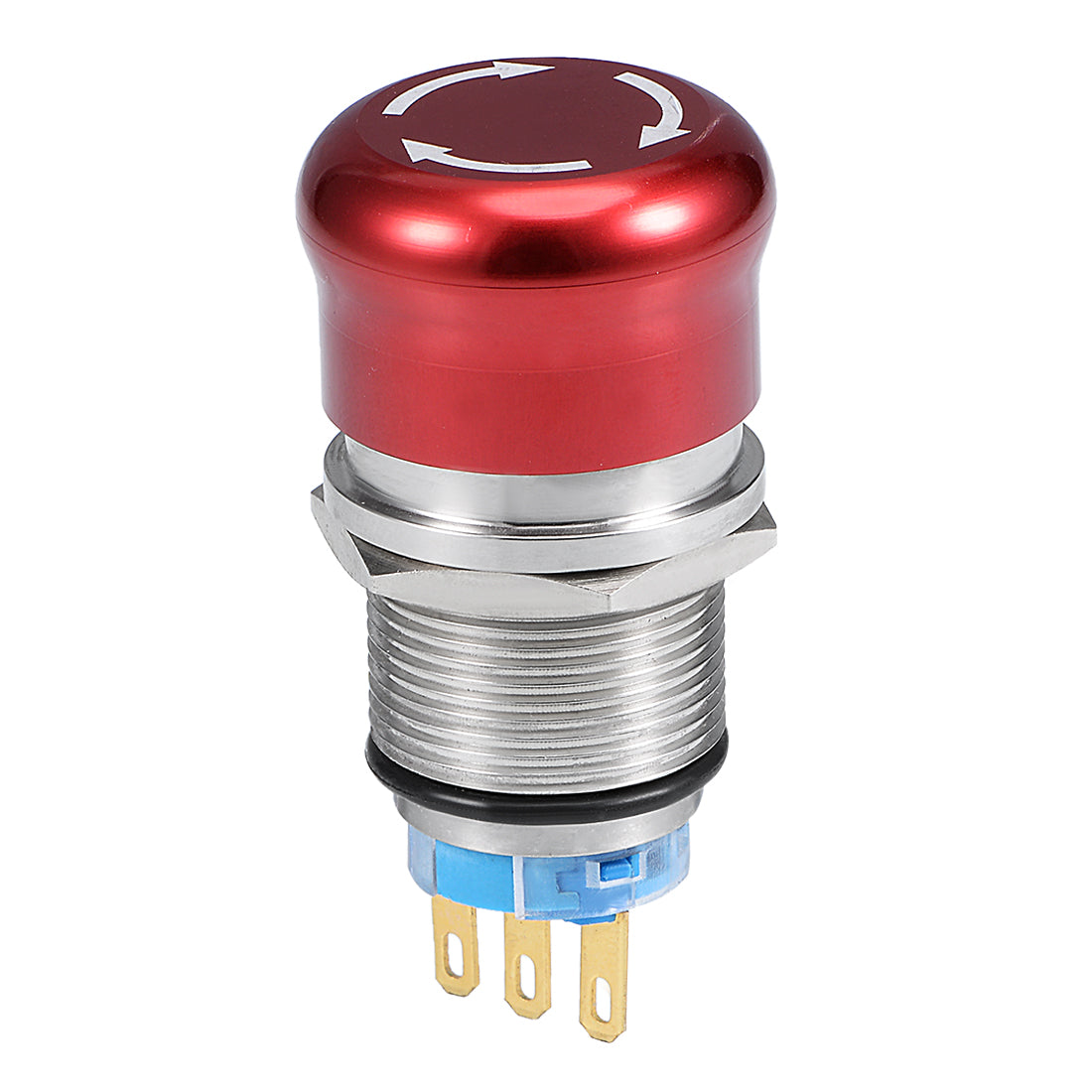

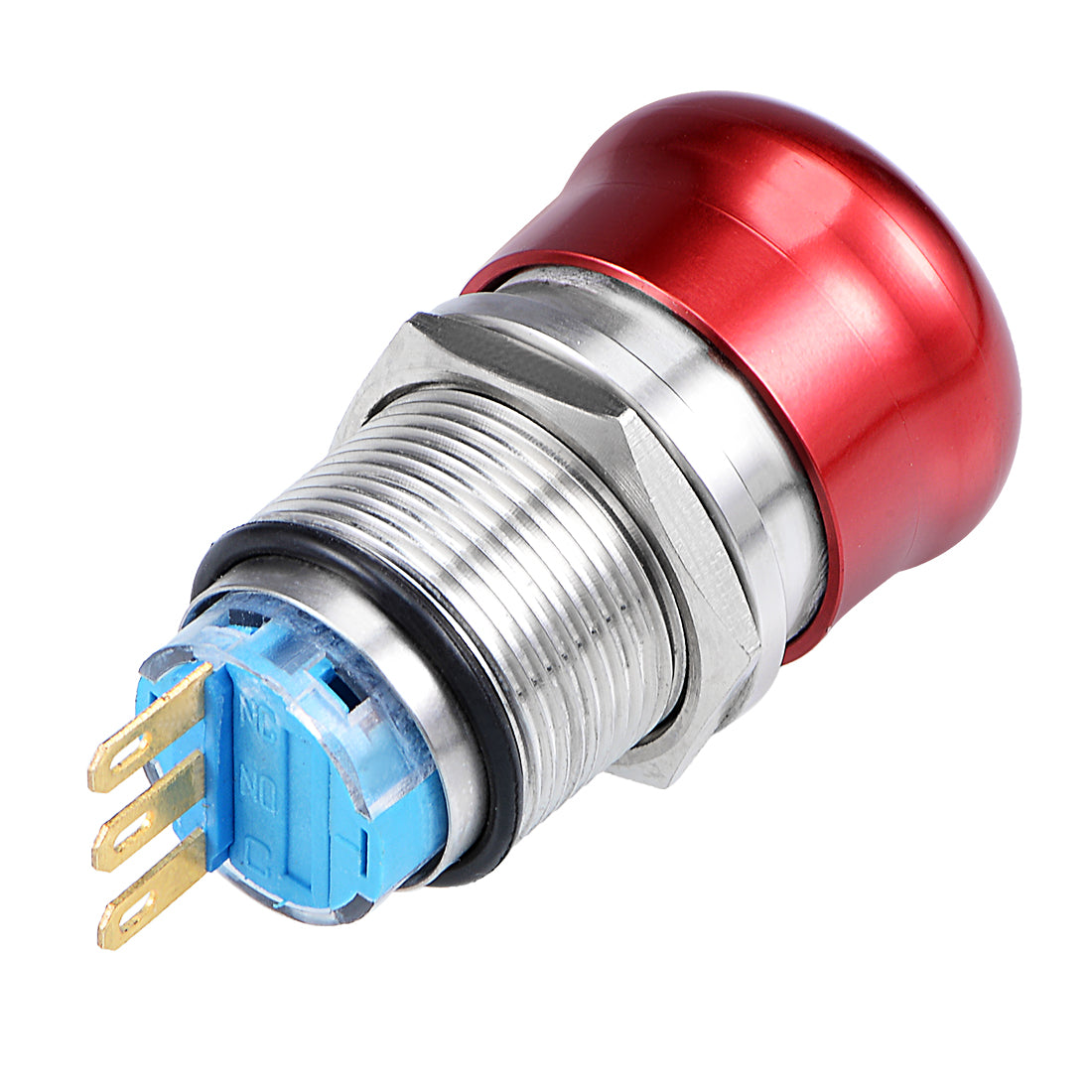

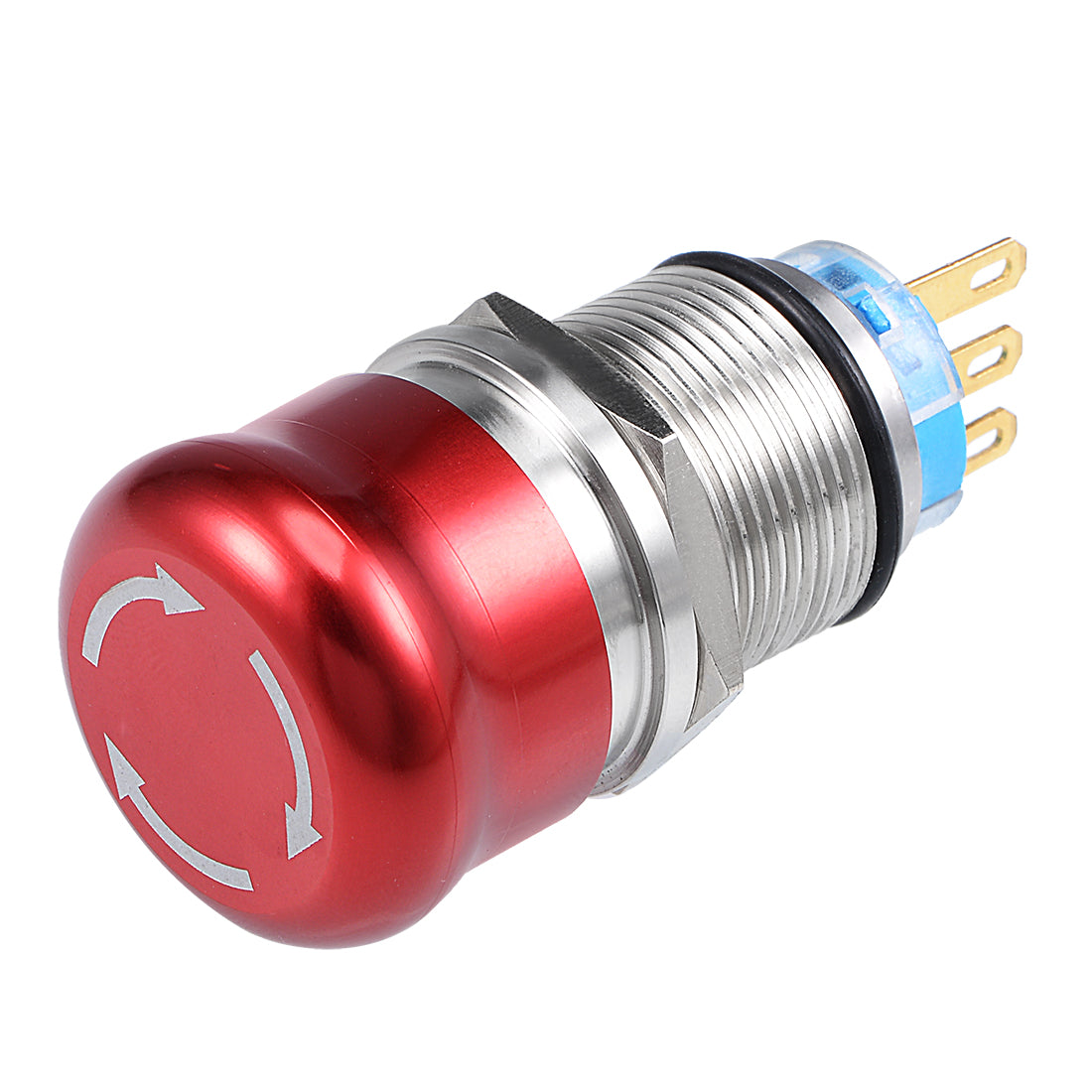

Uxcell 19mm Mounting Hole Metal Latching Emergency Stop Push Button Switch NO NC Red

ID:
$11.70 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Item Name: Emergency stop Push Button; Operation Type: Latching; Contact Type: DPST 1 NO 1 NC;2.(Rated) Voltage & Current: AC 250V 5A
  • Mounting Hole Dia: 19mm / 0.75"; Button Diameter: 2.4cm /0.94";Terminals Quantity: 3
  • Fit Panel Thickness(Adjustable): Max 8mm / 0.31";Package Content: 1 x Push button Switch; Light Voltage: no light include
  • The shell is made of 304 stainless steel, with corrosion resistance, heat resistance and durability; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
  • Used widely to control the equipment, contactor, relay and other automatic control electric circuits.
  • In stock, ready to ship
Cart
Cart
About this item
  • Item Name: Emergency stop Push Button; Operation Type: Latching; Contact Type: DPST 1 NO 1 NC;2.(Rated) Voltage & Current: AC 250V 5A
  • Mounting Hole Dia: 19mm / 0.75"; Button Diameter: 2.4cm /0.94";Terminals Quantity: 3
  • Fit Panel Thickness(Adjustable): Max 8mm / 0.31";Package Content: 1 x Push button Switch; Light Voltage: no light include
  • The shell is made of 304 stainless steel, with corrosion resistance, heat resistance and durability; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
  • Used widely to control the equipment, contactor, relay and other automatic control electric circuits.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

1NO 1NC (DPST) contact type, red round head, Latching action, 19mm panel cutout diameter.Push to stop and lock, twist to reset.

For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

1NO 1NC (DPST) contact type, red round head, Latching action, 19mm panel cutout diameter.Push to stop and lock, twist to reset.

For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
