Harfington Uxcell 3204-2RS Angular Contact Ball Bearing 20x47x20.6mm Sealed Bearings 5204-2RS

Uxcell 3204-2RS Angular Contact Ball Bearing 20x47x20.6mm Sealed Bearings 5204-2RS

ID:1113563
ID:1113563
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

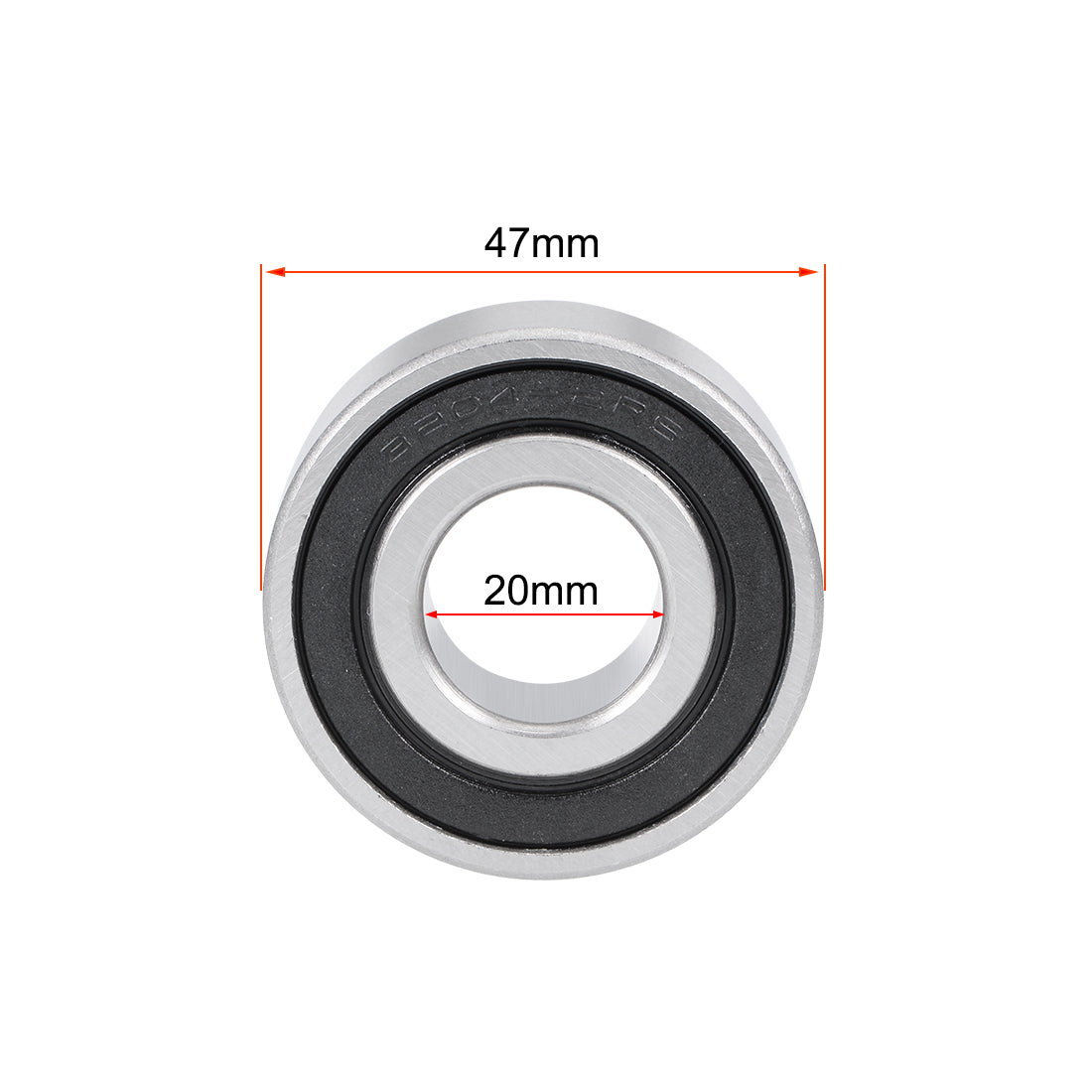

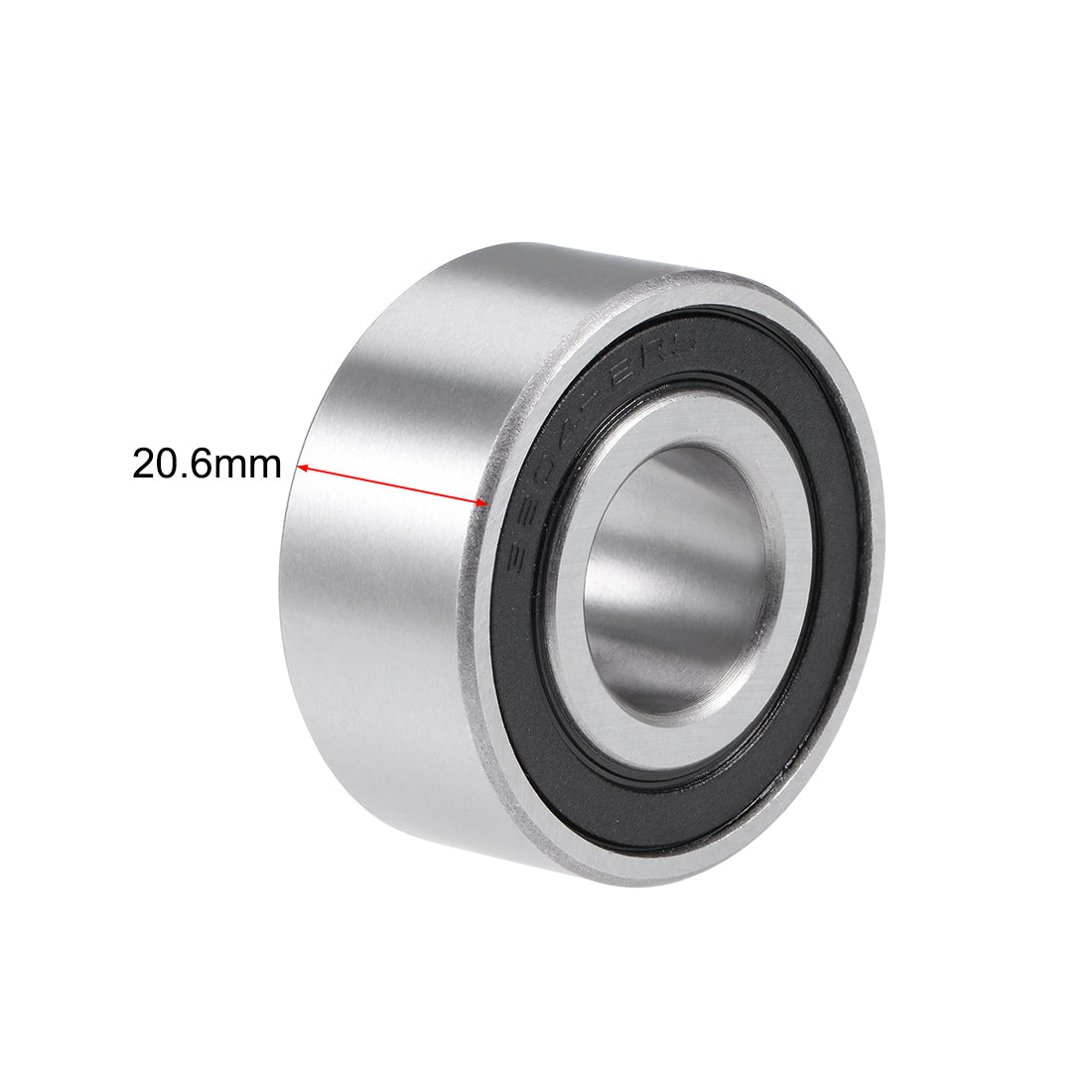

  • 3204-2RS (I.D.=20mm, O.D.=47mm, Thickness=20.6mm)

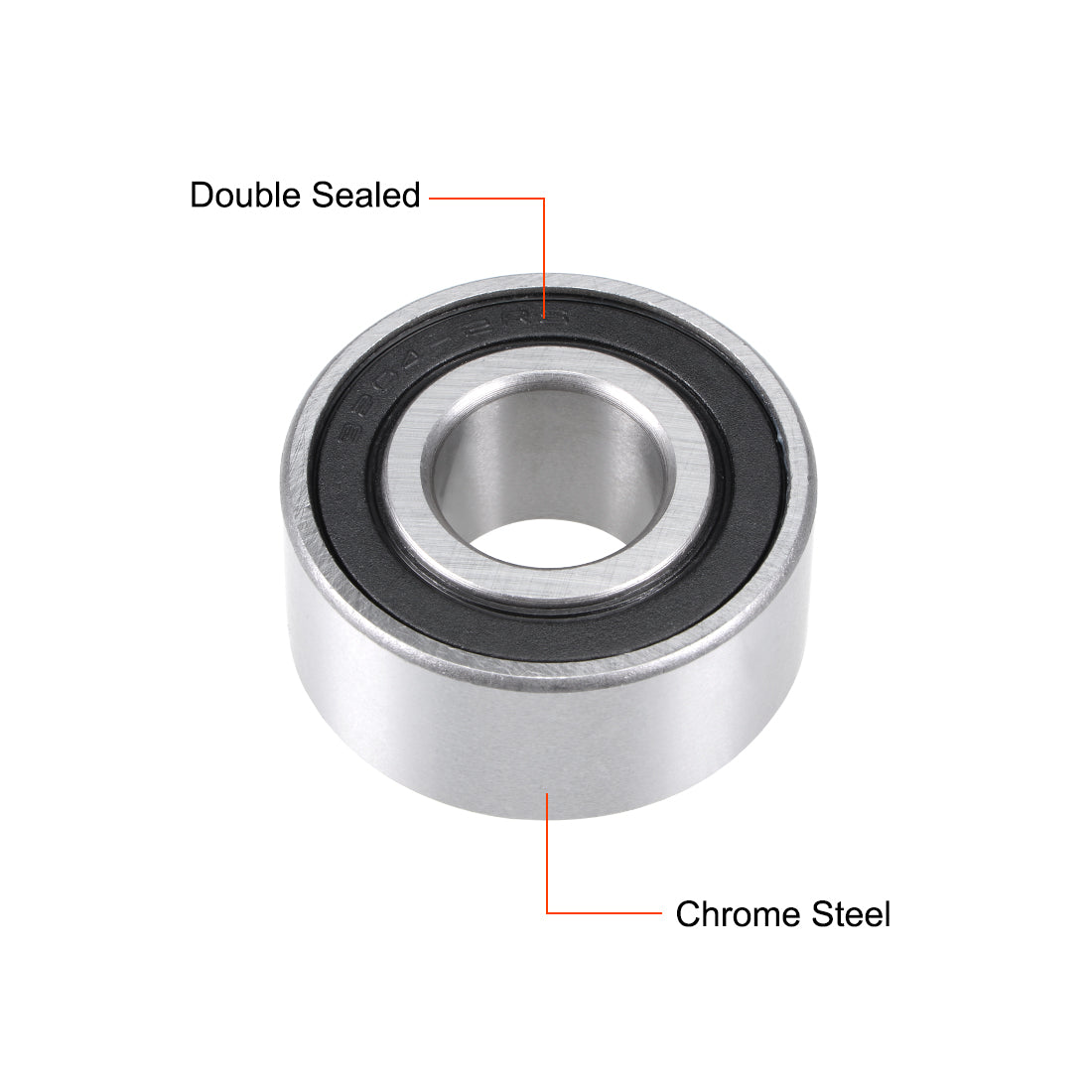

  • 3204rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Static load rating of 17200 newtons and dynamic load rating of 15000 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
About this item
  • 3204-2RS (I.D.=20mm, O.D.=47mm, Thickness=20.6mm)
  • 3204rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Static load rating of 17200 newtons and dynamic load rating of 15000 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Specification

Specification

SKU
a19030500ux1127
Model
3204-2RS (5204-2RS)
Seal type
Double Sealed
Cage material
Stamping Steel
Inner diameter (d)
20mm
Outer diameter (d)
47mm
Thickness (b)
20.6mm
Dynamic load rating (cr)
17.2kN
Static load rating (cor)
15.0kN
Accuracy class
P0 (ABEC-1)
Noise level
Z1
Number of pack
1 Pcs
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • Double-row, pre-lubricated, normal accuracy.
  • Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
  • The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 3204-2RS (5204-2RS)

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 20mm

Outer Diameter (D): 47mm

Thickness (B): 20.6mm

Dynamic Load Rating (Cr): 17.2kN

Static Load Rating (Cor): 15.0kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs

$9.18 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

Description:

  • Double-row, pre-lubricated, normal accuracy.
  • Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
  • The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 3204-2RS (5204-2RS)

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 20mm

Outer Diameter (D): 47mm

Thickness (B): 20.6mm

Dynamic Load Rating (Cr): 17.2kN

Static Load Rating (Cor): 15.0kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs
