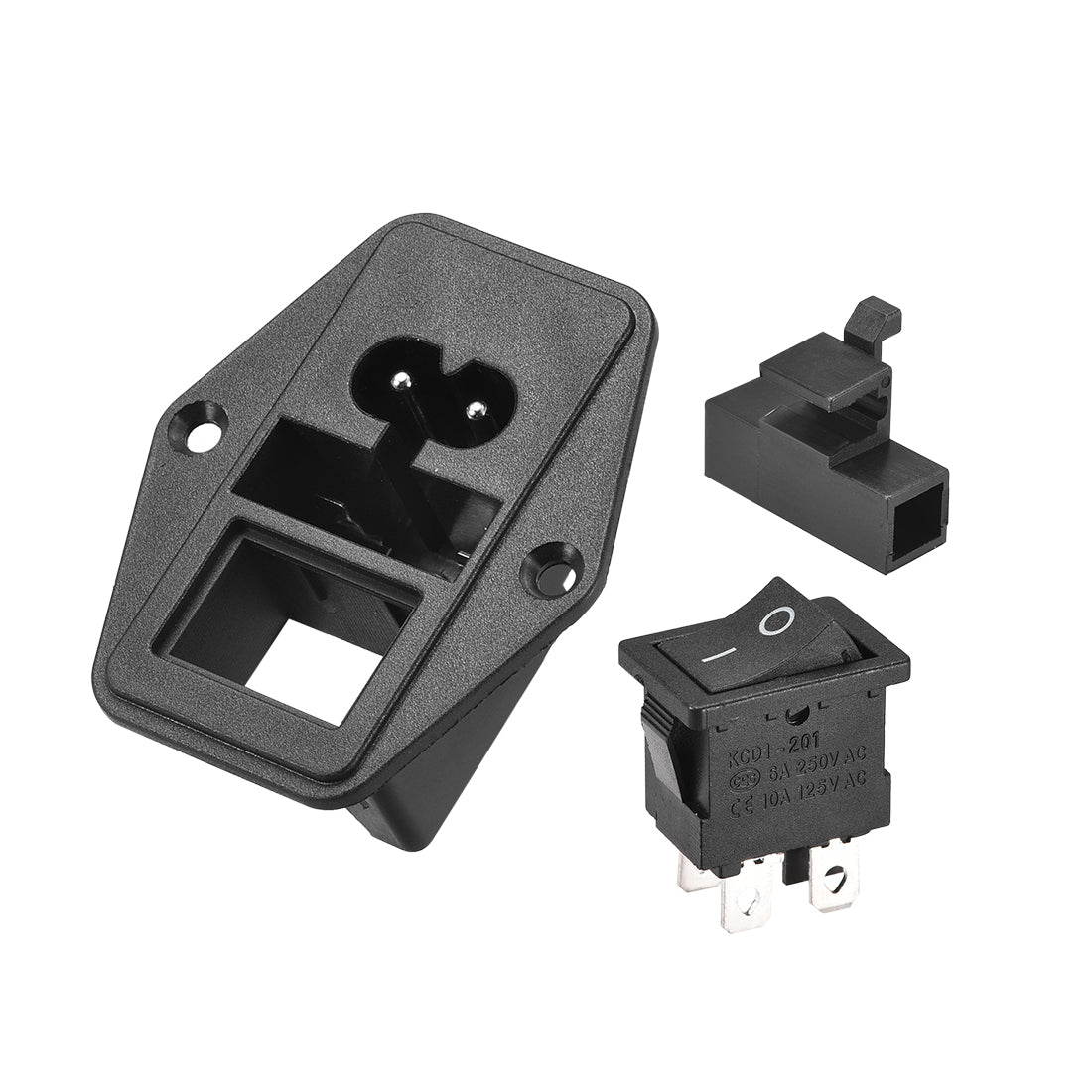

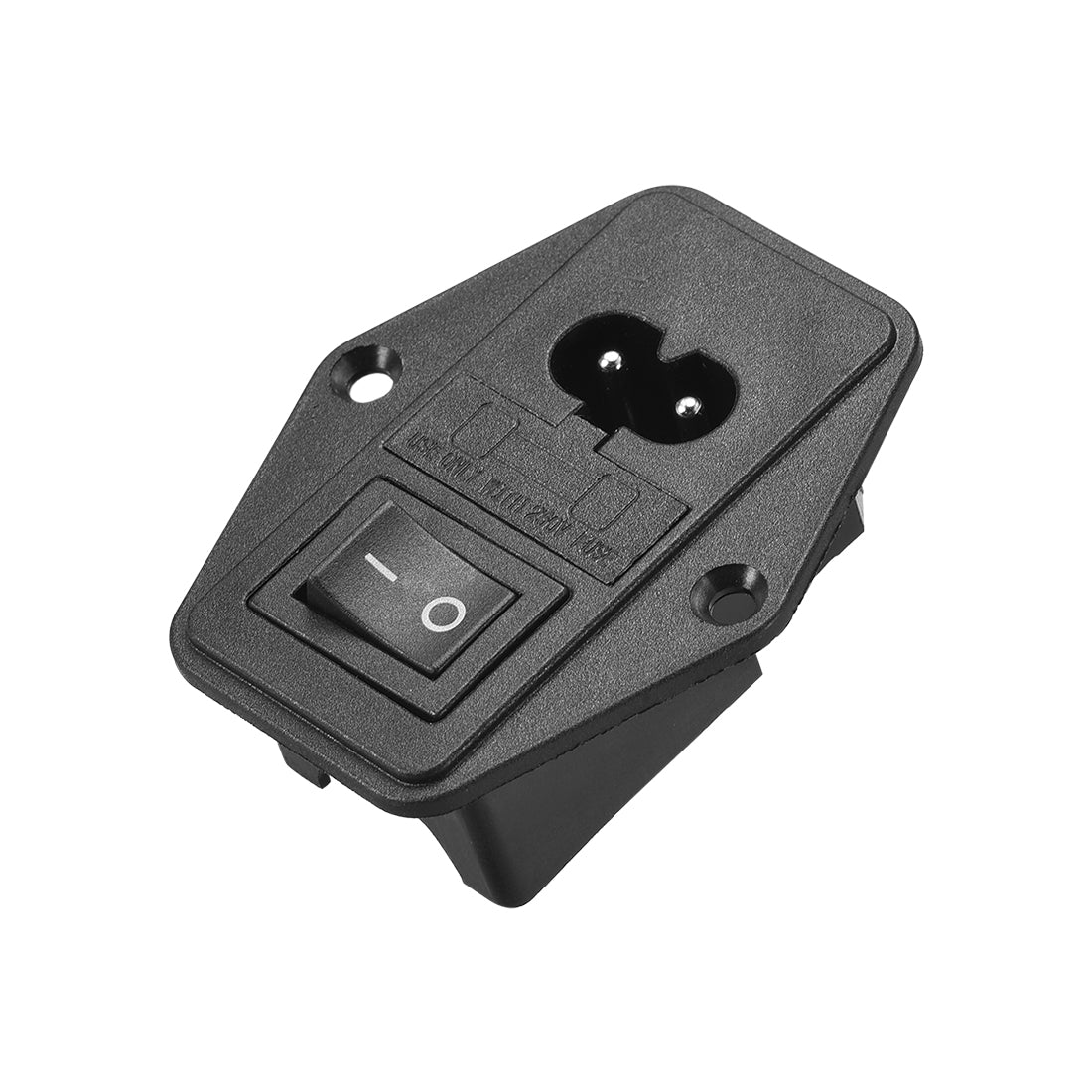

Harfington Uxcell C8-8 Panel Mount Plug Adapter 250V 10A 2P IEC Inlet Module Plug Power Connector Socket Straight with 4 Pin Fuse Switch

Uxcell C8-8 Panel Mount Plug Adapter 250V 10A 2P IEC Inlet Module Plug Power Connector Socket Straight with 4 Pin Fuse Switch

ID:1126570
ID:1126570
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Connector Type: C8-8; Terminal Number: 2
  • Voltage Rating: AC 250V; Current Rating: 10A.
  • Interlocked fuse drawer accepts 20mm fuses.Use only with 250V fuse. (Fuse is not included).
  • Power input and output connection for all types of electrical equipment.
  • Overall Size: 58x49x20mm/2.28 x1.93x0.79 inch
About this item
  • Connector Type: C8-8; Terminal Number: 2
  • Voltage Rating: AC 250V; Current Rating: 10A.
  • Interlocked fuse drawer accepts 20mm fuses.Use only with 250V fuse. (Fuse is not included).
  • Power input and output connection for all types of electrical equipment.
  • Overall Size: 58x49x20mm/2.28 x1.93x0.79 inch
Specification

Specification

SKU
a19111800ux0072
Connector type
C8-8
Current rating
10A
Voltage rating
AC 250V
Contact material
Copper
Pin orientation
Straight
Mounting hole diameter
3.5mm/0.14 inch

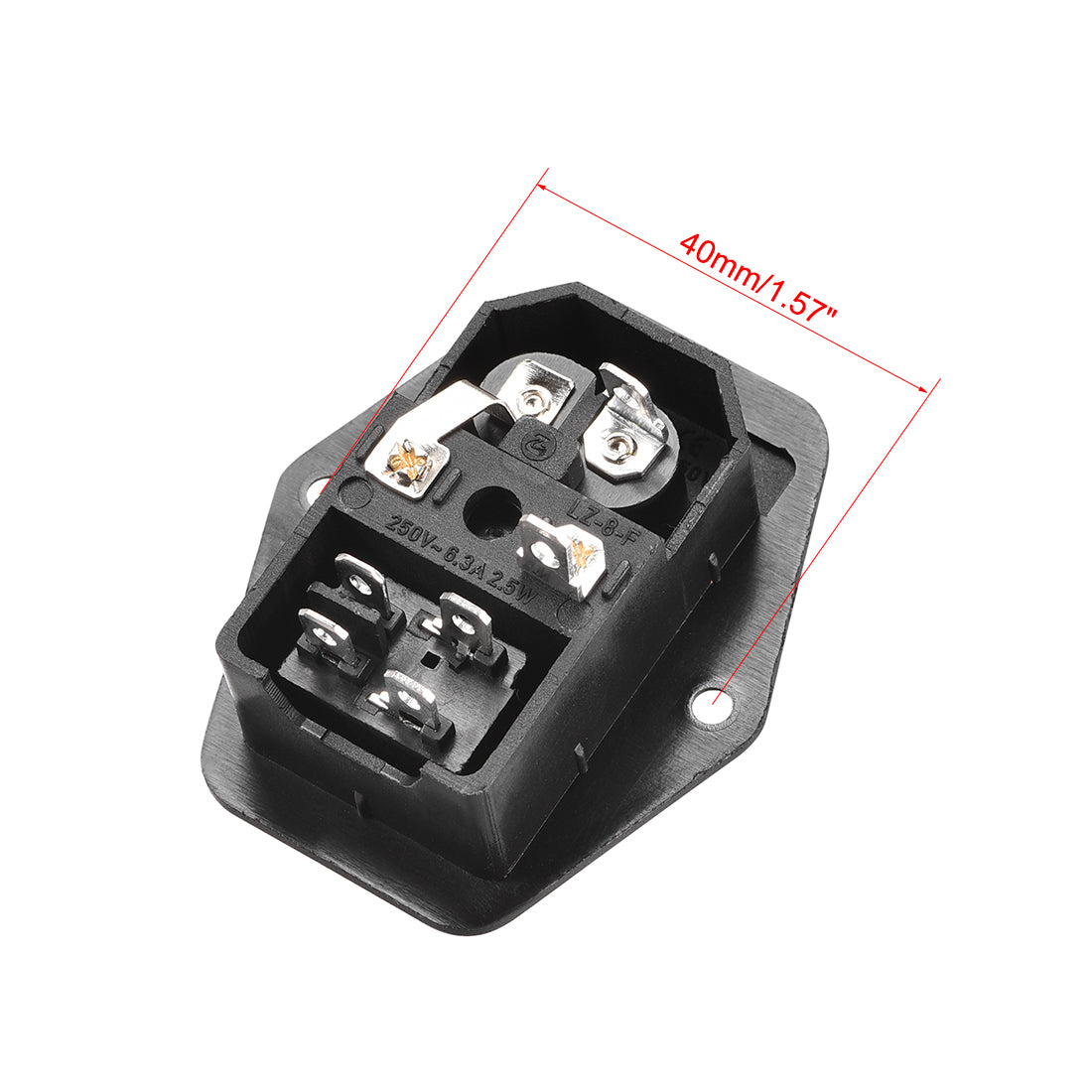

Mounting hole distance
40mm/1.57 inch

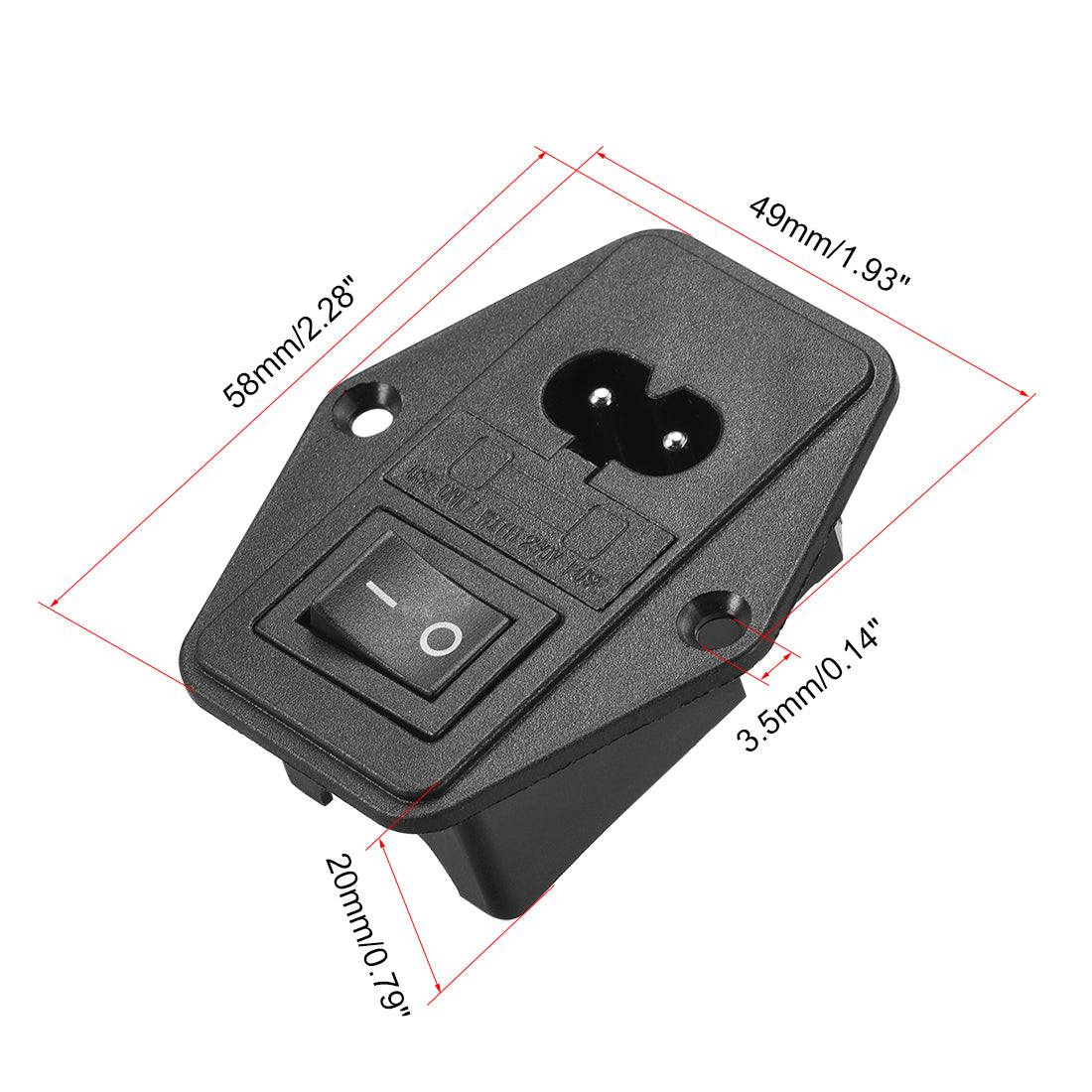

Overall size
58x49x20mm/2.28 x1.93x0.79 inch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Connector Type: C8-8

Current Rating: 10A

Voltage Rating: AC 250V

Contact Material: Copper

Pin Orientation: Straight

Mounting Hole Diameter: 3.5mm/0.14 inch

Mounting Hole Distance: 40mm/1.57 inch

Overall Size: 58x49x20mm/2.28 x1.93x0.79 inch



Features:

Interlocked fuse drawer accepts 20mm fuses.

Use only with 250V fuse. (Fuse is not included)

Power input and output connection for all types of electrical equipment.



Package Includes:

1 x IEC C8-8 Sockets

$6.89 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell C8-8 Panel Mount Plug Adapter 250V 10A 2P IEC Inlet Module Plug Power Connector Socket Straight with 4 Pin Fuse Switch 1126570 $6.89
Products Title ID Price Qty
Uxcell C8-8 Panel Mount Plug Adapter 250V 10A 2P IEC Inlet Module Plug Power Connector Socket Straight with 4 Pin Fuse Switch 1126570 $6.89
Uxcell C8-8 Plug Adapter 250V 6A 2P IEC Inlet W 3P Red Light Fuse Switch,Connectors 1041755 $6.70
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Specifications:

Connector Type: C8-8

Current Rating: 10A

Voltage Rating: AC 250V

Contact Material: Copper

Pin Orientation: Straight

Mounting Hole Diameter: 3.5mm/0.14 inch

Mounting Hole Distance: 40mm/1.57 inch

Overall Size: 58x49x20mm/2.28 x1.93x0.79 inch



Features:

Interlocked fuse drawer accepts 20mm fuses.

Use only with 250V fuse. (Fuse is not included)

Power input and output connection for all types of electrical equipment.



Package Includes:

1 x IEC C8-8 Sockets
