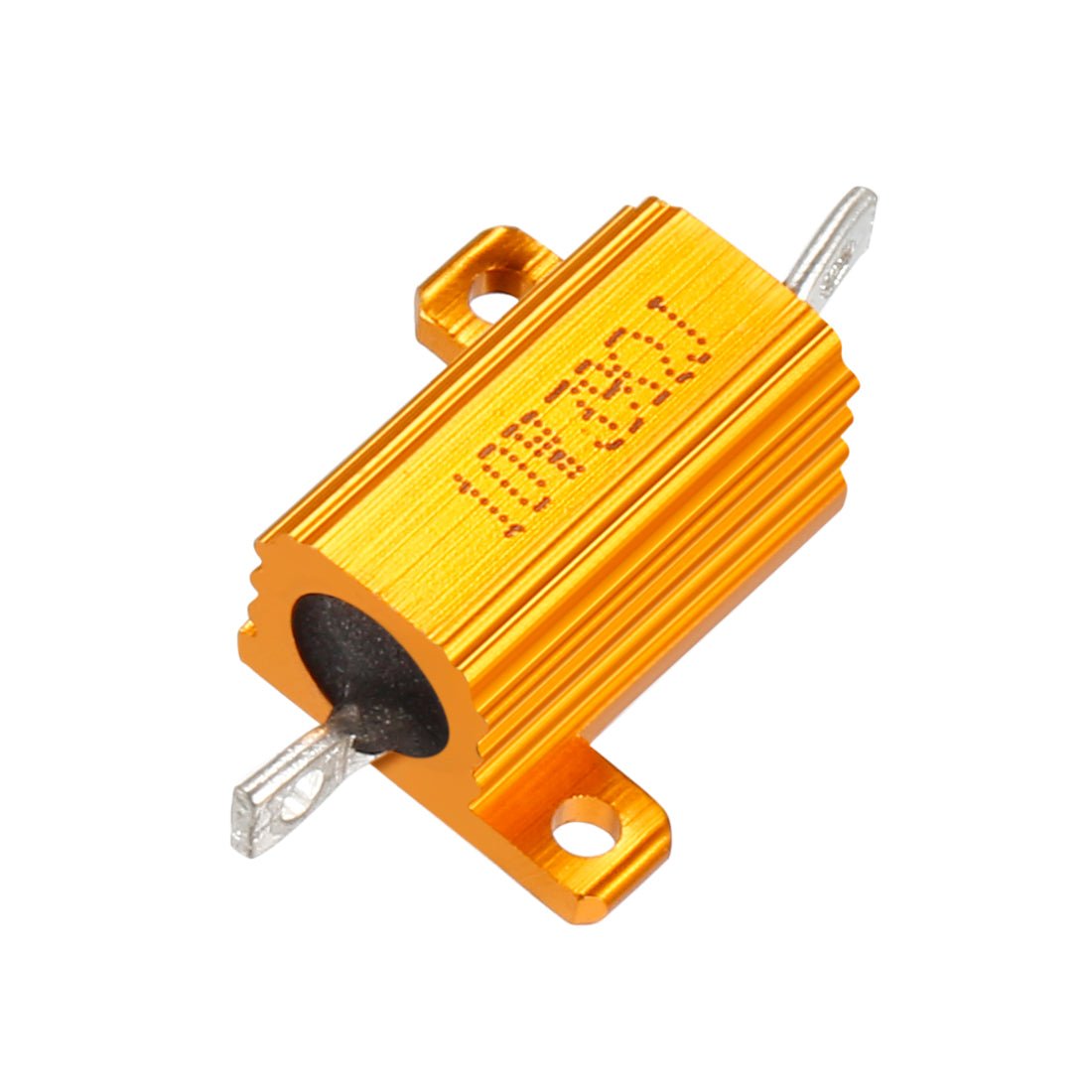

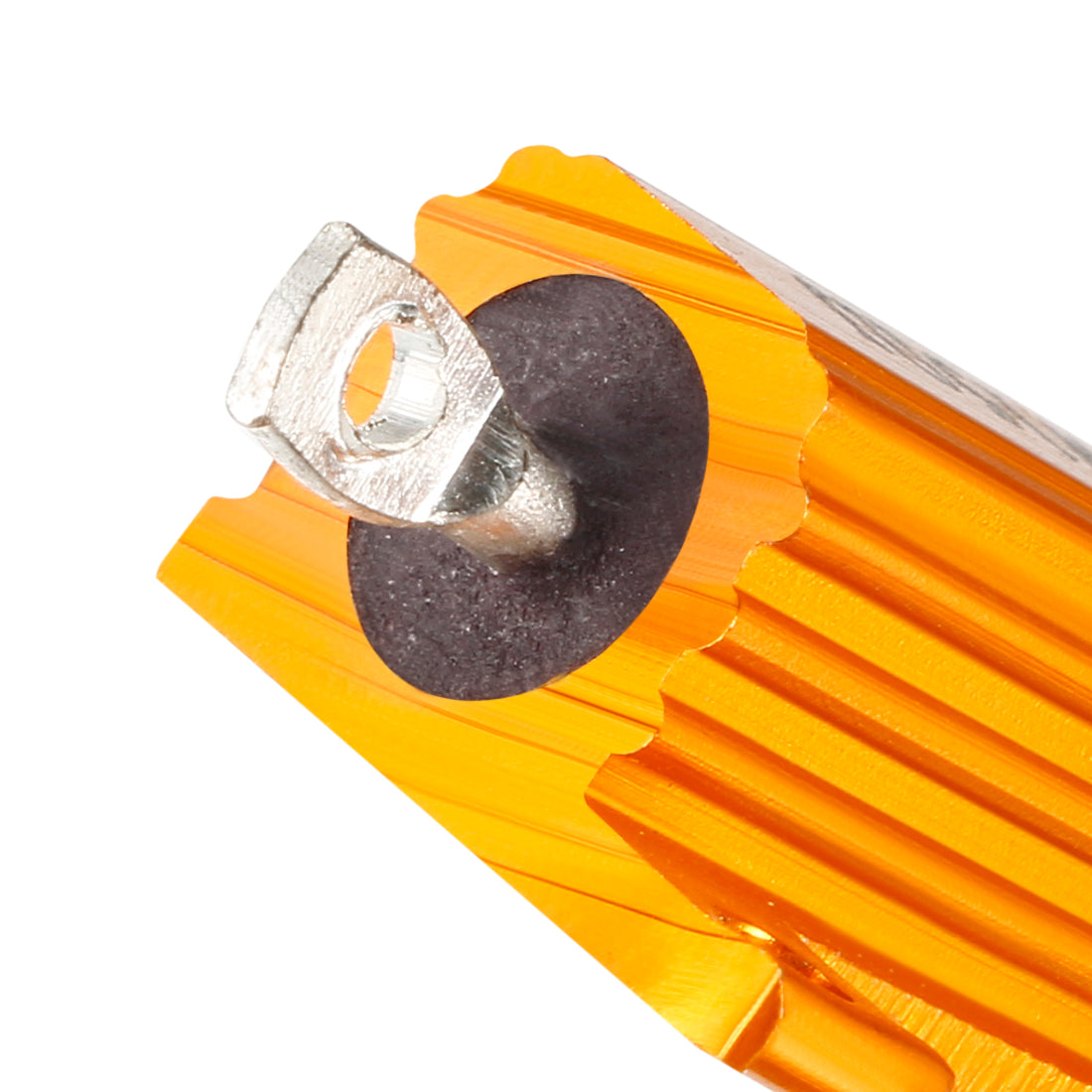

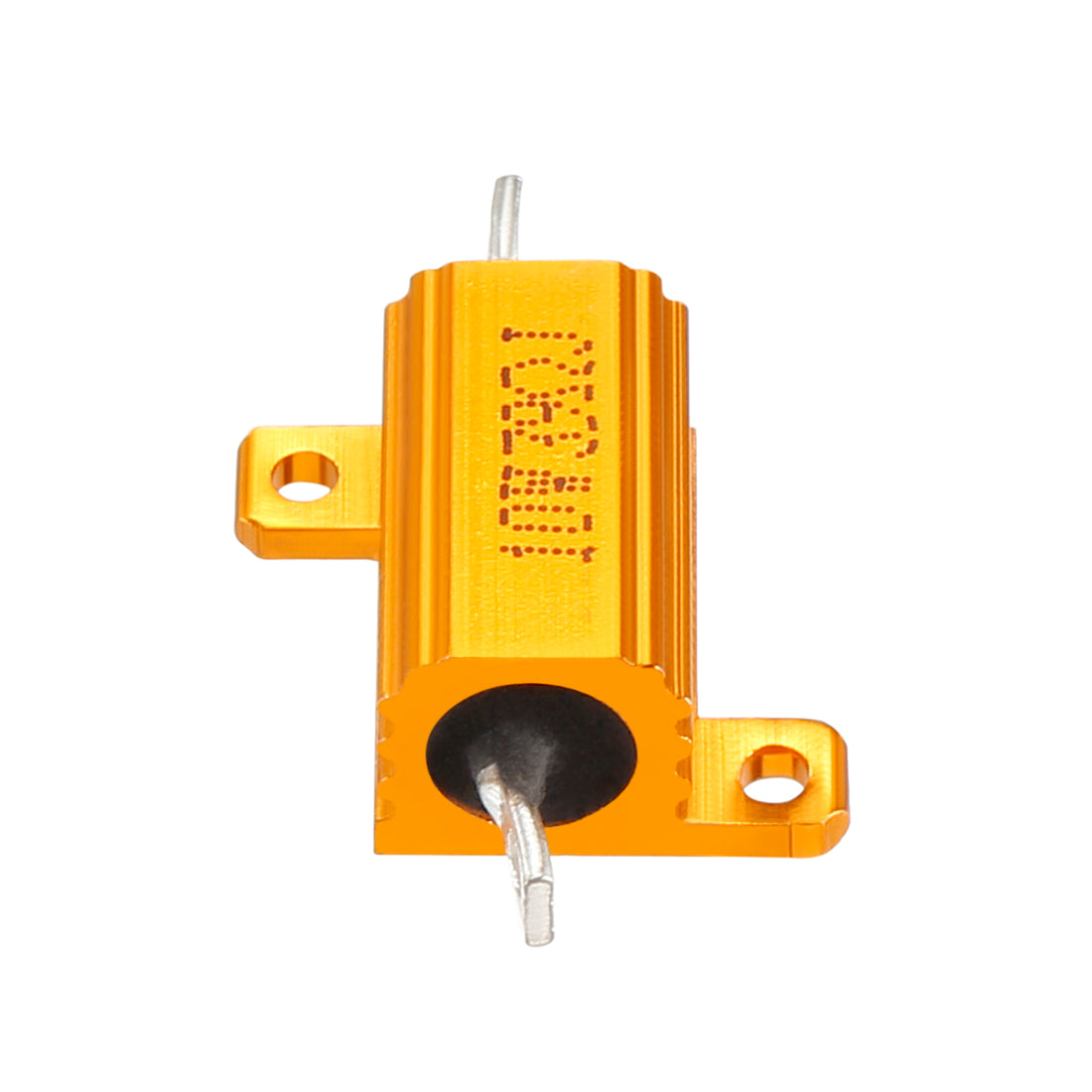

Harfington Uxcell Aluminum Case Resistor 10W 39 Ohm Wirewound for LED Converter with Rod Post 10W39RJ

Uxcell Aluminum Case Resistor 10W 39 Ohm Wirewound for LED Converter with Rod Post 10W39RJ

ID:
$5.79 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • 10 Wattage and 39 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
  • Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.

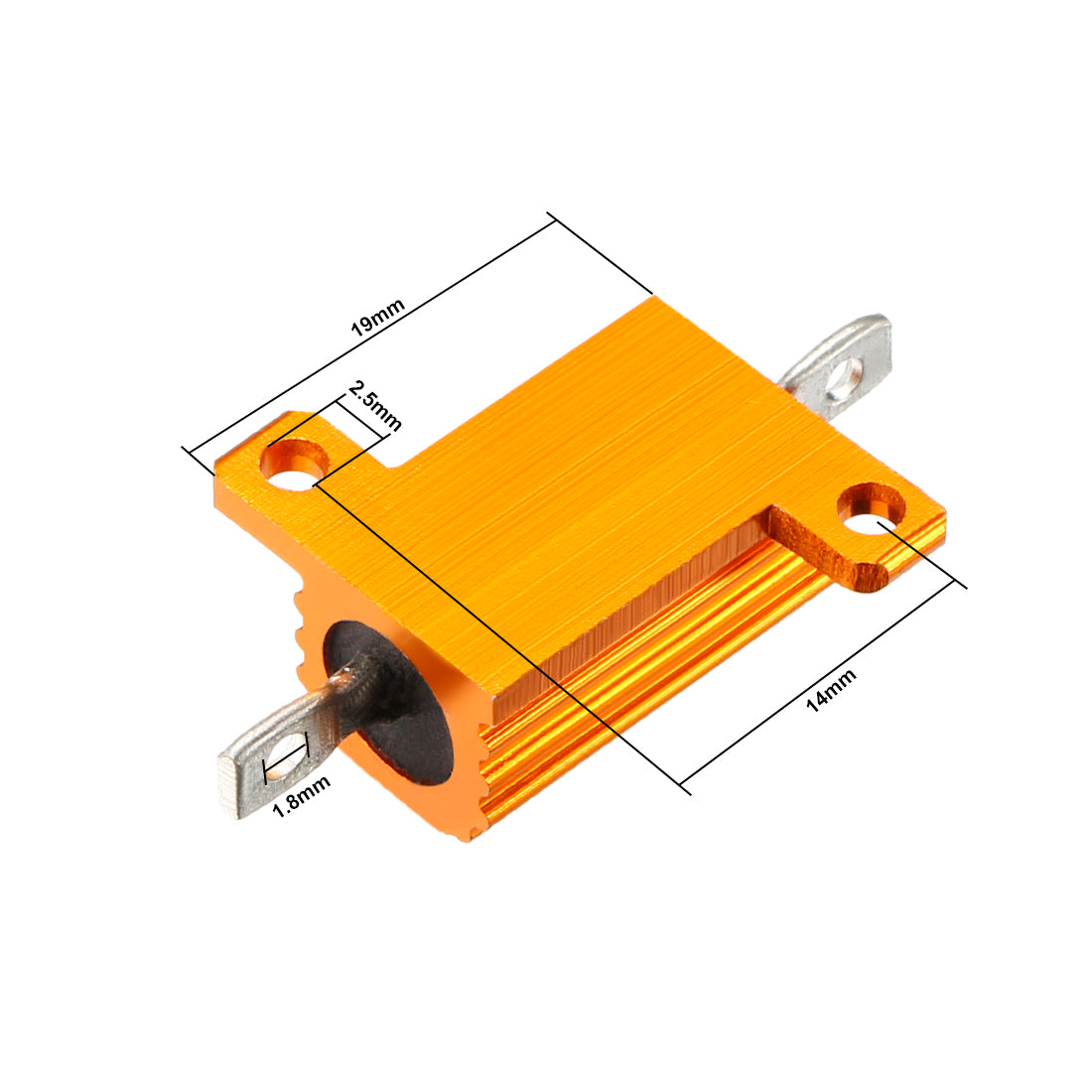

  • Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • 10 Wattage and 39 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
  • Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
  • Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Main Body Length: 1.9 cm/ 0.75 inches
Power: 10 Wattage
Rated Resistance: 39 R
Tolerances: 5%(J)
Connection Type: Rod terminals with hole
Rod Length: 7.7mm/0.3 inches
Screw Hole: 2.5mm(Fit #2 or M2.3 nuts)
Distance between screw hole: 14mm
Weight: 6g/0.15 Oz
Materials: Nickel alloys Wire Wound Resistor with Aluminum Case
Color: Gold

Package Content:
1 x 10W39R Aluminum Housed Resistor
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Main Body Length: 1.9 cm/ 0.75 inches
Power: 10 Wattage
Rated Resistance: 39 R
Tolerances: 5%(J)
Connection Type: Rod terminals with hole
Rod Length: 7.7mm/0.3 inches
Screw Hole: 2.5mm(Fit #2 or M2.3 nuts)
Distance between screw hole: 14mm
Weight: 6g/0.15 Oz
Materials: Nickel alloys Wire Wound Resistor with Aluminum Case
Color: Gold

Package Content:
1 x 10W39R Aluminum Housed Resistor
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
