Harfington Uxcell Interlock Push Button Switch Piano Type 8PDT 24 Pin 6 Row

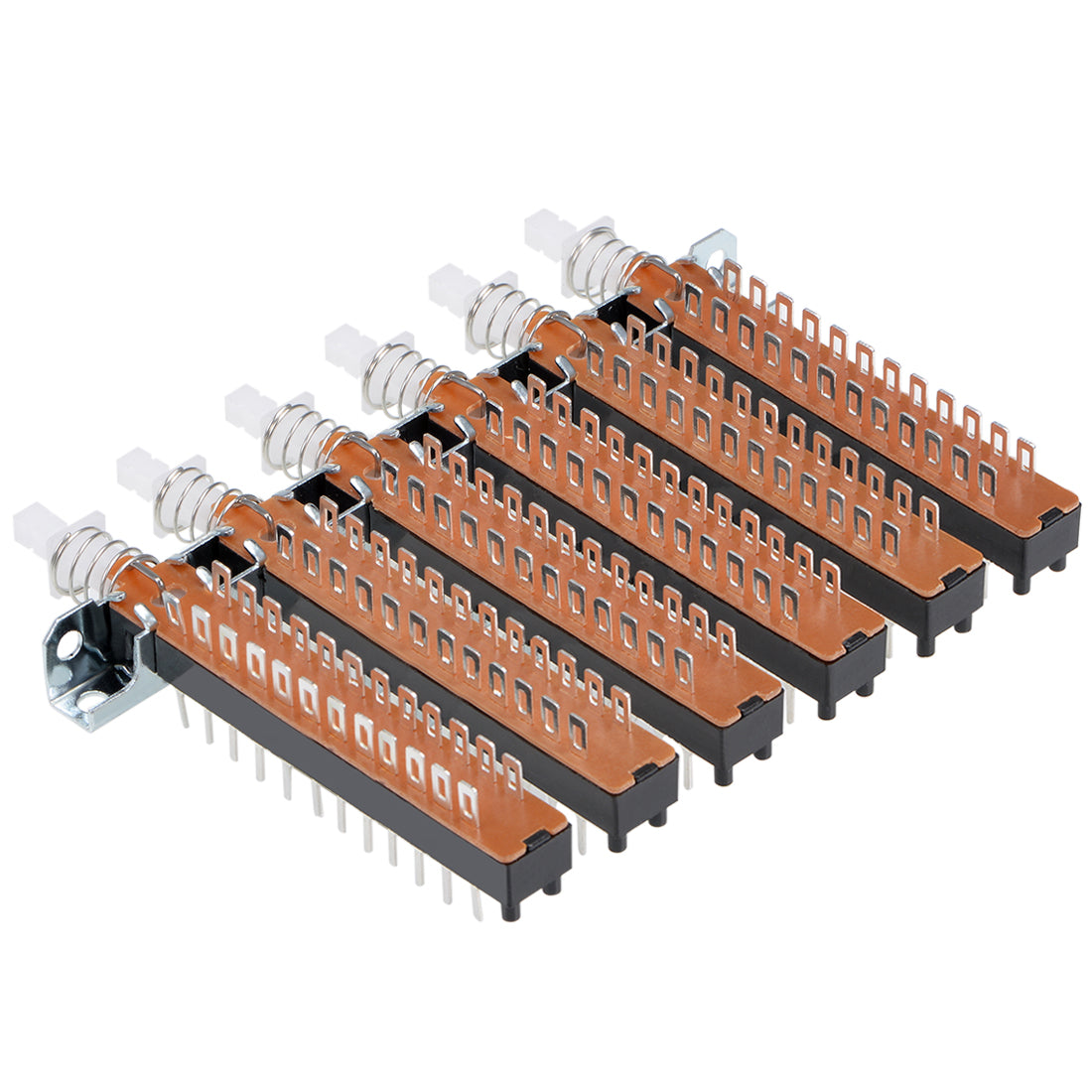

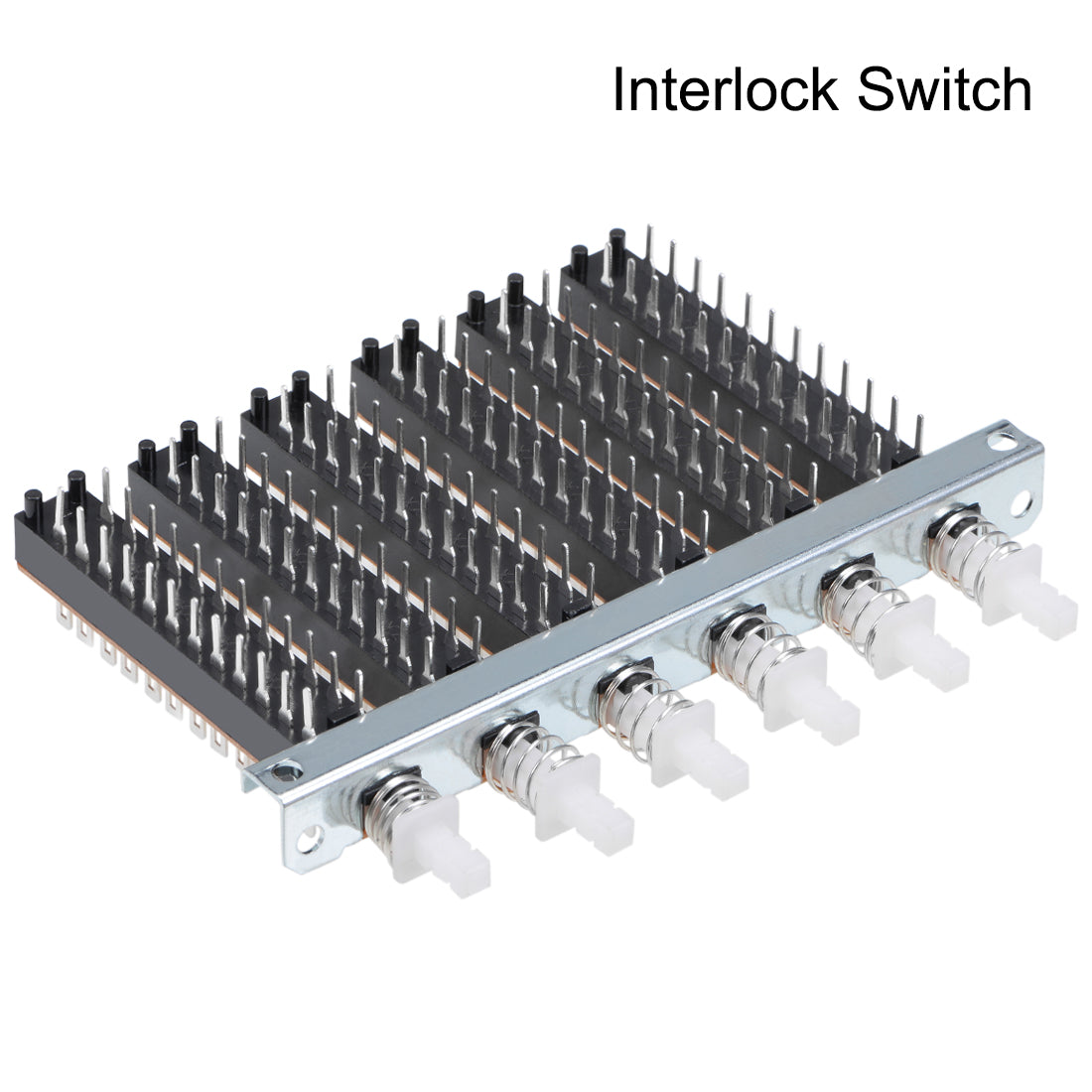

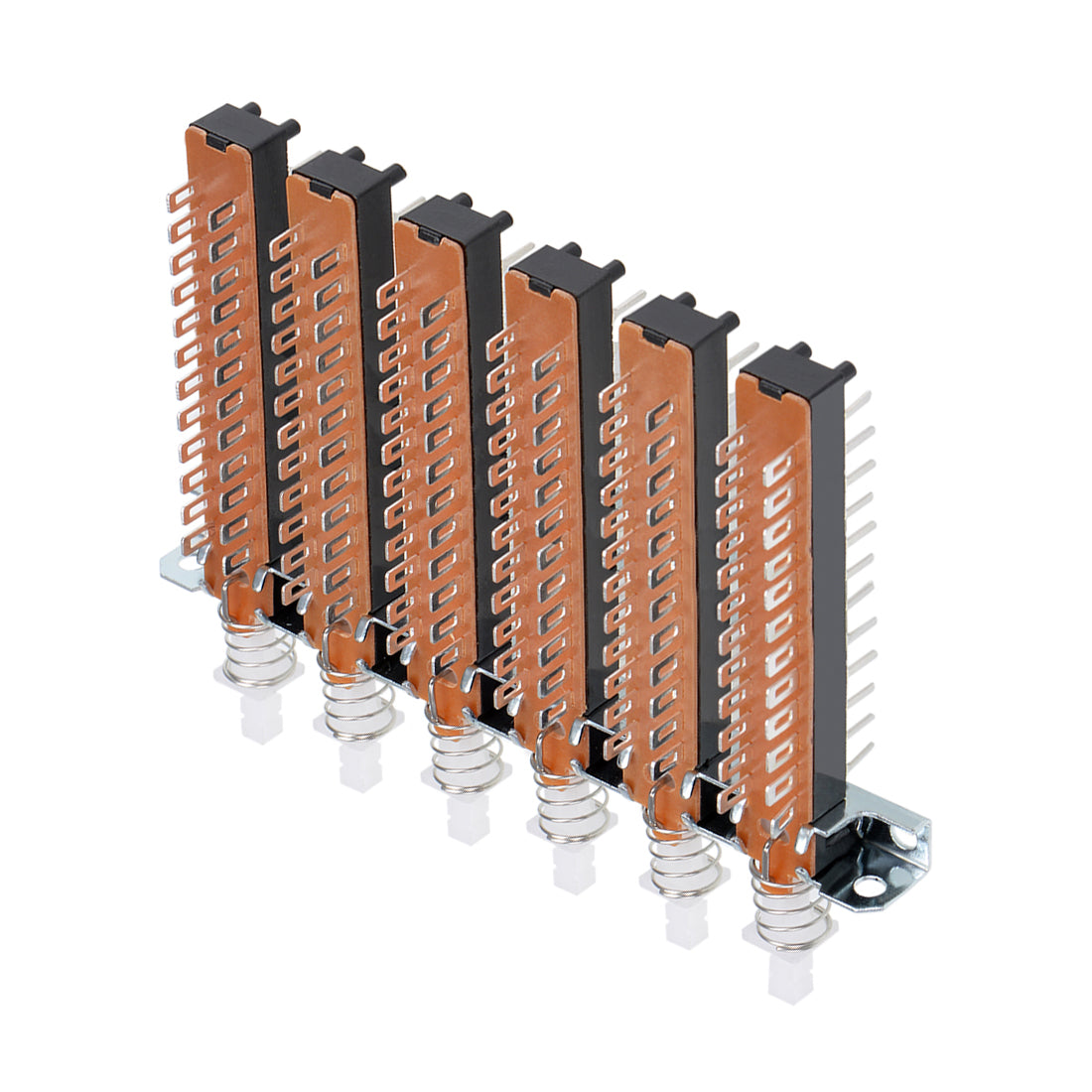

Uxcell Interlock Push Button Switch Piano Type 8PDT 24 Pin 6 Row

ID:
$8.92 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • [Standard] - 8PDT 24Pins 4mm Pitch 6 Position
  • [Interlock Switch] - The switch operates one at a time (when one actuator is pressed and the other is released)
  • [Features] - Mechanism design offers acute operation and long service life
  • [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
  • [Package Content] - 1 x Push Button Switch
  • In stock, ready to ship
Cart
Cart
About this item
  • [Standard] - 8PDT 24Pins 4mm Pitch 6 Position
  • [Interlock Switch] - The switch operates one at a time (when one actuator is pressed and the other is released)
  • [Features] - Mechanism design offers acute operation and long service life
  • [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
  • [Package Content] - 1 x Push Button Switch
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Material: Plastic, Metal

Switch Operation: Interlock

Contact Configuration: 8PDT

Terminal Type: Straight Through Hole

Pin Quantity: 24

Each Pin Pitch: 4mm

Position Quantity: 6

End Width: 9mm / 0.35-inch

Mounting Pillar Distance: 5mm / 0.20-inch

Mounting Hole Distance: 94.5mm / 3.72-inch

Each Cap Part Distance: 15mm / 0.59-inch

Cap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)

Overall Size: 79 x 102 x 18mm / 3.11-inch x 4.02-inch x 0.71-inch(L*W*H)



Package Contents:

1 x Push Button Switch



Description:

Interlock contact, 24 pins, DIP through hole mounting.

Used in the fields of electronic products, household appliances and more.

High precision mechanism design offers acute operation and long service life.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
