Harfington Bonded Sealing Washers M18 24.8x18.7x2mm Carbon Steel Nitrile Rubber Gasket, Pack of 12

Bonded Sealing Washers M18 24.8x18.7x2mm Carbon Steel Nitrile Rubber Gasket, Pack of 12

ID:1309079
ID:1309079
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal
  • Materials: Galvanized Carbon Steel; Nitrile Butadiene Rubber: Hardness: 60A; Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
  • Fit for Size: M18; Outer Diameter: 24.8mm; Inner Diameter: 18.7mm; Thickness: 2mm
  • Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings
  • The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines
About this item
  • The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal
  • Materials: Galvanized Carbon Steel; Nitrile Butadiene Rubber: Hardness: 60A; Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
  • Fit for Size: M18; Outer Diameter: 24.8mm; Inner Diameter: 18.7mm; Thickness: 2mm
  • Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings
  • The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines
Specification

Specification

SKU
a22090100ux1245
Pkg.Qty
12
Fit For Dia.
M18
O.D.
24.8mm
I.D.
18.7mm
Thickness
2mm
Material
Carbon Steel,Nitrile Rubber
Finish
Galvanized
System of Measurement
Metric
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
What will I get?
Color: Black, Silver
Material: Galvanized Carbon Steel, Nitrile Butadiene Rubber
Fit for Size: M18
Outer Diameter: 24.8mm
Inner Diameter: 18.7mm
Thickness: 2mm
Rubber Hardness: 60A
Rubber Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
Package Contents: 12 x Bonded Seals

What is this?

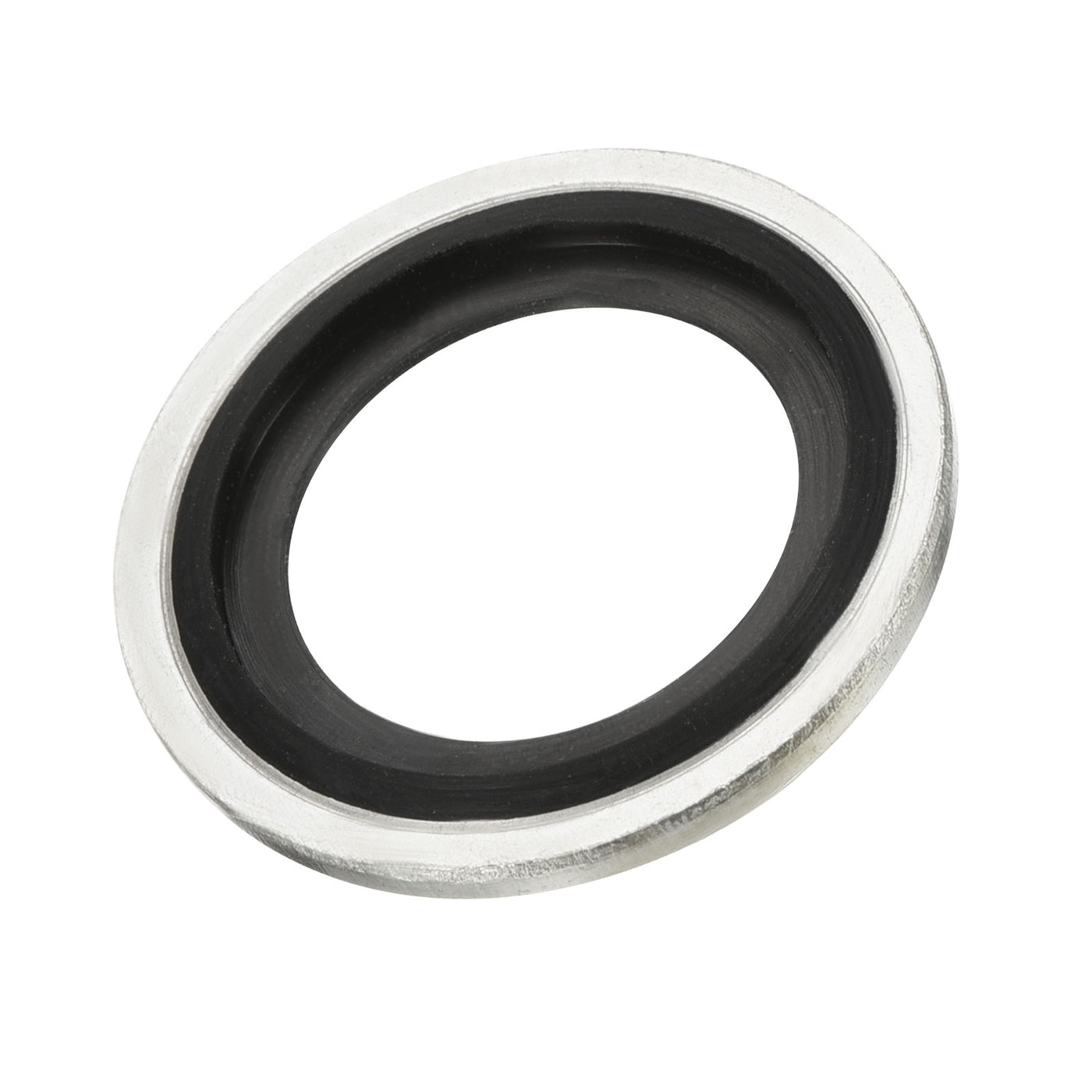

A bonded seal is a type of washer used to provide a seal around a screw or bolt. Consists of an outer annular ring of carbon steel and an inner annular ring of nitrile butadiene rubber that acts as a gasket.

Are there any advantages of the product?

The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal.
Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.

How to use it?
The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines.
$5.75 $0.48/eachRegular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Fit For Dia. I.D. O.D. Thickness Material Pkg.Qty ID Price Qty
M18 18.7mm 24.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309079 $5.75
Products Fit For Dia. I.D. O.D. Thickness Material Pkg.Qty ID Price Qty
M18 18.7mm 24.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309079 $5.75
M10 8.2mm 15.6mm 2.9mm Carbon Steel,Nitrile Rubber 50 1416607 $7.07
M10 8.2mm 15.6mm 2.9mm Carbon Steel,Nitrile Rubber 10 1417875 $5.38
M10 10mm 25mm 3.6mm Carbon Steel,Nitrile Rubber 50 1309692 $8.95
M10 10mm 25mm 3.6mm Carbon Steel,Nitrile Rubber 10 1309687 $5.63
M10 10mm 25mm 3.6mm Carbon Steel,Nitrile Rubber 20 1309689 $6.59
M10 10mm 19mm 3.1mm Carbon Steel,Nitrile Rubber 10 1309676 $5.29
M10 10mm 19mm 3.1mm Carbon Steel,Nitrile Rubber 50 1309677 $7.41
M10 10.7mm 15.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309081 $5.43
G1-1/4 42.93mm 52.35mm 2.5mm Carbon Steel,Nitrile Rubber 5 1303972 $6.78
G1/8 10.37mm 15.88mm 2mm Carbon Steel,Nitrile Rubber 5 1303970 $5.12
G1/8 8.5mm 15.9mm 2.9mm Carbon Steel,Nitrile Rubber 50 1422155 $7.73
M6 4.9mm 11.5mm 2.9mm Carbon Steel,Nitrile Rubber 10 1419910 $5.38
M8 6.5mm 13.7mm 2.9mm Carbon Steel,Nitrile Rubber 10 1424954 $5.38
M8 6.5mm 13.7mm 2.9mm Carbon Steel,Nitrile Rubber 50 1417870 $7.15
M8 8mm 25mm 3.4mm Carbon Steel,Nitrile Rubber 20 1309678 $6.56
M8 8mm 19mm 3.6mm Carbon Steel,Nitrile Rubber 10 1309684 $5.23
M8 8mm 19mm 3.6mm Carbon Steel,Nitrile Rubber 20 1309680 $5.63
M20 20.7mm 27.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309082 $6.06
G1/2 21.54mm 28.5mm 2.5mm Carbon Steel,Nitrile Rubber 5 1303971 $5.61
G1/2 19mm 28.5mm 3.4mm Carbon Steel,Nitrile Rubber 10 1417832 $6.09
G3/4 25mm 35mm 3.4mm Carbon Steel,Nitrile Rubber 10 1424947 $6.76
G1-1/2 48.44mm 58.6mm 2.5mm Carbon Steel,Nitrile Rubber 5 1303979 $7.61
M24 24.7mm 31.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309083 $6.89
M30 30.7mm 37.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309084 $7.94
M14 11.5mm 19.6mm 3mm Carbon Steel,Nitrile Rubber 50 1416430 $8.26
M14 11.5mm 19.6mm 3mm Carbon Steel,Nitrile Rubber 10 1420078 $5.31
M18 15mm 24.6mm 3mm Carbon Steel,Nitrile Rubber 10 1422203 $5.57
M18 15mm 24.6mm 3mm Carbon Steel,Nitrile Rubber 50 1423359 $9.17
M12 9.8mm 17.6mm 2.9mm Carbon Steel,Nitrile Rubber 50 1416505 $7.88
M16 16.7mm 21.8mm 2mm Carbon Steel,Nitrile Rubber 12 1309080 $5.66
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

What will I get?
Color: Black, Silver
Material: Galvanized Carbon Steel, Nitrile Butadiene Rubber
Fit for Size: M18
Outer Diameter: 24.8mm
Inner Diameter: 18.7mm
Thickness: 2mm
Rubber Hardness: 60A
Rubber Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
Package Contents: 12 x Bonded Seals

What is this?
A bonded seal is a type of washer used to provide a seal around a screw or bolt. Consists of an outer annular ring of carbon steel and an inner annular ring of nitrile butadiene rubber that acts as a gasket.

Are there any advantages of the product?

The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal.
Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.

How to use it?
The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines.
