Product Variants
| Products | Thread Dia. | Thread Length | Accessory | Pkg.Qty | ID | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
 | #14 | 5" | Washer | 25 | 1372885 | $14.49 |
| Products | Thread Dia. | Thread Length | Accessory | Pkg.Qty | ID | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| #14 | 5" | Washer | 25 | 1372885 | $14.49 | ||
 | #14 | 2-1/2" | Washer | 50 | 1372880 | $15.36 | ||
 | #14 | 2-1/2" | Washer | 25 | 1372908 | $9.87 | ||
 | #14 | 1-1/2" | Washer | 100 | 1372881 | $22.23 | ||
 | #14 | 1-1/2" | Washer | 25 | 1372894 | $7.66 | ||
 | #14 | 2" | Washer | 25 | 1372895 | $8.48 | ||
 | #14 | 4" | Washer | 25 | 1372904 | $12.40 | ||
 | #14 | 3/4" | Washer | 100 | 1372899 | $15.10 | ||
 | #14 | 3/4" | Washer | 25 | 1372915 | $6.77 | ||
 | #14 | 1-1/4" | Washer | 100 | 1372882 | $16.94 | ||
 | #14 | 1-1/4" | Washer | 50 | 1372898 | $13.07 | ||
 | #14 | 1-1/4" | Washer | 25 | 1372912 | $7.80 | ||
 | #14 | 2-61/64" | Washer | 25 | 1372893 | $10.59 | ||
 | #14 | 2-61/64" | Washer | 100 | 1372873 | $28.59 | ||
 | #14 | 2-61/64" | Washer | 50 | 1372886 | $16.73 | ||
 | #14 | 1" | Washer | 50 | 1372896 | $11.70 | ||
 | #14 | 1" | Washer | 25 | 1372913 | $7.13 | ||
 | #14 | 1" | Washer | 100 | 1372897 | $15.80 | ||
 | #14 | 3-9/16" | Washer | 100 | 1372903 | $31.92 | ||
 | #12 | 3-9/16" | Washer | 50 | 1372900 | $15.39 | ||
 | #12 | 3-9/16" | Washer | 100 | 1372917 | $25.83 | ||
 | #12 | 3/4" | Washer | 25 | 1372892 | $6.18 | ||
 | #12 | 3/4" | Washer | 100 | 1372879 | $13.00 | ||
 | #12 | 2" | Washer | 25 | 1372905 | $7.80 | ||
 | #12 | 4" | Washer | 100 | 1372916 | $30.83 | ||
 | #12 | 4" | Washer | 50 | 1372888 | $16.60 | ||
 | #12 | 2-61/64" | Washer | 25 | 1372889 | $8.83 | ||
 | #12 | 2-61/64" | Washer | 50 | 1372919 | $14.57 | ||
 | #12 | 2-1/2" | Washer | 100 | 1372890 | $20.24 | ||
 | #12 | 1-1/2" | Washer | 100 | 1372902 | $16.24 | ||
 | #12 | 1-1/2" | Washer | 50 | 1372876 | $10.33 |
Description
Description
1. Material: Both the screw and the metal washer are made of carbon steel, a zinc-plated surface finish, which is corrosion-resistant; the black washer is made of EPDM, which is wear-resistant and oxidation-resistant.

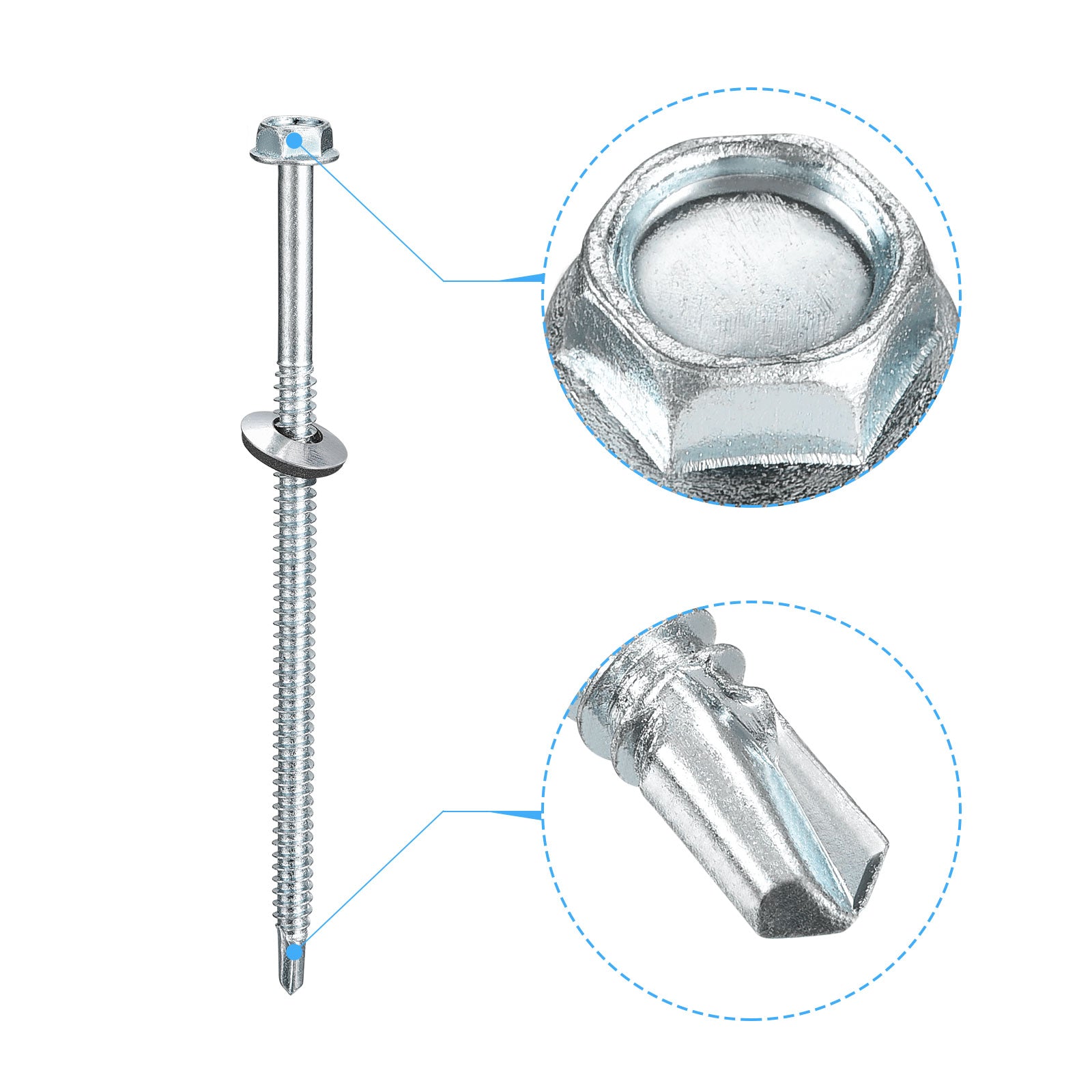

2. Advantages: The hex washer head has a flange with an EPDM rubber washer on the bottom to prevent leaks, loosening and damage to mating surfaces. The underside of the hex head provides a large flat bearing surface that reduces the possibility of crushing mating surfaces. When you tighten the screw, a flexible black EPDM rubber washer bonded to the metal washer creates a tight seal.
3. Easy to use: Unlike self-tapping screws, these self-drilling screws drill a hole and tap a thread in one operation. All you need to install them with a power drive tool.

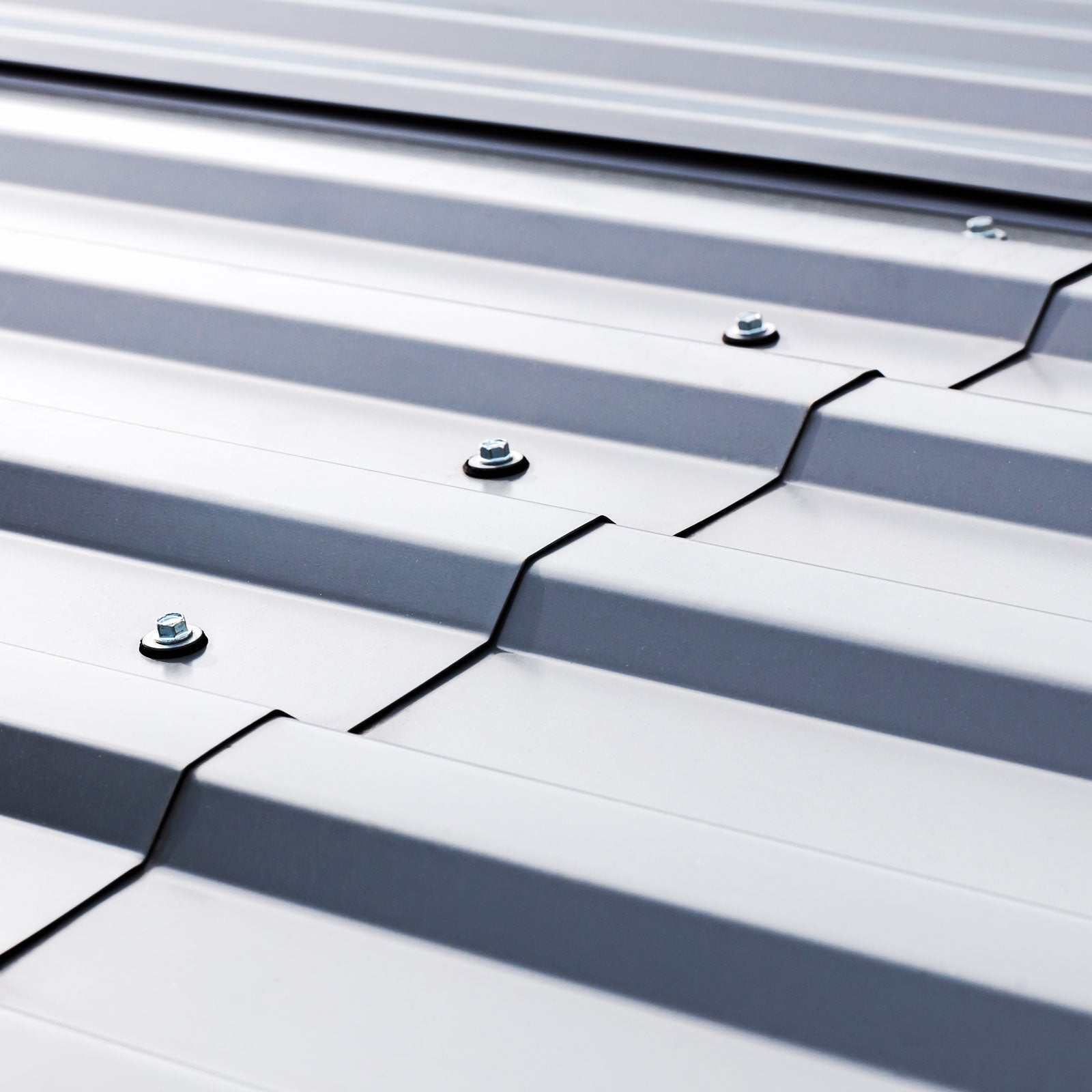

4. Application: Hex head self-drilling screws are typically used in metal-to-metal and metal-to-wood applications. Widely used in the electrical and industry, most commonly on thin metals, for example with roofing, steel studs, etc.

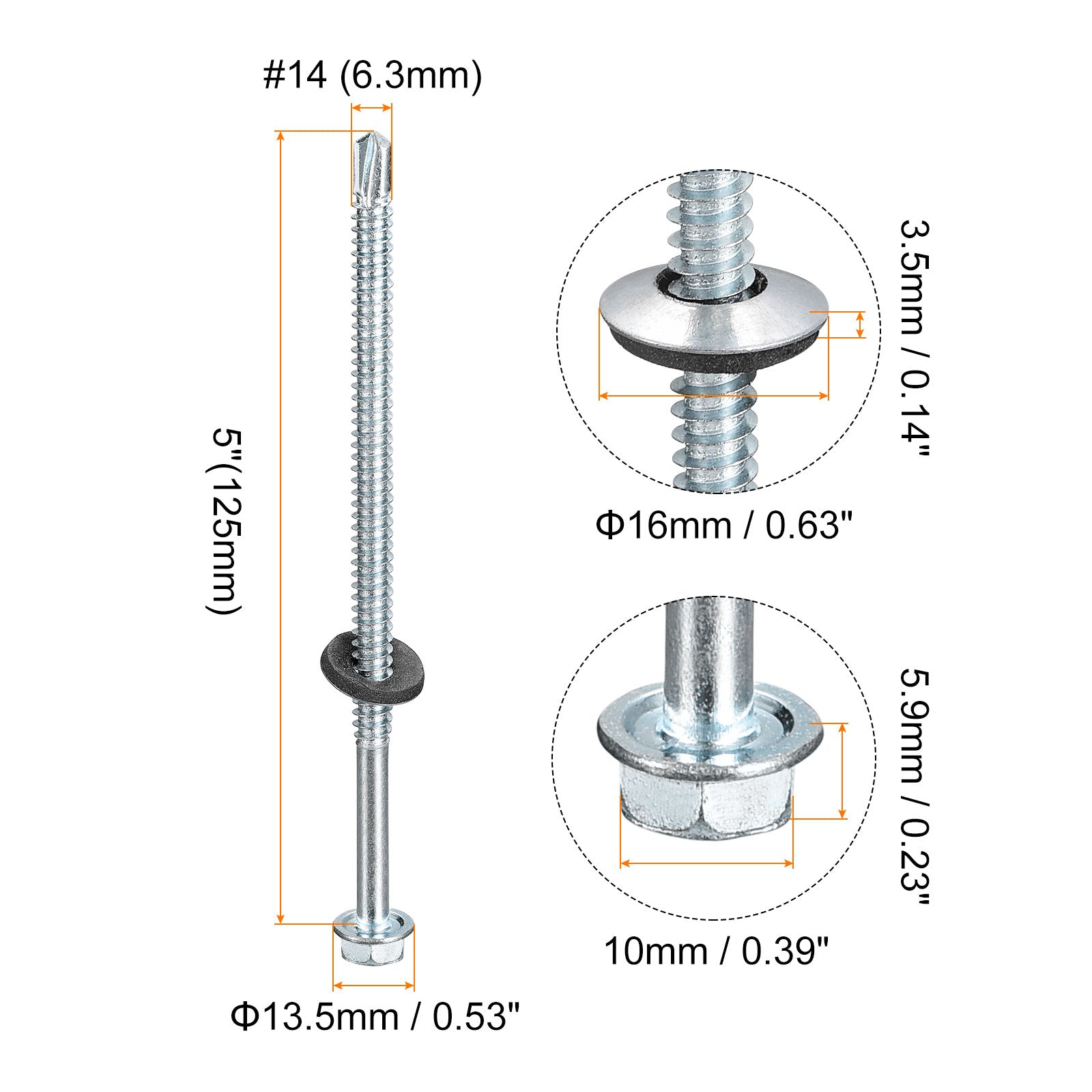

Specification:
Material: Carbon Steel
Surface Treatment: Zinc Plated
Performance Grade: 10.9
Thread Dia.: #14 (6.3mm)
Length(not include hex head): 5"(125mm)
Thread Pitch: 1.8mm
Hex Head Size: 10x5.9mm / 0.39" x 0.23"(Hex WidthxT)
Flange Dia.: 13.5mm / 0.53"
Washer Size: 16 x 3.5mm / 0.63" x 0.14"(D*T)
Screw Drilling Range (Plate Thickness): 2-6mm

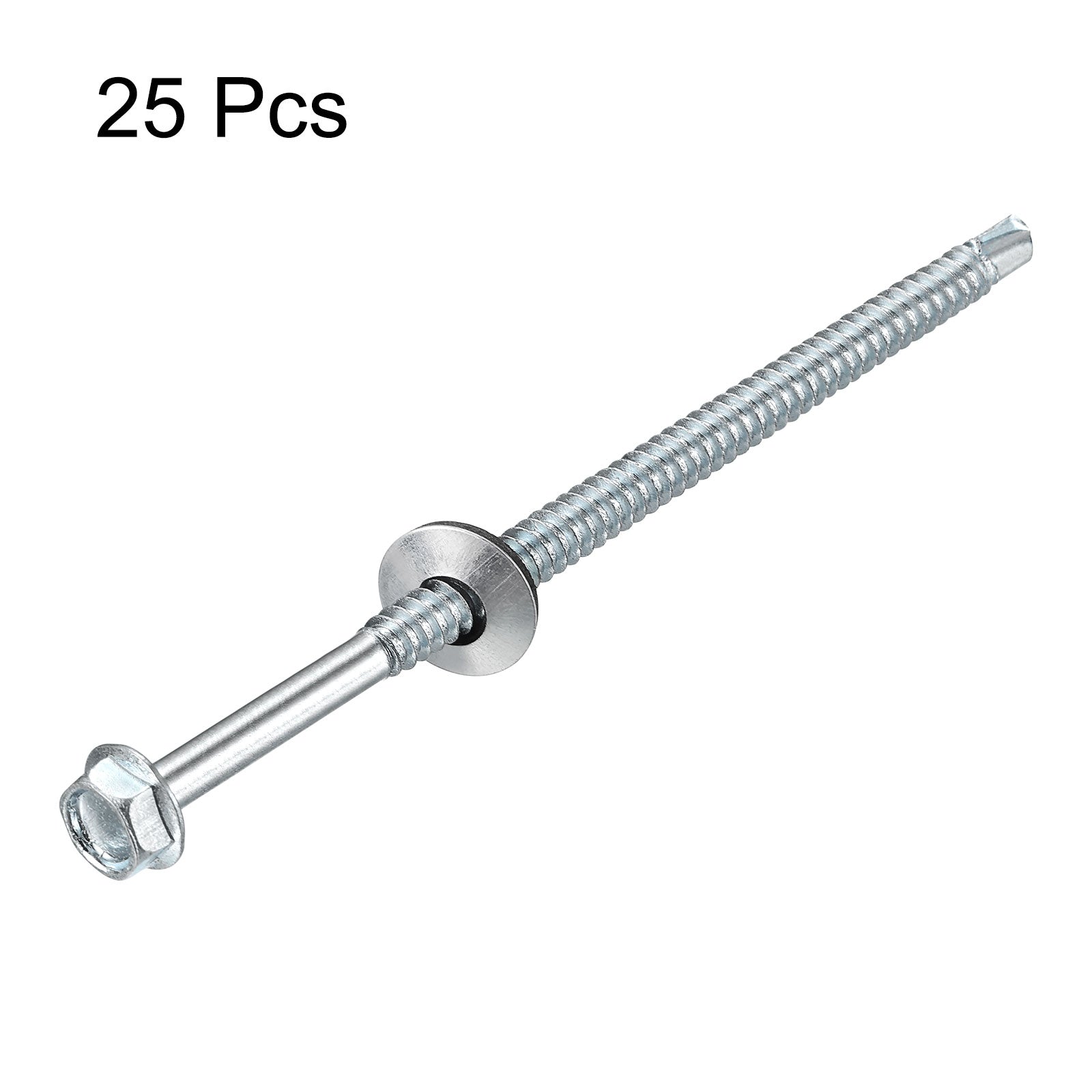

Package Content: 25pcs x Hex Head Self-drilling Screws
1. Material: Both the screw and the metal washer are made of carbon steel, a zinc-plated surface finish, which is corrosion-resistant; the black washer is made of EPDM, which is wear-resistant and oxidation-resistant.
2. Advantages: The hex washer head has a flange with an EPDM rubber washer on the bottom to prevent leaks, loosening and damage to mating surfaces. The underside of the hex head provides a large flat bearing surface that reduces the possibility of crushing mating surfaces. When you tighten the screw, a flexible black EPDM rubber washer bonded to the metal washer creates a tight seal.
3. Easy to use: Unlike self-tapping screws, these self-drilling screws drill a hole and tap a thread in one operation. All you need to install them with a power drive tool.
4. Application: Hex head self-drilling screws are typically used in metal-to-metal and metal-to-wood applications. Widely used in the electrical and industry, most commonly on thin metals, for example with roofing, steel studs, etc.
Specification:
Material: Carbon Steel
Surface Treatment: Zinc Plated
Performance Grade: 10.9
Thread Dia.: #14 (6.3mm)
Length(not include hex head): 5"(125mm)
Thread Pitch: 1.8mm
Hex Head Size: 10x5.9mm / 0.39" x 0.23"(Hex WidthxT)
Flange Dia.: 13.5mm / 0.53"
Washer Size: 16 x 3.5mm / 0.63" x 0.14"(D*T)
Screw Drilling Range (Plate Thickness): 2-6mm
Package Content: 25pcs x Hex Head Self-drilling Screws
