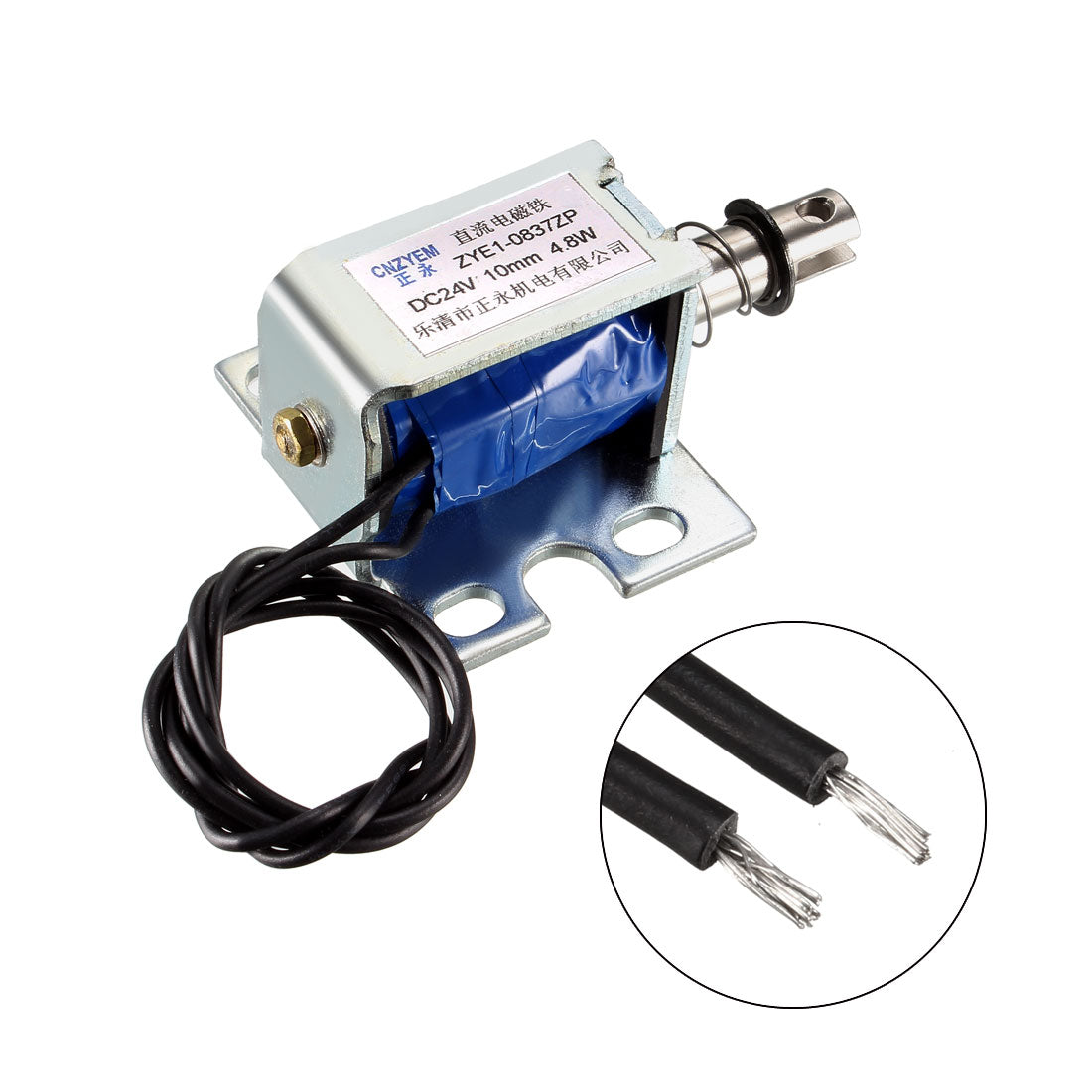

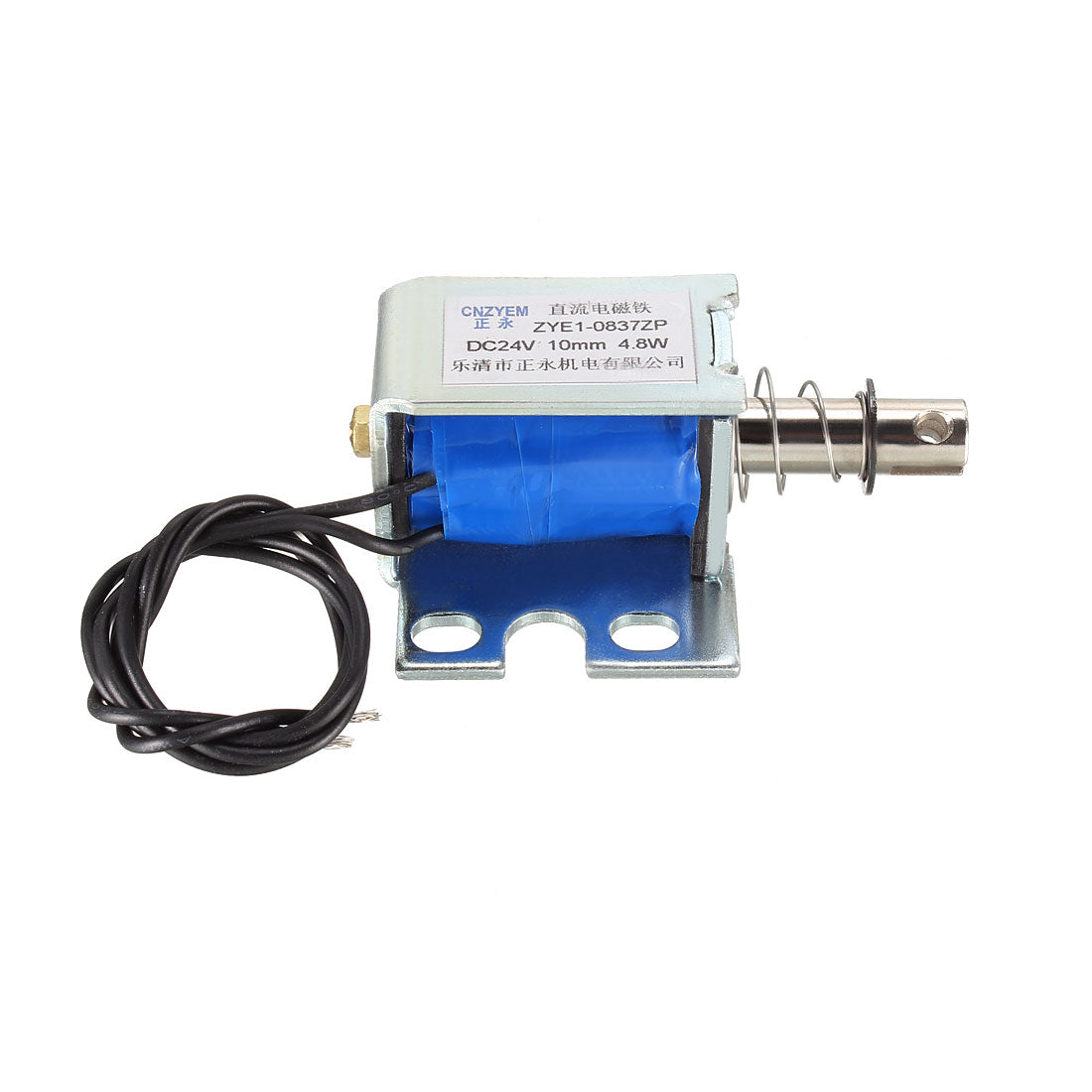

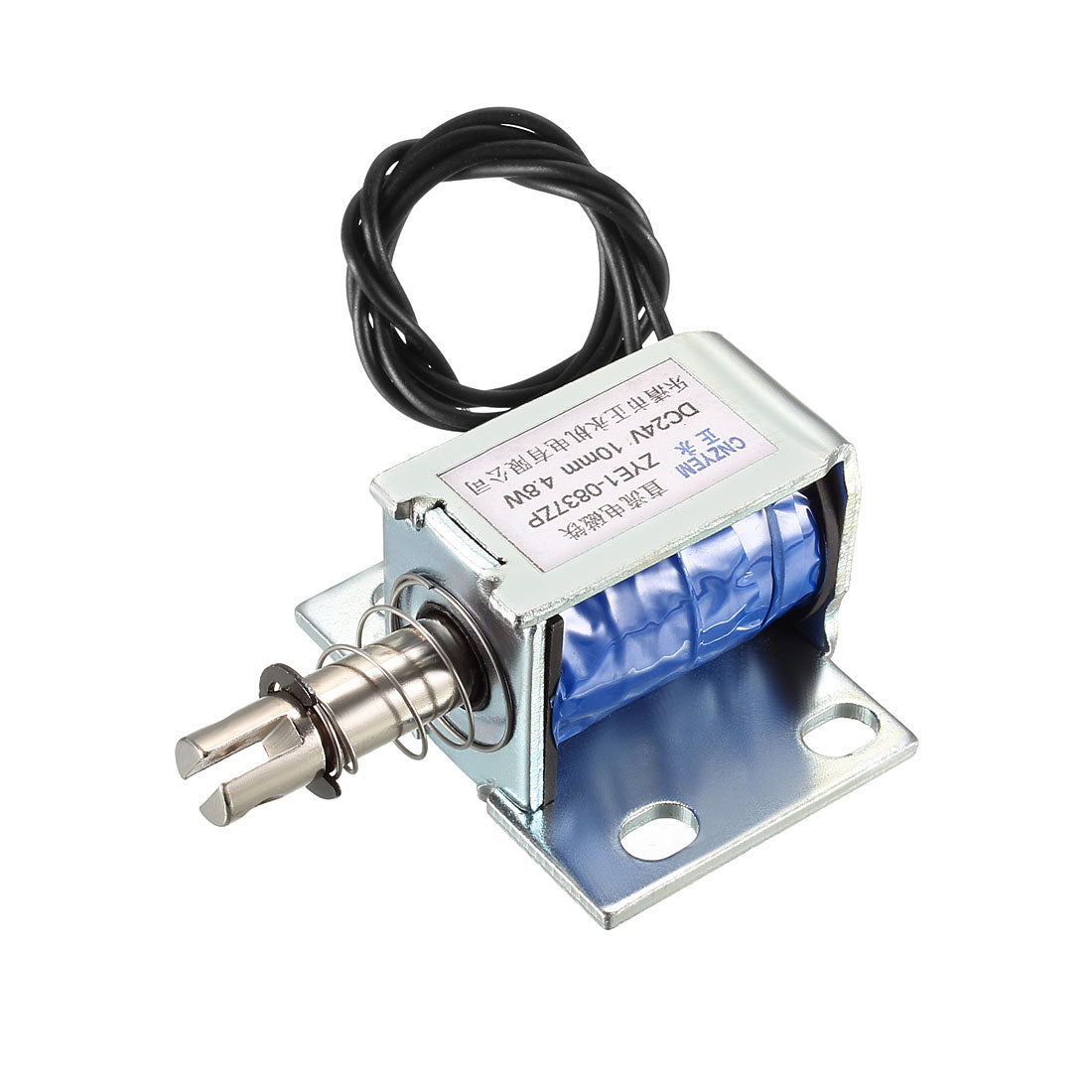

Harfington Uxcell DC Push Pull Type Solenoid Electromagnet, DC24V 4.8W 40g 10mm, Open Frame Type, Linear Motion

Uxcell DC Push Pull Type Solenoid Electromagnet, DC24V 4.8W 40g 10mm, Open Frame Type, Linear Motion

ID:
$11.76 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Voltage : DC 24V; Current : 0.2A; Power : 4.8W; Stroke : 10mm; Force: 40g
  • 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
  • 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
  • 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
  • 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 122 seconds.
  • In stock, ready to ship
Cart
Cart
About this item
  • Voltage : DC 24V; Current : 0.2A; Power : 4.8W; Stroke : 10mm; Force: 40g
  • 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
  • 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
  • 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
  • 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 122 seconds.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

- Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.

- Support DC 24V voltage, linear motion, is easy to install.

- DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Specification:

- Voltage & Current : DC24V 0.2A

- Power : 4.8W

- Action Type: Push Pull

- Stroke & Force : 10mm, 40g

- Wire Length: 21cm / 8.27inch

- Plunger Bar Dia: 8mm / 0.31inch

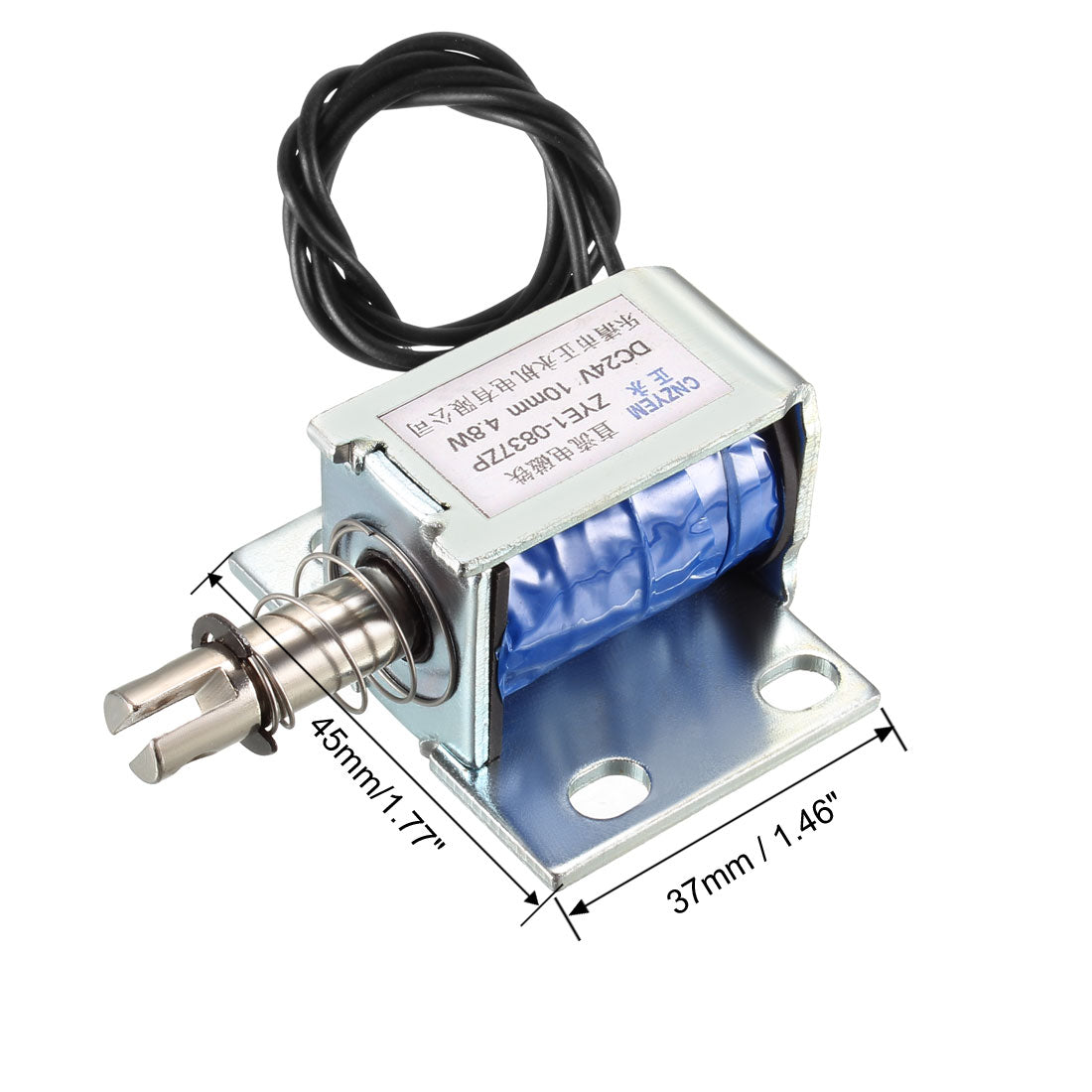

- Body Size : 37mm x 45mm x 27mm / 1.46inch x 1.77inch x 1.06inch (L*W*H)

- Mounting Hole Size: 7mm x 5mm / 0.28inch x 0.2inch (L*W)

- Mounting Hole Distance: 35m x 20mm / 1.38inch x 0.79inch (L*W)

- Package Content : 1 x DC Push Pull Type Solenoid Electromagnet

Note:

- Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

- Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using electricity.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

- Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.

- Support DC 24V voltage, linear motion, is easy to install.

- DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Specification:

- Voltage & Current : DC24V 0.2A

- Power : 4.8W

- Action Type: Push Pull

- Stroke & Force : 10mm, 40g

- Wire Length: 21cm / 8.27inch

- Plunger Bar Dia: 8mm / 0.31inch

- Body Size : 37mm x 45mm x 27mm / 1.46inch x 1.77inch x 1.06inch (L*W*H)

- Mounting Hole Size: 7mm x 5mm / 0.28inch x 0.2inch (L*W)

- Mounting Hole Distance: 35m x 20mm / 1.38inch x 0.79inch (L*W)

- Package Content : 1 x DC Push Pull Type Solenoid Electromagnet

Note:

- Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

- Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using electricity.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
