Harfington Magnetic Reed Switch, 1 Set NO NC Wired Door Window Contact Switch for Home

Magnetic Reed Switch, 1 Set NO NC Wired Door Window Contact Switch for Home

ID:1409738
ID:1409738
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Suitable for use in homes, offices, shops, and other settings to detect the opening and closing of doors and window
  • Contact Type: Normally Open Closed(NO NC); Size: 64mm x 13mm x 13mm (L*W*H); Operating Distance: 10mm-15mm; Mounting Hole Dia.: 4mm
  • The magnetic reed switch is made of high-quality ABS material for long-lasting durability and corrosion resistance
  • Wired surface-mounted design for easy installation and compatibility with various door and window monitoring settings
  • When installing, make sure to place the contact on the interior frame of the door and the magnet on the door itself, ensuring proper alignment.
About this item
  • Suitable for use in homes, offices, shops, and other settings to detect the opening and closing of doors and window
  • Contact Type: Normally Open Closed(NO NC); Size: 64mm x 13mm x 13mm (L*W*H); Operating Distance: 10mm-15mm; Mounting Hole Dia.: 4mm
  • The magnetic reed switch is made of high-quality ABS material for long-lasting durability and corrosion resistance
  • Wired surface-mounted design for easy installation and compatibility with various door and window monitoring settings
  • When installing, make sure to place the contact on the interior frame of the door and the magnet on the door itself, ensuring proper alignment.
Specification

Specification

SKU
a23041000ux0707
Switch Type
NC NO
Pkg.Qty
1
System of Measurement
Metric
Material
Metal,Plastic
Size(L*W*T)
64*13*13mm
Color
Silver Tone
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Enhance your home or office security with our magnetic reed switch. This wired surface-mounted door and window contact is good for detecting the opening and closing of the door and window. Suitable for use in homes, shops, hotels, computer rooms, and other settings where security is a concern. In addition to providing an extra layer of security, these magnetic reed switches can also be used for automation purposes, such as turning on lights when a door is opened.

Specification

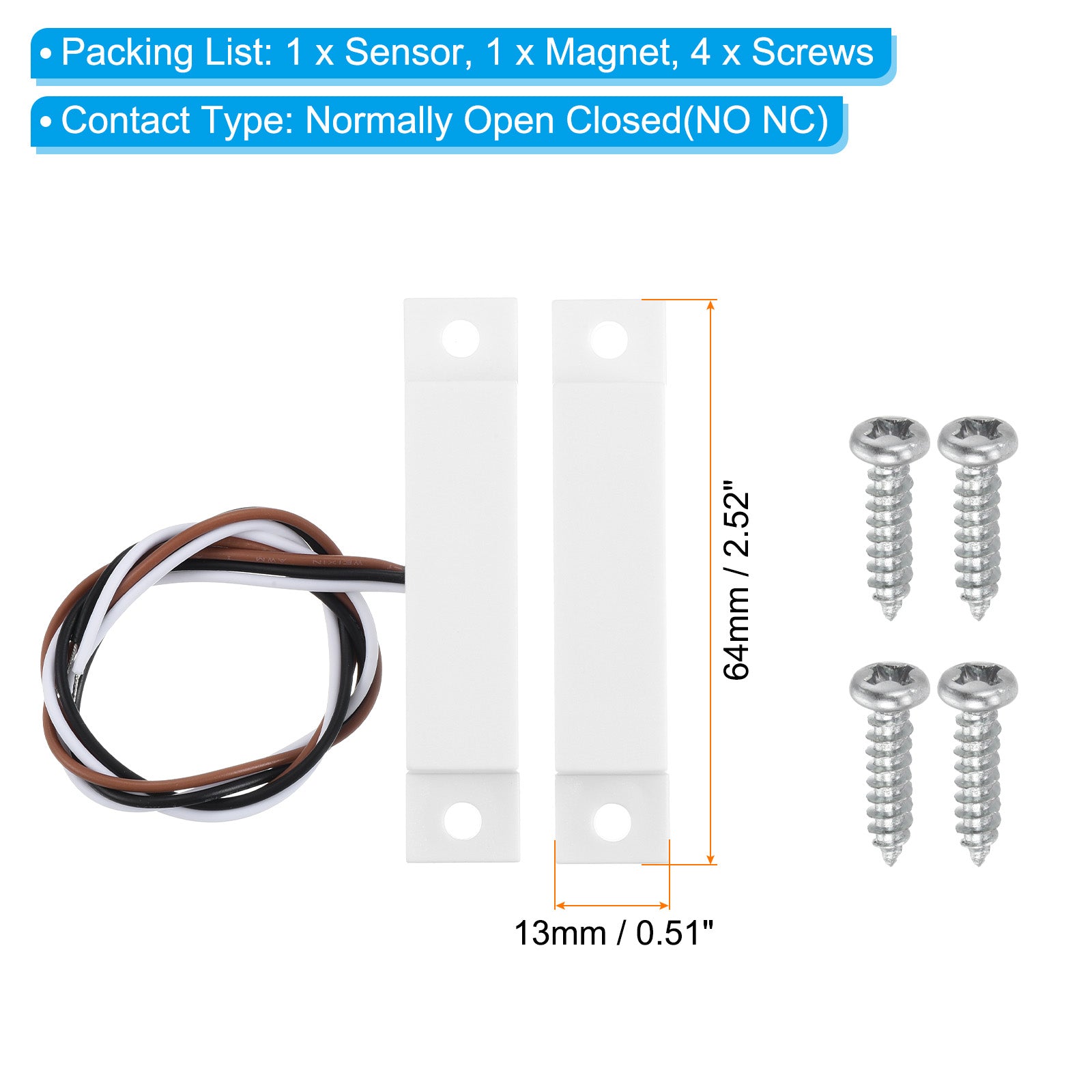

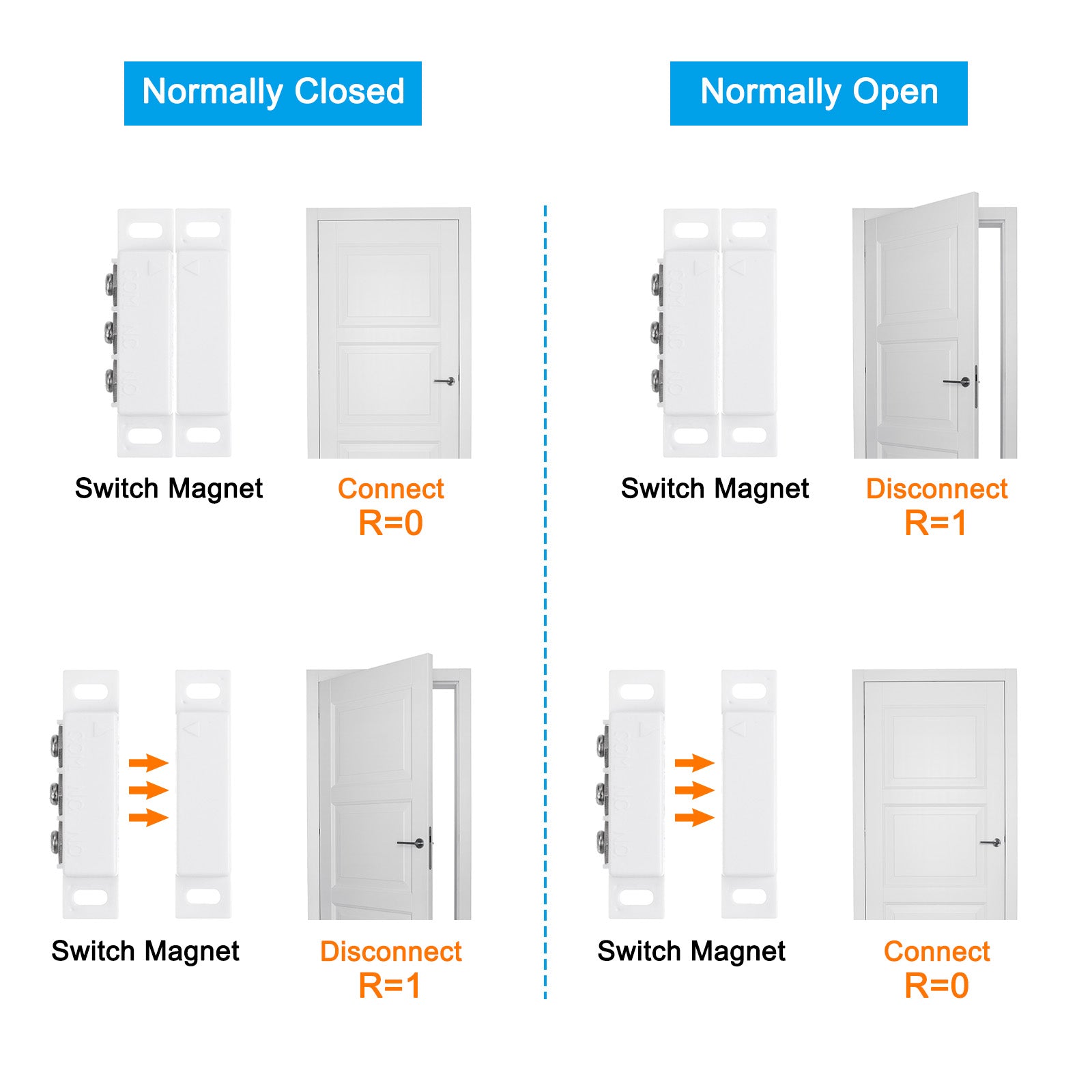

Contact Type: Normally Open Closed(NO NC)
Size: 64mm x 13mm x 13mm (L*W*H)
Rated Current: 500mA
Rated Voltage: 100V
Operating Distance: 10mm-15mm
Mounting Hole Dia.: 4mm

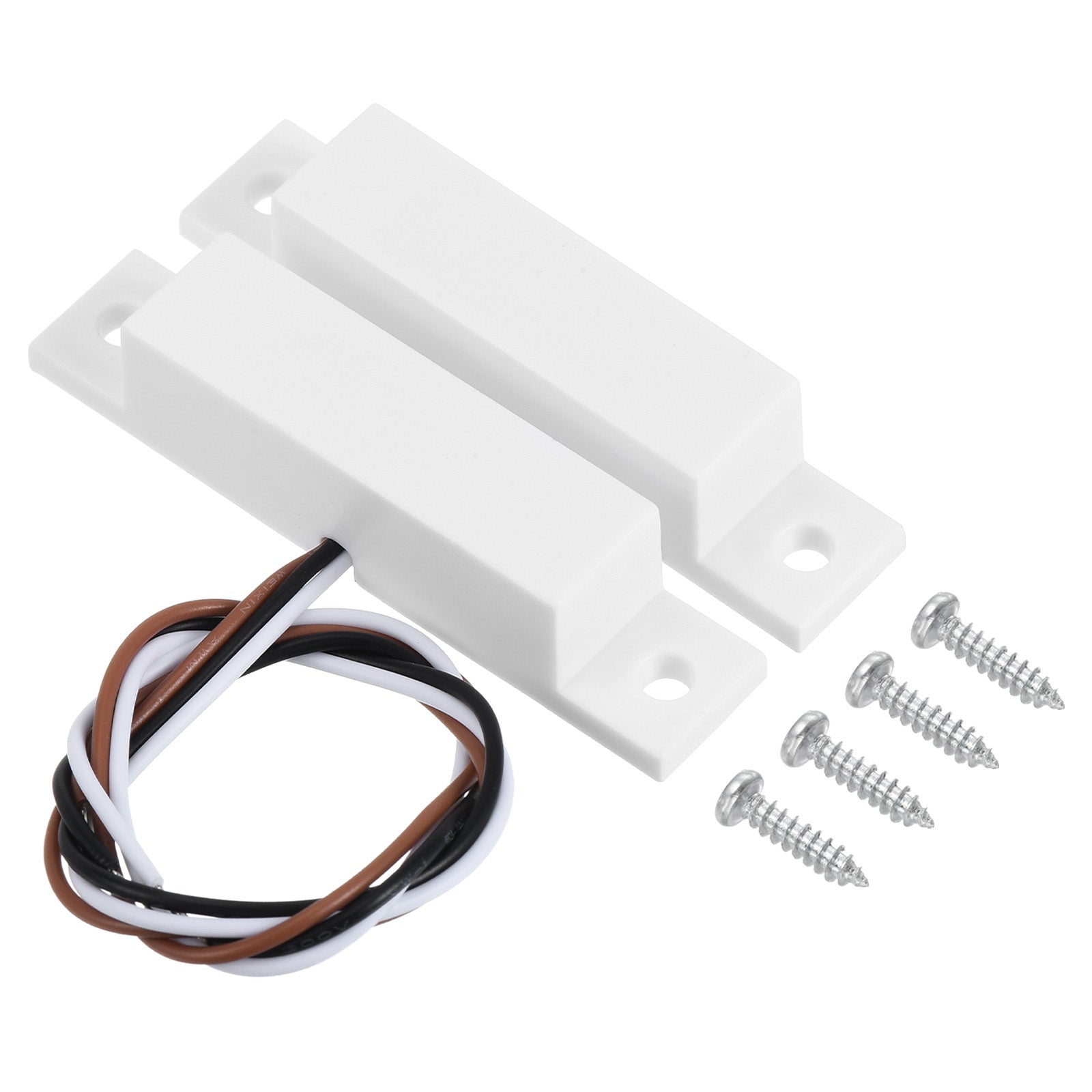

Packing List: 1 x Sensor, 1 x Magnet, 4 x Screws

Advantage
The door magnetic contact is made of ABS material that is durable and long-lasting. It helps you achieve door and window monitoring, preventing unauthorized entry and theft. It provides an additional layer of security for your home or business.

Instruction
The wired surface-mounted magnetic reed switch is designed for easy installation and convenience. Simply connect the wires to your alarm system and attach the switch to the desired location on your door or window.

NOTE: When installing, make sure to place the contact on the interior frame of the door and the magnet on the door itself, ensuring proper alignment.
$7.27 $7.27/eachRegular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Size(L*W*T) Switch Type Material Color Pkg.Qty ID Price Qty
64*13*13mm NC NO Metal,Plastic Silver Tone 1 1409738 $7.27
Products Size(L*W*T) Switch Type Material Color Pkg.Qty ID Price Qty
64*13*13mm NC NO Metal,Plastic Silver Tone 1 1409738 $7.27
31*14*8mm NC NO Zinc Alloy Silver Tone 2 1103613 $16.58
35*18*17mm NC Zinc Alloy Bronze Tone 4 1102217 $8.44
35*18*17mm NC Zinc Alloy Bronze Tone 2 1003003 $6.84
27*14*7.5mm NC Metal,ABS White 1 1085287 $28.66
31.5*14.7*7.5mm NC Zinc Alloy Silver Tone 3 1206932 $13.85
64*13*13mm NC Metal,Plastic White 10 1195673 $12.34
64*13*13mm NC Metal,Plastic White 3 1095184 $6.75
48.5*24.6*15mm NO Zinc Alloy Silver Tone 1 1097531 $11.29
31.5*15*7.6mm NO Zinc Alloy Silver Tone 1 1097534 $10.44
27*14*8mm NC NO Metal,ABS Silver Tone 10 1433895 $24.96
64*13*13mm,64*20*13mm NC Metal,Plastic Silver Tone 10 1409734 $11.78
28*14*9mm NC Metal,Plastic Silver Tone 1 1409758 $7.27
28*14*9mm NC NO Metal,Plastic Silver Tone 2 1409729 $9.05
28*14*9mm NC NO Metal,Plastic Silver Tone 1 1409741 $7.27
28*14*9mm NO Metal,Plastic Silver Tone 1 1409731 $7.27
28*14*9mm NO Metal,Plastic Silver Tone 1 1409744 $6.67
49*19*9.8mm NC Zinc Alloy Silver Tone 1 1113200 $8.91
105*50*10mm NC Zinc Alloy Silver Tone 2 1168303 $16.37
104*50*10mm,104*19*16mm NC Metal,Plastic White 1 1085288 $11.89
65*12*13mm NC NO Metal,Plastic White 3 1105163 $13.37
65*12*13mm NC Metal,Plastic White 2 1085286 $6.57
64*20*13mm NC Plastic White 2 1180917 $6.29
106*16*15mm NO Metal,Plastic Silver Tone 2 1108214 $18.18
106*16*15mm NC NO Metal,Plastic Silver Tone 2 1100543 $18.58
105*47*9.5mm,87*20*20mm NC Metal,Plastic White 1 1109656 $13.13
105*37*9.7mm,105*15.7*15.3mm NC Zinc Alloy White 1 1109666 $9.53
104*50*9.4mm,104*20*16mm NC NO Zinc Alloy White 1 1093680 $13.92
106*15*15mm NO Metal,Plastic Silver Tone 1 1157319 $11.35
34*14*9mm NC NO Metal,Plastic Silver Tone 2 1409742 $9.23
49*20*10mm NO Zinc Alloy Silver Tone 2 1103611 $16.83
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Enhance your home or office security with our magnetic reed switch. This wired surface-mounted door and window contact is good for detecting the opening and closing of the door and window. Suitable for use in homes, shops, hotels, computer rooms, and other settings where security is a concern. In addition to providing an extra layer of security, these magnetic reed switches can also be used for automation purposes, such as turning on lights when a door is opened.

Specification
Contact Type: Normally Open Closed(NO NC)
Size: 64mm x 13mm x 13mm (L*W*H)
Rated Current: 500mA
Rated Voltage: 100V
Operating Distance: 10mm-15mm
Mounting Hole Dia.: 4mm
Packing List: 1 x Sensor, 1 x Magnet, 4 x Screws

Advantage
The door magnetic contact is made of ABS material that is durable and long-lasting. It helps you achieve door and window monitoring, preventing unauthorized entry and theft. It provides an additional layer of security for your home or business.

Instruction
The wired surface-mounted magnetic reed switch is designed for easy installation and convenience. Simply connect the wires to your alarm system and attach the switch to the desired location on your door or window.

NOTE: When installing, make sure to place the contact on the interior frame of the door and the magnet on the door itself, ensuring proper alignment.
