Harfington Uxcell Self Tapping Threaded Inserts, 5pcs Inner M10 M14x18 303 Stainless Steel Nuts

Uxcell Self Tapping Threaded Inserts, 5pcs Inner M10 M14x18 303 Stainless Steel Nuts

ID:
$6.99 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item

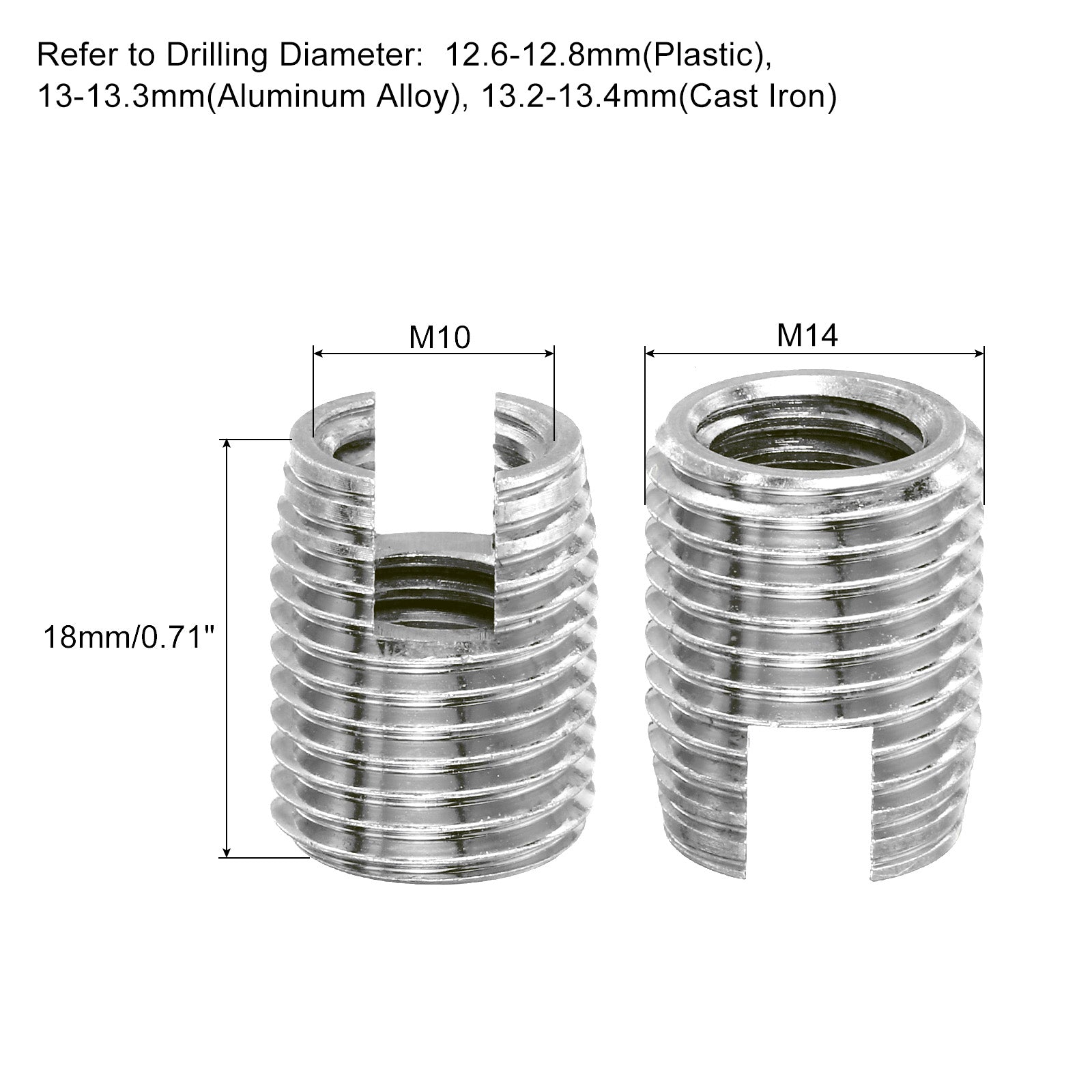

  • Inner Thread Size: M10x1.5((Dia.x Pitch); Outer Thread Size:M14x1.5(Dia.x Pitch); Length: 18mm/0.71"; Min. Drilling Depth: 22mm/0.87"; Refer to Drilling Diameter: 12.6-12.8mm(Plastic), 13-13.3mm(Aluminum Alloy), 13.2-13.4mm(Cast Iron); Package Content: 5pcs x Threaded Inserts
  • Material: 303 stainless steel material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening.
  • Advantages: With self-tapping capability, the base material does not need to be tapped in advance. It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve.
  • Installation: 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation.
  • Application: It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries.
  • In stock, ready to ship
Cart
Cart
About this item
  • Inner Thread Size: M10x1.5((Dia.x Pitch); Outer Thread Size:M14x1.5(Dia.x Pitch); Length: 18mm/0.71"; Min. Drilling Depth: 22mm/0.87"; Refer to Drilling Diameter: 12.6-12.8mm(Plastic), 13-13.3mm(Aluminum Alloy), 13.2-13.4mm(Cast Iron); Package Content: 5pcs x Threaded Inserts
  • Material: 303 stainless steel material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening.
  • Advantages: With self-tapping capability, the base material does not need to be tapped in advance. It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve.
  • Installation: 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation.
  • Application: It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Description:
1. Material: 303 stainless steel material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening.
2. Advantages: With self-tapping capability, the base material does not need to be tapped in advance.  It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve.
3. Installation: 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation.
3. Application: It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries.

Specification:
Product Name: Threaded Inserts
Material: 303 Stainless Steel
Finish: Passivation
Inner Thread Size: M10x1.5((Dia.x Pitch)
Outer Thread Size:M14x1.5(Dia.x Pitch)
Length: 18mm/0.71"
Min. Drilling Depth: 22mm/0.87"
Refer to Drilling Diameter: 12.6-12.8mm(Plastic), 13-13.3mm(Aluminum Alloy), 13.2-13.4mm(Cast Iron)
Package Content: 5pcs x Threaded Inserts
