Harfington Uxcell Needle Roller Bearings, Open End, Stamping Steel Drawn Cup, Metric

Uxcell Needle Roller Bearings, Open End, Stamping Steel Drawn Cup, Metric

ID:1005221
ID:1005221
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
10x14x15mm
Size
1pcs
Package Content
About this item

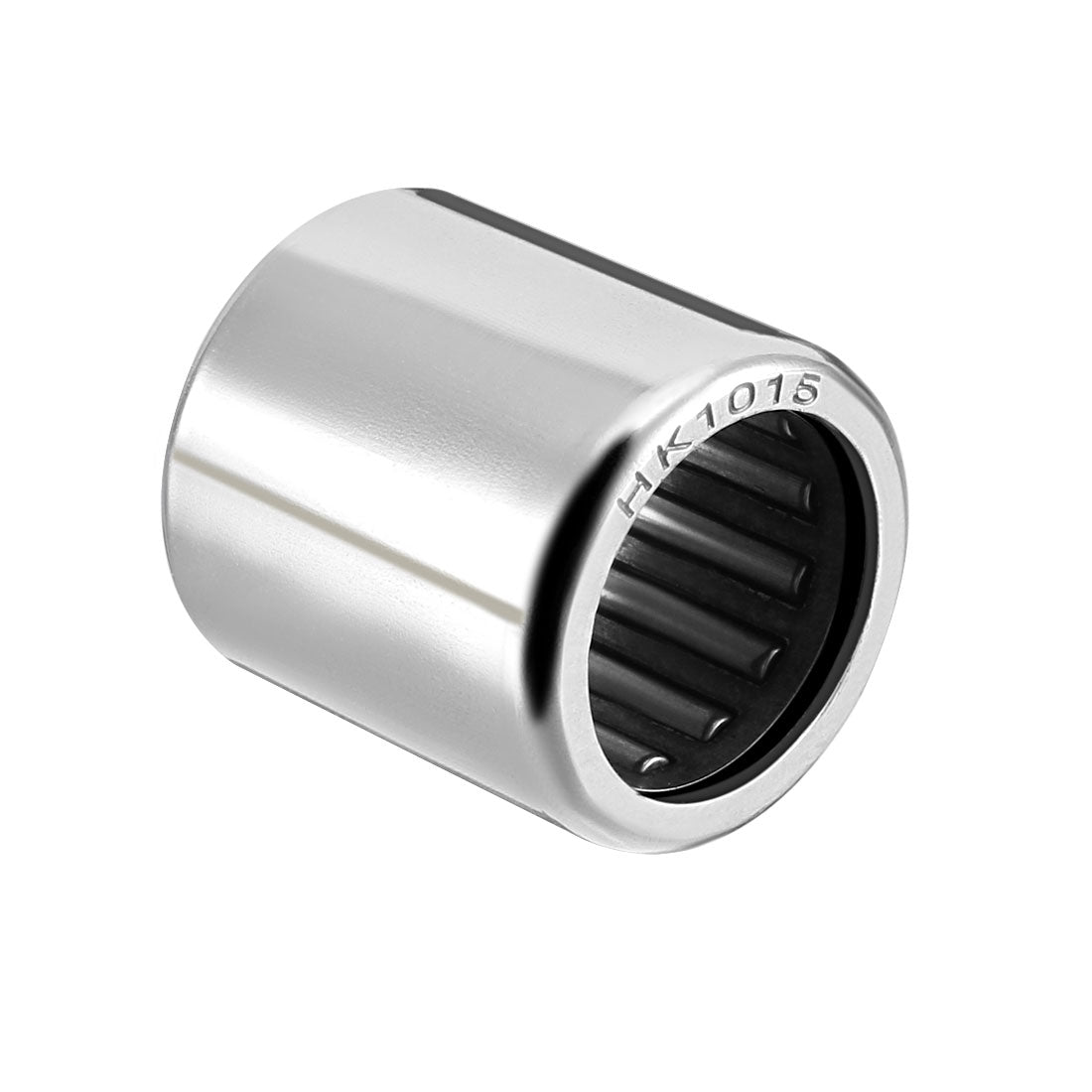

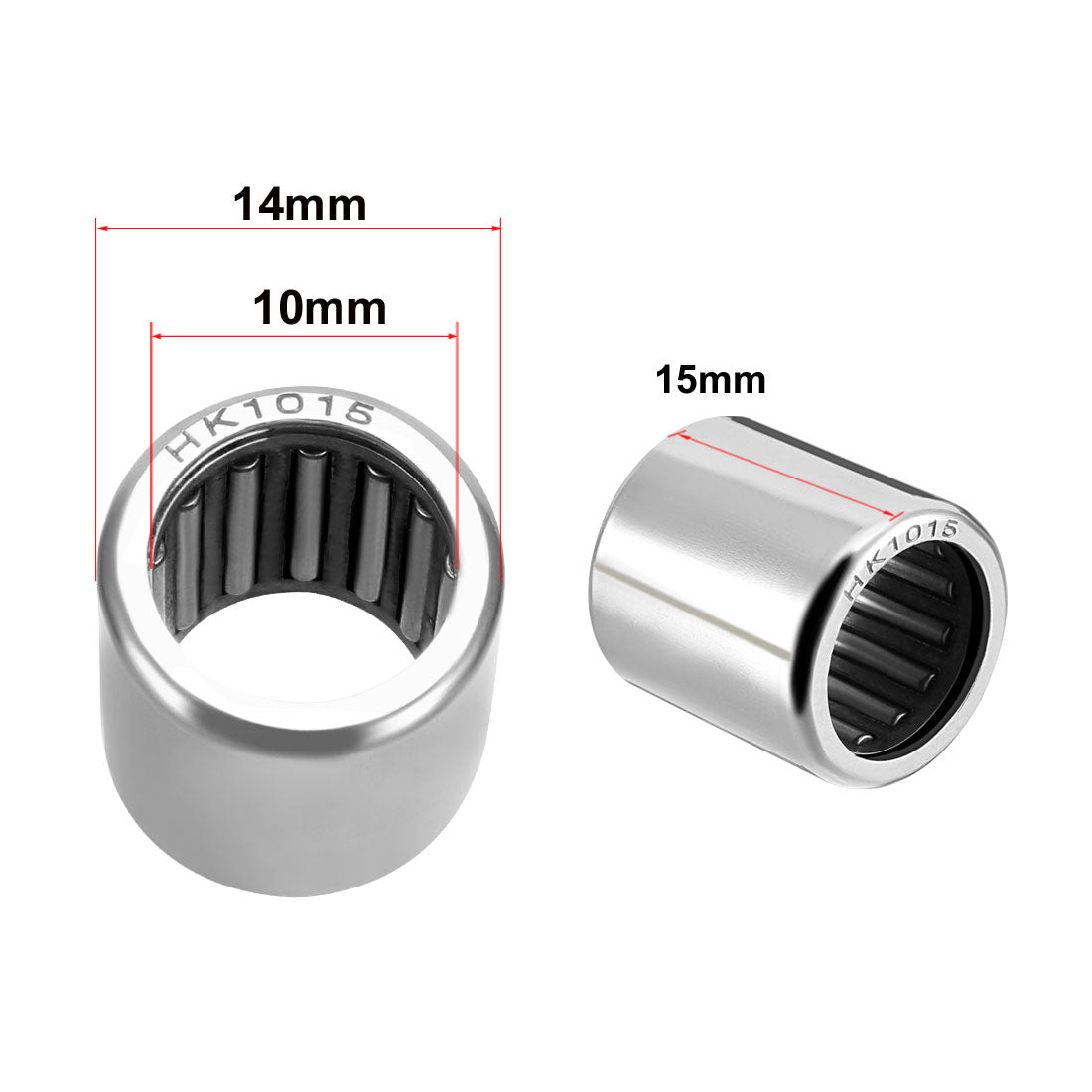

  • Model: HK1015 (Bore Dia. (Fw)= 10mm, Outer Dia. (D)a= 14mm, Width (C)= 15mm)

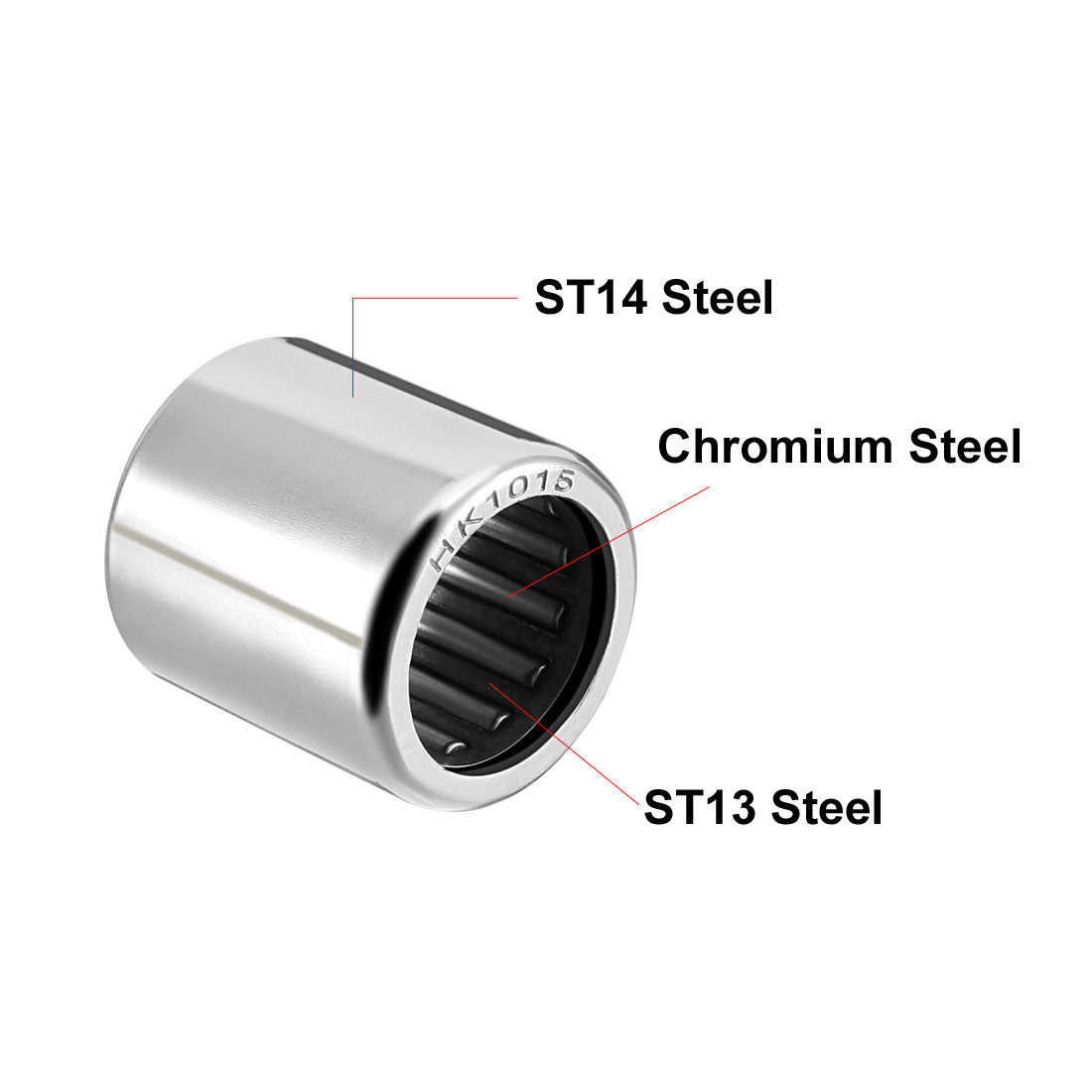

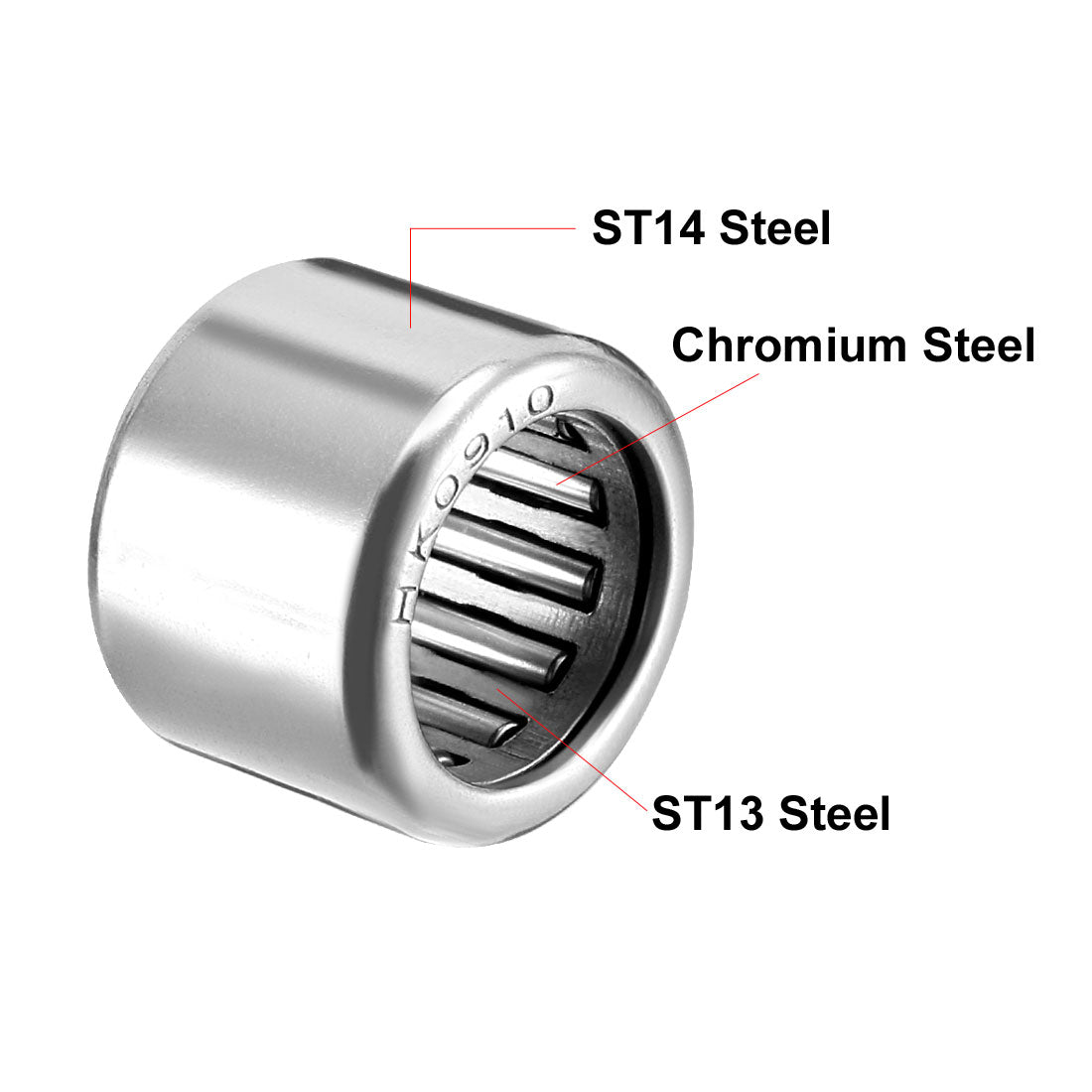

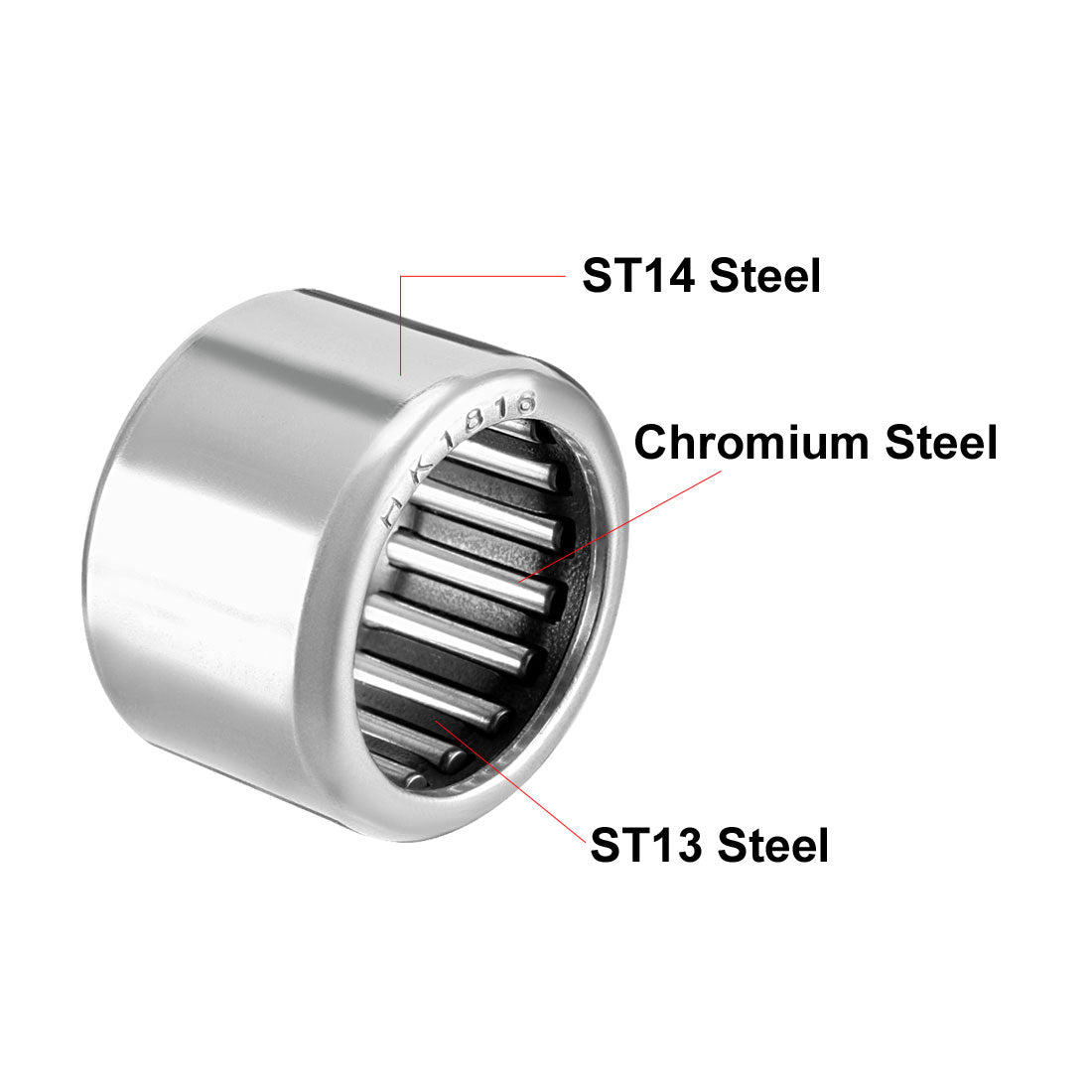

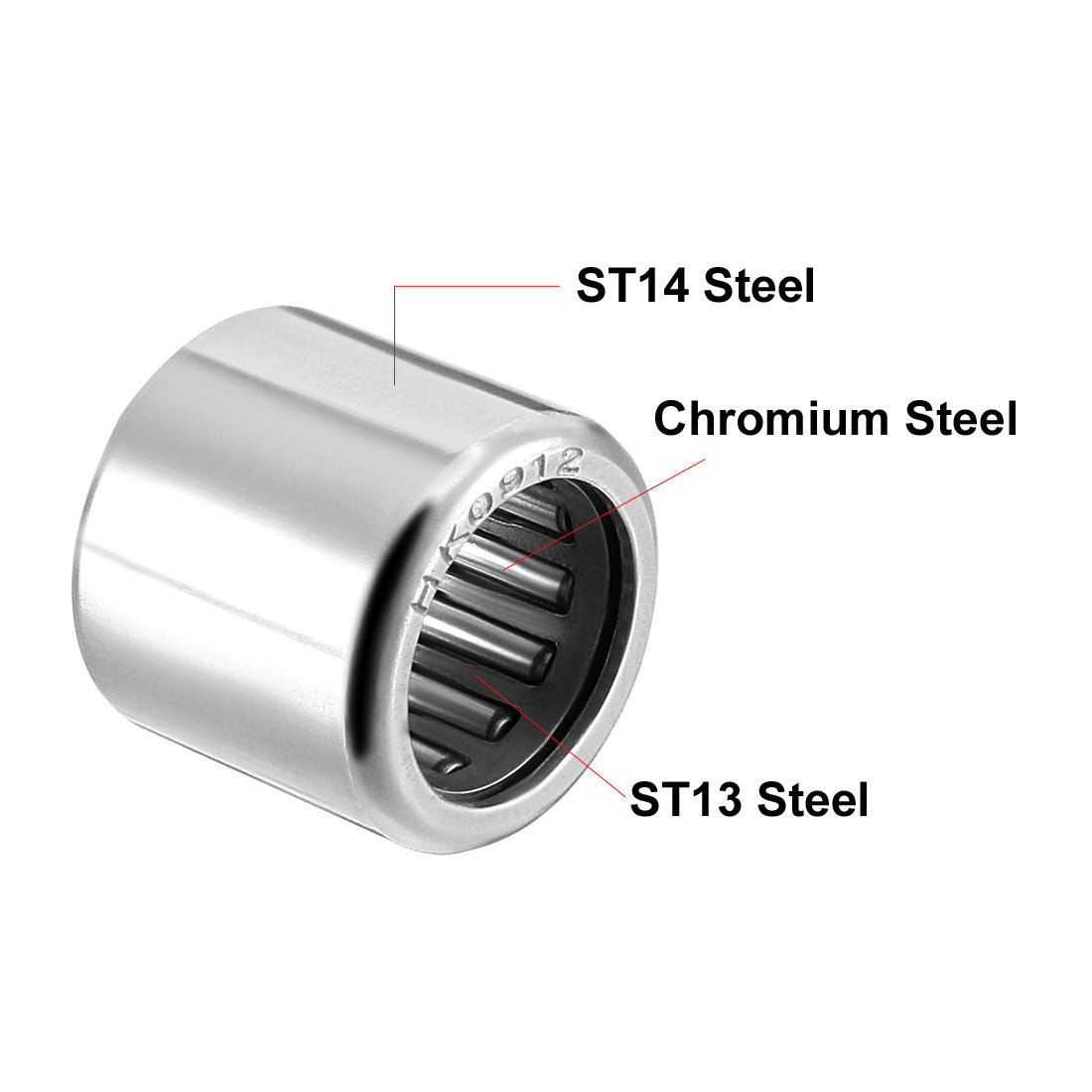

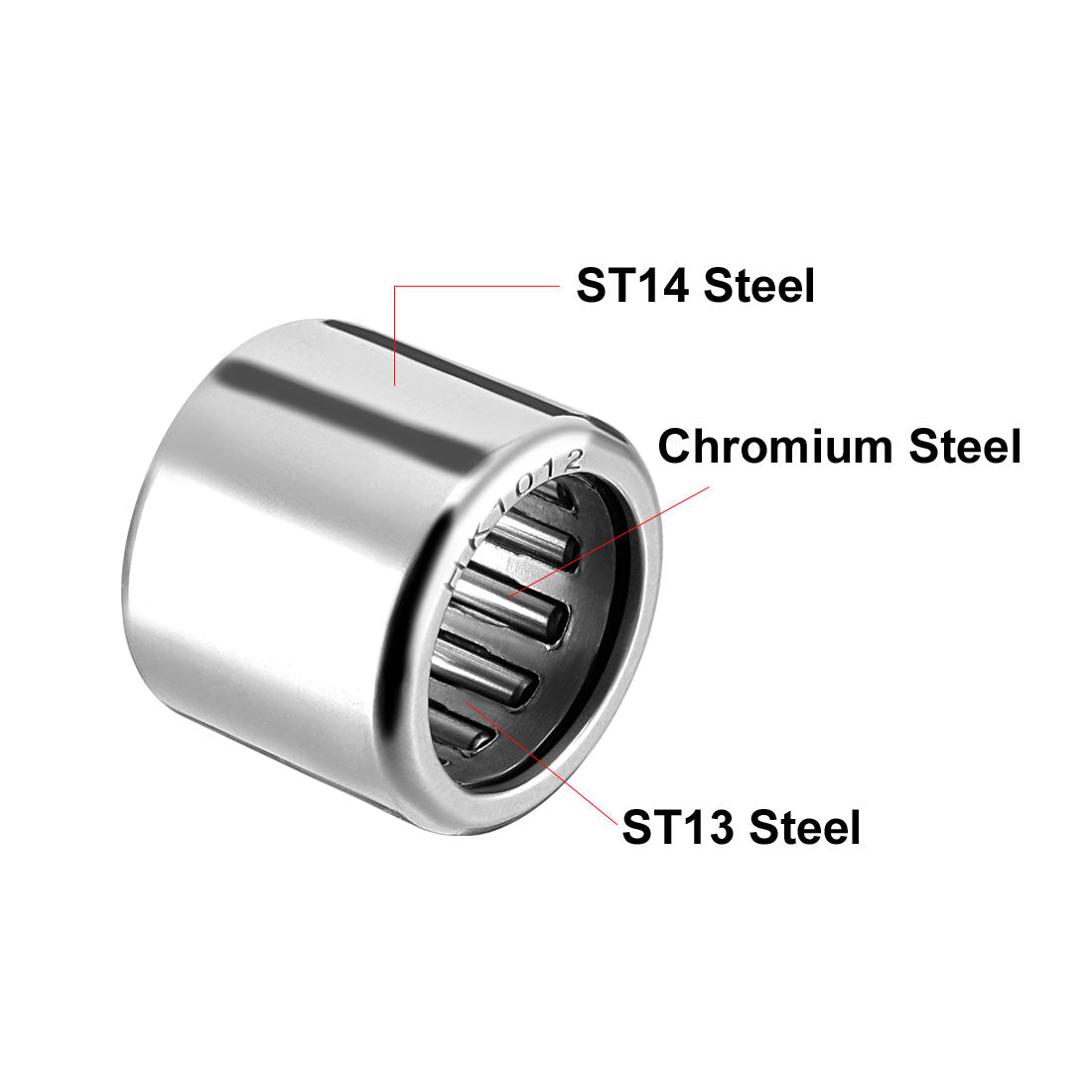

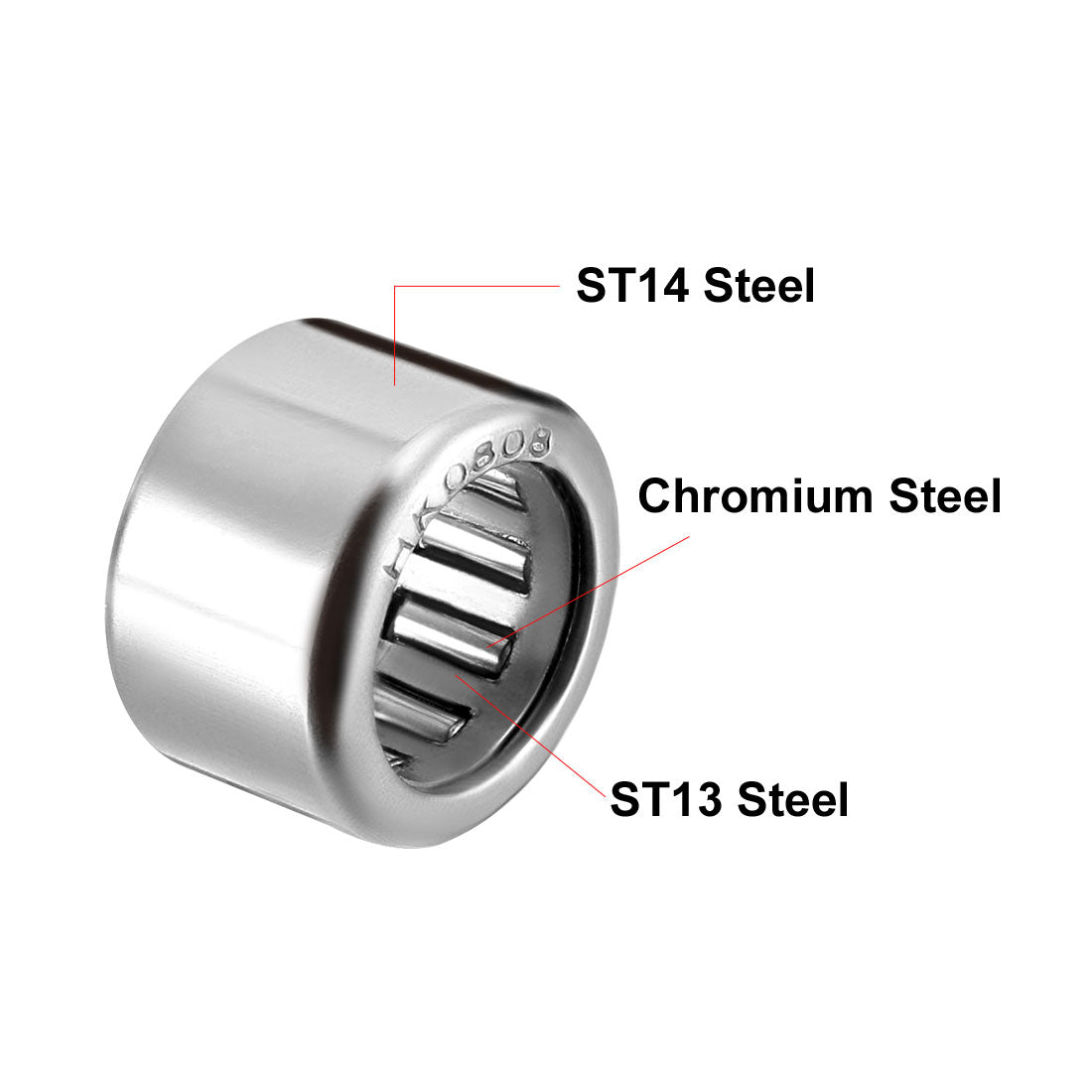

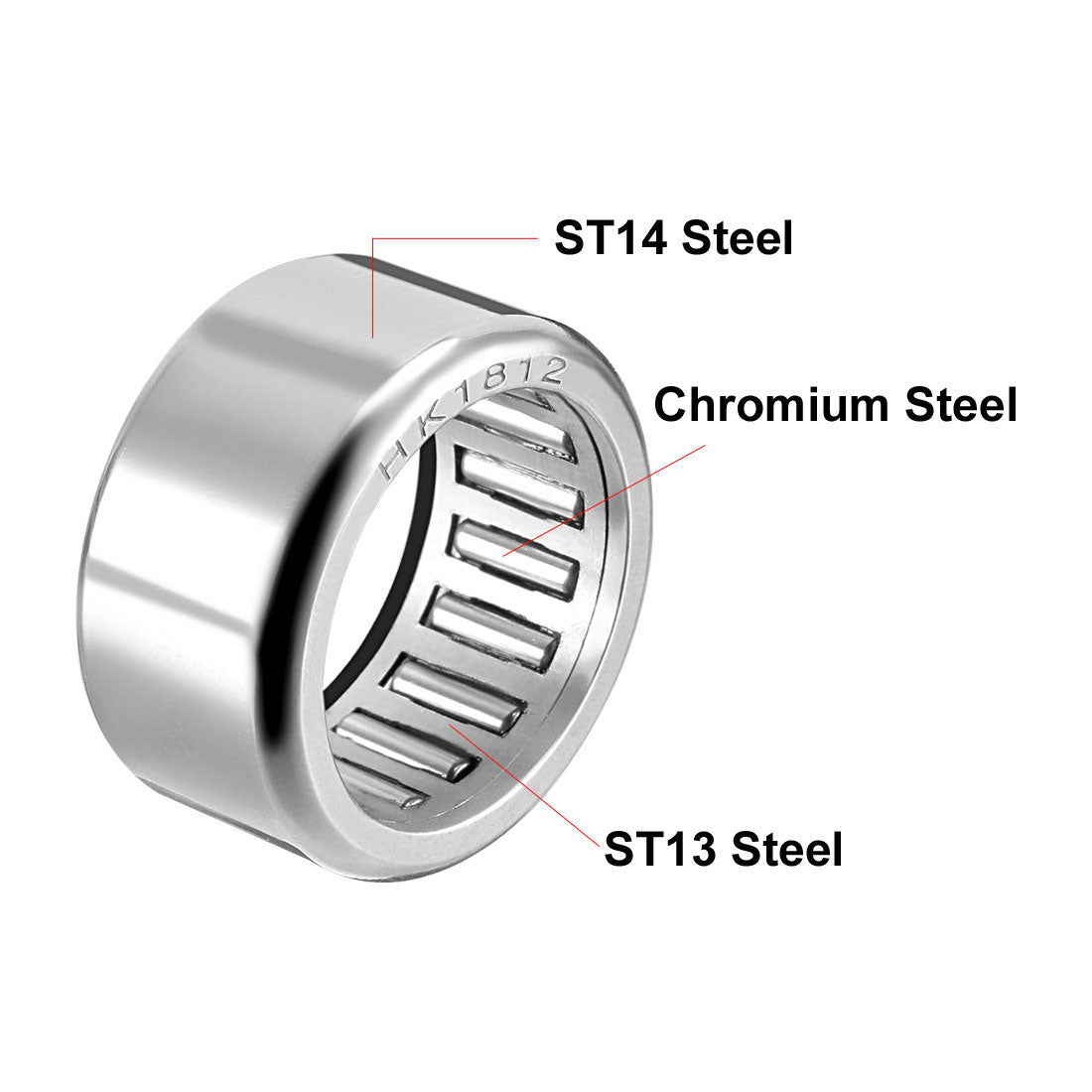

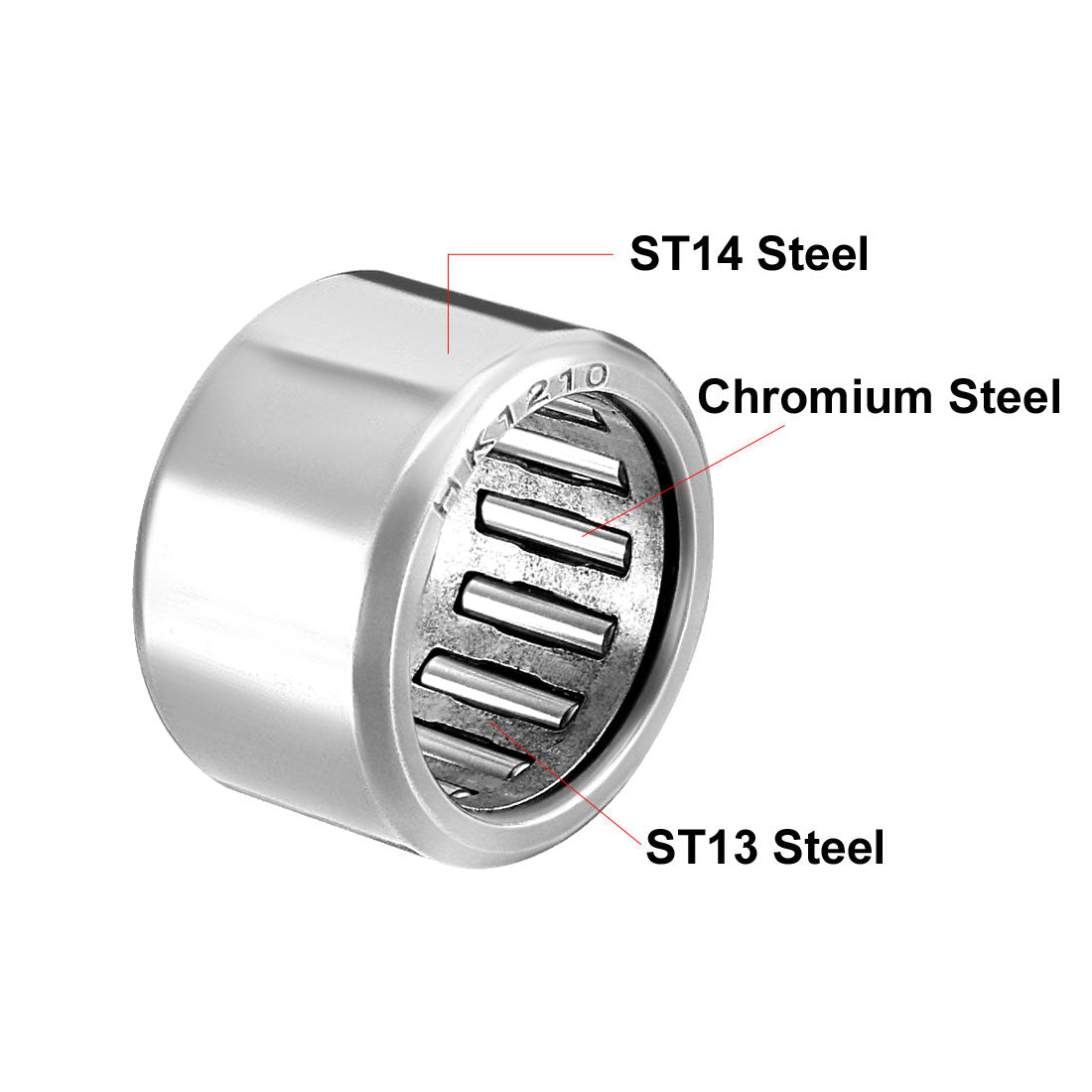

  • ST14 Steel Drawn Cup, ST13 Steel Cage, GCr15 Needle Roller
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
About this item
  • Model: HK1015 (Bore Dia. (Fw)= 10mm, Outer Dia. (D)a= 14mm, Width (C)= 15mm)
  • ST14 Steel Drawn Cup, ST13 Steel Cage, GCr15 Needle Roller
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
Specification

Specification

SKU
a18070500ux0431
Drawn cup meterial
ST14 Steel
Cage meterial
ST13 Steel
Needle roller meterial
Chromium Steel (GCr15)
Bore diameter (fw)
10mm
Outside diameter (d)
14mm
Static load capacity (cor)
7.8kN
Dynamic load capacity (cr)
6.7kN
Number of pack
1 Pcs
Brand
Uxcell
Pkg.Qty.
10
Model
HK1015
I.D.
10mm
O.D.
14mm
Width
15mm
Needle Roller Material
GCr15
Drawn Cup Material
ST14 Steel
Cage Material
ST13 Steel
Dynamic Load Rating(KN)
6.7
Static Load Rating(KN)
7.8
Limit Speed(RPM)
19000
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

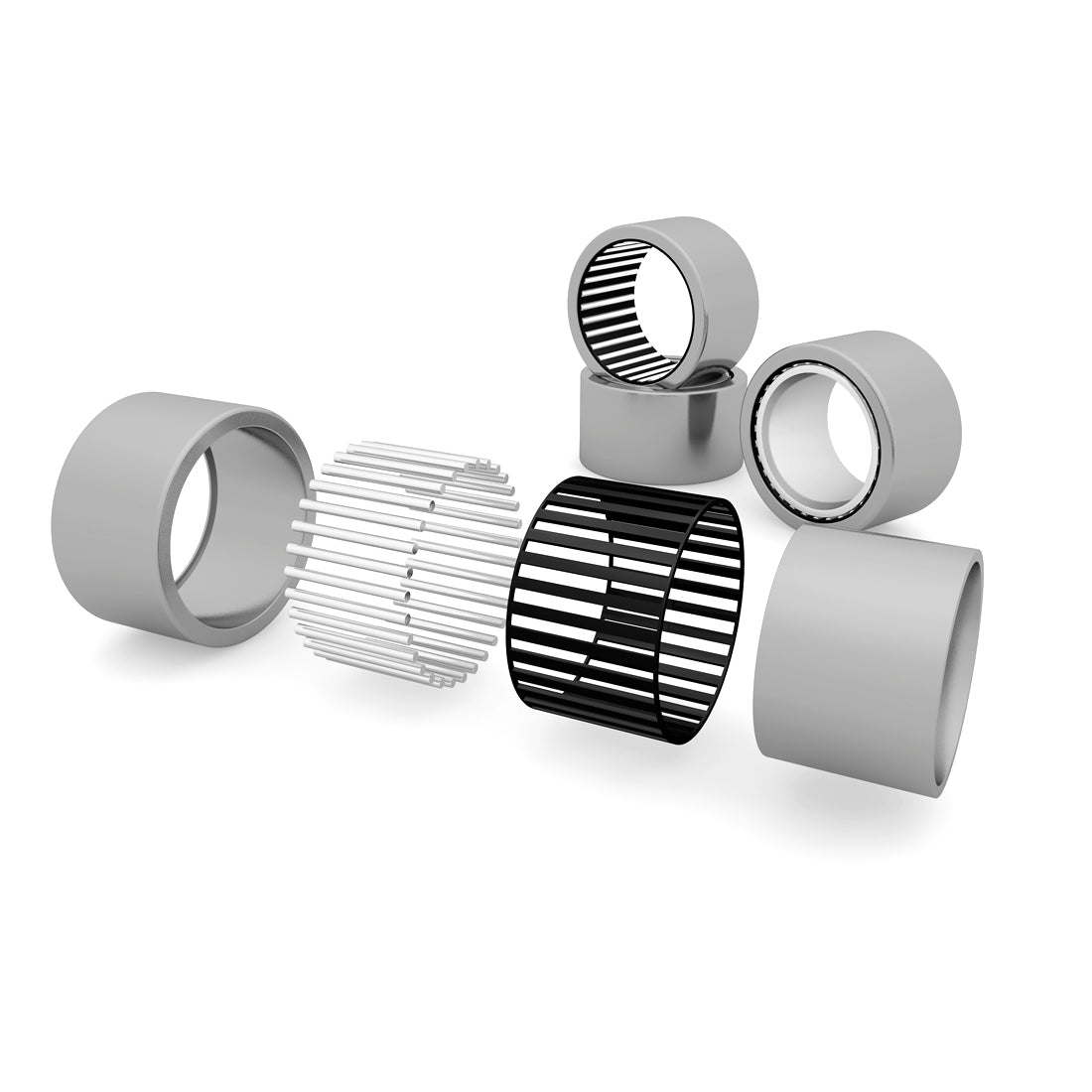

1.Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
2.These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
3.Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
4.For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
5.NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.


Specification:
Model: HK1015
Drawn Cup Meterial: ST14 Steel
Cage Meterial: ST13 Steel
Needle Roller Meterial: Chromium Steel (GCr15)
Bore Diameter (Fw): 10mm
Outside Diameter (D): 14mm
Width: 15mm
Static Load Capacity (Cor): 7.8kN
Dynamic Load Capacity (Cr): 6.7kN
Maximum Rotational Speed (Oil): 19000rpm
Number of Pack: 1 Pcs
$5.42 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model I.D. O.D. Width Needle Roller Material Drawn Cup Material Cage Material Dynamic Load Rating(KN) Static Load Rating(KN) Limit Speed(RPM) Pkg.Qty. ID Price Qty
HK1015 10mm 14mm 15mm GCr15 ST14 Steel ST13 Steel 6.7 7.8 19000 10 1005221 $5.42
Products Model I.D. O.D. Width Needle Roller Material Drawn Cup Material Cage Material Dynamic Load Rating(KN) Static Load Rating(KN) Limit Speed(RPM) Pkg.Qty. ID Price Qty
HK1015 10mm 14mm 15mm GCr15 ST14 Steel ST13 Steel 6.7 7.8 19000 10 1005221 $5.42

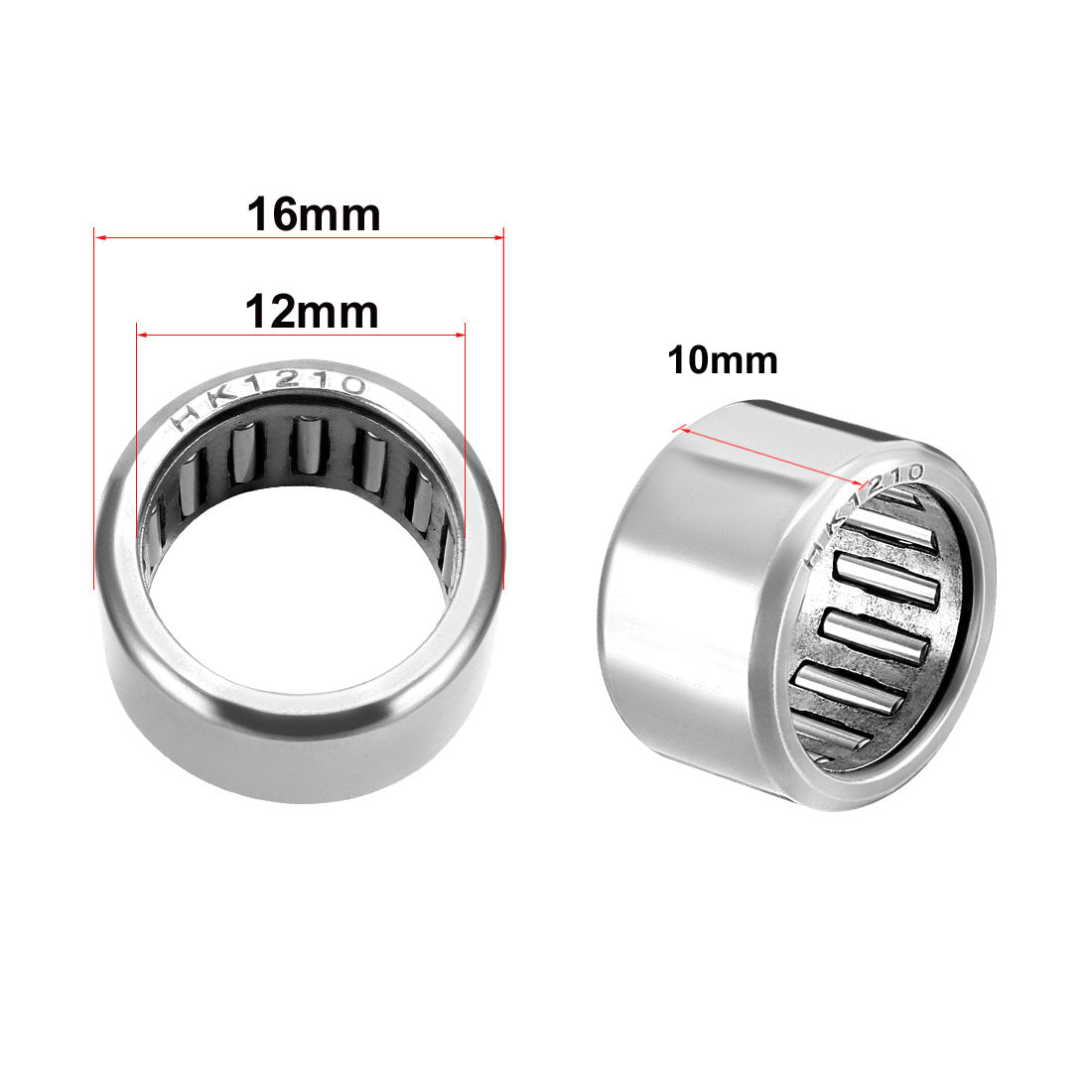

HK1210 12mm 16mm 10mm GCr15 ST14 Steel ST13 Steel 4.15 5.8 19000 1 1005226 $5.19
HK1210 12mm 16mm 10mm GCr15 ST14 Steel ST13 Steel 4.15 5.8 19000 10 1056344 $6.57

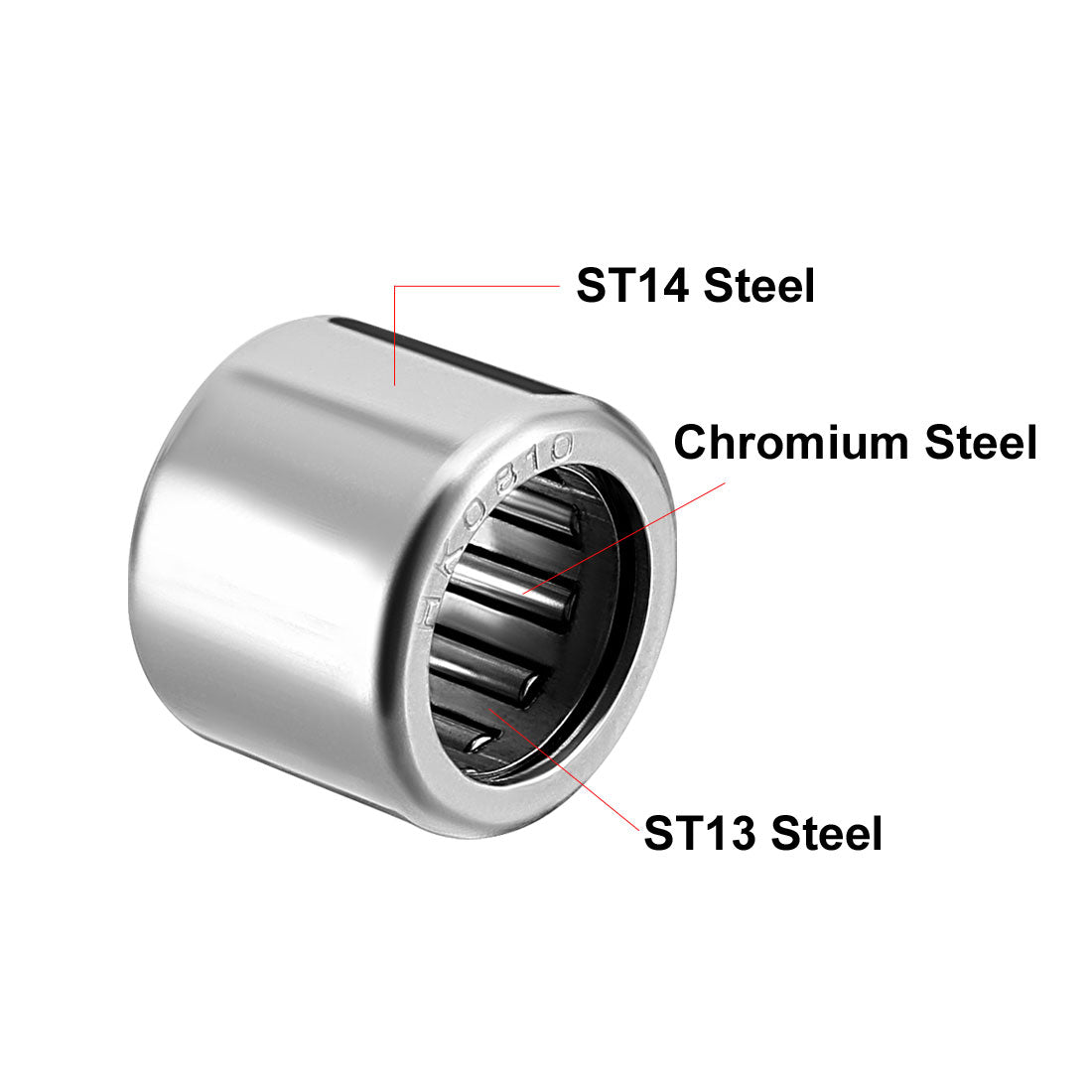

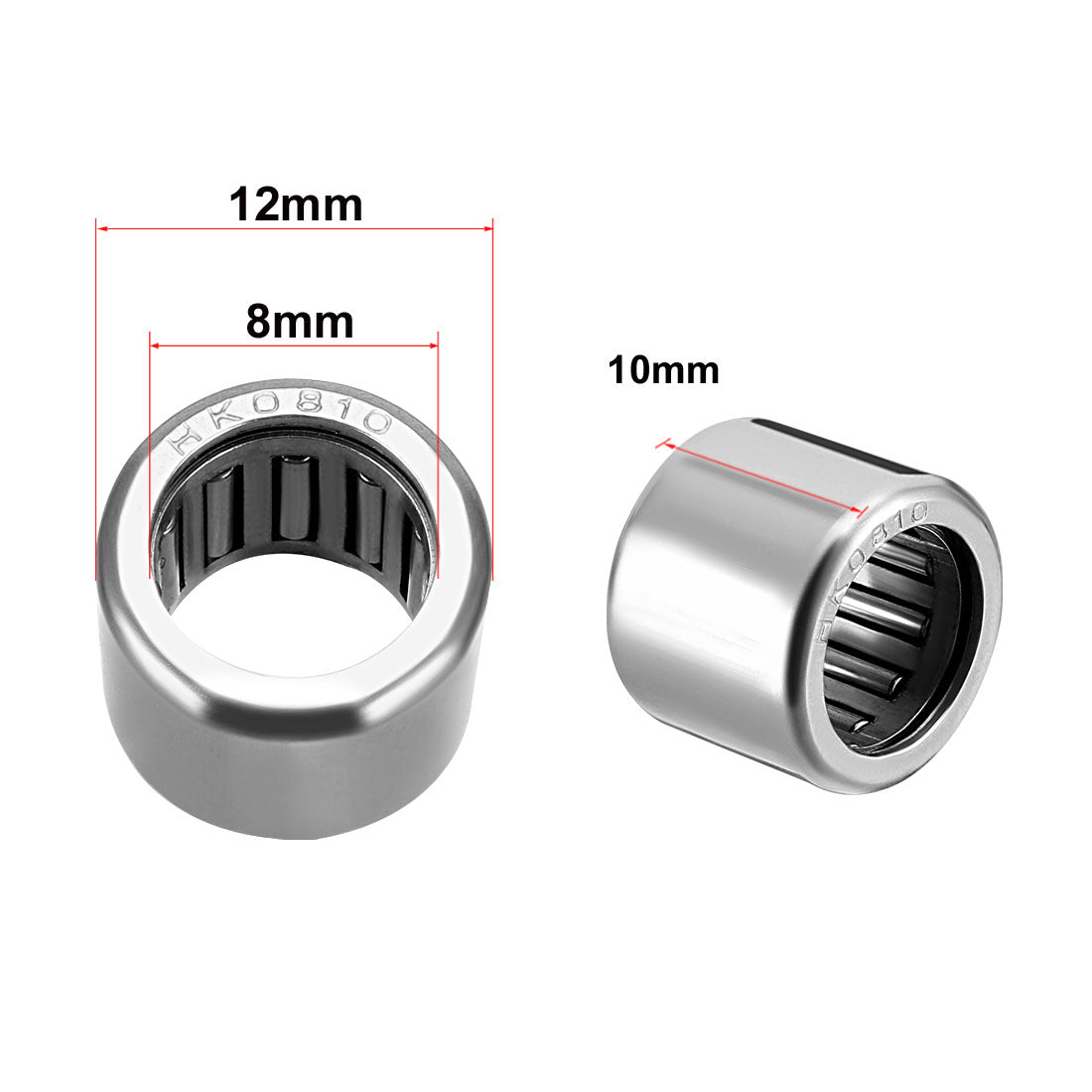

HK0810 8mm 12mm 10mm GCr15 ST14 Steel ST13 Steel 3.45 3.7 21000 10 1056337 $6.47
HK0810 8mm 12mm 10mm GCr15 ST14 Steel ST13 Steel 3.45 3.7 21000 5 1235841 $5.40

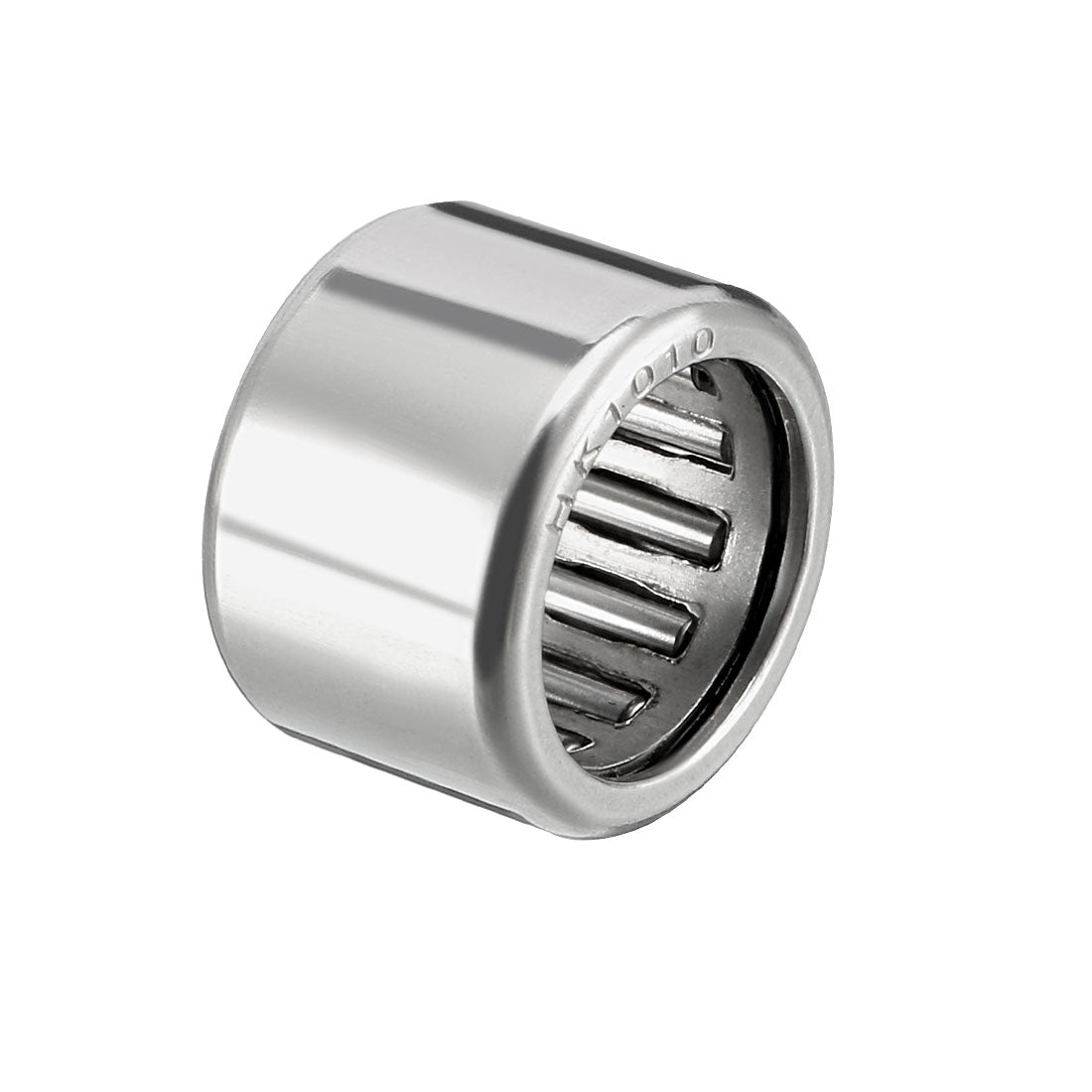

HK1010 10mm 14mm 10mm GCr15 ST14 Steel ST13 Steel 3.9 4.8 19000 1 1056341 $6.38
HK1010 10mm 14mm 10mm GCr15 ST14 Steel ST13 Steel 3.9 4.8 19000 1 1034353 $7.68
HK1010 10mm 14mm 10mm GCr15 ST14 Steel ST13 Steel 3.9 4.8 19000 5 1242487 $5.42

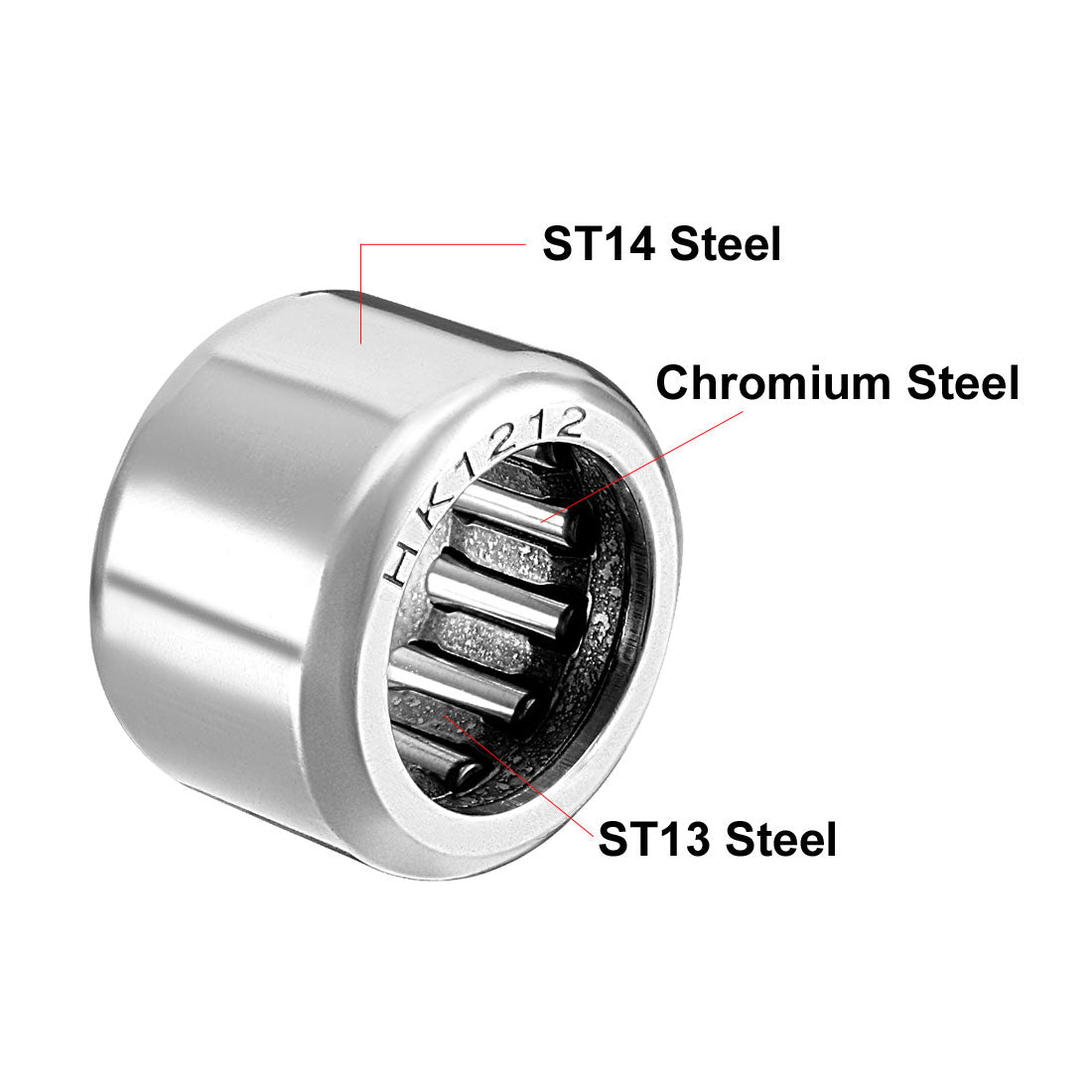

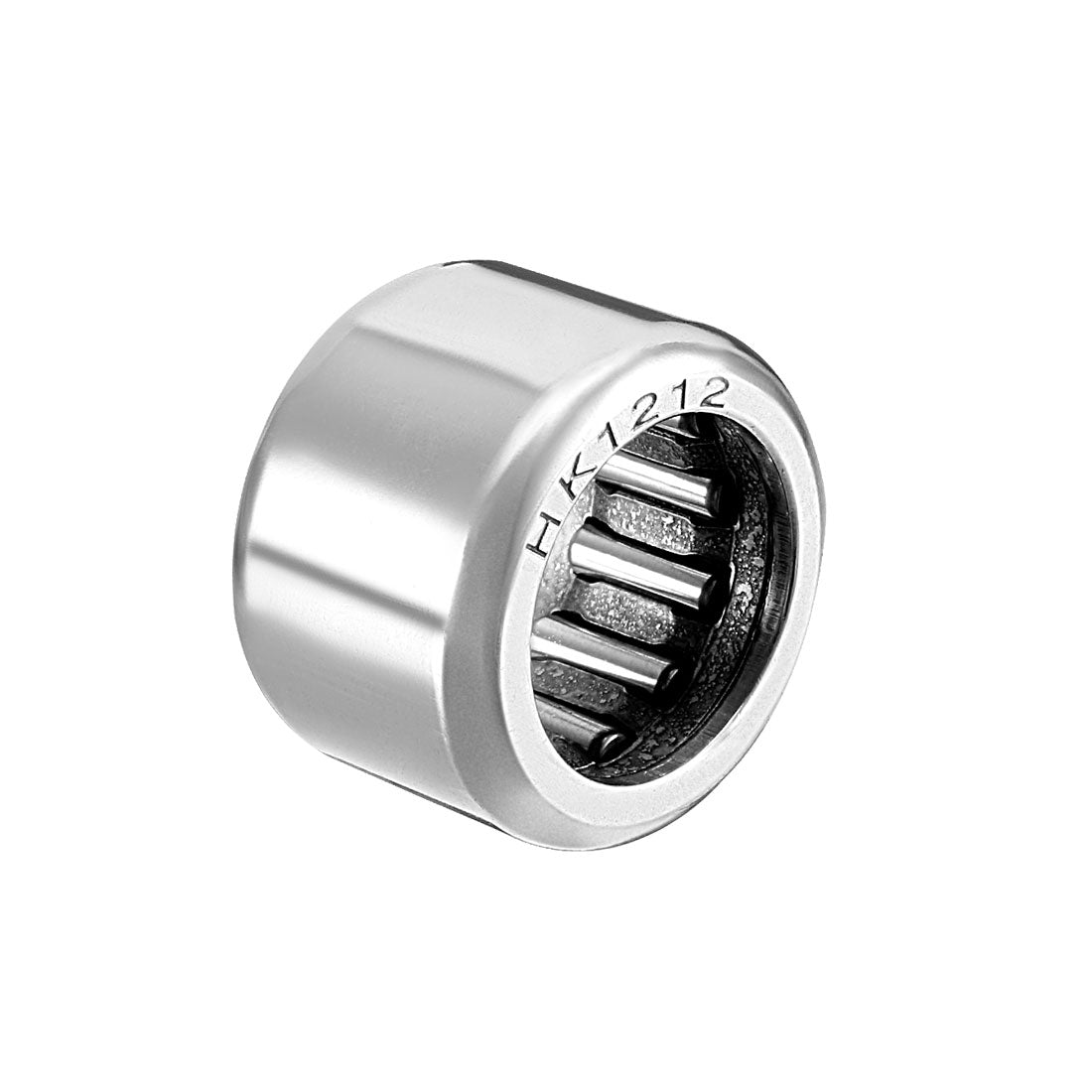

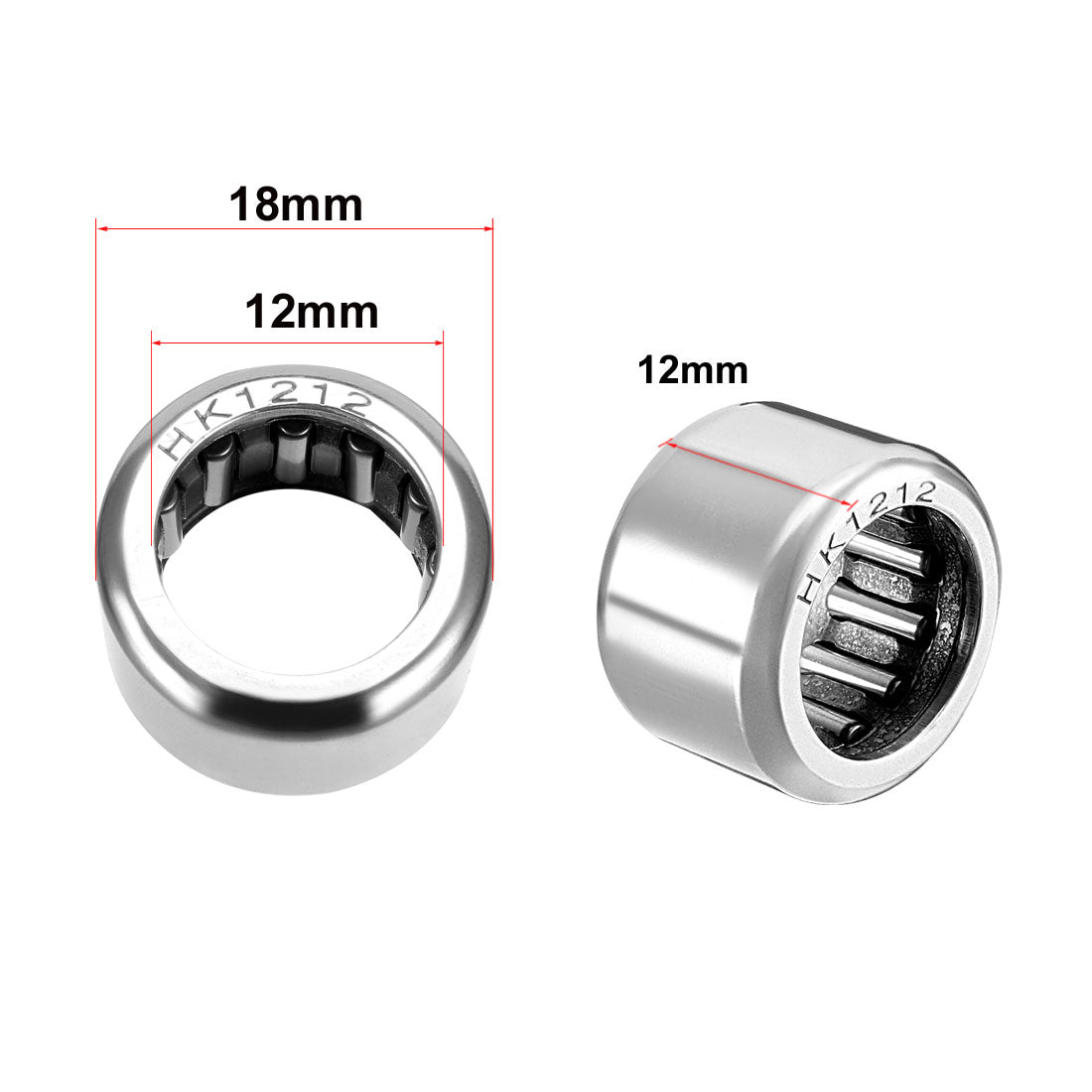

HK1212 12mm 18mm 12mm GCr15 ST14 Steel ST13 Steel 3.8 5.1 15000 1 1242488 $5.13

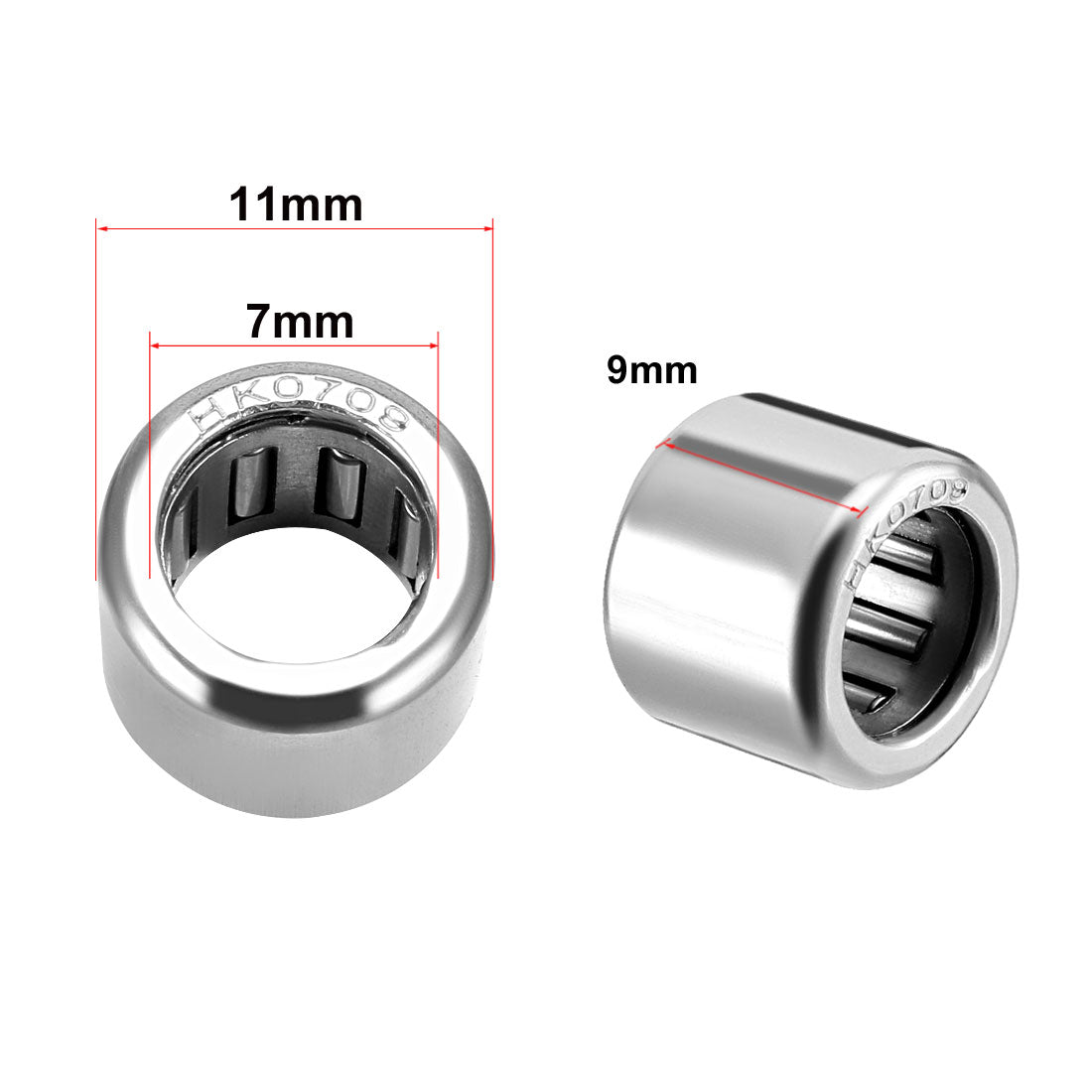

HK0709 7mm 11mm 9mm GCr15 ST14 Steel ST13 Steel 2.8 2.15 27000 5 1056335 $5.40
HK0709 7mm 11mm 9mm GCr15 ST14 Steel ST13 Steel 2.8 2.15 27000 1 1242352 $5.35
HK0709 7mm 11mm 9mm GCr15 ST14 Steel ST13 Steel 2.8 2.15 27000 1 1242126 $7.67
HK0709 7mm 11mm 9mm GCr15 ST14 Steel ST13 Steel 2.8 2.15 27000 10 1056336 $6.38

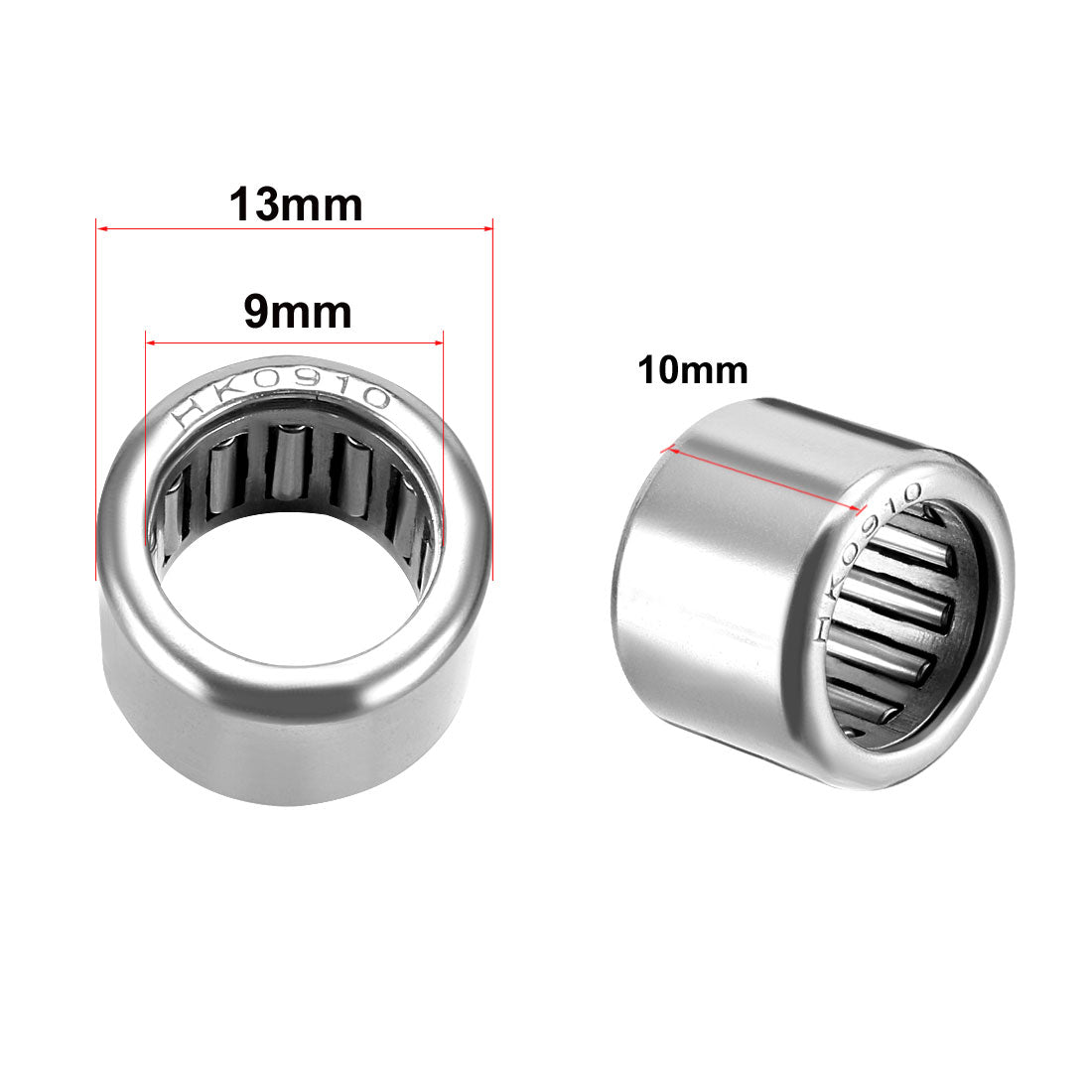

HK0910 9mm 13mm 10mm GCr15 ST14 Steel ST13 Steel 4.25 4.05 25000 1 1056339 $6.47
HK0910 9mm 13mm 10mm GCr15 ST14 Steel ST13 Steel 4.25 4.05 25000 1 1016200 $8.04
HK0608 6mm 10mm 8mm GCr15 ST14 Steel ST13 Steel 1.83 1.55 32000 1 1016202 $7.50
HK0608 6mm 10mm 8mm GCr15 ST14 Steel ST13 Steel 1.83 1.55 32000 1 1056332 $6.08

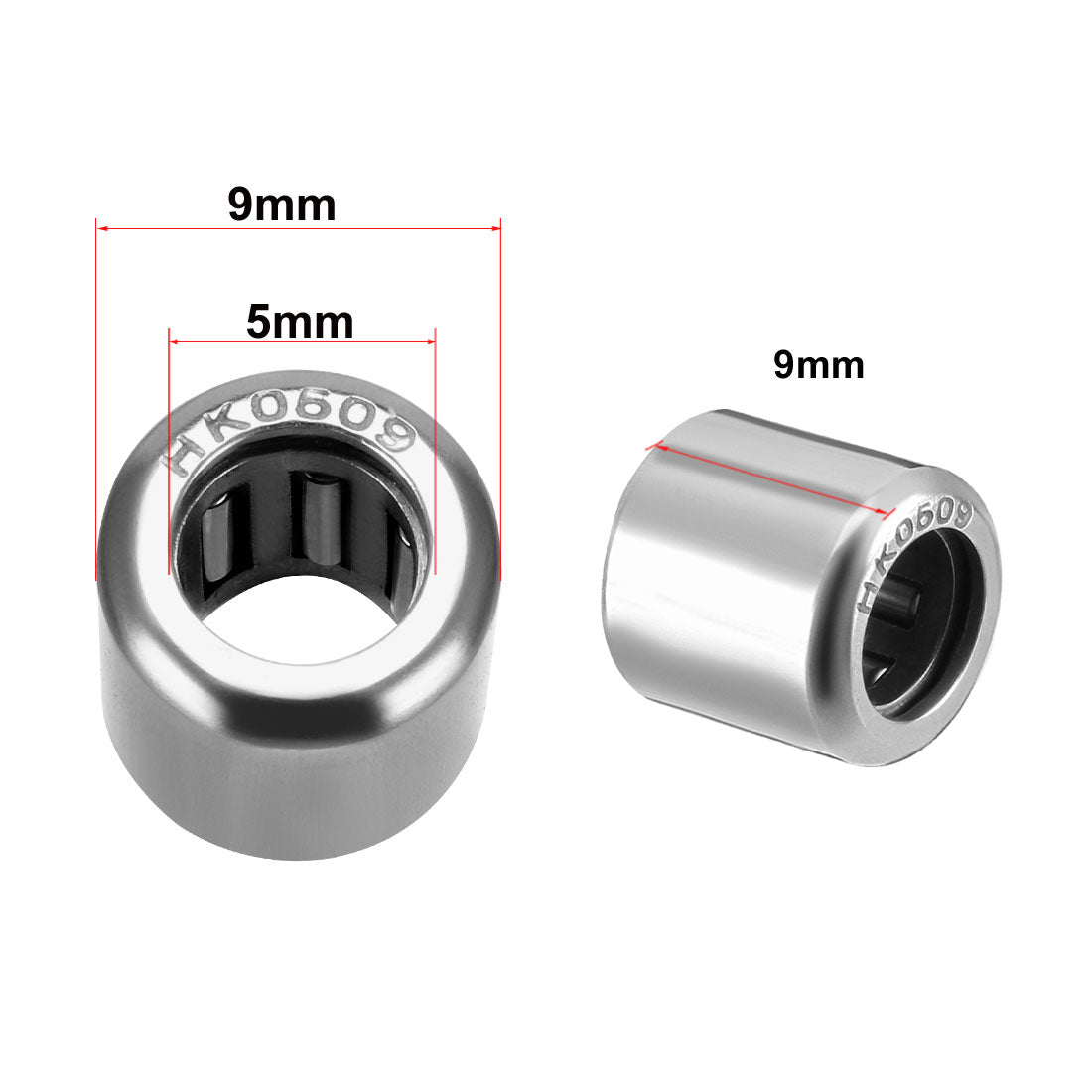

HK0509 5mm 9mm 9mm GCr15 ST14 Steel ST13 Steel 2.2 1.79 36000 5 1005219 $7.50
HK0509 5mm 9mm 9mm GCr15 ST14 Steel ST13 Steel 2.2 1.79 36000 1 1241793 $5.34
HK0408 4mm 8mm 8mm GCr15 ST14 Steel ST13 Steel 1.54 1.07 40000 5 1016198 $7.32

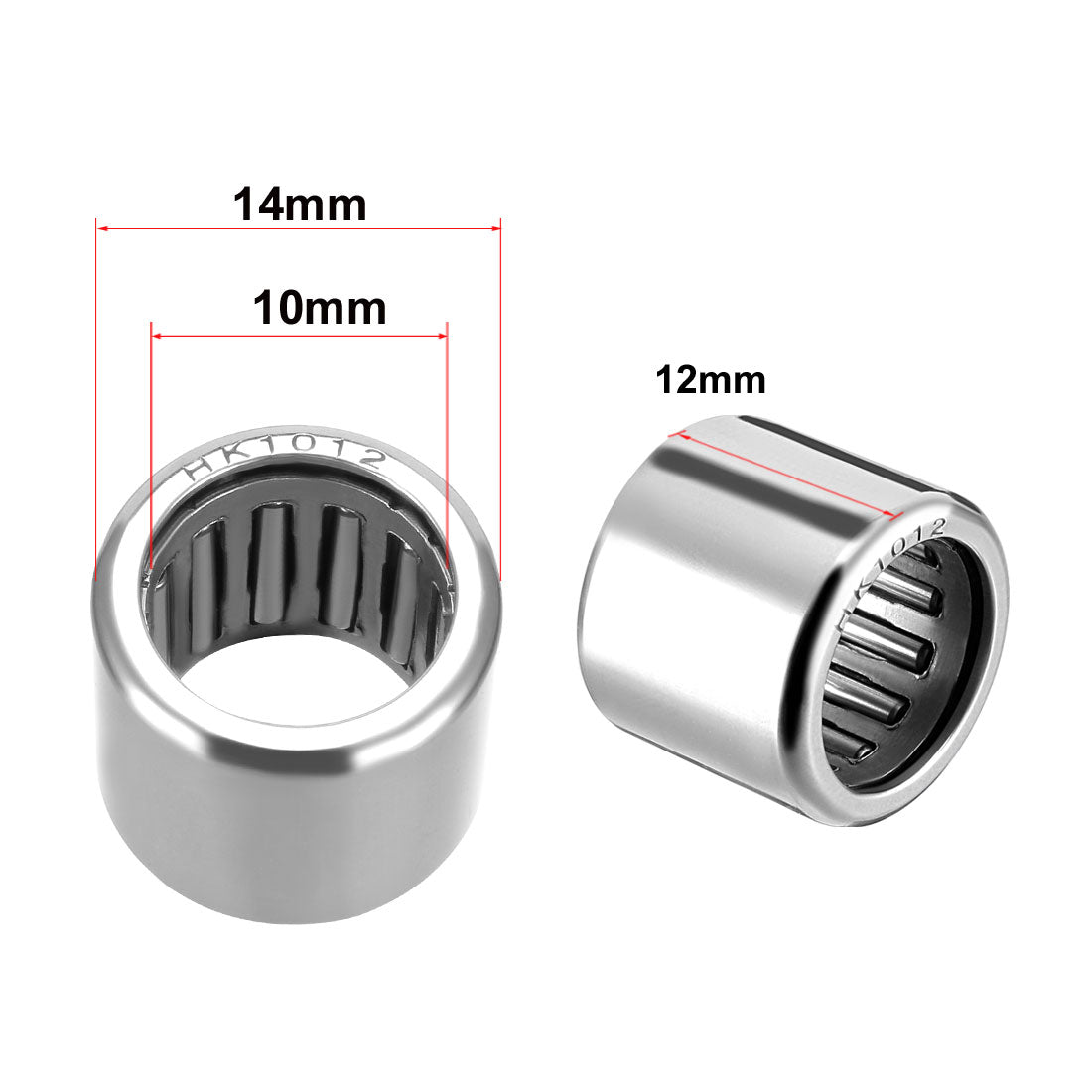

HK1012 10mm 14mm 12mm GCr15 ST14 Steel ST13 Steel 5 6.3 19000 1 1056342 $6.57
HK1012 10mm 14mm 12mm GCr15 ST14 Steel ST13 Steel 5 6.3 19000 5 1242898 $4.83

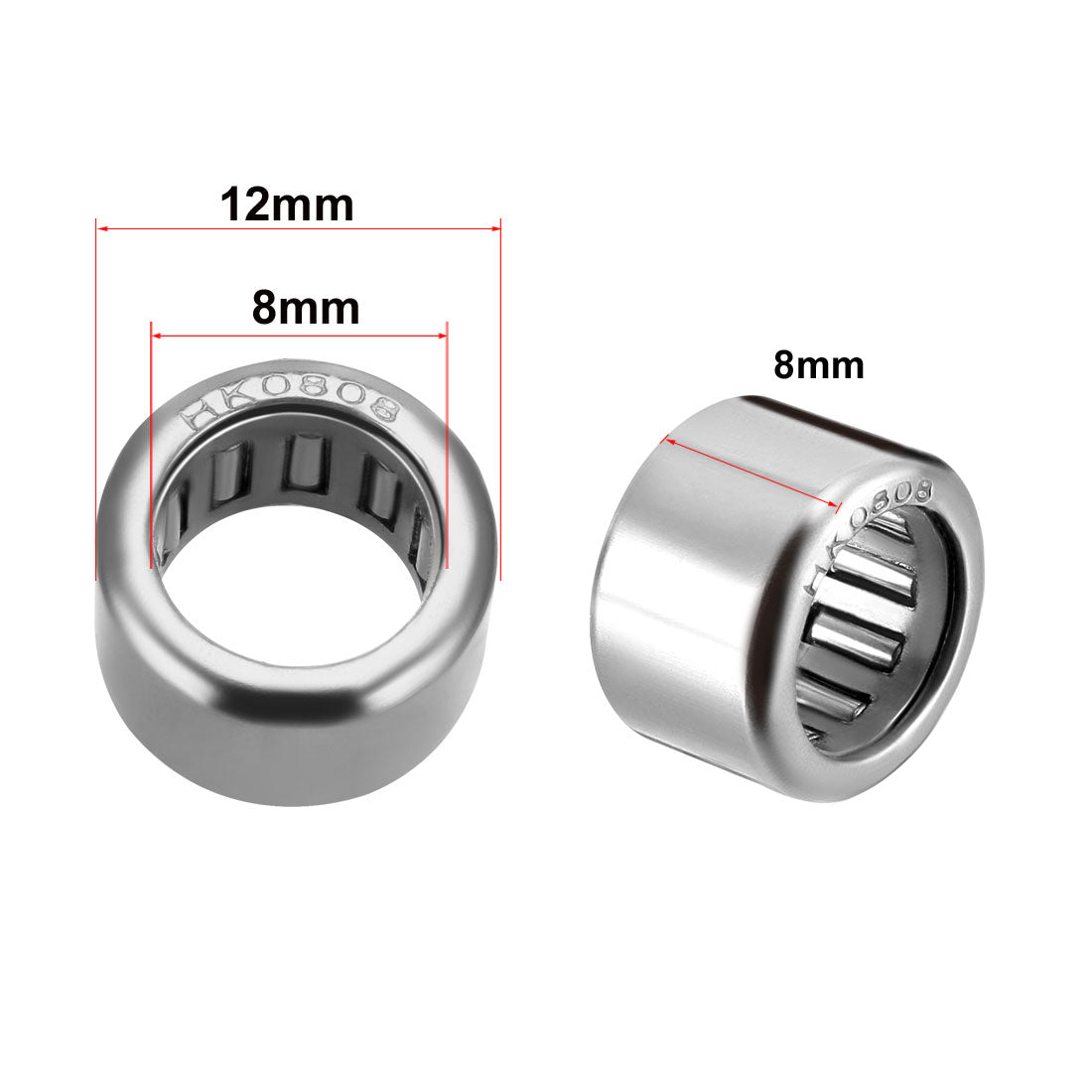

HK0808 8mm 12mm 8mm GCr15 ST14 Steel ST13 Steel 2.55 2.4 21000 1 1241163 $5.42

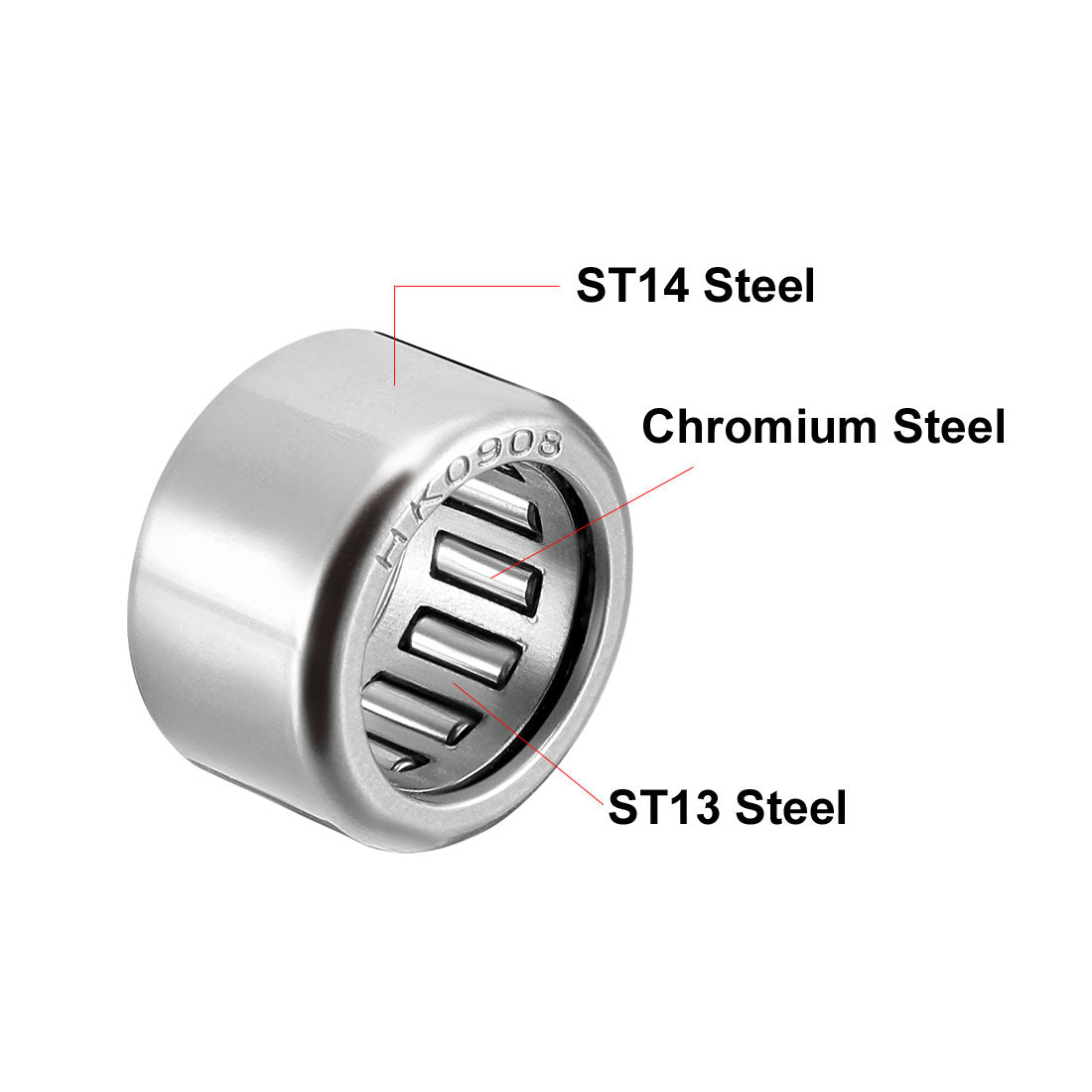

HK0908 9mm 13mm 8mm GCr15 ST14 Steel ST13 Steel 3.65 4.05 25000 10 1056338 $6.47

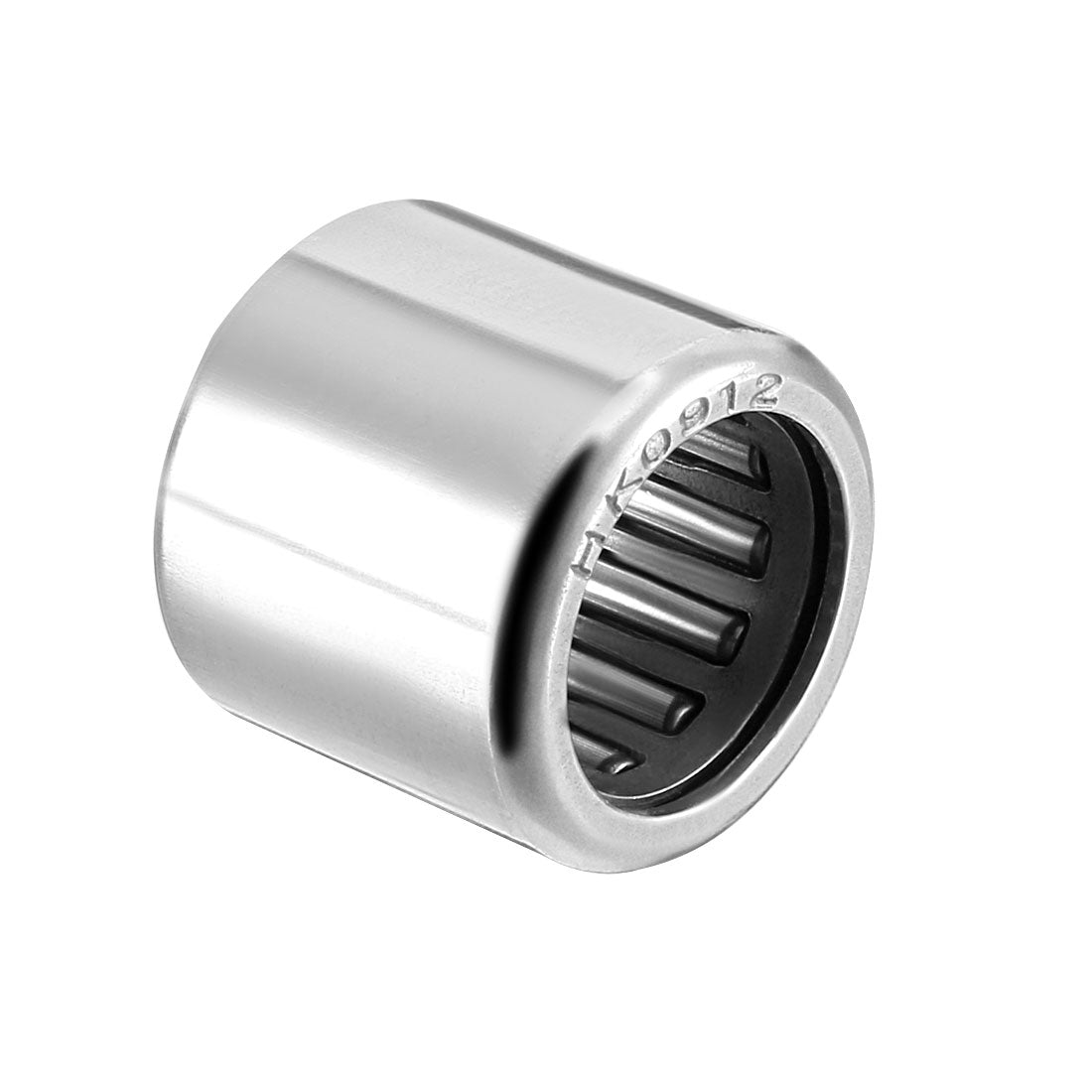

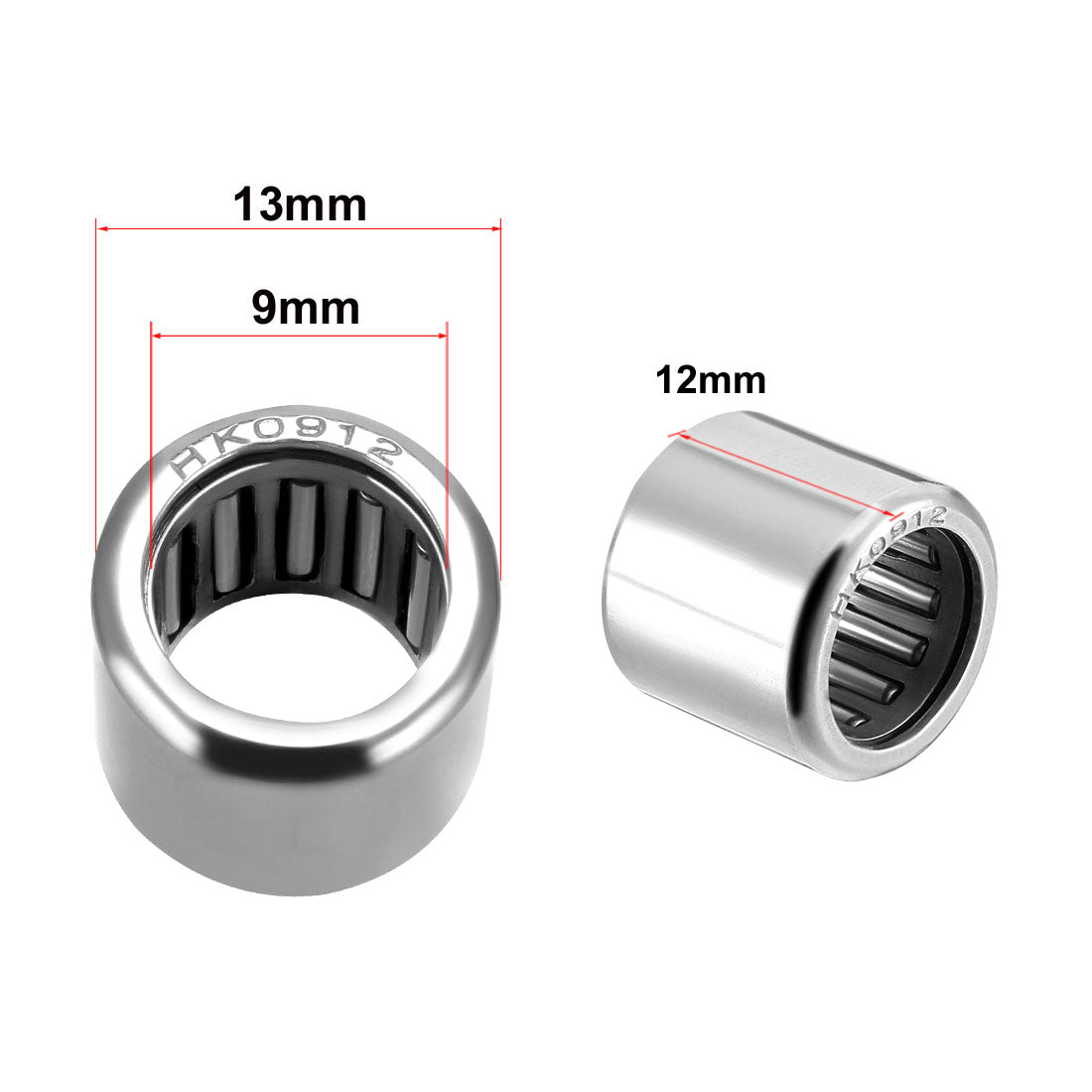

HK0912 9mm 13mm 12mm GCr15 ST14 Steel ST13 Steel 5 6 25000 1 1056340 $6.57
HK0912 9mm 13mm 12mm GCr15 ST14 Steel ST13 Steel 5 6 25000 1 1241794 $5.38
HK0912 9mm 13mm 12mm GCr15 ST14 Steel ST13 Steel 5 6 25000 1 1242128 $7.85
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

1.Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
2.These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
3.Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
4.For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
5.NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.


Specification:
Model: HK1015
Drawn Cup Meterial: ST14 Steel
Cage Meterial: ST13 Steel
Needle Roller Meterial: Chromium Steel (GCr15)
Bore Diameter (Fw): 10mm
Outside Diameter (D): 14mm
Width: 15mm
Static Load Capacity (Cor): 7.8kN
Dynamic Load Capacity (Cr): 6.7kN
Maximum Rotational Speed (Oil): 19000rpm
Number of Pack: 1 Pcs
