Harfington Uxcell Needle Roller Bearings Open End Full Complement Drawn Cup Inch

Uxcell Needle Roller Bearings Open End Full Complement Drawn Cup Inch

ID:1059978
ID:1059978
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
2pcs
Package Content
1/2x11/16x1/2"
Size
About this item

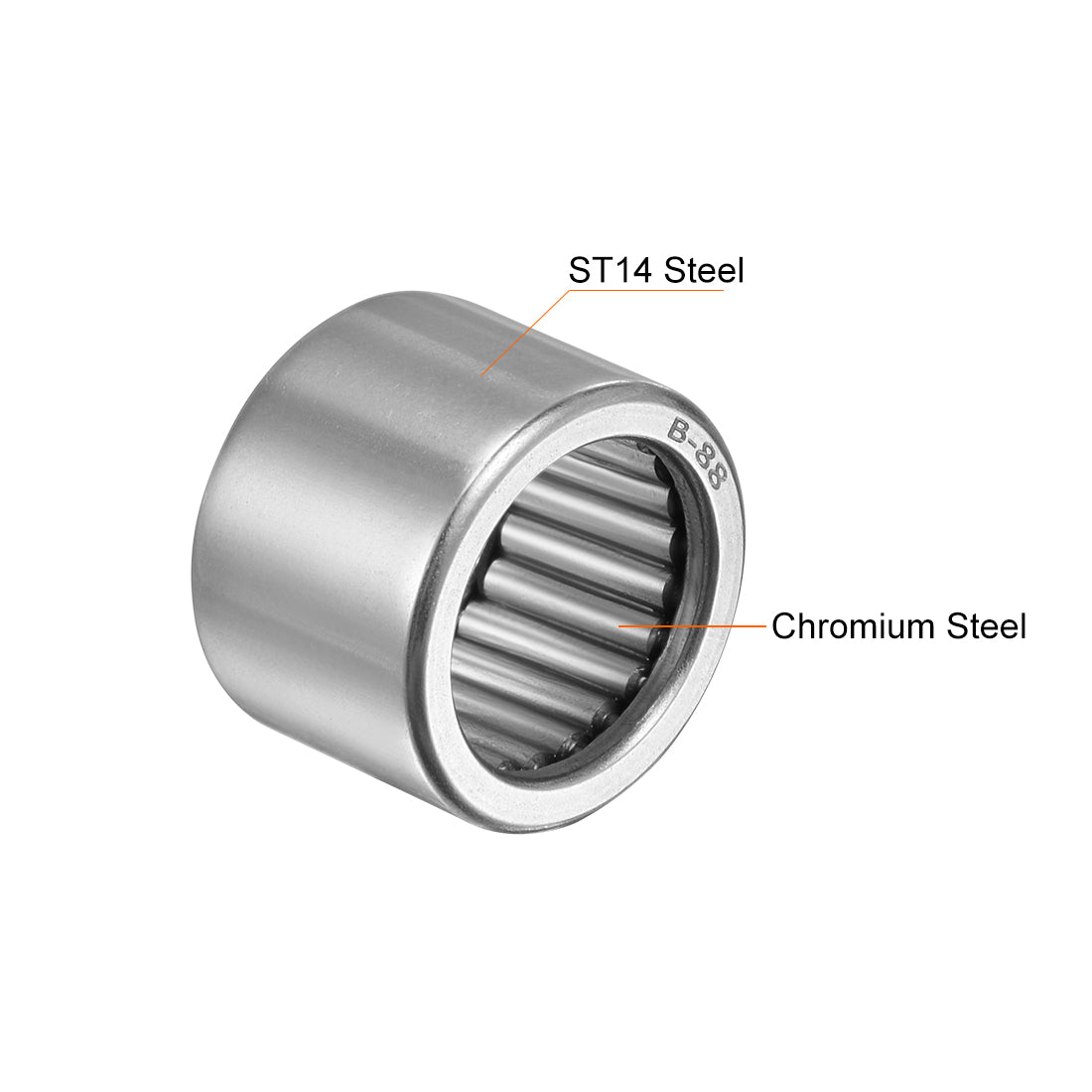

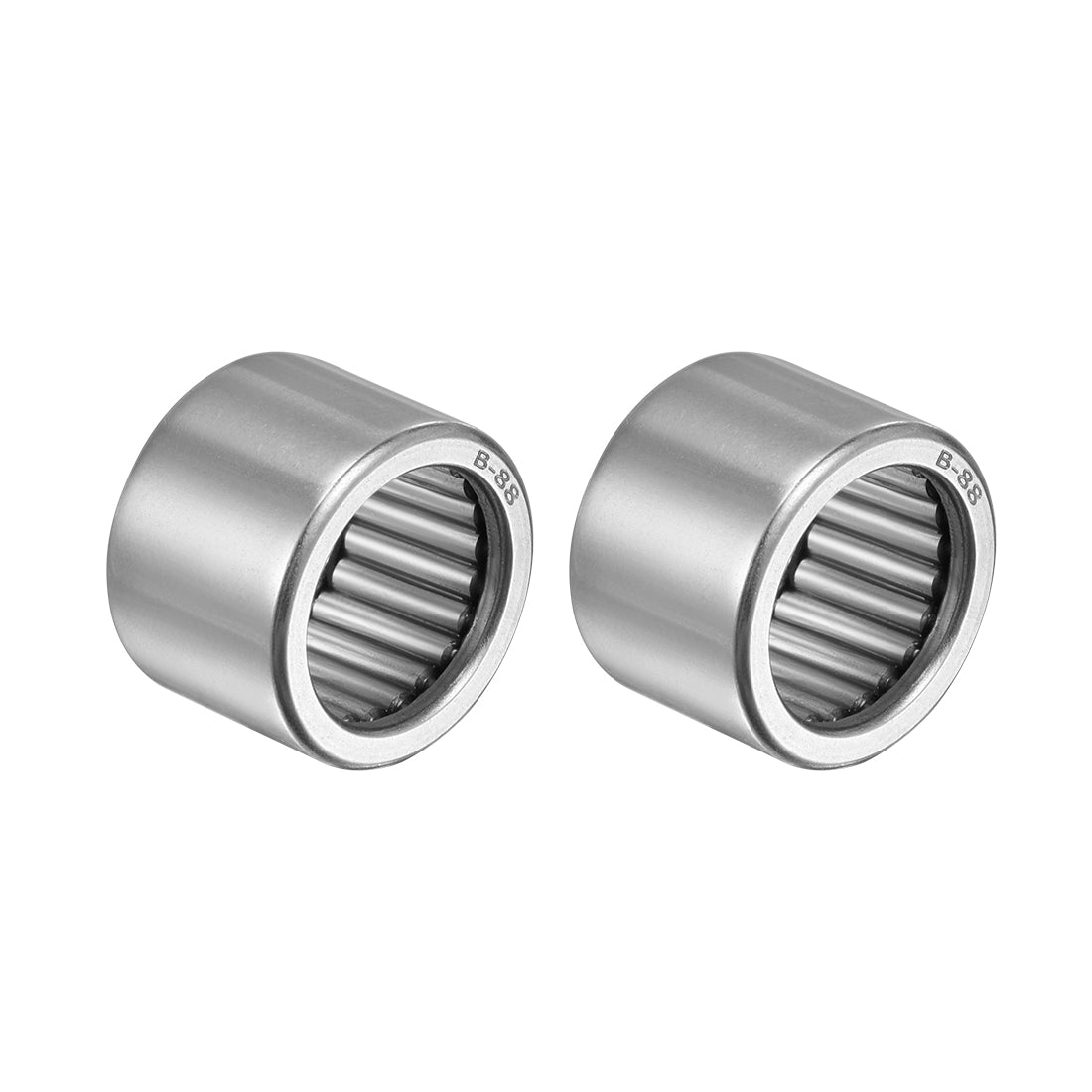

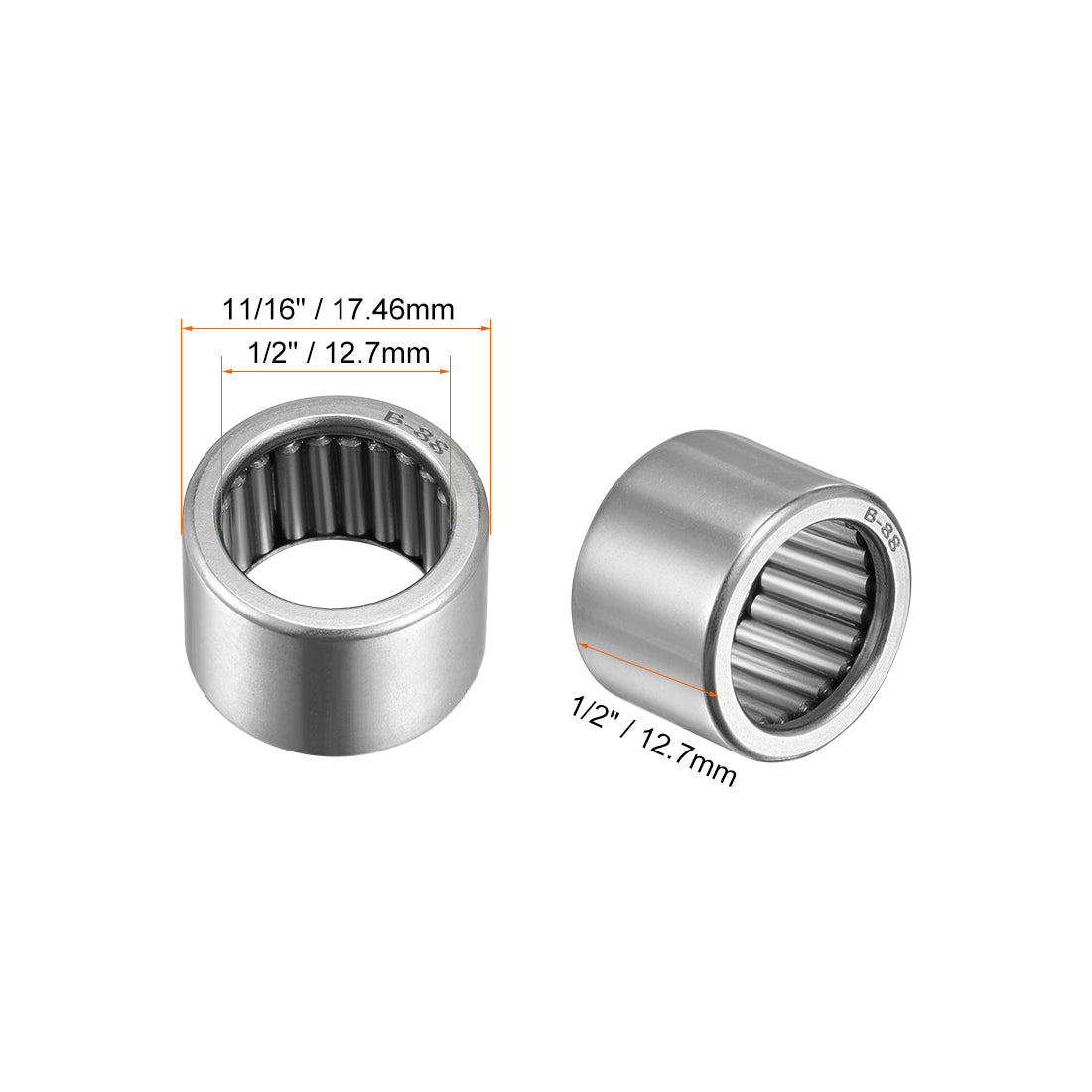

  • Model: B88 (I.D. (Fw)=1/2", O.D. (D)=11/16", Width (C)=1/2")
  • ST14 steel drawn cup, GCr15 needle rollers full complement bearing
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
About this item
  • Model: B88 (I.D. (Fw)=1/2", O.D. (D)=11/16", Width (C)=1/2")
  • ST14 steel drawn cup, GCr15 needle rollers full complement bearing
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
Specification

Specification

SKU
a19043000ux0083
Accuracy
P0
Bore diameter (fw)
1/2" / 12.7mm
Outside diameter (d)
11/16" / 17.46mm
Limiting speed
5500Rpm
Number of pack
2 Pcs
Dynamic Load Rating
2130N
Static Load Rating
3460N
Brand
Uxcell
Pkg.Qty.
2
Model
B88
I.D.
1/2"
O.D.
11/16"
Width
1/2"
Needle Roller Material
GCr15
Drawn Cup Material
ST14 Steel
Accuracy Class
ABEC-1
Dynamic Load Rating(KN)
2.13
Static Load Rating(KN)
3.46
Limit Speed(RPM)
5500
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Model: B88

Drawn Cup Material: ST14 Steel

Needle Roller Material: Chromium Steel (GCr15)

Accuracy: P0

Bore Diameter (Fw): 1/2" / 12.7mm

Outside Diameter (D): 11/16" / 17.46mm

Width: 1/2" / 12.7mm

Dynamic Load Rating: 2130N

Static Load Rating: 3460N

Limiting Speed: 5500Rpm

Number of Pack: 2 Pcs

Description:

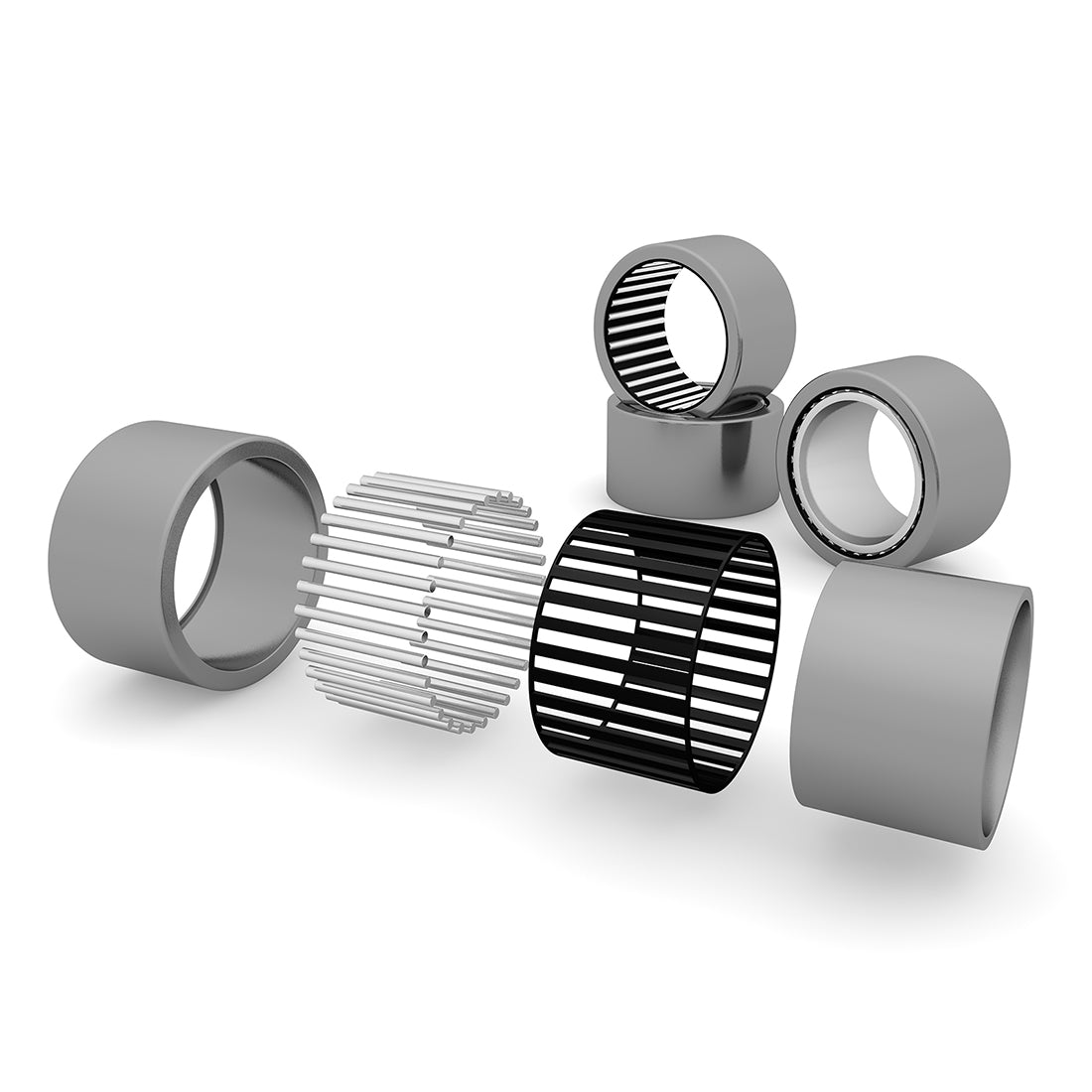

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.

-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.

-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.

$7.70 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model I.D. O.D. Width Needle Roller Material Dynamic Load Rating(KN) Static Load Rating(KN) Limit Speed(RPM) Drawn Cup Material Accuracy Class Pkg.Qty. ID Price Qty
B88 1/2" 11/16" 1/2" GCr15 2.13 3.46 5500 ST14 Steel ABEC-1 2 1059978 $7.70
Products Model I.D. O.D. Width Needle Roller Material Dynamic Load Rating(KN) Static Load Rating(KN) Limit Speed(RPM) Drawn Cup Material Accuracy Class Pkg.Qty. ID Price Qty
B88 1/2" 11/16" 1/2" GCr15 2.13 3.46 5500 ST14 Steel ABEC-1 2 1059978 $7.70

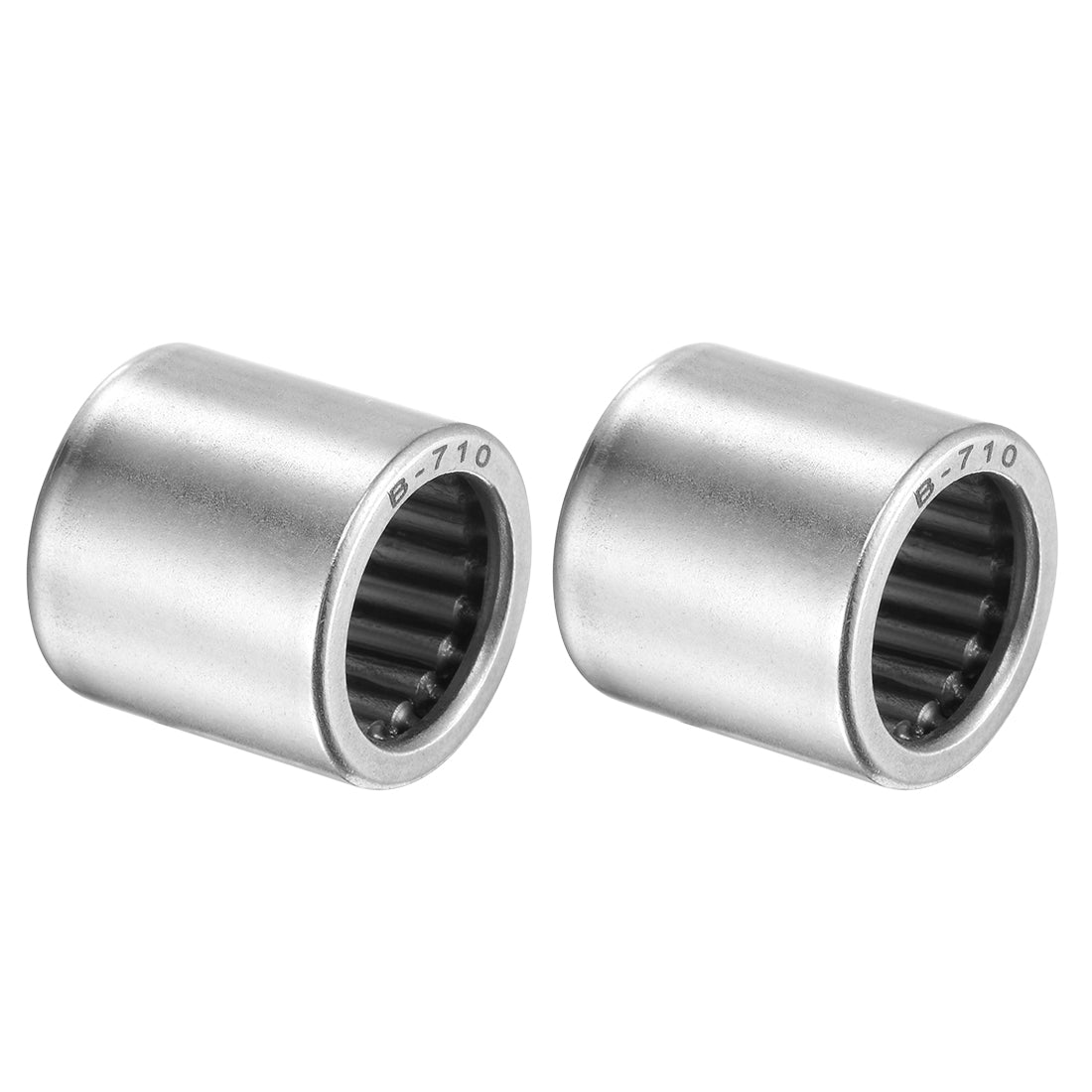

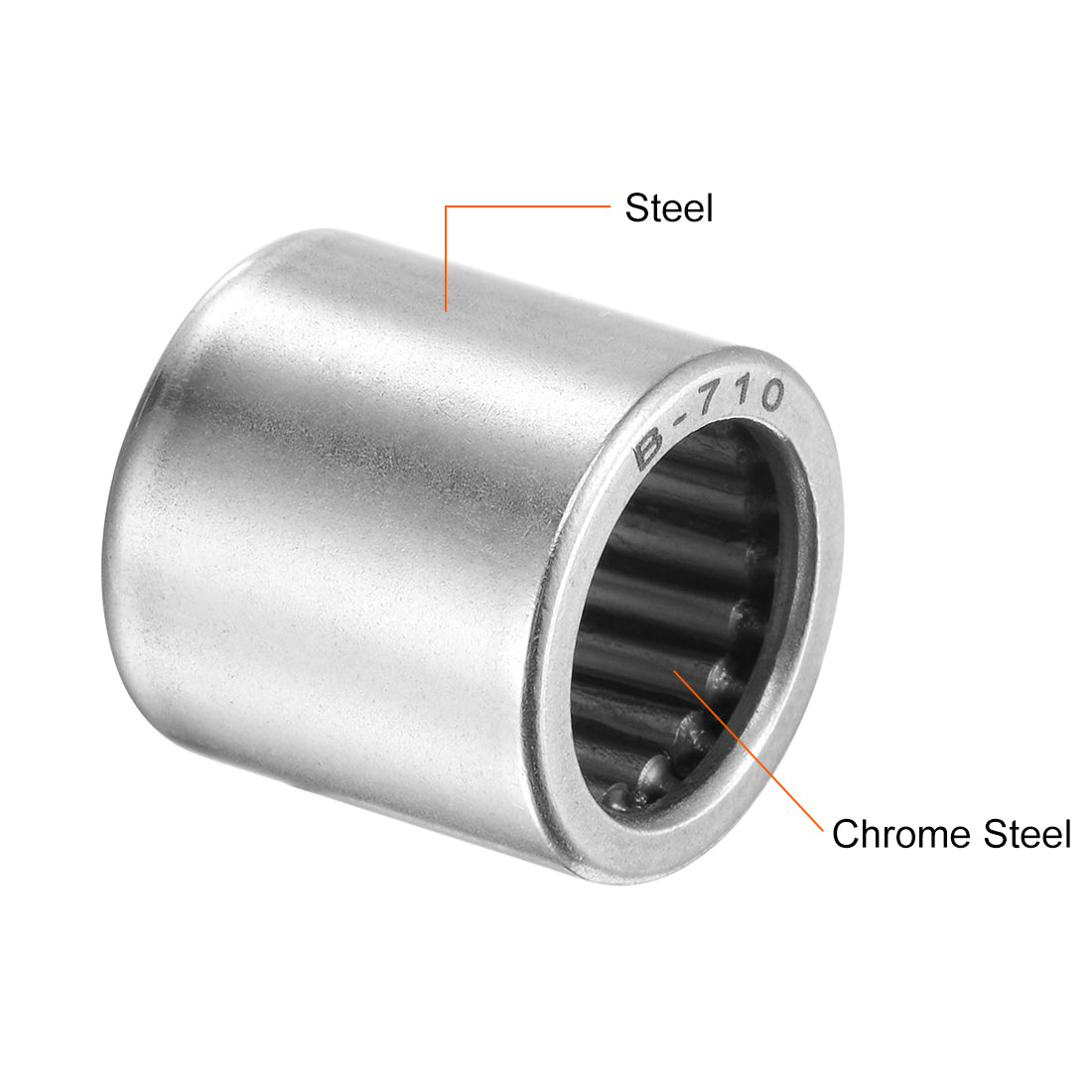

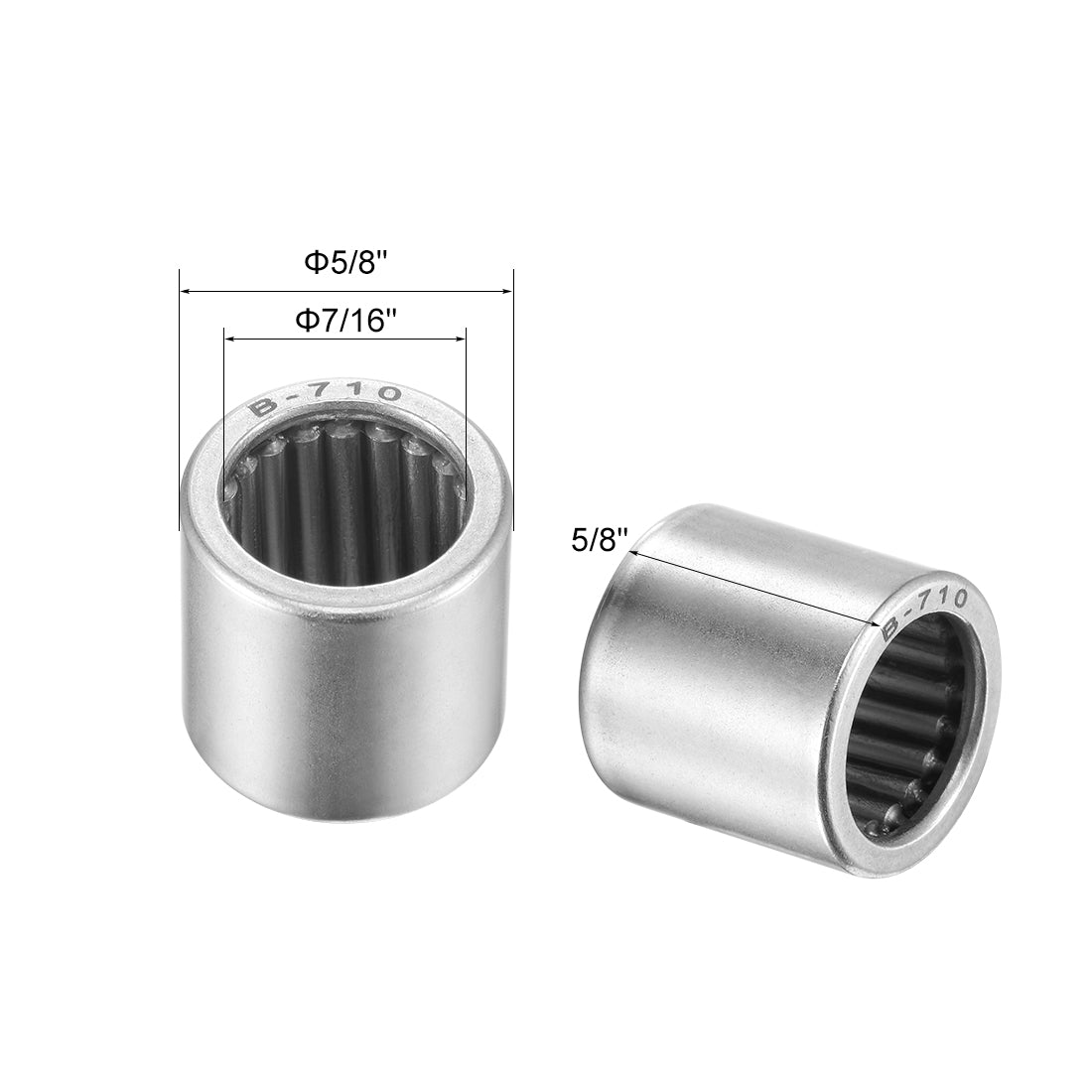

B-710 7/16" 5/8" 5/8" GCr15 2.52 4.13 6300 Steel ABEC-1 2 1064392 $7.63

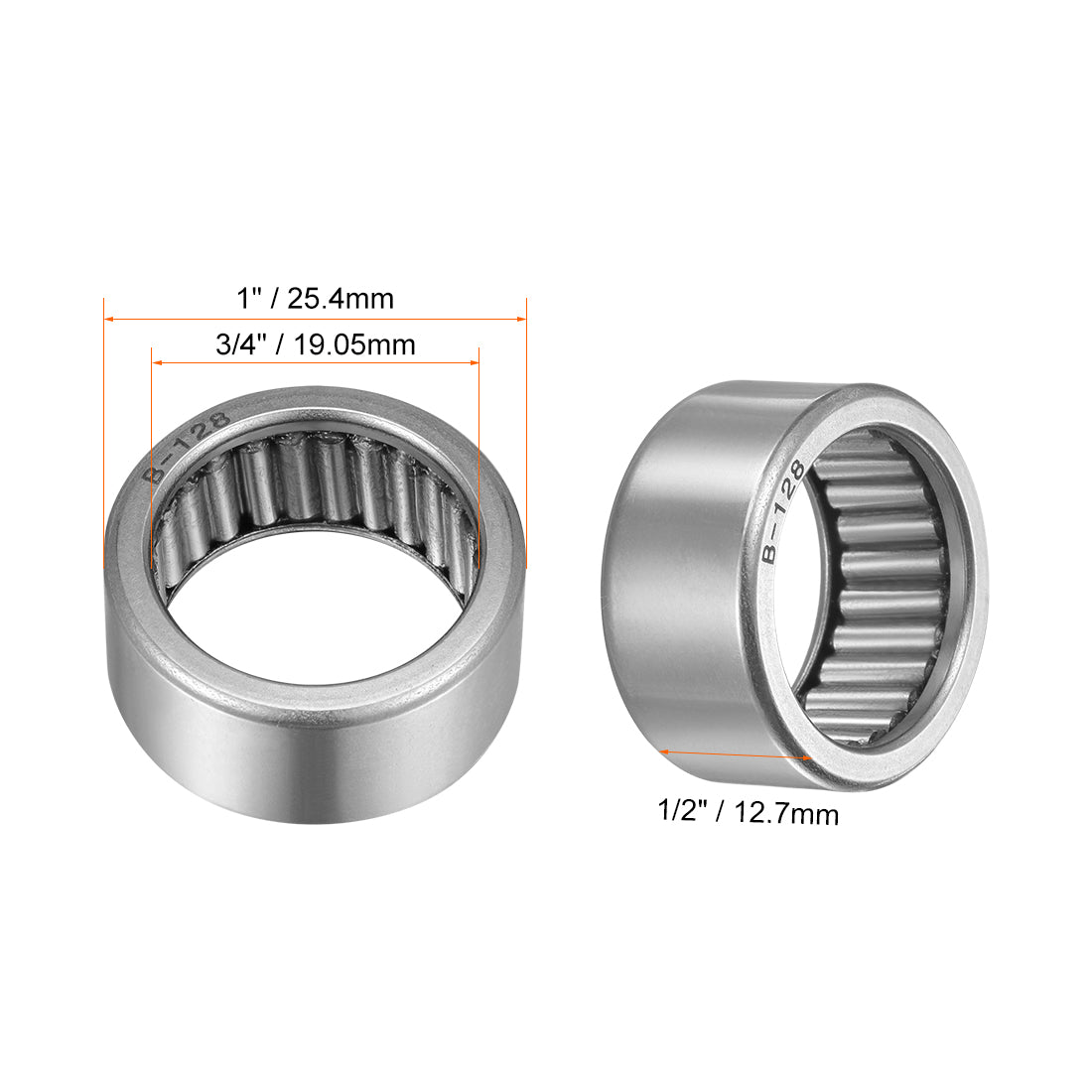

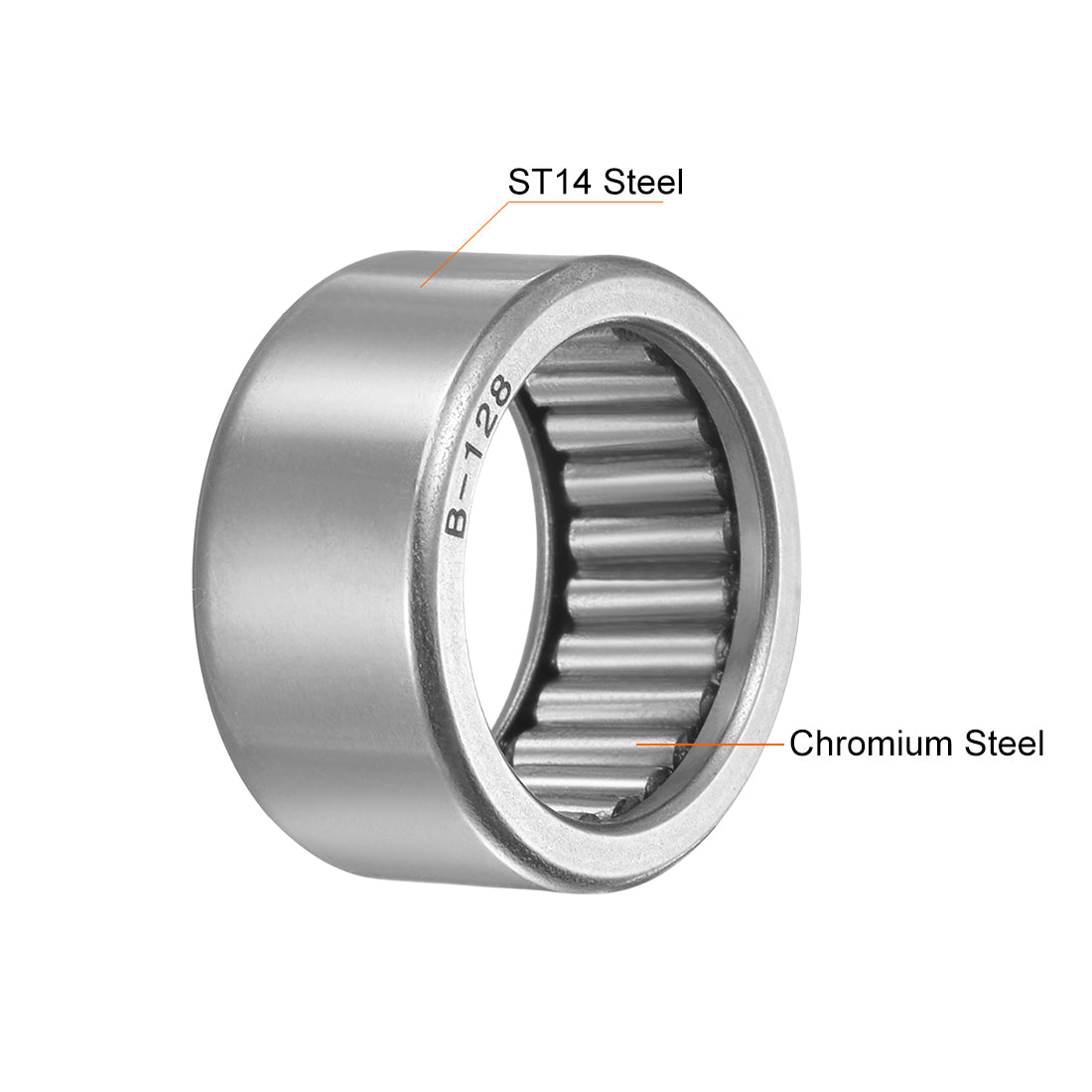

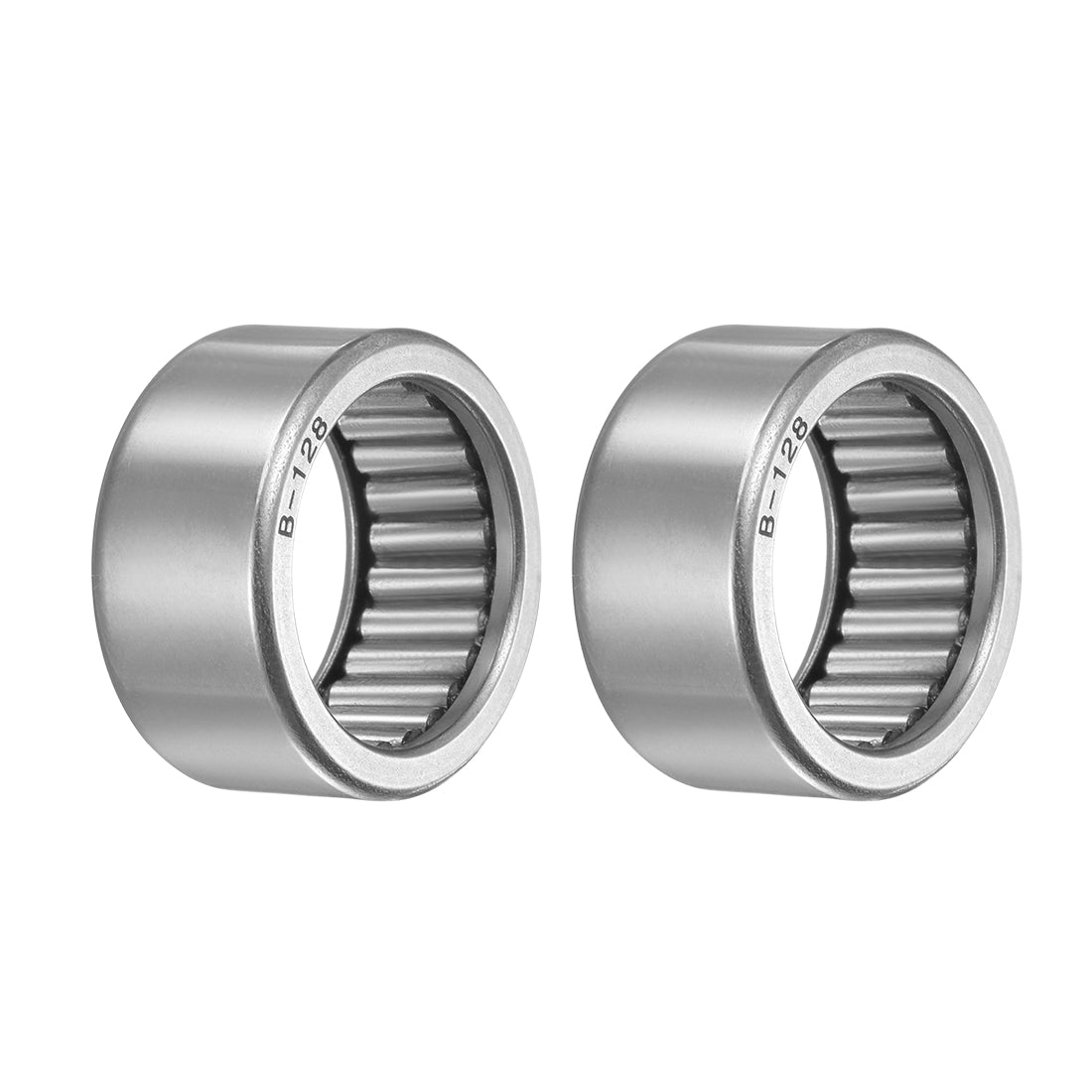

B128 3/4" 1" 1/2" GCr15 3.1 4.79 5500 ST14 Steel ABEC-1 2 1059972 $7.96
B1416 7/8" 1-1/8" 1" Chromium Steel (GCr15) 7.04 14.4 4800 ST14 Steel ABEC-1 2 1262441 $8.96
B168 1" 1-1/4" 1/2" Chromium Steel (GCr15) 3.62 6.39 4300 ST14 Steel ABEC-1 2 1262447 $8.85
B168 1" 1-1/4" 1/2" Chromium Steel (GCr15) 3.62 6.39 4300 ST14 Steel ABEC-1 1 1214442 $6.39
B-1916 1-3/16" 1-1/2" 1" GCr15 8.86 18.5 4400 Steel ABEC-1 1 1008919 $7.30
B2416 1-1/2" 1-7/8" 1" Chromium Steel (GCr15) 11 22.8 4300 ST14 Steel ABEC-1 2 1262437 $10.46

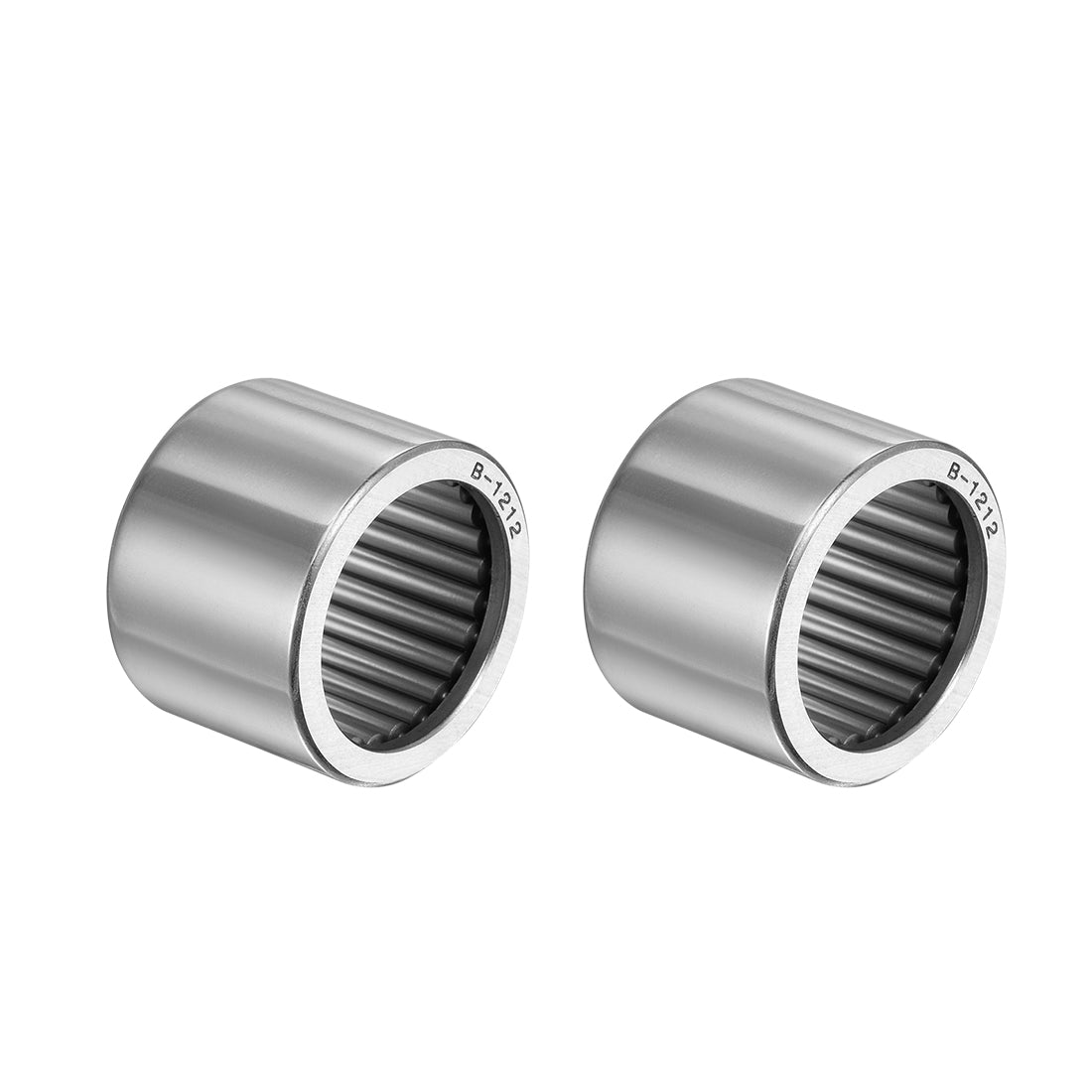

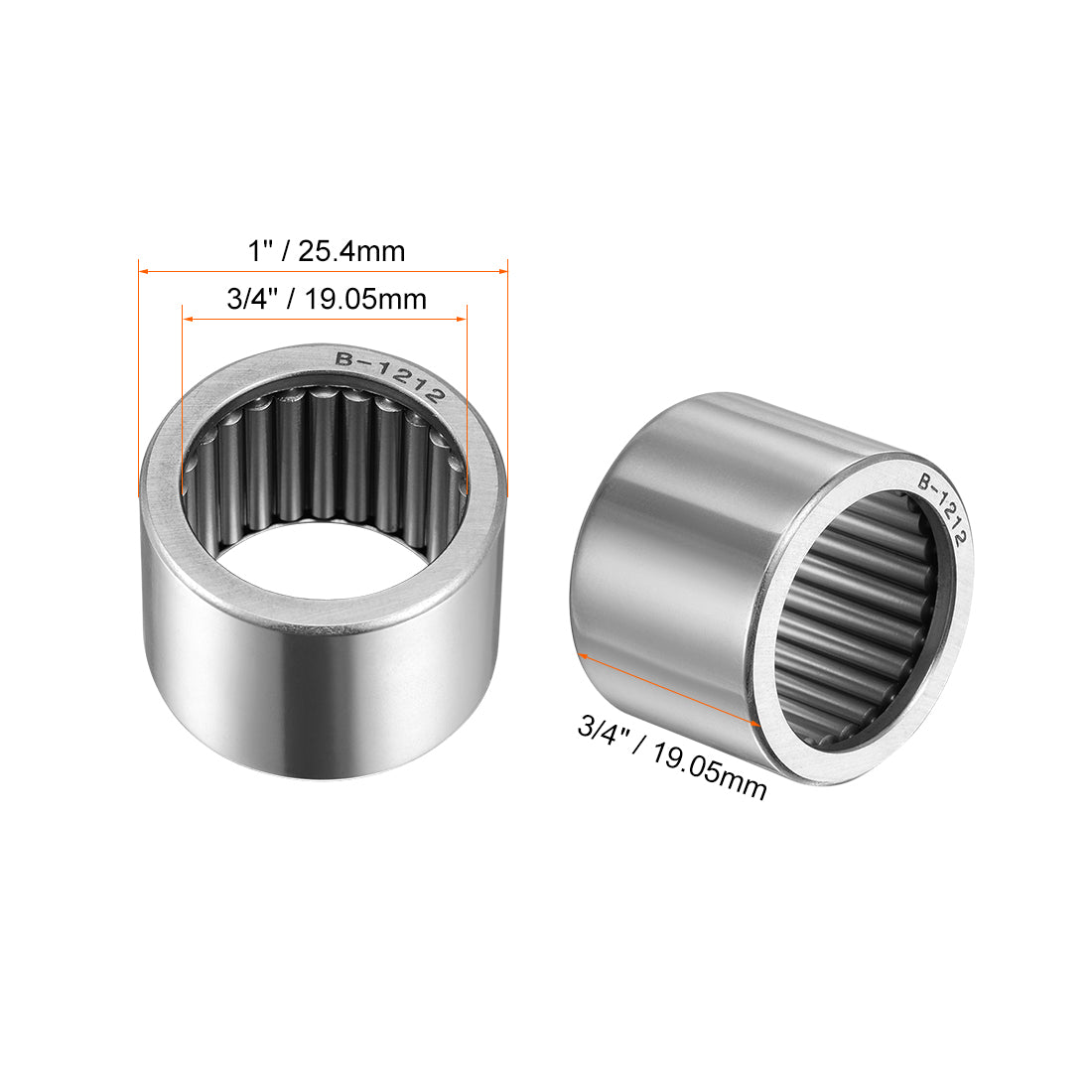

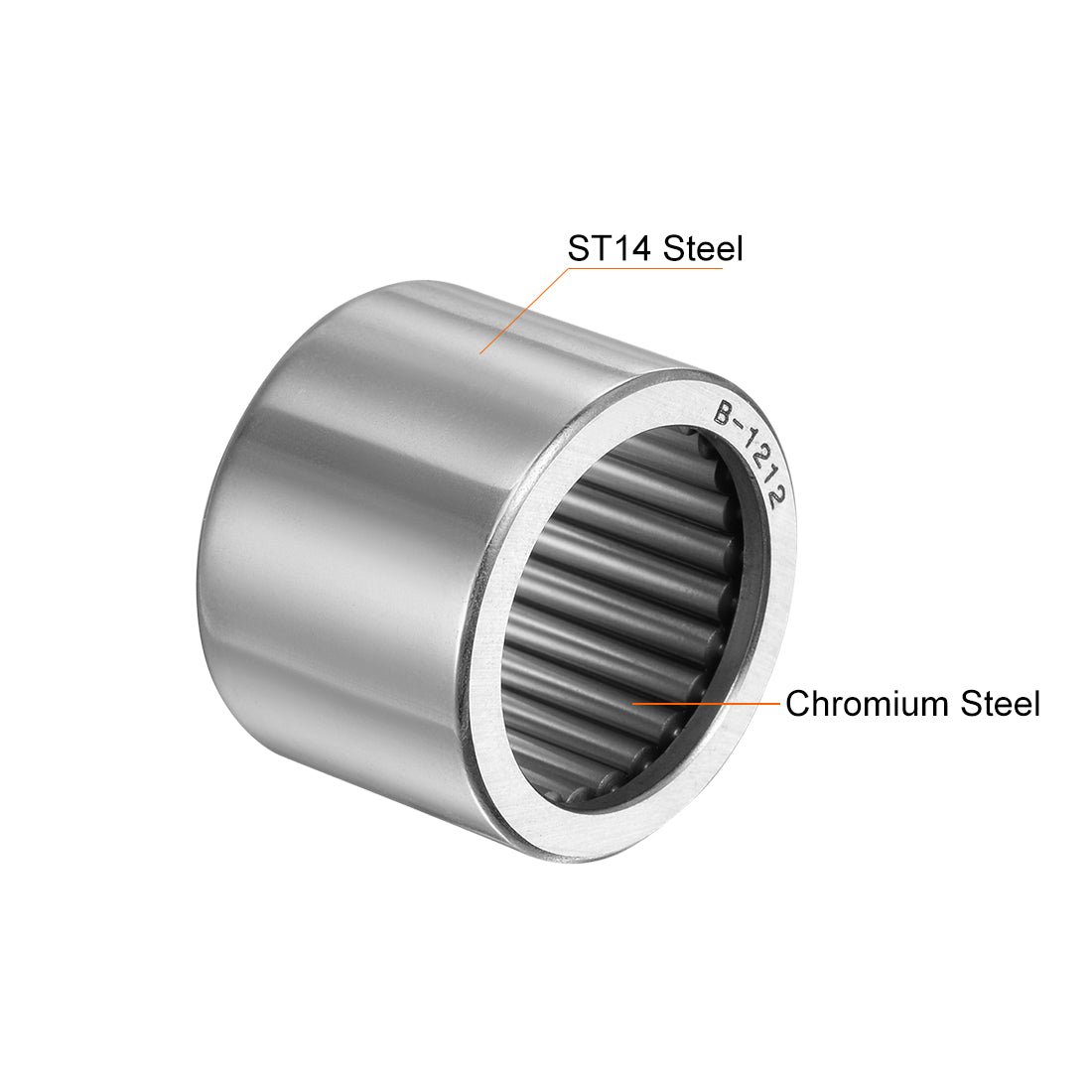

B1212 3/4" 1" 3/4" Chromium Steel (GCr15) 4.87 8.56 5500 ST14 Steel ABEC-1 2 1214480 $8.58
BH812 1/2" 3/4" 3/4" GCr15 3.85 5.69 7500 ST14 Steel ABEC-1 2 1035260 $7.23
B2020 1-1/4" 1-1/2" 1-1/4" Chromium Steel (GCr15) 10.5 26.9 3500 ST14 Steel ABEC-1 2 1262449 $10.99
B2020 1-1/4" 1-1/2" 1-1/4" GCr15 10.5 26.9 3500 ST14 Steel ABEC-1 1 1006816 $8.17
B1612 1" 1-1/4" 3/4" GCr15 5.69 11.4 4300 ST14 Steel ABEC-1 1 1015395 $7.28
B1612 1" 1-1/4" 3/4" Chromium Steel (GCr15) 5.69 11.4 4300 ST14 Steel ABEC-1 2 1262451 $9.47
B-3416 2-1/8" 2-1/2" 1" GCr15 13.1 32.4 3100 Steel ABEC-1 1 1214446 $10.85
B2016 1-1/4" 1-1/2" 1" GCr15 8.51 20.6 3500 ST14 Steel ABEC-1 1 1214487 $8.12
B-3216 2" 2-3/8" 1" GCr15 12.7 30.5 3300 Steel ABEC-1 1 1214488 $10.08

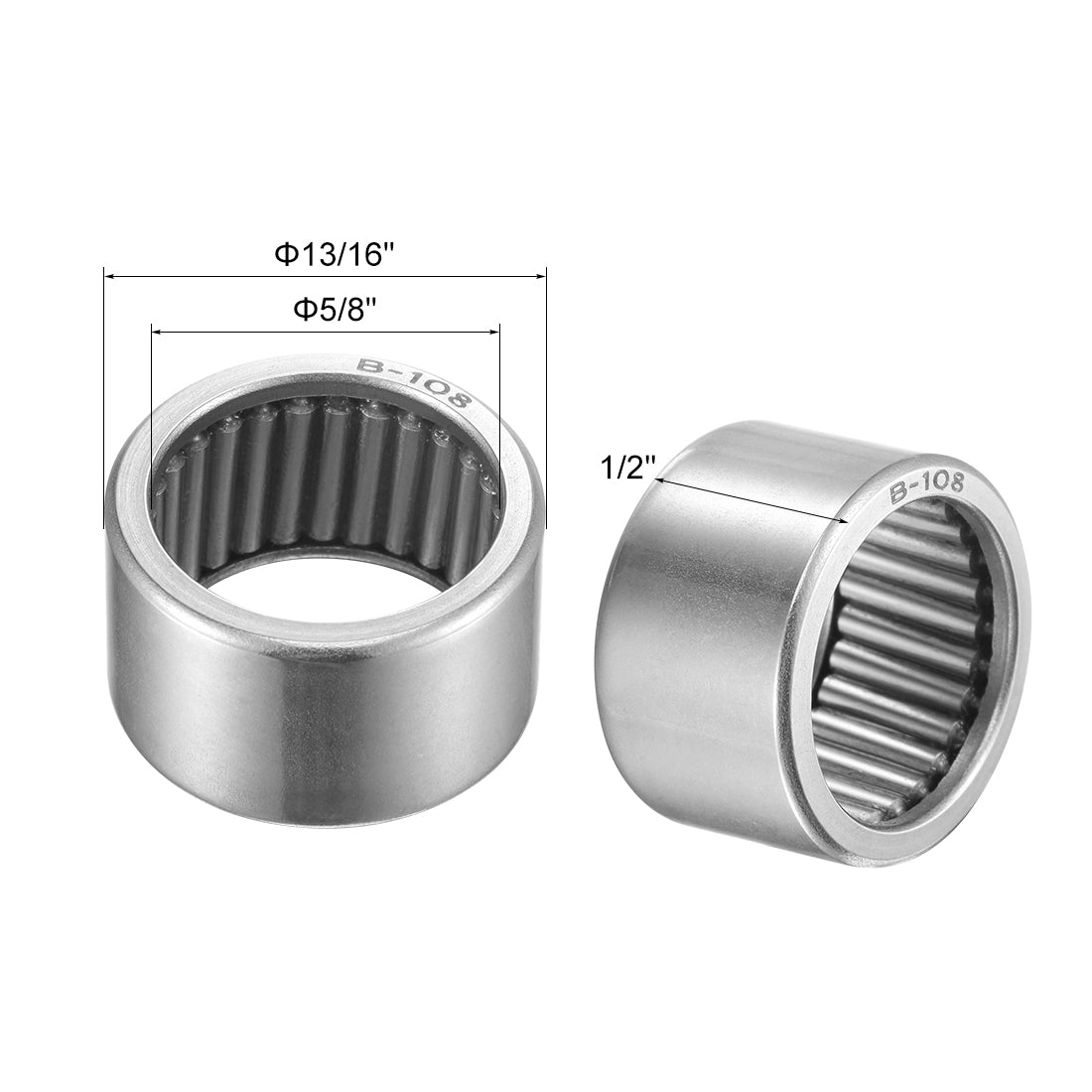

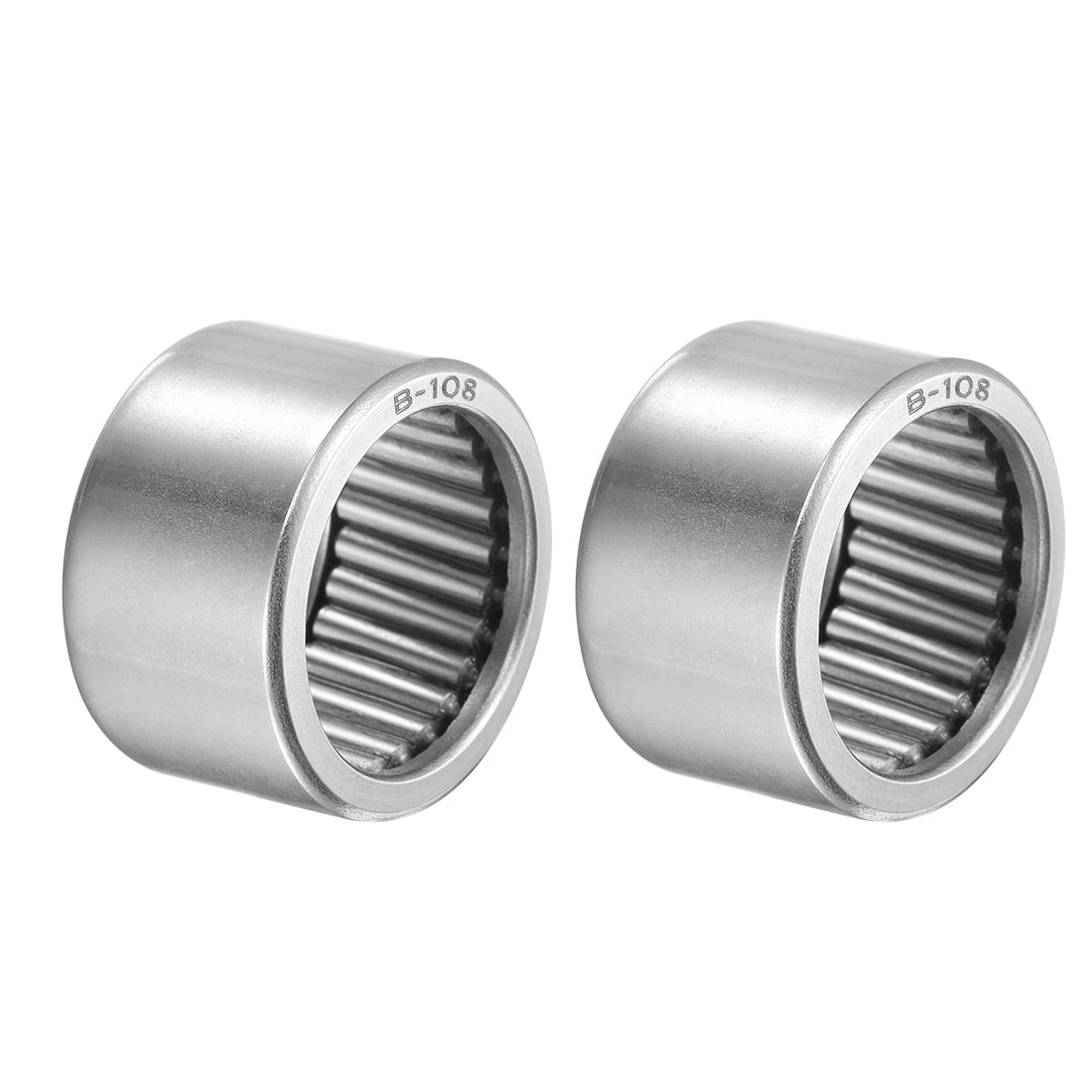

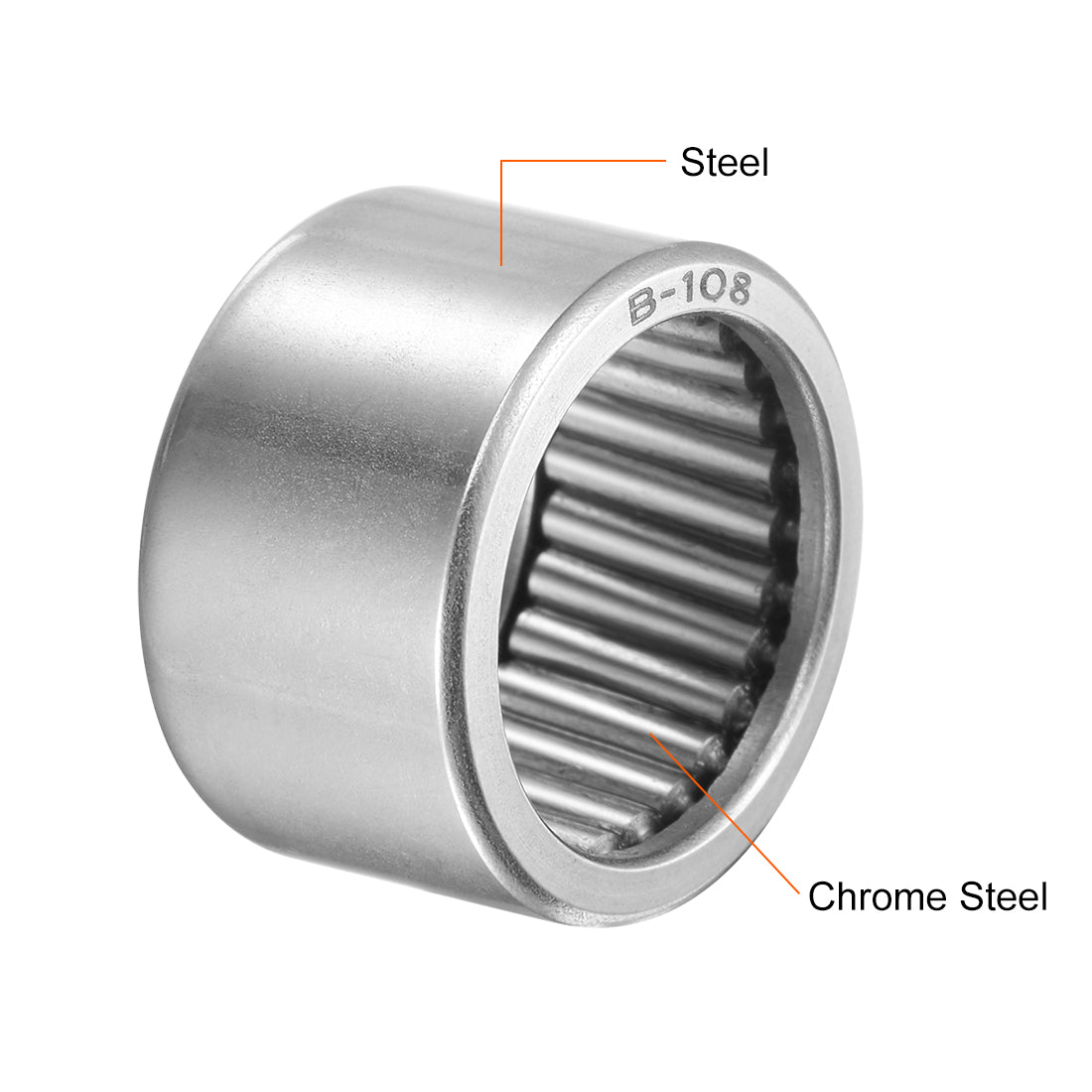

B-108 5/8" 13/16" 1/2" GCr15 2.41 4.33 4500 Steel ABEC-1 2 1064397 $7.63
B-108 5/8" 13/16" 1/2" Chromium Steel (GCr15) 2.41 4.33 4500 Steel ABEC-1 1 1262409 $6.38
B-3412 2-1/8" 2-1/2" 3/4" GCr15 12.1 28.6 3100 Steel ABEC-1 1 1214448 $8.09
BH108 5/8" 7/8" 1/2" GCr15 2.79 3.98 6200 ST14 Steel ABEC-1 2 1035262 $6.75
B-2410 1-1/2" 1-7/8" 5/8" Chromium Steel (GCr15) 6.5 11.6 4300 Steel ABEC-1 2 1217159 $10.62
B-2410 1-1/2" 1-7/8" 5/8" Chromium Steel (GCr15) 6.5 11.6 4300 Steel ABEC-1 1 1214440 $7.92

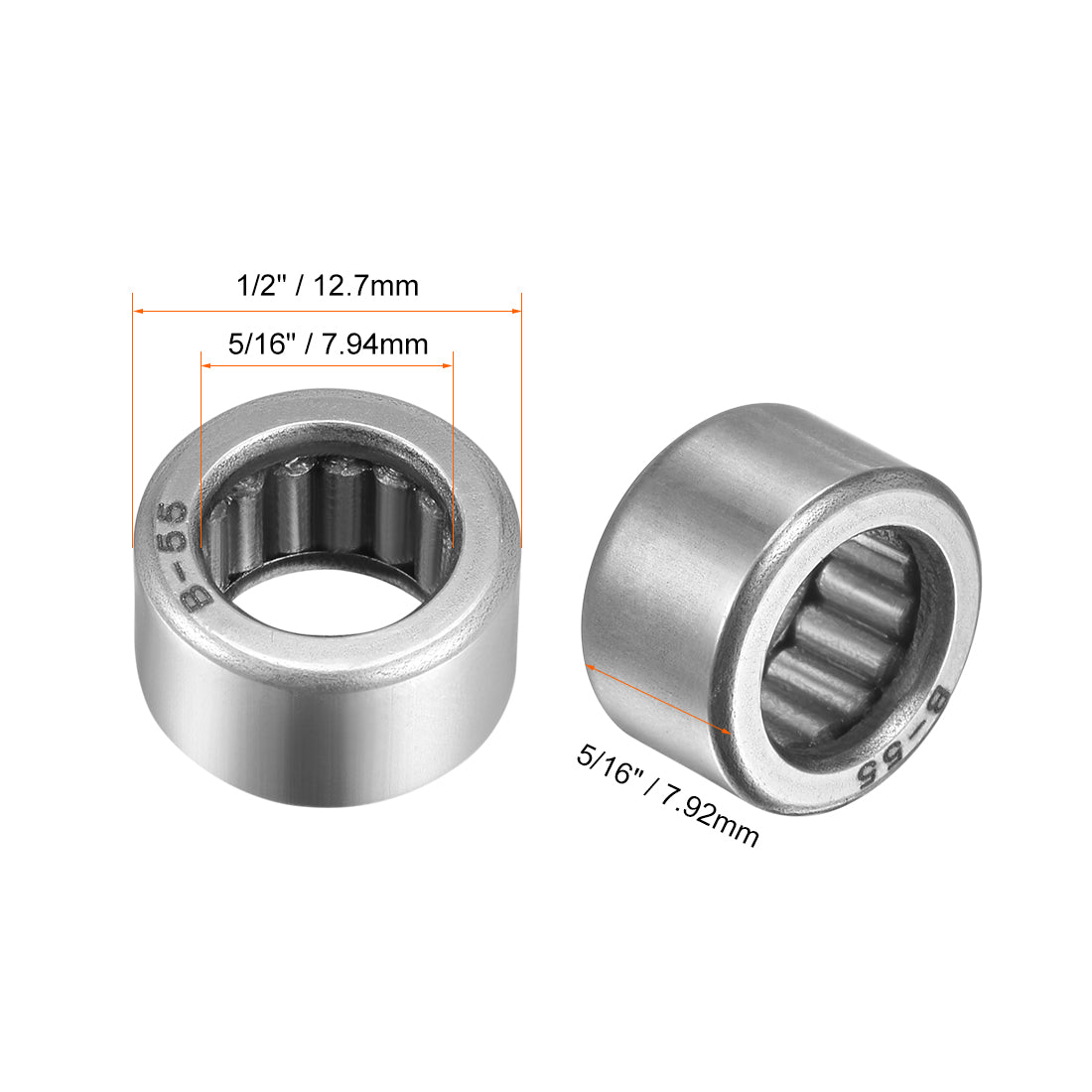

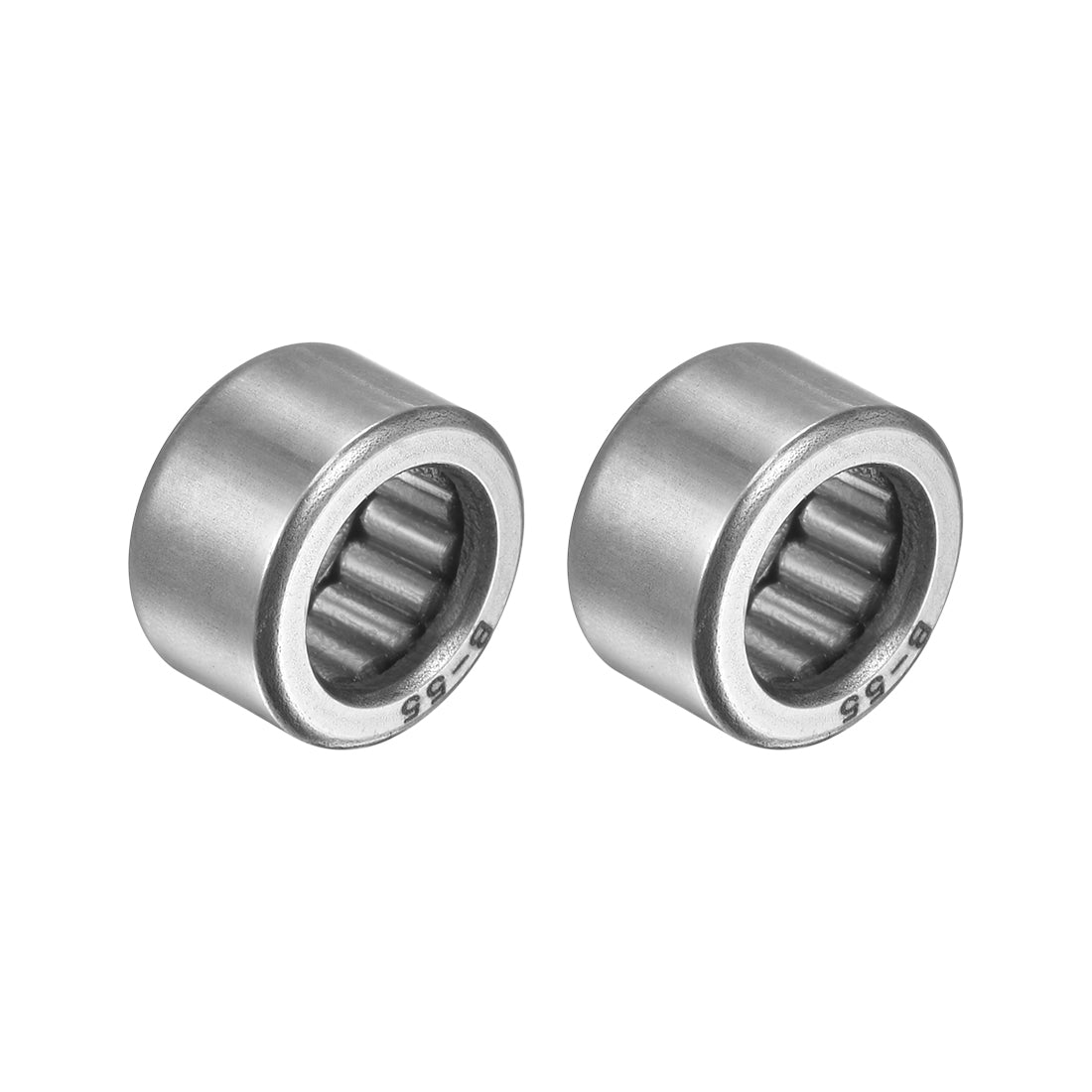

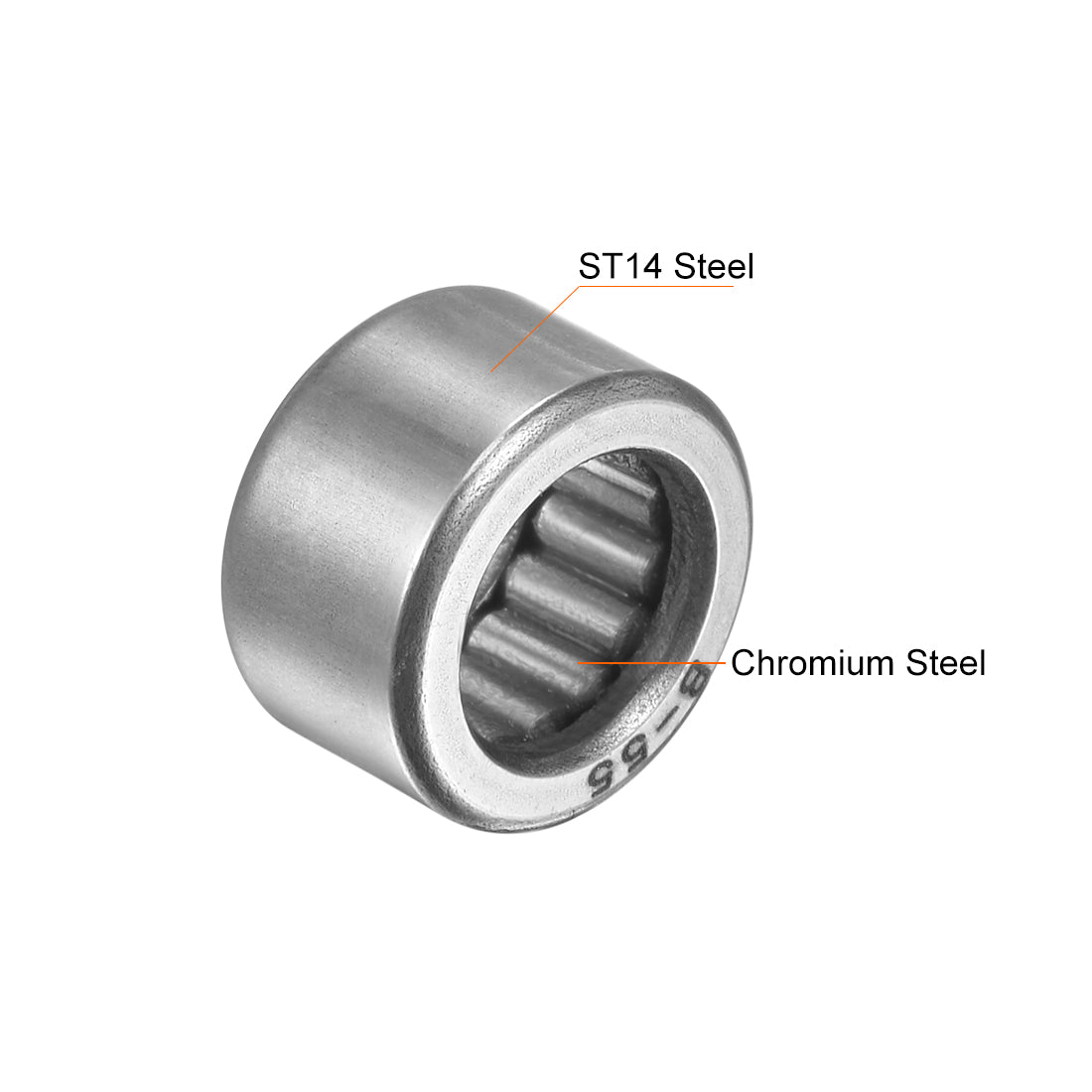

B55 5/16" 1/2" 5/16" GCr15 0.883 0.985 8300 ST14 Steel ABEC-1 2 1059977 $8.25
B1616 1" 1-1/4" 1" GCr15 8.09 15.6 5200 ST14 Steel ABEC-1 1 1015396 $7.88
B2420 1-1/2" 1-7/8" 1-1/4" Chromium Steel (GCr15) 13.8 30.5 4300 ST14 Steel ABEC-1 1 1214466 $8.81

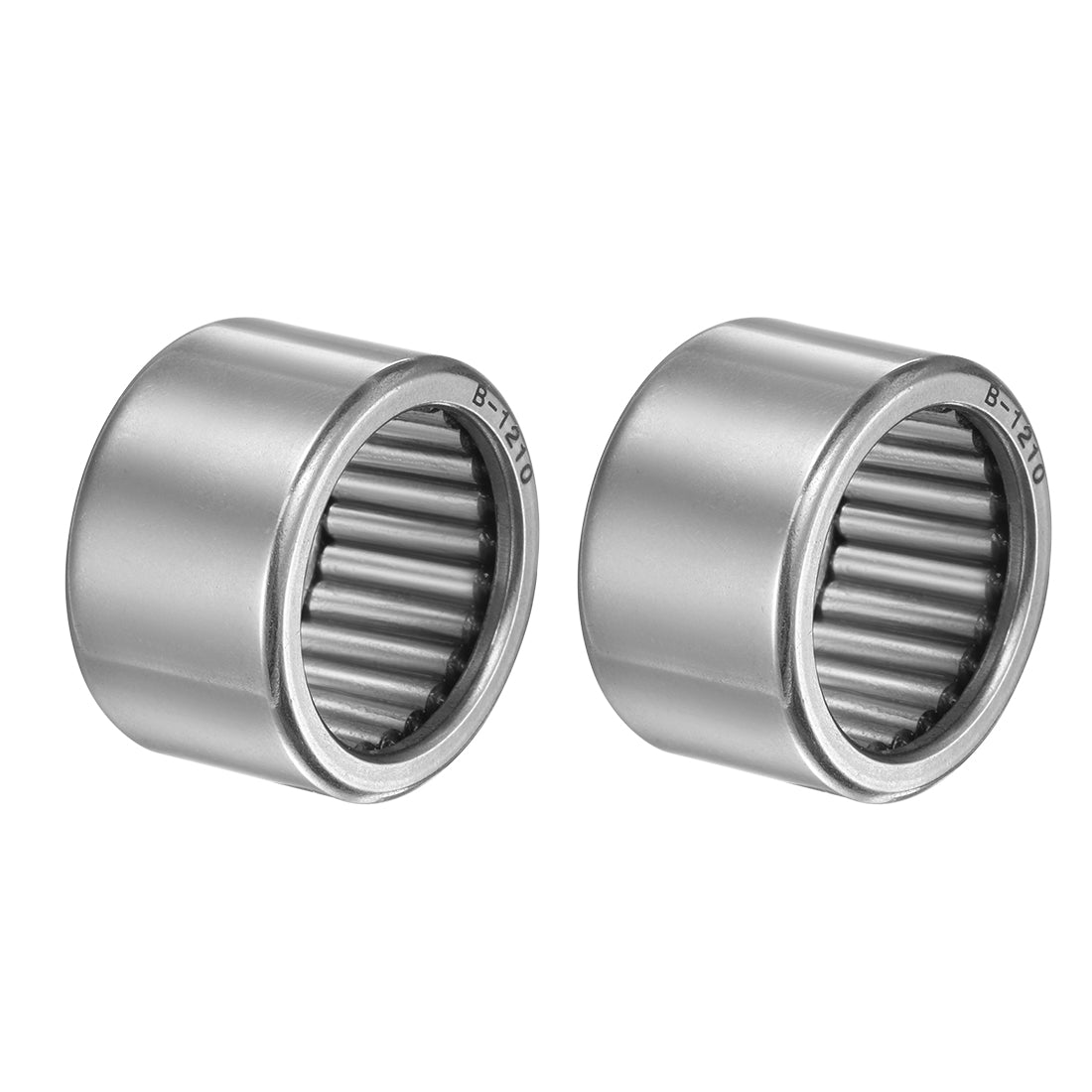

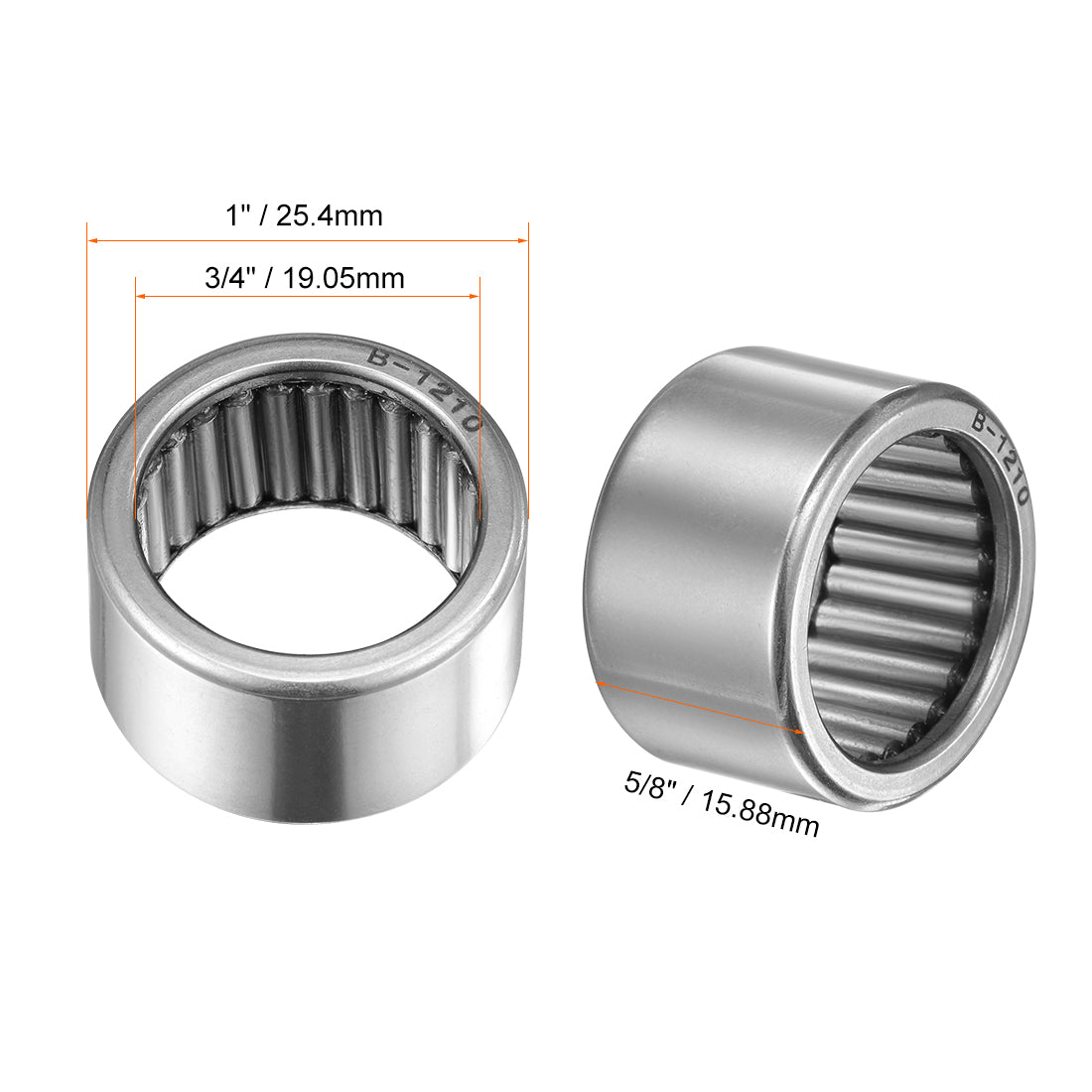

B1210 3/4" 1" 5/8" GCr15 4.01 6.67 5500 ST14 Steel ABEC-1 2 1059976 $7.94

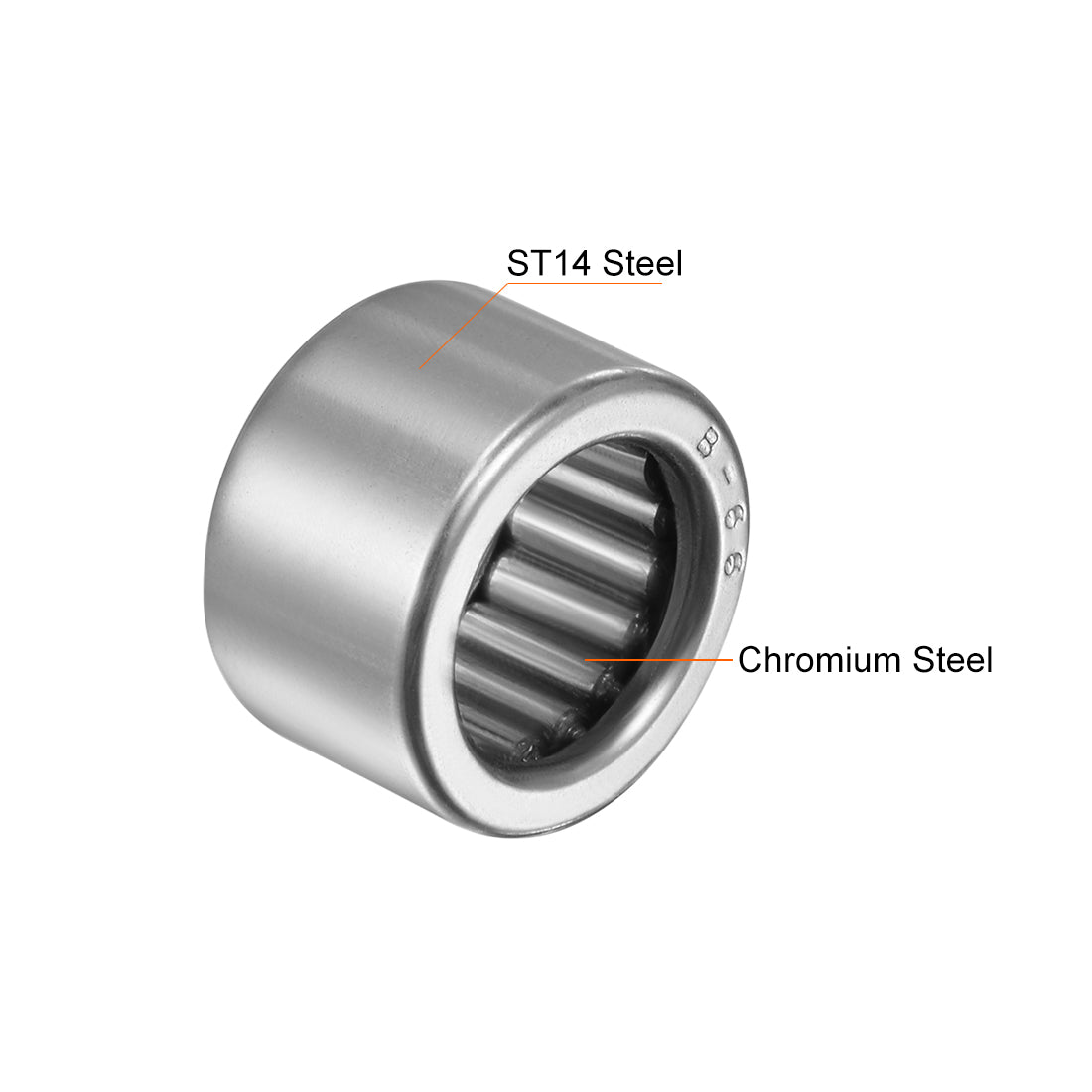

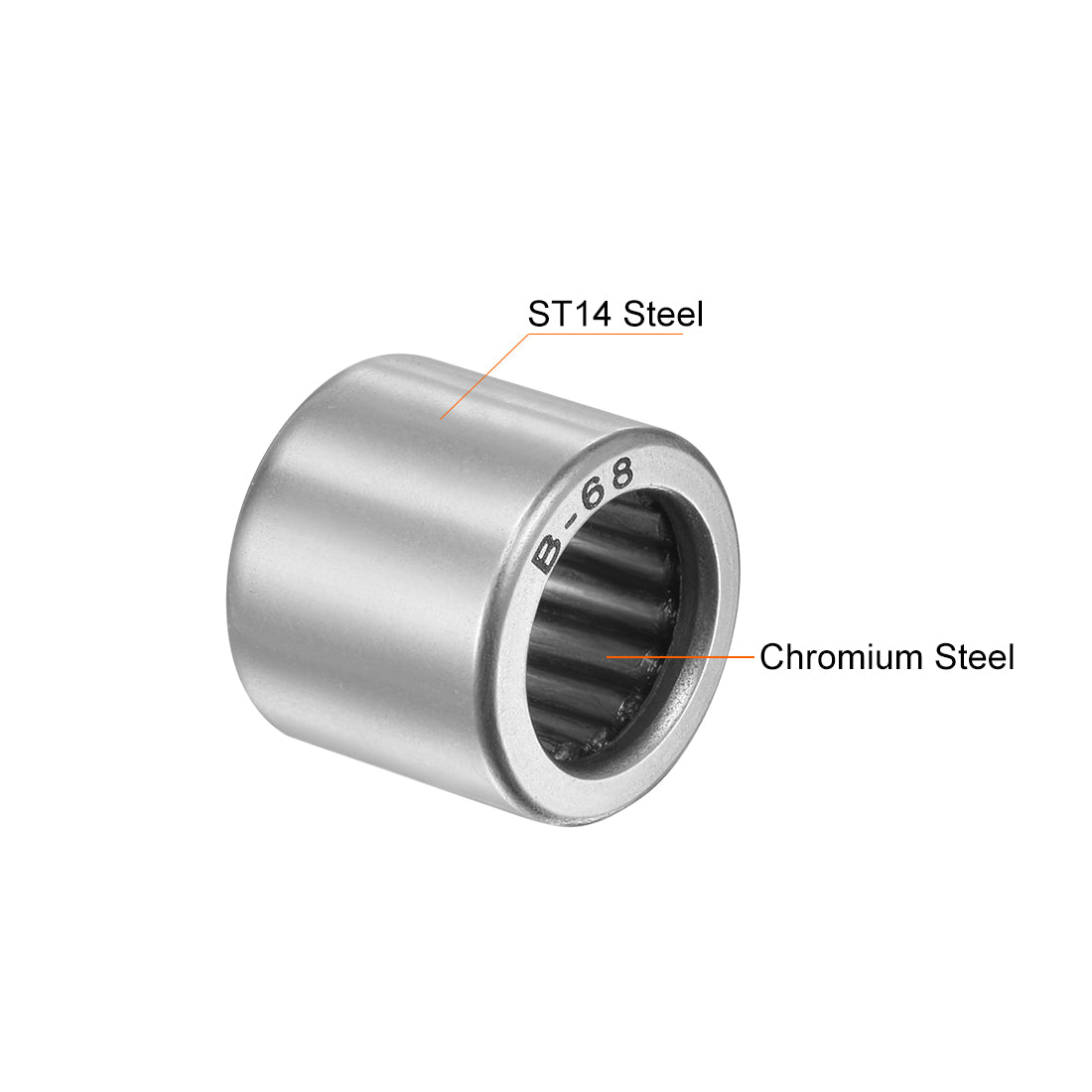

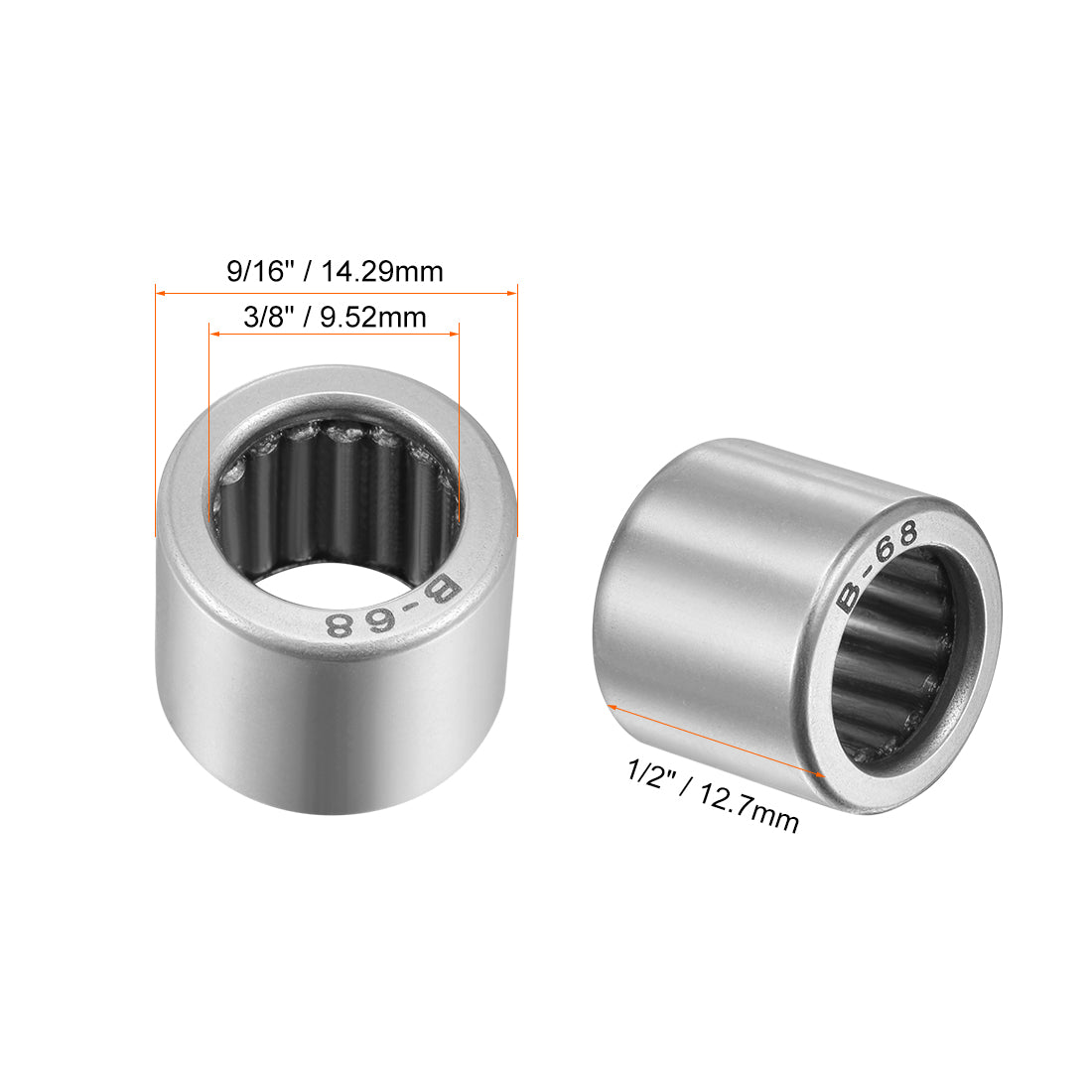

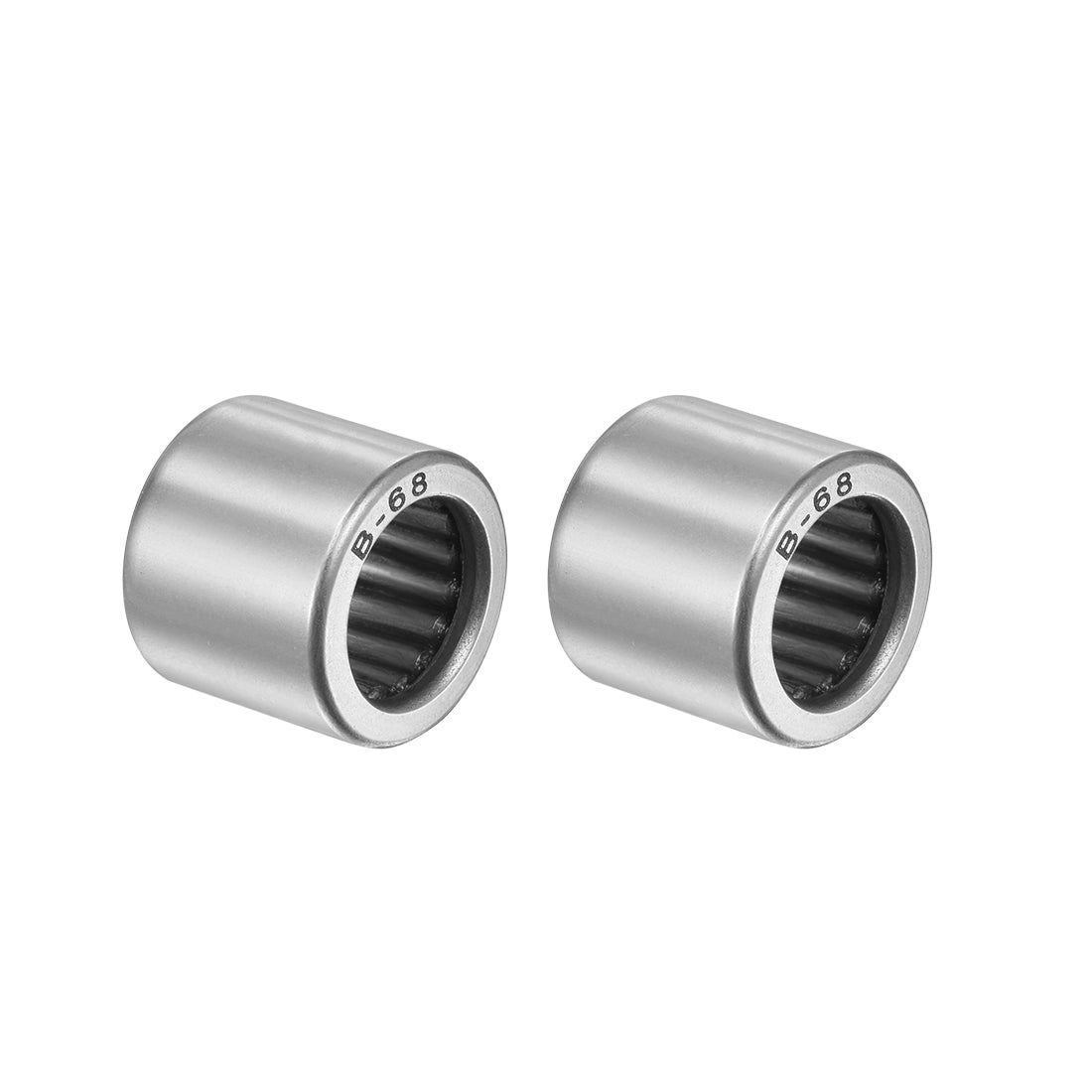

B68 3/8" 9/16" 1/2" GCr15 1.81 2.59 7100 ST14 Steel ABEC-1 2 1059975 $7.98

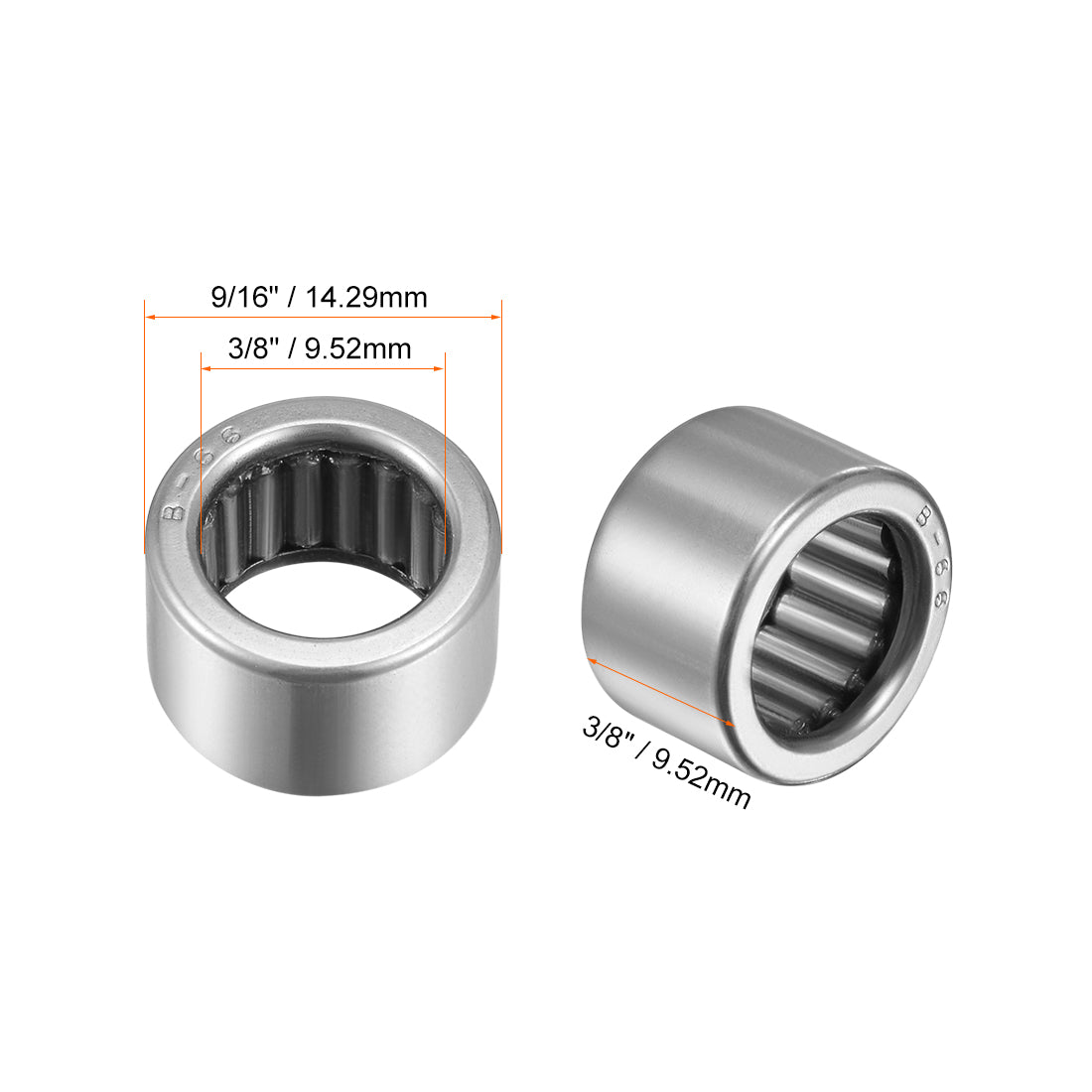

B66 3/8" 9/16" 3/8" Chromium Steel (GCr15) 1.28 1.65 7100 ST14 Steel ABEC-1 2 1214577 $7.97

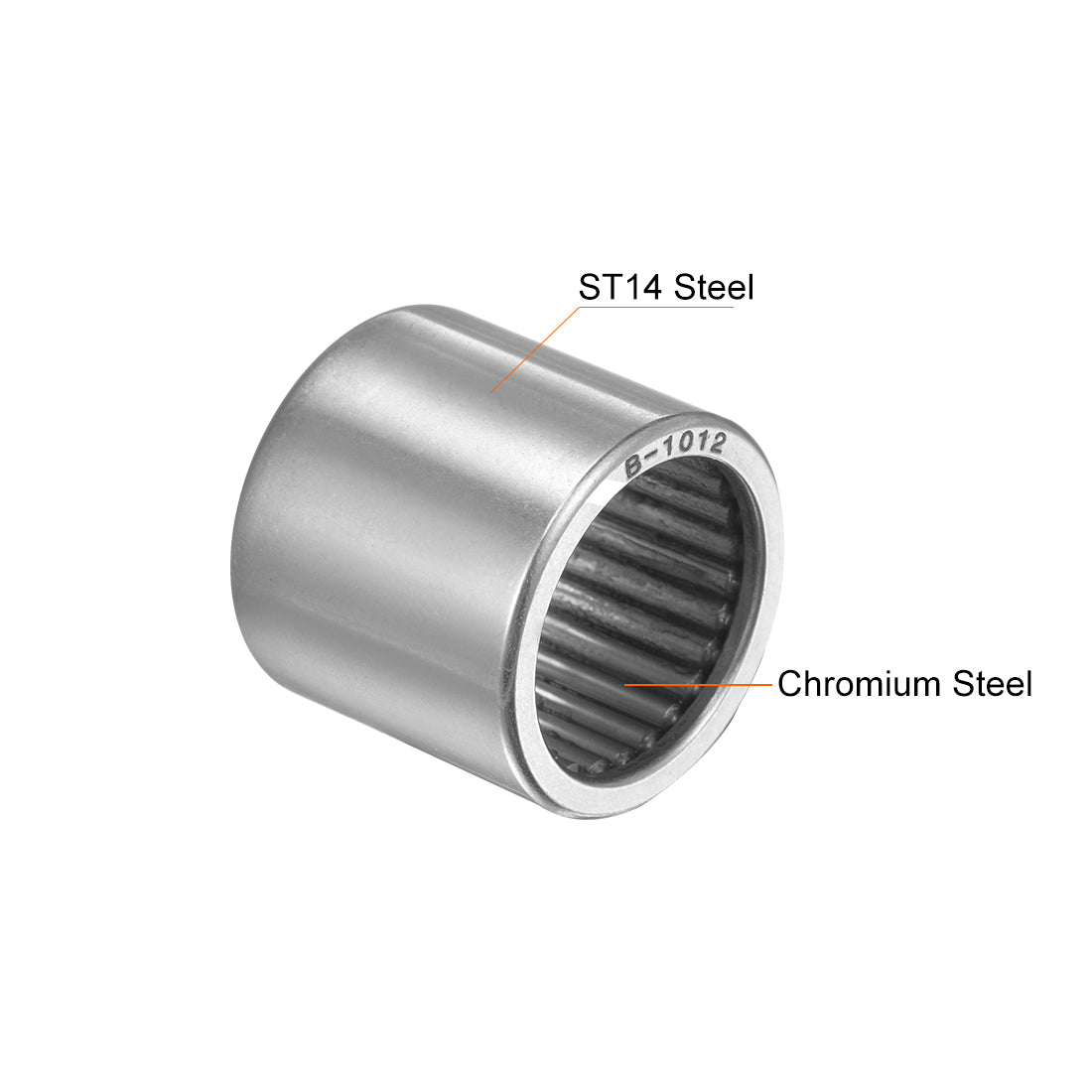

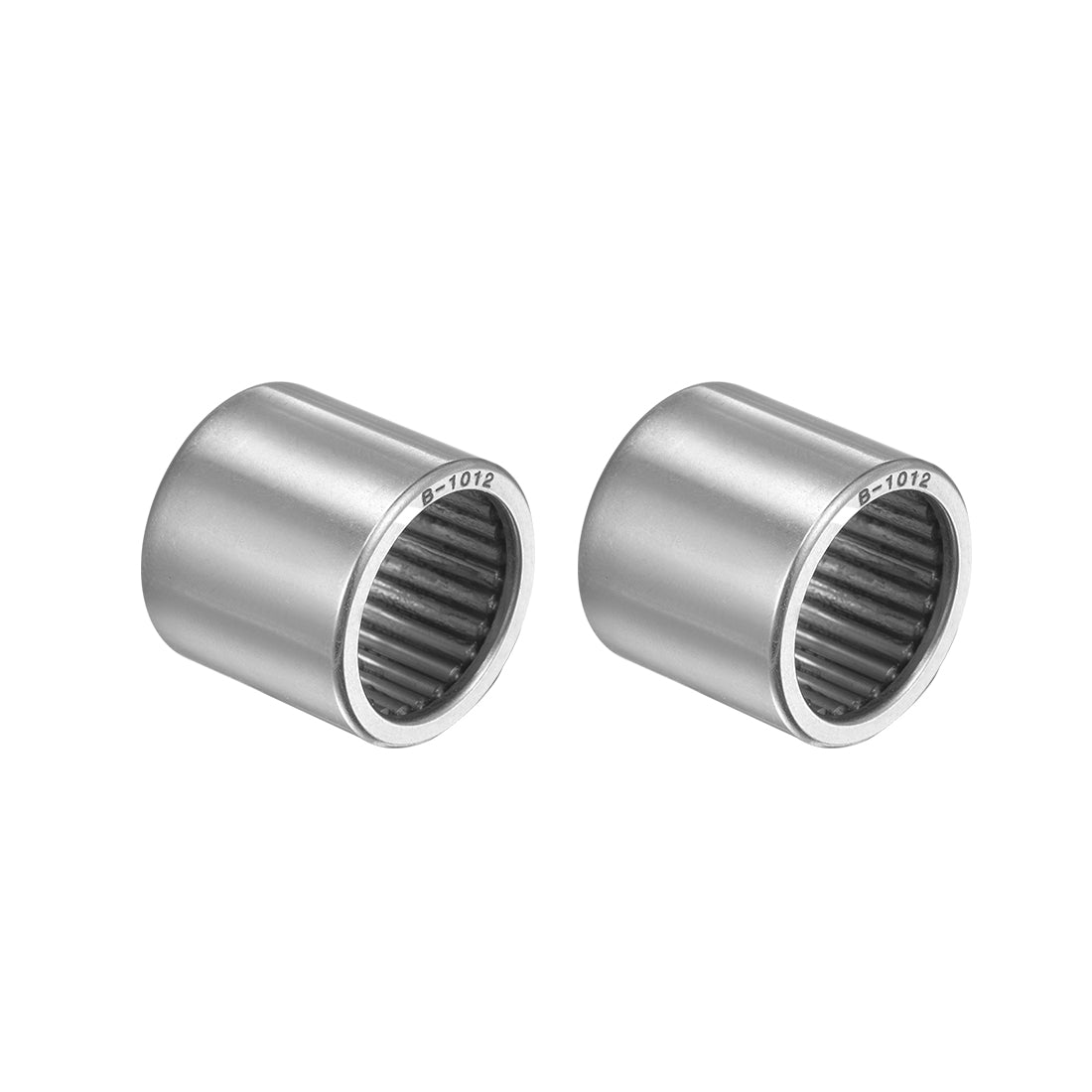

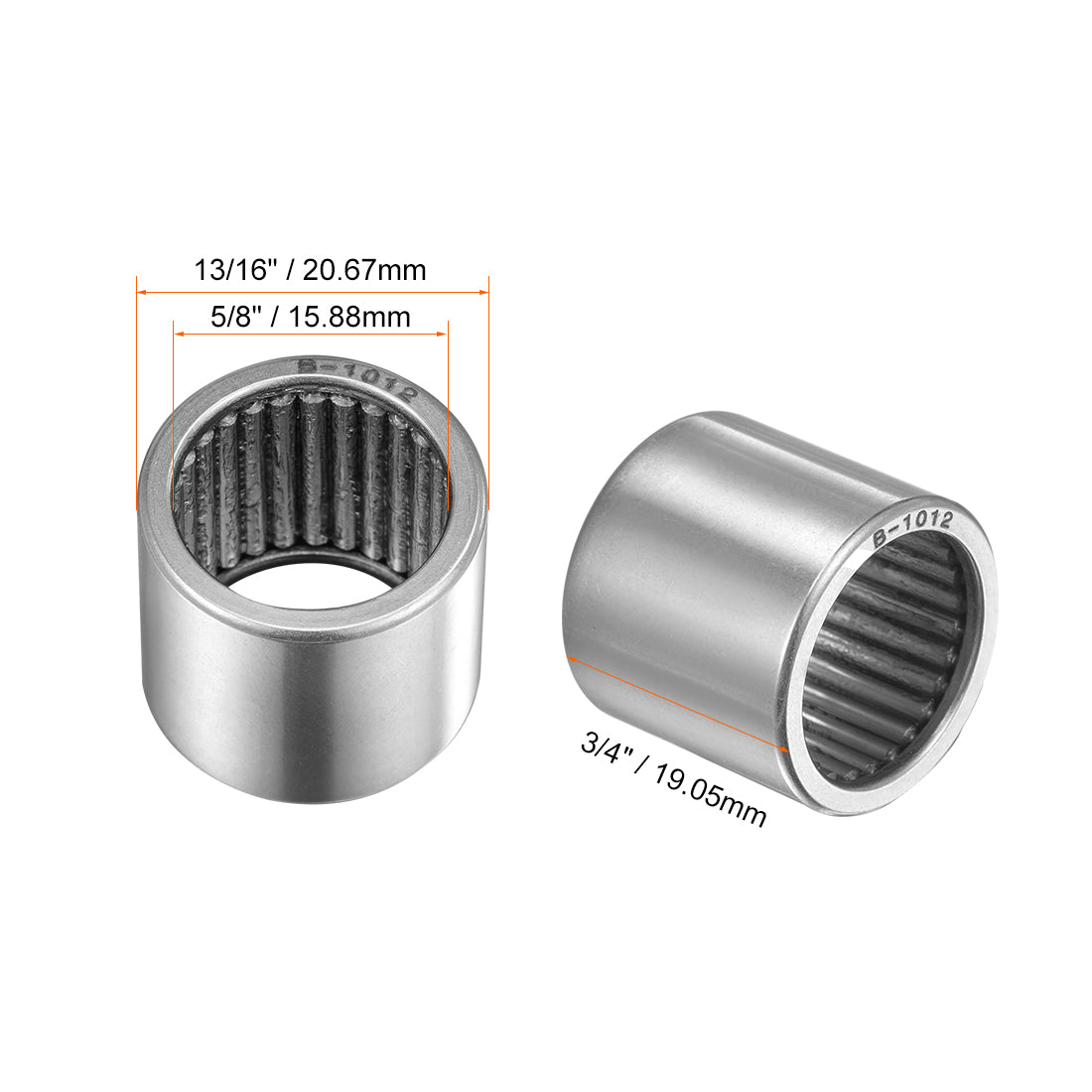

B1012 5/8" 13/16" 3/4" GCr15 4.39 7.13 6200 ST14 Steel ABEC-1 2 1059973 $7.94
B98 9/16" 3/4" 1/2" Chromium Steel (GCr15) 2.28 3.9 5000 ST14 Steel ABEC-1 1 1262413 $6.57
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Specification:

Model: B88

Drawn Cup Material: ST14 Steel

Needle Roller Material: Chromium Steel (GCr15)

Accuracy: P0

Bore Diameter (Fw): 1/2" / 12.7mm

Outside Diameter (D): 11/16" / 17.46mm

Width: 1/2" / 12.7mm

Dynamic Load Rating: 2130N

Static Load Rating: 3460N

Limiting Speed: 5500Rpm

Number of Pack: 2 Pcs

Description:

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.

-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.

-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.
