Harfington Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V for Microwave Oven

Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V for Microwave Oven

ID:1007266
ID:1007266
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
0.8-1RPM CCW
Style
1pcs
Package Content
About this item

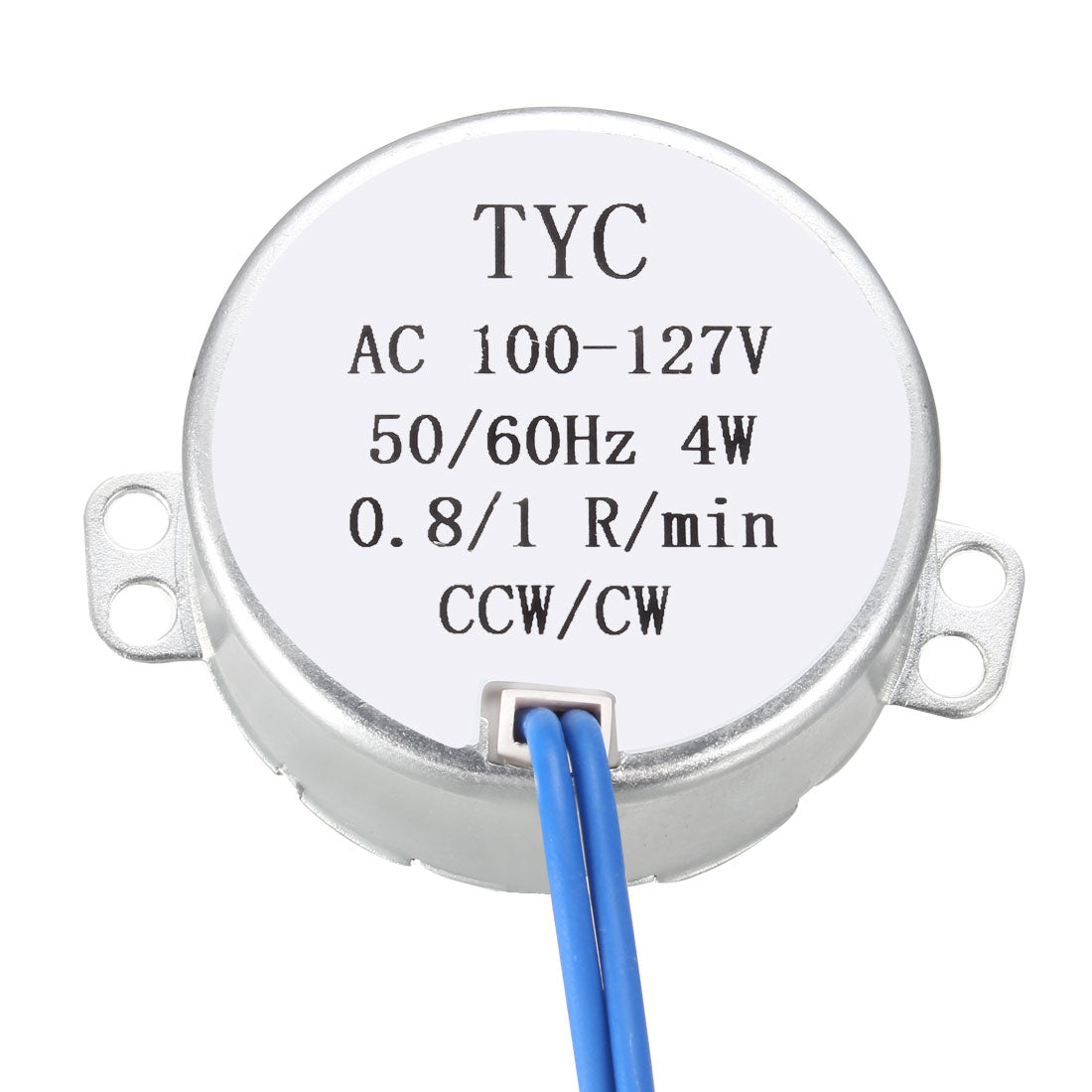

  • [Specification] - Voltage: AC 100-127V; Speed: 0.8-1RPM; Frequency: 50-60Hz; Power: 4W; Direction: CCW; Torque: 14kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - Christmas tree, air conditioner, electric fan, microwave oven, heater, turntable, etc.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
About this item
  • [Specification] - Voltage: AC 100-127V; Speed: 0.8-1RPM; Frequency: 50-60Hz; Power: 4W; Direction: CCW; Torque: 14kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - Christmas tree, air conditioner, electric fan, microwave oven, heater, turntable, etc.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
Specification

Specification

SKU
a19082000ux0506
Motor Color
silver tone
Power Cord Length
400 mm
Rated Speed
0.8 RPM
Rated Voltage
AC100-127
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.



Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.



Specification

Rated Voltage: AC 100-127V

Power: 4W

Manner of Working: CCW

Rated Frequency: 50-60Hz

Rated Speed: 0.8-1RPM

Torque: 14kgf.cm

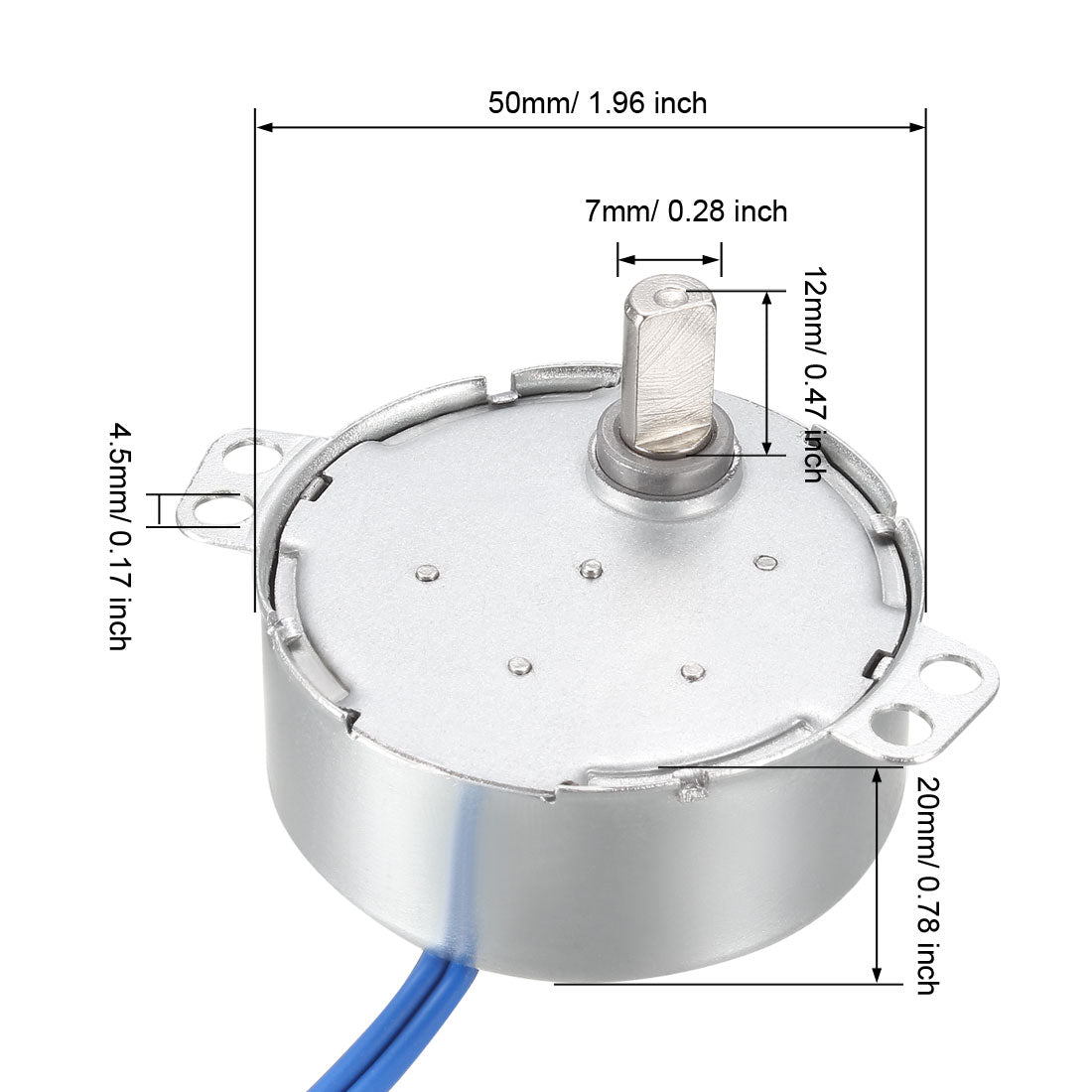

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 12mm/ 0.47 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor

$11.36 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 0.8-1RPM 50-60Hz CCW 4W 1007266 $11.36
Products Title ID Price Qty
Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 0.8-1RPM 50-60Hz CCW 4W 1007266 $11.36
Uxcell Electric Motor Synchronous Motor Turntable Synchron Motor 100-127 VAC 50/60Hz 4W CCW 2-2.4RPM 1002614 $10.20
Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 45-54RPM 50-60Hz CCW/CW 4W for Microwave Oven 1230410 $10.01
Uxcell Electric Synchronous Synchron Motor Turntable Motor 100-127 VAC 50-60Hz CCW/CW 4W 5-6RPM 1242581 $10.49
Uxcell Metal Gear Electric Synchronous Motor AC 12V 1.3-1.5RPM 50-60Hz CCW/CW 4W 1022730 $9.99
Uxcell Electric Motor Synchronous Motor Turntable Synchron Motor AC 24V 50/60Hz 4W 9-11RPM CCW/CW Direction 1028348 $10.26
Uxcell Electric Synchronous Synchron Motor - Turntable Motor AC 24V 50-60Hz CCW/CW 4W 0.8-1RPM 1028360 $9.95
Uxcell Metal Gear Electric Synchronous Motor AC 12V 30-36RPM 50-60Hz CCW/CW 4W 1018630 $10.00
Uxcell Turntable Synchronous Synchron Motor 50-60Hz AC 220-240V CCW/CW 4W (2-2.4RPM) 1352930 $10.07
Uxcell Metal Gear Synchronous Synchron Motor AC 24V 0.8-1RPM 50-60Hz CCW/CW 4W for Microwave Oven 1022736 $10.20
Uxcell Electric Synchronous Synchron Motor - Turntable Motor 100-127 VAC 50-60Hz CCW/CW 4W 0.8-1RPM 1028345 $10.16
Uxcell Electric Synchronous Synchron Motor Turntable Motor 100-127 VAC 50-60Hz CCW/CW 4W 30-36RPM 1003282 $9.93
Uxcell Electric Motor Synchronous Motor Turntable Synchron Motor AC 12V 50/60Hz 4W 9-11RPM CCW/CW Direction 1022725 $10.11
Uxcell Electric Synchronous Synchron Motor Turntable Motor 100-127 VAC 50-60Hz CCW/CW 4W 2-2.4RPM 1015105 $10.14
Uxcell Metal Gear Synchronous Synchron Motor AC 220-240V 2-2.4RPM 50-60Hz CW 4W 1225794 $10.11
Uxcell Electric Synchronous Synchron Motor - Turntable Motor AC 12V 50-60Hz CCW/CW 4W 30-36RPM 1230412 $9.77
Uxcell Synchronous Synchron Motor AC 220-240V 4W 9-11RPM/MIN 50-60Hz CCW/CW for Hand-Made, Model or Guide Motor 1250342 $10.11
Uxcell Electric Synchronous Synchron Motor - Turntable Motor AC 12V 50-60Hz CCW/CW 4W 9-11RPM 1022727 $10.14
Uxcell Electric Synchronous Synchron Motor - Turntable Motor AC 12V 50-60Hz CCW/CW 4W 5-6RPM 1022728 $10.11
Uxcell Electric Motor Synchronous Motor Turntable Synchron Motor AC 12V 50/60Hz 4W 0.8-1RPM CCW/CW Direction 1022729 $9.86
Uxcell Electric Motor Synchronous Motor Turntable Synchron Motor AC 24V 50/60Hz 4W 30-36RPM CCW/CW Direction 1028352 $9.88
Uxcell Electric Synchronous Synchron Motor - Turntable Motor 100-127 VAC 50-60Hz CCW/CW 4W 5-6RPM 1028363 $10.18
Uxcell Metal Gear Synchronous Synchron Motor AC 12V 2-2.4RPM 50-60Hz CCW/CW 4W for Microwave Oven 1000598 $9.95
Uxcell Electric Synchronous Synchron Motor - Turntable Motor AC 24V 50-60Hz CCW/CW 4W 5-6RPM 1028353 $10.05
Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 2-2.4RPM 50-60Hz CW 4W 1235853 $10.30
Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 1.3-1.5RPM 50-60Hz CCW/CW 4W for Microwave Oven 1242579 $10.18
Uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 9-11RPM 50-60Hz CCW/CW 4W for Microwave Oven 1242580 $9.92
Uxcell Metal Gear Synchronous Synchron Motor AC 12V 30-36RPM 50-60Hz CCW/CW 4W for Microwave Oven 1242582 $9.94
Uxcell Metal Gear Electric Synchronous Motor AC 100-127V 9-11RPM 50-60Hz CCW/CW 4W 1243145 $10.20
Uxcell Metal Gear Synchronous Synchron Motor AC 24V 5-6RPM 50-60Hz CCW/CW 4W for Microwave Oven 1022735 $9.99
Uxcell Metal Gear Synchronous Synchron Motor AC 24V 2-2.4RPM 50-60Hz CCW/CW 4W for Microwave Oven 1022737 $9.97
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.



Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.



Specification

Rated Voltage: AC 100-127V

Power: 4W

Manner of Working: CCW

Rated Frequency: 50-60Hz

Rated Speed: 0.8-1RPM

Torque: 14kgf.cm

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 12mm/ 0.47 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor
