Harfington Uxcell Electric Synchronous Motor AC 12V 50-60Hz CCW/CW 4W

Uxcell Electric Synchronous Motor AC 12V 50-60Hz CCW/CW 4W

ID:
$10.00 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
30-36RPM
Style
1pcs
Package Content
About this item
  • In stock, ready to ship
Cart
Cart
About this item
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.



Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.



Specification

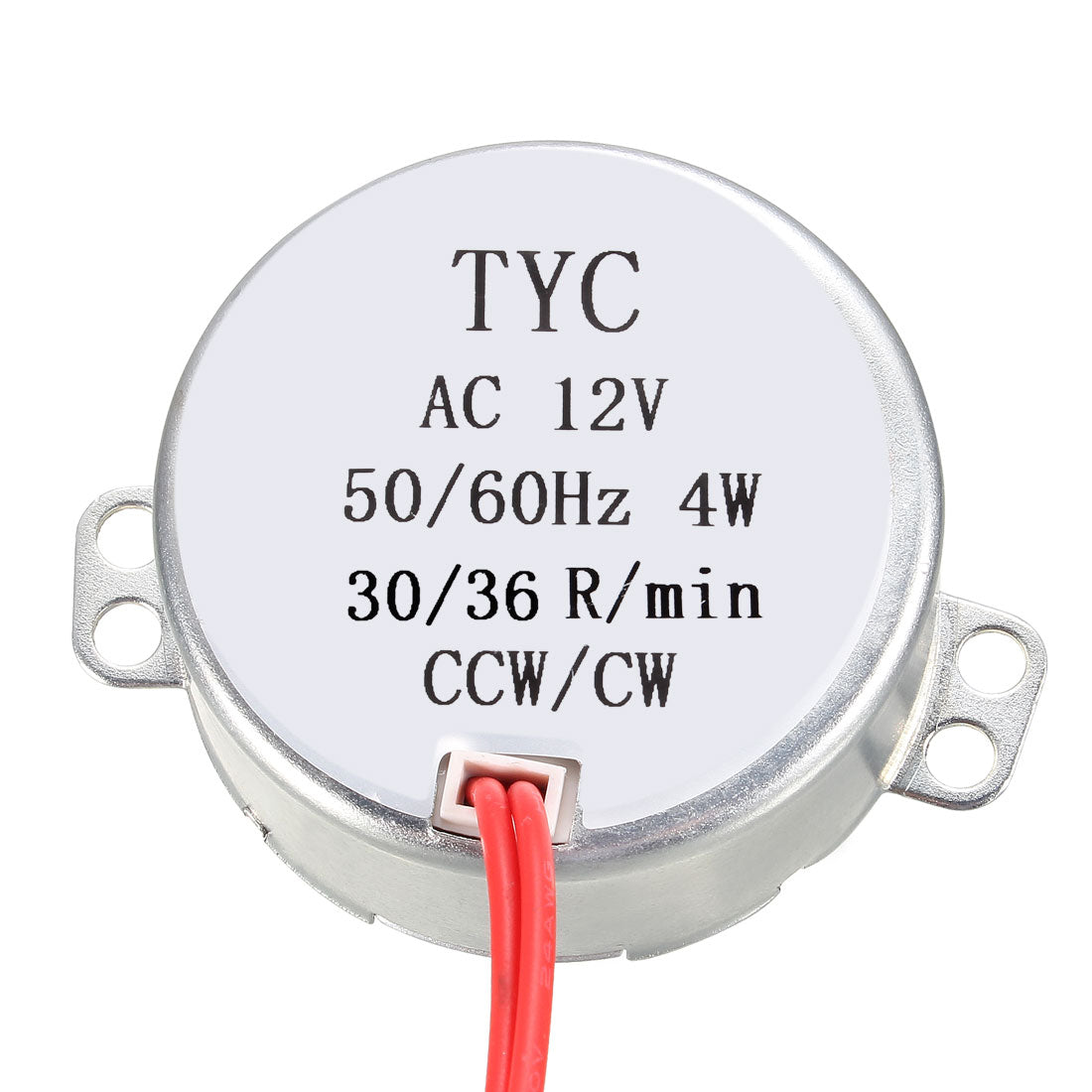

Rated Voltage: AC 12V

Power: 4W

Manner of Working: CCW/CW

Rated Frequency: 50-60Hz

Rated Speed: 30-36RPM

Torque: 0.8kgf.cm

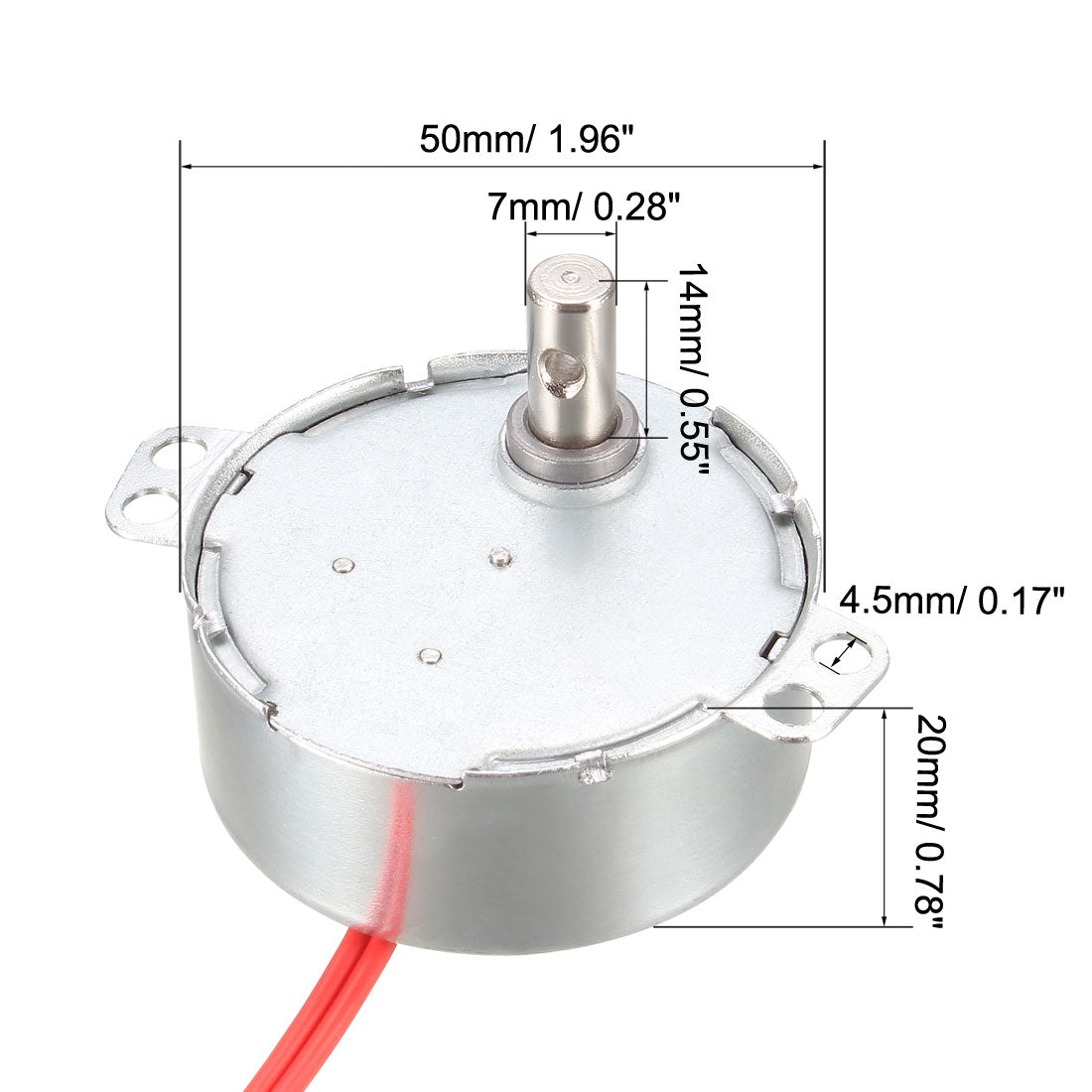

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 14mm/ 0.55 inch

Shaft Hole diameter: 3mm/0.11 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.



Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.



Specification

Rated Voltage: AC 12V

Power: 4W

Manner of Working: CCW/CW

Rated Frequency: 50-60Hz

Rated Speed: 30-36RPM

Torque: 0.8kgf.cm

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 14mm/ 0.55 inch

Shaft Hole diameter: 3mm/0.11 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
