Harfington Uxcell UHS Radial Shaft Seal 18mm ID x 26mm OD x 5mm Width PU Oil Seal, Blue Pack of 5

Uxcell UHS Radial Shaft Seal 18mm ID x 26mm OD x 5mm Width PU Oil Seal, Blue Pack of 5

ID:1014458
ID:1014458
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

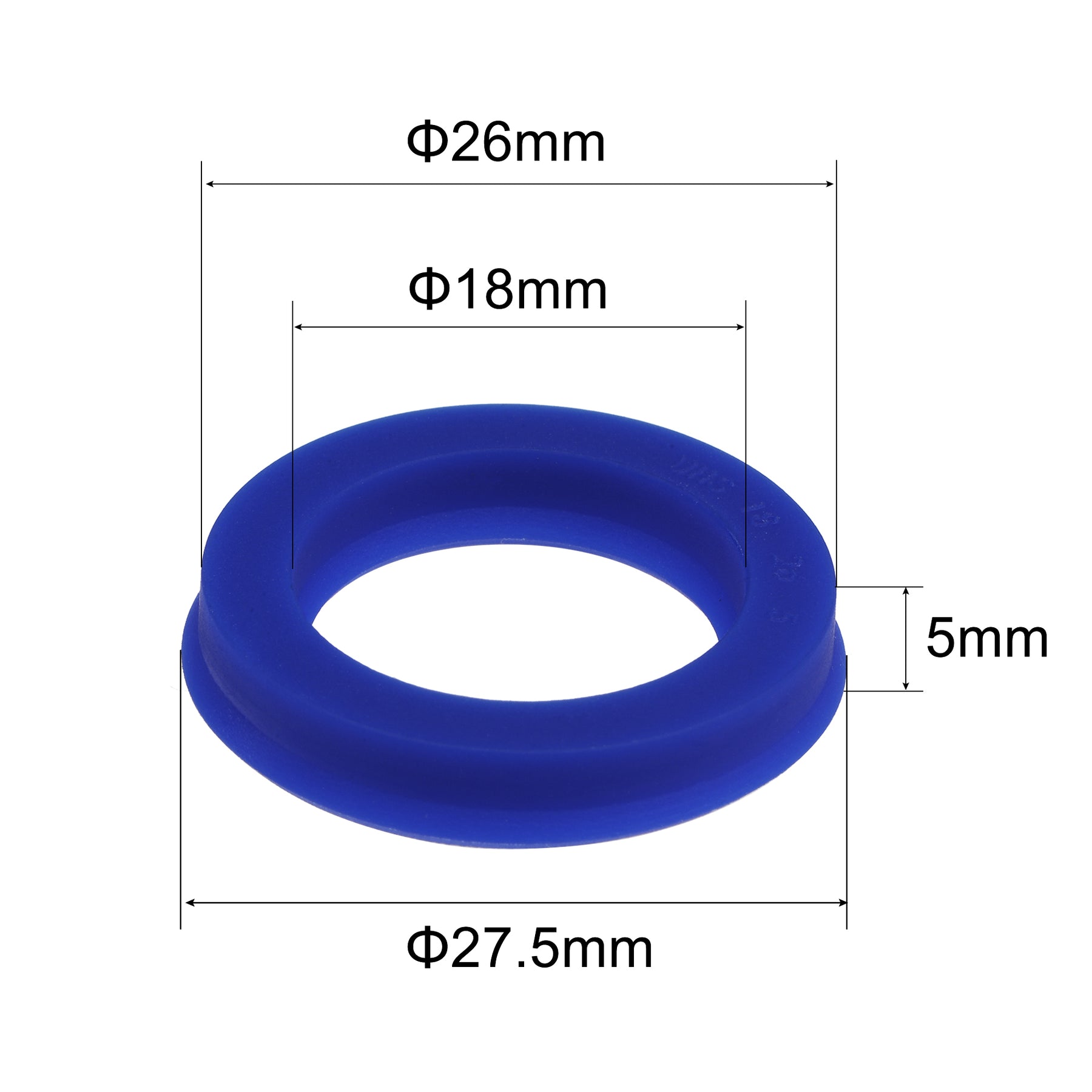

  • [Size] - 18mmx26mmx5mm Y-shape 90A mechanical seal for piston and piston rod
  • [Operation Range] - Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
  • [PU Material] - Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
  • [Advantage] - Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install

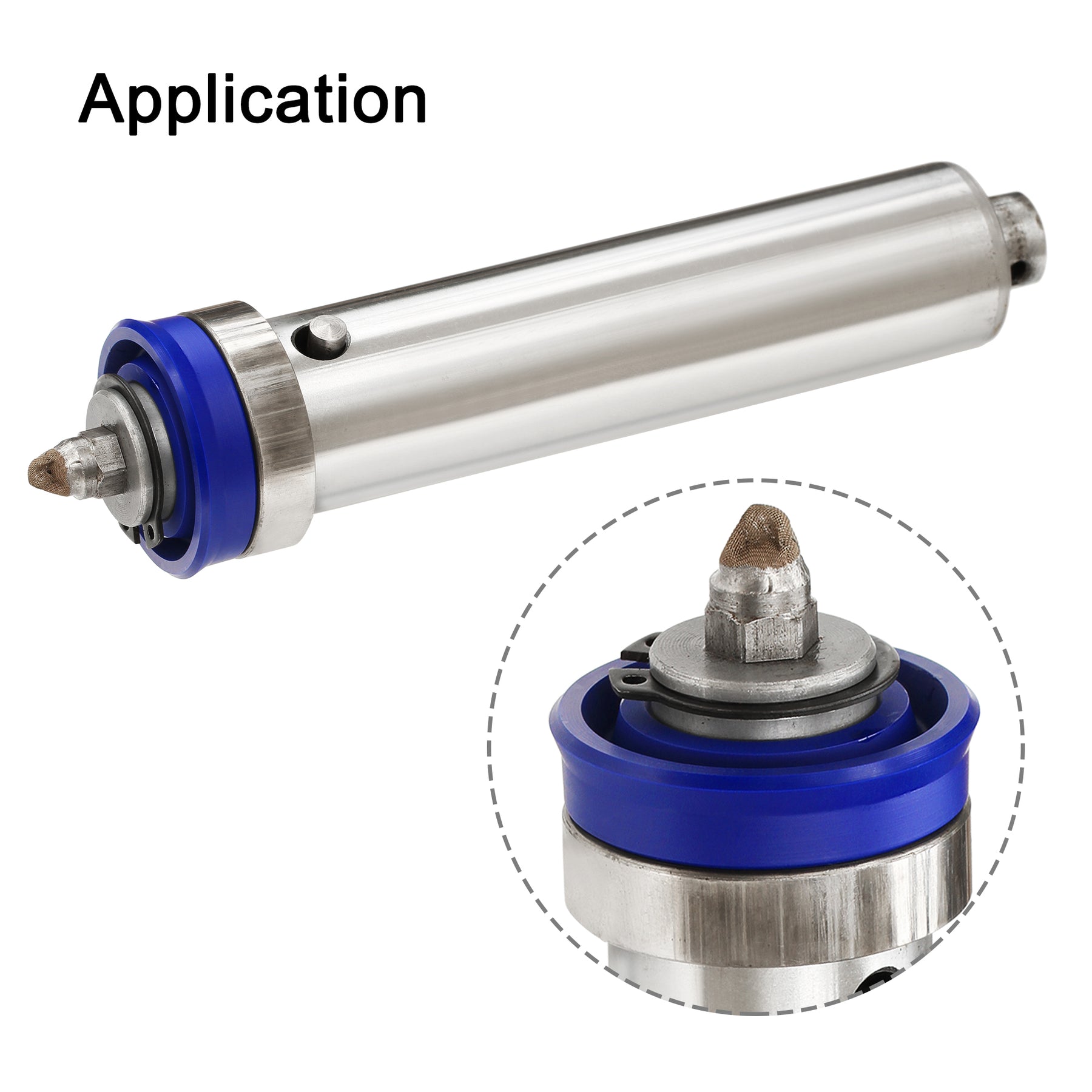

  • [Application] - Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
About this item
  • [Size] - 18mmx26mmx5mm Y-shape 90A mechanical seal for piston and piston rod
  • [Operation Range] - Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
  • [PU Material] - Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
  • [Advantage] - Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
  • [Application] - Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
Specification

Specification

SKU
a21042400ux0178
Color
Blue
Material
Polyurethane (PU)
Inner diameter
18mm
Outer diameter
26mm
Max outer diameter
27.5mm
Width
5mm
Hardness
90A
Working speed
Less than 0.5m/s
Working pressure
Less than 35Mpa
Working temperature range
-35°C to 100°C (-31°F to 212°F)
Cross section type
Y Shape
Package content
5 x Lip Seals
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Features:

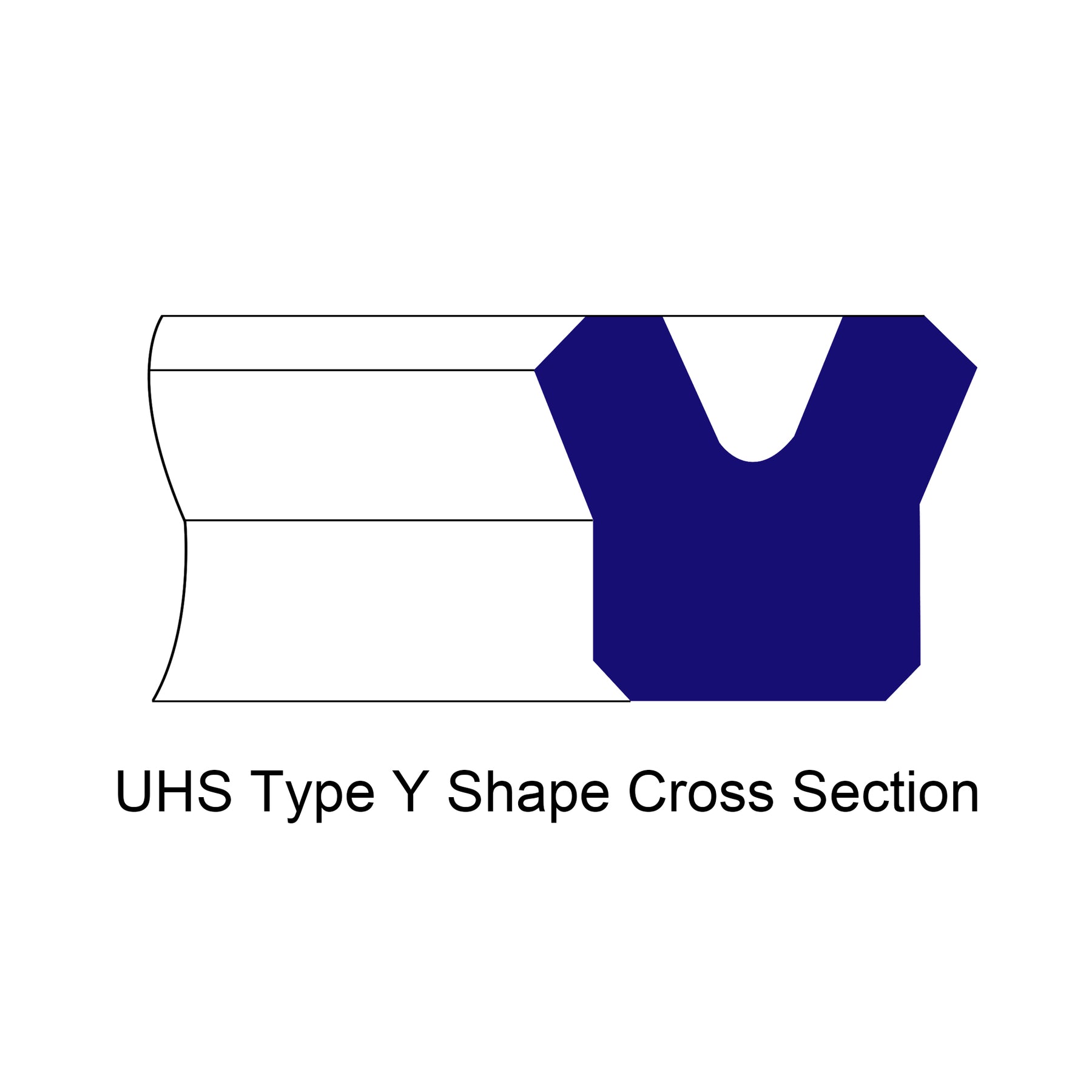

UHS oil seal's inner and outer sealing lip are the same height, with a Y-shape cross-section.
PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install.
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect.
Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.

Specifications:
Color: Blue
Material: Polyurethane (PU)
Inner Diameter: 18mm
Outer Diameter: 26mm
Max. Outer Diameter: 27.5mm
Width: 5mm
Hardness: 90A
Working Speed: Less than 0.5m/s
Working Pressure: Less than 35Mpa
Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
Cross Section Type: Y Shape

Package Contents:

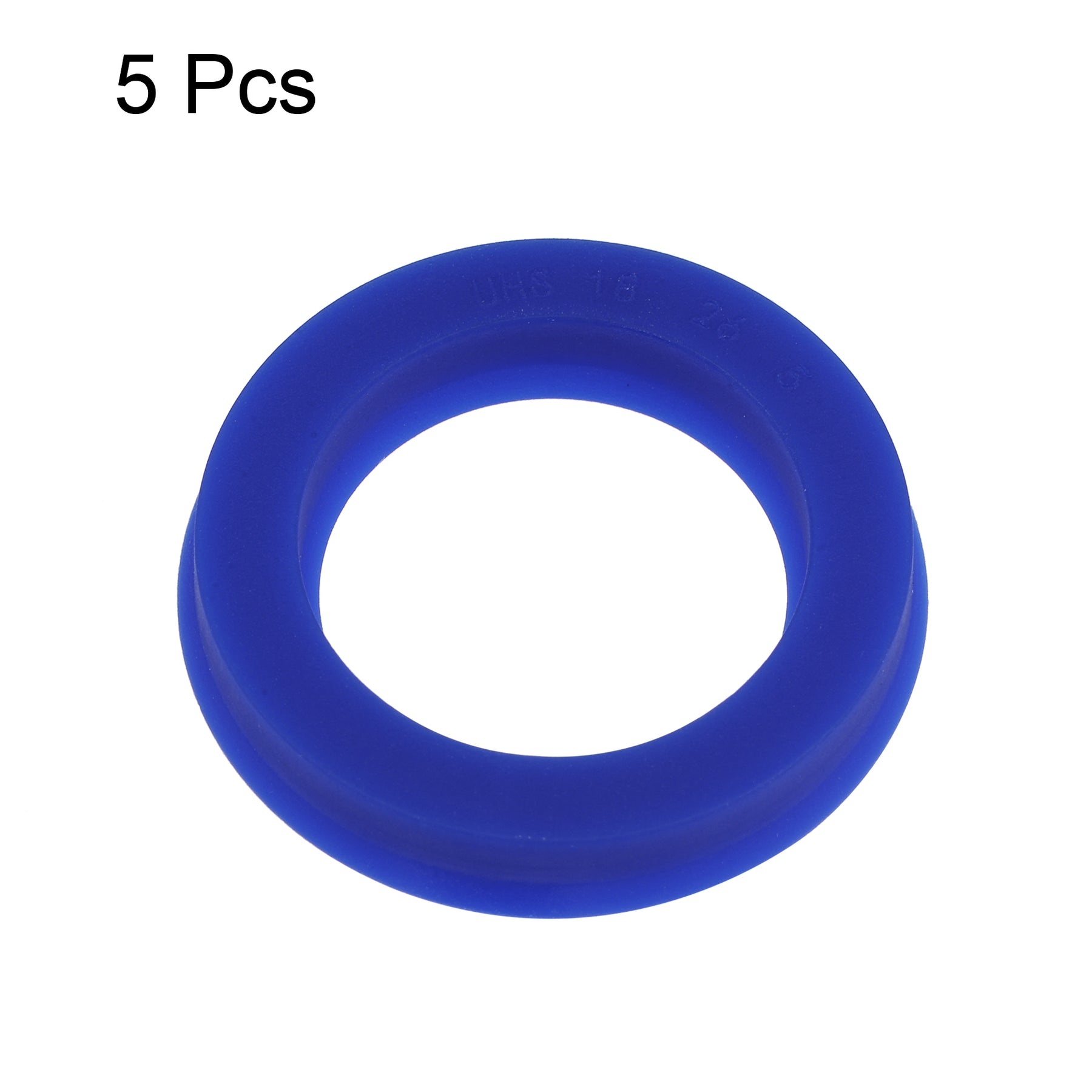

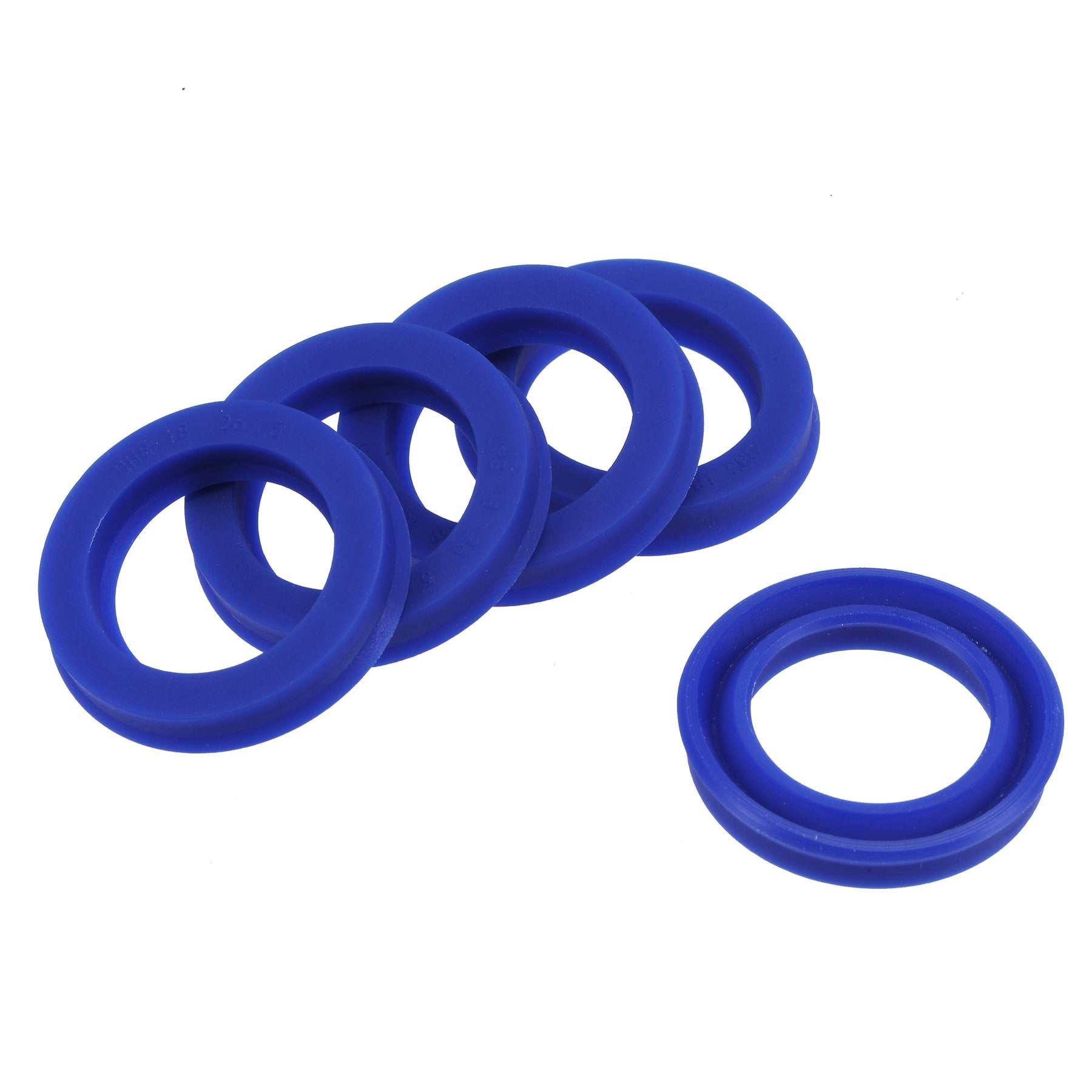

5 x Lip Seals
