Harfington UN Radial Shaft Seal 22mm ID x 30mm OD x 6mm Width PU Oil Seal, Blue

UN Radial Shaft Seal 22mm ID x 30mm OD x 6mm Width PU Oil Seal, Blue

ID:
$5.11 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item
  • Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
  • 22mmx30mmx6mm Y-shape 90A mechanical seal for piston and piston rod
  • Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
  • Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
  • Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
  • In stock, ready to ship
Cart
Cart
About this item
  • Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
  • 22mmx30mmx6mm Y-shape 90A mechanical seal for piston and piston rod
  • Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
  • Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
  • Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
What is this?

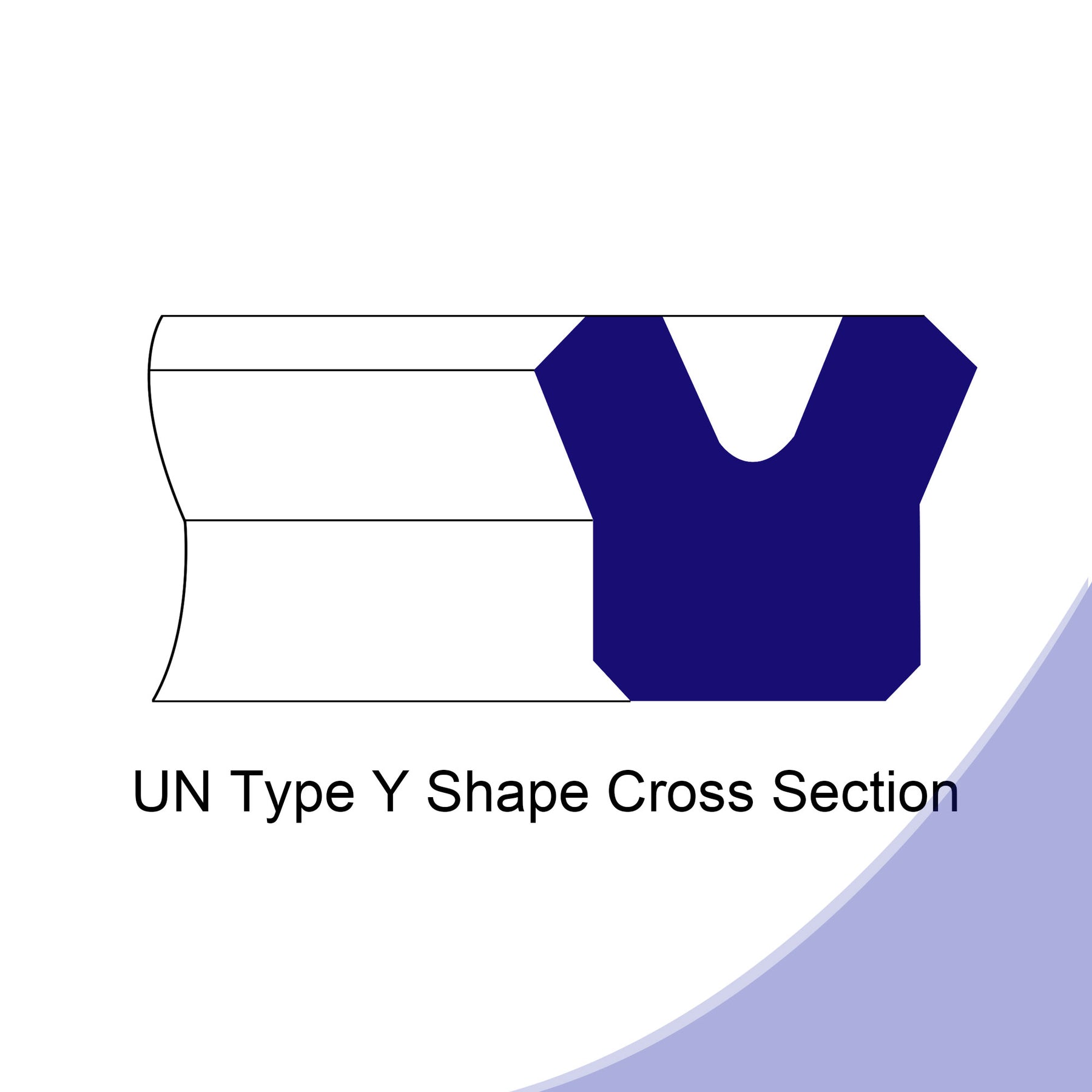

UN oil seal's inner and outer sealing lip are the same height, with a Y-shape cross-section.

Is there any advantages of the product?

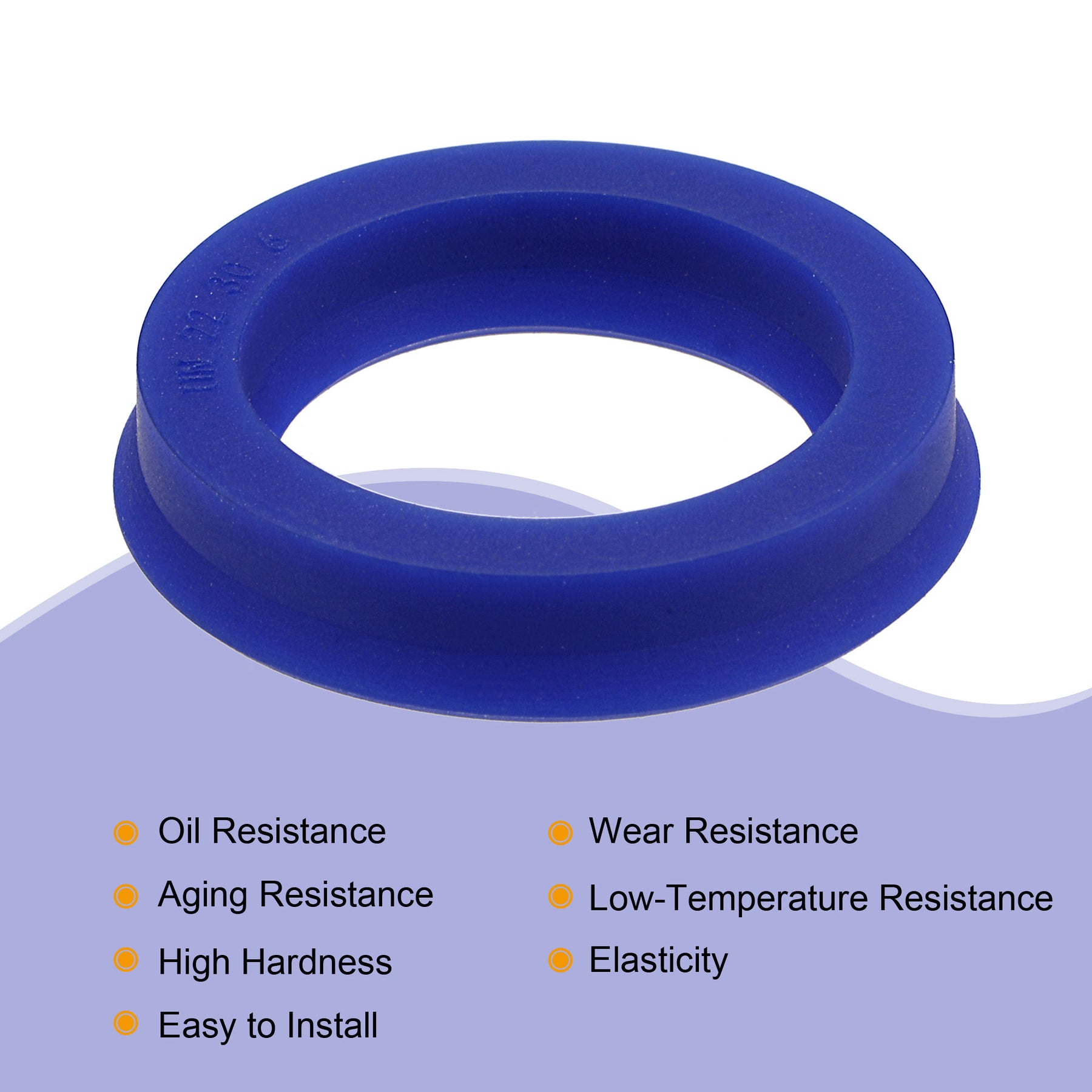

PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install.

How to use it?
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect.
Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.

What will I get?
Color: Blue

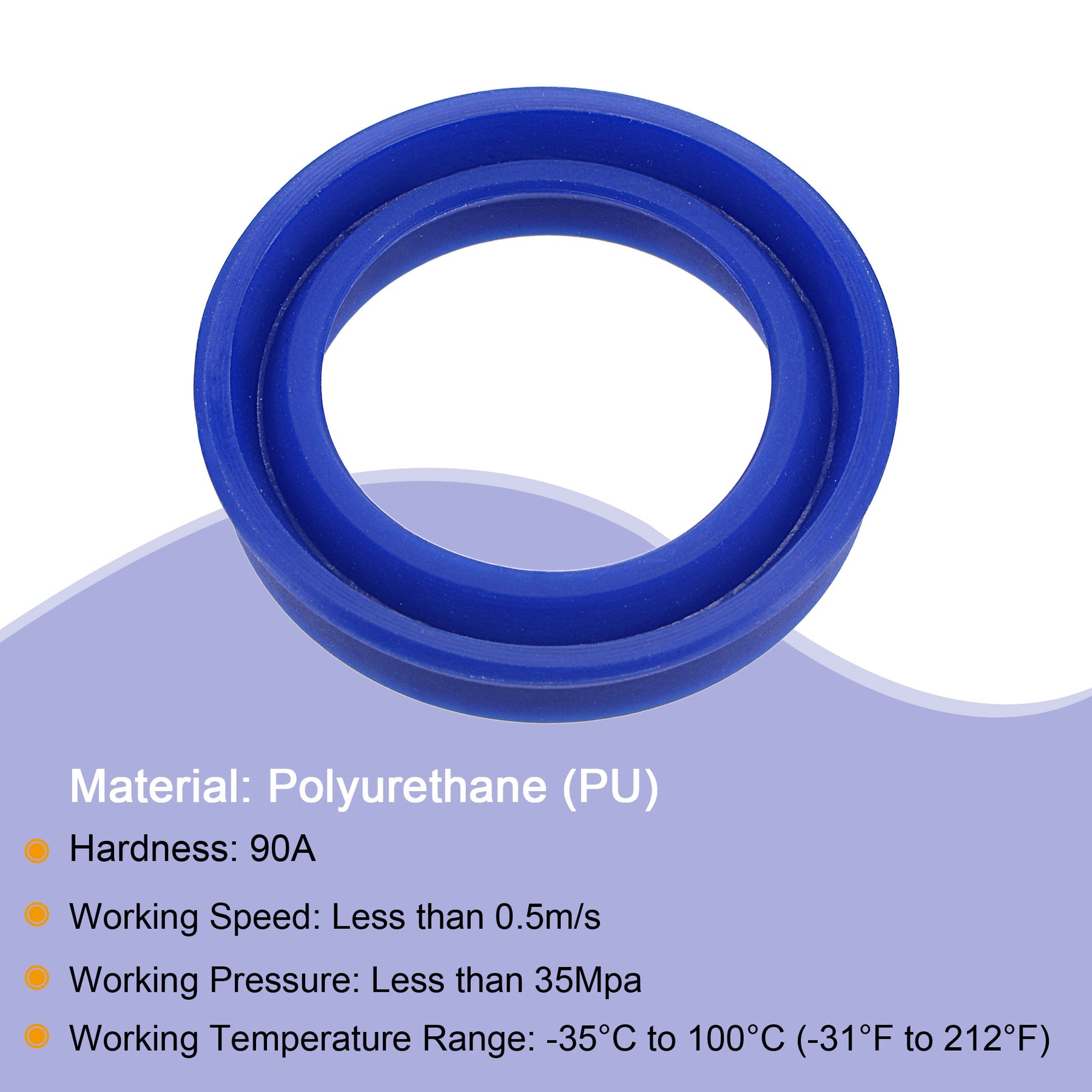

Material: Polyurethane (PU)

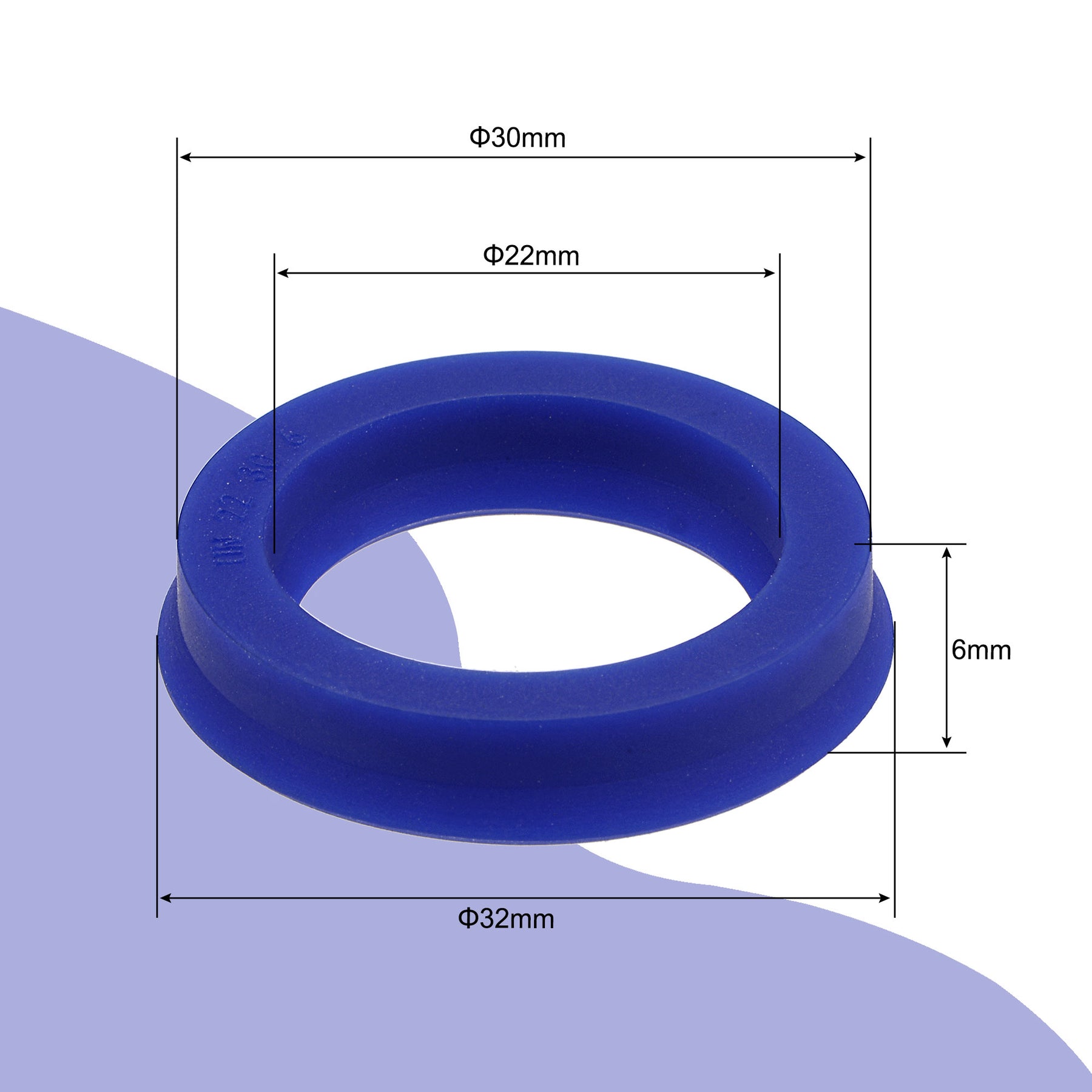

Inner Diameter: 22mm
Outer Diameter: 30mm
Max. Outer Diameter: 32mm
Width: 6mm
Hardness: 90A
Working Speed: Less than 0.5m/s
Working Pressure: Less than 35Mpa
Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
Cross Section Type: Y Shape
Package Content:1 x Lip Seal
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

What is this?
UN oil seal's inner and outer sealing lip are the same height, with a Y-shape cross-section.

Is there any advantages of the product?
PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install.

How to use it?
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect.
Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.

What will I get?
Color: Blue
Material: Polyurethane (PU)
Inner Diameter: 22mm
Outer Diameter: 30mm
Max. Outer Diameter: 32mm
Width: 6mm
Hardness: 90A
Working Speed: Less than 0.5m/s
Working Pressure: Less than 35Mpa
Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
Cross Section Type: Y Shape
Package Content:1 x Lip Seal
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
