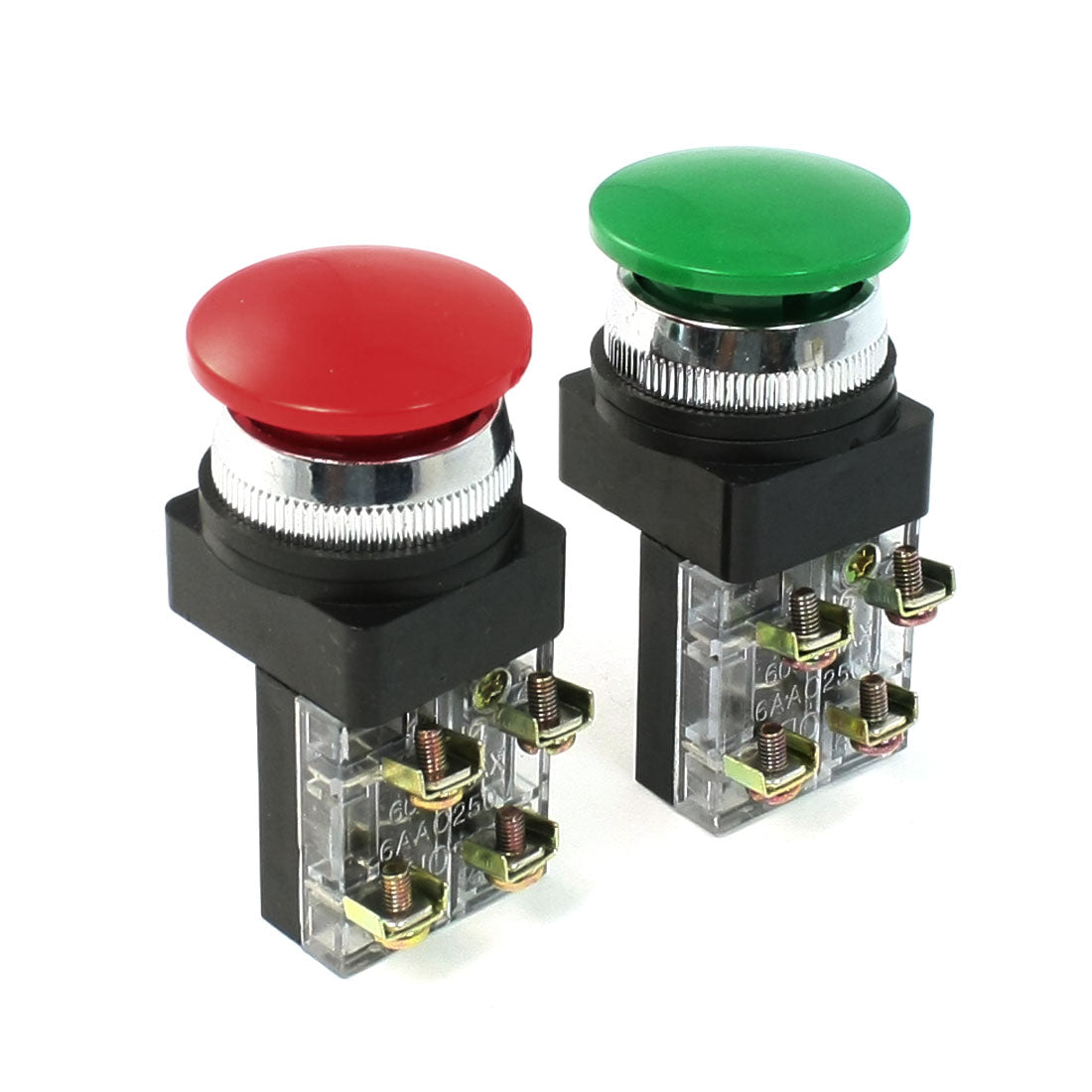

Uxcell Red Green AC 250V 6A DPST Momentary Green Mushroom Head Push Button Switch
-
35%OFFOrder $5000+
-
25%OFFOrder $2000+
-
15%OFFOrder $800+
-
10%OFFOrder $500+
-
5%OFFOrder $200+
- Product Name : Push Button Switch;Action Type : Momentary;Contact Type : 1 NO(Normally Open) + 1 NC(Normally Close)
- Rated Voltage : AC 250V,, 600V Max.;Rated Current : 6A;Terminals Quantity : 4 Screw Terminals
- Panel Cutout Diameter : 30mm / 1.18";Fit Panel Thickness : Max 5mm / 0.2";Button Diameter : 38mm / 1.5"
- Overall Size : 32 x 36 x 76mm/ 1.26" x 1.42" x 3"(L*W*H);Material : Plastic, Metal;Color : Green, Red, Black
- Weight : 100g;Package Content : 2 x Push Button Switch
- Product Name : Push Button Switch;Action Type : Momentary;Contact Type : 1 NO(Normally Open) + 1 NC(Normally Close)
- Rated Voltage : AC 250V,, 600V Max.;Rated Current : 6A;Terminals Quantity : 4 Screw Terminals
- Panel Cutout Diameter : 30mm / 1.18";Fit Panel Thickness : Max 5mm / 0.2";Button Diameter : 38mm / 1.5"
- Overall Size : 32 x 36 x 76mm/ 1.26" x 1.42" x 3"(L*W*H);Material : Plastic, Metal;Color : Green, Red, Black
- Weight : 100g;Package Content : 2 x Push Button Switch
Specification
Features momentary action, 1NO, 1NC contact type, this mushroom cap, 4 screw terminals.Widely used for control of electromagnetic starter, contactor and relay, or other circuit for controlling use.Note: Please notice the voltage before ordering and make sure it can work in your erea.
-
35%OFFOrder $5000+
-
25%OFFOrder $2000+
-
15%OFFOrder $800+
-
10%OFFOrder $500+
-
5%OFFOrder $200+
- Ship from the US
- In stock, dispatch in 24 hours.
Product Variants
Products | Voltage | Current | Contact Type | Switch Action | Button Dia. | Mount Hole Dia. | Overall Size(L*W*H) | Botton Type | Button Color | Material | Pkg.Qty | ID | Price | Qty | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 250V | 6A | DPST 1NO 1NC | Springs Back (Momentary) | 38mm | / | 32*36*72mm | Mushroom Head | Green,Red | Plastic | 2 | 1037383 | $7.93 |
Products | Voltage | Current | Contact Type | Switch Action | Button Dia. | Mount Hole Dia. | Overall Size(L*W*H) | Botton Type | Button Color | Material | Pkg.Qty | ID | Price | Qty | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 250V | 6A | DPST 1NO 1NC | Springs Back (Momentary) | 38mm | / | 32*36*72mm | Mushroom Head | Green,Red | Plastic | 2 | 1037383 | $7.93 | ||
![]() | 660V | 10A | 1NO 1NC | Springs Back (Momentary) | 28mm | / | / | Mushroom Head | Green | Plastic,Electric Parts | 2 | 1199712 | $6.92 | ||
![]() | 660V | 10A | 1NO 1NC | Springs Back (Momentary) | 4mm | 24mm | / | Mushroom Head | Green | Plastic | 1 | 1199908 | $6.81 | ||
![]() | 660V | 10A | 1NO 1NC | Springs Back (Momentary) | / | 24mm | / | Mushroom Head | Red | Plastic | 1 | 1091462 | $5.52 | ||
![]() | 660V | 10A | 1NO 1NC | Springs Back (Momentary) | / | 22mm | / | Mushroom Head | Red | Plastic,Metal | 1 | 1107332 | $7.80 | ||
![]() | 660V | 10A | SPST 1NC | Stays Switched (Maintained) | / | 22mm | 70*40*40mm | Mushroom Head | Red | Plastic,Electric Parts | 1 | 1199239 | $6.21 | ||
![]() | 600V | 6A | 1NO 1NC | Springs Back (Momentary) | 38mm | 5mm | 40*35*78mm | Mushroom Head | Red | Plastic | 1 | 1202104 | $6.23 | ||
![]() | 250V | 6A | DPST | Springs Back (Momentary) | / | 25mm | 80*35*40mm | Mushroom Head | Green | Plastic | 2 | 1093660 | $7.92 | ||
![]() | 250V | 6A | DPST | Springs Back (Momentary) | / | 25mm | 35.8*32*78mm | Mushroom Head | Red | Plastic | 1 | 1157291 | $6.71 | ||
![]() | 250V | 6A | DPST | Springs Back (Momentary) | / | 30mm | 80*40*40mm | Mushroom Head | Green | Plastic | 2 | 1085281 | $8.28 | ||
![]() | 250V | 6A | DPST | Springs Back (Momentary) | / | 30mm | 80*40*40mm | Mushroom Head | Red | Plastic | 1 | 1080750 | $6.68 | ||
![]() | 250V | 6A | 1NO 1NC | Springs Back (Momentary) | 30mm | 38mm | 40*33*76mm | Mushroom Head | Red | Plastic | 1 | 1091553 | $6.22 | ||
![]() | 380V | 5A | 1NO 1NC | Springs Back (Momentary) | / | 30mm | / | Mushroom Head | Red | Plastic,Metal | 2 | 1046368 | $10.43 | ||
![]() | 380V | 5A | 1NO 1NC | Springs Back (Momentary) | / | 30mm | / | Mushroom Head | Red | Plastic,Metal | 1 | 1067719 | $7.88 | ||
![]() | 380V | 5A | 1NO 1NC | Springs Back (Momentary) | / | 30mm | / | Mushroom Head | Red | Plastic,Metal | 3 | 1088735 | $13.13 | ||
![]() | 380V | 5A | 1NO 1NC | Springs Back (Momentary) | / | 30mm | / | Mushroom Head | Green | Plastic,Metal | 1 | 1040212 | $7.88 | ||
![]() | 380V | 5A | 1NO 1NC | Springs Back (Momentary) | / | 30mm | / | Mushroom Head | Green | Plastic,Metal | 3 | 1067715 | $12.72 | ||
![]() | 380V | 5A | 1NO 1NC | Springs Back (Momentary) | / | 30mm | / | Mushroom Head | Green | Plastic,Metal | 2 | 1067716 | $10.04 | ||
![]() | 380V | 10A | SPST 1NO | Stays Switched (Maintained) | / | 22mm | / | Round | Red | Plastic | 1 | 1156681 | $6.81 | ||
![]() | 415V | 10A | 1NO 1NC | Springs Back (Momentary) | / | 22mm | / | Mushroom Head | Red | Plastic | 1 | 1158876 | $6.65 | ||
![]() | 440V | 10A | SPDT 1NO 1NC | Stays Switched (Maintained) | 36mm | 22mm | / | Mushroom Head | Red | Plastic,Metal | 1 | 1095176 | $6.41 | ||
![]() | 125V | 3A | SPST 1NO | Springs Back (Momentary) | 9mm | 12.3mm | / | Mushroom Head | Red | Plastic,Electric Parts | 10 | 1199784 | $6.10 |
Description
Description
Features momentary action, 1NO, 1NC contact type, this mushroom cap, 4 screw terminals.Widely used for control of electromagnetic starter, contactor and relay, or other circuit for controlling use.Note: Please notice the voltage before ordering and make sure it can work in your erea.
Features momentary action, 1NO, 1NC contact type, this mushroom cap, 4 screw terminals.Widely used for control of electromagnetic starter, contactor and relay, or other circuit for controlling use.Note: Please notice the voltage before ordering and make sure it can work in your erea.
