Harfington Uxcell Push Bottom Switch Red Momentary AC 380V 5A Mushroom Head Pushbutton Switches 30mm Panel Mount 2pcs

Uxcell Push Bottom Switch Red Momentary AC 380V 5A Mushroom Head Pushbutton Switches 30mm Panel Mount 2pcs

ID:1046368
ID:1046368
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Momentary switch: 1 Pair of NO + 1 Pair of NC Contacts
  • Remain in one state as long as being pressed
  • Easy to install, it has non-solder connections, screw-type terminals to make fitting very easy
  • Simply drill an 30mm (1-17/94") hole and secure it with the screw ring
  • This button switch is suitable to work in AC 50Hz 380V and DC 220V circuits
About this item
  • Momentary switch: 1 Pair of NO + 1 Pair of NC Contacts
  • Remain in one state as long as being pressed
  • Easy to install, it has non-solder connections, screw-type terminals to make fitting very easy
  • Simply drill an 30mm (1-17/94") hole and secure it with the screw ring
  • This button switch is suitable to work in AC 50Hz 380V and DC 220V circuits
Specification

Specification

SKU
a19011000ux0356
Mount Hole Dia.
30mm
Contact Type
1NO 1NC
Switch Action
Springs Back (Momentary)
Voltage
380V
Current
5A
Material
Plastic,Metal
Botton Type
Mushroom Head
Button Color
Red
Pkg.Qty
2
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

-This button switch is suitable in AC 50Hz, 380V and DC 220V circuits for remote manual control of electromagnetic starter, contactor, relay coil and other electrical signal appliances.

-Momentary Push Switch causes a temporary change in the state of an electrical circuit only while the switch is physically actuated.

-Widely used in security systems, Industrial manufacturing equipment, Gaming, Audio/video equipment, Avionics, Fitness equipment, Test and measurement equipment.

-Most often momentary switches are used for circuits control in electromagnetic starter: Doorbell button, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls.

-NOTE: These switches are not positive break types and should not be used for emergency stop applications.

Specification:

Model: LA2-J

Rated Voltage: AC 380V / DC 220V

Heating Current (Ith): 5A

Action Type: Momentary

Contacts Type: 1 Pair of NO + 1 Pair of NC

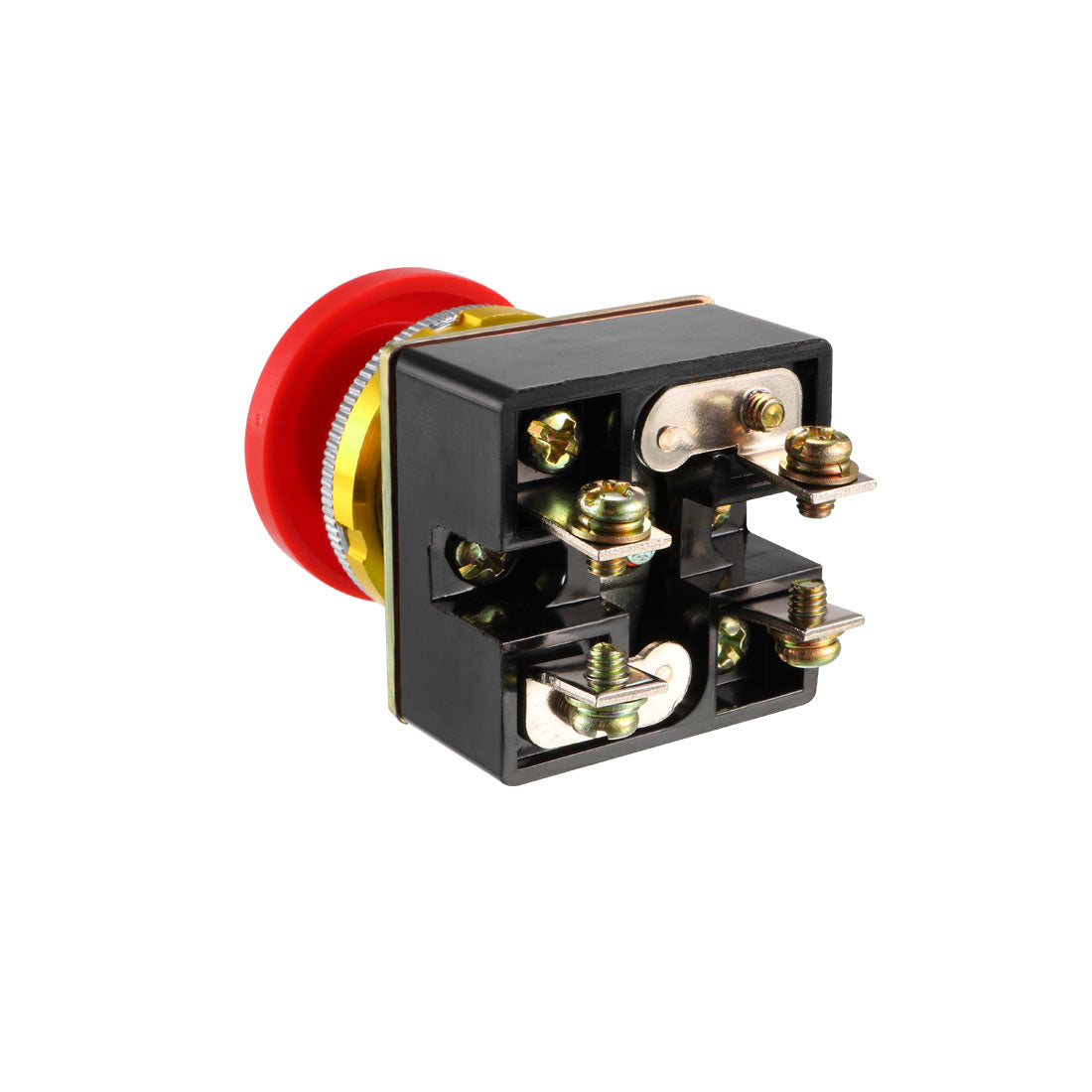

Terminals Type: Screw Clamps Terminals

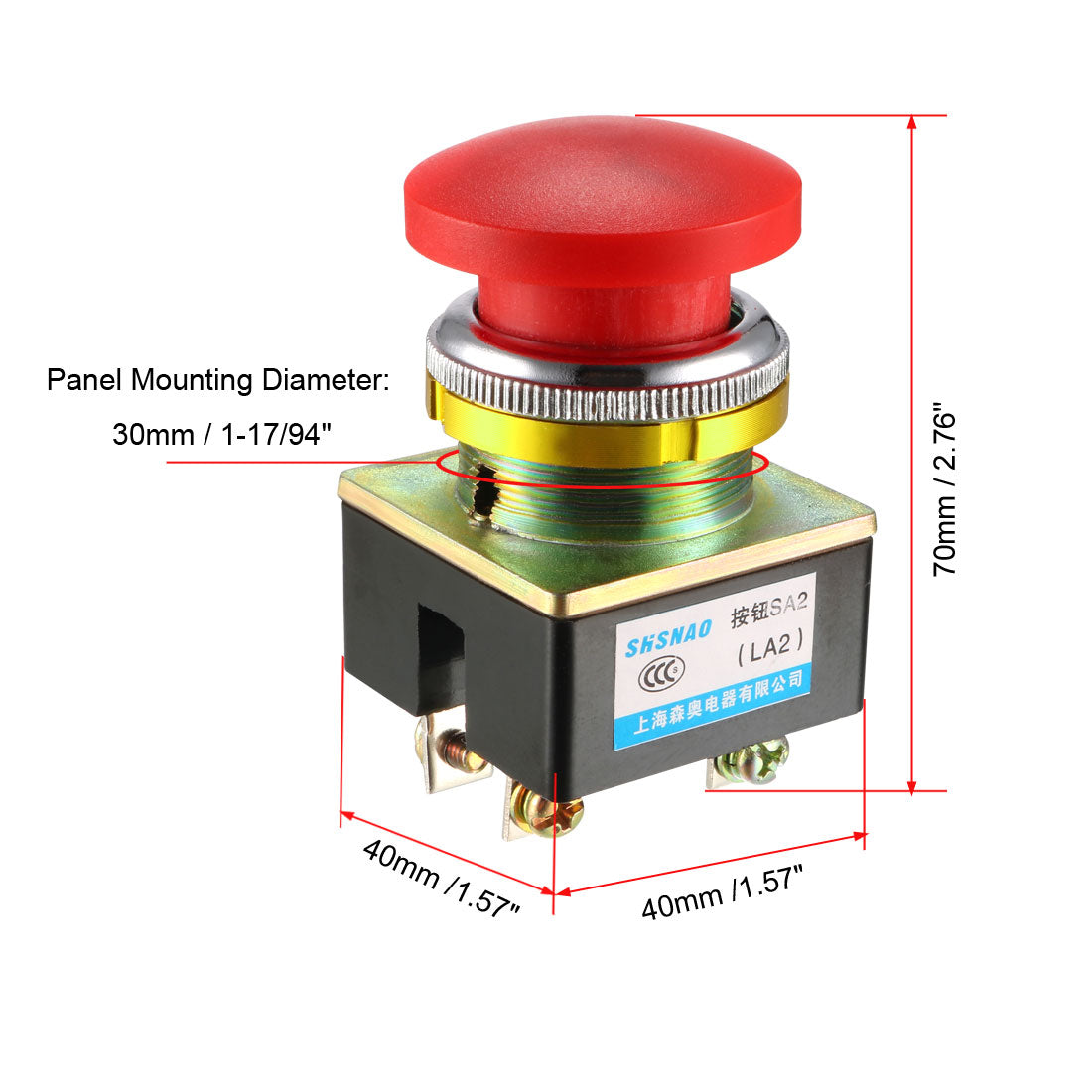

Panel Mounting Diameter: 30mm / 1-17/94"

Fit Panel Thickness: 1mm-6mm / 0.04"-0.24"

Overall Size: 70 x 40 x 40mm / 2.76" x 1.57" x 1.57" (L*W*H)

$10.43 $5.22/eachRegular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Voltage Current Contact Type Switch Action Button Dia. Mount Hole Dia. Overall Size(L*W*H) Botton Type Button Color Material Pkg.Qty ID Price Qty
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Red Plastic,Metal 2 1046368 $10.43
Products Voltage Current Contact Type Switch Action Button Dia. Mount Hole Dia. Overall Size(L*W*H) Botton Type Button Color Material Pkg.Qty ID Price Qty
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Red Plastic,Metal 2 1046368 $10.43
660V 10A 1NO 1NC Springs Back (Momentary) / 22mm / Mushroom Head Red Plastic,Metal 1 1107332 $7.80
660V 10A 1NO 1NC Springs Back (Momentary) / 24mm / Mushroom Head Red Plastic 1 1091462 $5.52
660V 10A 1NO 1NC Springs Back (Momentary) 28mm / / Mushroom Head Green Plastic,Electric Parts 2 1199712 $6.92
660V 10A 1NO 1NC Springs Back (Momentary) 4mm 24mm / Mushroom Head Green Plastic 1 1199908 $6.81
660V 10A SPST 1NC Stays Switched (Maintained) / 22mm 70*40*40mm Mushroom Head Red Plastic,Electric Parts 1 1199239 $6.21
600V 6A 1NO 1NC Springs Back (Momentary) 38mm 5mm 40*35*78mm Mushroom Head Red Plastic 1 1202104 $6.23
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Green Plastic,Metal 1 1040212 $7.88
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Green Plastic,Metal 3 1067715 $12.72
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Green Plastic,Metal 2 1067716 $10.04
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Red Plastic,Metal 1 1067719 $7.88
380V 5A 1NO 1NC Springs Back (Momentary) / 30mm / Mushroom Head Red Plastic,Metal 3 1088735 $13.13
380V 10A SPST 1NO Stays Switched (Maintained) / 22mm / Round Red Plastic 1 1156681 $6.81
250V 6A DPST Springs Back (Momentary) / 30mm 80*40*40mm Mushroom Head Red Plastic 1 1080750 $6.68
250V 6A DPST Springs Back (Momentary) / 30mm 80*40*40mm Mushroom Head Green Plastic 2 1085281 $8.28
250V 6A DPST Springs Back (Momentary) / 25mm 80*35*40mm Mushroom Head Green Plastic 2 1093660 $7.92
250V 6A DPST Springs Back (Momentary) / 25mm 35.8*32*78mm Mushroom Head Red Plastic 1 1157291 $6.71
250V 6A 1NO 1NC Springs Back (Momentary) 30mm 38mm 40*33*76mm Mushroom Head Red Plastic 1 1091553 $6.22
250V 6A DPST 1NO 1NC Springs Back (Momentary) 38mm / 32*36*72mm Mushroom Head Green,Red Plastic 2 1037383 $7.93
125V 3A SPST 1NO Springs Back (Momentary) 9mm 12.3mm / Mushroom Head Red Plastic,Electric Parts 10 1199784 $6.10
440V 10A SPDT 1NO 1NC Stays Switched (Maintained) 36mm 22mm / Mushroom Head Red Plastic,Metal 1 1095176 $6.41
415V 10A 1NO 1NC Springs Back (Momentary) / 22mm / Mushroom Head Red Plastic 1 1158876 $6.65
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Description:

-This button switch is suitable in AC 50Hz, 380V and DC 220V circuits for remote manual control of electromagnetic starter, contactor, relay coil and other electrical signal appliances.

-Momentary Push Switch causes a temporary change in the state of an electrical circuit only while the switch is physically actuated.

-Widely used in security systems, Industrial manufacturing equipment, Gaming, Audio/video equipment, Avionics, Fitness equipment, Test and measurement equipment.

-Most often momentary switches are used for circuits control in electromagnetic starter: Doorbell button, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls.

-NOTE: These switches are not positive break types and should not be used for emergency stop applications.

Specification:

Model: LA2-J

Rated Voltage: AC 380V / DC 220V

Heating Current (Ith): 5A

Action Type: Momentary

Contacts Type: 1 Pair of NO + 1 Pair of NC

Terminals Type: Screw Clamps Terminals

Panel Mounting Diameter: 30mm / 1-17/94"

Fit Panel Thickness: 1mm-6mm / 0.04"-0.24"

Overall Size: 70 x 40 x 40mm / 2.76" x 1.57" x 1.57" (L*W*H)
