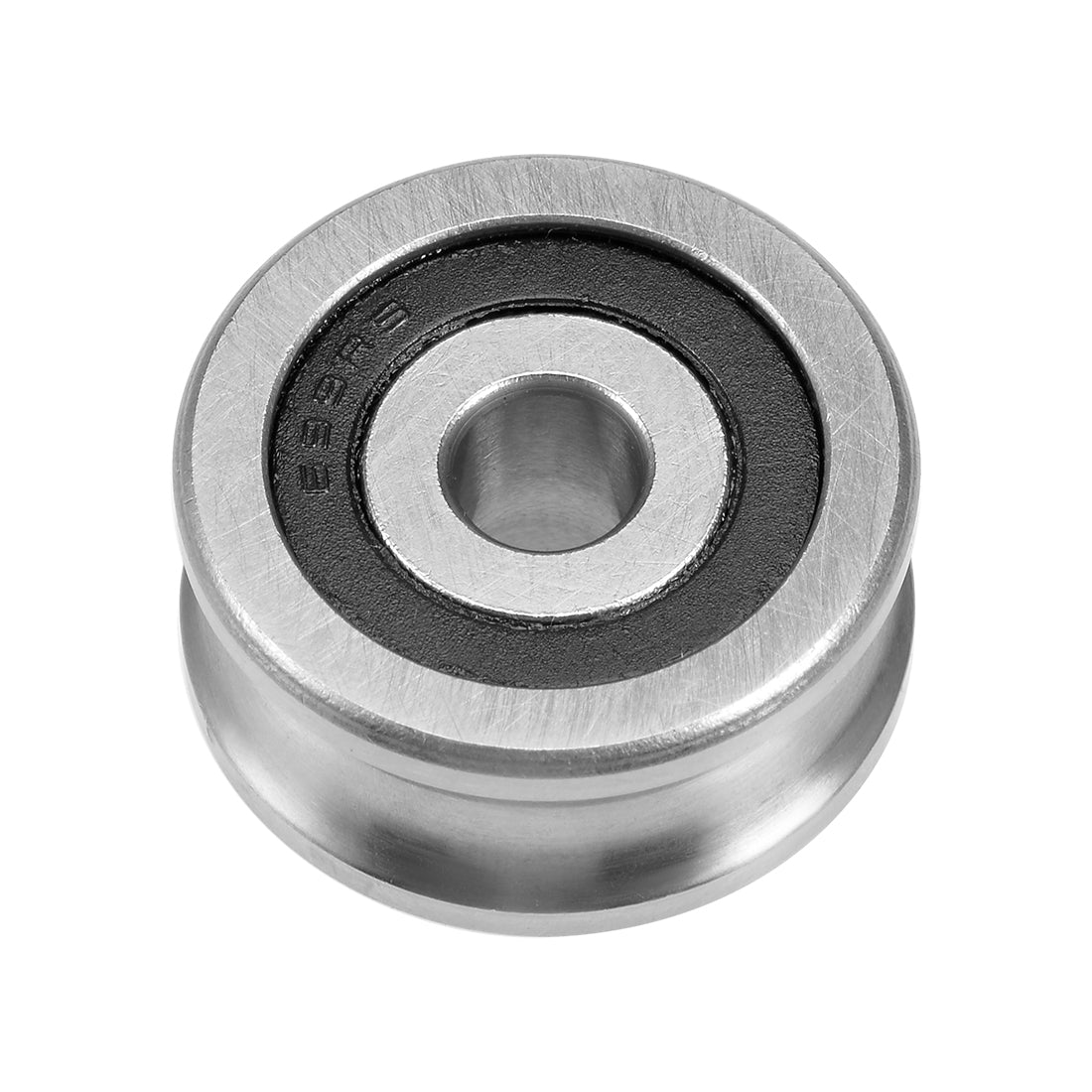

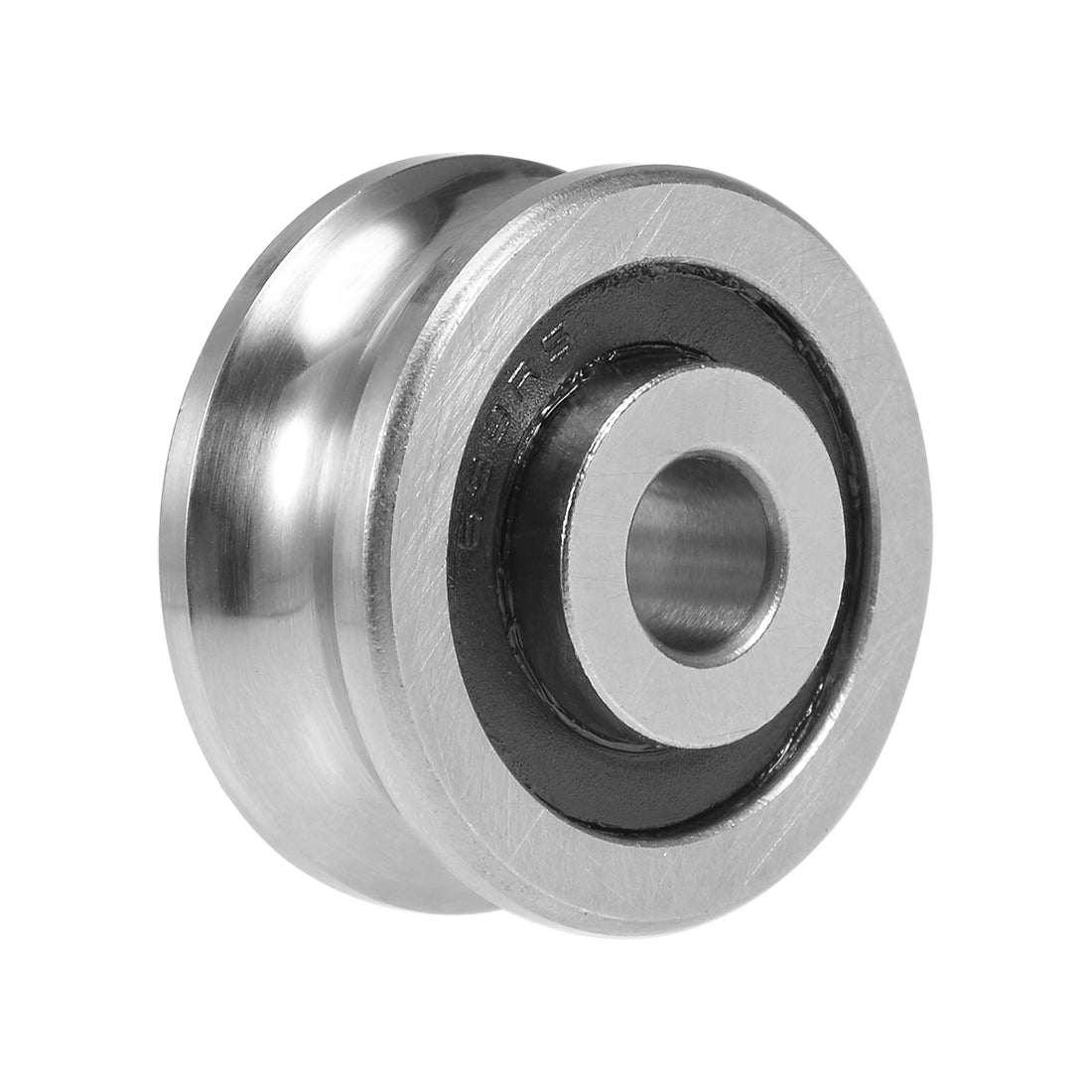

Harfington Uxcell SG20 U-Groove Track Guide Bearing 6x24x11mm Pulley Wheel Bearings for Laser Cutting Machine

Uxcell SG20 U-Groove Track Guide Bearing 6x24x11mm Pulley Wheel Bearings for Laser Cutting Machine

ID:
$7.63 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item
  • SG20 (I.D.=6mm, O.D.=24mm, Inner Race Thickness=12.75mm, Outer Race Thickness: 11mm)
  • u groove width: 6.5mm; u groove depth: 1.75mm
  • SG20 line track rollers bearing features wire pulley groove
  • Easy installation and replacement, wide application
  • Specially for linear motion systems such as textile machine
  • In stock, ready to ship
Cart
Cart
About this item
  • SG20 (I.D.=6mm, O.D.=24mm, Inner Race Thickness=12.75mm, Outer Race Thickness: 11mm)
  • u groove width: 6.5mm; u groove depth: 1.75mm
  • SG20 line track rollers bearing features wire pulley groove
  • Easy installation and replacement, wide application
  • Specially for linear motion systems such as textile machine
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • SG20 bearings are specially guide wheel and pulley wheel for textile machine.
  • Dual-row, pre-lubricated, normal accuracy, low noise and smooth.
  • With small friction and high-limit speed, these u groove pulley bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for furniture hardware accessories, mobile doors, glass sliding doors, aluminum doors and windows, shower pulleys and drawers, etc.





Specification:

Model: SG20

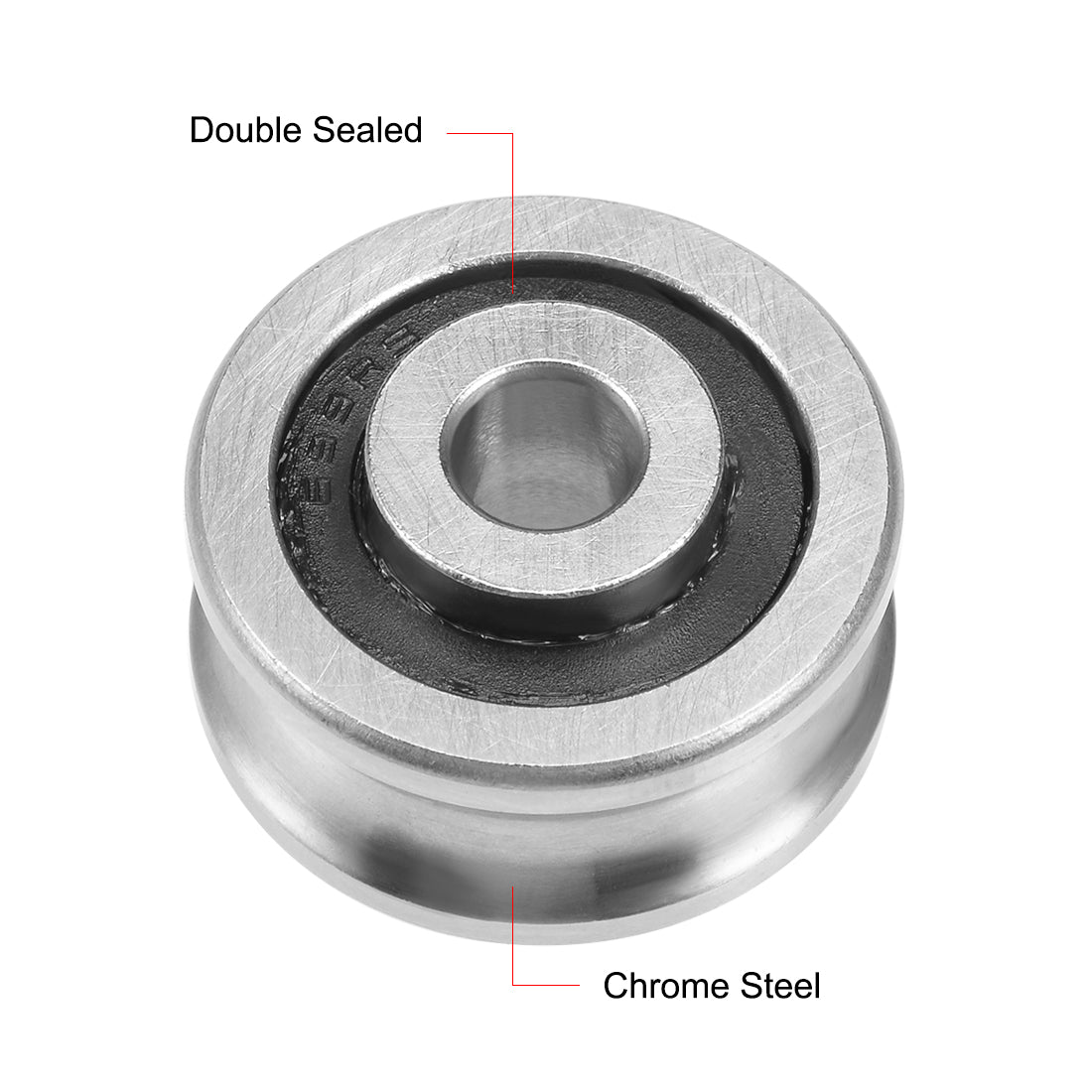

Sealed Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel

Cage Material: Steel

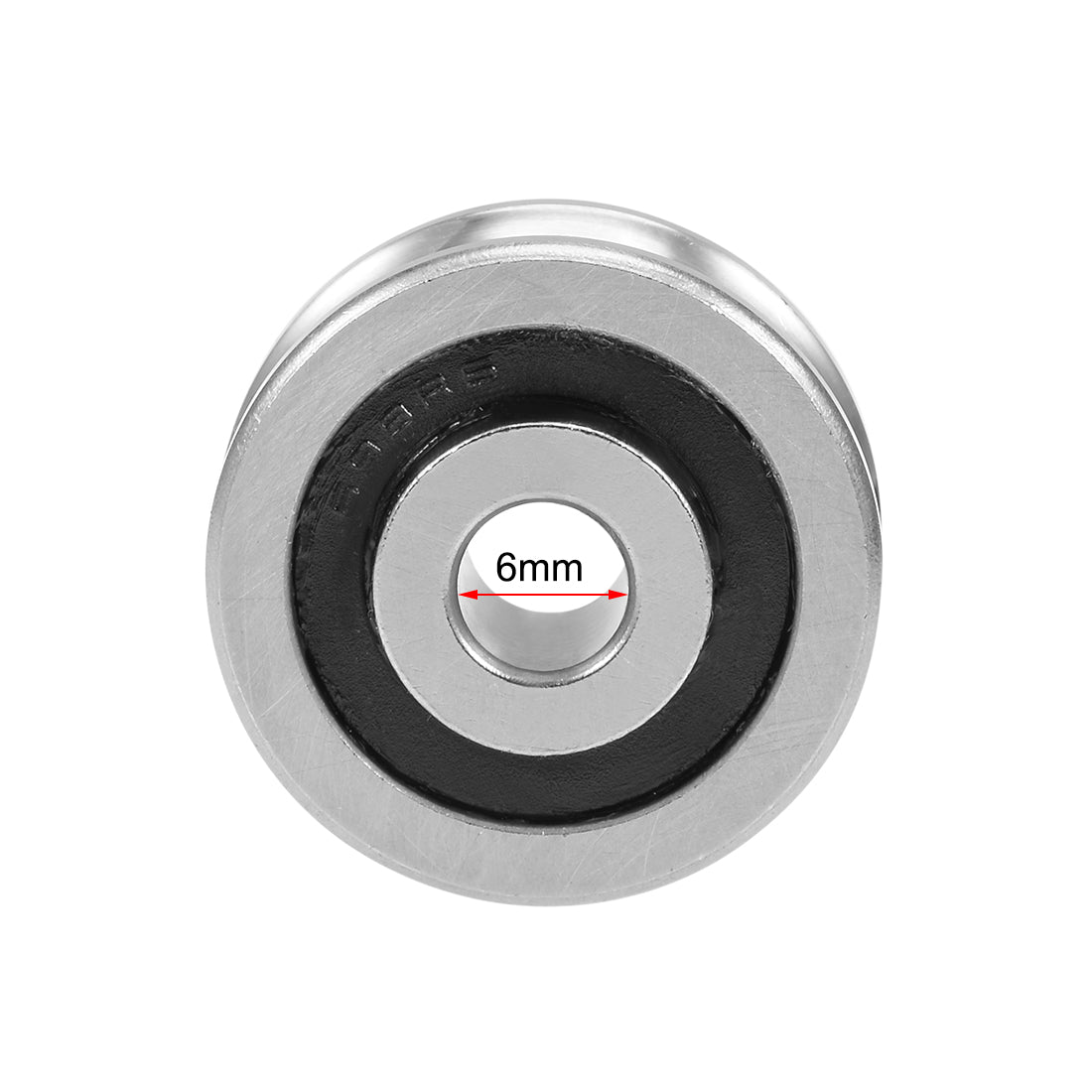

Inner Diameter (d): 6mm

Outer Diameter (D): 24mm

Inner Race Thickness (B): 12.75mm

Outer Race Thickness (C): 11mm

Groove Width (C): 6.5mm

Groove Depth: 1.75mm

Fit Lead Rail Dia.: 8mm

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • SG20 bearings are specially guide wheel and pulley wheel for textile machine.
  • Dual-row, pre-lubricated, normal accuracy, low noise and smooth.
  • With small friction and high-limit speed, these u groove pulley bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for furniture hardware accessories, mobile doors, glass sliding doors, aluminum doors and windows, shower pulleys and drawers, etc.





Specification:

Model: SG20

Sealed Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel

Cage Material: Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 24mm

Inner Race Thickness (B): 12.75mm

Outer Race Thickness (C): 11mm

Groove Width (C): 6.5mm

Groove Depth: 1.75mm

Fit Lead Rail Dia.: 8mm

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
