Harfington Deep Groove Ball Bearings Inner Dia Bore Double Shielded Chrome Steel

Deep Groove Ball Bearings Inner Dia Bore Double Shielded Chrome Steel

ID:1131255
ID:1131255
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
3/16"x1/2"x0.196"
SizeName
4
NumberOfItems
About this item

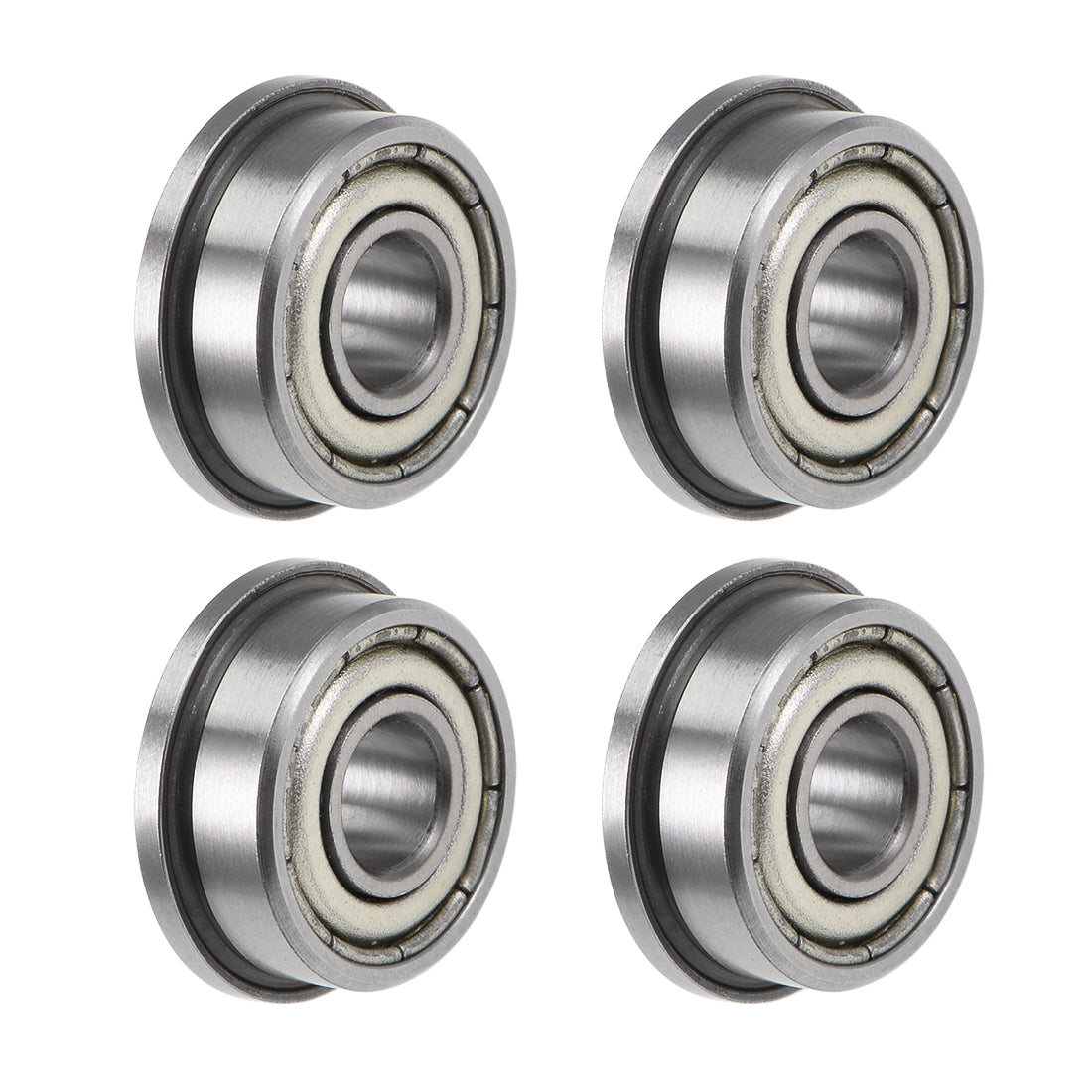

  • FR3ZZ (I.D.=3/16-inch, O.D.=1/2-inch, Thickness=0.196-inch)
  • fr3zz bearings are Shielded on BOTH SIDES to keep lubricant in
  • Made from Chrome Steel (GCr15), features with good anti-rust and corrosion resistance
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 88 newtons and dynamic load rating of 249 newtons
About this item
  • FR3ZZ (I.D.=3/16-inch, O.D.=1/2-inch, Thickness=0.196-inch)
  • fr3zz bearings are Shielded on BOTH SIDES to keep lubricant in
  • Made from Chrome Steel (GCr15), features with good anti-rust and corrosion resistance
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 88 newtons and dynamic load rating of 249 newtons
Specification

Specification

SKU
a19092000ux1147
Model
FR3ZZ
Type
Double Shielded
I.D.
3/16''
O.D.
1/2"
Thickness
0.196"
Material
Chrome Steel (GCr15)
Dynamic Load Rating(KN)
0.249
Static Load Rating((KN)
0.088
Accuracy Class
ABEC-1
Pkg.Qty.
4
Noise Level
Z2
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • These cost-effective bearings are widely used in areas with low requirements for hardness.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

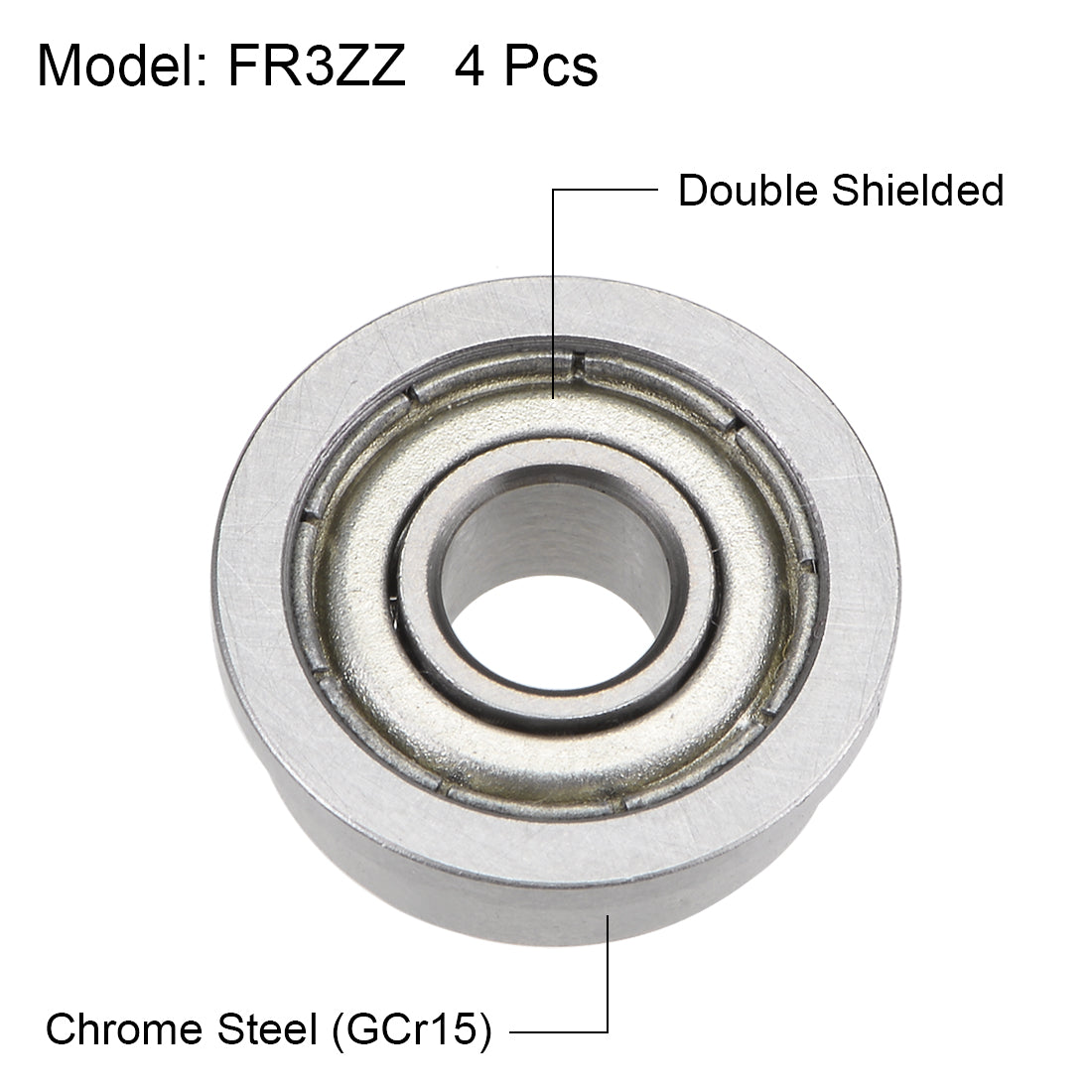

Model: FR3ZZ

Seal Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

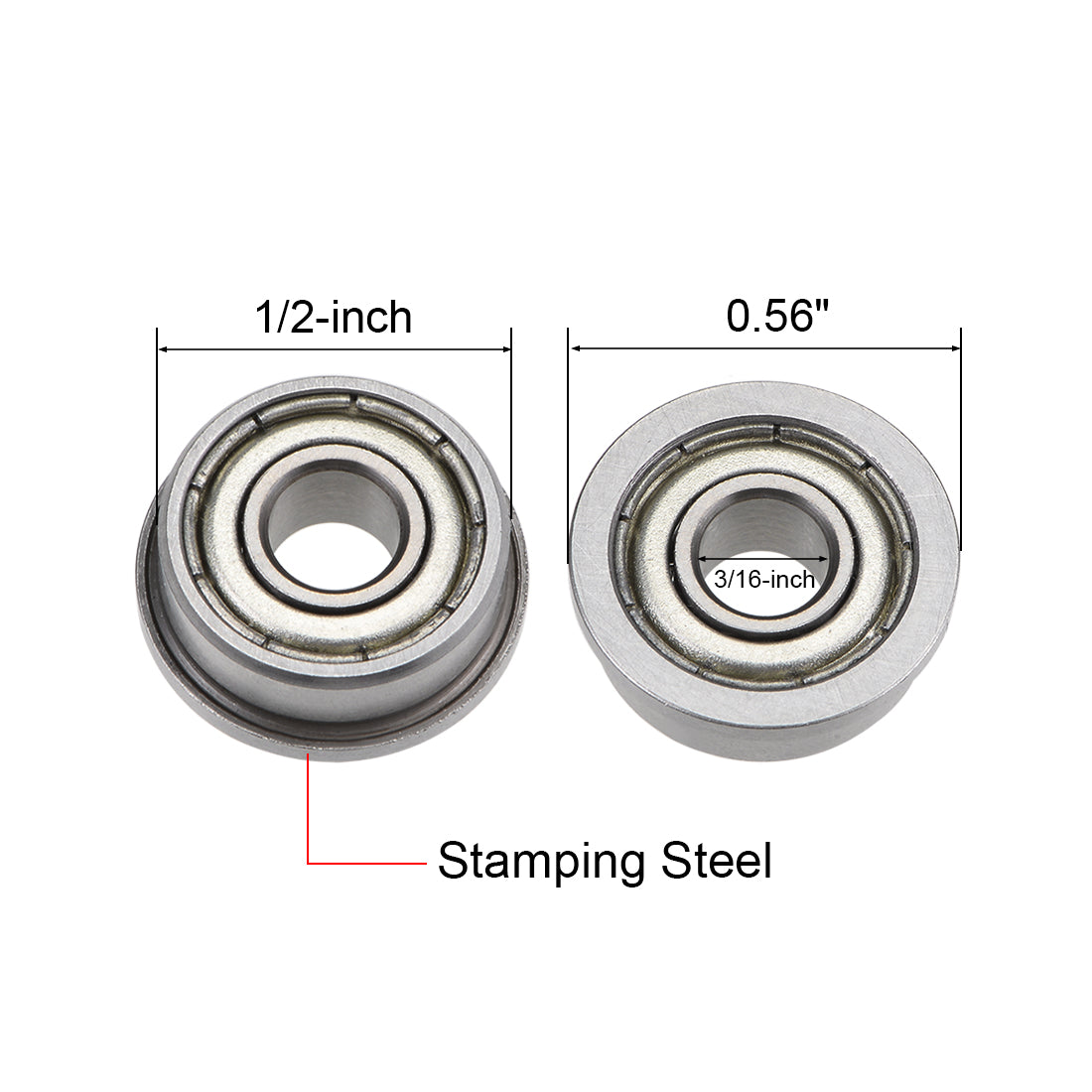

Cage Material: Stamping Steel

Inner Diameter (d): 3/16-inch

Outer Diameter (D): 1/2-inch

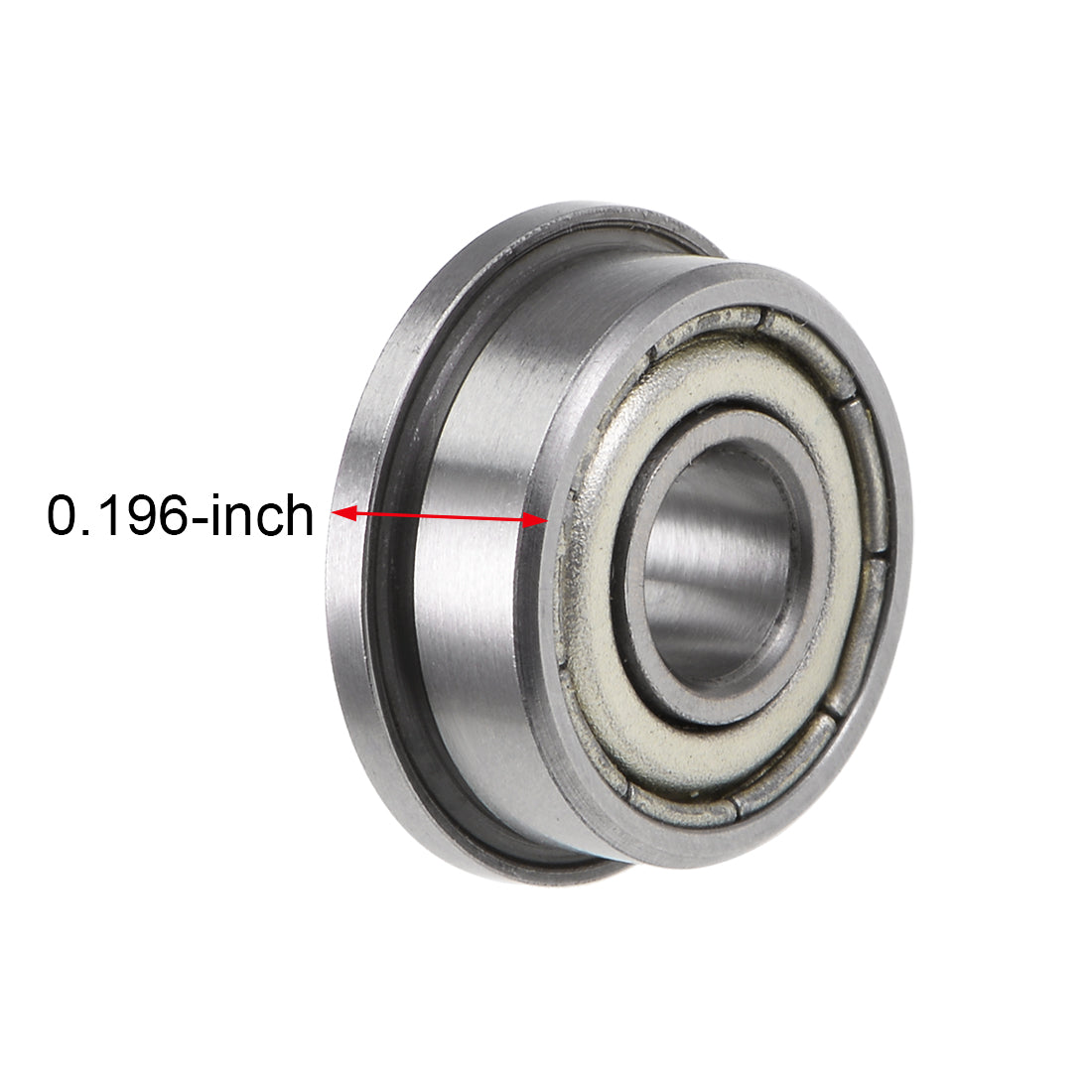

Thickness (B): 0.196-inch

Dynamic Load Rating (Cr): 249N

Static Load Rating (Cor): 88N

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 4 Pcs

$6.70 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model I.D. O.D. Thickness Material Dynamic Load Rating(KN) Static Load Rating(KN) Accuracy Class Noise Level Pkg.Qty. ID Price Qty
FR3ZZ 3/16'' 1/2" 0.196" Chrome Steel (GCr15) 0.249 / ABEC-1 Z2 4 1131255 $6.70
Products Model I.D. O.D. Thickness Material Dynamic Load Rating(KN) Static Load Rating(KN) Accuracy Class Noise Level Pkg.Qty. ID Price Qty
FR3ZZ 3/16'' 1/2" 0.196" Chrome Steel (GCr15) 0.249 / ABEC-1 Z2 4 1131255 $6.70
F6900ZZ 10mm 22mm 6mm / 2.7 / ABEC-1 Z1 5 1088556 $7.63

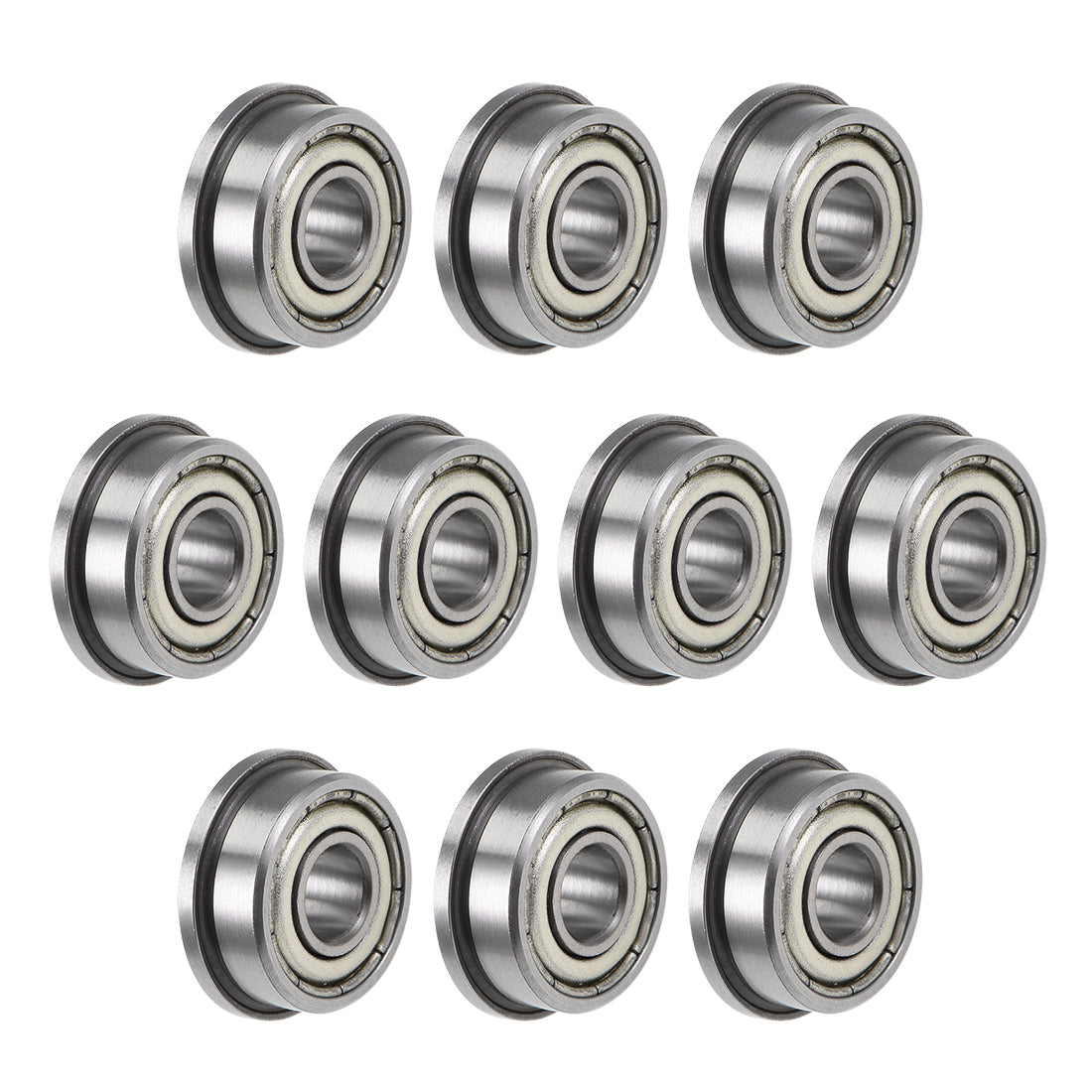

FR3ZZ 3/16'' 1/2" 0.196" Chrome Steel (GCr15) 0.249 / ABEC-1 Z2 10 1075175 $8.55
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • These cost-effective bearings are widely used in areas with low requirements for hardness.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: FR3ZZ

Seal Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 3/16-inch

Outer Diameter (D): 1/2-inch

Thickness (B): 0.196-inch

Dynamic Load Rating (Cr): 249N

Static Load Rating (Cor): 88N

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 4 Pcs
