Harfington Uxcell S6003-2RS Stainless Steel Ball Bearing 17x35x10mm Double Sealed 6003RS Bearings 1-Pack

Uxcell S6003-2RS Stainless Steel Ball Bearing 17x35x10mm Double Sealed 6003RS Bearings 1-Pack

ID:1639586
ID:1639586
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • S6003-2RS (I.D.=17mm, O.D.=35mm, Thickness=10mm)
  • s6003-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Stainless steel races for durability and corrosion resistance
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 3250 newtons and dynamic load rating of 6000 newtons
About this item
  • S6003-2RS (I.D.=17mm, O.D.=35mm, Thickness=10mm)
  • s6003-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Stainless steel races for durability and corrosion resistance
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 3250 newtons and dynamic load rating of 6000 newtons
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model:S6003-2RS

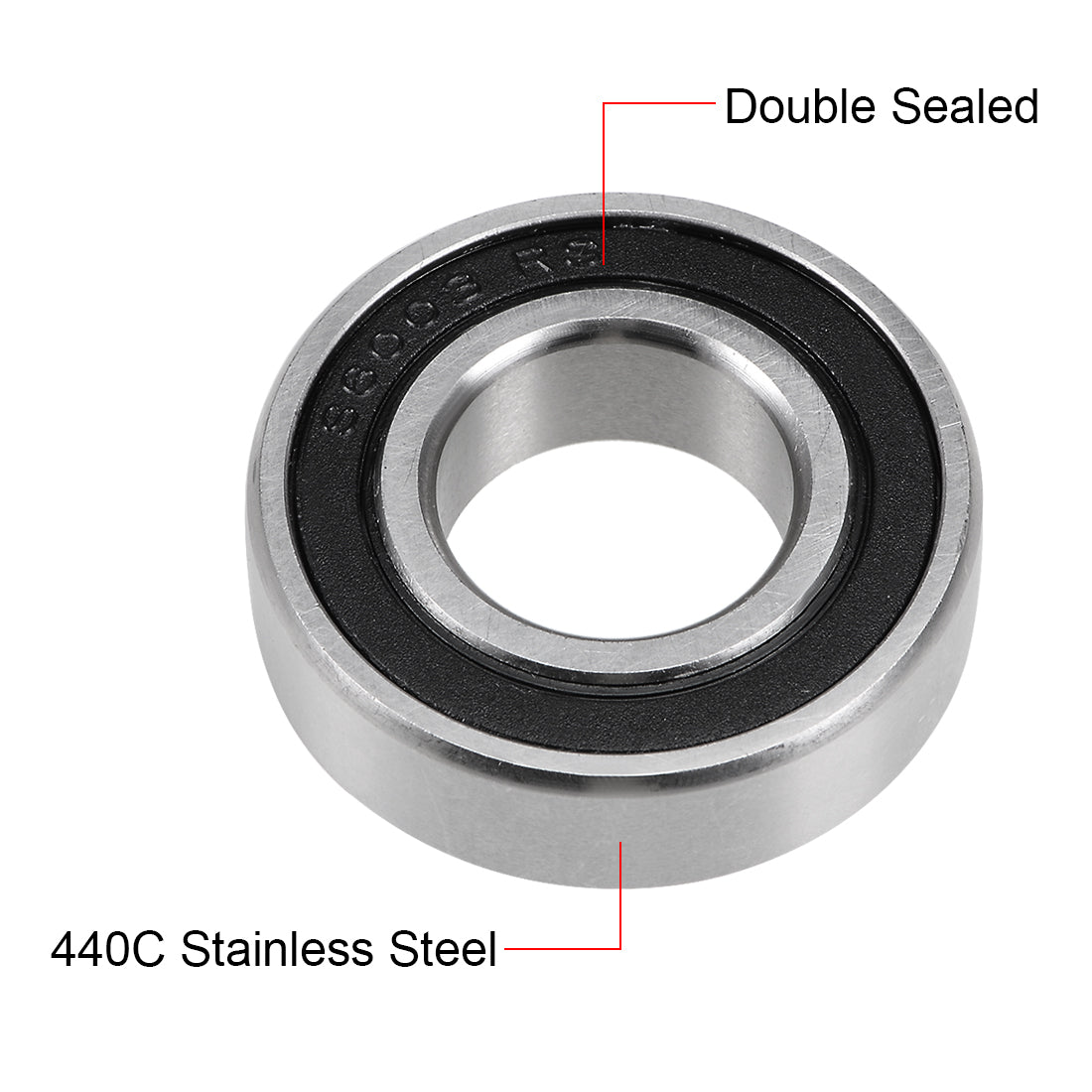

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: 440C Stainless Steel (9Cr18)

Cage Material: 304 Stainless Steel (0Cr18Ni9)

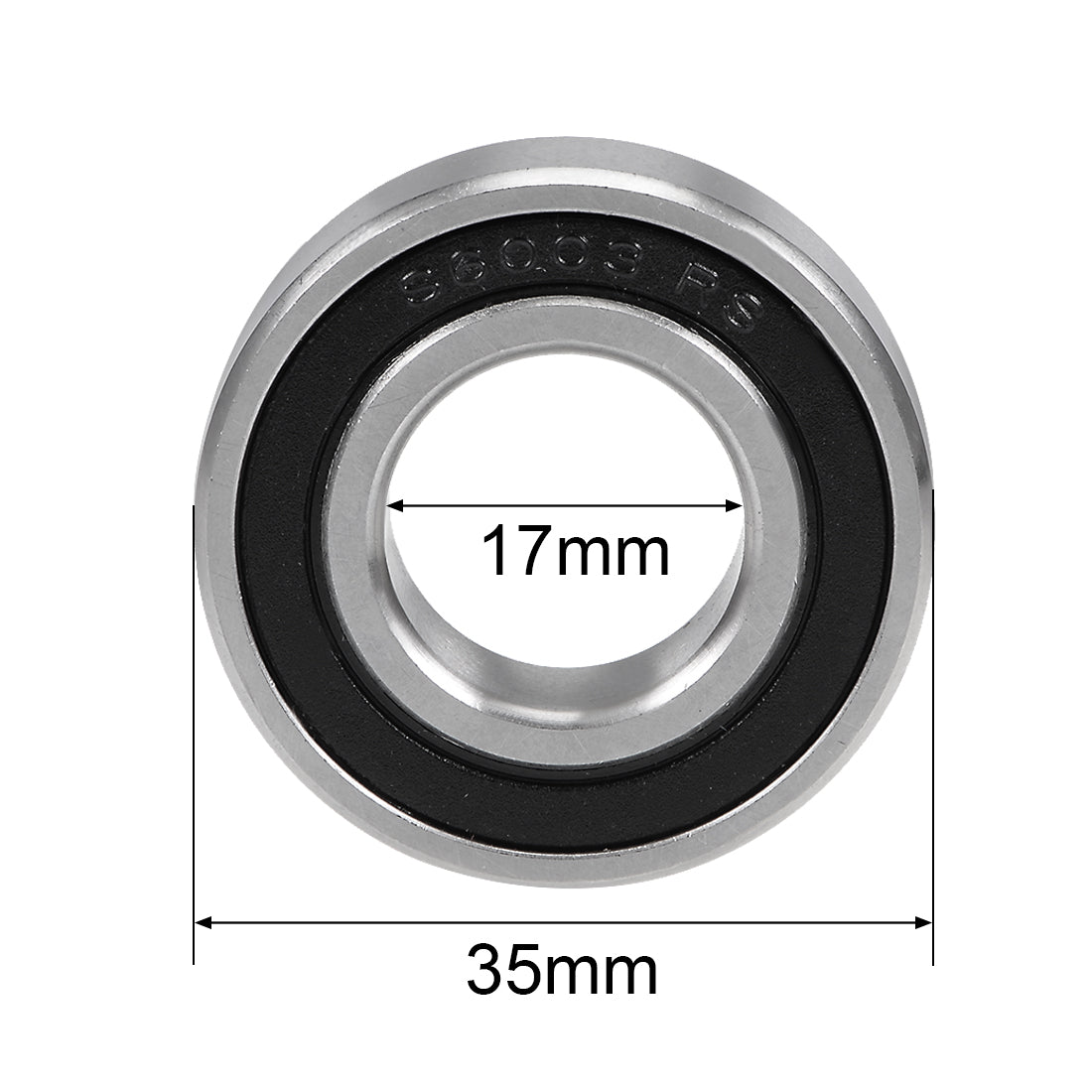

Inner Diameter (d): 17mm

Outer Diameter (D): 35mm

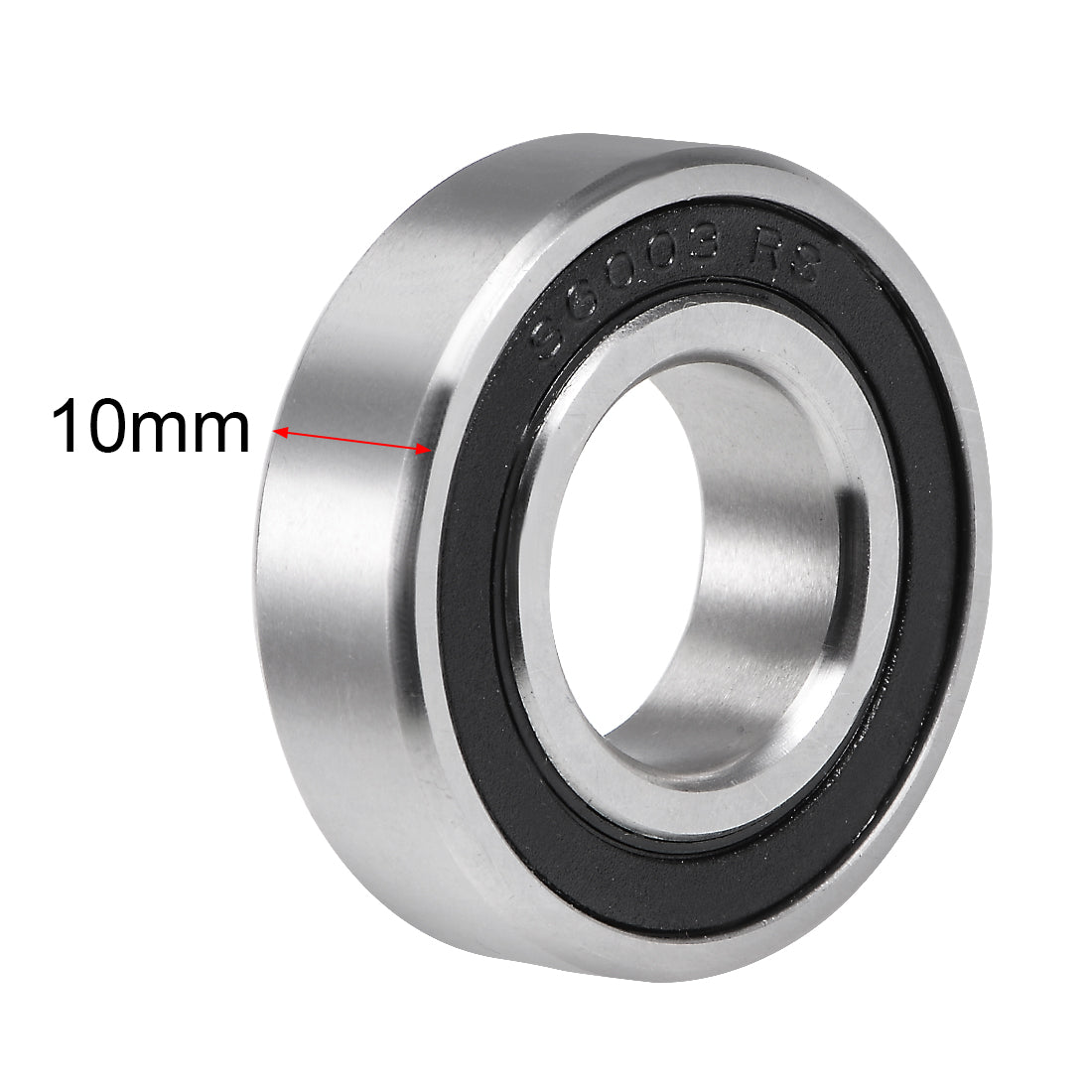

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6kN

Static Load Rating (Cor): 3.25kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs

$6.14 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model:S6003-2RS

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: 440C Stainless Steel (9Cr18)

Cage Material: 304 Stainless Steel (0Cr18Ni9)

Inner Diameter (d): 17mm

Outer Diameter (D): 35mm

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6kN

Static Load Rating (Cor): 3.25kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs
