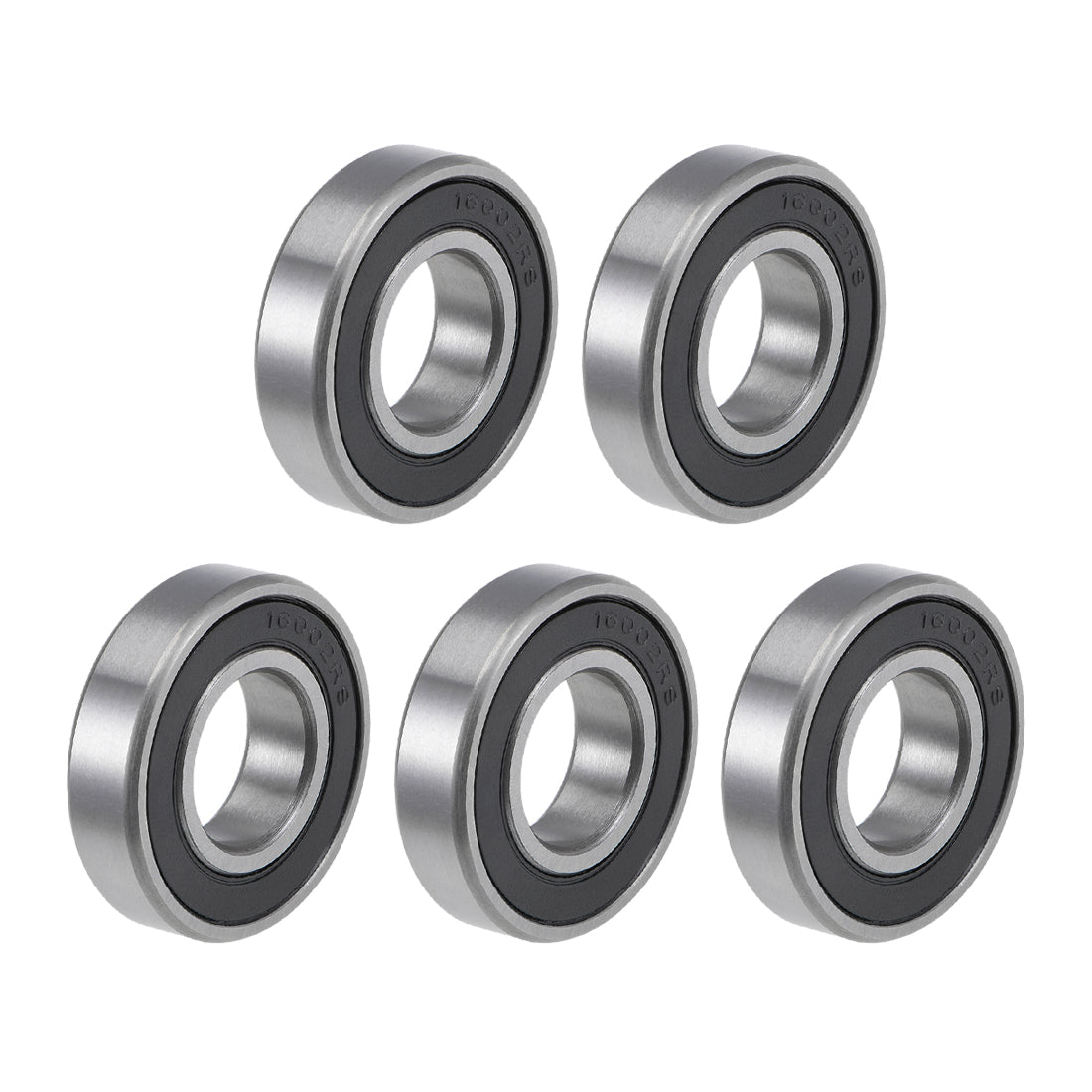

Harfington Uxcell 16002-2RS Deep Groove Ball Bearings 15mm Inner Dia 32mm OD 8mm Bore Double Sealed Chrome Steel Z2 5pcs

Uxcell 16002-2RS Deep Groove Ball Bearings 15mm Inner Dia 32mm OD 8mm Bore Double Sealed Chrome Steel Z2 5pcs

ID:1639611
ID:1639611
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 16002-2RS (I.D.=15mm, O.D.=32mm, Thickness=8mm)
  • 16002-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Made from Chrome Steel (GCr15), durability and resistance to under heavy loads
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 2800 newtons and dynamic load rating of 5600 newtons
About this item
  • 16002-2RS (I.D.=15mm, O.D.=32mm, Thickness=8mm)
  • 16002-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Made from Chrome Steel (GCr15), durability and resistance to under heavy loads
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 2800 newtons and dynamic load rating of 5600 newtons
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and  loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced  (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

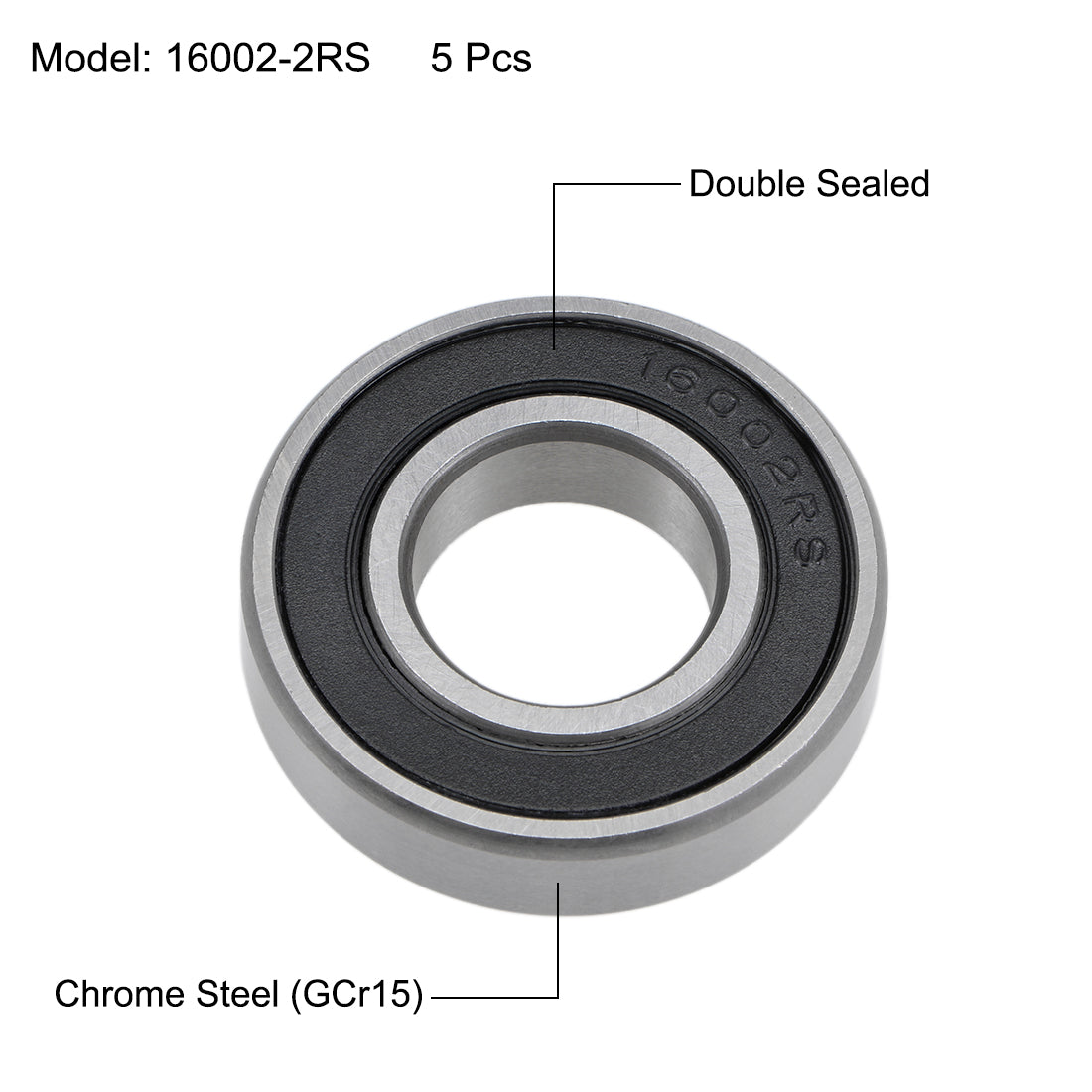

Model: 16002-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

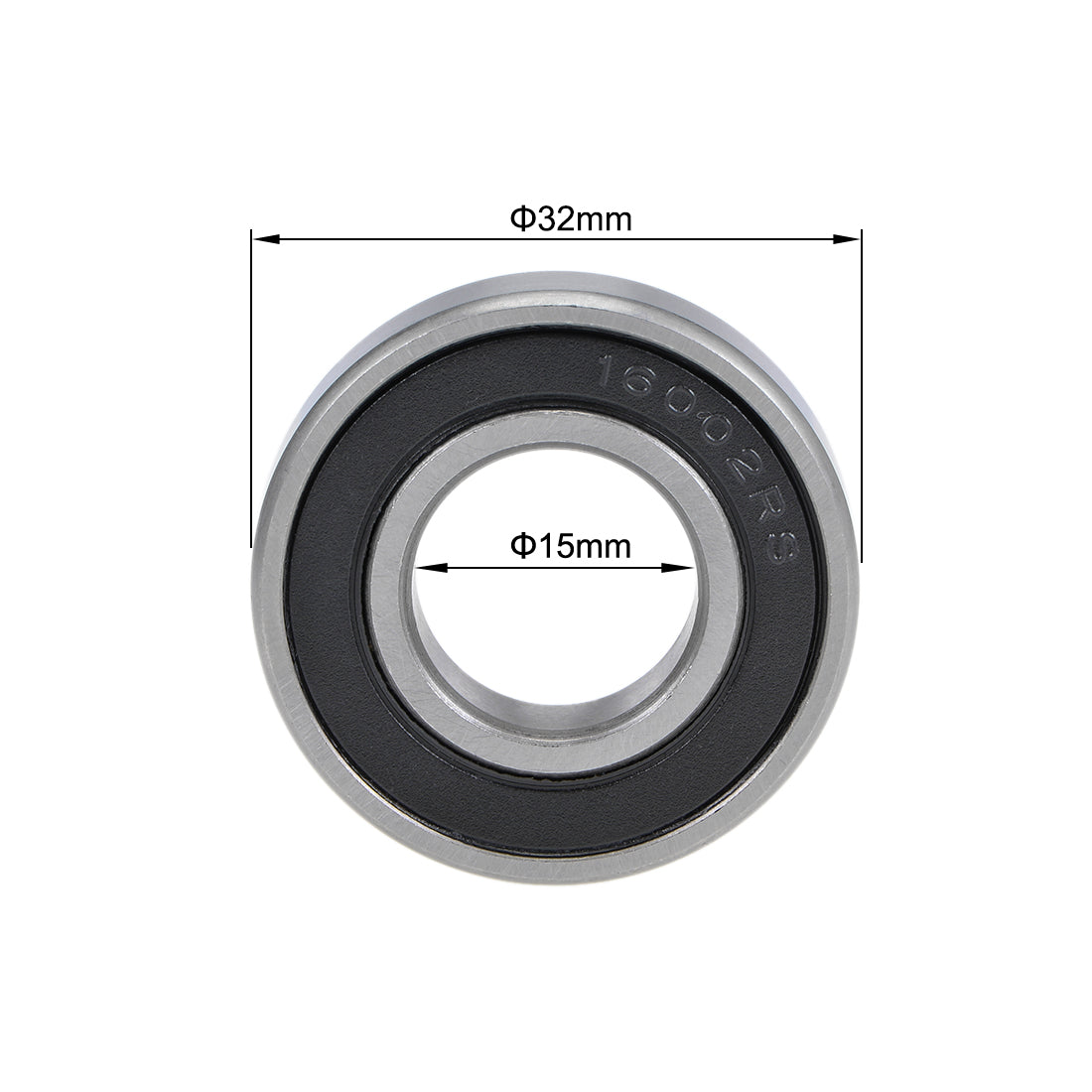

Inner Diameter (d): 15mm

Outer Diameter (D): 32mm

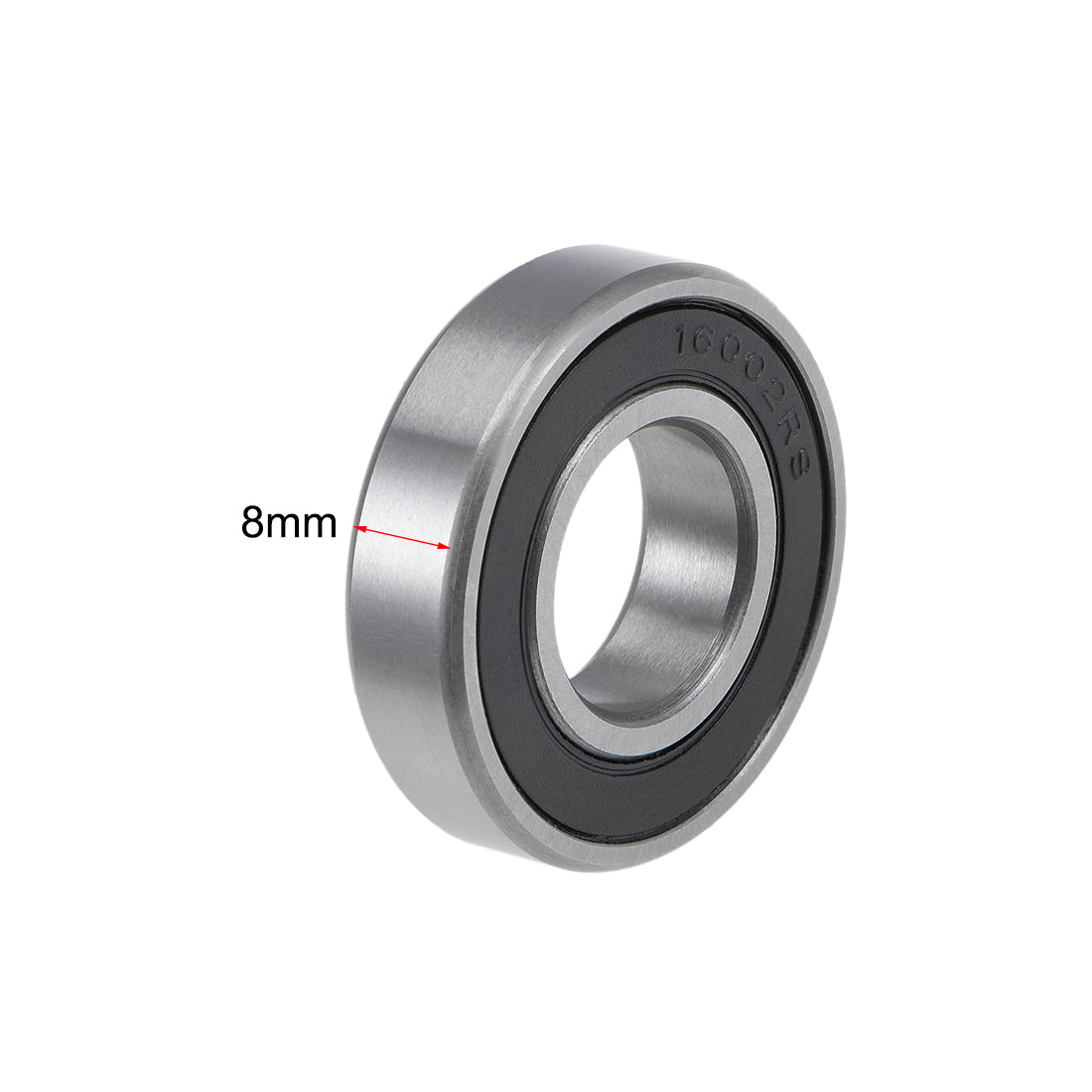

Thickness (B): 8mm

Dynamic Load Rating (Cr): 5600N

Static Load Rating (Cor): 2800N

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 5 Pcs

$7.58 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and  loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced  (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: 16002-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 15mm

Outer Diameter (D): 32mm

Thickness (B): 8mm

Dynamic Load Rating (Cr): 5600N

Static Load Rating (Cor): 2800N

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 5 Pcs
