Harfington Deep Groove Ball Bearing Sealed Lever Bearings

Deep Groove Ball Bearing Sealed Lever Bearings

ID:
$10.03 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
1/4"x5/8"x0.196"
Size
20pcs
Package Content
About this item
  • R4-2RS (I.D.=1/4", O.D.=5/8", Thickness=0.196")
  • r4-2z bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 615 newtons and dynamic load rating of 1480 newtons
  • In stock, ready to ship
Cart
Cart
About this item
  • R4-2RS (I.D.=1/4", O.D.=5/8", Thickness=0.196")
  • r4-2z bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 615 newtons and dynamic load rating of 1480 newtons
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

-Single-row, pre-lubricated, normal accuracy.
-Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
-With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
-Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
-Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

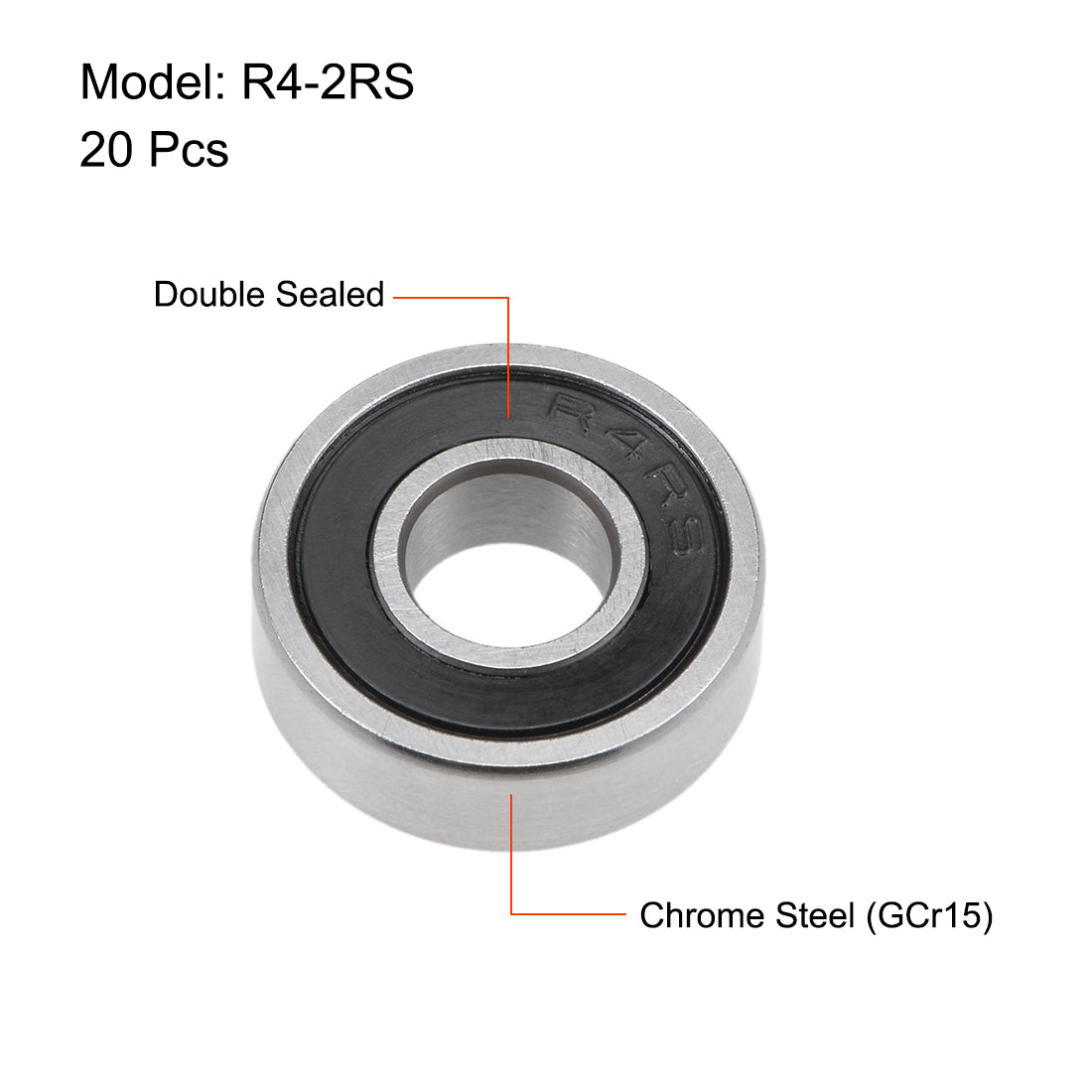

Model: R4-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

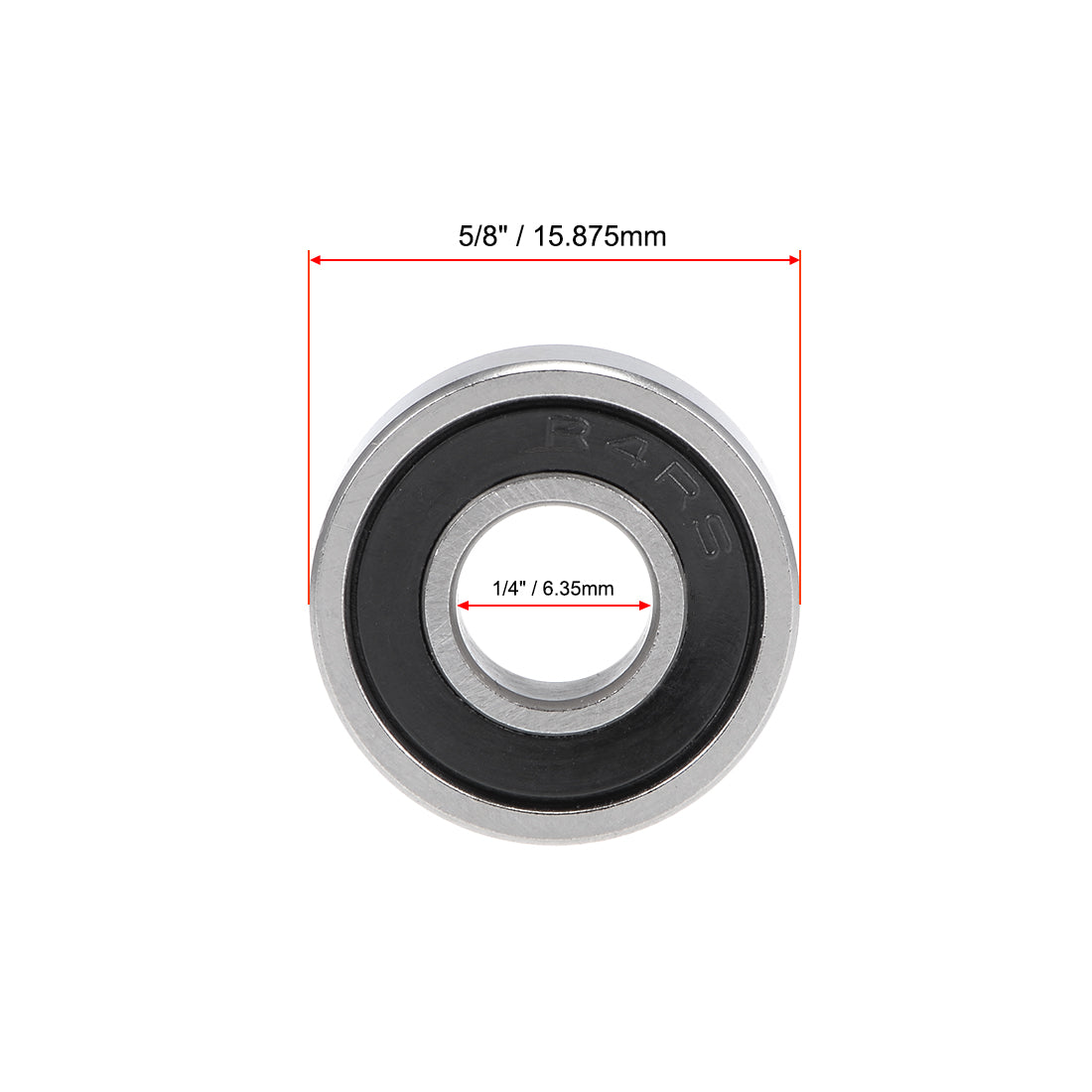

Inner Diameter (d): 1/4" / 6.35mm

Outer Diameter (D): 5/8" / 15.875mm

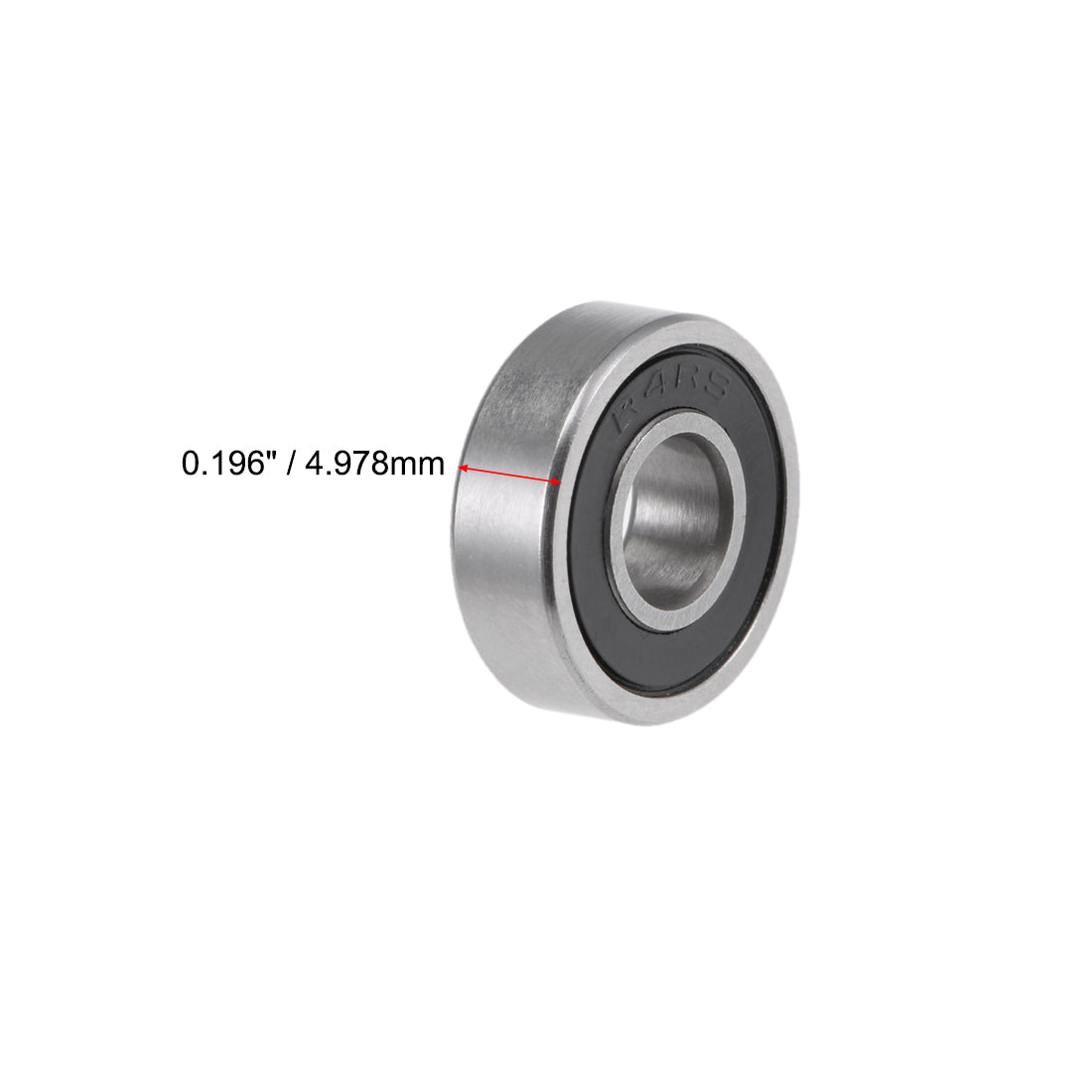

Thickness (B): 0.196" / 4.978mm

Dynamic Load Rating (Cr): 1.48kN

Static Load Rating (Cor): 0.615kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

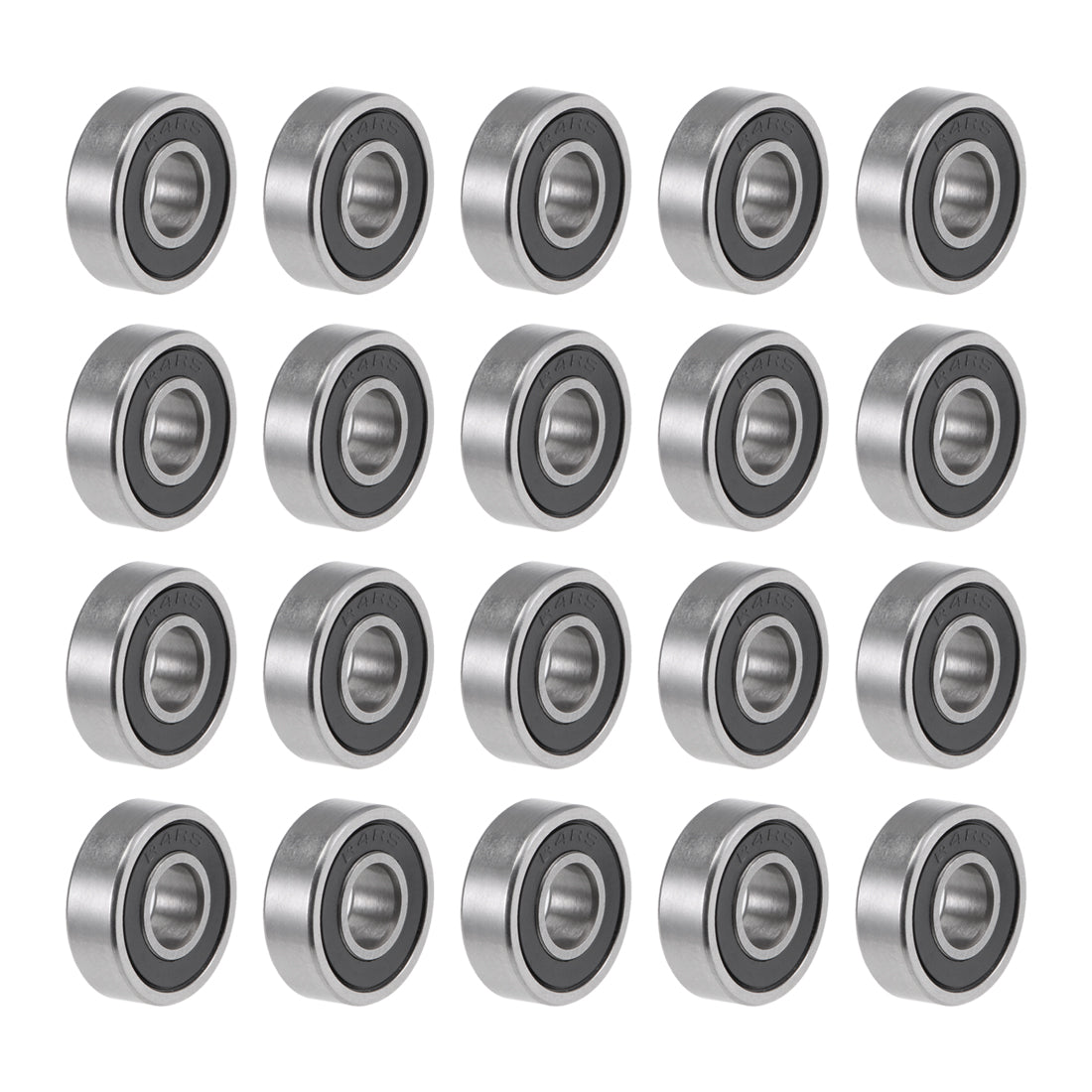

Number of Pack: 20 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

-Single-row, pre-lubricated, normal accuracy.
-Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
-With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
-Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
-Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: R4-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 1/4" / 6.35mm

Outer Diameter (D): 5/8" / 15.875mm

Thickness (B): 0.196" / 4.978mm

Dynamic Load Rating (Cr): 1.48kN

Static Load Rating (Cor): 0.615kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 20 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
