Harfington Uxcell Deep Groove Ball Bearings Z2 Double Sealed Chrome Steel Roller

Uxcell Deep Groove Ball Bearings Z2 Double Sealed Chrome Steel Roller

ID:1055695
ID:1055695
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
6mmx19mmx6mm
Size
2pcs
Package Content
About this item

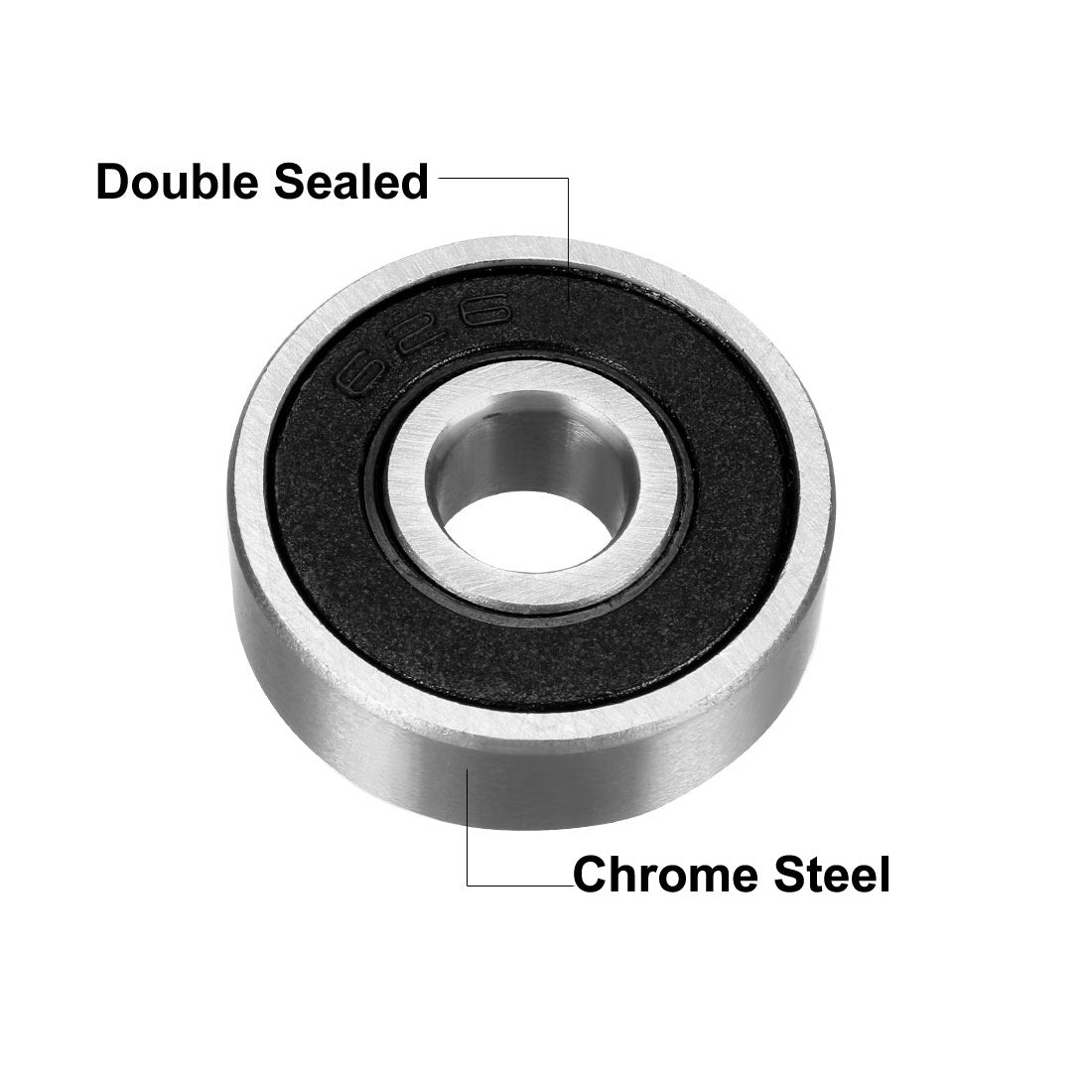

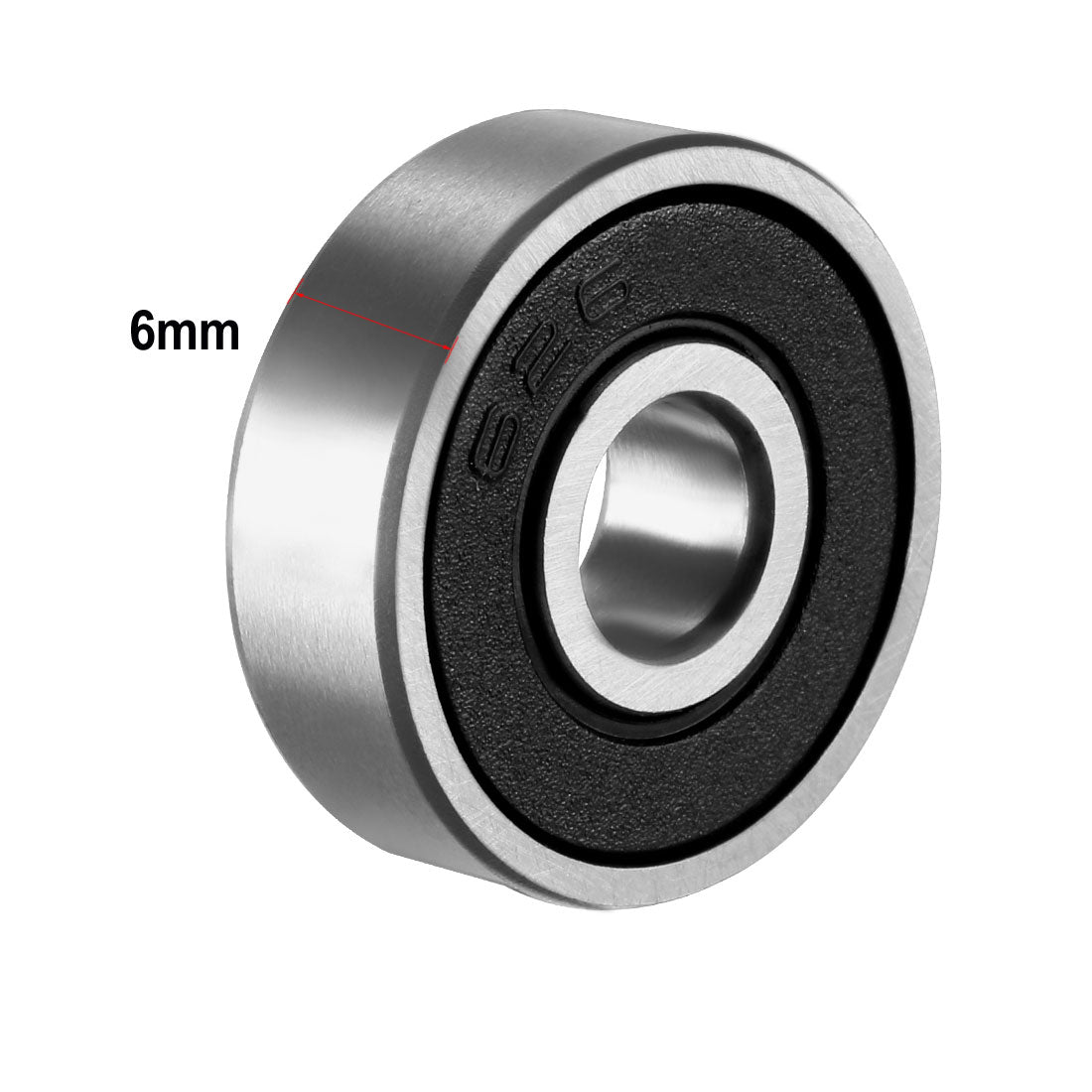

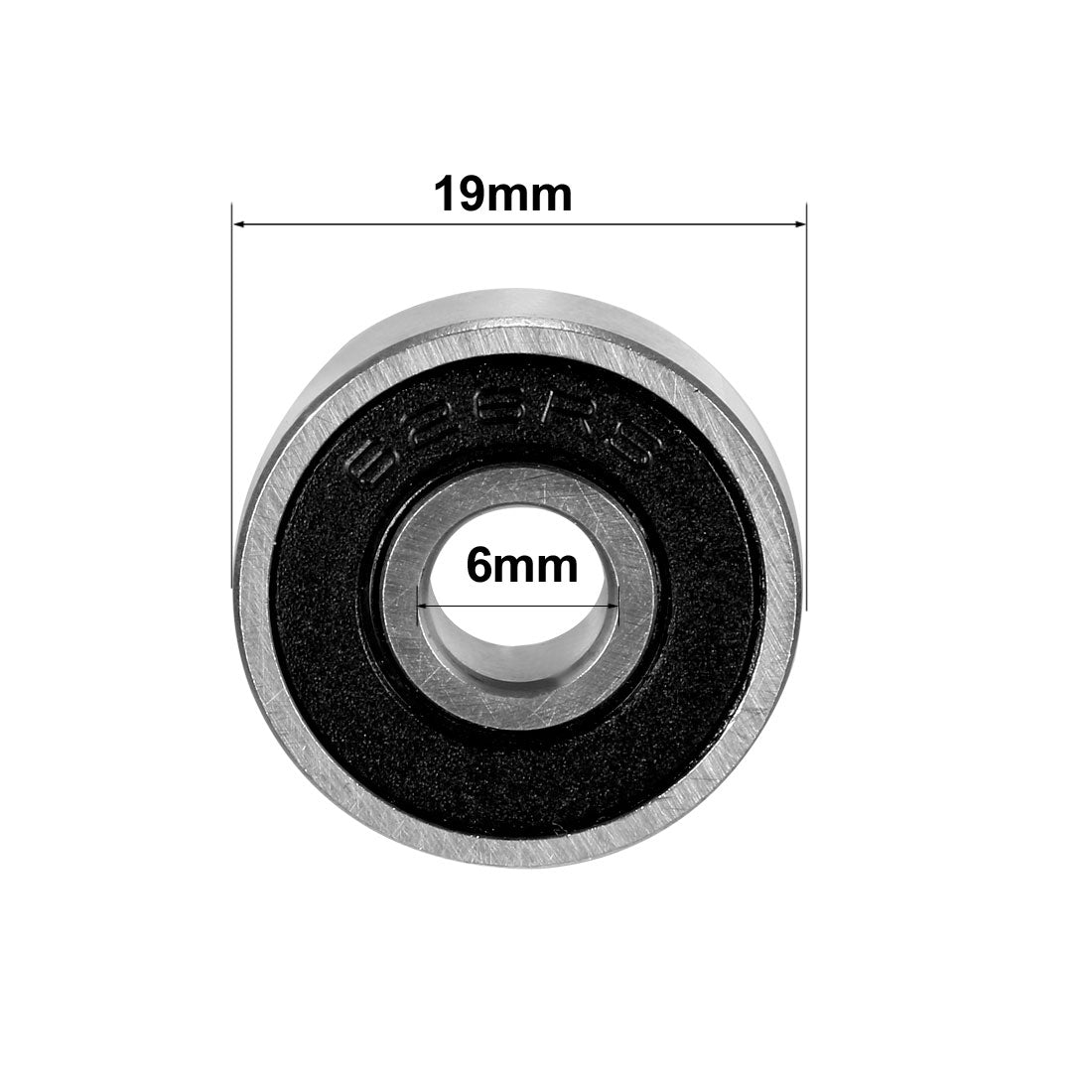

  • Size: 626-2RS (Inner Dia.=6mm, Outer Dia.=19mm, Thickness=6mm)
  • Sealed on BOTH SIDES of the bearing to keep lubricant in. Suitable for complex environment
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0) for most general use
  • Pre-Lubricated, Easy to maintain
About this item
  • Size: 626-2RS (Inner Dia.=6mm, Outer Dia.=19mm, Thickness=6mm)
  • Sealed on BOTH SIDES of the bearing to keep lubricant in. Suitable for complex environment
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0) for most general use
  • Pre-Lubricated, Easy to maintain
Specification

Specification

SKU
a18051900ux0153
Type
Double Sealed
Model
626-2RS
Dynamic Load Rating (Cr)(KN)
2.6
Static Load Rating (Cor)((KN)
1.05
Accuracy Class
ABEC-1
Pkg.Qty.
2
I.D.
6mm
O.D.
19mm
Thickness
6mm
Static Load Rating(KN)
1.05
Noise Level
Z2
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

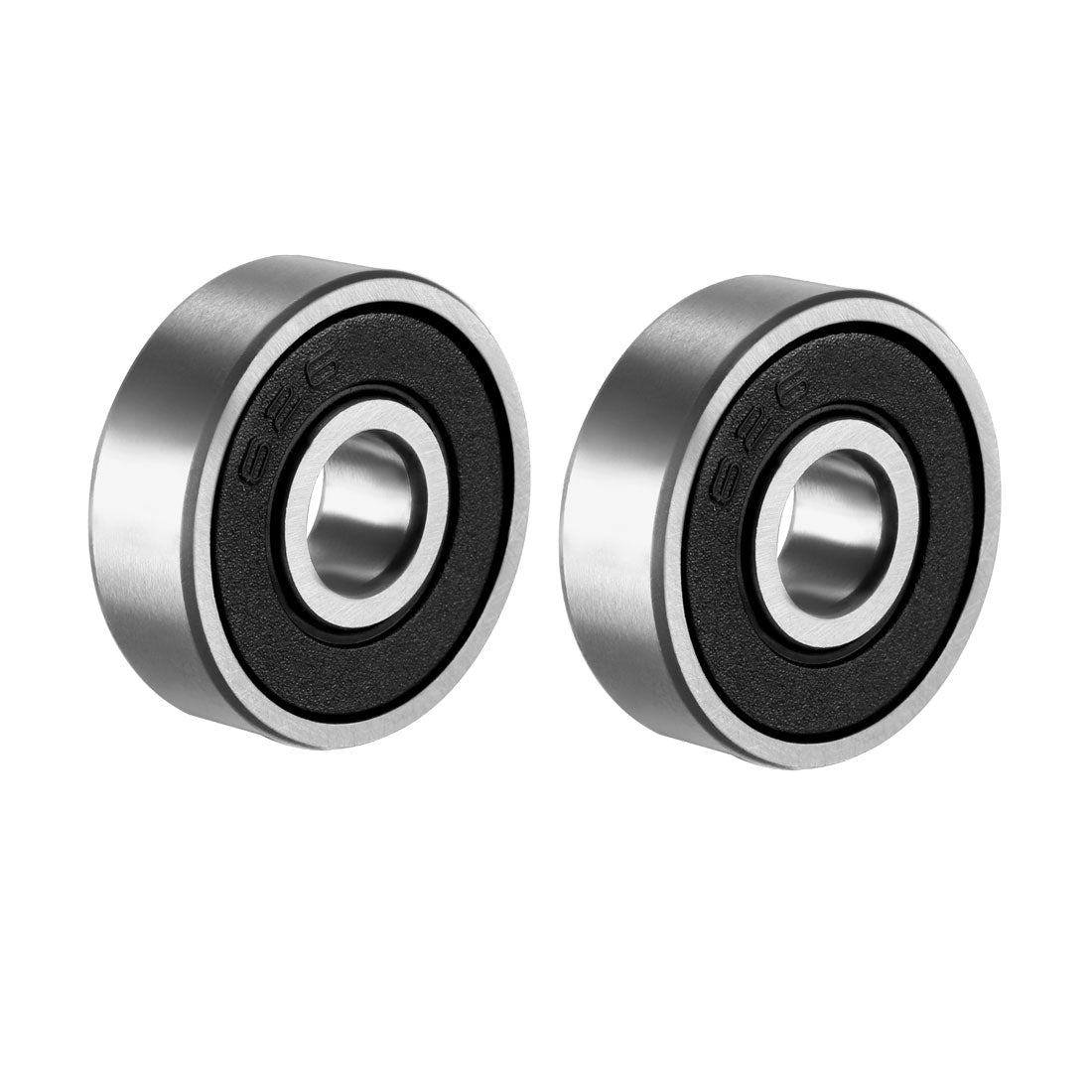

Model: 626-2RS

Sealed Type: Double Sealed

Cage Material: Stamping Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 19mm

Thickness (B): 6mm

Dynamic Load Rating (Cr): 2.60kN

Static Load Rating (Cor): 1.05kN

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 2 Pcs

Weight: 16g

$5.79 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
626-2RS ABEC-1 2.6 6mm Z2 19mm 2 1.05 1.05 6mm Double Sealed / 1055695 $5.79
Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
626-2RS ABEC-1 2.6 6mm Z2 19mm 2 1.05 1.05 6mm Double Sealed / 1055695 $5.79
607-2RS ABEC-3 / 7mm Z1 19mm 5 / 1.05 6mm Double Sealed 2.6 1241263 $6.65
16005-2RS ABEC-1 / 25mm Z1 47mm 1 / 5.6 8mm Double Sealed 8.85 1040188 $6.23
625-2RS ABEC-3 / 5mm Z1 16mm 5 / 0.67 5mm Double Sealed 1.75 1006726 $6.70
626-2RS ABEC-3 / 6mm Z1 19mm 2 / 1.05 6mm Double Sealed 2.8 1006730 $5.64
626-2RS ABEC-1 / 6mm / 19mm 20 / 1.05 6mm Double Sealed 2.6 1055957 $10.24
606-2RS ABEC-3 / 6mm Z1 17mm 2 / 0.72 6mm Double Sealed 1.95 1006784 $5.50
S608-2RS ABEC-1 / 8mm Z1 22mm 1 / 1.379 7mm Double Sealed 3.293 1028585 $5.53
6701-2RS ABEC-3 / 12mm Z1 18mm 2 / 1.664 4mm Double Sealed 3.96 1028800 $6.02
S6303-2RS ABEC-1 / 17mm Z1 47mm 1 / 6.58 14mm Double Sealed 13.5 1029269 $10.04
S6204-2RS ABEC-1 / 20mm Z1 47mm 1 / 6.65 14mm Double Sealed 12.8 1029277 $8.19
S606-2RS ABEC-1 / 6mm Z1 17mm 1 / 0.72 6mm Double Sealed 1.95 1029285 $5.42
S606-2RS ABEC-1 / 6mm Z1 17mm 2 / 0.72 6mm Double Sealed 1.95 1029294 $6.08
6800-2RS ABEC-1 1.8 10mm Z1 19mm 8 0.93 0.93 5mm Double Sealed / 1034246 $6.70
6800-2RS ABEC-1 1.8 10mm Z1 19mm 10 0.93 0.93 5mm Double Sealed / 1034248 $7.09
6902-2RS ABEC-3 / 15mm Z1 28mm 2 / 2.3 7mm Double Sealed 4.3 1035187 $6.07
6802-2RS ABEC-3 / 15mm Z1 24mm 2 / 1.3 5mm Double Sealed 2.1 1035221 $6.06
6006-2RS ABEC-3 / 30mm Z1 55mm 2 / 8.25 13mm Double Sealed 13.2 1035226 $9.25
S628-2RS ABEC-1 / 8mm Z1 24mm 1 / 1.4 8mm Double Sealed 3.35 1040190 $5.99
S6200-2RS ABEC-1 / 10mm Z1 30mm 1 / 2.38 9mm Double Sealed 5.1 1040191 $6.18
205PP ABEC-1 / 25mm Z1 52mm 1 / 7.88 15mm Double Sealed 14.0 1041134 $7.57
6700-2RS ABEC-3 / 10mm Z1 15mm 5 / 4.31 4mm Double Sealed 8.53 1047375 $7.71
204PP ABEC-1 / 20mm Z1 47mm 2 / 6.65 14mm Double Sealed 12.8 1061882 $9.58
6000-2RS ABEC-1 4.58 10mm Z1 26mm 2 1.98 1.98 8mm Double Sealed / 1055702 $5.46
6000-2RS ABEC-1 4.58 10mm Z1 26mm 10 1.98 1.98 8mm Double Sealed / 1055705 $8.82
6000-2RS ABEC-3 / 10mm Z1 26mm 10 / 1.98 8mm Double Sealed 4.58 1059695 $10.98
629-2RS ABEC-1 / 9mm / 26mm 20 / 2 8mm Double Sealed 4.55 1055952 $15.81
627-2RS ABEC-1 / 7mm / 22mm 20 / 1.35 7mm Double Sealed 3.3 1055966 $13.69
6005-2RS ABEC-3 / 25mm Z1 47mm 1 / 5.85 12mm Double Sealed 10.1 1059830 $6.42
R166-2RS ABEC-3 / 4.763mm Z1 9.525mm 5 / 0.272 3.175mm Double Sealed 0.709 1059832 $7.60
R3-2RS ABEC-3 / 4.763mm Z1 12.7mm 5 / 0.488 4.978mm Double Sealed 1.301 1059839 $7.63
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 626-2RS

Sealed Type: Double Sealed

Cage Material: Stamping Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 19mm

Thickness (B): 6mm

Dynamic Load Rating (Cr): 2.60kN

Static Load Rating (Cor): 1.05kN

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 2 Pcs

Weight: 16g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
