Harfington Uxcell Linear Motion Ball Bearings Extra Long for CNC 3D Printers

Uxcell Linear Motion Ball Bearings Extra Long for CNC 3D Printers

ID:1056489
ID:1056489
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
8mm
Size
4pcs
Package Content
About this item

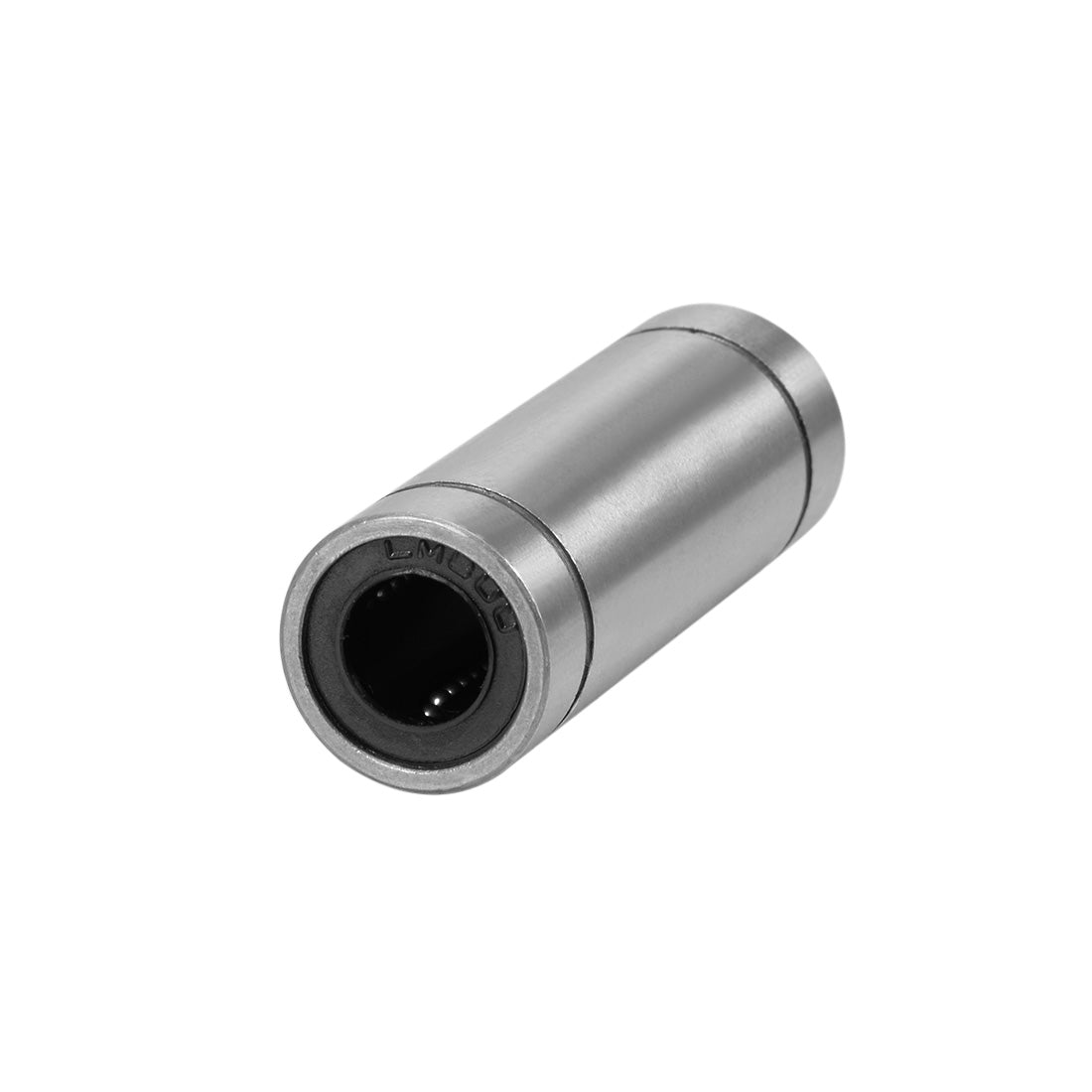

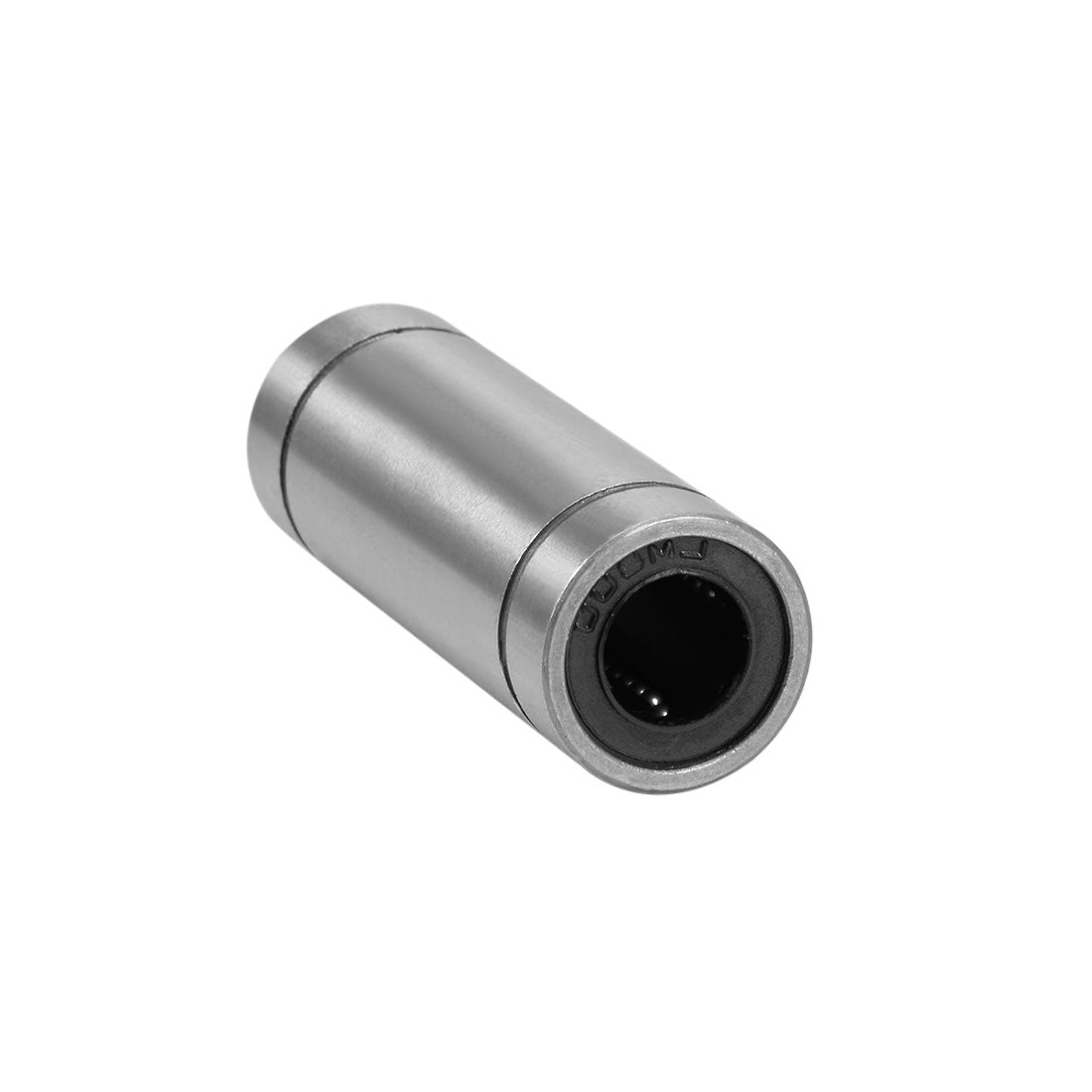

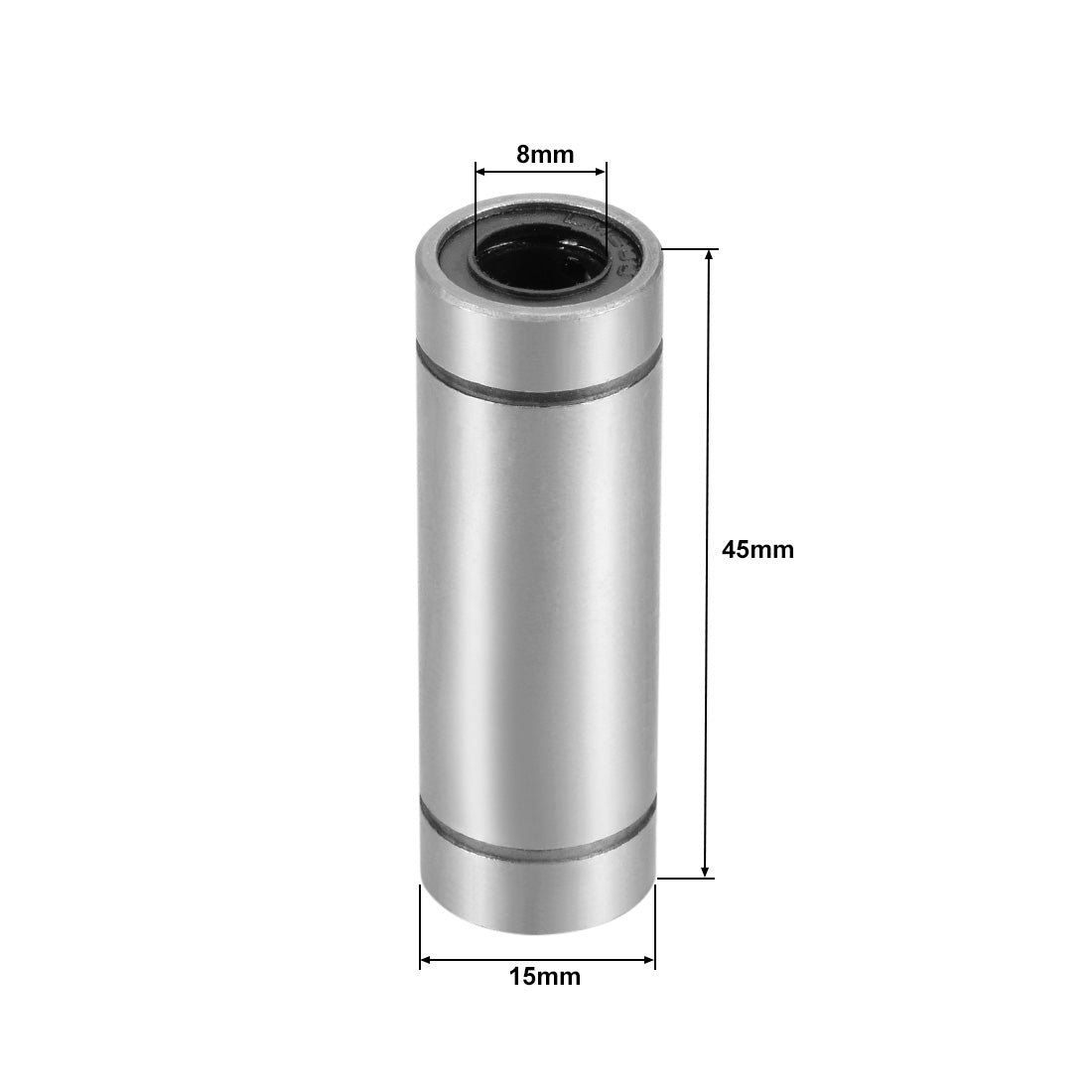

  • Model: LM8UU (Nominal Shaft Diamter (dr): 8mm, Outer Diameter (D): 15mm, Total Length (L): 45mm)
  • Linear Motion Ball Bearing Bushing Sealed on Both Side
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitalbe for kinds of electronic equipment/guide bar, and pillar
About this item
  • Model: LM8UU (Nominal Shaft Diamter (dr): 8mm, Outer Diameter (D): 15mm, Total Length (L): 45mm)
  • Linear Motion Ball Bearing Bushing Sealed on Both Side
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitalbe for kinds of electronic equipment/guide bar, and pillar
Specification

Specification

SKU
a18071300ux0287
Pkg.Qty.
4
Model
LM8UU
I.D.(mm)
8
O.D.(mm)
15
Bearing Ball Material
Chromium Steel
Outer Shell Material
Chromium Steel
Cage Material
Nylon
Total Length
45mm
Ball Circuit
4
Static Load Rating(KN)
0.784
Dynamic Load Rating(KN)
0.431
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

1.provides LMUU series Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM8UU

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

Nominal Shaft Diamter (dr): 8mm

Outer Diameter (D): 15mm

Total Length (L): 45mm

Ball Circuit: 4

Static Load Capacity (Cor): 0.784kN

Dynamic Load Capacity (Cr): 0.431kN

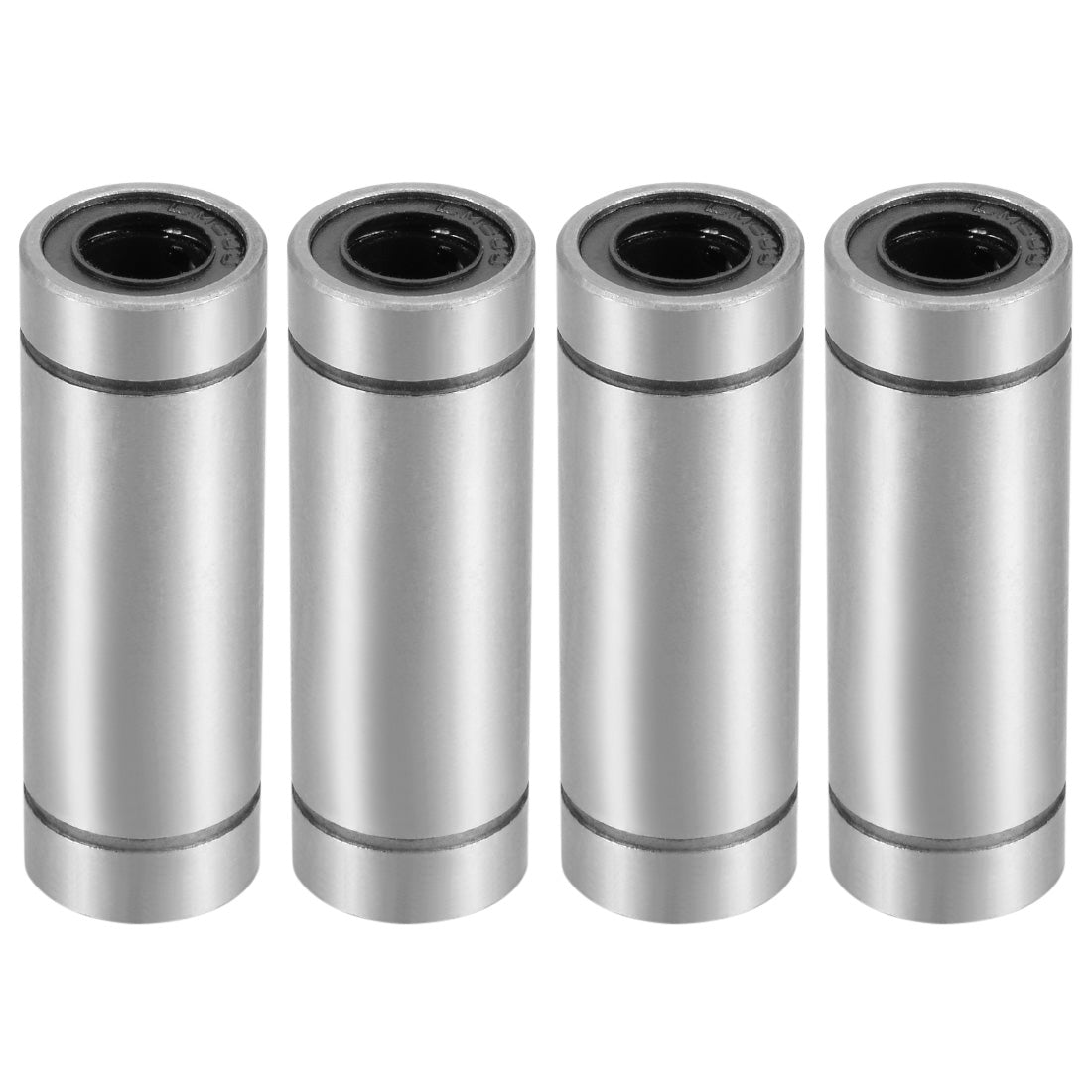

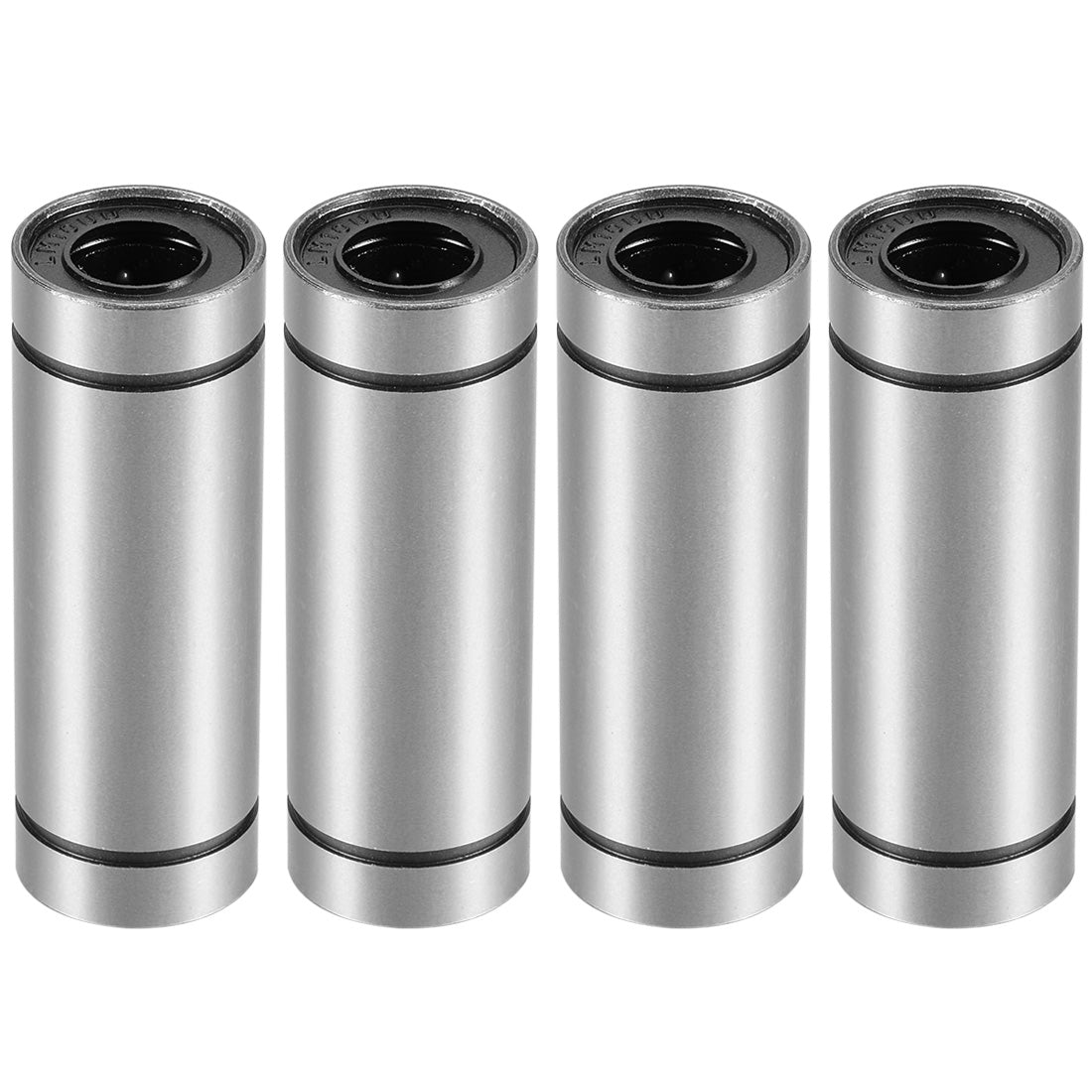

Number of Pack: 4 Pcs

$10.17 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model I.D.(mm) O.D.(mm) Cage Material Total Length Static Load Rating(KN) Dynamic Load Rating(KN) Bearing Ball Material Outer Shell Material Ball Circuit Pkg.Qty. ID Price Qty
LM8UU 8 15 Nylon 45mm 0.784 0.431 Chromium Steel Chromium Steel 4 4 1056489 $10.17
Products Model I.D.(mm) O.D.(mm) Cage Material Total Length Static Load Rating(KN) Dynamic Load Rating(KN) Bearing Ball Material Outer Shell Material Ball Circuit Pkg.Qty. ID Price Qty
LM8UU 8 15 Nylon 45mm 0.784 0.431 Chromium Steel Chromium Steel 4 4 1056489 $10.17
LM20UU 20 32 Nylon 80mm 2.75 1.4 Chromium Steel Chromium Steel 5 2 1044776 $14.46
LM20UU 20 32 Nylon 42mm 1.37 0.863 Chromium Steel Chromium Steel 5 4 1056479 $11.92
LM20UU 20 32 Nylon 42mm 1.37 0.863 Chromium Steel Chromium Steel 5 2 1005266 $9.73
LM6LUU 6 12 Nylon 35mm 0.529 0.324 Chromium Steel Chromium Steel 4 1 1047626 $6.35
LM6LUU 6 12 Nylon 35mm 0.529 0.324 Chromium Steel Chromium Steel 4 2 1047624 $7.56
LM4UU 4 8 Nylon 12mm 0.108 0.088 Chromium Steel Chromium Steel 4 4 1056473 $11.11
LM25UU 25 40 Nylon 59mm 1.57 0.98 Chromium Steel Chromium Steel 6 4 1056482 $21.24
LM25UU 25 40 Nylon 59mm 1.57 0.98 Chromium Steel Chromium Steel 6 2 1005263 $14.26
LM35UU 35 52 Nylon 70mm 3.14 1.67 Chromium Steel Chromium Steel 6 2 1236731 $19.96

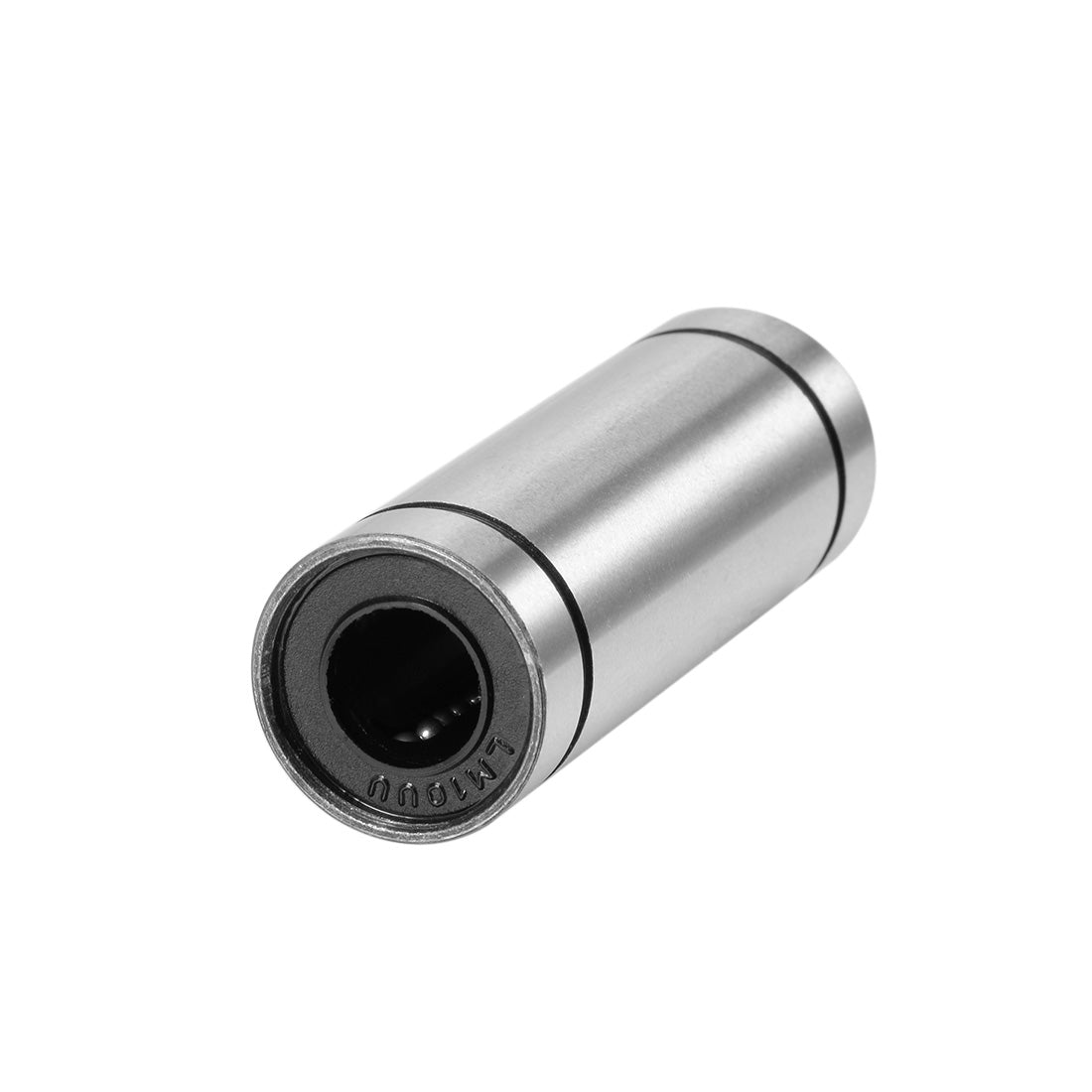

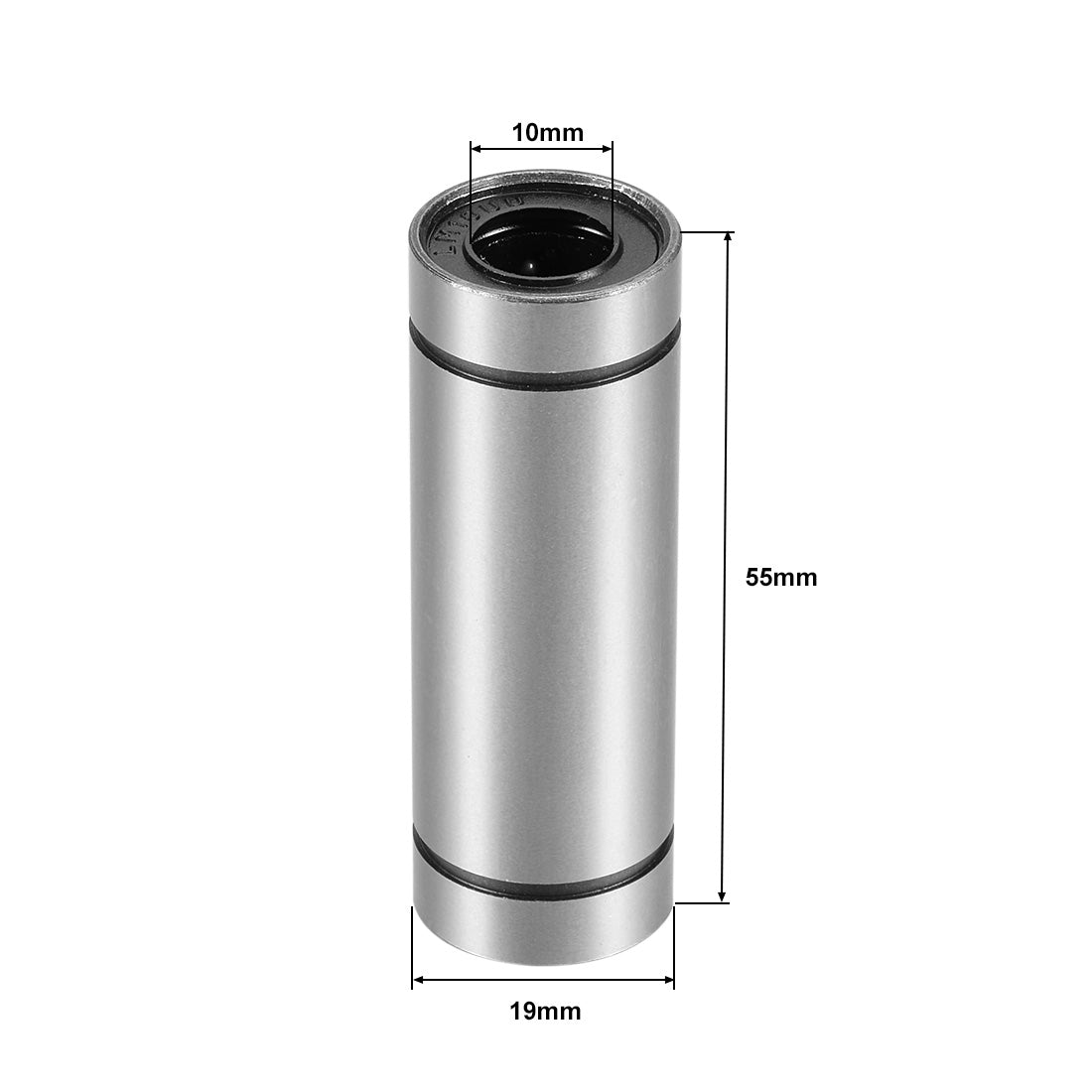

LM10UU 10 19 Nylon 55mm 1.1 0.588 Chromium Steel Chromium Steel 4 2 1044766 $9.90
LM10UU 10 19 Nylon 55mm 1.1 0.588 Chromium Steel Chromium Steel 4 4 1056492 $12.84
LM10UU 10 19 Nylon 29mm 0.549 0.373 Chromium Steel Chromium Steel 4 2 1225740 $7.56
LM10UU 10 19 Nylon 29mm 0.549 0.373 Chromium Steel Chromium Steel 4 4 1056476 $8.49
LM13UU 13 23 Nylon 32mm 0.775 0.51 Chromium Steel Chromium Steel 4 4 1056478 $10.94
LM5UU 5 10 Nylon 15mm 0.206 0.167 Chromium Steel Chromium Steel 4 4 1034453 $8.27
LM16UU 16 28 Nylon 37mm 1.18 1.23 Chromium Steel Chromium Steel 5 2 1236073 $8.83
LM16UU 16 28 Nylon 37mm 1.18 1.23 Chromium Steel Chromium Steel 5 4 1056477 $12.75

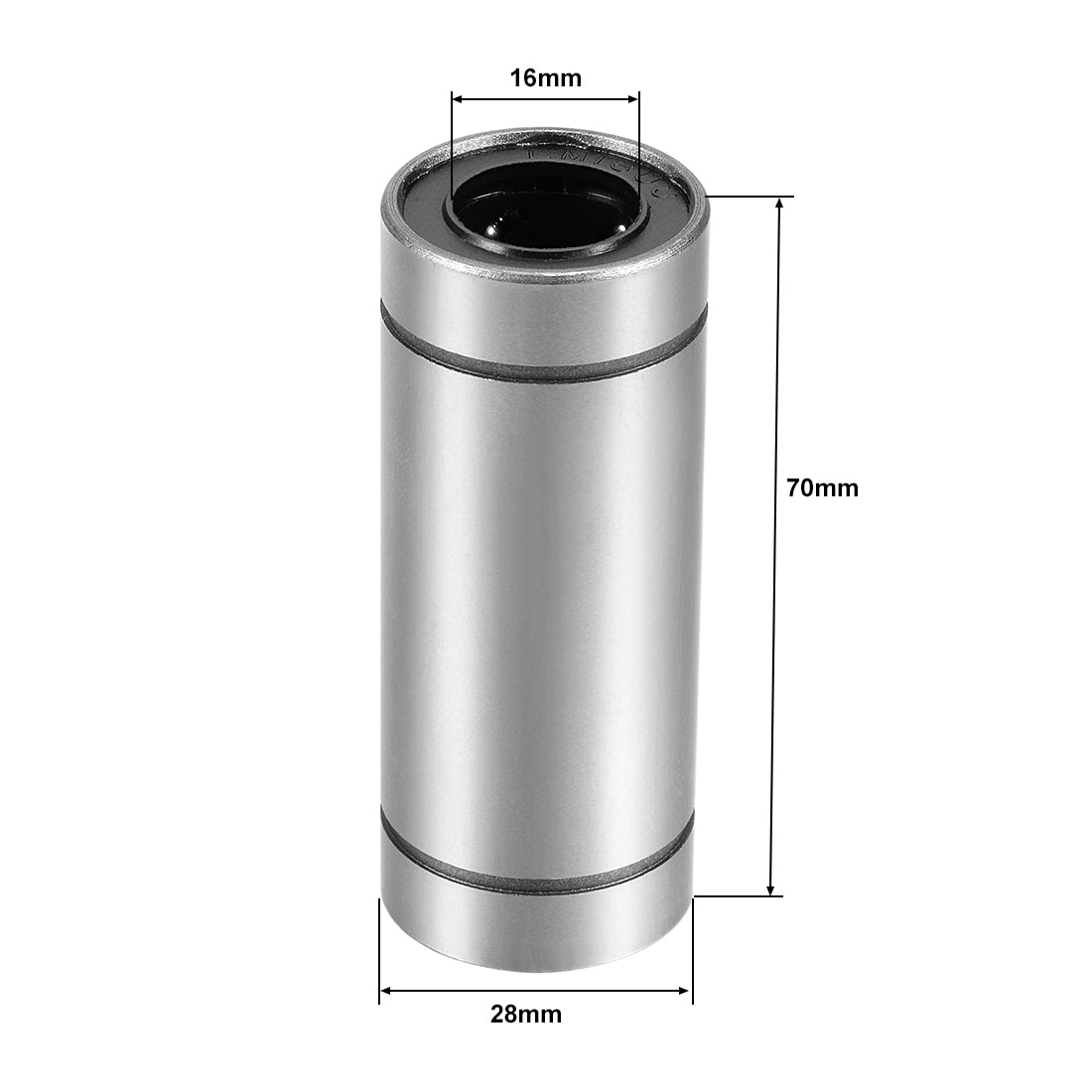

LM16UU 16 28 Nylon 70mm 2.35 1.23 Chromium Steel Chromium Steel 5 4 1056491 $21.80
LM12UU 12 21 Nylon 57mm 1.2 0.657 Chromium Steel Chromium Steel 4 2 1044768 $9.28
LM12UU 12 21 Nylon 30mm 0.598 0.412 Chromium Steel Chromium Steel 4 2 1236387 $7.36
LM12UU 12 21 Nylon 30mm 0.598 0.412 Chromium Steel Chromium Steel 4 4 1056475 $8.45
LM16LUU 16 28 Nylon 70mm 2.35 1.23 Chromium Steel Chromium Steel 5 2 1047627 $12.09
LM6UU 6 12 Nylon 19mm 0.265 0.206 Chromium Steel Chromium Steel 4 4 1034456 $7.95
LM6UU 6 12 Nylon 19mm 0.265 0.206 Chromium Steel Chromium Steel 4 2 1016171 $6.39
LM30UU 30 45 Nylon 64mm 1.57 2.75 Chromium Steel Chromium Steel 6 4 1056480 $26.75
LM30UU 30 45 Nylon 64mm 1.57 2.75 Chromium Steel Chromium Steel 6 2 1235454 $16.27
LM12LUU 12 21 Nylon 57mm 1.57 0.813 Chromium Steel Chromium Steel 4 1 1140606 $7.20
LM8UU 8 15 Nylon 45mm 0.784 0.431 Chromium Steel Chromium Steel 4 2 1044764 $7.75
LM8UU 8 15 Nylon 24mm 0.402 0.265 Chromium Steel Chromium Steel 4 4 1056474 $7.05
LM8UU 8 15 Nylon 24mm 0.402 0.265 Chromium Steel Chromium Steel 4 2 1016174 $6.00
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

1.provides LMUU series Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM8UU

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

Nominal Shaft Diamter (dr): 8mm

Outer Diameter (D): 15mm

Total Length (L): 45mm

Ball Circuit: 4

Static Load Capacity (Cor): 0.784kN

Dynamic Load Capacity (Cr): 0.431kN

Number of Pack: 4 Pcs
