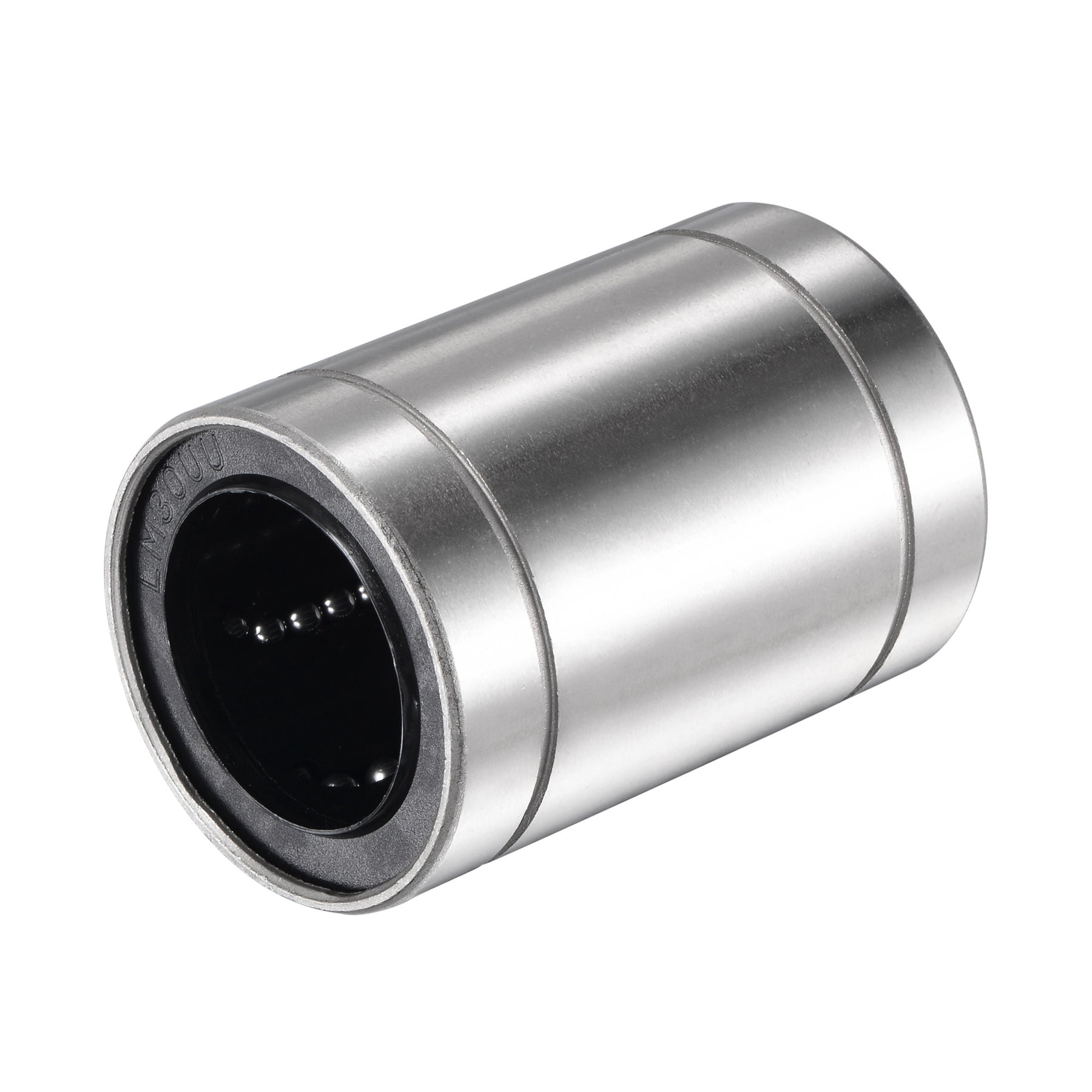

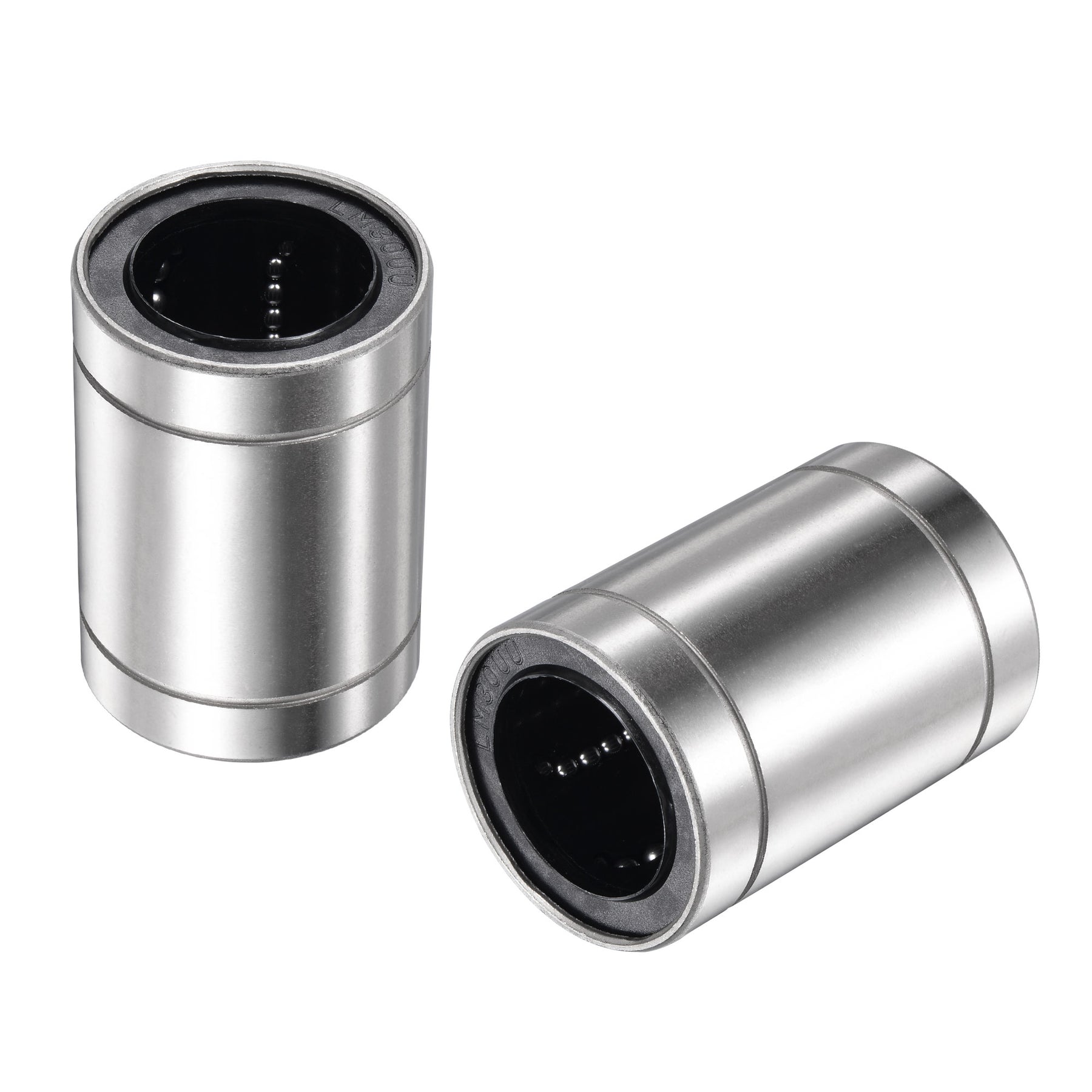

Harfington Uxcell Linear Ball Bearings Nickel Plated for CNC 3D Printer

Uxcell Linear Ball Bearings Nickel Plated for CNC 3D Printer

ID:1250484
ID:1250484
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
4pcs
Package Content
6mm
Size
About this item
  • [SIZE] - Model: LM6UU, 6x12x19mm Metric Double Seal Chromium Steel Linear Bearing
  • [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
  • [FEATURES] - Nickel plating enhances corrosion resistance and durability. These linear bearings with Nickel-Plated surface treatment can operate under corrosive or high-temperature conditions
  • [CAPABILITY] - Static Load Capacity (Cor): 265N, Dynamic Load Capacity (Cr): 206N (Recommended load is 80% of rated load, not to exceed rated load.)
  • [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.
About this item
  • [SIZE] - Model: LM6UU, 6x12x19mm Metric Double Seal Chromium Steel Linear Bearing
  • [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
  • [FEATURES] - Nickel plating enhances corrosion resistance and durability. These linear bearings with Nickel-Plated surface treatment can operate under corrosive or high-temperature conditions
  • [CAPABILITY] - Static Load Capacity (Cor): 265N, Dynamic Load Capacity (Cr): 206N (Recommended load is 80% of rated load, not to exceed rated load.)
  • [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.
Specification

Specification

SKU
a20120900ux0218
Model
LM6UU
I.D.(mm)
6
O.D.(mm)
12
Housing Material
Chrome Steel
Cage Material
Nylon
Total Length
19mm
Static Load Rating(KN)
0.265
Dynamic Load Rating(KN)
0.206
Pkg.Qty.
4
Finished
Nickel Plated
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Descriptions:
  • Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.
  • Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.
Specifications:
  • Model: LM6UU

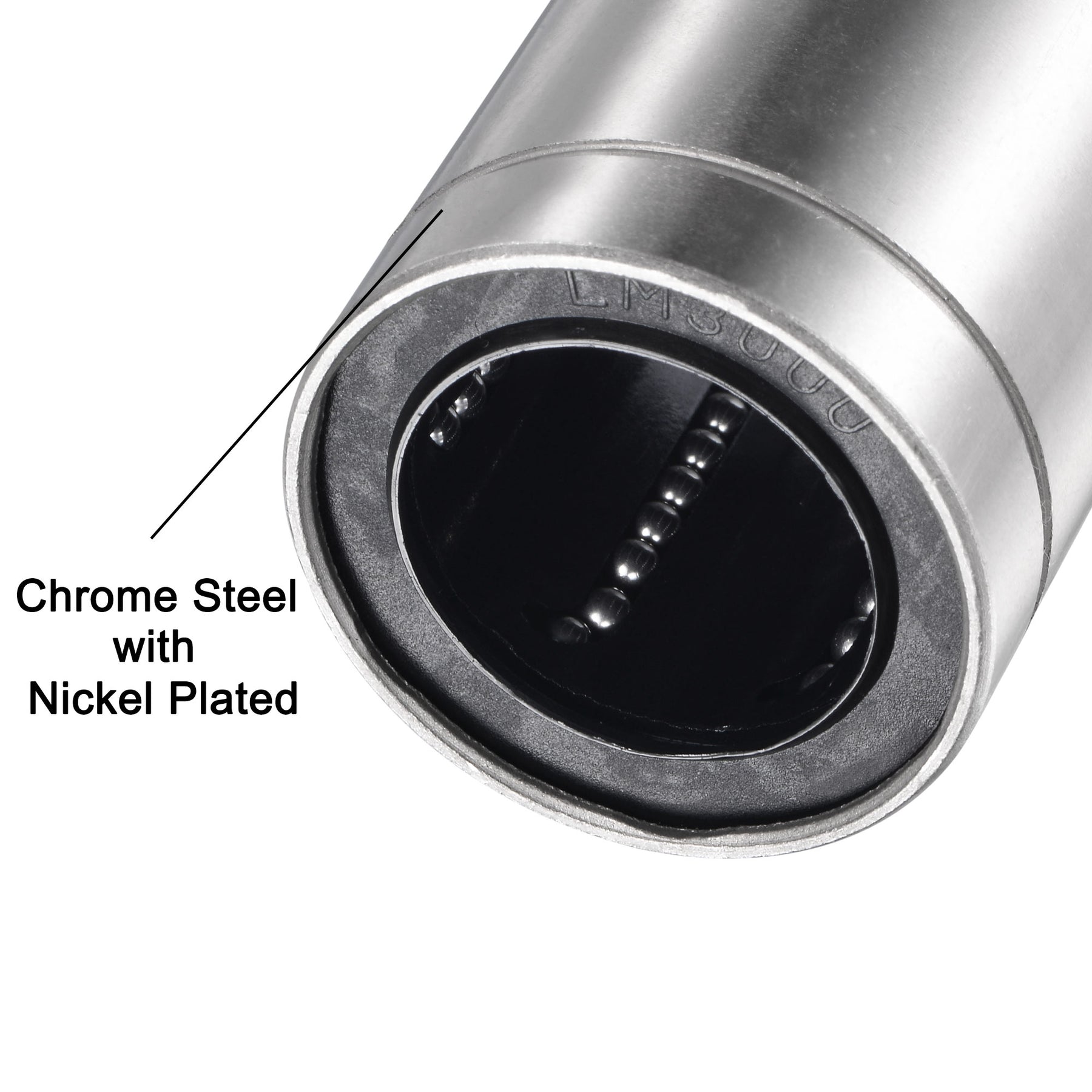

  • Housing Material: Chrome Steel
  • Finished: Nickel Plated
  • Cage Material: Nylon
  • Inner Diameter: 6mm
  • Outer Diameter: 12mm
  • Total Length: 19mm
  • Static Load Capacity (Cor): 265N
  • Dynamic Load Capacity (Cr): 206N
Package Contents:

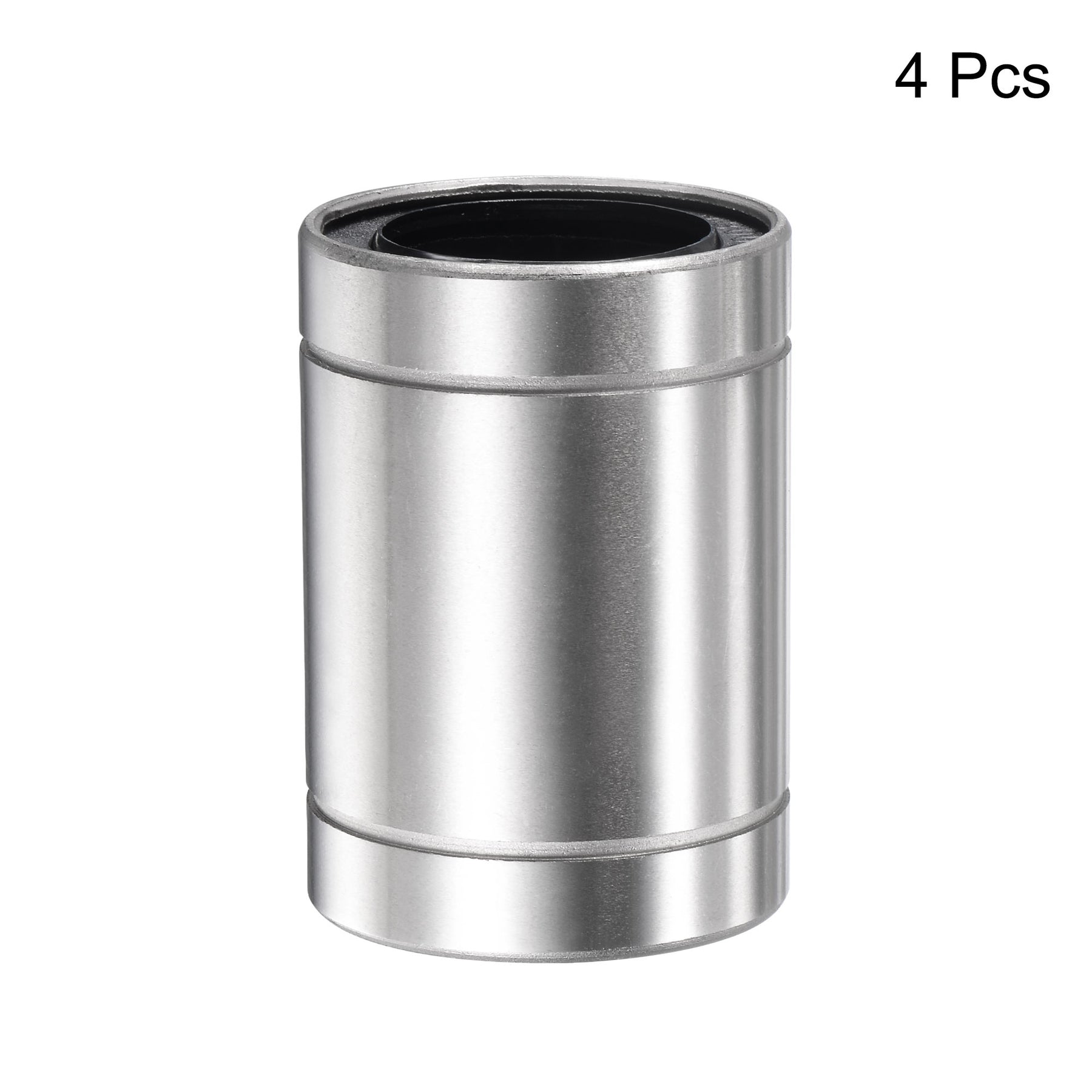

  • 4 x Linear Bearings
$9.17 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model I.D.(mm) O.D.(mm) Housing Material Cage Material Total Length Static Load Rating(KN) Dynamic Load Rating(KN) Pkg.Qty. ID Price Qty
LM6UU 6 12 Chrome Steel Nylon 19mm 0.265 0.206 4 1250484 $9.17
Products Model I.D.(mm) O.D.(mm) Housing Material Cage Material Total Length Static Load Rating(KN) Dynamic Load Rating(KN) Pkg.Qty. ID Price Qty
LM6UU 6 12 Chrome Steel Nylon 19mm 0.265 0.206 4 1250484 $9.17
LM25UU 25 40 Chrome Steel Nylon 59mm 1.57 0.98 4 1249993 $24.82
LM25UU 25 40 Chrome Steel Nylon 59mm 1.57 0.98 2 1250850 $15.64
LM13UU 13 23 Chrome Steel Nylon 32mm 0.775 0.51 4 1250598 $12.57
LM8UU 8 15 Chrome Steel Nylon 24mm 0.265 0.206 4 1251258 $9.54
LM10UU 10 19 Chrome Steel Nylon 29mm 0.402 0.265 2 1250614 $8.33
LM12UU 12 21 Chrome Steel Nylon 30mm 0.549 0.373 2 1009288 $8.46
LM12UU 12 21 Chrome Steel Nylon 30mm 0.549 0.373 4 1249992 $10.68
LM6UU 6 12 Chrome Steel Nylon 19mm 0.265 0.206 2 1251119 $7.27

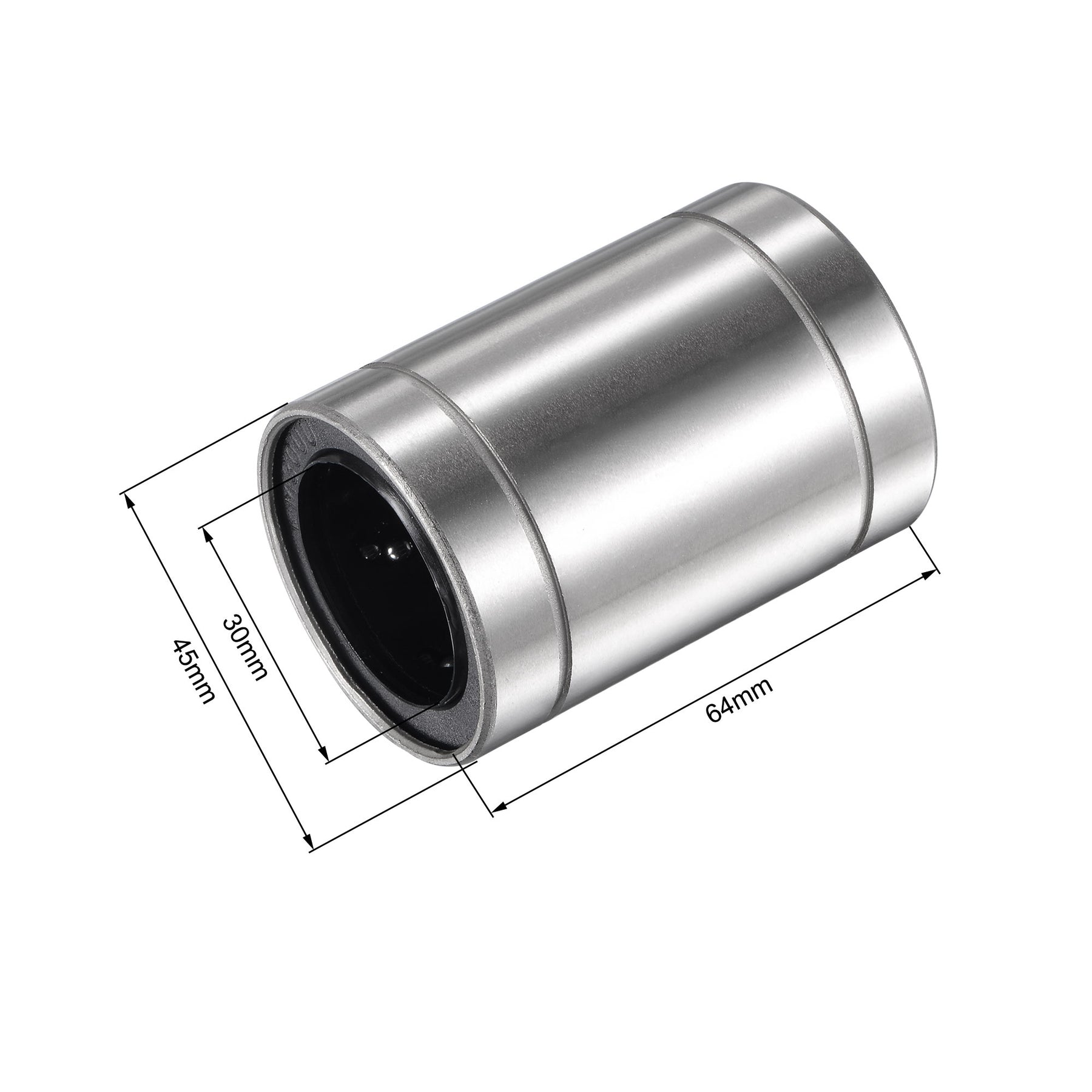

LM30GA 30 45 Chrome Steel Steel 64mm 2.75 1.57 2 1065604 $13.63
LMUT25 25 40 Chrome Steel Nylon 45mm 1.534 0.8625 2 1252520 $16.71
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Descriptions:
  • Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.
  • Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.
Specifications:
  • Model: LM6UU
  • Housing Material: Chrome Steel
  • Finished: Nickel Plated
  • Cage Material: Nylon
  • Inner Diameter: 6mm
  • Outer Diameter: 12mm
  • Total Length: 19mm
  • Static Load Capacity (Cor): 265N
  • Dynamic Load Capacity (Cr): 206N
Package Contents:
  • 4 x Linear Bearings
