Harfington Uxcell Deep Groove Ball Bearings Thin Section Double Sealed Chrome Steel

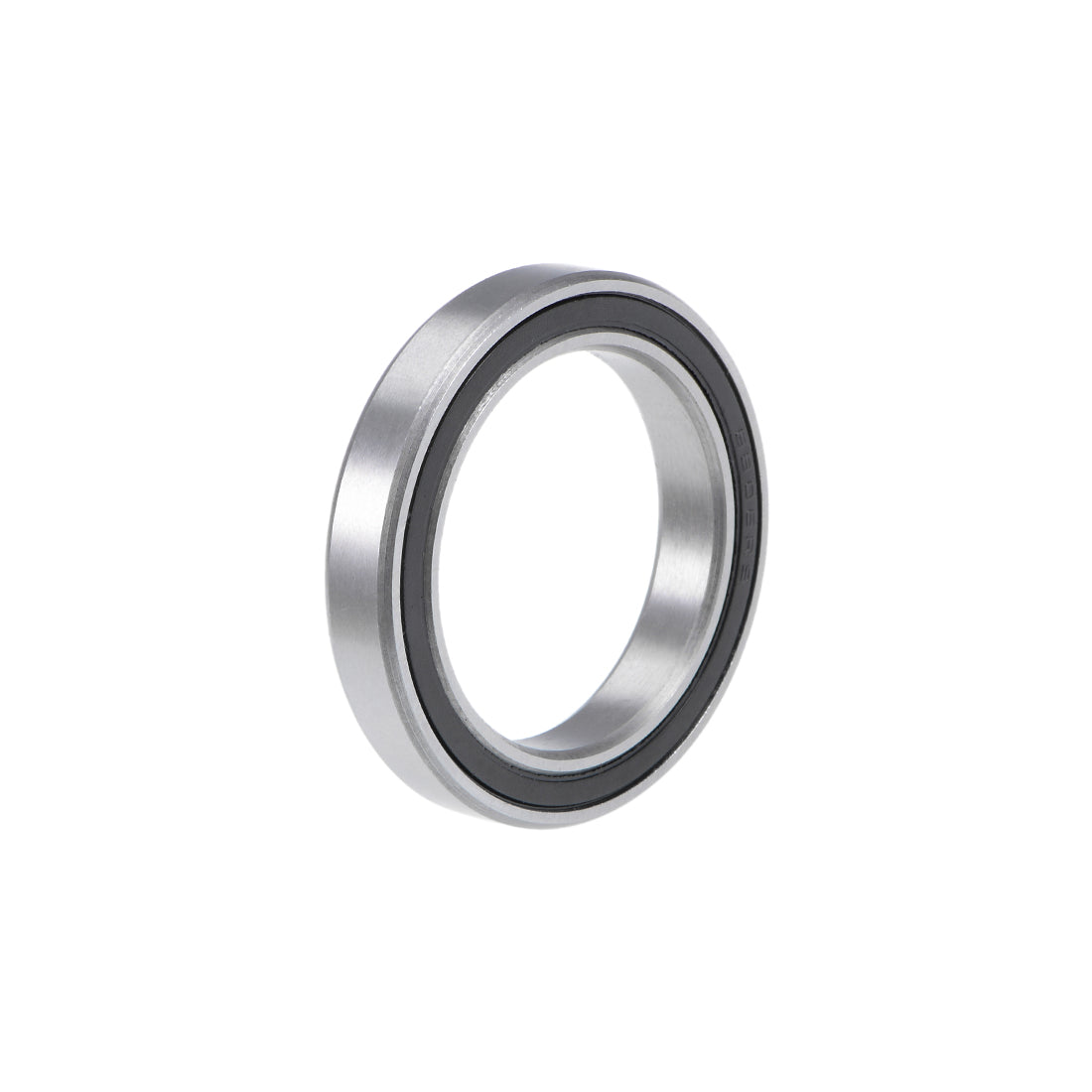

Uxcell Deep Groove Ball Bearings Thin Section Double Sealed Chrome Steel

ID:1058631
ID:1058631
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
30x42x7mm
Size
1pcs
Package Content
About this item

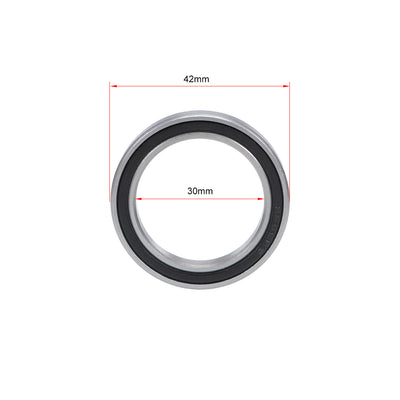

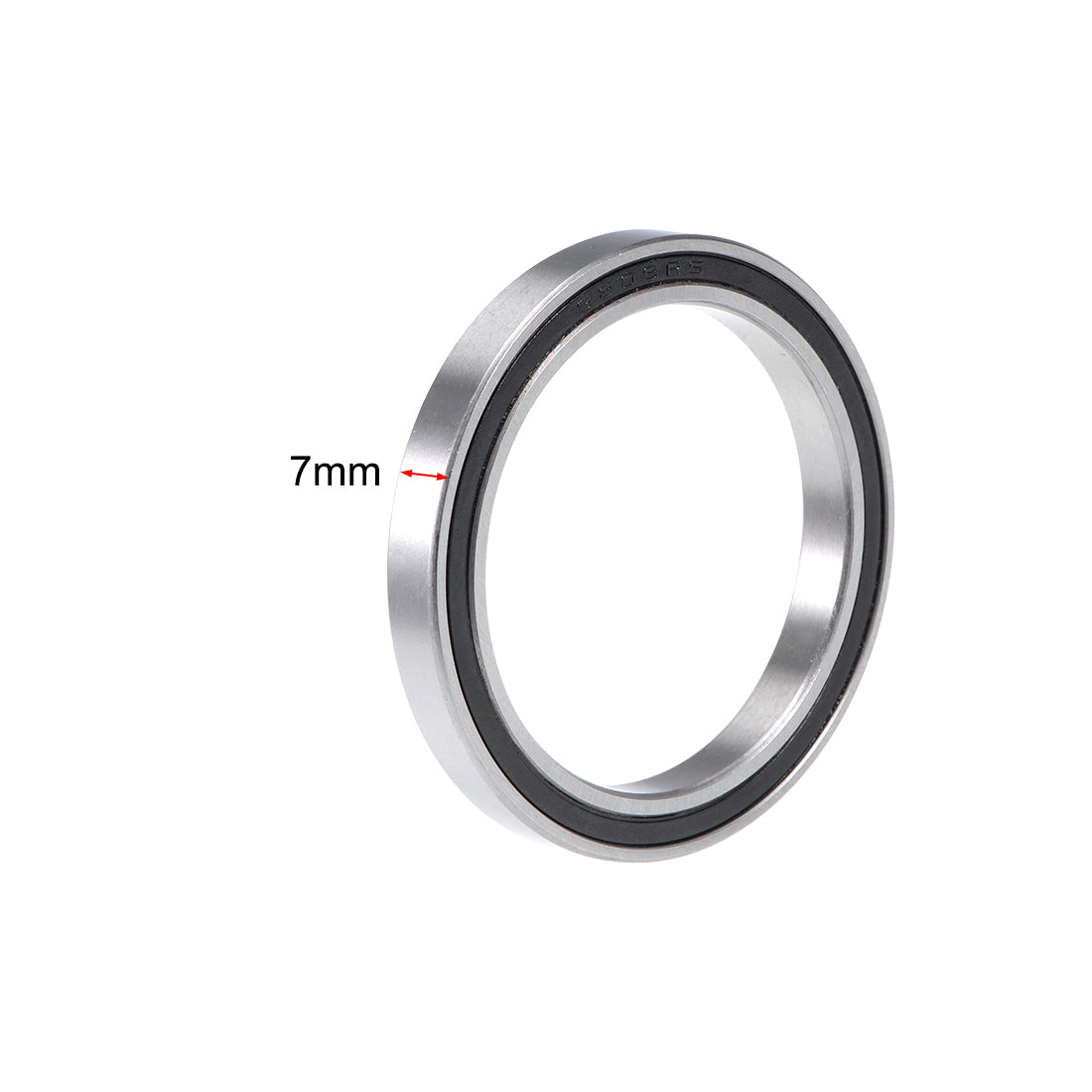

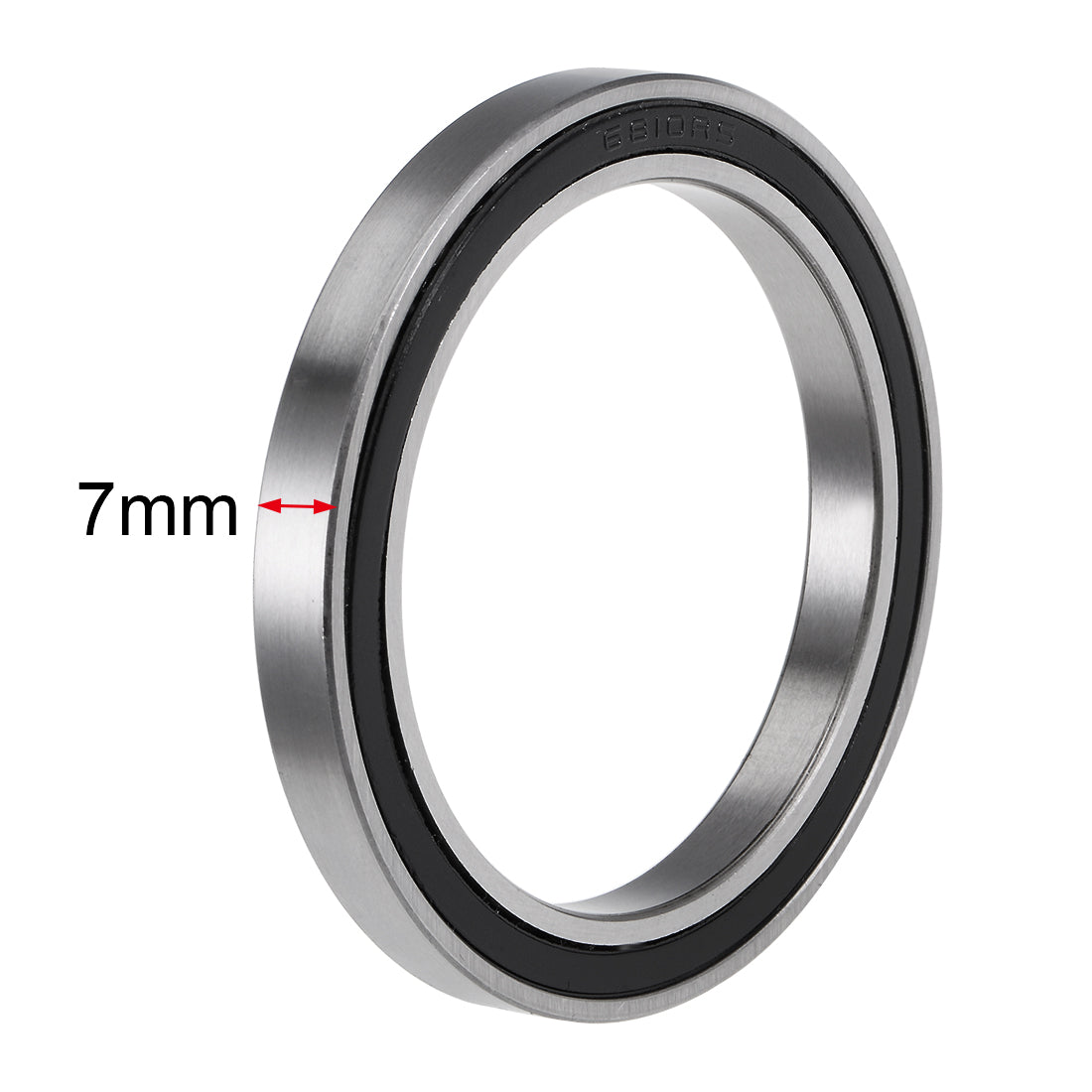

  • 6806-2RS (I.D.=30mm, O.D.=42mm, Thickness=7mm)

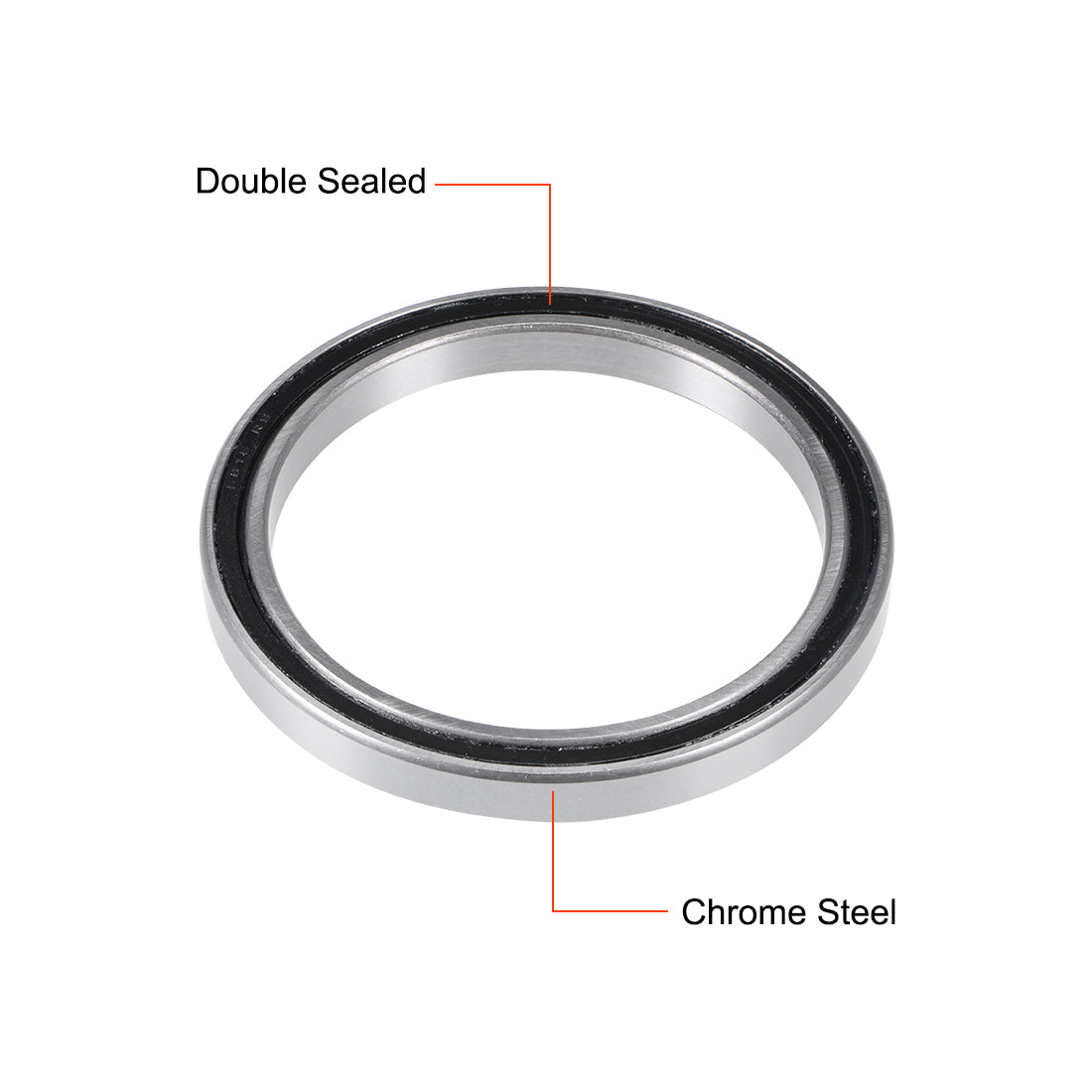

  • 6806-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 3400 newtons and dynamic load rating of 4550 newtons
About this item
  • 6806-2RS (I.D.=30mm, O.D.=42mm, Thickness=7mm)
  • 6806-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 3400 newtons and dynamic load rating of 4550 newtons
Specification

Specification

SKU
a19010900ux0811
Type
Double Sealed
Model
6806-2RS
Dynamic Load Rating(KN)
4.55
Accuracy Class
ABEC-1
Pkg.Qty.
1
I.D.
30mm
O.D.
42mm
Thickness
7mm
Static Load Rating(KN)
3.4
Noise Level
Z1
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

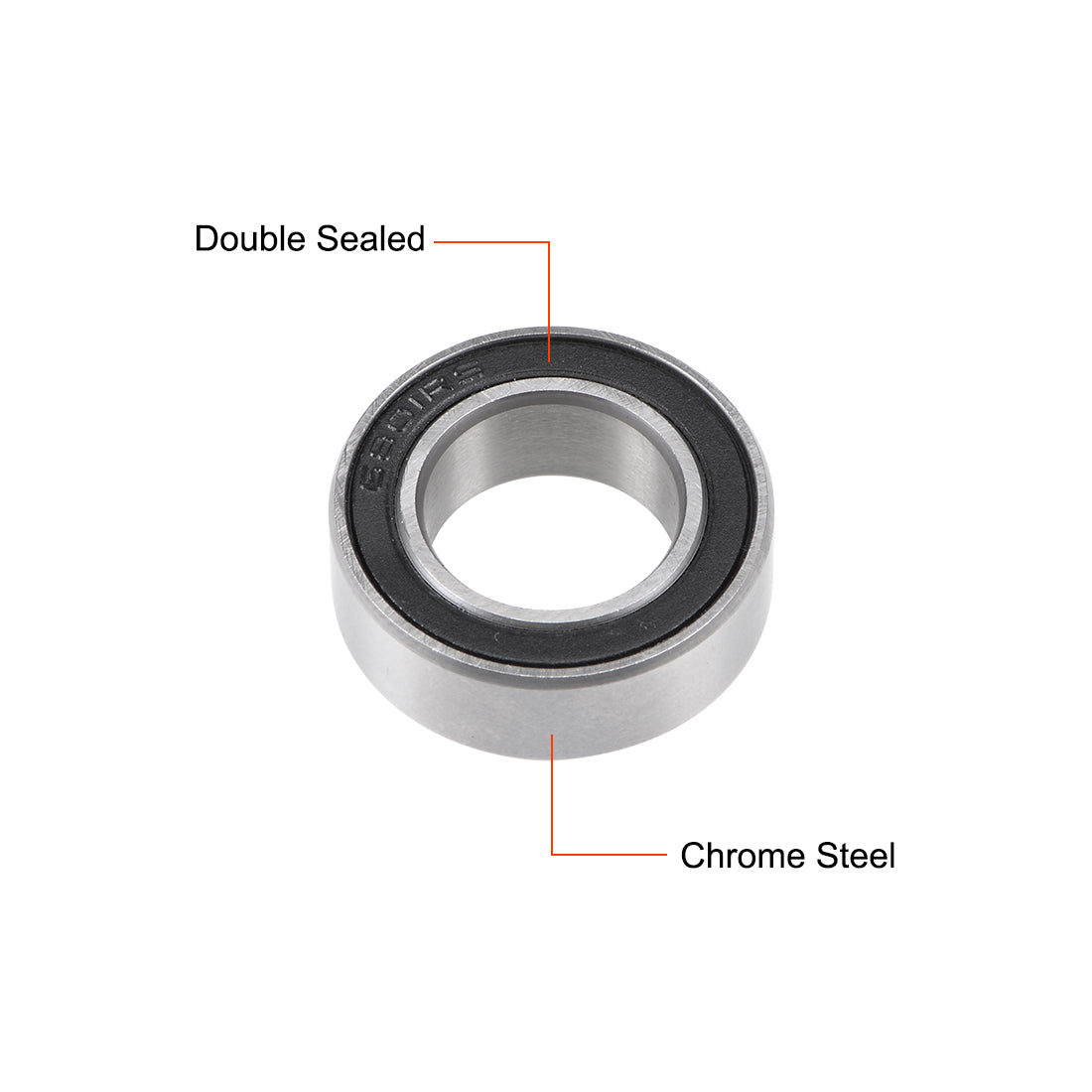

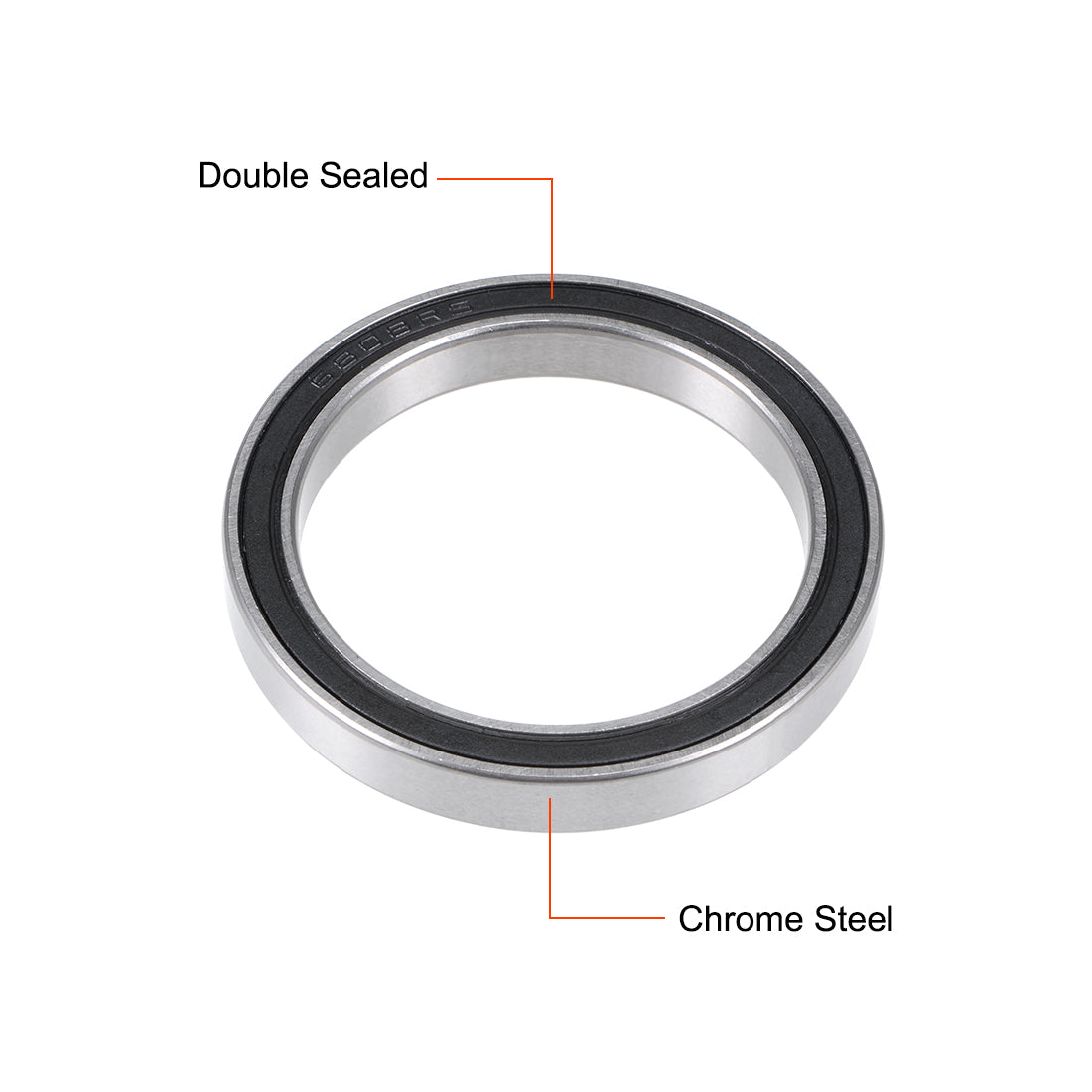

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6806-2RS

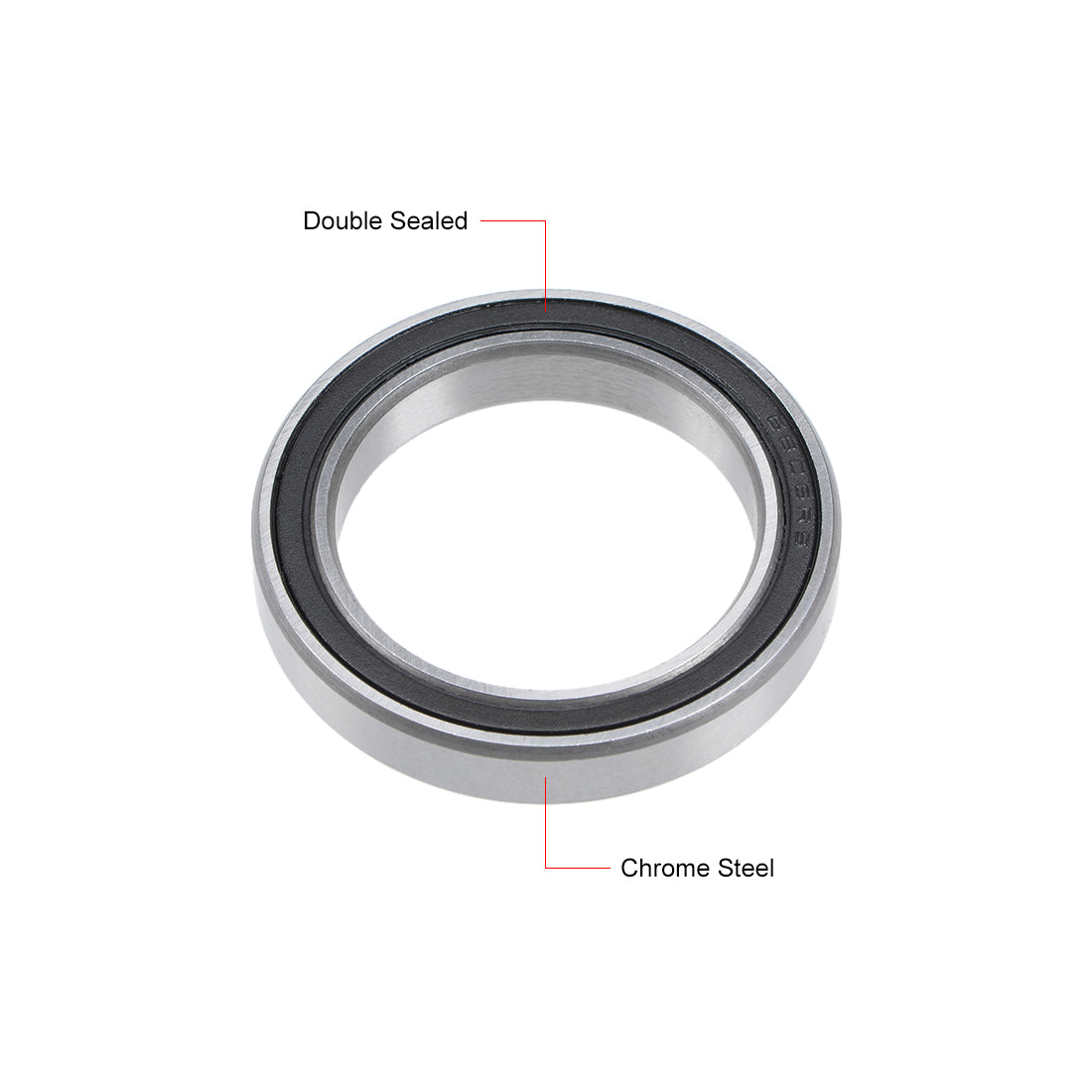

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: Chrome Steel (GCr15)

Cage Material: Stamping Steel

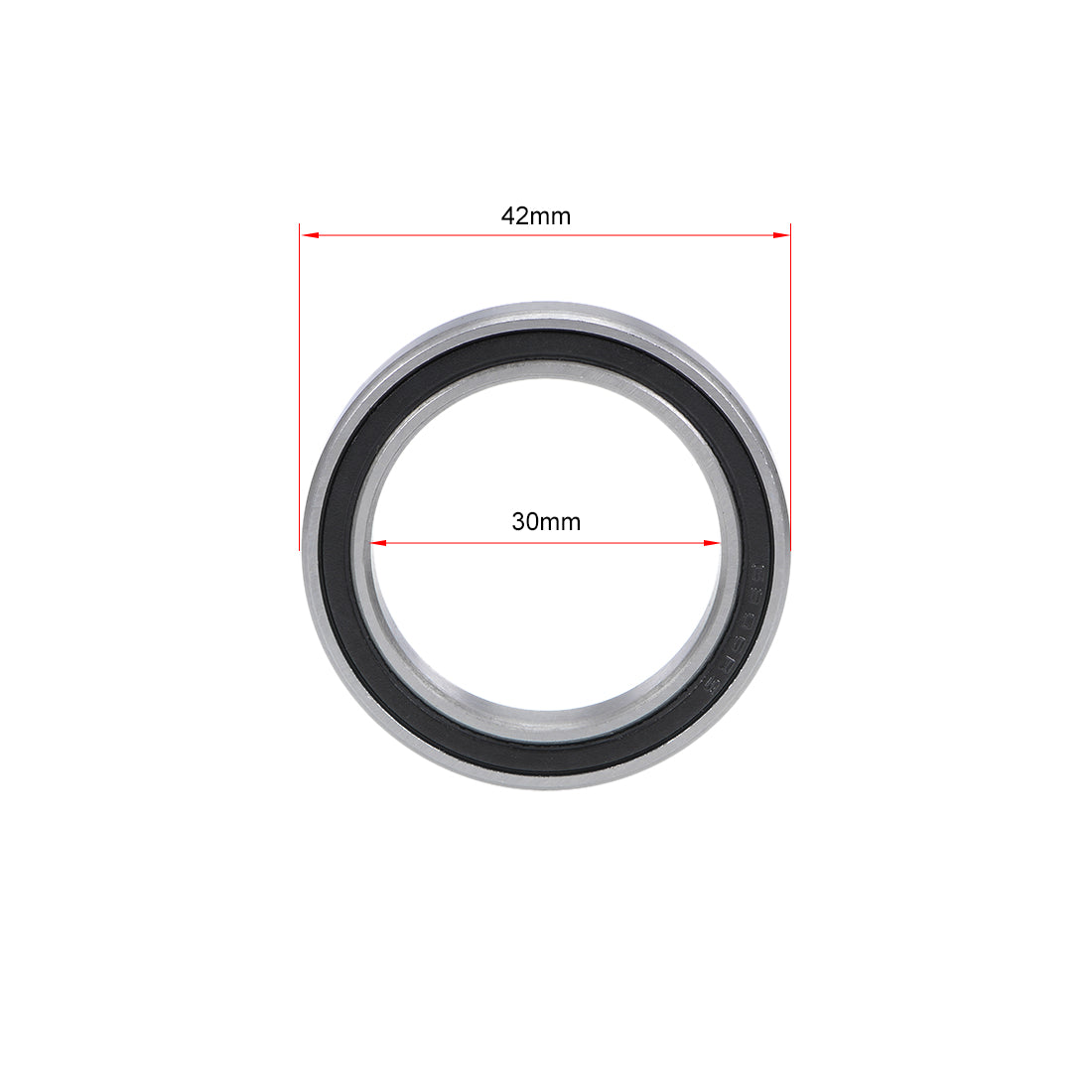

Inner Diameter (d): 30mm

Outer Diameter (D): 42mm

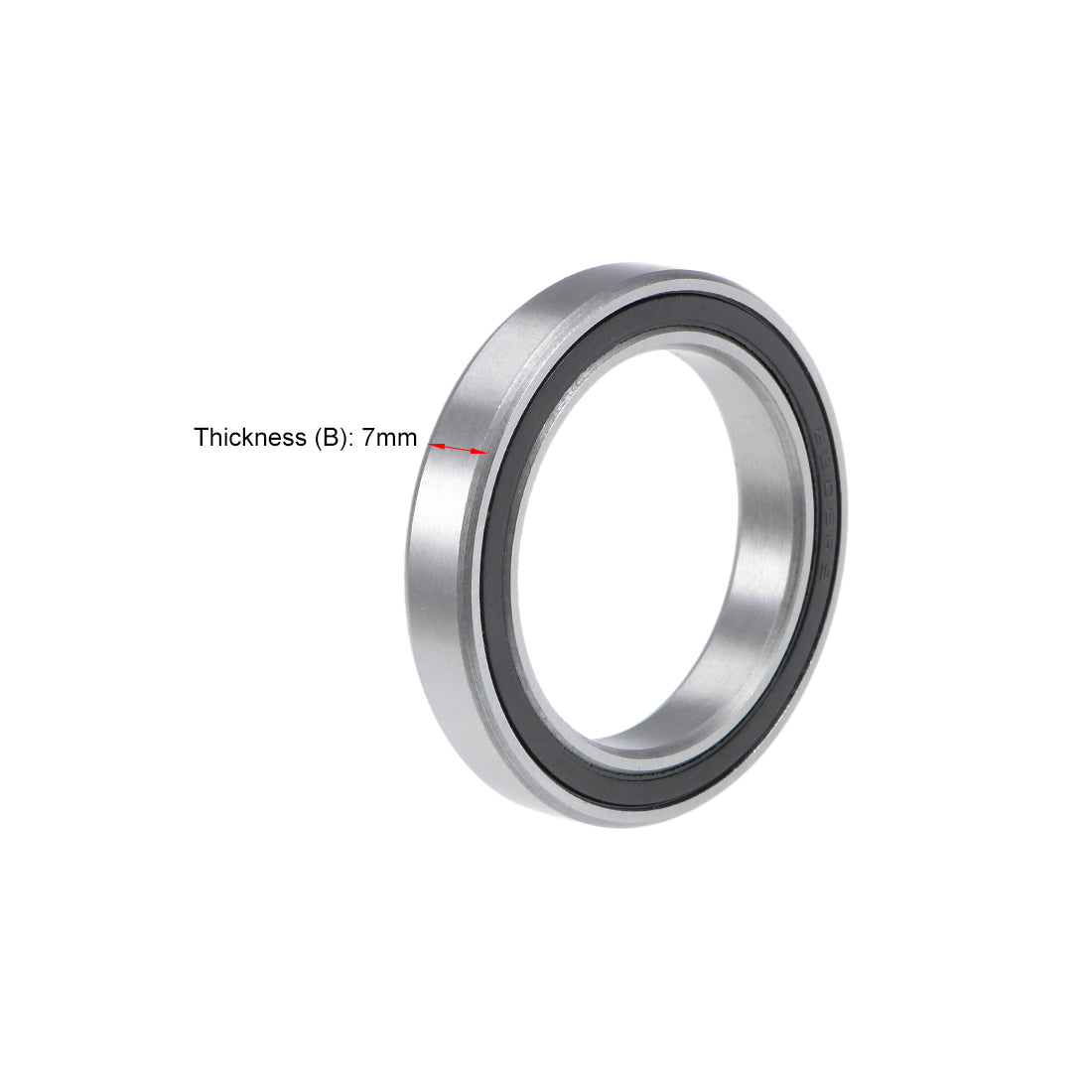

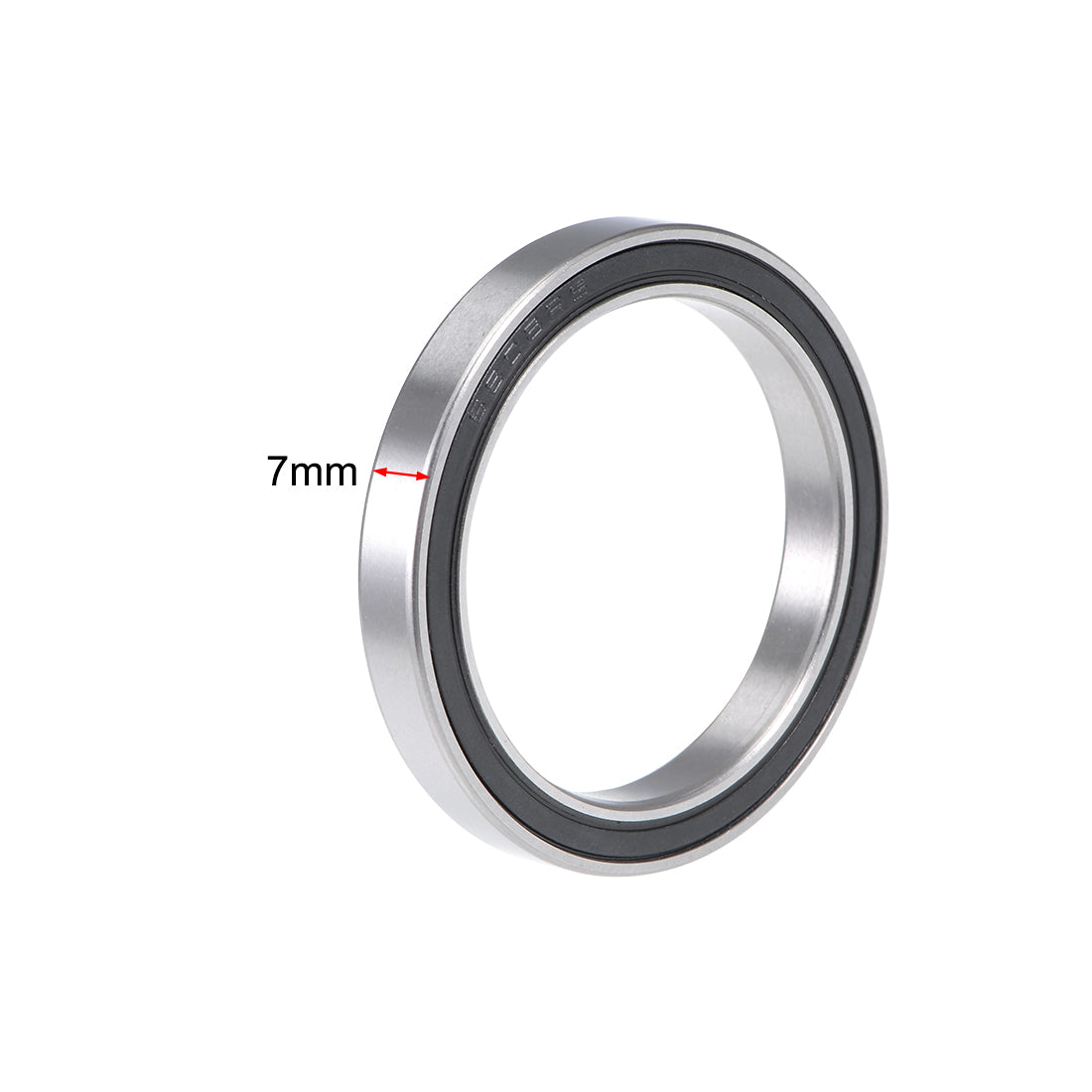

Thickness (B): 7mm

Dynamic Load Rating (Cr): 4.55kN

Static Load Rating (Cor): 3.4kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs

$5.61 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
6806-2RS ABEC-1 / 30mm Z1 42mm 1 / 3.4 7mm Double Sealed 4.55 1058631 $5.61
Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
6806-2RS ABEC-1 / 30mm Z1 42mm 1 / 3.4 7mm Double Sealed 4.55 1058631 $5.61
16008-2RS ABEC-1 / 40mm Z1 68mm 1 / 9.6 9mm Double Sealed 12.6 1058623 $8.08

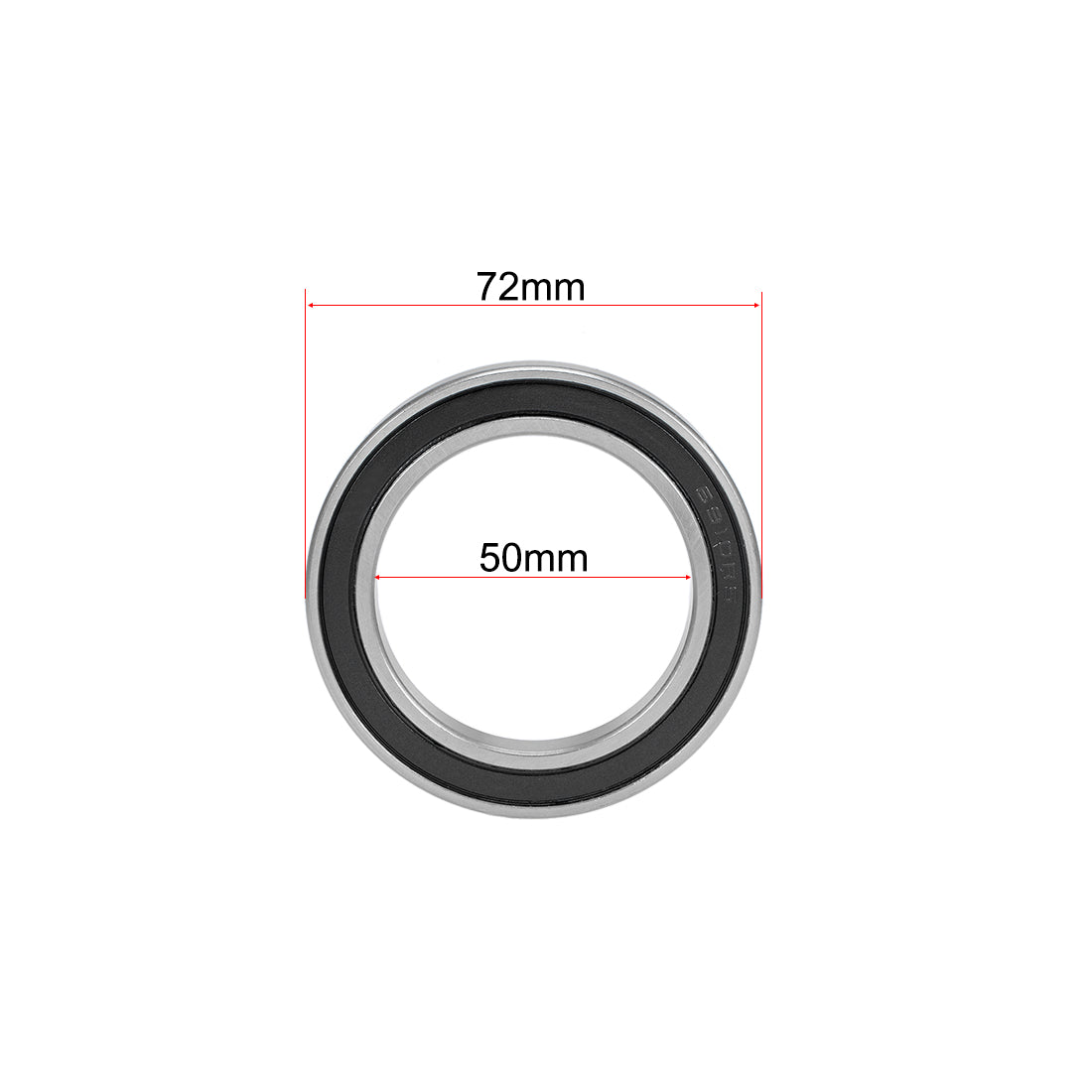

6910-2RS ABEC-1 / 50mm Z1 72mm 1 / 11.7 12mm Double Sealed 14.5 1058632 $7.75
6902-2RS ABEC-1 / 15mm Z2 28mm 5 / 2.3 7mm / 4.3 1059345 $7.24
6906-2RS ABEC-1 / 30mm Z1 47mm 5 / 5 9mm Double Sealed 7.25 1059686 $11.29
6001-2RS ABEC-3 / 12mm Z1 28mm 5 / 2.38 8mm Double Sealed 5.1 1059690 $8.14
6001-2RS ABEC-1 5.1 12mm Z1 28mm 10 2.38 2.38 8mm Double Sealed / 1055712 $8.84
MR128-2RS ABEC-3 / 8mm Z1 12mm 2 / 0.274 3.5mm Double Sealed 0.543 1059826 $5.89
MR126-2RS ABEC-3 / 6mm Z1 12mm 2 / 0.295 4mm Double Sealed 0.716 1059841 $5.94
MR74-2RS ABEC-3 / 4mm Z1 7mm 10 / 0.106 2.5mm Double Sealed 0.252 1059848 $9.79
6306-2RS ABEC-3 / 30mm Z1 72mm 1 / 15 19mm Double Sealed 26.7 1059861 $10.96
R8-2RS ABEC-3 / 12.7mm Z1 28.575mm 5 / 2.415 7.938mm Double Sealed 2.108 1059865 $7.82
R8-2RS ABEC-1 / 12.7mm Z1 28.575mm 2 / 2.415 7.938mm Double Sealed 2.108 1046036 $5.19
MR84-2RS ABEC-3 / 4mm Z1 8mm 10 / 0.129 3mm Double Sealed 0.376 1059869 $9.79
R16-2RS ABEC-1 / 25.4mm Z1 50.8mm 1 / 1.307 12.7mm Double Sealed 2.652 1061822 $7.78
205PP ABEC-1 / 25mm Z1 52mm 2 / 7.88 15mm Double Sealed 14 1061883 $10.49
203PP ABEC-1 / 17mm Z1 40mm 1 / 4.78 12mm Double Sealed 9.58 1061884 $6.77
6903-2RS ABEC-1 / 17mm / 30mm 8 / 2.6 7mm Double Sealed 4.6 1089348 $8.97
606-2RS ABEC-1 1.95 6mm Z1 17mm 20 0.72 0.72 6mm Double Sealed / 1034247 $8.58
626-2RS ABEC-1 / 6mm / 19mm 4 / / 6mm Double Sealed 2.6 1034300 $5.89
626-2RS ABEC-1 2.6 6mm Z2 19mm 2 1.05 1.05 6mm Double Sealed / 1055695 $5.79
6204-2RS ABEC-3 / 20mm Z1 47mm 2 / 6.65 14mm Double Sealed 12.8 1035188 $8.73
6305-2RS ABEC-3 / 25mm Z1 62mm 2 / 11.3 17mm Double Sealed 20.6 1035222 $12.89
6302-2RS ABEC-3 / 15mm Z1 42mm 2 / 5.42 13mm Double Sealed 11.5 1035225 $8.33
608-2RS ABEC-3 / 8mm Z1 22mm 2 / 1.379 7mm Double Sealed 3.293 1006725 $5.68
6802-2RS ABEC-3 / 15mm Z1 24mm 5 / 1.3 5mm Double Sealed 2.1 1047377 $7.68
6905-2RS ABEC-1 / 25mm Z1 42mm 1 / 4.55 9mm Double Sealed 7 1040693 $5.41
6702-2RS ABEC-3 / 15mm Z1 21mm 2 / 0.578 4mm Double Sealed 0.941 1028784 $6.71
S6205-2RS ABEC-1 / 25mm Z1 52mm 1 / 7.85 15mm Double Sealed 14 1029278 $9.21
MR148-2RS ABEC-3 / 8mm Z1 14mm 4 / 0.386 4mm Double Sealed 0.817 1071264 $7.05
S6005-2RS ABEC-1 / 25mm Z1 47mm 1 / 5.85 12mm Double Sealed 10.1 1067775 $8.21
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6806-2RS

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 30mm

Outer Diameter (D): 42mm

Thickness (B): 7mm

Dynamic Load Rating (Cr): 4.55kN

Static Load Rating (Cor): 3.4kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs
