Harfington Uxcell Deep Groove Ball Bearings Thin Section Double Sealed Chrome Steel Z2

Uxcell Deep Groove Ball Bearings Thin Section Double Sealed Chrome Steel Z2

ID:1059194
ID:1059194
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
20x32x7mm
Size
2pcs
Package Content
About this item

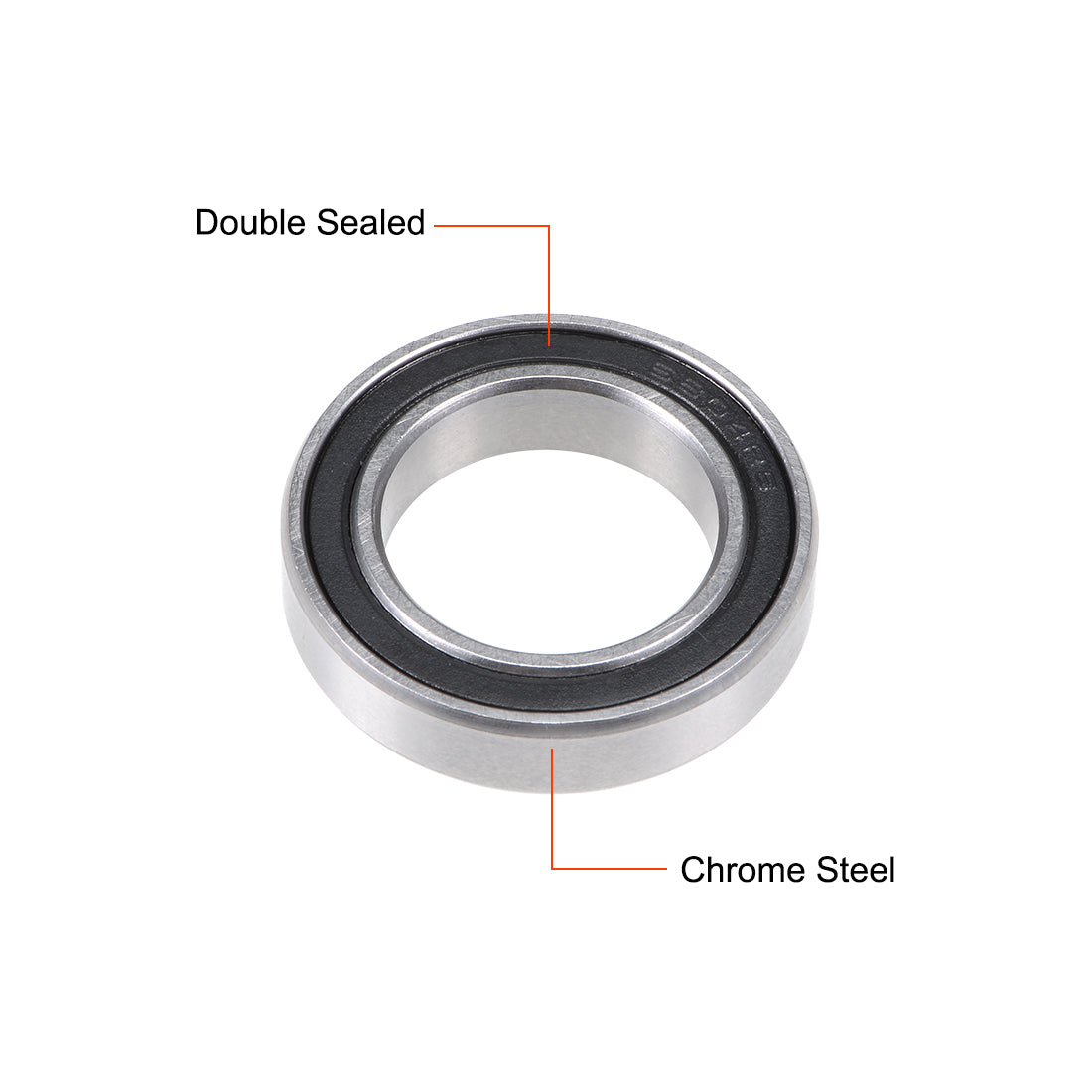

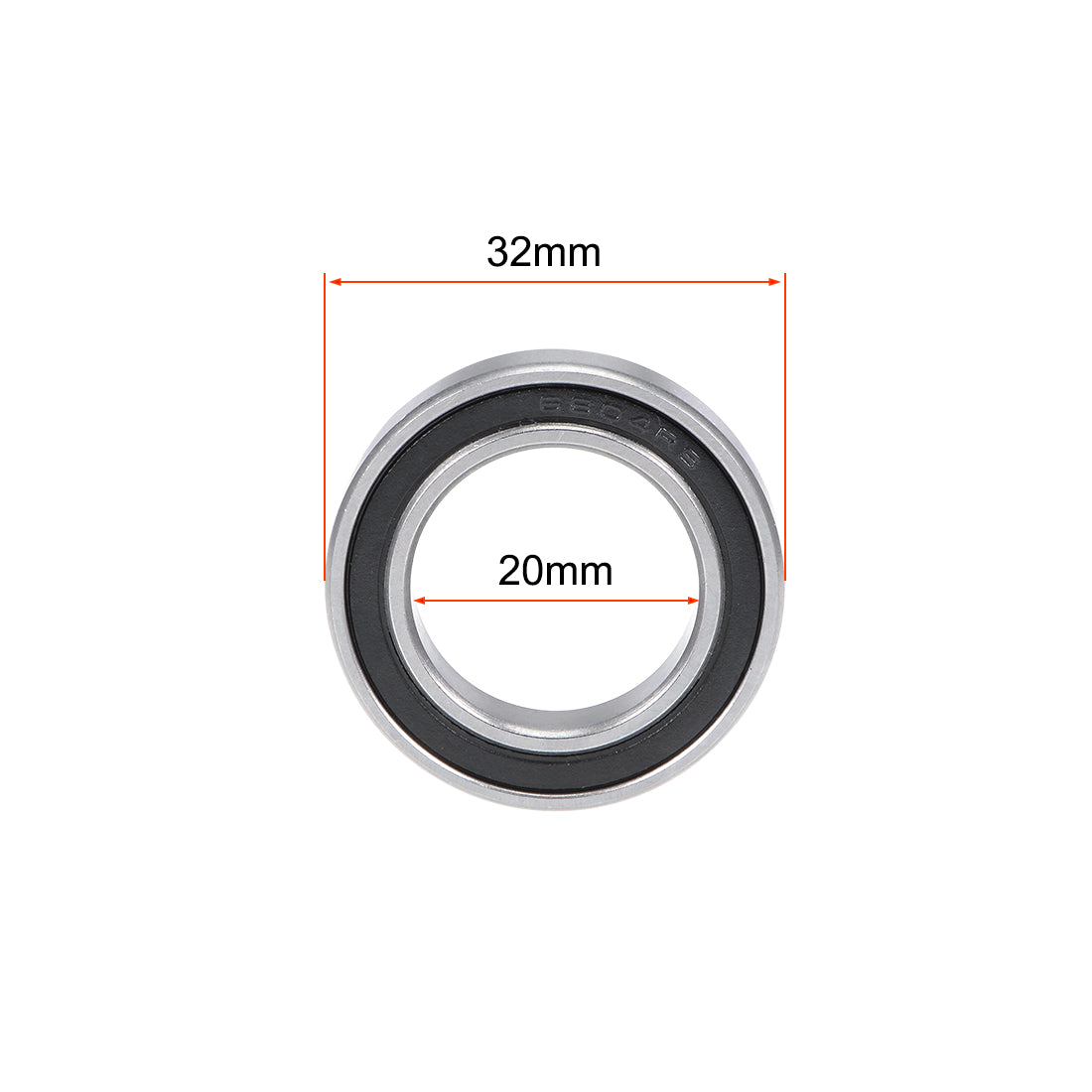

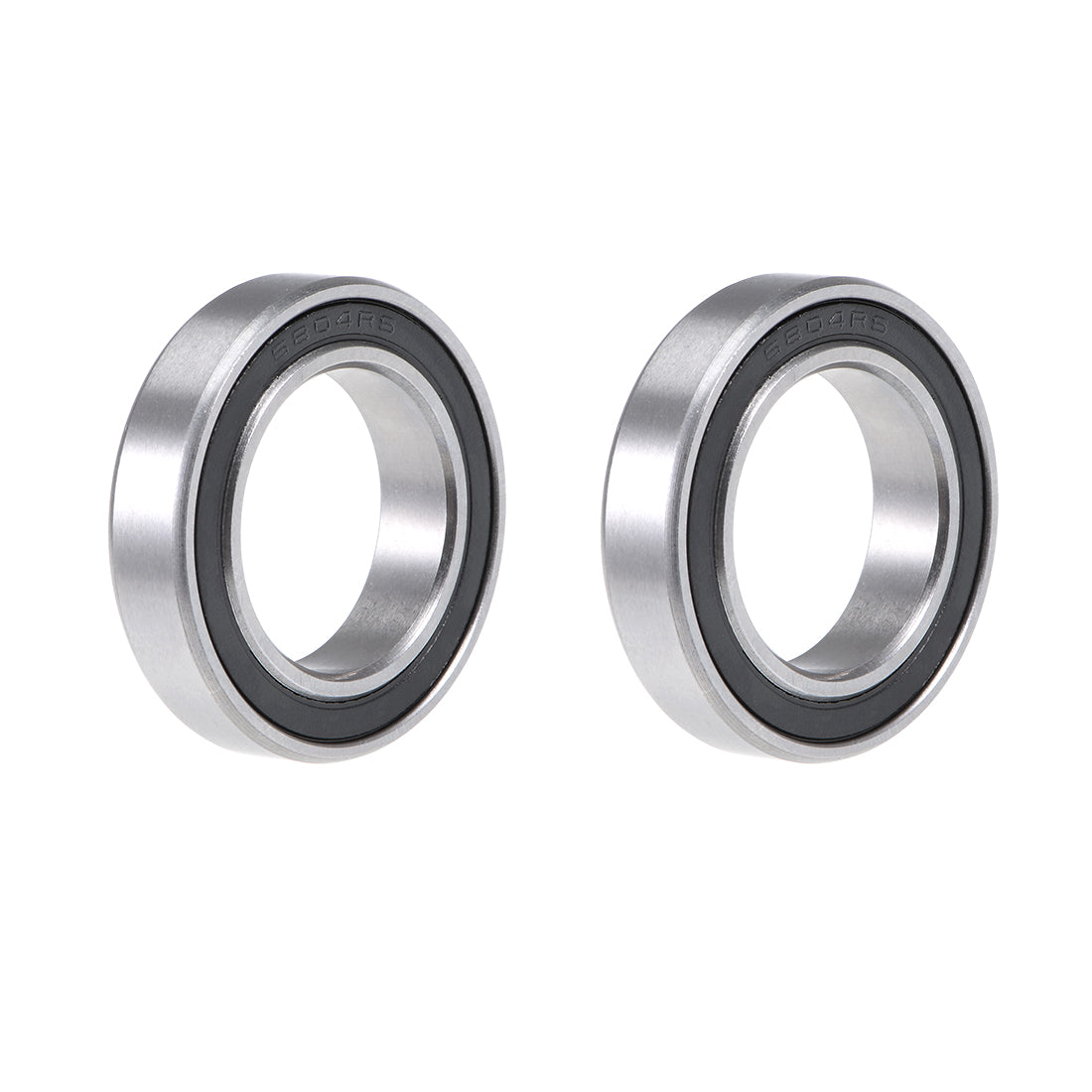

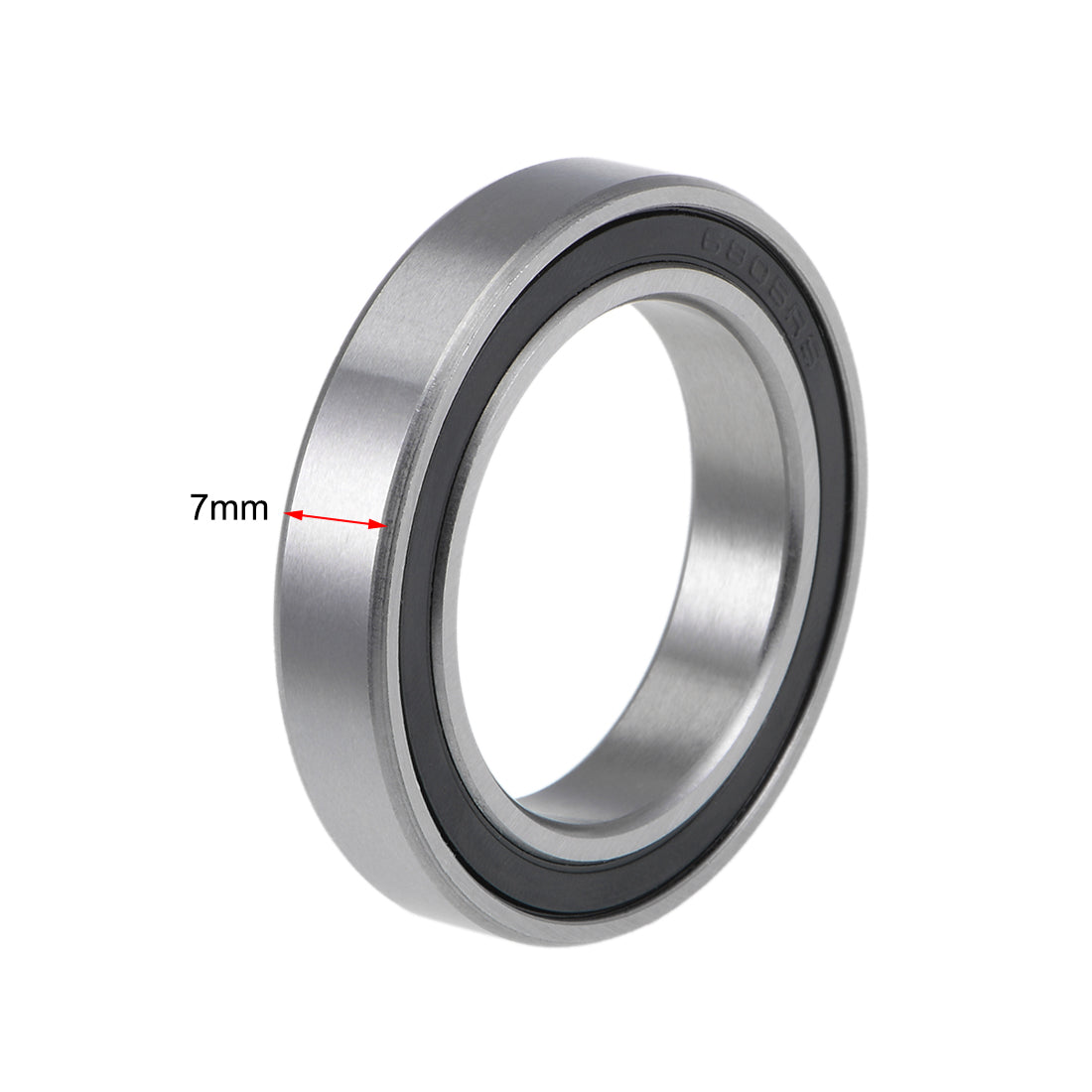

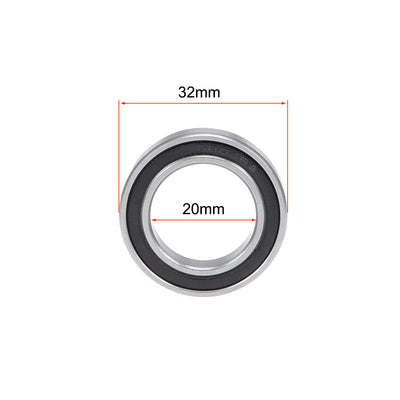

  • 6804-2RS (I.D.=20mm, O.D.=32mm, Thickness=7mm)
  • 6804rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 2200 newtons and dynamic load rating of 3500 newtons
About this item
  • 6804-2RS (I.D.=20mm, O.D.=32mm, Thickness=7mm)
  • 6804rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 2200 newtons and dynamic load rating of 3500 newtons
Specification

Specification

SKU
a19030500ux0697
Model
6804-2RS
Type
Double Sealed
Material
Chromium Steel
Dynamic Load Rating(KN)
3.5
Accuracy Class
ABEC-1
Pkg.Qty.
2
I.D.
20mm
O.D.
32mm
Thickness
7mm
Static Load Rating(KN)
2.2
Noise Level
Z2
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

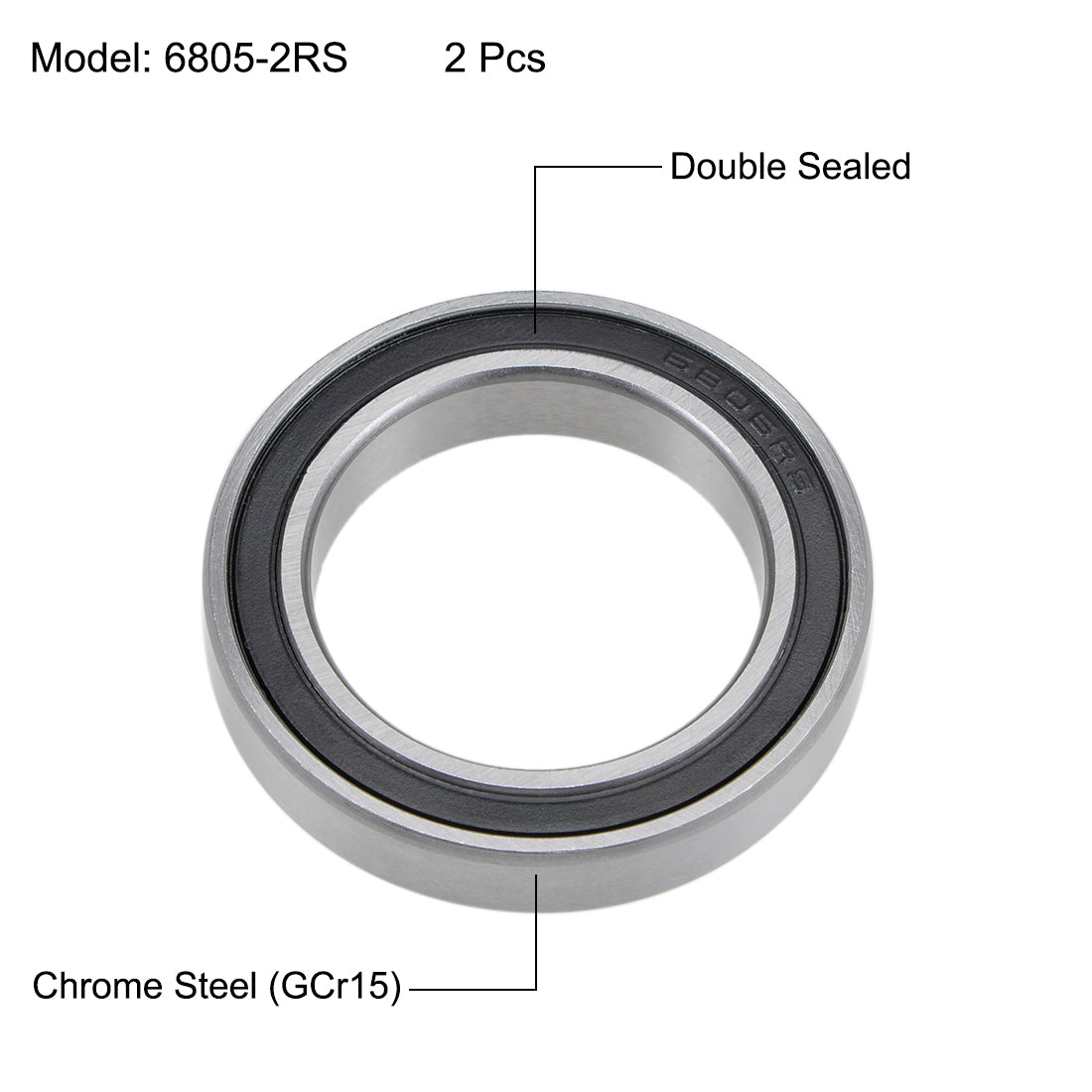

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6804-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 20mm

Outer Diameter (D): 32mm

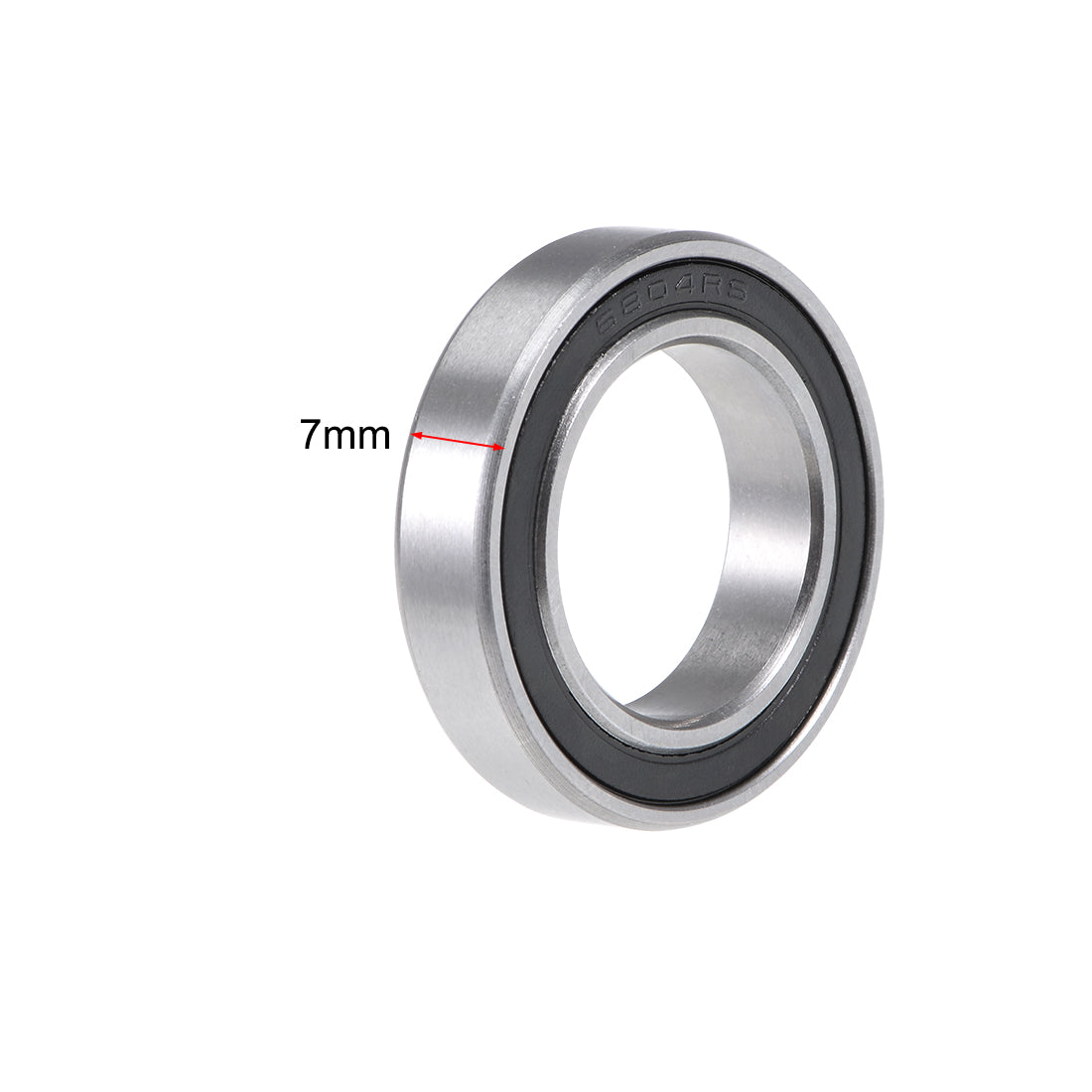

Thickness (B): 7mm

Dynamic Load Rating (Cr): 3.5kN

Static Load Rating (Cor): 2.2kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 2 Pcs

$6.23 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Model O.D. I.D. Thickness Material Dynamic Load Rating(KN) Static Load Rating(KN) Accuracy Class Pkg.Qty. ID Price Qty
6804-2RS 32mm 20mm 7mm Chromium Steel 3.5 2.2 ABEC-1 2 1059194 $6.23
Products Model O.D. I.D. Thickness Material Dynamic Load Rating(KN) Static Load Rating(KN) Accuracy Class Pkg.Qty. ID Price Qty
6804-2RS 32mm 20mm 7mm Chromium Steel 3.5 2.2 ABEC-1 2 1059194 $6.23
6202-16-2RS 35mm 16mm 11mm Chromium Steel 7.65 3.72 ABEC-1 1 1206216 $5.30
6202-16-2RS 35mm 16mm 11mm Chromium Steel 7.65 3.72 ABEC-1 2 1046662 $6.56
6700-2RS 15mm 10mm 4mm Chromium Steel 0.853 0.431 ABEC-1 5 1046656 $6.58
6700-2RS 15mm 10mm 4mm Chromium Steel 0.853 0.431 ABEC-1 5 1104290 $6.59
6700-2RS 15mm 10mm 4mm Chromium Steel 0.853 0.431 ABEC-1 2 1046653 $5.61
6700-2RS 15mm 10mm 4mm Chromium Steel 0.853 0.431 ABEC-1 2 1146101 $5.80
608-2RS 22mm 8mm 7mm Chrome Steel / 1.35 ABEC-1 1 1055448 $5.79
608-2RS 22mm 8mm 7mm Chromium Steel 3.3 1.35 ABEC-1 2 1058019 $5.42
626-2RS 19mm 6mm 6mm Chromium Steel 2.6 1.05 ABEC-1 2 1057993 $5.42
16101-2RS 30mm 12mm 8mm Chromium Steel 5.07 2.36 ABEC-1 2 1059195 $6.14
16101-2RS 30mm 12mm 8mm Chromium Steel 5.07 2.36 ABEC-1 1 1206219 $5.53

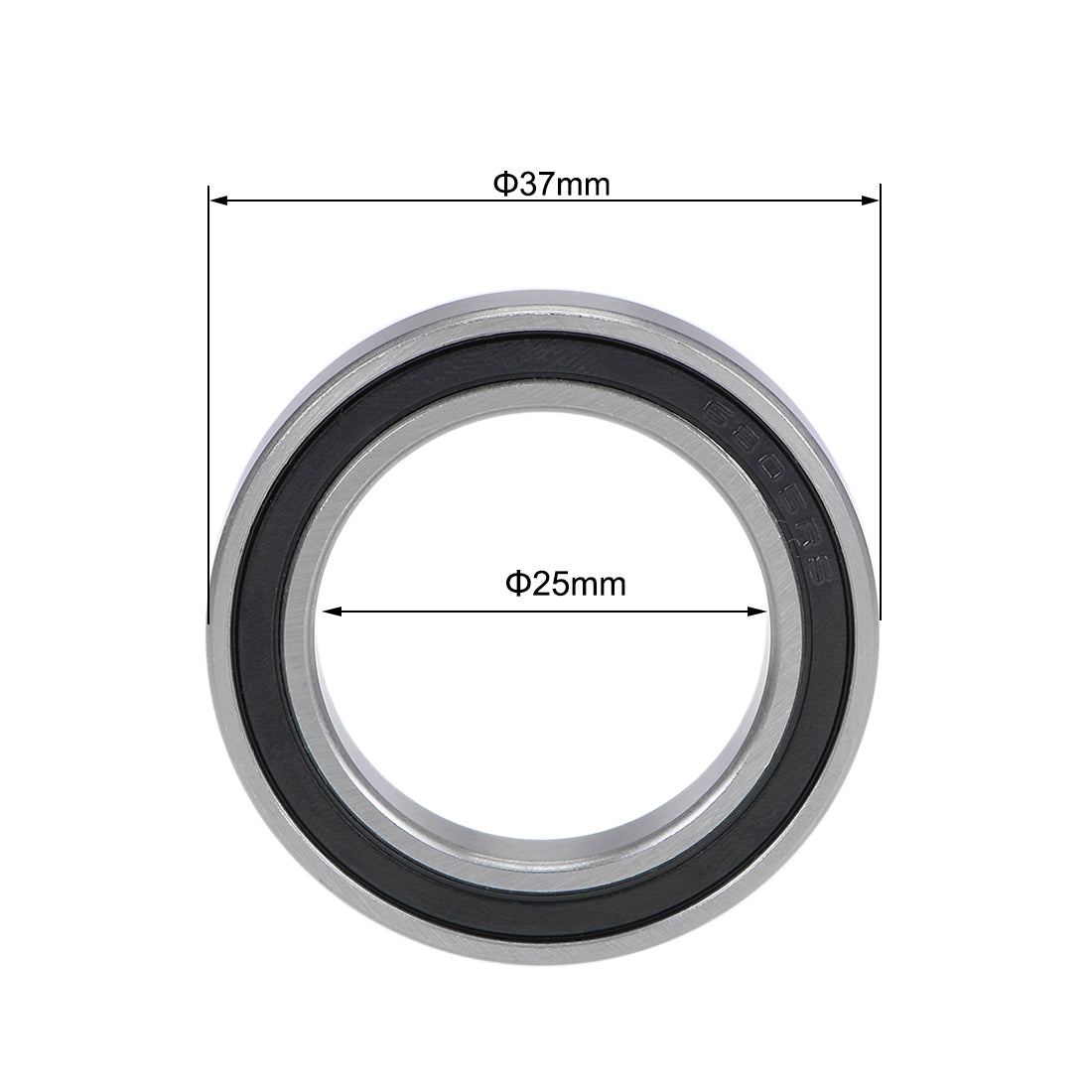

S61805-2RS 37mm 25mm 7mm Stainless Steel 4.3 2.9 ABEC-1 1 1206217 $7.29
S61805-2RS 37mm 25mm 7mm Stainless Steel 4.3 2.9 ABEC-1 2 1104292 $10.13
629-2RS 26mm 9mm 8mm Chromium Steel 4.45 1.95 ABEC-1 2 1058005 $5.63
6704-2RS 27mm 20mm 4mm Chromium Steel 1.04 0.725 ABEC-1 2 1046650 $7.17
60/28-2RS 52mm 28mm 12mm Chromium Steel 12.4 7.4 ABEC-1 2 1059202 $10.22
607-2RS 19mm 7mm 6mm Chromium Steel 2.6 1.05 ABEC-1 2 1058038 $5.42
607-2RS 19mm 7mm 6mm Chrome Steel / 1.05 ABEC-1 10 1016340 $8.08
625-2RS 16mm 5mm 5mm Chromium Steel 1.75 0.67 ABEC-1 2 1058042 $5.19
6702-2RS 21mm 15mm 4mm Chromium Steel 0.941 0.578 ABEC-1 2 1046651 $6.15
6808-2RS 52mm 40mm 7mm Chromium Steel 4.95 4.2 ABEC-1 2 1046657 $7.82
62200-2RS 30mm 10mm 14mm Chromium Steel 5.07 2.36 ABEC-1 1 1059177 $5.61
63802-2RS 24mm 15mm 7mm Chromium Steel 1.65 1.08 ABEC-1 1 1059180 $5.80
16100-2RS 28mm 10mm 8mm Chromium Steel 5.07 2.36 ABEC-1 5 1059198 $7.94
16100-2RS 28mm 10mm 8mm Chromium Steel 5.07 2.36 ABEC-1 2 1059174 $5.96
6203-2RS 40mm 17mm 12mm Chromium Steel 9.58 4.78 ABEC-1 10 1058157 $19.25
62/22-2RS 50mm 22mm 14mm Chromium Steel 12.8 6.65 ABEC-1 1 1059182 $7.30
62/22-2RS 50mm 22mm 14mm Chromium Steel 12.8 6.65 ABEC-1 2 1059201 $10.53
6807-2RS 47mm 35mm 7mm Chromium Steel 4.75 3.85 ABEC-1 1 1059186 $5.73
6809-2RS 58mm 45mm 7mm Chromium Steel 6.4 5.6 ABEC-1 2 1046655 $8.25
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6804-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 20mm

Outer Diameter (D): 32mm

Thickness (B): 7mm

Dynamic Load Rating (Cr): 3.5kN

Static Load Rating (Cor): 2.2kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 2 Pcs
